2-10
Vehicle information
TYRES AND WHEELS
itemTyre sizeWheel
sizeInflation pressure, bar (psi, kPa)
Wheel lug nut
torque lbf·ft
NJIÃP1‡P Normal load *
1
Maximum load
Front Rear Front Rear
Full size tyre175/65R14 5.5JX14 230,33 (2.3) 210,30 (2.1) 230,33 (2.3) 250,36 (2.5)
79~94
(11~13,
107~127) 185/55R15 6.0JX15 230,33 (2.3) 210,30 (2.1) 230,33 (2.3) 250,36 (2.5)
195/45R16 6.5JX16 230,33 (2.3) 210,30 (2.1) 230,33 (2.3) 250,36 (2.5)
Temporary tyre T115/70D15 3.5JX15 420,60 (4.2)*1 : Normal load : Up to 3 personsNOTICE

6-40

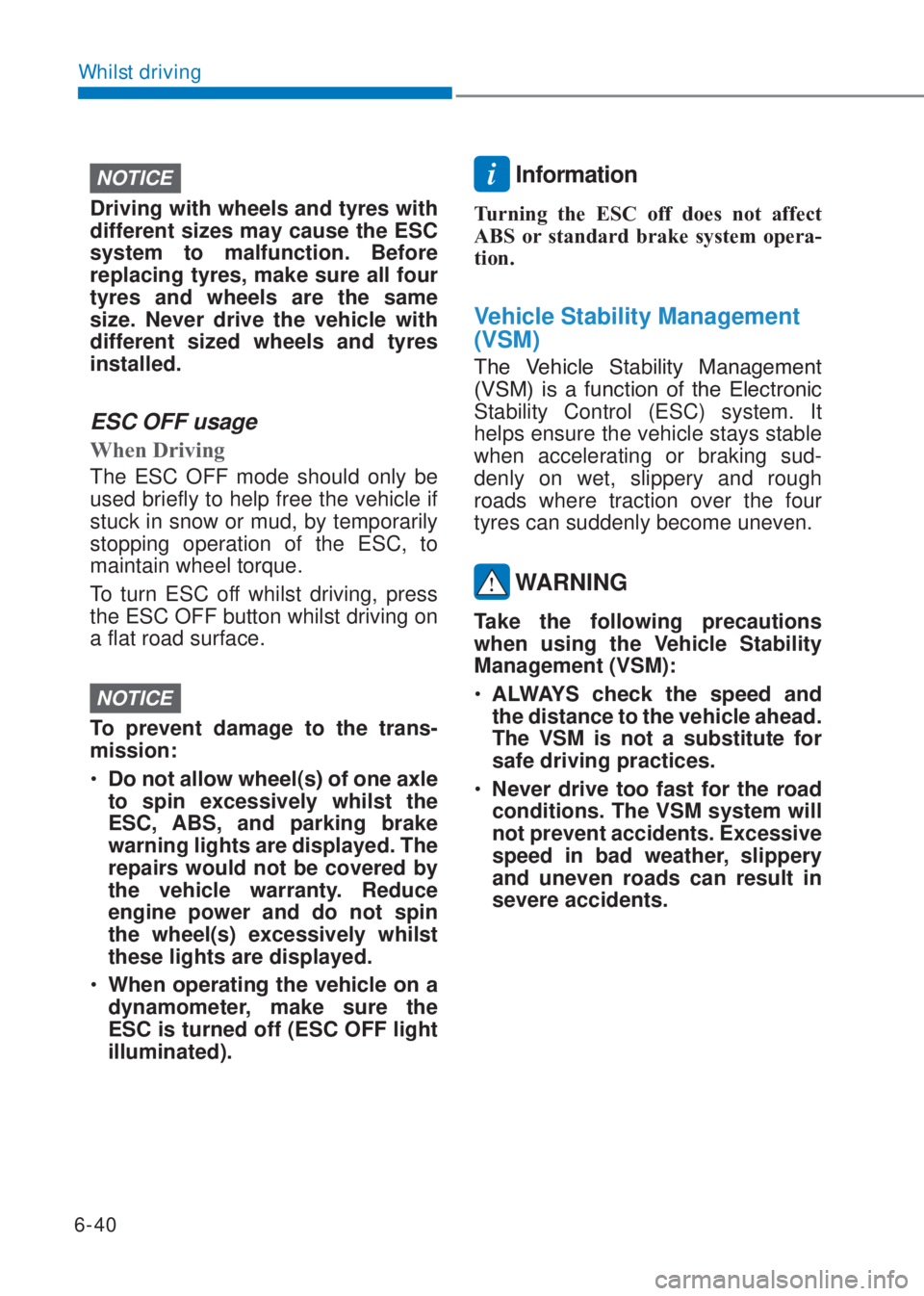

Whilst driving
NOTICE
Driving with wheels and tyres with
different sizes may cause the ESC
system to malfunction. Before
replacing tyres, make sure all four
tyres and wheels are the same
size. Never drive the vehicle with
different sized wheels and tyres
installed.
ESC OFF usage
When 'riving
The ESC OFF mode should only be
used briefly to help free the vehicle if
stuck in snow or mud, by temporarily
stopping operation of the ESC, to
maintain wheel torque.
To turn ESC off whilst driving, press
the ESC OFF button whilst driving on
a flat road surface.
NOTICE
To prevent damage to the trans-
mission:

6-61
06

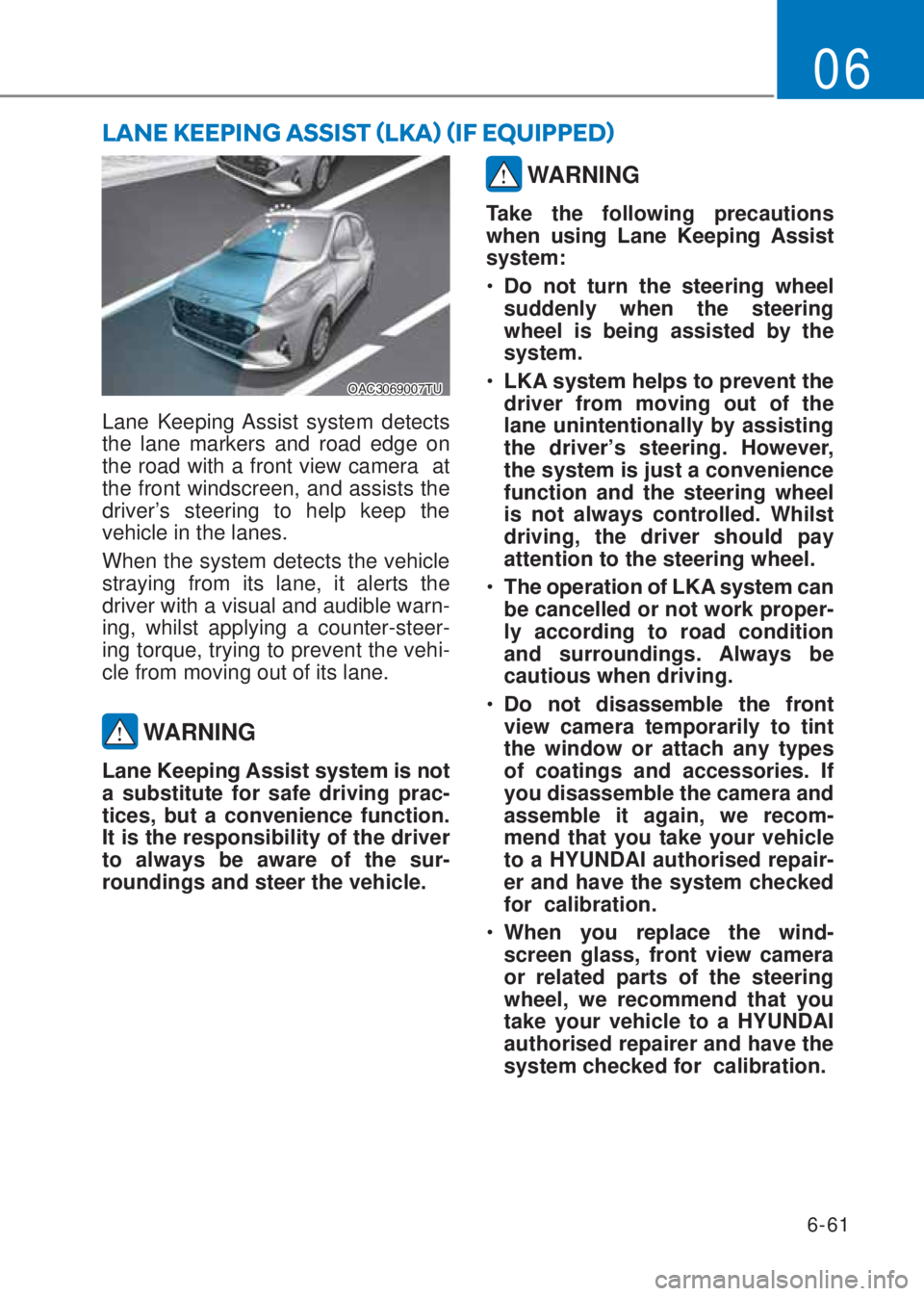

LANE KEEPING ASSIST
ãLKA
ä
ãIF EQUIPPED
ä
2$&78
Lane Keeping Assist system detects
the lane markers and road edge on
the road with a front view camera at
the front windscreen, and assists the
driver’s steering to help keep the
vehicle in the lanes.
When the system detects the vehicle
straying from its lane, it alerts the
driver with a visual and audible warn-
ing, whilst applying a counter-steer-
ing torque, trying to prevent the vehi-
cle from moving out of its lane.
WARNING
/DQH.HHSLQJ$VVLVWV\VWHPLVQRW
a substitute for safe driving prac-
tices, but a convenience function.
It is the responsibility of the driver
to always be aware of the sur-
roundings and steer the vehicle.
WARNING
Take the following precautions
ZKHQ XVLQJ /DQH .HHSLQJ $VVLVW
system:

7-20
Emergency situations
OAC3079008TU

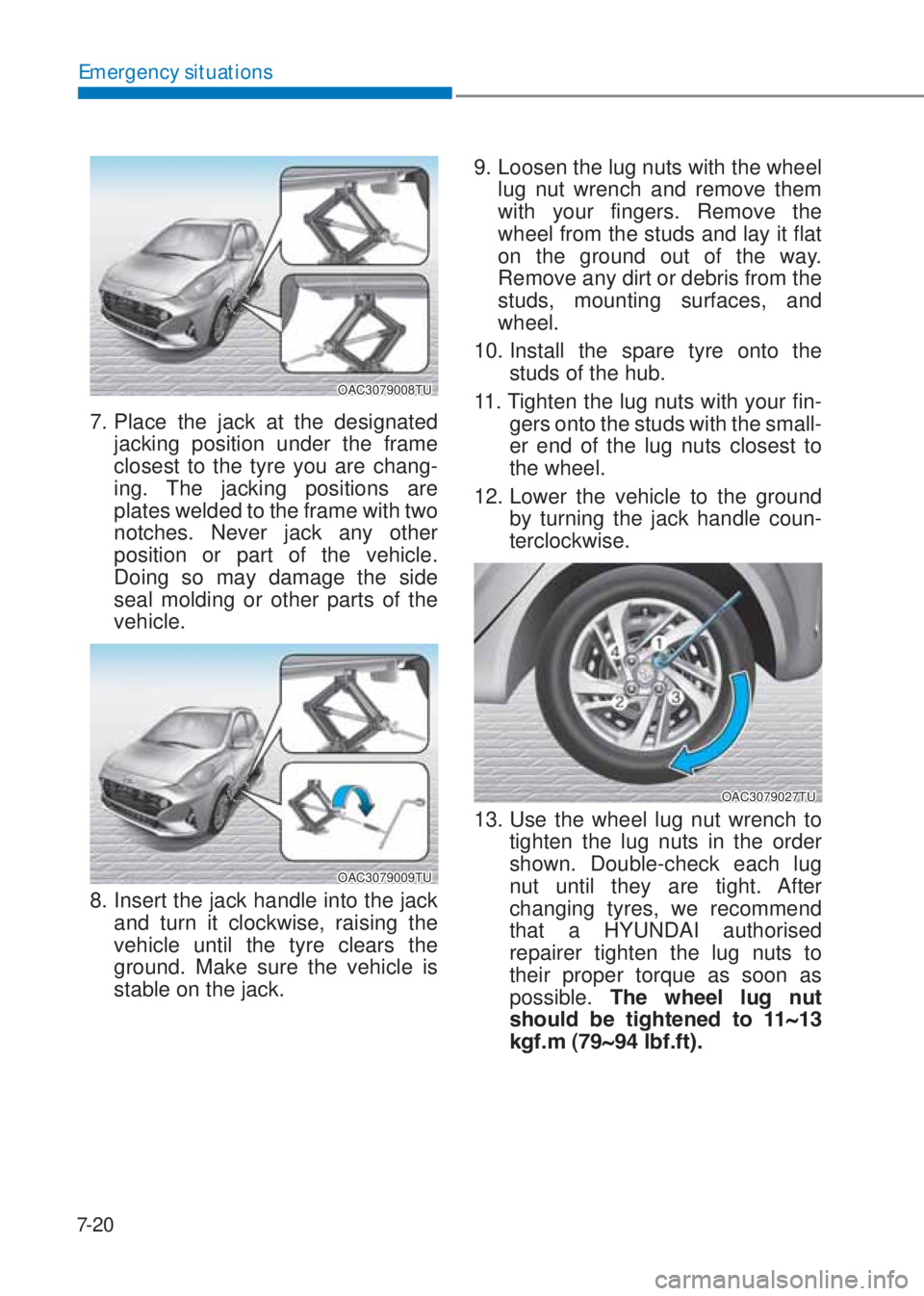

7. Place the jack at the designated
jacking position under the frame
closest to the tyre you are chang-
ing. The jacking positions are
plates welded to the frame with two
notches. Never jack any other
position or part of the vehicle.
Doing so may damage the side
seal molding or other parts of the
vehicle.
OAC3079009TU
8. Insert the jack handle into the jack
and turn it clockwise, raising the
vehicle until the tyre clears the
ground. Make sure the vehicle is
stable on the jack.9. Loosen the lug nuts with the wheel
lug nut wrench and remove them
with your fingers. Remove the
wheel from the studs and lay it flat
on the ground out of the way.
Remove any dirt or debris from the
studs, mounting surfaces, and
wheel.
10. Install the spare tyre onto the
studs of the hub.
11 . Tighten the lug nuts with your fin-
gers onto the studs with the small-
er end of the lug nuts closest to
the wheel.
12. Lower the vehicle to the ground
by turning the jack handle coun-
terclockwise.
OAC3079027TU
13. Use the wheel lug nut wrench to
tighten the lug nuts in the order
shown. Double-check each lug
nut until they are tight. After
changing tyres, we recommend
that a HYUNDAI authorised
repairer tighten the lug nuts to
their proper torque as soon as
possible. 7KH ZKHHO OXJ QXW
VKRXOG EH WLJKWHQHG WR a
NJIPaOEIIW
