HYUNDAI I10 2020 Owners Manual

5-33
05

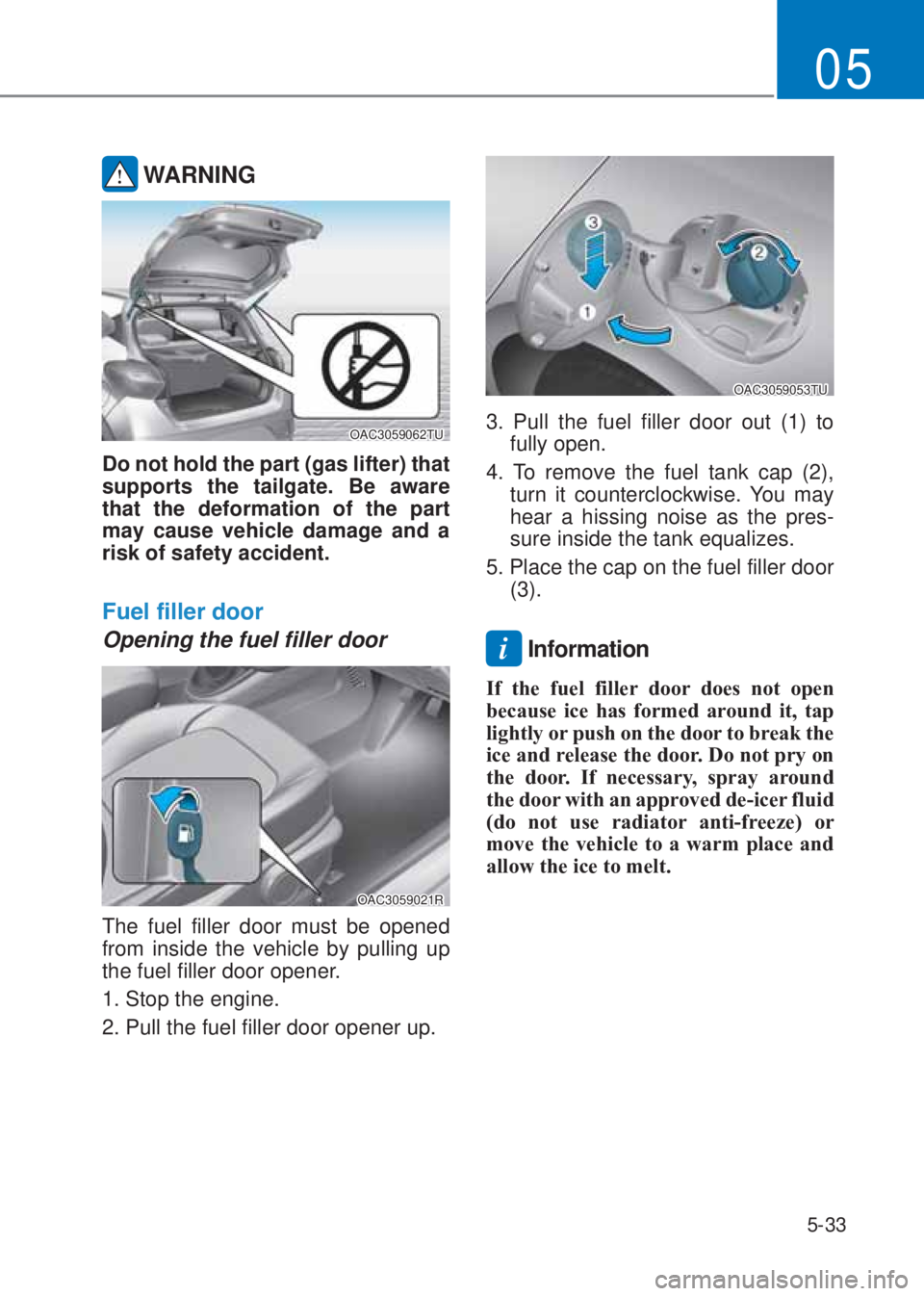

WARNING
OAC3059062TU
Do not hold the part (gas lifter) that
supports the tailgate. Be aware
that the deformation of the part
may cause vehicle damage and a
risk of safety accident.
)XHOILOOHUGRRU
Opening the fuel filler door
OAC3059021R
The fuel filler door must be opened
from inside the vehicle by pulling up
the fuel filler door opener.
1. Stop the engine.
2. Pull the fuel filler door opener up.
OAC3059053TU
3. Pull the fuel filler door out (1) to
fully open.
4. To remove the fuel tank cap (2),
turn it counterclockwise. You may
hear a hissing noise as the pres-
sure inside the tank equalizes.
5. Place the cap on the fuel filler door
(3).
i Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. 'o not pry on
the door. If necessary, spray around
the door with an approved de-icer fluid
(do not use radiator anti-free]e) or
move the vehicle to a warm place and
allow the ice to melt.

5-34
Convenient features

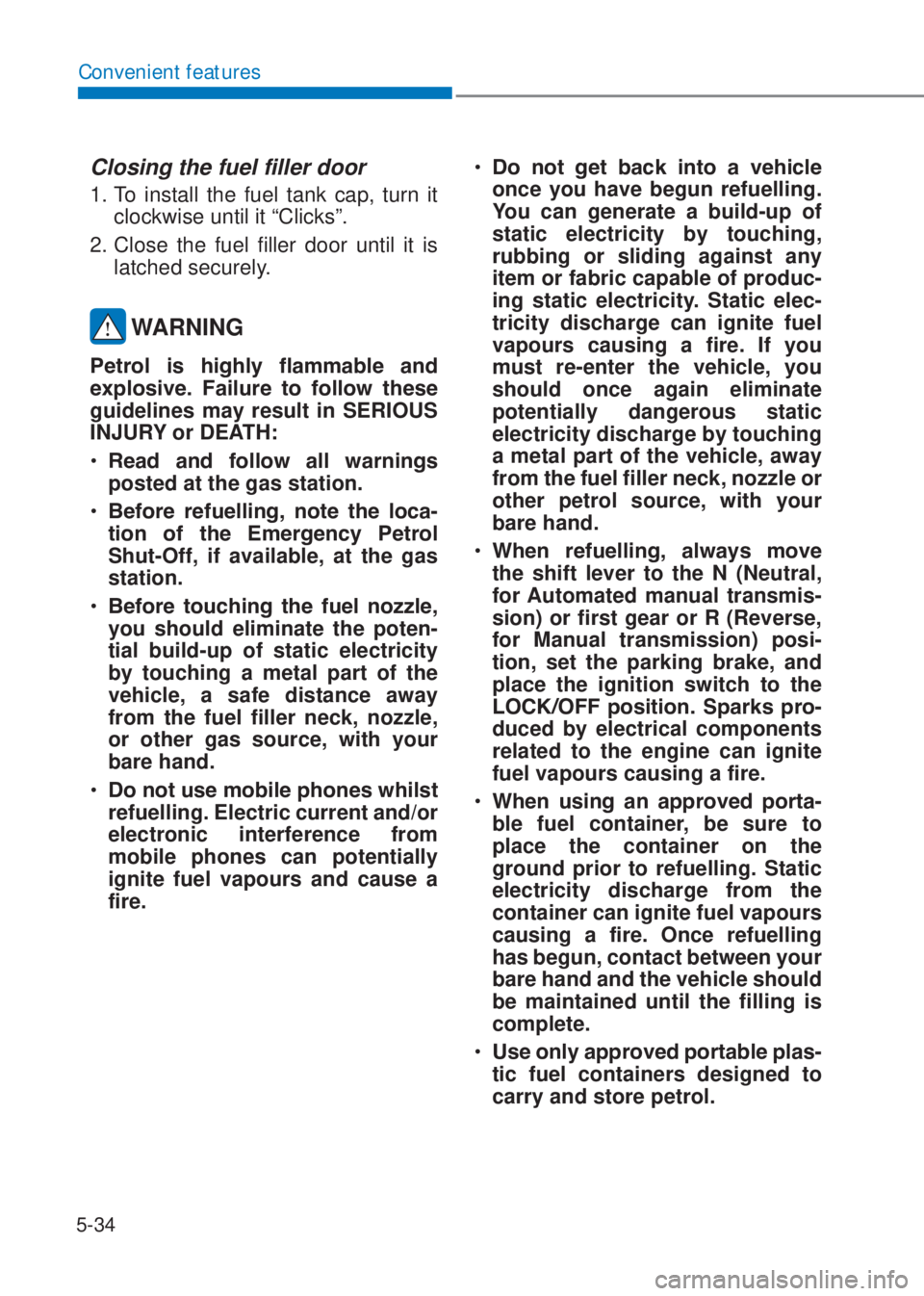

Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “Clicks”.
2. Close the fuel filler door until it is
latched securely.
WARNING
3HWURO LV KLJKO\ IODPPDEOH DQG
H[SORVLYH )DLOXUH WR IROORZ WKHVH
guidelines may result in SERIOUS
INJURY or DEATH:

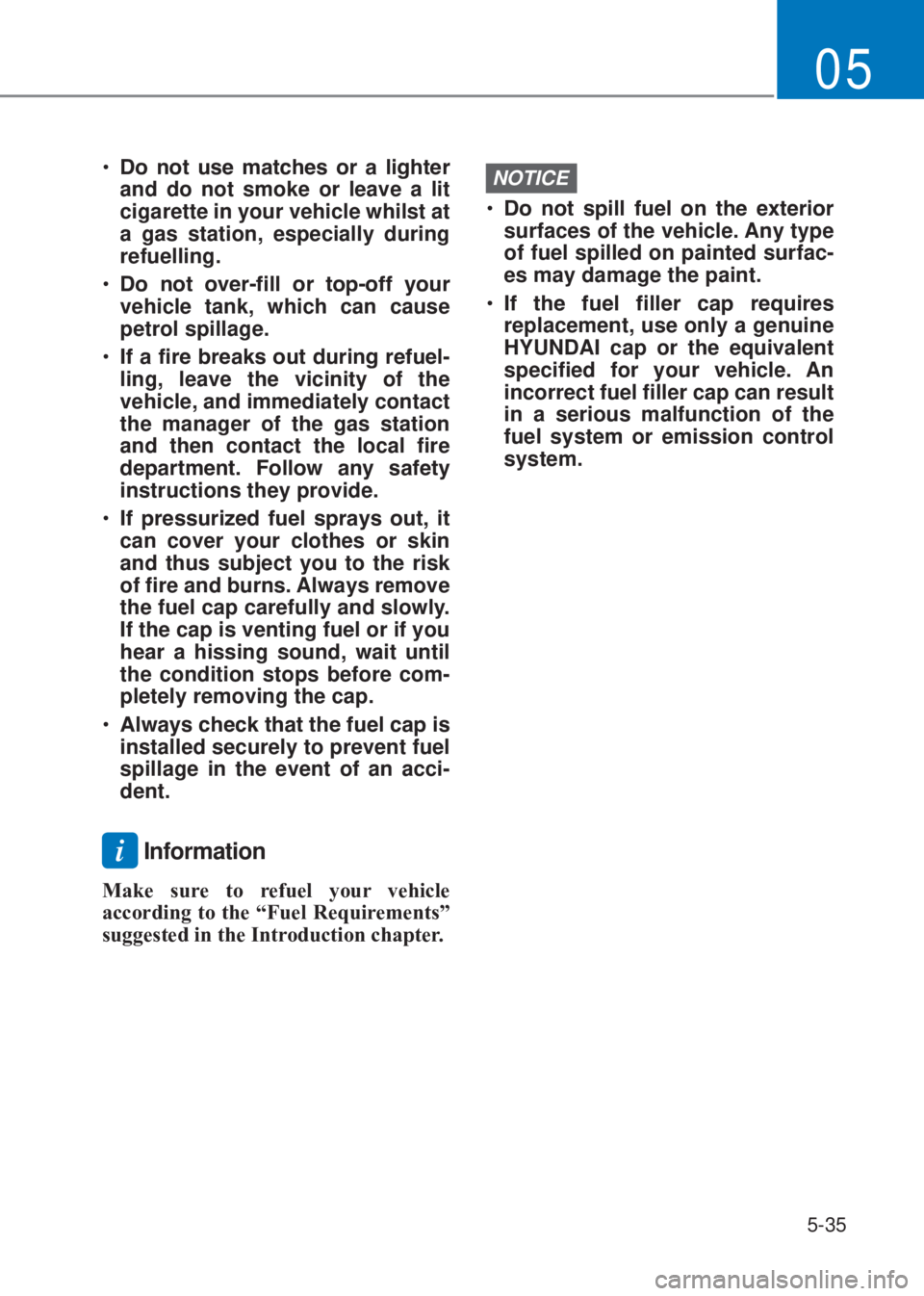

5-35
05

5-36
Convenient features

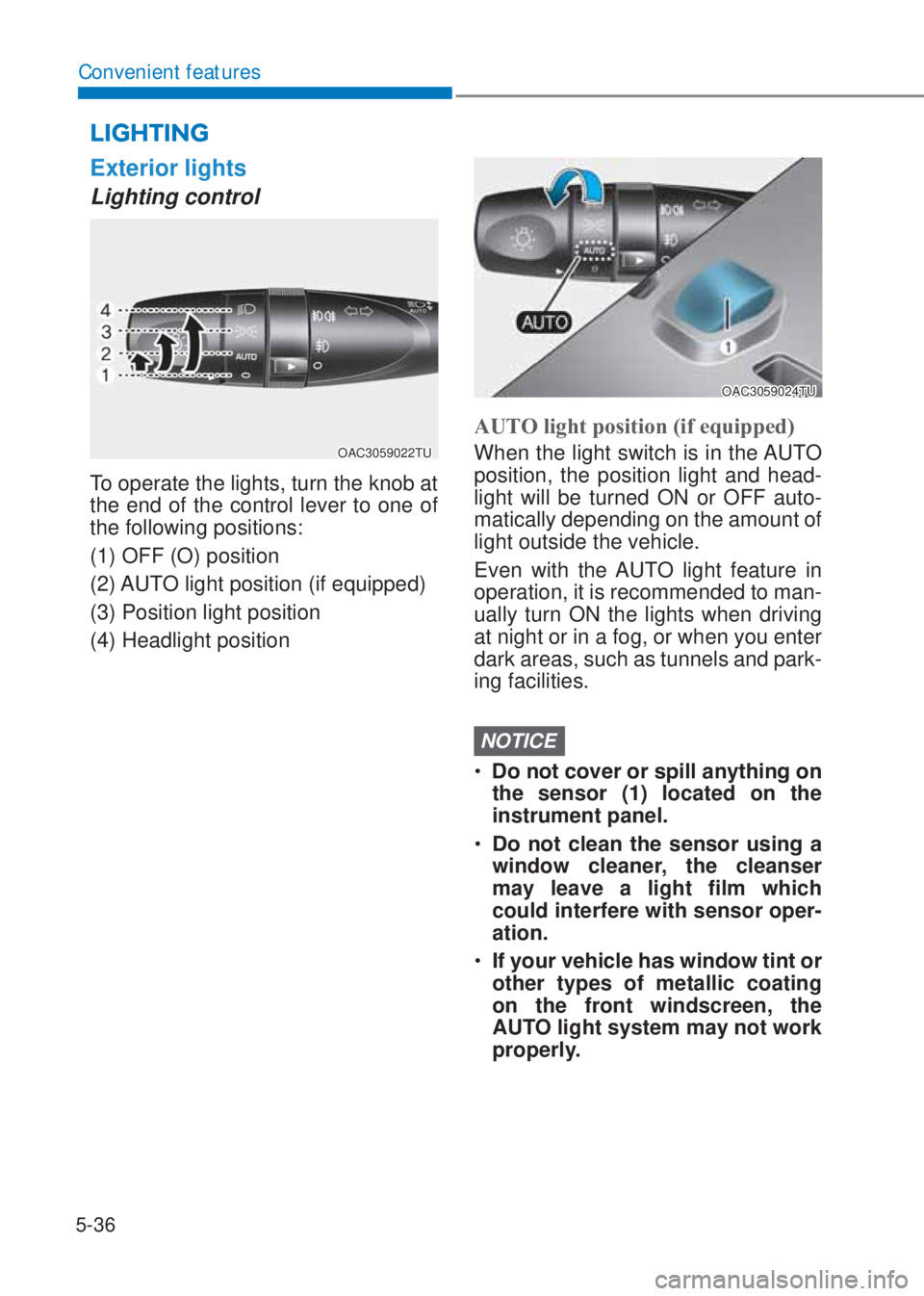

Exterior lights
Lighting control
OAC3059022TU
To operate the lights, turn the knob at
the end of the control lever to one of
the following positions:
(1) OFF (O) position
(2) AUTO light position (if equipped)
(3) Position light position
(4) Headlight position
OAC3059024TU
A872 light position (if equipped)
When the light switch is in the AUTO
position, the position light and head-
light will be turned ON or OFF auto-
matically depending on the amount of
light outside the vehicle.
Even with the AUTO light feature in
operation, it is recommended to man-
ually turn ON the lights when driving
at night or in a fog, or when you enter
dark areas, such as tunnels and park-
ing facilities.
NOTICE

5-37
05
OHCR046344

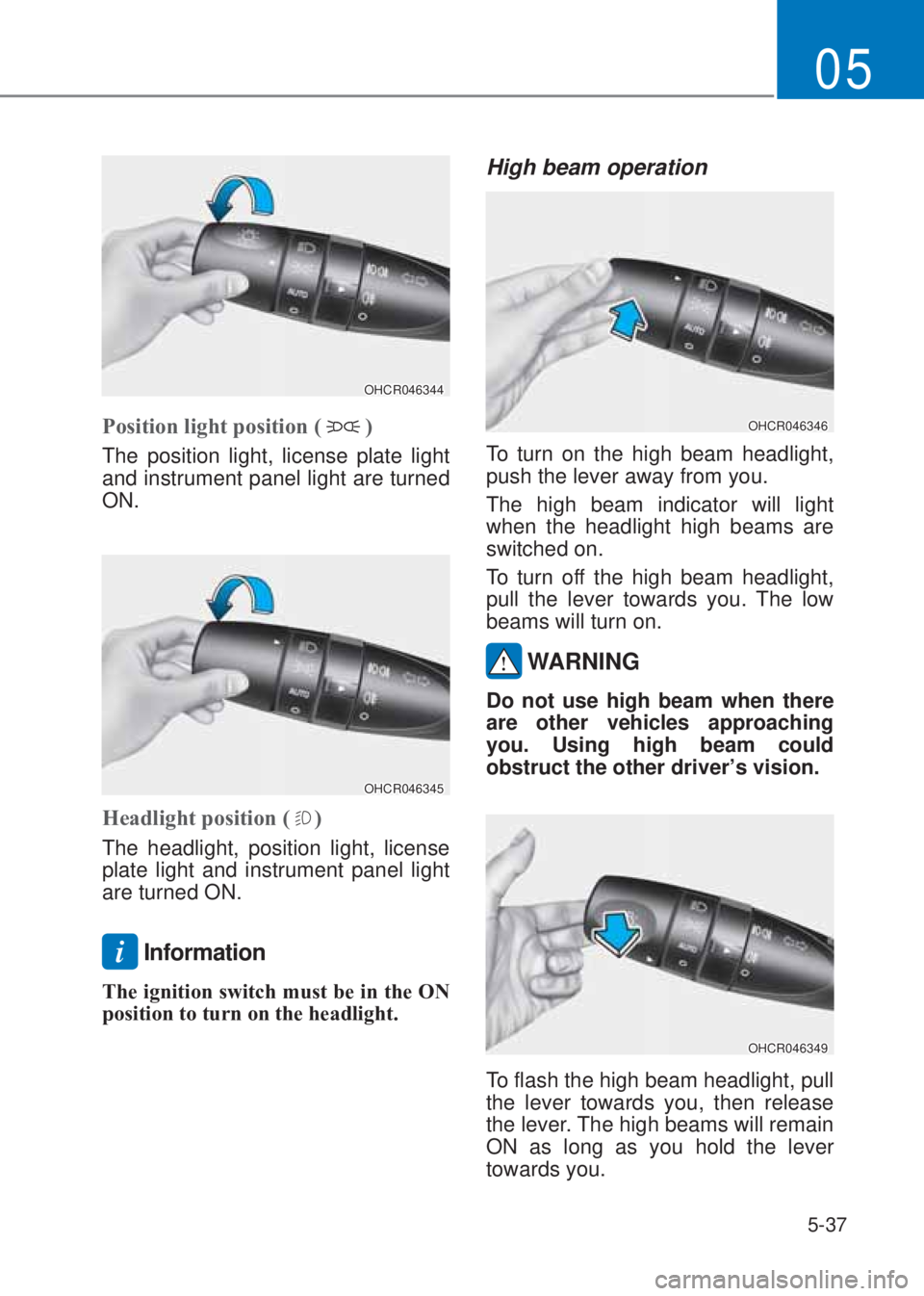

Position light position ()
The position light, license plate light
and instrument panel light are turned
ON.
OHCR046345
+eadlight position ()
The headlight, position light, license
plate light and instrument panel light
are turned ON.
i Information
7he ignition switch must be in the 21
position to turn on the headlight.
High beam operation
OHCR046346
To turn on the high beam headlight,
push the lever away from you.
The high beam indicator will light
when the headlight high beams are
switched on.
To turn off the high beam headlight,
pull the lever towards you. The low
beams will turn on.
WARNING
Do not use high beam when there
are other vehicles approaching
you. Using high beam could
obstruct the other driver’s vision.
OHCR046349
To flash the high beam headlight, pull
the lever towards you, then release
the lever. The high beams will remain
ON as long as you hold the lever
towards you.

5-38
Convenient features
High Beam Assist system
(if equipped)
OAC3059025TU
High Beam Assist is a system that
DXWRPDWLFDOO\ DGMXVWV WKH KHDGOLJKW
range (switches between high beam
and low beam) according to the
brightness of other vehicles and road
conditions.
System setting
The driver can activate the HBA by
placing the ignition switch to the ON
position and by selecting: ‘User
Settings  Lights  HBA (High Beam
$VVLVW

5-39
05
OAC3069028TU

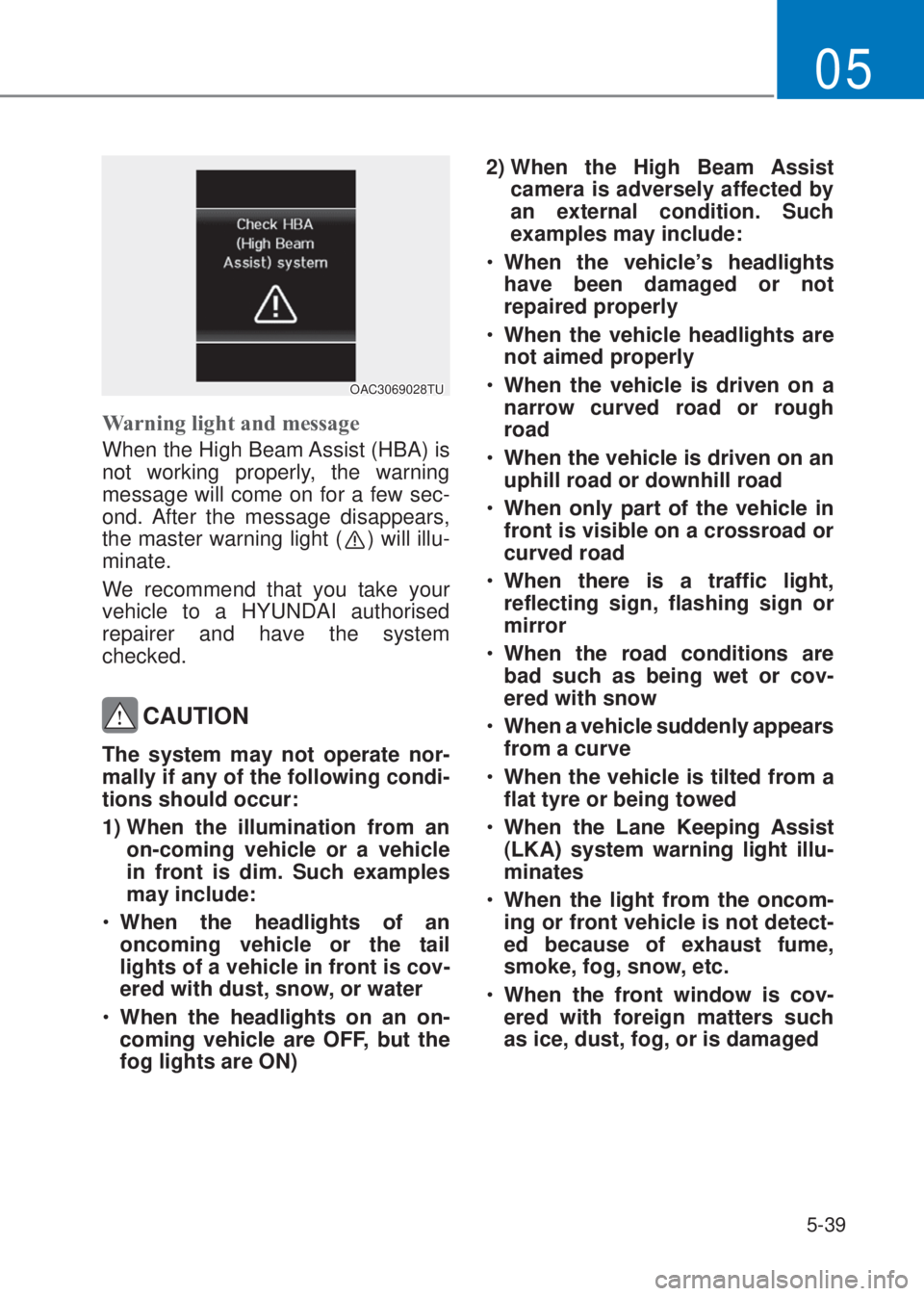

Warning light and message
When the High Beam Assist (HBA) is
not working properly, the warning
message will come on for a few sec-
ond. After the message disappears,
the master warning light (
) will illu-
minate.
We recommend that you take your
vehicle to a HYUNDAI authorised
repairer and have the system
checked.
CAUTION
The system may not operate nor-
mally if any of the following condi-
tions should occur:
1) When the illumination from an
on-coming vehicle or a vehicle
in front is dim. Such examples
may include:

5-40
Convenient features

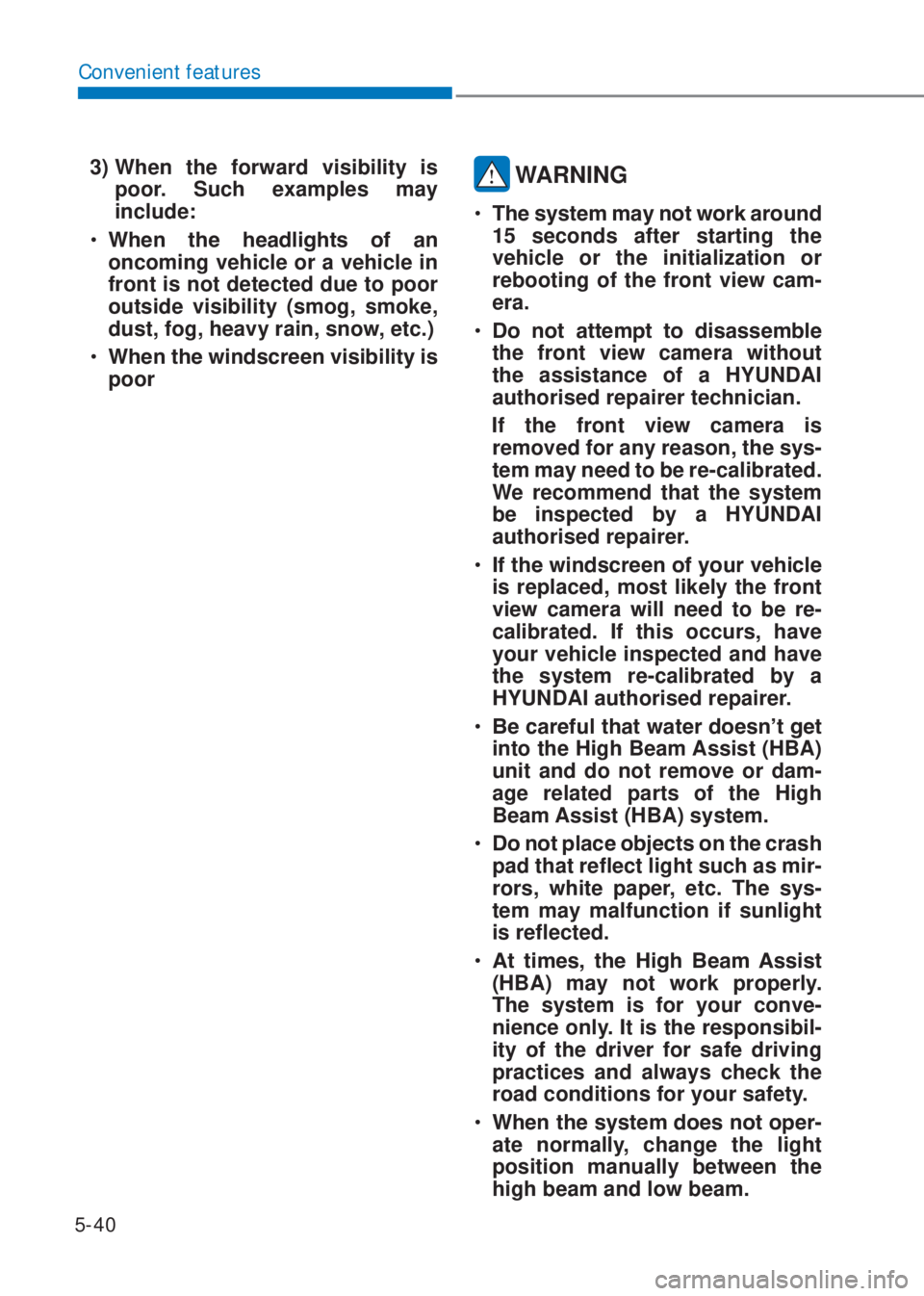

3) When the forward visibility is
poor. Such examples may
include:

5-41
05

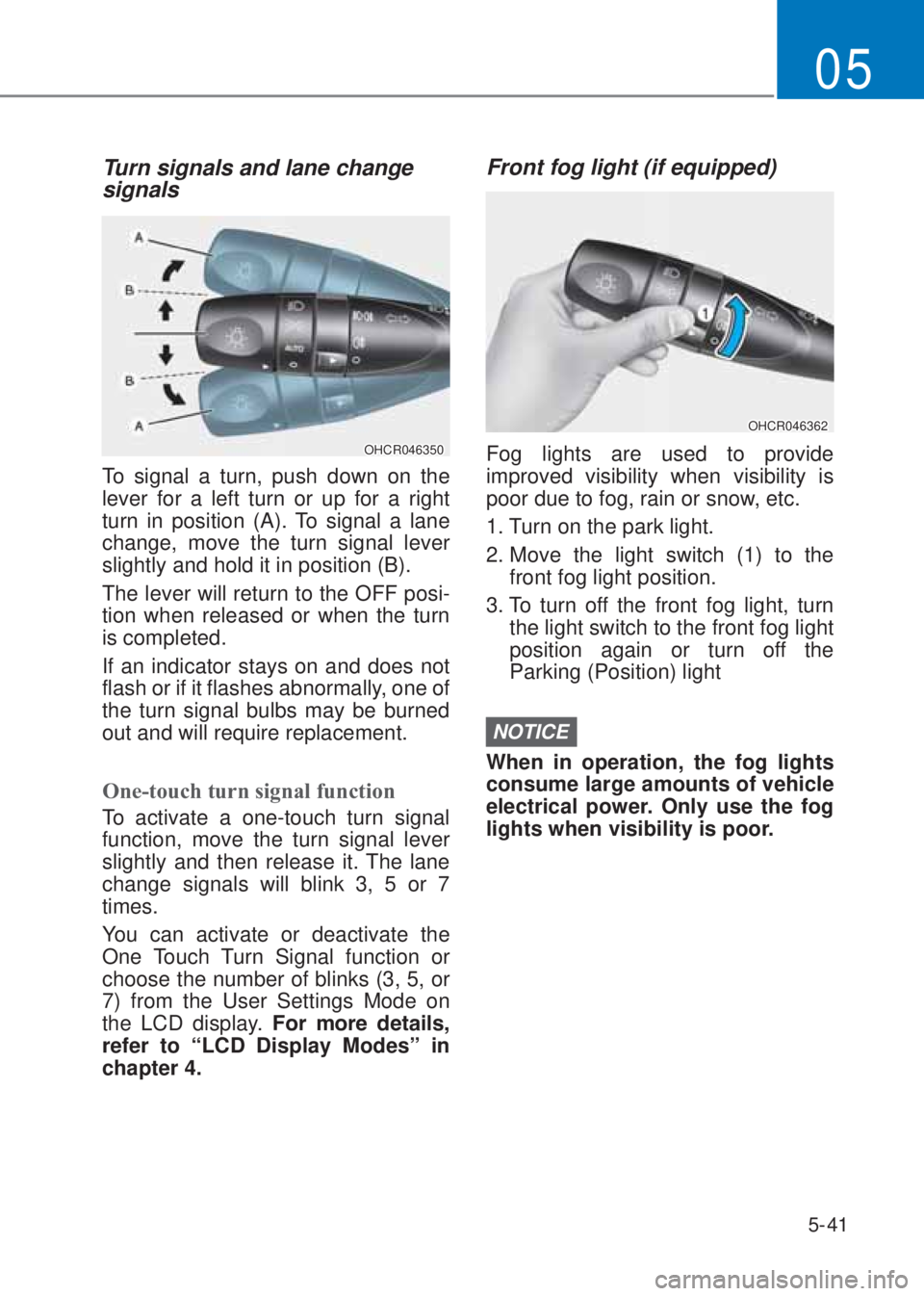

Turn signals and lane change
signals
OHCR046350
To signal a turn, push down on the
lever for a left turn or up for a right
turn in position (A). To signal a lane
change, move the turn signal lever
slightly and hold it in position (B).
The lever will return to the OFF posi-
tion when released or when the turn
is completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
2ne-touch turn signal function
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7
times.
You can activate or deactivate the
One Touch Turn Signal function or
choose the number of blinks (3, 5, or
7) from the User Settings Mode on
the LCD display. )RU PRUH GHWDLOV
refer to “LCD Display Modes” in
chapter 4.
Front fog light (if equipped)
OHCR046362
Fog lights are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc.
1. Turn on the park light.
2. Move the light switch (1) to the
front fog light position.
3. To turn off the front fog light, turn
the light switch to the front fog light
position again or turn off the
Parking (Position) light
NOTICE
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog
lights when visibility is poor.

5-42
Convenient features
Rear fog light (if equipped)
OAC3059026TU
Vehicle with front fog light
To turn on the rear fog light:
Position the light switch in the Position
light position, turn the light switch to
the front fog light position, and then
turn the light switch (1) to the rear fog
light position.
OAC3059027TU
Vehicle without front fog light
To turn on the rear fog light:
Position the light switch in the head-
light position, and then turn the light
switch (1) to the rear fog light posi-
tion.
To turn the rear fog lights off, do one
of the following:
