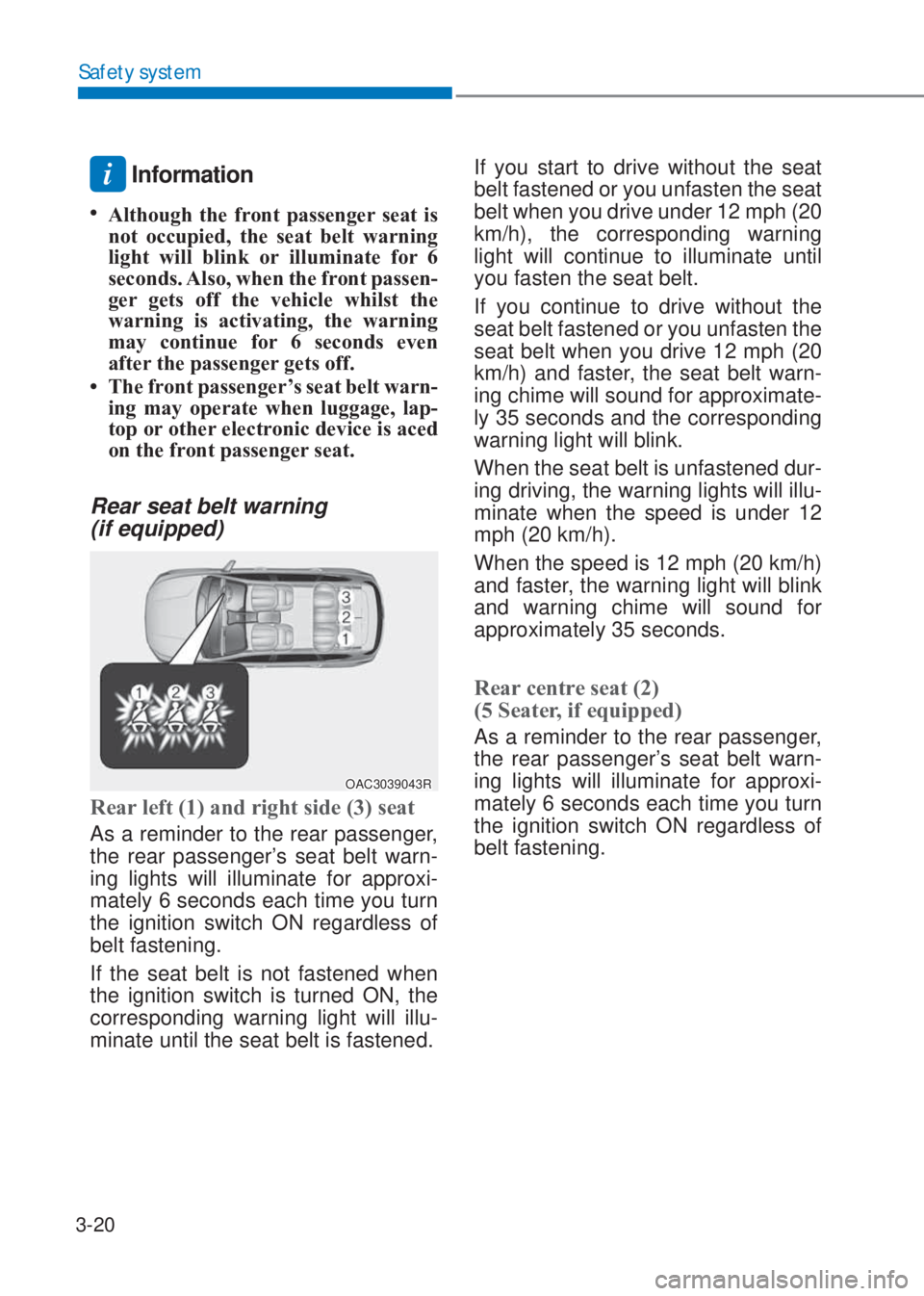

Safety system
i Information
‡
Although the front passenger seat is
not occupied, the seat belt warning
light will blink or illuminate for 6
seconds. Also, when the front passen-
ger gets off the vehicle whilst the
warning is activating, the warning
may continue for 6 seconds even
after the passenger gets off.
‡ 7he front passenger¶s seat belt warn-
ing may operate when luggage, lap-
top or other electronic device is aced
on the front passenger seat.
Rear seat belt warning
(if equipped)
OAC3039043R
Rear left (1) and right side (3) seat
As a reminder to the rear passenger,
the rear passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the ignition switch ON regardless of
belt fastening.
If the seat belt is not fastened when
the ignition switch is turned ON, the
corresponding warning light will illu-
minate until the seat belt is fastened.If you start to drive without the seat
belt fastened or you unfasten the seat
belt when you drive under 12 mph (20
km/h), the corresponding warning
light will continue to illuminate until
you fasten the seat belt.
If you continue to drive without the
seat belt fastened or you unfasten the
seat belt when you drive 12 mph (20
km/h) and faster, the seat belt warn-
ing chime will sound for approximate-
ly 35 seconds and the corresponding
warning light will blink.
When the seat belt is unfastened dur-
ing driving, the warning lights will illu-
minate when the speed is under 12
mph (20 km/h).
When the speed is 12 mph (20 km/h)
and faster, the warning light will blink
and warning chime will sound for
approximately 35 seconds.
Rear centre seat (2)
(5 Seater, if equipped)
As a reminder to the rear passenger,
the rear passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the ignition switch ON regardless of
belt fastening.

3-21
03

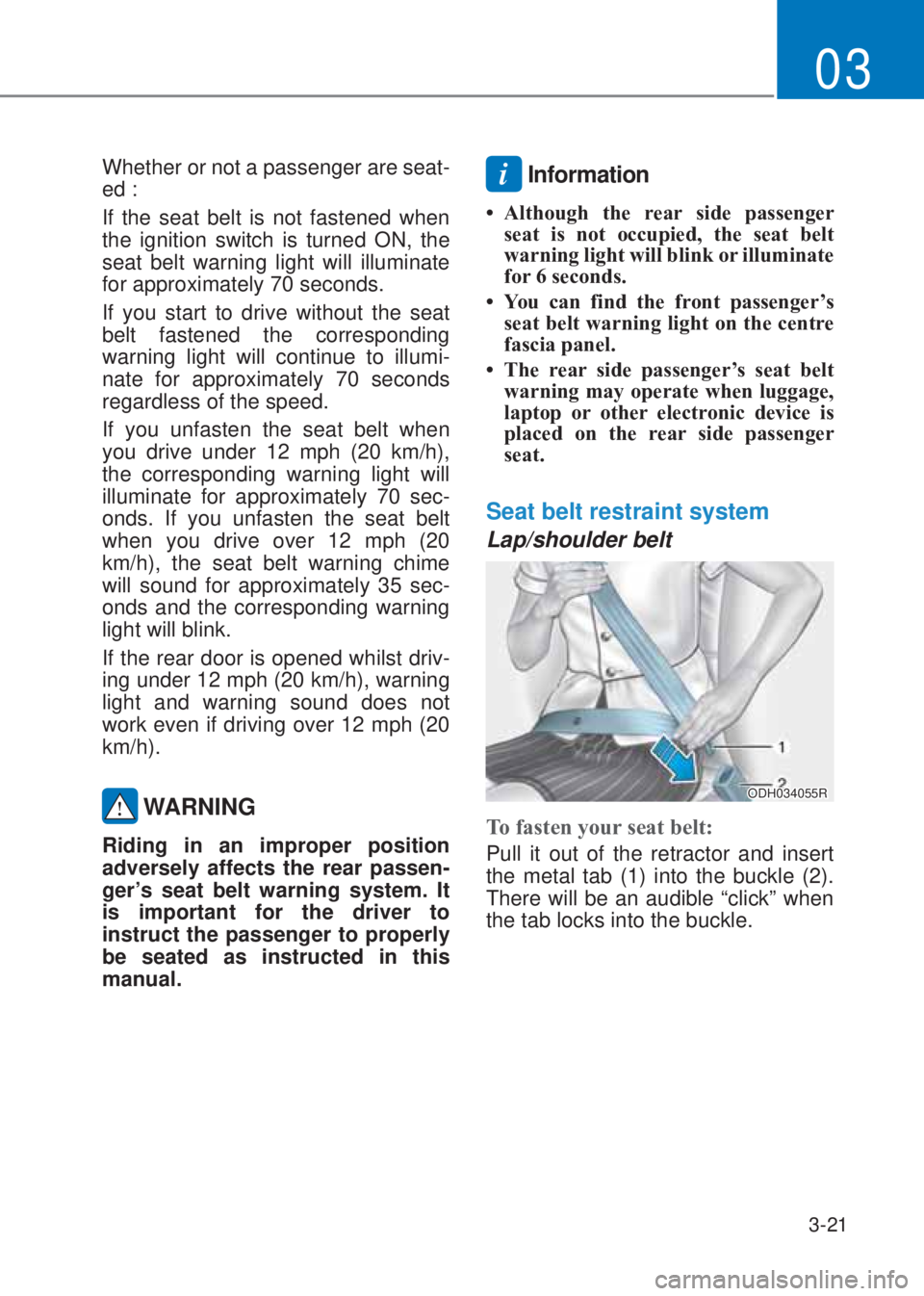

Whether or not a passenger are seat-
ed :
If the seat belt is not fastened when
the ignition switch is turned ON, the
seat belt warning light will illuminate
for approximately 70 seconds.
If you start to drive without the seat
belt fastened the corresponding
warning light will continue to illumi-
nate for approximately 70 seconds
regardless of the speed.
If you unfasten the seat belt when
you drive under 12 mph (20 km/h),
the corresponding warning light will
illuminate for approximately 70 sec-
onds. If you unfasten the seat belt
when you drive over 12 mph (20
km/h), the seat belt warning chime
will sound for approximately 35 sec-
onds and the corresponding warning
light will blink.
If the rear door is opened whilst driv-
ing under 12 mph (20 km/h), warning
light and warning sound does not
work even if driving over 12 mph (20
km/h).
WARNING
Riding in an improper position
adversely affects the rear passen-
ger’s seat belt warning system. It
is important for the driver to
instruct the passenger to properly
be seated as instructed in this
manual.
i Information
‡ Although the rear side passenger
seat is not occupied, the seat belt
warning light will blink or illuminate
for 6 seconds.
‡ seat belt warning light on the centre
fascia panel.
‡ 7he rear side passenger¶s seat belt
warning may operate when luggage,
laptop or other electronic device is
placed on the rear side passenger
seat.
Seat belt restraint system
Lap/shoulder belt
ODH034055R
7o fasten your seat belt
Pull it out of the retractor and insert
the metal tab (1) into the buckle (2).
There will be an audible “click” when
the tab locks into the buckle.

3-25
03
8KMB3311/H
The Pre-Tensioner Seat Belt System
consists mainly of the following com-
ponents. Their locations are shown in
the illustration above:
(1) SRS air bag warning light
(2) Front retractor pre-tensioner
assembly (if equipped)
(3) SRS control module
(4) Emergency fastening
device(EFD)
(Driver only, if equipped)
OAC3039042R
„Rear
(5) Rear retractor pre-tensioner
assembly (if equipped)
NOTICE
The sensor that activates the SRS
air bag is connected with the pre–
tensioner seat belts. The SRS air
bag warning light on the instru-
ment panel will illuminate for
approximately 6 seconds after the
ignition switch is placed to the ON
position, and then it should turn
off.
If the pre-tensioner is not working
properly, the warning light will illu-
minate even if the SRS air bag is
not malfunctioning. If the warning
light does not illuminate, stays illu-
minated or illuminates when the
vehicle is being driven, we recom-
mend the pre-tensioner seat belts
and/or SRS air bags be inspected
by a HYUNDAI authorised repairer
as soon as possible.

3-27
03
Seat belt use and children
Infant and small children
Most countries have child restraint
laws which require children to travel
in approved child restraint devices,
including booster seats. The age at
which seat belts can be used instead
of child restraints differs among coun-
tries, so you should be aware of the
specific requirements in your country,
and where you are travelling. Infant
and child restraints must be properly
placed and installed in a rear seat.
For more details, refer to the “Child
Restraint Systems” in this chapter.
WARNING
ALWAYS properly restrain infants
and small children in a child restraint
appropriate for the child’s height
and weight.
To reduce the risk of serious injury
or death to a child and other passen-
gers, NEVER hold a child in your lap
or arms when the vehicle is moving.
The violent forces created during an
accident will tear the child from your
arms and throw the child against the
interior of the vehicle.
Small children are best protected
from injury in an accident when prop-
erly restrained in the rear seat by a
child restraint system that meets the
requirements of the Safety Standards
of your country. Before buying any
child restraint system, make sure that
it has a label certifying that it meets
Safety Standard of your country. The
restraint must be appropriate for your
child’s height and weight. Check the
label on the child restraint for this
information. Refer to “Child Restraint
Systems” in this chapter.
Larger children
Children under age 13 and who are
too large for a booster seat must
always occupy the rear seat and use
the available lap/shoulder belts. A
seat belt should lie across the upper
thighs and be snug across the shoul-
der and chest to restrain the child
safely. Check belt fit periodically. A
child’s squirming could put the belt
out of position. Children are afforded
the most safety in the event of an
accident when they are restrained by
a proper restraint system and/or seat
belts in the rear seat.
If a larger child over age 13 must be
seated in the front seat, the child
must be securely restrained by the
available lap/shoulder belt and the
seat should be placed in the rearmost
position.
If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the centre
of the vehicle. If the shoulder belt still
touches their face or neck, they need
to be returned to an appropriate
booster seat in the rear seat.
WARNING
‡Always make sure larger chil-
dren’s seat belts are worn and
properly adjusted.
‡NEVER allow the shoulder belt to
contact the child’s neck or face.
‡Do not allow more than one child
to use a single seat belt.

3-44
Safety system
OAC3039016R
„Type A
„Type B
OAC3039018R
To reactivate the passenger’s front
air bag:
Insert the key or a similar rigid device
into the passenger’s front air bag ON/
OFF switch and turn it to the ON posi-
tion. The passenger air bag ON indi-
cator (
) will illuminate and stay on
for 60 seconds.
WARNING
Never allow an adult passenger to
ride in the front passenger seat
when the passenger air bag OFF
indicator is illuminated. During a
collision, the air bag will not inflate
if the indicator is illuminated. Turn
on the passenger’s front air bag or
have your passenger move to the
rear seat.
WARNING
If the passenger’s front air bag ON/
OFF switch malfunctions, the fol-
lowing conditions may occur:
‡The air bag warning light (
) on
the instrument cluster will illumi-
nate.
‡The passenger air bag OFF indi-
cator (
) will not illuminate and
the ON indicator (
) will come on
and go off after approximately 60
seconds. The passenger’s front
air bag will inflate in a frontal
impact even though the passen-
ger’s front air bag ON/OFF switch
is set to the OFF position.
‡We recommend that a HYUNDAI
authorised repairer inspect the
passenger’s front air bag ON/
OFF switch and the SRS air bag
system as soon as possible.

3-47
03
WARNING
To reduce the risk of serious injury
or death from an inflating curtain
air bags, take the following pre-
cautions:
‡All seat occupants must wear
seat belts at all times to help
keep occupants positioned prop-
erly.
‡Properly secure child restraints
as far away from the door as pos-
sible.
‡Do not place any objects over
the air bag. Also, do not attach
any objects around the area the
air bag inflates such as the door,
side door glass, front and rear
pillar, roof side rail.
‡Do not hang other objects except
clothes, especially hard or break-
able objects. In an accident, it
may cause vehicle damage or
personal injury.
‡Do not allow passengers to lean
their heads or bodies onto doors,
put their arms on the doors,
stretch their arms out of the win-
dow, or place objects between
the doors and seats.
‡Do not open or repair the side
curtain air bags.
How does the air bags system
operate?
OAC3039023R
The SRS consists of the following
components:
(1) Driver’s front air bag module
(2) Passenger’s front air bag module*
(3) Side air bag modules*
(4) Curtain air bag modules*
(5) Retractor pre-tensioner assem-
blies*
(6) Air bag warning light
(7) SRS control module (SRSCM)/
Rollover sensor*
(8) Front impact sensors
(9) Side impact sensors*
(10) Side pressure sensors*
(11) Passenger’s front air bag OFF
indicator (front passenger’s seat
only) *
(12) Passenger’s front air bag ON/
OFF switch *
* : if equipped
The SRSCM continually monitors
SRS components whilst the ignition
switch is in the ON position to deter-
mine if a crash impact is severe
enough to require air bag deployment
or pre-tensioner seat belt deploy-
ment.

3-48
Safety system
SRS warning light
The SRS (Supplement Restraint
System) air bag warning light on the
instrument panel displays the air bag
symbol depicted in the illustration.
The system checks the air bag elec-
trical system for malfunctions. The
light indicates that there is a potential
problem with your air bag system,
which could include your side and/or
curtain air bags used for rollover pro-
tection (if equipped with rollover sen-
sor).
WARNING
If your SRS malfunctions, the air
bag may not inflate properly dur-
ing an accident increasing the risk
of serious injury or death.
If any of the following conditions
occur, your SRS is malfunction-
ing:
‡The light does not turn on for
approximately six seconds when
the ignition switch is in the ON
position.
‡The light stays on after illuminat-
ing for approximately six sec-
onds.
‡The light comes on whilst the
vehicle is in motion.
‡The light blinks when the engine
is running.
We recommend that a HYUNDAI
authorised repairer inspect the
SRS as soon as possible if any of
these conditions occur.During a frontal collision, sensors will
detect the vehicle’s deceleration. If
the rate of deceleration is high
enough, the control unit will inflate the
front air bags, at the time and with the
force needed.
The front air bags help protect the
driver and front passenger by
responding to frontal impacts in which
seat belts alone cannot provide ade-
quate restraint. When needed, the
side air bags help provide protection
in the event of a side impact or roll-
over by supporting the side upper
body area.
‡Air bags are activated (able to
inflate if necessary) only when the
ignition switch is in the ON position.
‡Air bags inflate in the event of cer-
tain frontal or side collisions to help
protect the occupants from serious
physical injury.
‡Generally, air bags are designed to
inflate based upon the severity of a
collision it’s direction etc. These
two factors determine whether the
sensors produce an electronic
deployment/inflation signal.
‡The front air bags will completely
inflate and deflate in an instant. It is
virtually impossible for you to see
the air bags inflate during an acci-
dent. It is much more likely that you
will simply see the deflated air bags
hanging out of their storage com-
partments after the collision.

3-57
03

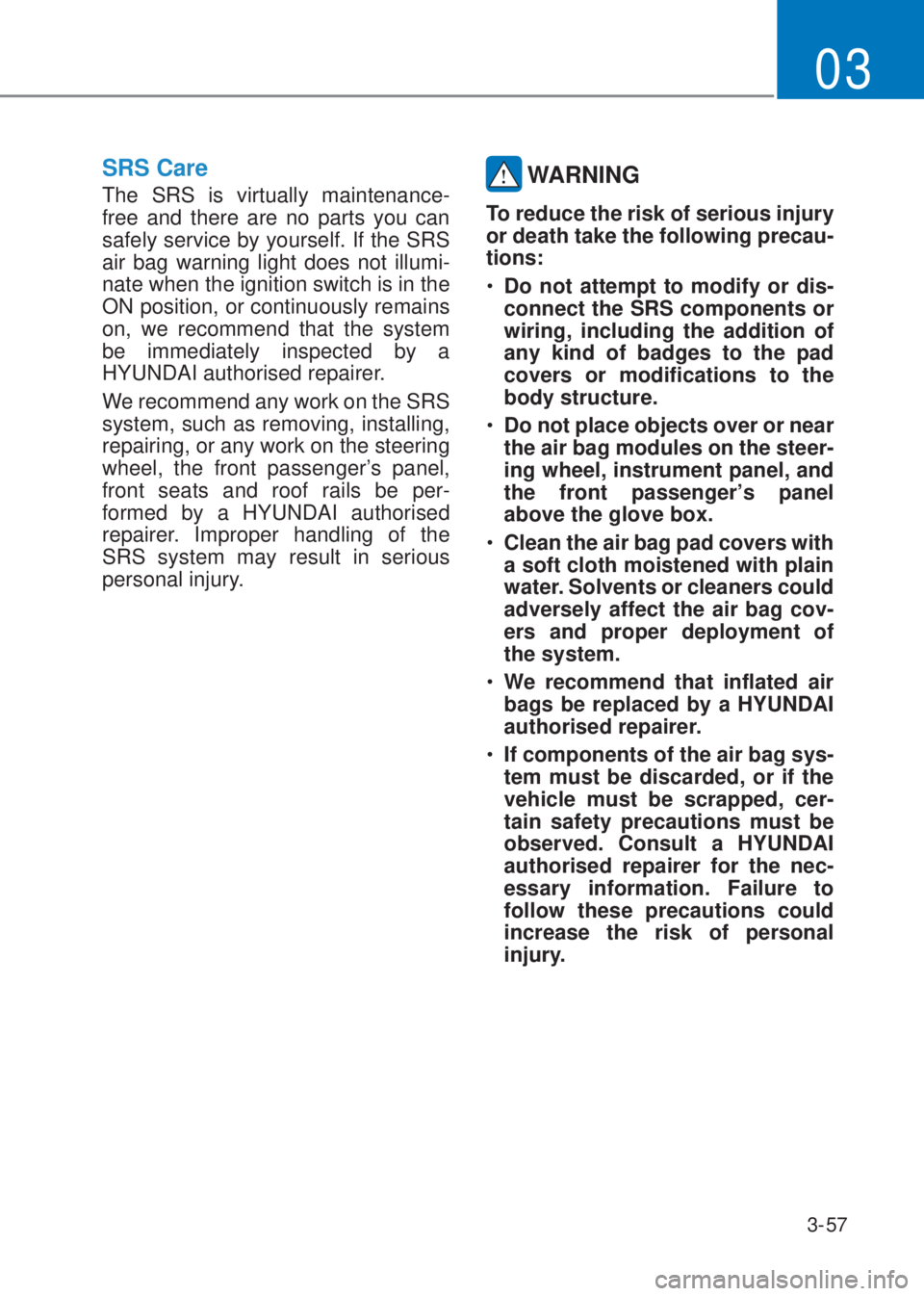

SRS Care
The SRS is virtually maintenance-
free and there are no parts you can
safely service by yourself. If the SRS
air bag warning light does not illumi-
nate when the ignition switch is in the
ON position, or continuously remains
on, we recommend that the system
be immediately inspected by a
HYUNDAI authorised repairer.
We recommend any work on the SRS
system, such as removing, installing,
repairing, or any work on the steering
wheel, the front passenger’s panel,
front seats and roof rails be per-
formed by a HYUNDAI authorised
repairer. Improper handling of the
SRS system may result in serious
personal injury.
WARNING
To reduce the risk of serious injury
or death take the following precau-
tions:
‡Do not attempt to modify or dis-
connect the SRS components or
wiring, including the addition of
any kind of badges to the pad
covers or modifications to the
body structure.
‡Do not place objects over or near
the air bag modules on the steer-
ing wheel, instrument panel, and
the front passenger’s panel
above the glove box.
‡Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag cov-
ers and proper deployment of
the system.
‡We recommend that inflated air
bags be replaced by a HYUNDAI
authorised repairer.
‡If components of the air bag sys-
tem must be discarded, or if the
vehicle must be scrapped, cer-
tain safety precautions must be
observed. Consult a HYUNDAI
authorised repairer for the nec-
essary information. Failure to
follow these precautions could
increase the risk of personal
injury.

Instrument cluster .............................................................................................. 4-2
Instrument cluster control .............................................................................. 4-3
Gauges and meters ......................................................................................... 4-3
Transmission shift indicator ............................................................................ 4-7
Warning and indicator lights ......................................................................... 4-8
LCD display messages ..................................................................................4-20
LCD display........................................................................................................4-26
LCD display control .......................................................................................4-26
LCD display modes ........................................................................................ 4-27
User settings mode .......................................................................................4-29
Trip computer ................................................................................................4-34
4. Instrument cluster
4

4-2
Instrument cluster
INSTRUMENT CLUSTER
OAC3049001R
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including Trip computer)
The actual cluster in the vehicle may differ from the illustration.
For more details, refer to the “Gauges and Meters” in this chapter.
