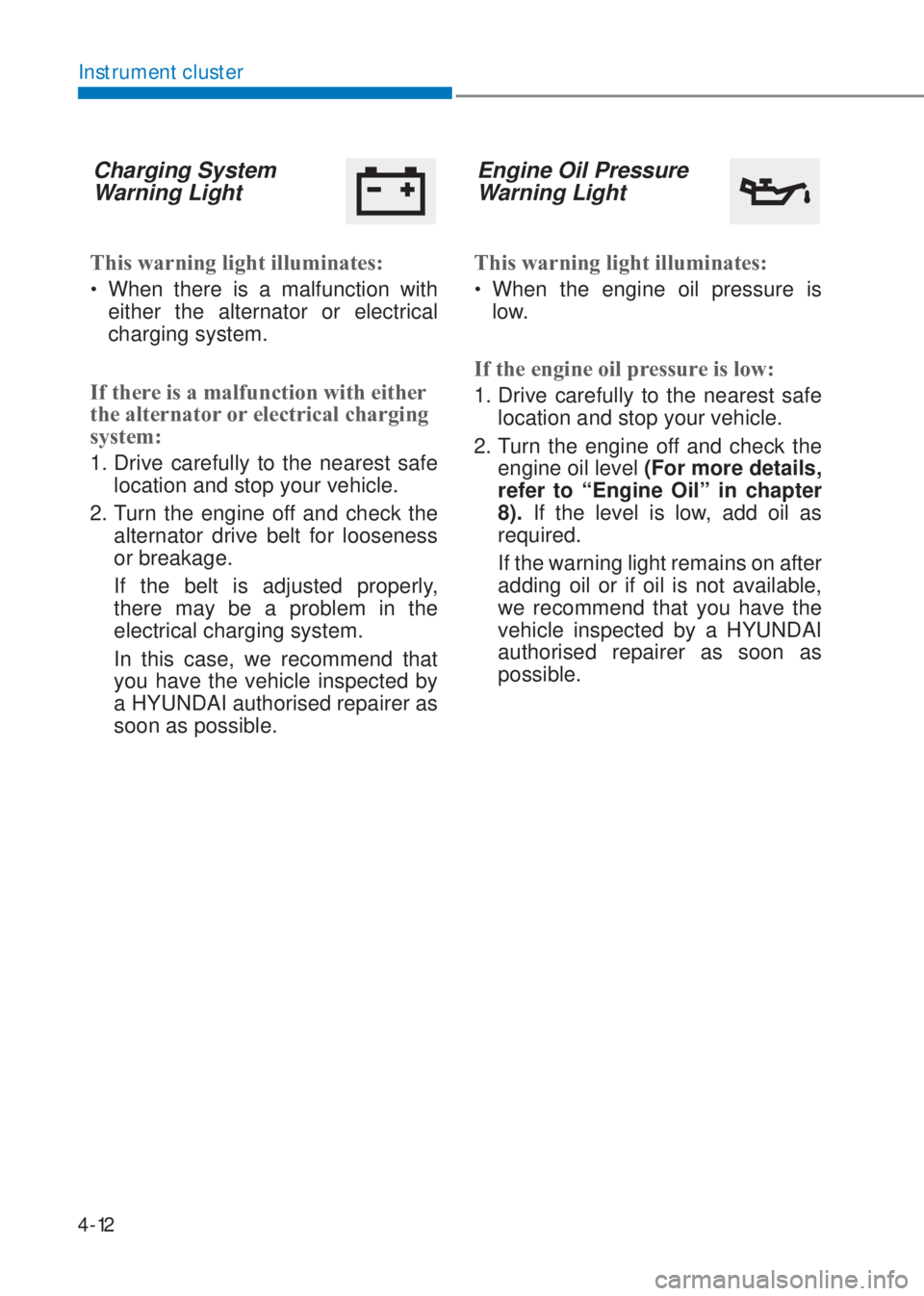

4-12
Instrument cluster
Charging System
Warning Light
7his warning light illuminates
‡When there is a malfunction with
either the alternator or electrical
charging system.
If there is a malfunction with either
the alternator or electrical charging
system
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. Turn the engine off and check the
alternator drive belt for looseness
or breakage.
If the belt is adjusted properly,
there may be a problem in the
electrical charging system.
In this case, we recommend that
you have the vehicle inspected by
a HYUNDAI authorised repairer as
soon as possible.
Engine Oil Pressure
Warning Light
7his warning light illuminates
‡When the engine oil pressure is
low.
If the engine oil pressure is low
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. Turn the engine off and check the
engine oil level (For more details,
refer to “Engine Oil” in chapter
8). If the level is low, add oil as
required.
If the warning light remains on after
adding oil or if oil is not available,
we recommend that you have the
vehicle inspected by a HYUNDAI
authorised repairer as soon as
possible.

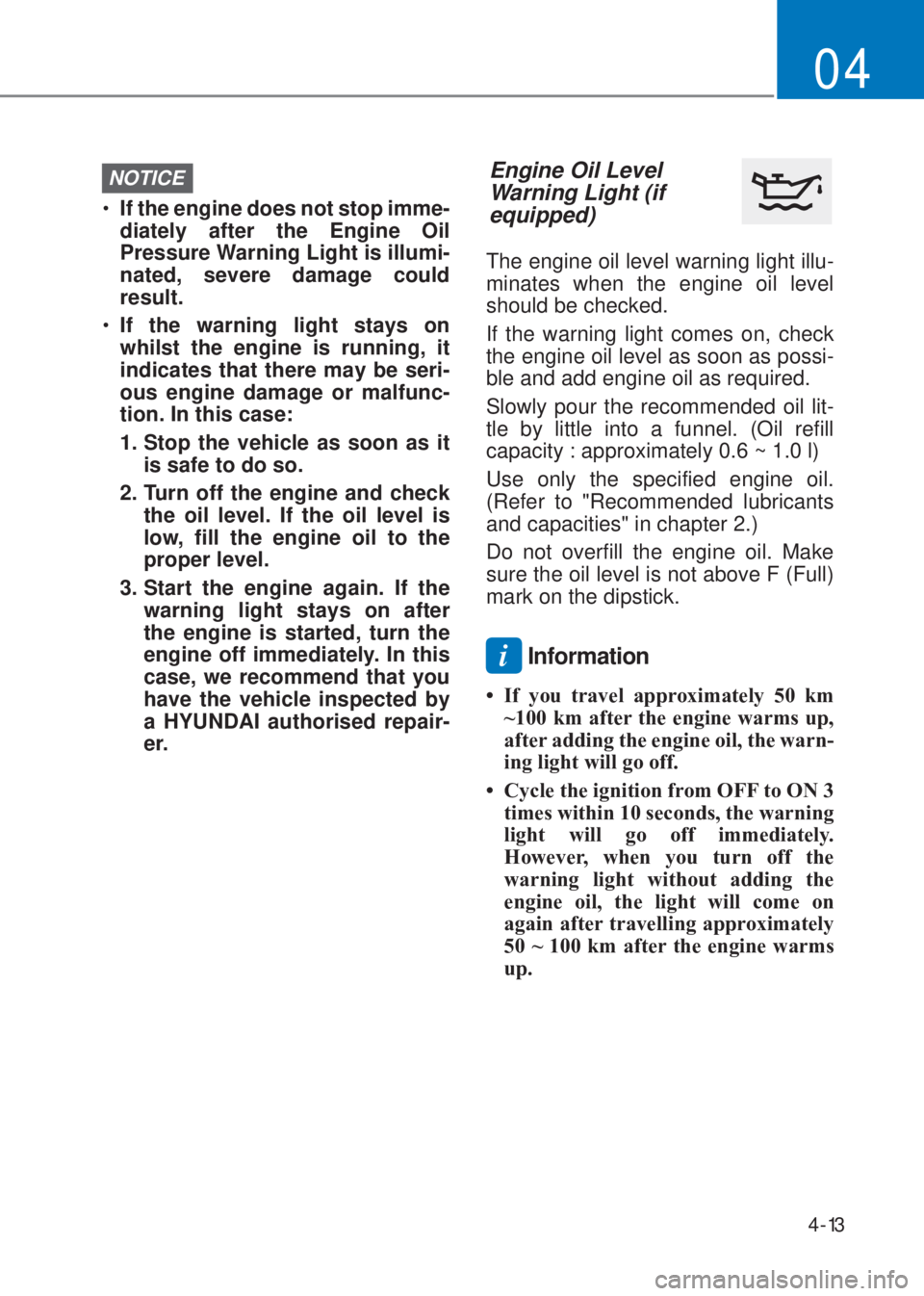

4-13
04
NOTICE
‡If the engine does not stop imme-
diately after the Engine Oil
Pressure Warning Light is illumi-
nated, severe damage could
result.
‡If the warning light stays on
whilst the engine is running, it
indicates that there may be seri-
ous engine damage or malfunc-
tion. In this case:
1. Stop the vehicle as soon as it
is safe to do so.
2. Turn off the engine and check
the oil level. If the oil level is
low, fill the engine oil to the
proper level.
3. Start the engine again. If the
warning light stays on after
the engine is started, turn the
engine off immediately. In this
case, we recommend that you
have the vehicle inspected by
a HYUNDAI authorised repair-
er.
Engine Oil Level
Warning Light (if
equipped)
The engine oil level warning light illu-
minates when the engine oil level
should be checked.
If the warning light comes on, check
the engine oil level as soon as possi-
ble and add engine oil as required.
Slowly pour the recommended oil lit-
tle by little into a funnel. (Oil refill
capacity : approximately 0.6 ~ 1.0 l)
Use only the specified engine oil.
(Refer to "Recommended lubricants
and capacities" in chapter 2.)
Do not overfill the engine oil. Make
sure the oil level is not above F (Full)
mark on the dipstick.
i Information
‡ If you travel appro[imately 5 km
a1 km after the engine warms up,
after adding the engine oil, the warn-
ing light will go off.
‡ Cycle the ignition from 2FF to 21 3
times within 1 seconds, the warning
light will go off immediately.
+owever, when you turn off the
warning light without adding the
engine oil, the light will come on
again after travelling appro[imately
5 a 1 km after the engine warms
up.

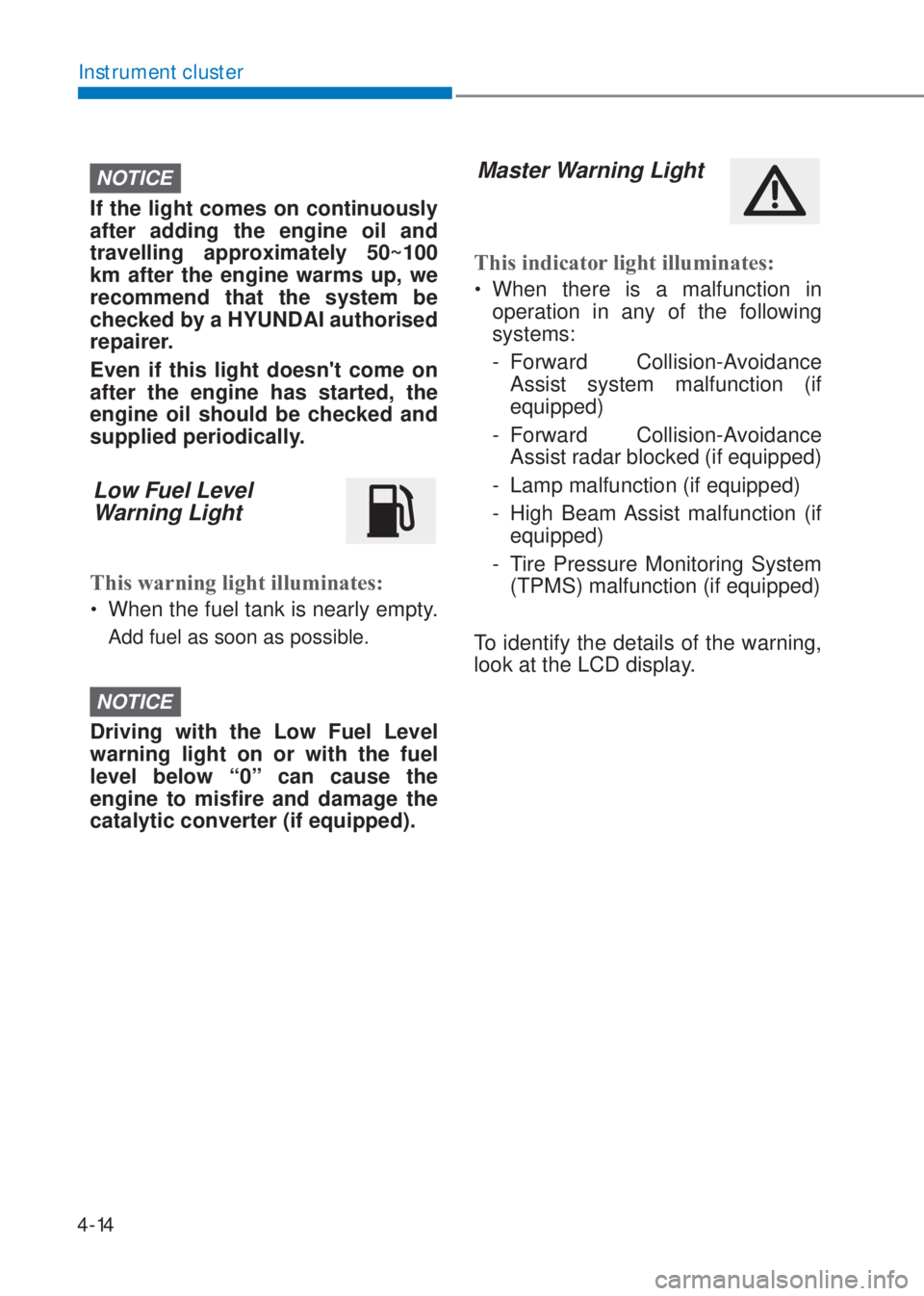

4-14
Instrument cluster
NOTICE
If the light comes on continuously
after adding the engine oil and
travelling approximately 50~100
km after the engine warms up, we
recommend that the system be
checked by a HYUNDAI authorised
repairer.
Even if this light doesn't come on
after the engine has started, the
engine oil should be checked and
supplied periodically.
Low Fuel Level
Warning Light
7his warning light illuminates
‡When the fuel tank is nearly empty.
Add fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level
warning light on or with the fuel
level below “0” can cause the
engine to misfire and damage the
catalytic converter (if equipped).
Master Warning Light
7his indicator light illuminates
‡When there is a malfunction in
operation in any of the following
systems:
- Forward Collision-Avoidance
Assist system malfunction (if
equipped)
- Forward Collision-Avoidance
Assist radar blocked (if equipped)
- Lamp malfunction (if equipped)
- High Beam Assist malfunction (if
equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction (if equipped)
To identify the details of the warning,
look at the LCD display.

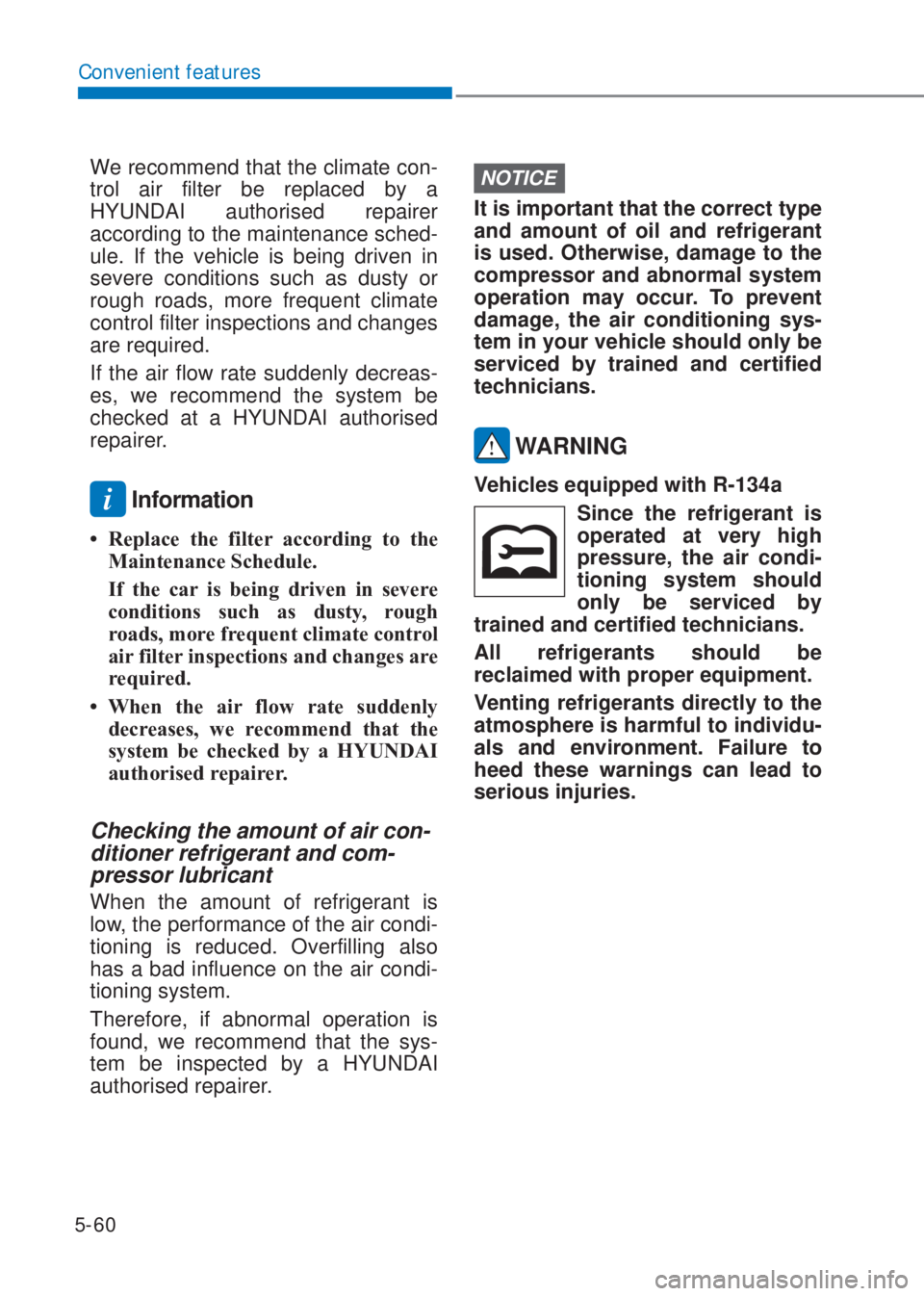

5-60
Convenient features
We recommend that the climate con-
trol air filter be replaced by a
HYUNDAI authorised repairer
according to the maintenance sched-
ule. If the vehicle is being driven in
severe conditions such as dusty or
rough roads, more frequent climate
control filter inspections and changes
are required.
If the air flow rate suddenly decreas-
es, we recommend the system be
checked at a HYUNDAI authorised
repairer.
i Information
‡ Replace the filter according to the
0aintenance Schedule.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate control
air filter inspections and changes are
required.
‡ When the air flow rate suddenly
decreases, we recommend that the
system be checked by a +<81'AI
authorised repairer.
Checking the amount of air con-
ditioner refrigerant and com-
pressor lubricant
When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, we recommend that the sys-
tem be inspected by a HYUNDAI
authorised repairer.
NOTICE
It is important that the correct type
and amount of oil and refrigerant
is used. Otherwise, damage to the
compressor and abnormal system
operation may occur. To prevent
damage, the air conditioning sys-
tem in your vehicle should only be
serviced by trained and certified
technicians.
WARNING
Vehicles equipped with R-134a
Since the refrigerant is
operated at very high
pressure, the air condi-
tioning system should
only be serviced by
trained and certified technicians.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
DOV DQG HQYLURQPHQW )DLOXUH WR
heed these warnings can lead to
serious injuries.

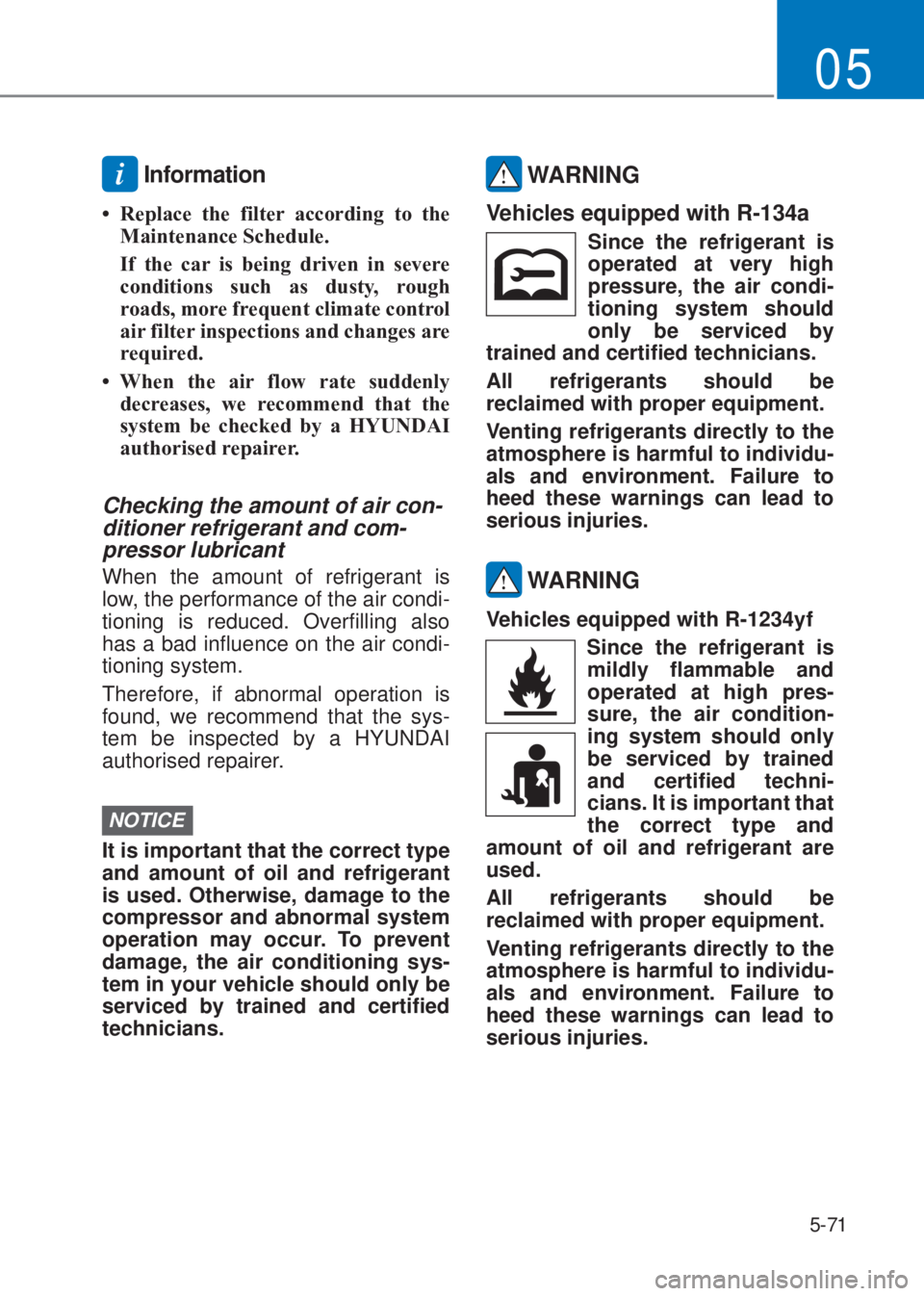

5-71
05
i Information
‡ Replace the filter according to the
0aintenance Schedule.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate control
air filter inspections and changes are
required.
‡ When the air flow rate suddenly
decreases, we recommend that the
system be checked by a +<81'AI
authorised repairer.
Checking the amount of air con-
ditioner refrigerant and com-
pressor lubricant
When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, we recommend that the sys-
tem be inspected by a HYUNDAI
authorised repairer.
NOTICE
It is important that the correct type
and amount of oil and refrigerant
is used. Otherwise, damage to the
compressor and abnormal system
operation may occur. To prevent
damage, the air conditioning sys-
tem in your vehicle should only be
serviced by trained and certified
technicians.
WARNING
Vehicles equipped with R-134a
Since the refrigerant is
operated at very high
pressure, the air condi-
tioning system should
only be serviced by
trained and certified technicians.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
DOV DQG HQYLURQPHQW )DLOXUH WR
heed these warnings can lead to
serious injuries.
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pres-
sure, the air condition-
ing system should only
be serviced by trained
and certified techni-
cians. It is important that
the correct type and
amount of oil and refrigerant are
used.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
DOV DQG HQYLURQPHQW )DLOXUH WR
heed these warnings can lead to
serious injuries.

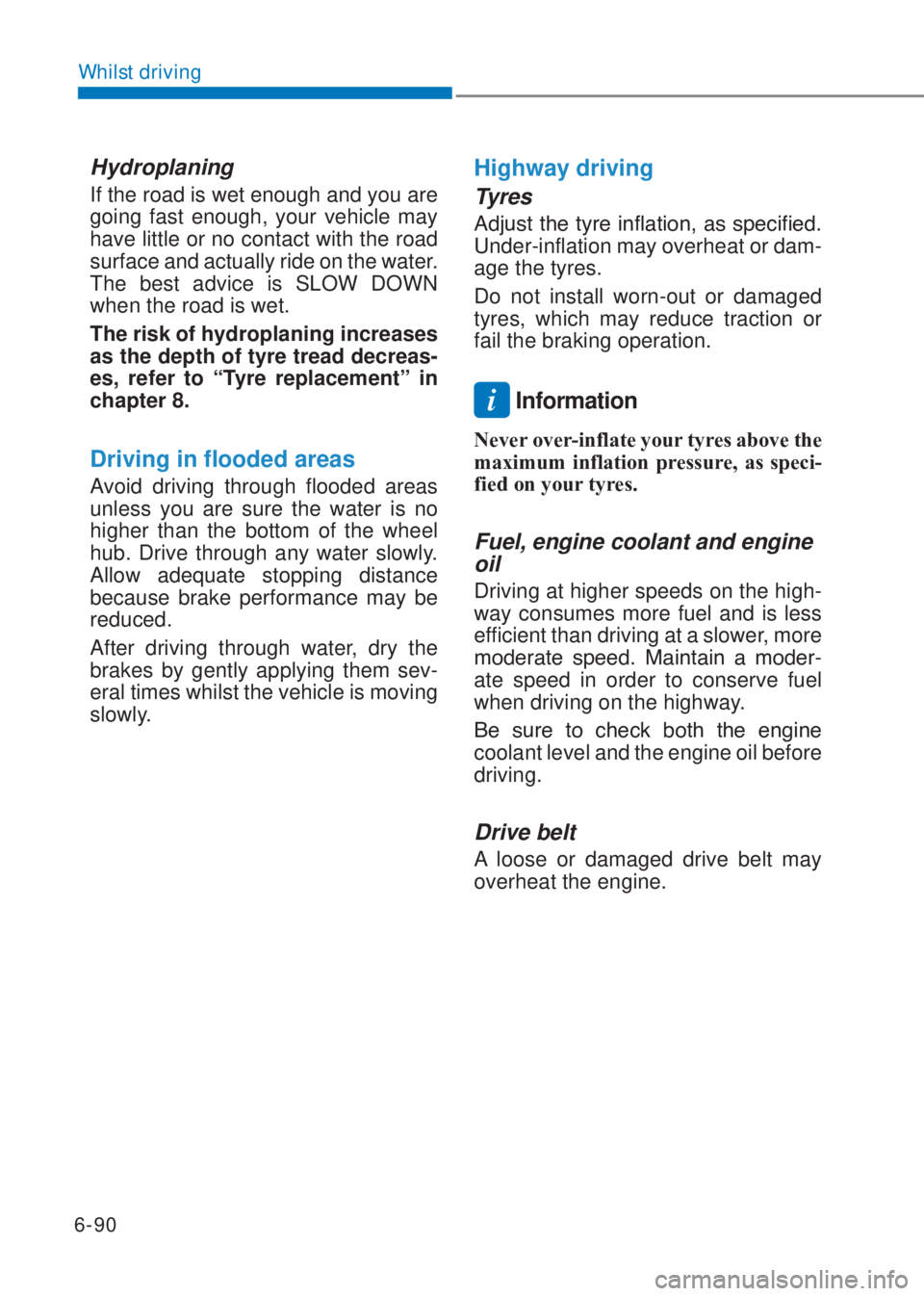

6-90
Whilst driving
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN
when the road is wet.
The risk of hydroplaning increases
as the depth of tyre tread decreas-
es, refer to “Tyre replacement” in
chapter 8.
Driving in flooded areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel
hub. Drive through any water slowly.
Allow adequate stopping distance
because brake performance may be
reduced.
After driving through water, dry the
brakes by gently applying them sev-
eral times whilst the vehicle is moving
slowly.
Highway driving
Tyres
$GMXVWWKHW\UHLQIODWLRQDVVSHFLILHG
Under-inflation may overheat or dam-
age the tyres.
Do not install worn-out or damaged
tyres, which may reduce traction or
fail the braking operation.
i Information
1ever over-inflate your tyres above the
maximum inflation pressure, as speci-
fied on your tyres.
Fuel, engine coolant and engine
oil
Driving at higher speeds on the high-
way consumes more fuel and is less
efficient than driving at a slower, more
PRGHUDWH VSHHG 0DLQWDLQ D PRGHU-
ate speed in order to conserve fuel
when driving on the highway.
%H VXUH WR FKHFN ERWK WKH HQJLQH
coolant level and the engine oil before
driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.

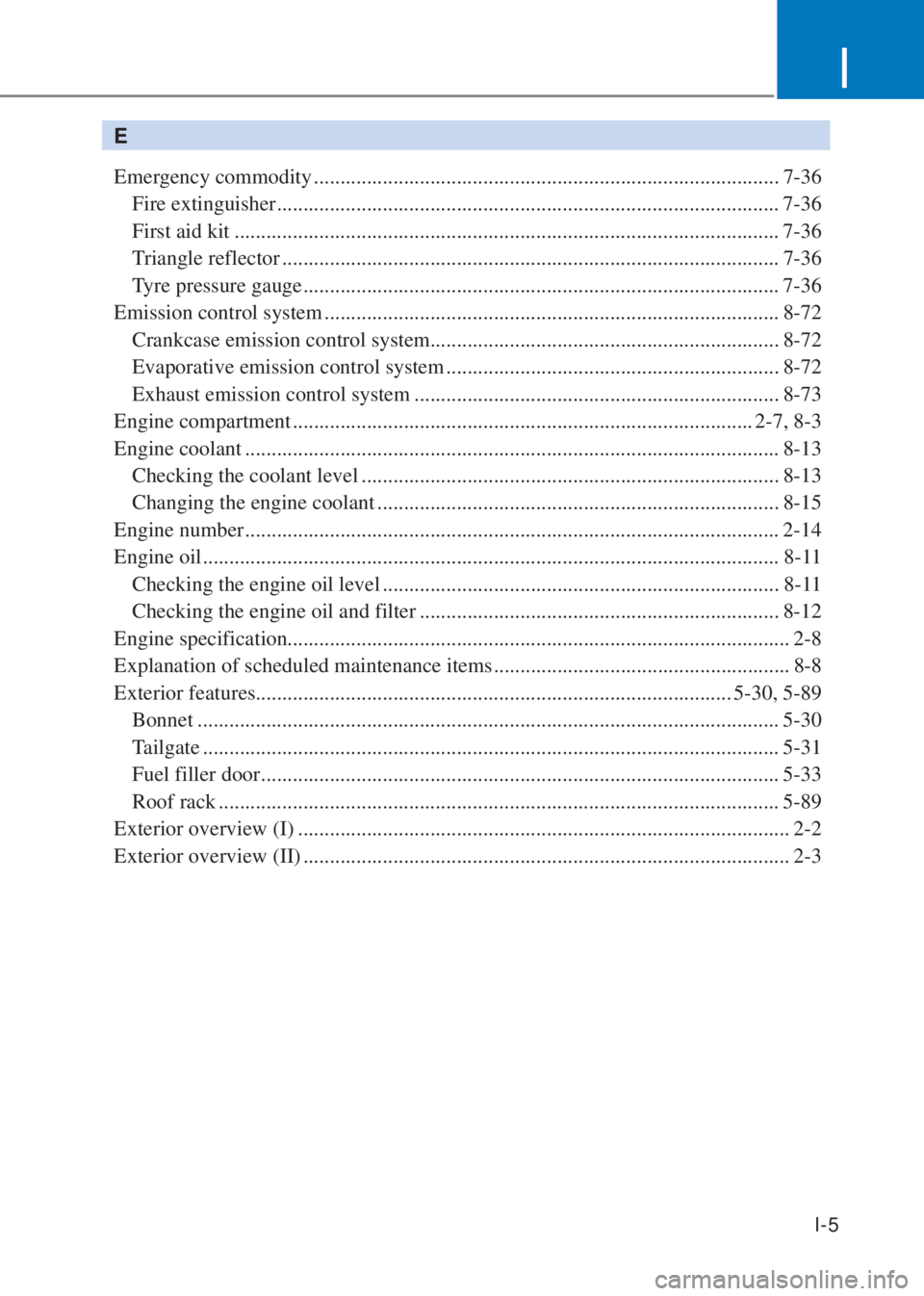

I-5
I
E
Emergency commodity ........................................................................................ 7-36
Fire extinguisher ............................................................................................... 7-36
First aid kit ....................................................................................................... 7-36
Triangle reflector .............................................................................................. 7-36
Tyre pressure gauge .......................................................................................... 7-36
Emission control system ...................................................................................... 8-72
Crankcase emission control system .................................................................. 8-72
Evaporative emission control system ............................................................... 8-72
Exhaust emission control system ..................................................................... 8-73
Engine compartment ....................................................................................... 2-7, 8-3
Engine coolant ..................................................................................................... 8-13
Checking the coolant level ............................................................................... 8-13
Changing the engine coolant ............................................................................ 8-15
Engine number ..................................................................................................... 2-14
Engine oil ............................................................................................................. 8-11
Checking the engine oil level ........................................................................... 8-11
Checking the engine oil and filter .................................................................... 8-12
Engine specification............................................................................................... 2-8
Explanation of scheduled maintenance items ........................................................ 8-8
Exterior features.......................................................................................... 5-30, 5-89
Bonnet .............................................................................................................. 5-30
Tailgate ............................................................................................................. 5-31
Fuel filler door .................................................................................................. 5-33
Roof rack .......................................................................................................... 5-89
Exterior overview (I) ............................................................................................. 2-2
Exterior overview (II) ............................................................................................ 2-3
