Congratulations, and thank you for choosing HYUNDAI.We are pleased to wel-
come you to the growing number of discerning people who drive HYUNDAIs.
We are very proud of the advanced engineering and high-quality construction
of each HYUNDAI we build.
Your Owner’s Manual will introduce you to the features and operation of your
new HYUNDAI. To become familiar with your new HYUNDAI, so that you can
fully enjoy it, read this Owner’s Manual carefully before driving your new vehi-
cle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle’s controls and safety features so you can safe-
ly operate your vehicle.
This manual also contains information on maintenance designed to enhance
safe operation of the vehicle. It is recommended that all service and mainte-
nance on your car be performed by a HYUNDAI authorised repairer.
HYUNDAI authorised repairers are prepared to provide high-quality service,
maintenance and any other assistance that may be required.
This Owner’s Manual should be considered a permanent part of your vehicle,
and should be kept in the vehicle so you can refer to it at any time. The manual
should stay with the vehicle if you sell it to provide the next owner with important
operating, safety and maintenance information.
HYUNDAI MOTOR COMPANY
CAUTION
Severe engine and transmission damage may result from the use of poor
quality fuels and lubricants that do not meet HYUNDAI specifications.
You must always use high quality fuels and lubricants that meet the spec-
ifications listed on Page 2-11 in the Vehicle Specifications section of the
Owner’s Manual.
Copyright 2019 HYUNDAI Motor Company. All rights reserved. No part of this
publication may be reproduced, stored in any retrieval system or transmitted in
any form or by any means without the prior written permission of HYUNDAI
Motor Company.

1-5
01
Petrol engine
Unleaded
For the optimal vehicle performance,
we recommend you use unleaded
petrol which has an octane rating of
RON (Research Octane Number) 95
/ AKI (Anti Knock Index) 91 or higher.
You may use unleaded petrol with an
octane rating of RON 91-94 / AKI
87-90 but it may result in slight perfor-
mance reduction of the vehicle. (Do
not use methanol blended fuels)
Your new vehicle is designed to
obtain maximum performance with
UNLEADED FUEL, as well as mini-
mise exhaust emissions and spark
plug fouling.
CAUTION
NEVER USE LEADED FUEL. The
use of leaded fuel is detrimental to
the catalytic converter and will
damage the engine control sys-
tem’s oxygen sensor and affect
emission control.
Never add any fuel system clean-
ing agents to the fuel tank other
than what has been specified (We
recommend that you consult a
HYUNDAI authorised repairer for
details.)
WARNING

1-6
Foreword
Vehicle damage or driveability prob-
lems may not be covered by the man-
ufacturer’s warranty if they result from
the use of:
1. Gasohol containing more than
10% ethanol.
2. Petrol or gasohol containing meth-
anol.
3. Leaded fuel or leaded gasohol.
CAUTION
Never use gasohol which contains
methanol. Discontinue use of any
gasohol product which impairs
drivability.
Other fuels
Using fuel additives such as:
- Silicone fuel additive
- MMT (Magnanese, Mn) fuel addi-
tive
- Ferrocene (iron-based) fuel addi-
tive
- Other metallic-based fuel additives
may result in cylinder misfire, poor
acceleration, engine stalling, damage
to the catalyst, or abnormal corro-
sion, and may cause damage to the
engine resulting in a reduction in the
overall life of the powertrain.
NOTICE
Damage to the fuel system or per-
formance problem caused by the
use of these fuels may not be cov-
ered by your New Vehicle Limited
Warranty.
Use of MTBE
HYUNDAI recommends avoiding
fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight) in
your vehicle.
Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle performance and
produce vapour lock or hard starting.
CAUTION
Your New Vehicle Limited Warranty
may not cover damage to the fuel
system and any performance prob-
lems that are caused by the use of
fuels containing methanol or fuels
containing MTBE (Methyl Tertiary
Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)
Do not use methanol
Fuels containing methanol (wood
alcohol) should not be used in your
vehicle. This type of fuel can reduce
vehicle performance and damage
components of the fuel system,
engine control system and emission
control system.

1-7
01
Fuel Additives
HYUNDAI recommends that you use
unleaded petrol which has an octane
rating of RON (Research Octane
Number) 95 / AKI (Anti Knock Index)
91 or higher (for Europe) or Octane
Rating of RON (Research Octane
Number) 91 / AKI (Anti-Knock Index)
87 or higher (except Europe).
For customers who do not use good
quality petrols including fuel additives
regularly, and have problems starting
or the engine does not run smoothly,
one bottle of additive added to the
fuel tank according to the mainte-
nance schedule is recommended
(refer to chapter 8, “Normal
Maintenance Schedule”).
Additives are available from your
HYUNDAI authorised repairer along
with information on how to use them.
Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:

Exterior overview (I)............................................................................................ 2-2
Exterior overview (II) .......................................................................................... 2-3
Interior overview ................................................................................................. 2-4
Instrument panel overview ................................................................................ 2-5
Engine compartment ......................................................................................... 2-7
Dimensions .........................................................................................................2-8
Engine specification ...........................................................................................2-8
Bulb wattage .......................................................................................................2-9
Tyres and wheels............................................................................................... 2-10
Air conditioning system..................................................................................... 2-11
Tyre load and speed capacity ........................................................................... 2-11
Gross vehicle weight ......................................................................................... 2-11
Luggage volume ................................................................................................ 2-11
Recommended lubricants and capacities .......................................................2-12
Recommended SAE viscosity number .........................................................2-13
Vehicle identification number (VIN) .................................................................2-14
Vehicle certification label ..................................................................................2-14
Tyre specification and pressure label ...............................................................2-15
Engine number ..................................................................................................2-15
Air conditioner compressor label .................................................................... 2-16
Fuel label ........................................................................................................... 2-16
Declaration of conformity ................................................................................. 2-17
2. Vehicle information
2

2-4
Vehicle information
INTERIOR OVERVIEW
The actual shape may differ from the illustration.
OAC3019003R
1. Door handle .......................................................................................................... 5-15
2. Outside rearview mirror control switch . ............................................................... 5-25
3. Power window switches ...................................................................................... 5-26
4. Power window lock switch.................................................................................... 5-30
5. Lane Keeping Assist system button* .................................................................... 6-62
6. Tyre Pressure Monitoring System (TPMS) button* ............................................. 7-10
7. Electronic Stability Control (ESC) ........................................................................ 6-37
8. Headlight levelling device ..................................................................................... 5-43
9. Fuse box............................................................................................................... 8-52
10. Key ignition switch ................................................................................................ 6-7
Engine Start/Stop button* ................................................................................... 6-10
11. Steering wheel .................................................................................................... 5-20
12. Bonnet release lever .......................................................................................... 5-30

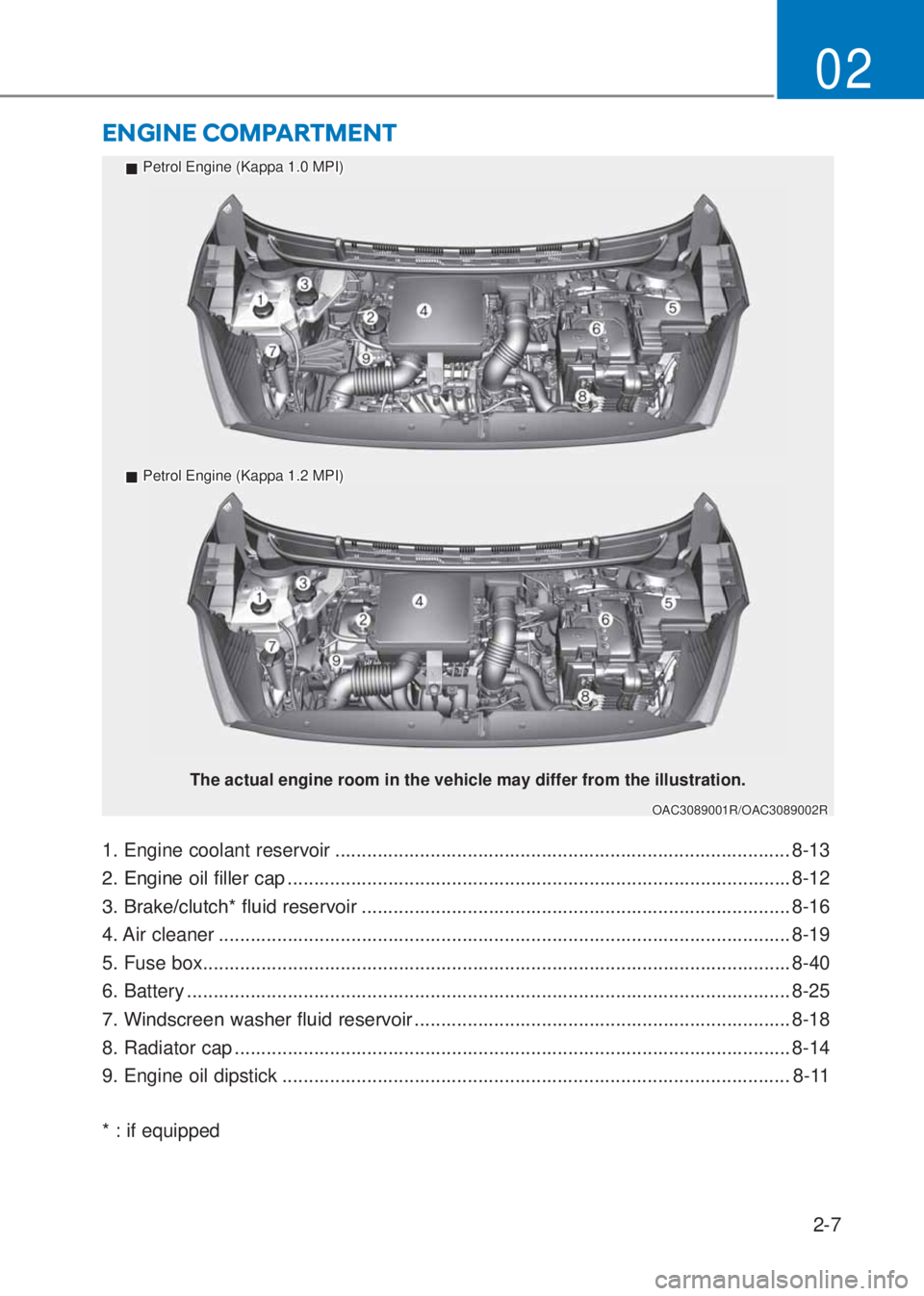

)XHO

2-7
02
1. Engine coolant reservoir ...................................................................................... 8-13
(QJLQHRLO

2-8
Vehicle information
DIMENSIONS
ItemPetrol Engine
1.0 MPI 1.2 MPI
Displacement
cc (cu. in) 998 (60.90) 1,197 (73.05)
Bore x Stroke
in. (mm)2.80x3.31
(71.0x84.0)2.80x2.98
(71.0x75.6)
Firing order In-line In-line
No. of cylinders 3 4
ENGINE SPECIFICATION
Itemsmm (in)
Overall length144.49 (3,670)
Overall width66.14 (1,680)
Overall height 58.27 (1,480)
Front tread175/65R14 58.23 (1,479)
185/55R15 57.76 (1,467)
195/45R16 57.76 (1,467)
Rear tread 175/65R14 58.66 (1,490)
185/55R15 58.19 (1,478)
195/45R16 58.19 (1,478)
Wheelbase 95.47 (2,425)

2-11
02
AIR CONDITIONING SYSTEM
ItemWeight of Volume Classification
Refrigerant oz. (g)15.17±0.88 (430±25)R-134a
R-1234yf
Compressor lubricant oz. (g)3.53 (100) PAG
Contact a HYUNDAI authorised repairer for more details.
lbs. (kg)
TYRE LOAD AND SPEED CAPACITY
ItemTyre sizeWheel
sizeLoad Capacity Speed Capacity
LI *1kg SS *2PSKNPK
Full size tyre175/65R14 5.5JX14 86 530 T 118 (190)
185/55R15 6.0JX15 86 530 H 130 (210)
195/45R16 6.5JX16 84 500 H 130 (210)
Temporary
tyreT115/70D15 3.5JX15 90 600 M 81 (130)
LUGGAGE VOLUMEGROSS VEHICLE WEIGHT
*1 LI : LOAD INDEX *2 SS : SPEED SYMBOL
ItemsPetrol Engine
1.0 MPI 1.2 MPI
VDA
l (cu ft)MIN. 252 (8.90)
MAX. 1,050 (37.08)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
6HDWHU5 Seater
1.0 MPI 1.2 MPI 1.0 MPI 1.2 MPI
AMT MTMT
(ECO)AMT MT AMT MT AMT MT
2,954
(1,340)2,954
(1,340)2,888
(1,310)2,976
(1,350)2,976
(1,350)3,108
(1,410)3,108
(1,410)3,152
(1,430)3,152
(1,430)
