odometer HYUNDAI I10 2022 Owners Manual

4-6
Instrument cluster

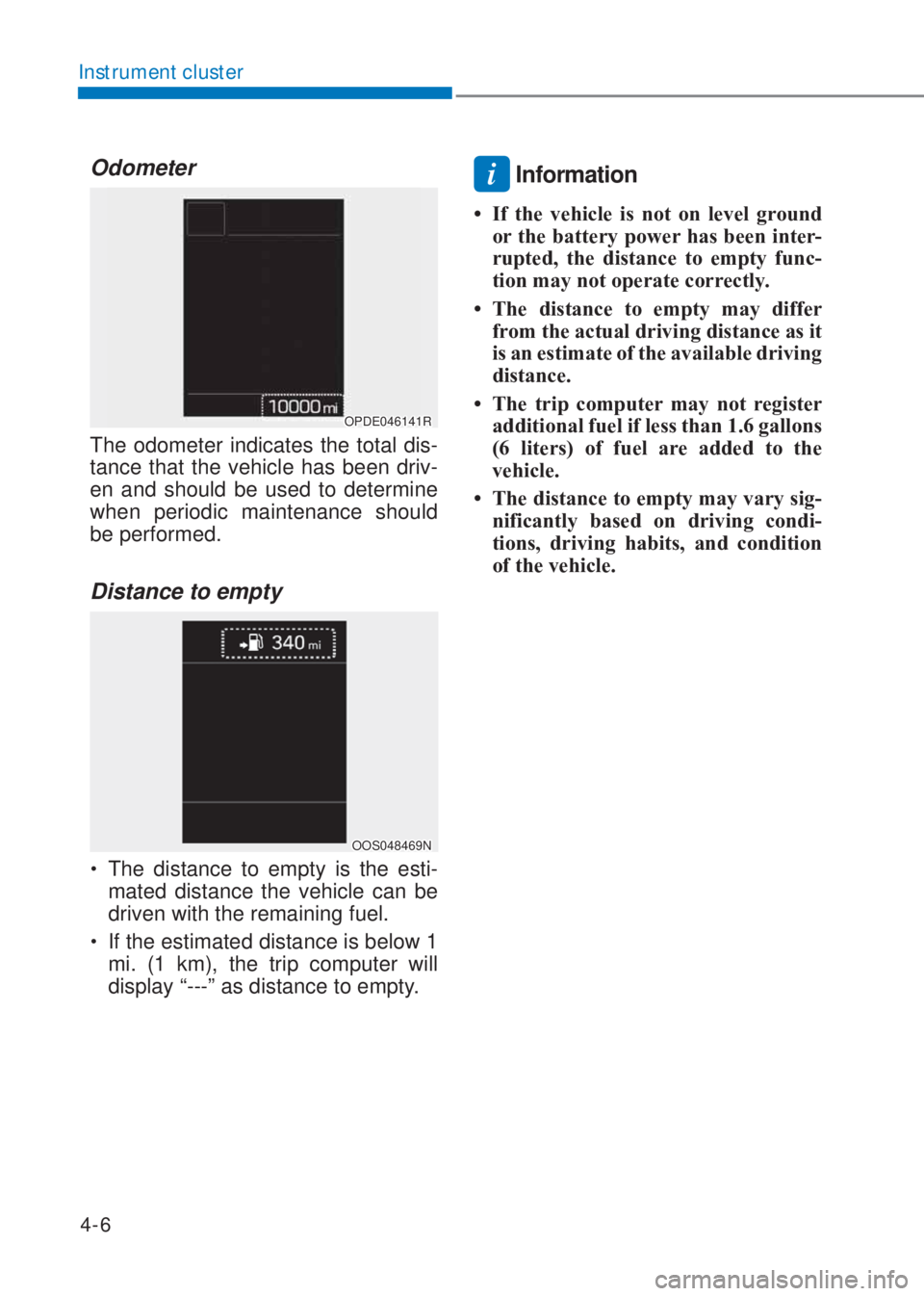

Odometer
OPDE046141R
The odometer indicates the total dis-
tance that the vehicle has been driv-
en and should be used to determine
when periodic maintenance should
be performed.
Distance to empty
OOS048469N
‡The distance to empty is the esti-
mated distance the vehicle can be
driven with the remaining fuel.
‡If the estimated distance is below 1
mi. (1 km), the trip computer will
display “---” as distance to empty.
i Information
‡ If the vehicle is not on level ground
or the battery power has been inter-
rupted, the distance to empty func-
tion may not operate correctly.
‡ 7he distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.
‡ 7he trip computer may not register
additional fuel if less than 1.6 gallons
(6 liters) of fuel are added to the
vehicle.
‡ 7he distance to empty may vary sig-
nificantly based on driving condi-
tions, driving habits, and condition
of the vehicle.

4-10
Instrument cluster
Anti-lock Brake
System (ABS) Warning
Light
7his warning light illuminates
‡When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
‡When there is a malfunction with
the ABS (The normal braking sys-
tem will still be operational without
the assistance of the anti-lock brake
system).
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Electronic Brake Force
Distribution (EBD)
System Warning Light
7hese two warning lights illuminate
at the same time whilst driving
‡When the ABS and regular brake
system may not work normally.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
WARNING
Electronic Brake Force
Distribution (EBD) System
Warning Light
When both ABS and Parking Brake
& Brake Fluid Warning Lights are
on, the brake system will not work
normally and you may experience
an unexpected and dangerous sit-
uation during sudden braking.
In this case, avoid high speed driv-
ing and abrupt braking.
We recommend you have the vehi-
cle inspected by a HYUNDAI autho-
rised repairer as soon as possible.
i Information
- Electronic Brake Force
Distribution (EBD) System
Warning Light
When the ABS Warning Light is on or
both ABS and Parking Brake Brake
Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the (PS Warning
Light may illuminate and the steering
effort may increase or decrease.
In this case, we recommend you have
the vehicle inspected by a +<81'AI
authorised repairer as soon as possible.
