oil type HYUNDAI I10 2022 Owners Manual

2-16
Vehicle information
COMPRESSOR LABEL
OHC081001
A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant (1) and refrigerant oil (2).
AIR CONDITIONER FUEL LABEL
ãIF EQUIPPED
ä
The fuel label is attached on the fuel
filler door.
OTM048455L
A. Octane rating of unleaded Petrol
1) RON/ROZ : Research Octane
Number
2) (R+M)/2, AKI : Anti Knock Index
B. Identifiers for Petrol-type fuels
Ú This symbol means usable fuel.
Do not use any other fuel.
C. For further details, refer to “Fuel
Requirement” in the Introduction
chapter.

5-60
Convenient features
We recommend that the climate con-
trol air filter be replaced by a
HYUNDAI authorised repairer
according to the maintenance sched-
ule. If the vehicle is being driven in
severe conditions such as dusty or
rough roads, more frequent climate
control filter inspections and changes
are required.
If the air flow rate suddenly decreas-
es, we recommend the system be
checked at a HYUNDAI authorised
repairer.
i Information
‡ Replace the filter according to the
0aintenance Schedule.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate control
air filter inspections and changes are
required.
‡ When the air flow rate suddenly
decreases, we recommend that the
system be checked by a +<81'AI
authorised repairer.
Checking the amount of air con-
ditioner refrigerant and com-
pressor lubricant
When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, we recommend that the sys-
tem be inspected by a HYUNDAI
authorised repairer.
NOTICE
It is important that the correct type
and amount of oil and refrigerant
is used. Otherwise, damage to the
compressor and abnormal system
operation may occur. To prevent
damage, the air conditioning sys-
tem in your vehicle should only be
serviced by trained and certified
technicians.
WARNING
Vehicles equipped with R-134a
Since the refrigerant is
operated at very high
pressure, the air condi-
tioning system should
only be serviced by
trained and certified technicians.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
DOV DQG HQYLURQPHQW )DLOXUH WR
heed these warnings can lead to
serious injuries.

5-61
05
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pres-
sure, the air condition-
ing system should only
be serviced by trained
and certified techni-
cians. It is important
that the correct type and
amount of oil and refrigerant are
used.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
DOV DQG HQYLURQPHQW )DLOXUH WR
heed these warnings can lead to
serious injuries.

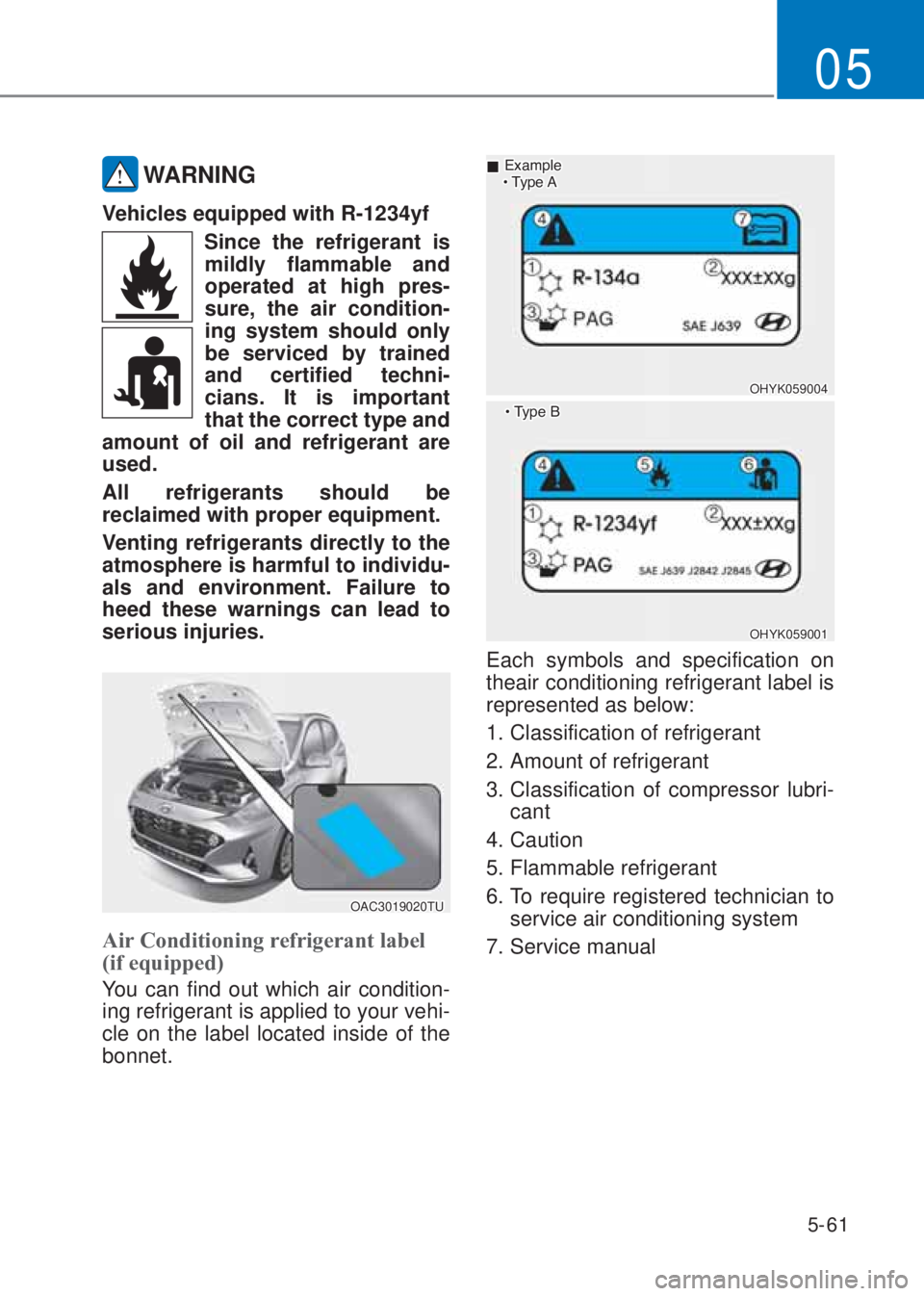

OAC3019020TU
Air Conditioning refrigerant label
(if equipped)
You can find out which air condition-
ing refrigerant is applied to your vehi-
cle on the label located inside of the
bonnet.


5-71
05
i Information
‡ Replace the filter according to the
0aintenance Schedule.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate control
air filter inspections and changes are
required.
‡ When the air flow rate suddenly
decreases, we recommend that the
system be checked by a +<81'AI
authorised repairer.
Checking the amount of air con-
ditioner refrigerant and com-
pressor lubricant
When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, we recommend that the sys-
tem be inspected by a HYUNDAI
authorised repairer.
NOTICE
It is important that the correct type
and amount of oil and refrigerant
is used. Otherwise, damage to the
compressor and abnormal system
operation may occur. To prevent
damage, the air conditioning sys-
tem in your vehicle should only be
serviced by trained and certified
technicians.
WARNING
Vehicles equipped with R-134a
Since the refrigerant is
operated at very high
pressure, the air condi-
tioning system should
only be serviced by
trained and certified technicians.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
DOV DQG HQYLURQPHQW )DLOXUH WR
heed these warnings can lead to
serious injuries.
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pres-
sure, the air condition-
ing system should only
be serviced by trained
and certified techni-
cians. It is important that
the correct type and
amount of oil and refrigerant are
used.
All refrigerants should be
reclaimed with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individu-
DOV DQG HQYLURQPHQW )DLOXUH WR
heed these warnings can lead to
serious injuries.
