HYUNDAI I10 2023 Owner's Guide
Manufacturer: HYUNDAI, Model Year: 2023, Model line: I10, Model: HYUNDAI I10 2023Pages: 486, PDF Size: 6.04 MB
Page 31 of 486
2-17
02

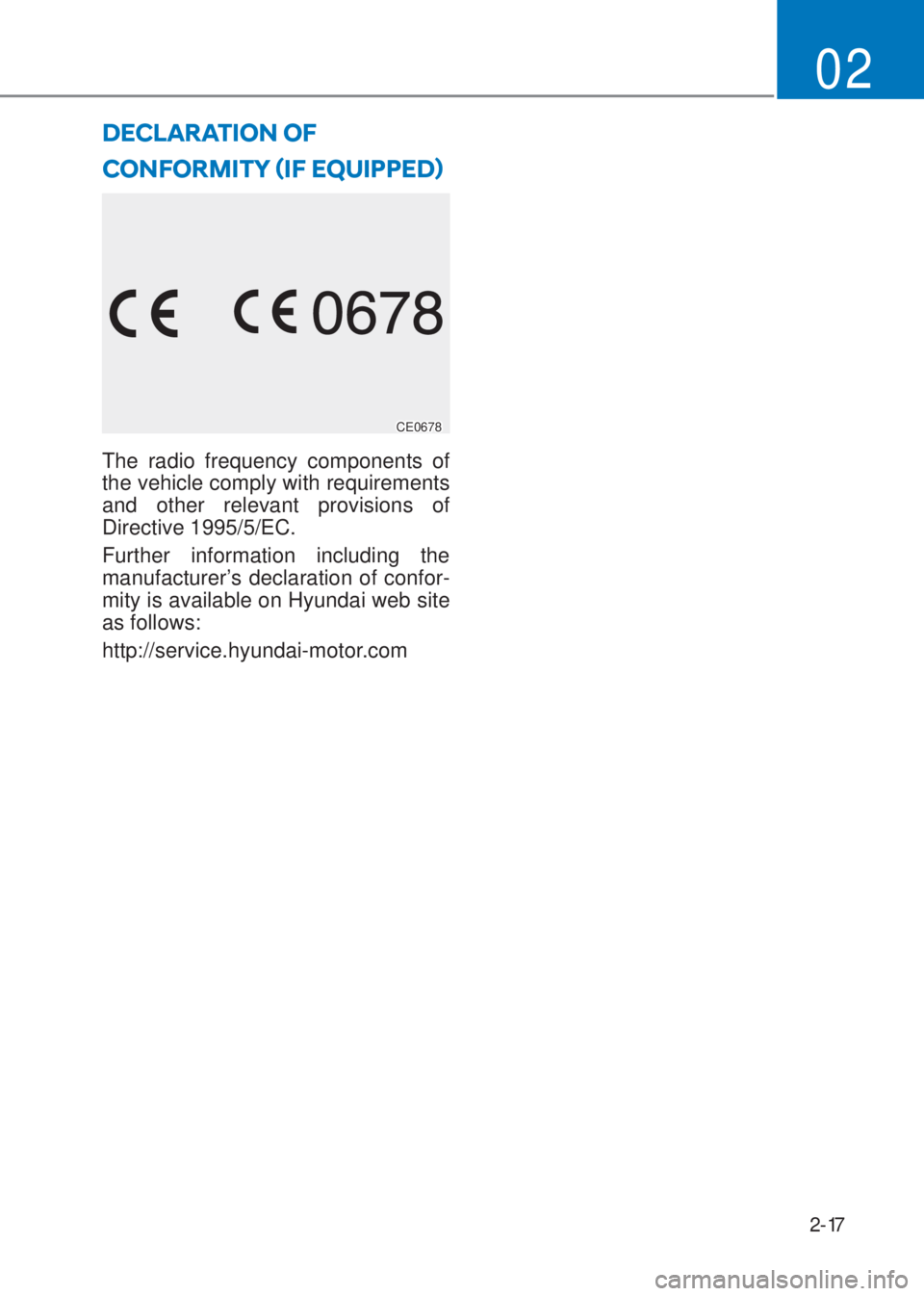

CONFORMITY ãIF EQUIPPEDä
CE0678
The radio frequency components of
the vehicle comply with requirements
and other relevant provisions of
Directive 1995/5/EC.
Further information including the
manufacturer’s declaration of confor-
mity is available on Hyundai web site
as follows:
http://service.hyundai-motor.com
DECLARATION OF
Page 32 of 486
Page 33 of 486
Important safety precautions ............................................................................ 3-2
Always wear your seat belt ............................................................................. 3-2
Restrain all children ......................................................................................... 3-2
Air bag hazards ................................................................................................ 3-2
Driver distraction ............................................................................................. 3-2
Control your speed .......................................................................................... 3-3
Keep your vehicle in safe condition ............................................................... 3-3
Seats ....................................................................................................................3-4
Safety precautions .......................................................................................... 3-5
Front seats .......................................................................................................3-6
Rear seats ....................................................................................................... 3-10
Head restraint .................................................................................................3-12
Seat warmers ................................................................................................. 3-16
Seat belts ........................................................................................................... 3-18
Seat belt safety precautions ......................................................................... 3-18
Seat belt warning light .................................................................................. 3-19
Seat belt restraint system ..............................................................................3-21
Pre-tensioner seat belt .................................................................................. 3-23
Additional seat belt safety precautions ....................................................... 3-26
Care of seat belts ...........................................................................................3-28
Child restraint system (CRS) ............................................................................ 3-29
Our recommendation : Children always in the rear .................................... 3-29
Selecting a Child Restraint System (CRS) ....................................................3-30
Installing a Child Restraint System (CRS) .....................................................3-31
Air bag - supplemental restraint system ........................................................ 3-40
Where are the air bags? ................................................................................3-42
How does the air bags system operate? ...................................................... 3-47
What to expect after an air bag inflates ..................................................... 3-50
Why didn’t my air bag go off in a collision? ................................................. 3-52
SRS Care ......................................................................................................... 3-57
Additional safety precautions ..................................................................... 3-58
Air bag warning labels .................................................................................. 3-58
3. Safety system
3
This chapter provides you with important information about how to protect
yourself and your passengers. It explains how to properly use your seats and
seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children
in your vehicle.
Page 34 of 486
3-2
Safety system
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
and recommendations throughout
this section, and throughout this man-
ual. The safety precautions in this
section are among the most impor-
tant.
Always wear your seat belt
A seat belt is your best protection in
all types of accidents. Air bags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with air
bags, ALWAYS make sure you and
your passengers wear your seat
belts, and wear them properly.
Restrain all children
All children under age 13 should ride
in your vehicle properly restrained in
a rear seat, not the front seat. Infants
and small children should be
restrained in an appropriate child
restraint. Larger children should use
a booster seat with the lap/shoulder
belt until they can use the seat belt
properly without a booster seat.
Air bag hazards
Whilst air bags can save lives, they
can also cause serious or fatal inju-
ries to occupants who sit too close to
them, or who are not properly
restrained. Infants, young children,
and short adults are at the greatest
risk of being injured by an inflating air
bag. Follow all instructions and warn-
ings in this manual.
Driver distraction
Driver distraction presents a serious
and potentially deadly danger, espe-
cially for inexperienced drivers.
Safety should be the first concern
when behind the wheel and drivers
need to be aware of the wide array of
potential distractions, such as drowsi-
ness, reaching for objects, eating,
personal grooming, other passen-
gers, and using mobile phones.
Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel
to focus on activities other than driv-
ing. To reduce your risk of distraction
and an accident:
‡ ALWAYS set up your mobile devic-
es (i.e., MP3 players, phones, navi-
gation units, etc.) when your vehicle
is parked or safely stopped.
‡ ONLY use your mobile device when
allowed by laws and conditions per-
mit safe use.
‡
NEVER text or email whilst driving.
Most countries have laws prohibit-
ing drivers from texting. Some
countries and cities also prohibit
drivers from using handheld
phones.
‡ NEVER let the use of a mobile
device distract you from driving.
You have a responsibility to your
passengers and others on the road
to always drive safely, with your
hands on the wheel as well as your
eyes and attention on the road.
Page 35 of 486
3-3
03
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi-
tions, regardless of the maximum
speed posted.
Keep your vehicle in safe
condition
Having a tyre blowout or a mechani-
cal failure can be extremely hazard-
ous. To reduce the possibility of such
problems, check your tyre pressures
and condition frequently, and perform
all regularly scheduled maintenance.
Page 36 of 486
3-4
Safety system

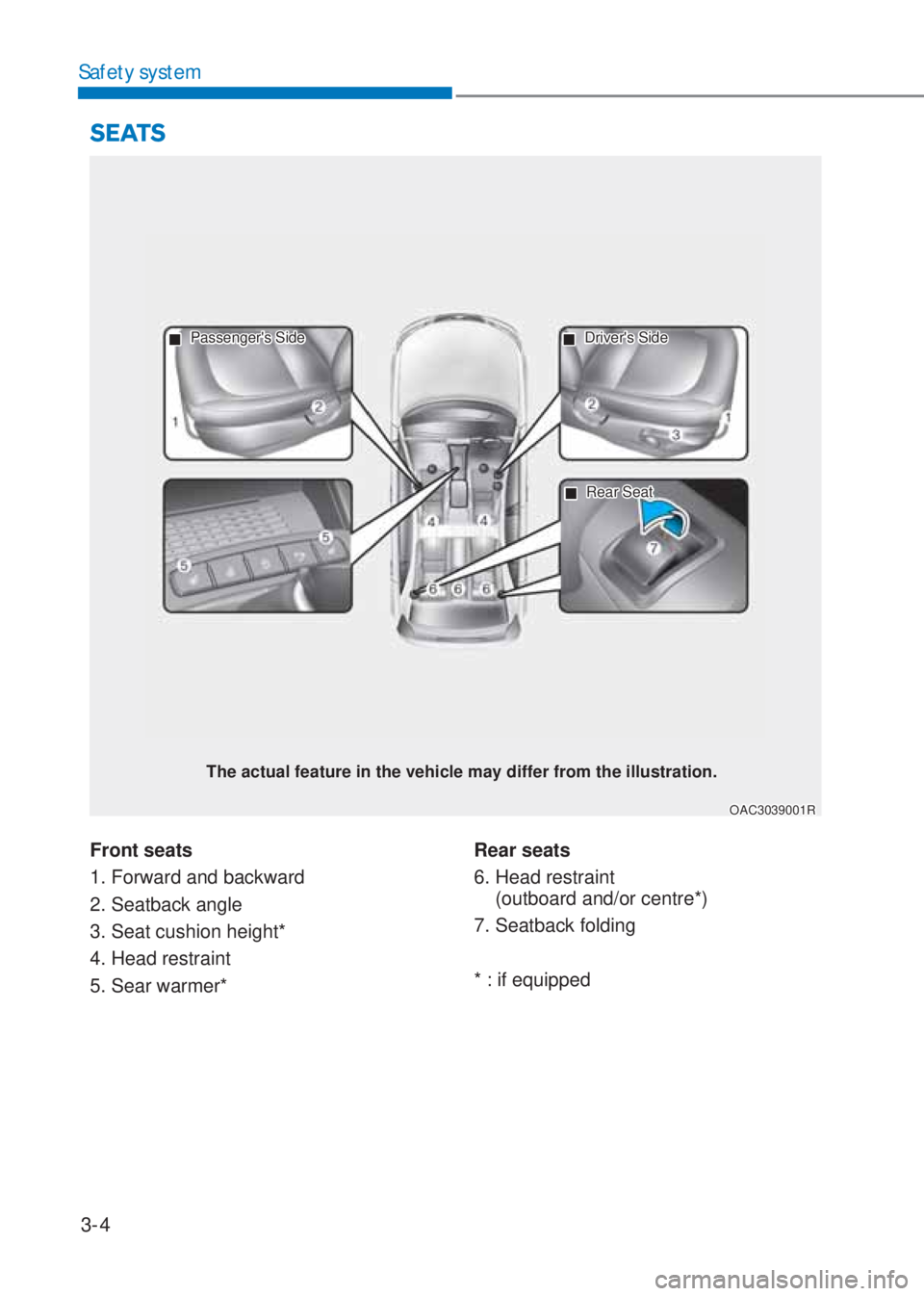

Front seats
1. Forward and backward
2. Seatback angle
3. Seat cushion height*
4. Head restraint
5. Sear warmer*Rear seats
6. Head restraint
(outboard and/or centre*)
7. Seatback folding
* : if equipped
SEATS
The actual feature in the vehicle may differ from the illustration.
OAC3039001R
„ Passenger's Side
„ Driver's Side
„ Rear Seat
Page 37 of 486
3-5
03
Safety precautions
Adjusting the seats so that you are
sitting in a safe, comfortable position
plays an important role in driver and
passenger safety together with the
seat belts and air bags in an accident.
WARNING
Do not use a cushion that reduces
friction between the seat and the
passenger. The passenger’s hips
may slide under the lap portion of
the seat belt during an accident or
a sudden stop. Serious or fatal
internal injuries could result
because the seat belt cannot oper-
ate properly.
Air bags
You can take steps to reduce the risk
of being injured by an inflating air
bag. Sitting too close to an air bag
greatly increases the risk of injury in
the event the air bag inflates. Move
your seat as far back as possible from
front air bags, whilst still maintaining
control of the vehicle.
WARNING
To reduce the risk of serious injury
or death from an inflating air bag,
take the following precautions:
‡ Adjust the driver’s seat as far to
the rear as possible whilst main-
taining the ability to maintain full
control of the vehicle.
‡ Adjust the front passenger seat
as far to the rear as possible.
‡ Hold the steering wheel by the
rim with hands at the 9 o’clock
and 3 o’clock positions to mini-
mise the risk of injuries to your
hands and arms.
‡ NEVER place anything or anyone
between the air bag.
‡ Do not allow the front passenger
to place feet or legs on the dash-
board to minimise the risk of leg
injuries.
Page 38 of 486
3-6
Safety system
Seat belts
Always fasten your seat belt before
starting any trip.
At all times, passengers should sit
upright and be properly restrained.
Infants and small children must be
restrained in appropriate child
restraint systems. Children who have
outgrown a booster seat and adults
must be restrained using the seat
belts.
WARNING
Take the following precautions
when adjusting your seat belt:
‡ NEVER use one seat belt for
more than one occupant.
‡ Always position the seatback
upright with the lap portion of
the seat belt snug and low across
the hips.
‡ NEVER allow children or small
infants to ride in a passenger’s
lap.
‡ Do not route the seat belt across
your neck, across sharp edges,
or reroute the shoulder strap
away from your body.
‡ Do not allow the seat belt to
become caught or jammed.
Front seats
The front seat can be adjusted by
using the control lever or switches
located on the outside of the seat
cushion. Before driving, adjust the
seat to the proper position so that you
can easily control the steering wheel,
foot pedals and controls on the instru-
ment panel.
WARNING
Take the following precautions
when adjusting your seat:
‡ NEVER attempt to adjust the seat
whilst the vehicle is moving. The
seat could respond with unex-
pected movement and may
cause loss of vehicle control
resulting in an accident.
‡ Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot
pedals, causing an accident.
‡ Do not allow anything to inter-
fere with the normal position and
proper locking of the seatback.
‡ Do not place a cigarette lighter
on the floor or seat. When you
operate the seat, gas may exit
out of the lighter causing a fire.
‡ Use extreme caution when pick-
ing small objects trapped under
the seats or between the seat
and the centre console. Your
hands might be cut or injured by
the sharp edges of the seat
mechanism.
