Page 18 of 486
2-4
Vehicle information
INTERIOR OVERVIEW
The actual shape may differ from the illustration.
OAC3019003R
1. Door handle .......................................................................................................... 5-15
2. Outside rearview mirror control switch . ............................................................... 5-25
3. Power window switches ...................................................................................... 5-26
4. Power window lock switch.................................................................................... 5-30
5. Lane Keeping Assist system button* .................................................................... 6-62
6. Tyre Pressure Monitoring System (TPMS) button* ............................................. 7-10
7. Electronic Stability Control (ESC) ........................................................................ 6-37
8. Headlight levelling device ..................................................................................... 5-43
9. Fuse box............................................................................................................... 8-52
10. Key ignition switch ................................................................................................ 6-7
Engine Start/Stop button* ................................................................................... 6-10
11. Steering wheel .................................................................................................... 5-20
12. Bonnet release lever .......................................................................................... 5-30
) X H O
Page 112 of 486
4-22
Instrument cluster
Door, Bonnet, Tailgate open
indicator
OAC3079037R
This warning is displayed indicating
which door, bonnet, or tailgate is
open.
CAUTION
Before driving the vehicle, you
should confirm that the door/ bon-
net/tailgate is fully closed. Also,
check there is no door/bonnet/tail-
gate open warning light or mes-
sage displayed on the instrument
cluster.
Turn on FUSE SWITCH
This warning message is displayed if
the fuse switch located on the fuse
box under the steering wheel is OFF.
You should turn the fuse switch on.
For more details, refer to “Fuses”
in chapter 8.

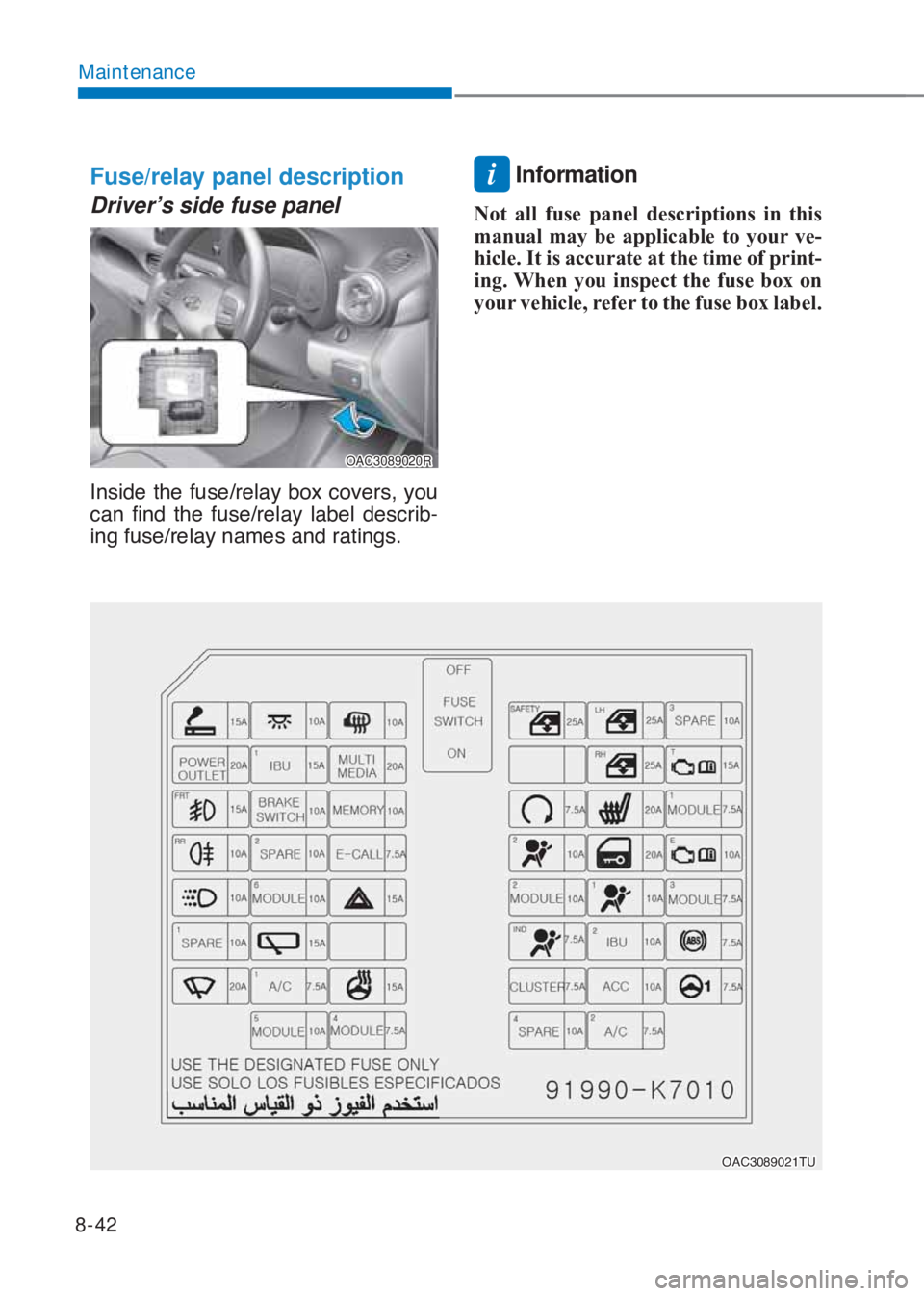

Page 438 of 486
8-42
Maintenance
Fuse/relay panel description
Driver’s side fuse panel
OAC3089020R
, Q V L G H W K H I X V H U H O D \ E R [ F R Y H U V \ R X
F D Q I L Q G W K H I X V H U H O D \ O D E H O G H V F U L E-
L Q J I X V H U H O D \ Q D P H V D Q G U D W L Q J V
i Information
Not all fuse panel descriptions in this
manual may be applicable to your ve-
hicle. It is accurate at the time of print-
ing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
2 $ & 7 8
Page 442 of 486
![HYUNDAI I10 2023 Owners Manual 8-46
Maintenance
Engine compartment fuse panel
2 $ & 7 8
, Q V L G H W K H I X V H U H O D \ E R [ F R Y H U V \ R X
F D Q I L Q G W K H I X V H U H O D \](/img/35/56218/w960_56218-441.png "HYUNDAI I10 2023 Owners Manual 8-46
Maintenance
Engine compartment fuse panel
2 $ & 7 8
, Q V L G H W K H I X V H U H O D \ E R [ F R Y H U V \ R X
F D Q I L Q G W K H I X V H U H O D \")
8-46
Maintenance
Engine compartment fuse panel
2 $ & 7 8
, Q V L G H W K H I X V H U H O D \ E R [ F R Y H U V \ R X
F D Q I L Q G W K H I X V H U H O D \ O D E H O G H V F U L E-
L Q J I X V H U H O D \ Q D P H V D Q G U D W L Q J V
i Information
Not all fuse panel descriptions in this
manual may be applicable to your ve-
hicle. It is accurate at the time of print-
ing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
2 $ & 7 8
