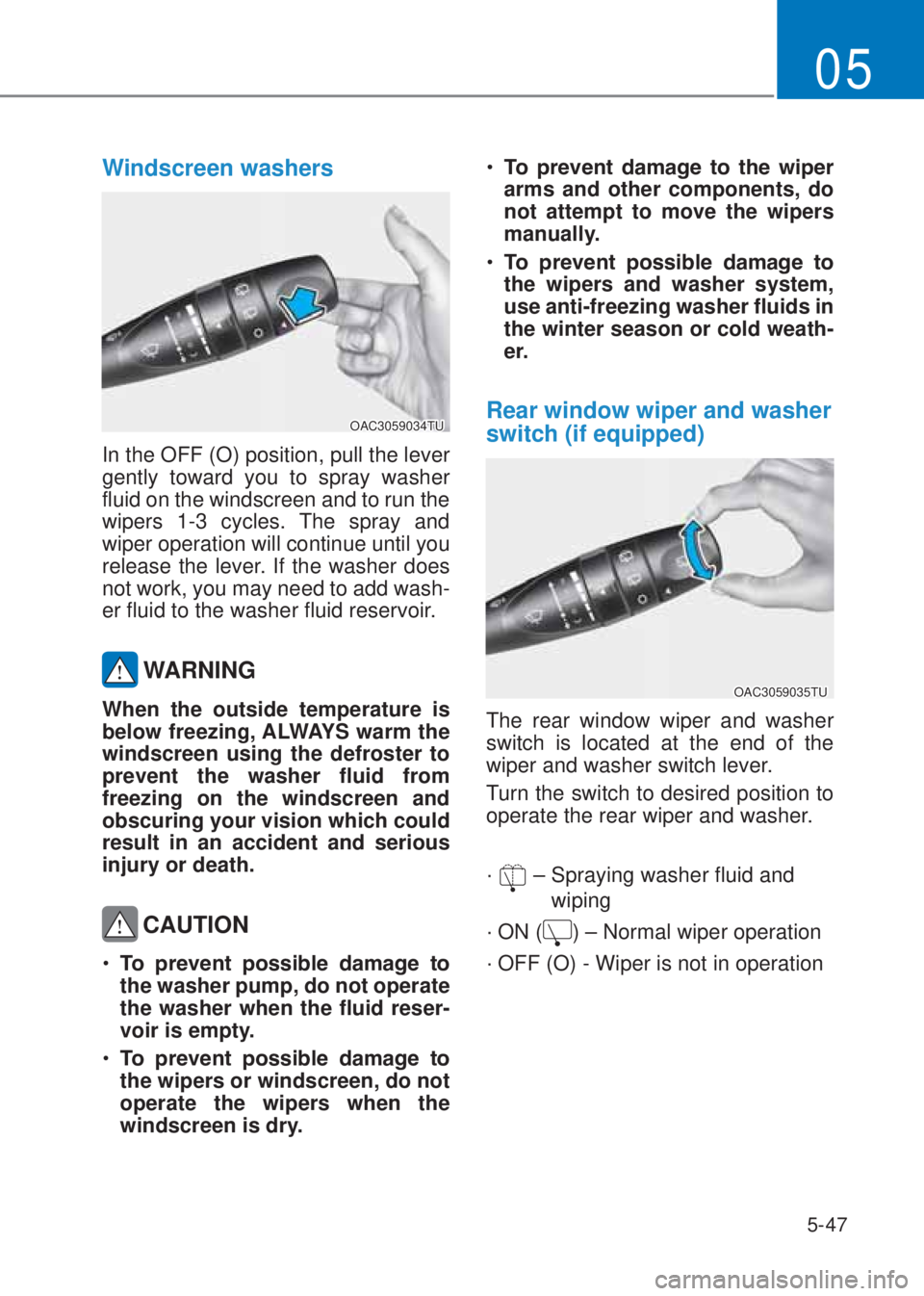

Page 175 of 486
5-47
05
Windscreen washers
OAC3059034TU
In the OFF (O) position, pull the lever
gently toward you to spray washer
fluid on the windscreen and to run the
wipers 1-3 cycles. The spray and
wiper operation will continue until you
release the lever. If the washer does
not work, you may need to add wash-
er fluid to the washer fluid reservoir.
WARNING
When the outside temperature is
below freezing, ALWAYS warm the
windscreen using the defroster to
prevent the washer fluid from
freezing on the windscreen and
obscuring your vision which could
result in an accident and serious
injury or death.
CAUTION
Page 350 of 486
6-94
Whilst driving
To prevent locks from freezing
To prevent the locks from being fro-
zen, spray approved de-icing fluid or
glycerin into key holes. When a lock
opening is already covered with ice,
spray approved de-icing fluid over the
ice to remove it. When an internal
part of a lock freezes, try to thaw it
with a heated key. Carefully use the
K H D W H G N H \ W R D Y R L G D Q L Q M X U \
Use approved window washer anti-
freeze solution in system
To prevent the window washer from
being frozen, add authorized window
washer anti-freeze solution, as speci-
fied on the window washer container.
Window washer anti-freeze solution
is available from a HYUNDAI autho-
rised repairer, and most vehicle
accessory outlets. Do not use engine
coolant or other types of anti-freeze
solution to prevent any damage to the
vehicle paint.
Do not let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged posi-
tion.
This is most likely to happen when
there is an accumulation of snow or
ice around or near the rear brakes or
if the brakes are wet. When there is
the risk that your parking brake may
freeze, temporarily apply it with the
V K L I W O H Y H U L Q 1 I R U $ X W R P D W H G 0 D Q X D O
Transmission) or in first or reverse
gear (for manual transmission). Also,
block the rear wheels in advance, so
the vehicle may not roll. Then, release
the parking brake.Do not let ice and snow
accumulate underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driv-
ing in such conditions during the
severe winter, you should check
underneath the vehicle on a regular
basis, to ensure that the front wheels
and the steering components is
unblocked.
Carry emergency equipment
In accordance with weather condi-
tions, you should carry appropriate
emergency equipment, whilst driving.
Some of the items you may want to
carry include tyre chains, tow straps
or chains, flashlight, emergency
I O D U H V V D Q G V K R Y H O M X P S H U F D E O H V
window scraper, gloves, ground cloth,
coveralls, blanket, etc.
Do not place objects or materials
in the engine compartment
3 X W W L Q J R E M H F W V R U P D W H U L D O V L Q W K H
engine compartment may cause an
engine failure or combustion,
because they may block the engine
cooling. Such damage will not be
covered by the manufacturer’s war-
ranty.
Page 397 of 486
Engine compartment .........................................................................................8-3
Maintenance services ....................................................................................... 8-4
Owner’s responsibility .................................................................................... 8-4
Owner maintenance precautions.................................................................. 8-4
Owner maintenance ...........................................................................................8-5
Owner maintenance schedule .......................................................................8-5
Scheduled maintenance services ..................................................................... 8-7
Explanation of scheduled maintenance items ................................................ 8-8
Engine oil ............................................................................................................ 8-11
Checking the engine oil level ........................................................................ 8-11
Checking the engine oil and filter ................................................................ 8-12
Engine coolant .................................................................................................. 8-13
Checking the coolant level ........................................................................... 8-13
Changing the engine coolant ....................................................................... 8-15
Brake/clutch fluid ............................................................................................. 8-16
Checking the brake/clutch fluid level .......................................................... 8-16
Washer fluid ...................................................................................................... 8-18
Checking the washer fluid level ................................................................... 8-18
Checking the parking brake.......................................................................... 8-18
Parking brake .................................................................................................... 8-18
Air cleaner ......................................................................................................... 8-19
Filter replacement ......................................................................................... 8-19
Climate control air filter ................................................................................... 8-21
Filter inspection ............................................................................................. 8-21
Filter replacement ......................................................................................... 8-21
Wiper blades .....................................................................................................8-23
Blade inspection ............................................................................................8-23
Blade replacement ......................................................................................8-23
Battery ............................................................................................................... 8-25
For best battery service ................................................................................ 8-25
Battery capacity label ................................................................................... 8-27
Battery recharging ......................................................................................... 8-27
Reset items ....................................................................................................8-28
8. Maintenance
8
Page 411 of 486
8-15
08
Changing the engine coolant
: H U H F R P P H Q G W K D W W K H F R R O D Q W E H
U H S O D F H G E \ D + < 8 1 ' $ , D X W K R U L V H G
U H S D L U H U
NOTICE
Put a thick cloth or fabric around
the radiator cap before refilling the
coolant in order to prevent the
coolant from overflowing into en-
gine parts such as alternator.
WARNING
Do not use engine coolant or anti-
freeze in the washer fluid reser-
voir.
Engine coolant can severely ob-
scure visibility when sprayed on
the windscreen and may cause
loss of vehicle control or damage
to paint and body trim.
Page 414 of 486
8-18
Maintenance
Checking the washer fluid level
2 $ & 7 8
& K H F N W K H I O X L G O H Y H O L Q W K H Z D V K H U
I O X L G U H V H U Y R L U D Q G D G G I O X L G L I Q H F H V-
sary.
3 O D L Q Z D W H U P D \ E H X V H G L I Z D V K H U
I O X L G L V Q R W D Y D L O D E O H
+ R Z H Y H U X V H Z D V K H U V R O Y H Q W Z L W K
D Q W L I U H H ] H F K D U D F W H U L V W L F V L Q F R O G F O L-
P D W H V W R S U H Y H Q W I U H H ] L Q J
WARNING
To prevent serious injury or death,
take the following safety precau-
tions when using washer fluid:
Page 485 of 486
I-13
I
V
Vehicle break-in process ........................................................................................ 1-8
Vehicle certification label .................................................................................... 2-14
Vehicle identification number (VIN) ................................................................... 2-14
Vehicle modifications ............................................................................................ 1-7
Vehicle weight ..................................................................................................... 6-95
Overloading ...................................................................................................... 6-95
W
Washer fluid ......................................................................................................... 8-18
Checking the washer fluid level ....................................................................... 8-18
Checking the parking brake .............................................................................. 8-18
Windows .............................................................................................................. 5-26
Power windows ................................................................................................ 5-26
Windscreen defrosting and defogging ................................................................. 5-73
Automatic climate control system .................................................................... 5-74
Defroster ........................................................................................................... 5-75
Winter driving ...................................................................................................... 6-91
Snow or icy conditions ..................................................................................... 6-91
Winter Precautions ........................................................................................... 6-93
Wiper blades ........................................................................................................ 8-23
Blade inspection ............................................................................................... 8-23
Blade replacement .......................................................................................... 8-23
Wipers and washers ............................................................................................. 5-46
Windscreen wipers ........................................................................................... 5-46
Windscreen washers ........................................................................................ 5-47
Rear window wiper and washer switch ............................................................ 5-47
