15
Introduction
Diesel fuel of 52 to 54 cetane is used in
your vehicle. If two types of diesel fuel
are available, use summer or winter fuel
properly according to the following tem-
perature conditions.
• Above -5°C(23°F) ... Summer type
diesel fuel.
• Below -5°C(23°F) ... Winter type diesel
fuel.
Watch the fuel level in the tank very care-
fully : If the engine stops through fuel fail-
ure, the circuits must be completely
purged to restart.A020202AUN
Biodiesel
Commercially supplied biodiesel blends
of no more than 5% biodiesel, commonly
known as "B5 biodiesel" may be used in
your vehicle if it meets EN 14214 or
equivalent specifications. (EN stands for
"European Norm"). The use of biofuels
made from rapeseed methyl ester
(RME), fatty acid methyl ester (FAME),
vegetable oil methyl ester (VME) etc. or
mixing diesel with biodiesel will cause
increased wear or damage to the engine
and fuel system. Repair or replacement
of worn or damaged components due to
the use of non approved fuels will not be
covered by the manufactures warranty.
A030000AUN
No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
• Do not race the engine.
• While driving, keep your engine speed
(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
• Do not maintain a single speed for long
periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
• Avoid hard stops, except in emergen-
cies, to allow the brakes to seat prop-
erly.
• Don't let the engine idle longer than 3
minutes at one time.
• Don't tow a trailer during the first 2,000
km (1,200 miles) of operation.
CAUTION
• Do not let any gasoline or water
enter the tank. This would make it
necessary to drain it out and to
bleed the lines to avoid jamming
the injection pump and damaging
the engine.
• In winter, in order to cut down
incidents due to freezing, paraffin
oil may be added to the fuel if the
temperature drops to below -
10°C(50°F). Never use more than
20% paraffin oil.
CAUTION
• Never use any fuel, whether
diesel or B5 biodiesel that fails to
meet the latest petroleum indus-
try specification.
• Never use any fuel additives or
treatments that are not recom-
mended or approved by the vehi-
cle manufacturer.
VEHICLE BREAK-IN PROCESS
Page 12 of 207
Introduction
6 1
A050000APB
INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Door and tailgate open position
indicator*
Seat belt warning light
High beam indicator
Low beam indicator
Turn signal indicator
Front fog light indicator*
Rear fog light indicator*
ABS warning light*
Parking brake & Brake fluid
warning light
Engine oil pressure warning
light
Charging system warning light
ESP indicator*
ESP OFF indicator*
Malfunction indicator*
Air bag warning light*
Immobilizer indicator*
Low fuel level warning light
Glow indicator (Diesel only)
Fuel filter warning light
(Diesel only)
Electric power steering (EPS)
system warning light*
❈For more detailed explanations, refer to section 4, “Instrument cluster”.
* : if equipped
TPMS (Tire Pressure Monitoring
System) malfunction indicator*
Low tire pressure telltale*
Low tire pressure position tell-
tale*
Door ajar warning light*
Tailgate open warning light*
O/D OFF indicator*
O/D
OFF

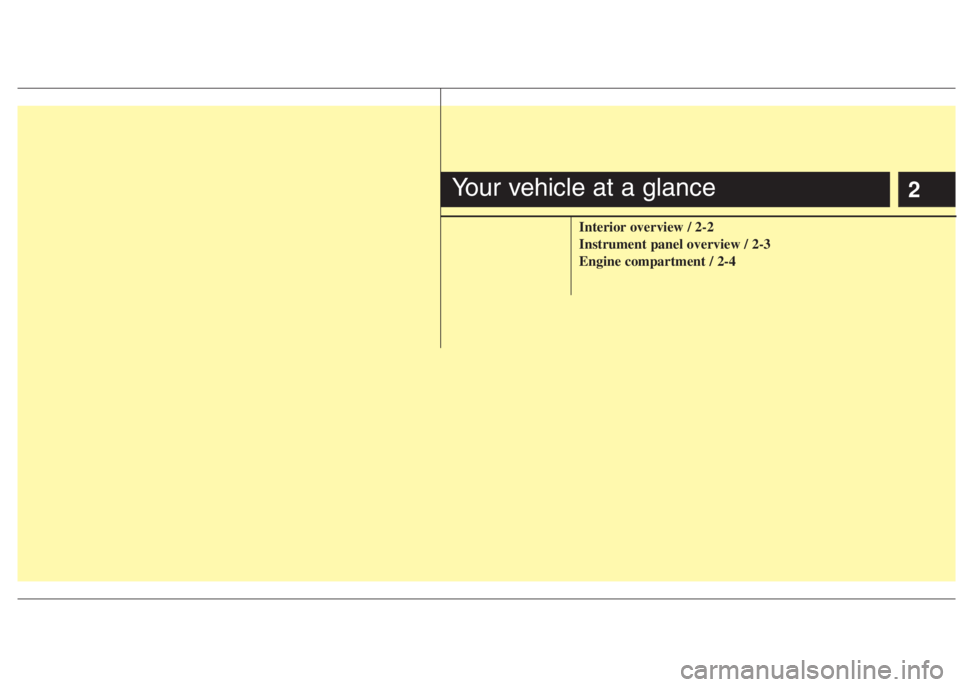

Page 13 of 207
2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance
Page 14 of 207
Your vehicle at a glance
2 2

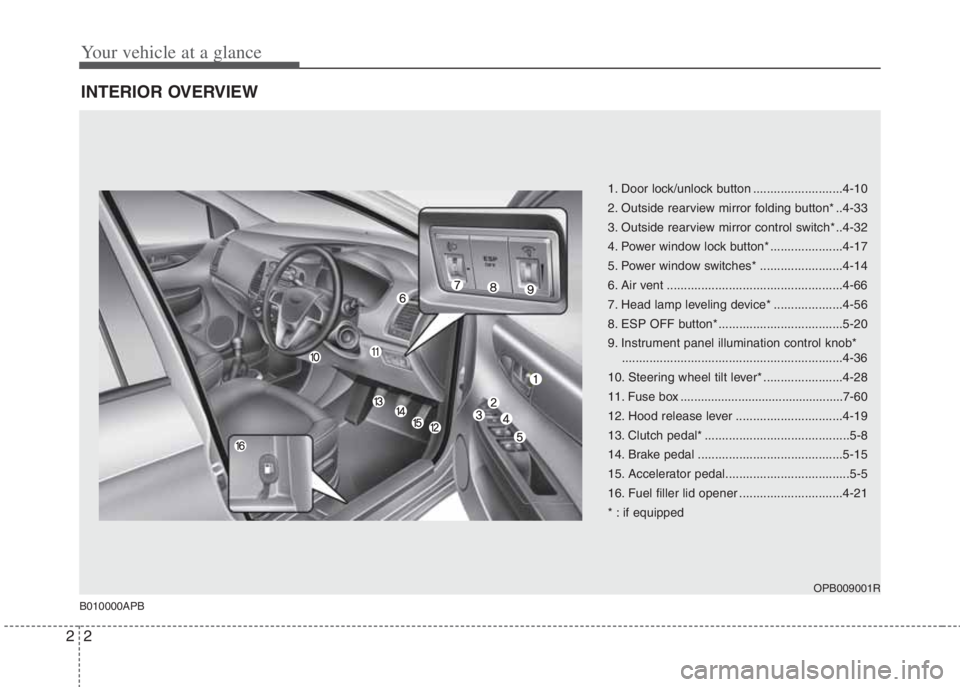

INTERIOR OVERVIEW
1. Door lock/unlock button ..........................4-10
2. Outside rearview mirror folding button* ..4-33
3. Outside rearview mirror control switch* ..4-32
4. Power window lock button* .....................4-17
5. Power window switches* ........................4-14
6. Air vent ...................................................4-66
7. Head lamp leveling device* ....................4-56
8. ESP OFF button* ....................................5-20
9. Instrument panel illumination control knob*
................................................................4-36
10. Steering wheel tilt lever* .......................4-28
11. Fuse box ................................................7-60
12. Hood release lever ...............................4-19
13. Clutch pedal* ..........................................5-8
14. Brake pedal ..........................................5-15
15. Accelerator pedal....................................5-5
16. Fuel filler lid opener ..............................4-21
* : if equipped
OPB009001R
B010000APB
Page 15 of 207
23
Your vehicle at a glance

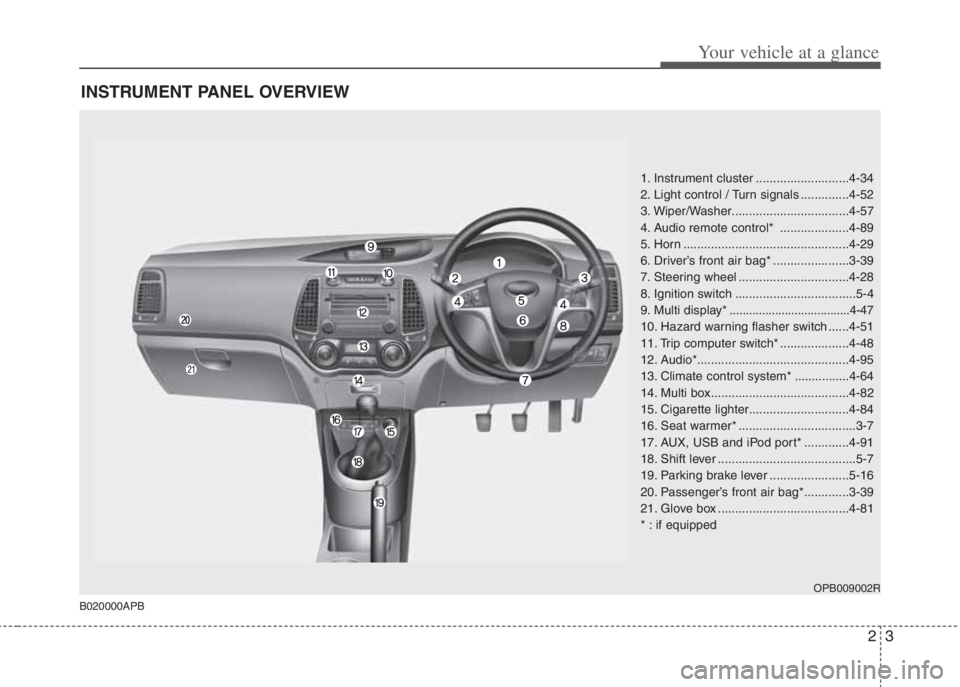

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster ...........................4-34
2. Light control / Turn signals ..............4-52
3. Wiper/Washer..................................4-57
4. Audio remote control* ....................4-89
5. Horn ................................................4-29
6. Driver’s front air bag* ......................3-39
7. Steering wheel ................................4-28
8. Ignition switch ...................................5-4
9. Multi display*.....................................4-47
10. Hazard warning flasher switch ......4-51
11. Trip computer switch* ....................4-48
12. Audio*............................................4-95
13. Climate control system* ................4-64
14. Multi box........................................4-82
15. Cigarette lighter.............................4-84
16. Seat warmer* ..................................3-7
17. AUX, USB and iPod port* .............4-91
18. Shift lever ........................................5-7
19. Parking brake lever .......................5-16
20. Passenger’s front air bag*.............3-39
21. Glove box ......................................4-81
* : if equipped
OPB009002R
B020000APB
Page 16 of 207
Your vehicle at a glance
4 2

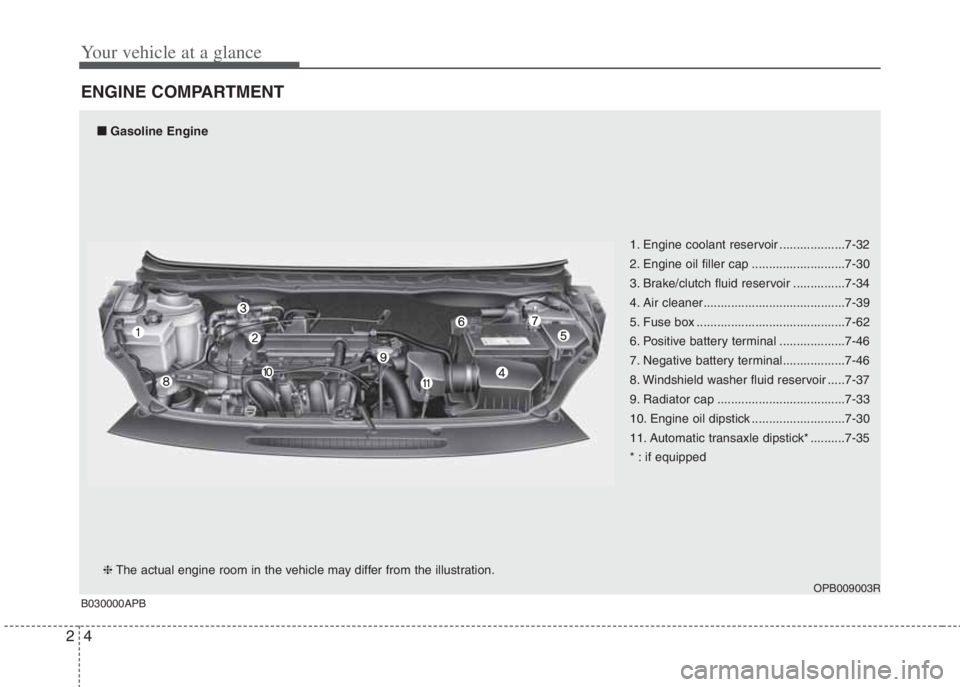

ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-32
2. Engine oil filler cap ...........................7-30
3. Brake/clutch fluid reservoir ...............7-34
4. Air cleaner.........................................7-39
5. Fuse box ...........................................7-62
6. Positive battery terminal ...................7-46
7. Negative battery terminal..................7-46
8. Windshield washer fluid reservoir .....7-37
9. Radiator cap .....................................7-33
10. Engine oil dipstick ...........................7-30
11. Automatic transaxle dipstick* ..........7-35
* : if equipped
B030000APB
■Gasoline Engine
OPB009003R
❈The actual engine room in the vehicle may differ from the illustration.
Page 17 of 207
25
Your vehicle at a glance
1. Engine coolant reservoir ...................7-32
2. Engine oil filler cap ...........................7-30
3. Brake/clutch fluid reservoir ...............7-34
4. Air cleaner.........................................7-39
5. Fuse box ...........................................7-61
6. Positive battery terminal ...................7-46
7. Negative battery terminal..................7-46
8. Windshield washer fluid reservoir .....7-37
9. Radiator cap .....................................7-33
10. Engine oil dipstick ...........................7-30
11. Fuel filter .........................................7-38

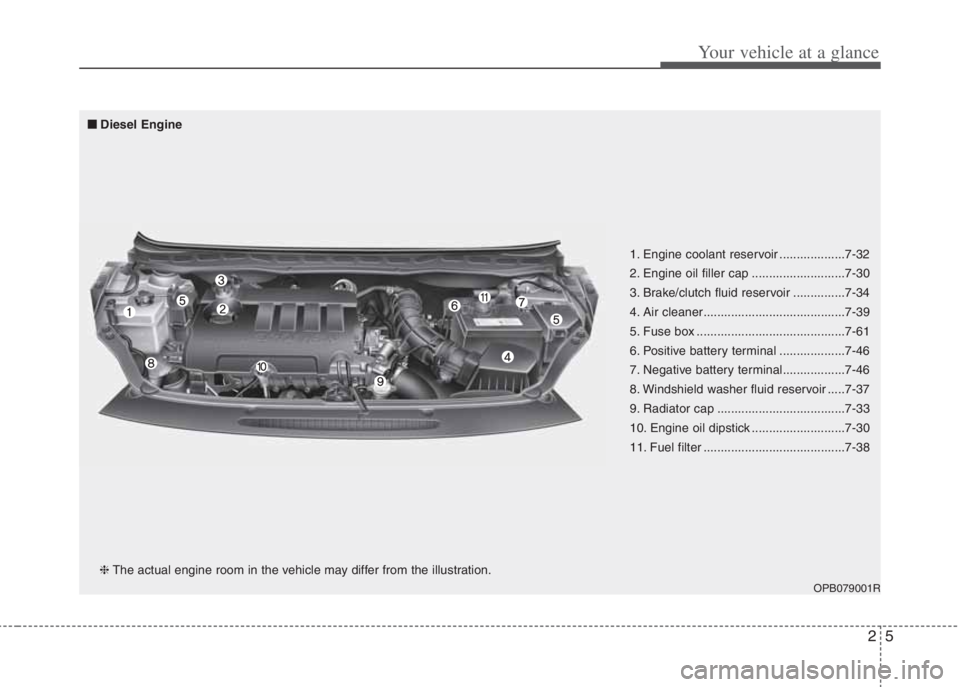

■Diesel Engine
OPB079001R
❈The actual engine room in the vehicle may differ from the illustration.
Page 18 of 207
3
Seat / 3-2
Seat belts / 3-13
Child restraint system / 3-24
Airbag-supplemental restraint system / 3-33
Safety system of your vehicle
Page 19 of 207
Safety system of your vehicle
2 3
C010000APB

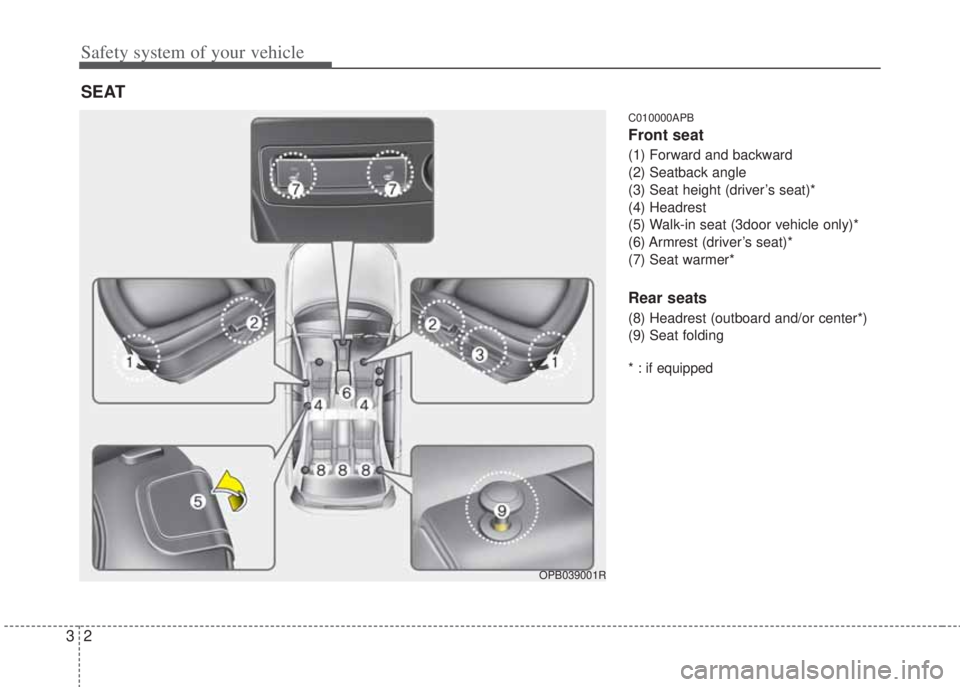

Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat height (driver’s seat)*
(4) Headrest
(5) Walk-in seat (3door vehicle only)*
(6) Armrest (driver’s seat)*
(7) Seat warmer*
Rear seats
(8) Headrest (outboard and/or center*)
(9) Seat folding
* : if equipped
SEAT
OPB039001R
Page 20 of 207
33
Safety system of your vehicle

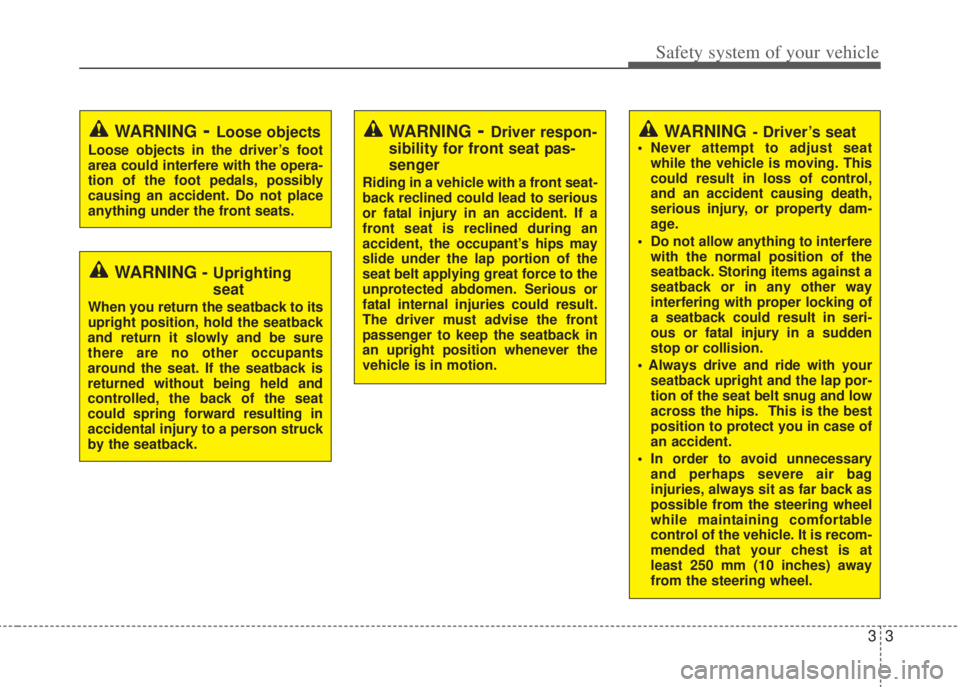

WARNING- Driver’s seat• Never attempt to adjust seat
while the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
• Do not allow anything to interfere
with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in seri-
ous or fatal injury in a sudden
stop or collision.
• Always drive and ride with your
seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case of
an accident.
• In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. It is recom-
mended that your chest is at
least 250 mm (10 inches) away
from the steering wheel.
WARNING - Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be sure
there are no other occupants
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could spring forward resulting in
accidental injury to a person struck
by the seatback.
WARNING- Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
WARNING- Driver respon-
sibility for front seat pas-
senger
Riding in a vehicle with a front seat-
back reclined could lead to serious
or fatal injury in an accident. If a
front seat is reclined during an
accident, the occupant’s hips may
slide under the lap portion of the
seat belt applying great force to the
unprotected abdomen. Serious or
fatal internal injuries could result.
The driver must advise the front
passenger to keep the seatback in
an upright position whenever the
vehicle is in motion.
