HYUNDAI I20 2017 Service Manual

1
"&t%'s%st&'!"'%!'&&

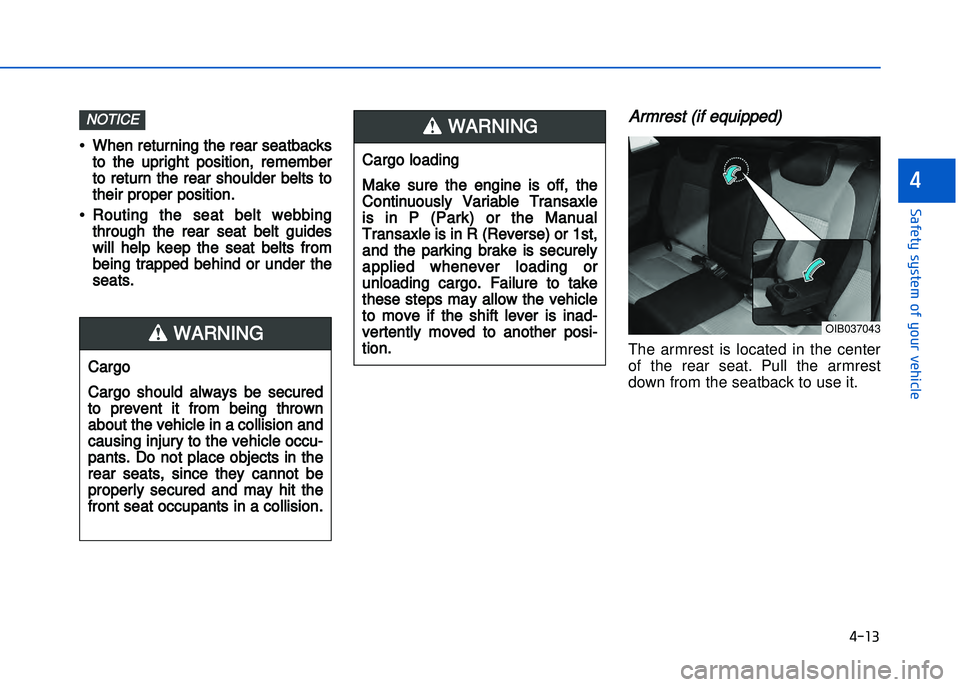

• When returning the rear seatbacksto the upright position, remember
to return the rear shoulder belts to
their proper position.
• Routing the seat belt webbing through the rear seat belt guides
will help keep the seat belts from
being trapped behind or under the
seats.
Armrest (if equipped)
The armrest is located in the center
of the rear seat. Pull the armrest
down from the seatback to use it.
NOTICE
Cargo loading
Make sure the engine is off, the
Continuously Variable Transaxle
is in P (Park) or the Manual
Transaxle is in R (Reverse) or 1st,
and the parking brake is securely
applied whenever loading or
unloading cargo. Failure to take
these steps may allow the vehicle
to move if the shift lever is inad
vertently moved to another posi
tion.
WARNING
Cargo
Cargo should always be secured
to prevent it from being thrown
about the vehicle in a collision and
causing injury to the vehicle occu
pants. Do not place objects in the
rear seats, since they cannot be
properly secured and may hit the
front seat occupants in a collision.
WARNING OIB037043

1
"&t%'s%st&'!"'%!'&&

$#%$!%

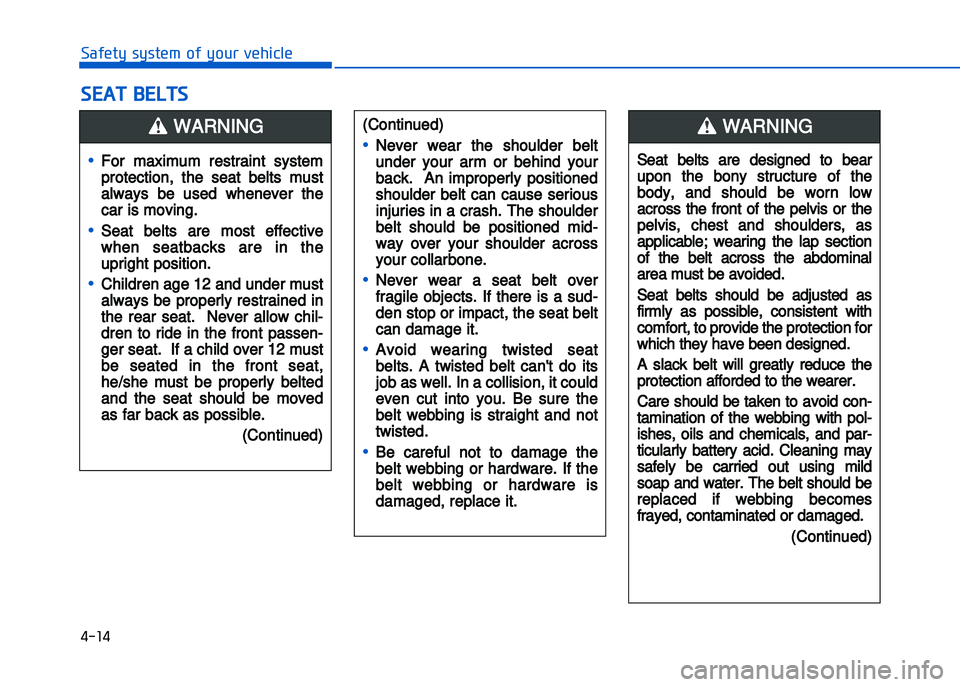

•For maximum restraint system
protection, the seat belts must
always be used whenever the
car is moving.
•Seat belts are most effective
when seatbacks are in the
upright position.
•Children age 12 and under must
always be properly restrained in
the rear seat. Never allow chil
dren to ride in the front passen
ger seat. If a child over 12 must
be seated in the front seat,
he\fshe must be properly belted
and the seat should be moved
a

s far back as possible.
(Continued)
WARNING (Continued)
•Never wear the shoulder belt
under your arm or behind your
back. An improperly positioned
shoulder belt can cause serious
injuries in a crash. The shoulder
belt should be positioned mid
way over your shoulder across
your collarbone.
•Never wear a seat belt over
fragile objects. If there is a sud
den stop or impact, the seat belt
can damage it.
•Avoid wearing twisted seat
belts. A twisted belt can't do its
job as

well. In a collision, it could
even cut into you. Be sure the
belt webbing is straight and not
twisted.
•Be careful not to damage the
belt webbing or hardware. If the
belt webbing or hardware is
damaged, replace it.
Seat belts are designed to bear
upon the bony structure of the
body, and should be worn low
across the front of the pelvis or the
pelvis, chest and shoulders, as
applicable; wearing the lap section
of the belt across the abdominal
area must be avoided.
Seat belts should be adjusted as
firmly as possible, consistent with
comfort, to provide the protection for
which they have been designed.
A slack belt will greatly reduce the
protection afforded to the wearer.
Care sh

ould be taken to avoid con
tamination of the webbing with pol
ishes, oils and chemicals, and par
ticularly battery acid. Cleaning may
safely be carried out using mild
soap and water. The belt should be
replaced if webbing becomes
frayed, contaminated or damaged.
(Continued)
WARNING

1
"&t%'s%st&'!"'%!'&&

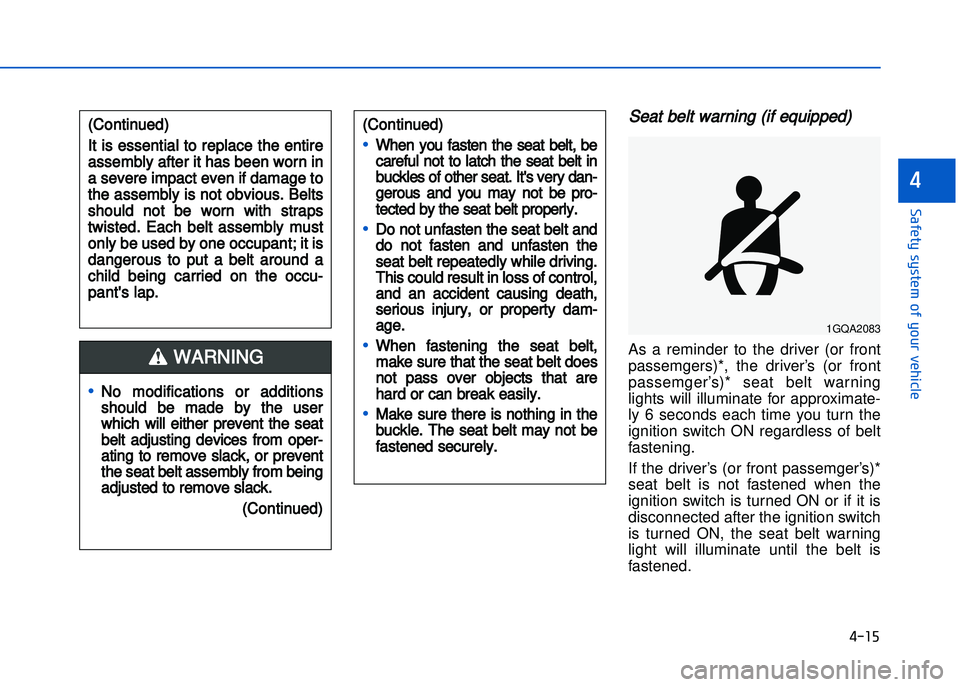

Seat belt warning (if equipped)
As a reminder to the driver (or front
passemgers)*, the driver’s (or front
passemger’s)* seat belt warning
lights will illuminate for approximate
ly 6 seconds each time you turn the
ignition switch ON regardless of belt
fastening.
If the driver’s (or front passemger’s)*
seat belt is not fastened when the
ignition switch is turned ON or if it is
disconnected after the ignition switch
is turned ON, the seat belt warning
light will illuminate until the belt is
fastened.
(Continued)
It is essential to replace the entire
assembly after it has been worn in
a severe impact even if damage to
the assembly is not obvious. Belts
should not be worn with straps
twisted. Each belt assembly must
only be used by one occupant; it is
dangerous to put a belt around a
child being carried on the occu
pant's lap.
•No modifications or additions
should be made by the user
which will either prevent the seat
belt adjusting devices from oper
ating to remove slack, or prevent
the seat belt assembly from being
adjusted to remove slack.(Continued)
WARNING
(Continued)
•When you fasten the seat belt, be
careful not to latch the seat belt in
buckles of other seat. It's very dan
gerous and you may not be pro
tected by the seat belt properly.
•Do not unfasten the seat belt and
do not fasten and unfasten the
seat belt repeatedly while driving.
This could result in loss of control,
and an accident causing death,
serious injury, or property dam
age.
•When fastening the seat belt,
make sure that the seat belt does
not pass
over objects that are
hard or can break easily.
•Make sure there is nothing in the
buckle. The seat belt may not be
fastened securely.
1GQA2083

1
"&t%'s%st&'!"'%!'&&

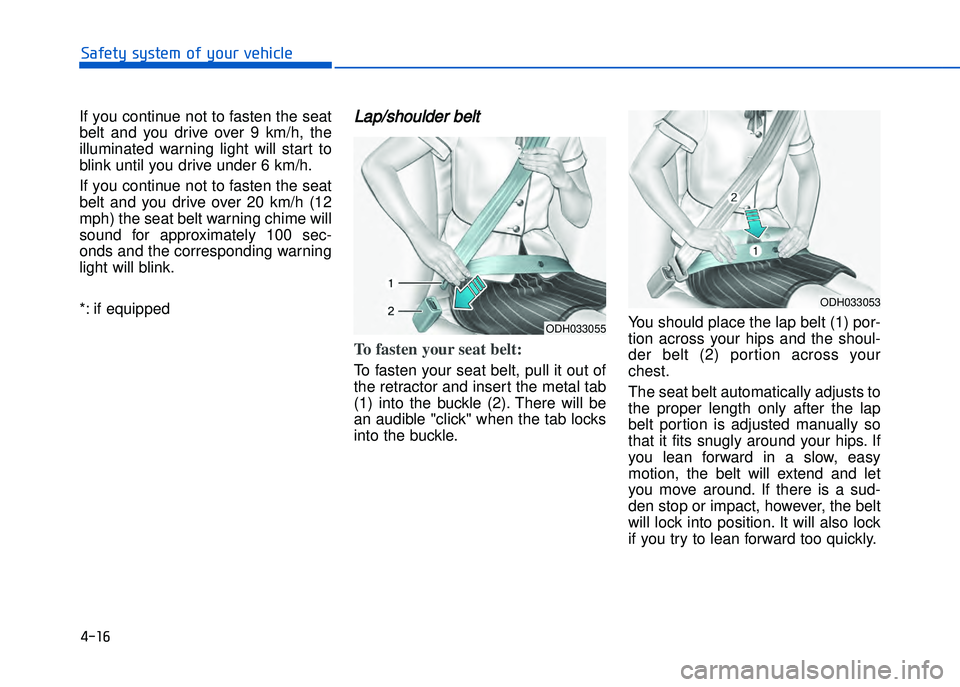

If you continue not to fasten the seat
belt and you drive over 9 km\fh, the
illuminated warning light will start to
blink until you drive under 6 km\fh.
If you continue not to fasten the seat
belt and you drive over 20 km\fh (12
mph) the seat belt warning chime will
sound for approximately 100 sec
onds and the corresponding warning
light will blink.
*: if equipped
Lap\fshoulder belt
To fasten your seat belt:
To fasten your seat belt, pull it out of
the retractor and insert the metal tab
(1) into the buckle (2). There will be
an audible "click" when the tab locks
into the buckle. You should place the lap belt (1) por
tion across your hips and the shoul
der belt (2) por tion across your
chest.
The seat belt automatically adjusts to
the proper length only after the lap
belt portion is adjusted manually so
that it fits snugly around your hips. If
you lean forward in a slow, easy
motion, the belt will extend and let
you move around. If there is a sud
den stop or impact, however, the belt
will lock into position. It will also lock
if you try to lean forward too quickly.
ODH033055
ODH033053

1
"&t%'s%st&'!"'%!'&&

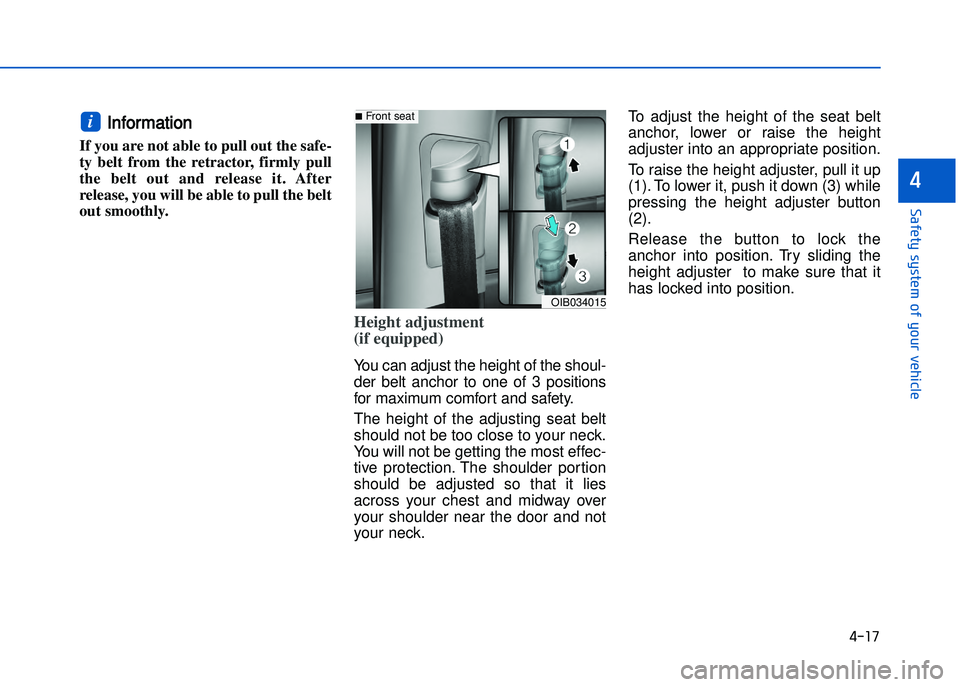

Information
If you are not able to pull out the safe
ty belt from the retractor, firmly pull
the belt out and release it. After
release, you will be able to pull the belt
out smoothly.
Height adjustment
(if equipped)
You can adjust the height of the shoul
der belt anchor to one of 3 positions
for maximum comfort and safety.
The height of the adjusting seat belt
should not be too close to your neck.
You will not be getting the most effec
tive protection. The shoulder portion
should be adjusted so that it lies
across your chest and midway over
your shoulder near the door and not
your neck.To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button
(2).
Release the button to lock the
anchor into position. Try sliding the
height adjuster to make sure that it
has locked into position.
i
OIB034015
Front seat

18
"&t%'s%st&'!"'%!'&&

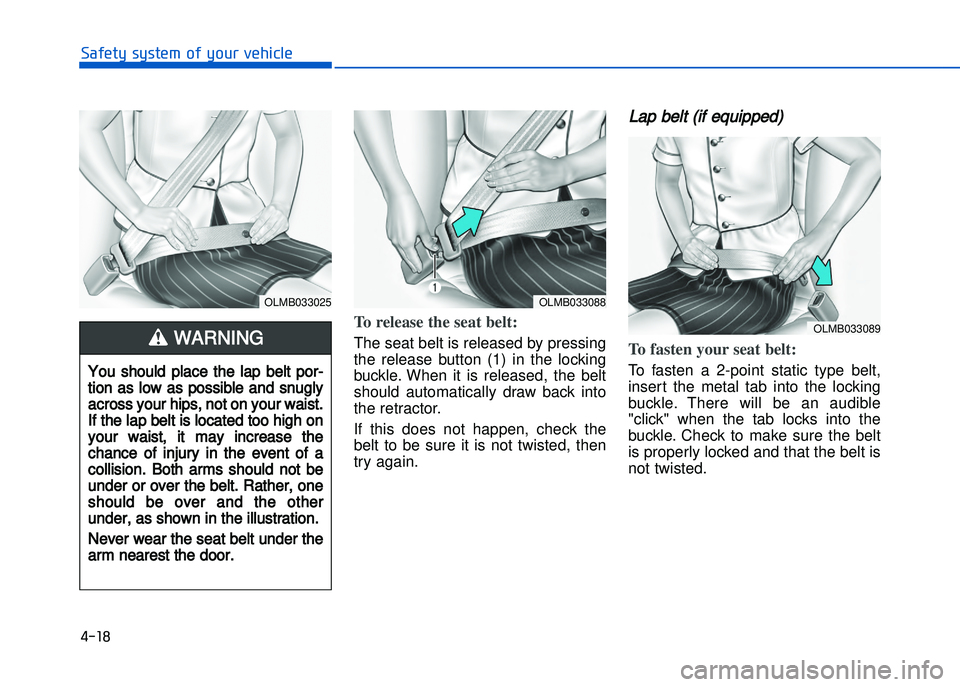

To release the seat belt:
The seat belt is released by pressing
the release button (1) in the locking
buckle. When it is released, the belt
should automatically draw back into
the retractor.
If this does not happen, check the
belt to be sure it is not twisted, then
try again.
Lap belt (if equipped)
To fasten your seat belt:
To fasten a 2point static type belt,
insert the metal tab into the locking
buckle. There will be an audible
"click" when the tab locks into the
buckle. Check to make sure the belt
is properly locked and that the belt is
not twisted.
OLMB033088
OLMB033089
OLMB033025
You should place the lap belt por
tion as low as possible and snugly
across your hips, not on your waist.
If the lap belt is located too high on
your waist, it may increase the
chance of injury in the event of a
collision. Both arms should not be
under or over the belt. Rather, one
should be over and the other
under, as shown in the illustration.
Never wear the seat belt under the
arm nearest the door.
WARNING

19
"&t%'s%st&'!"'%!'&&

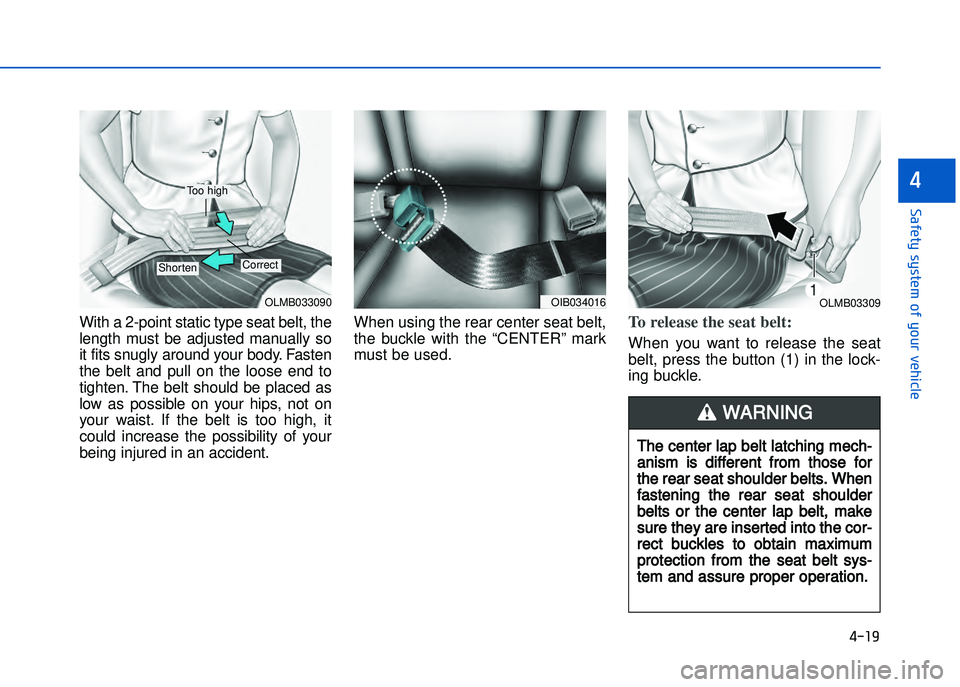

With a 2point static type seat belt, the
length must be adjusted manually so
it fits snugly around your body. Fasten
the belt and pull on the loose end to
tighten. The belt should be placed as
low as possible on your hips, not on
your waist. If the belt is too high, it
could increase the possibility of your
being injured in an accident. When using the rear center seat belt,
the buckle with the “CENTER” mark
must be used.To release the seat belt:
When you want to release the seat
belt, press the button (1) in the lock
ing buckle.
OIB034016
The center lap belt latching mech
anism is different from those for
the rear seat shoulder belts. When
fastening the rear seat shoulder
belts or the center lap belt, make
sure they are inserted into the cor
rect buckles to obtain maximum
protection from the seat belt sys
tem and assure proper operation.
WARNING
OLMB03309OLMB033090
Too high
ShortenCorrect

2
"&t%'s%st&'!"'%!'&&

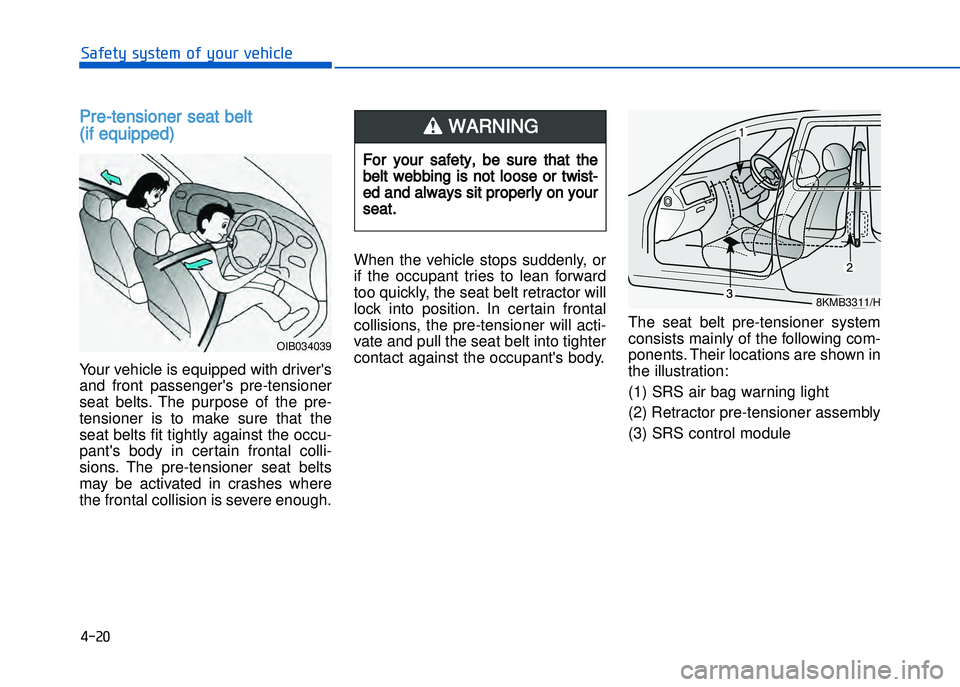

Pretensioner seat belt
(if equipped)
Your vehicle is equipped with driver's
and front passenger's pretensioner
seat belts. The purpose of the pre
tensioner is to make sure that the
seat belts fit tightly against the occu
pant's body in certain frontal colli
sions. The pretensioner seat belts
may be activated in crashes where
the frontal collision is severe enough. When the vehicle stops suddenly, or
if the occupant tries to lean forward
too quickly, the seat belt retractor will
lock into position. In certain frontal
collisions, the pretensioner will acti
vate and pull the seat belt into tighter
contact against the occupant's body. The seat belt pretensioner system
consists mainly of the following com
ponents. Their locations are shown in
the illustration:
(1) SRS air bag warning light
(2) Retractor pretensioner assembly
(3) SRS control module
OIB034039
For your safety, be sure that the
belt webbing is not loose or twist
ed and always sit properly on your
seat.
WARNING
8KMB3311\fH

21
"&t%'s%st&'!"'%!'&&

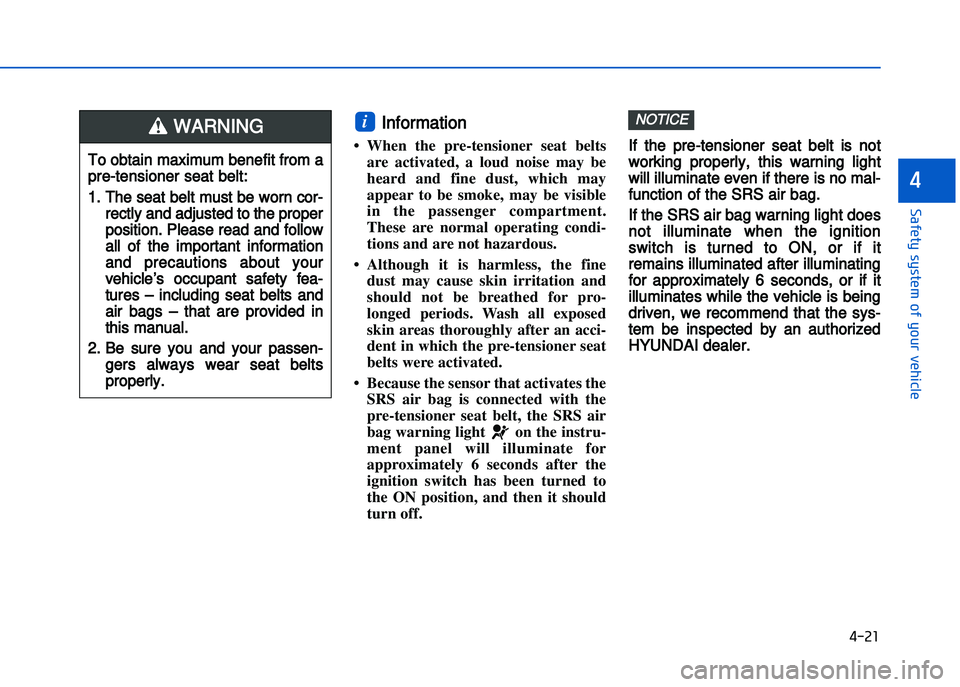

Information
• When the pretensioner seat beltsare activated, a loud noise may be
heard and fine dust, which may
appear to be smoke, may be visible
in the passenger compartment.
These are normal operating condi
tions and are not hazardous.
• Although it is harmless, the fine dust may cause skin irritation and
should not be breathed for pro
longed periods. Wash all exposed
skin areas thoroughly after an acci
dent in which the pretensioner seat
belts were activated.
• \fecause the sensor that activates the SRS air bag is connected with the
pretensioner seat belt, the SRS air
bag warning light on the instru
ment panel will illuminate for
approximately 6 seconds after the
ignition switch has been turned to
the ON position, and then it should
turn off. If the pretensioner seat belt is not
working properly, this warning light
will illuminate even if there is no mal
function of the SRS air bag.
If the SRS air bag warning light does
not illuminate when the ignition
switch is turned to ON, or if it
remains illuminated after illuminating
for approximately 6 seconds, or if it
illuminates while the vehicle is being
driven, we recommend that the sy
s
tem be ins p

ected by an authorized
HYUNDAI dealer.
NOTICEi
To obtain maximum benefit from a
pretensioner seat belt:
1. The seat belt must be worn cor rectly and adjusted to the proper
position. Please read and follow
all of the important information
and precautions about your
vehicle’s occupant safety fea
tures – including seat belts and
air bags – that are provided in
this manual.
2. Be sure you and your passen gers always wear seat belts
properly.
WARNING

22
"&t%'s%st&'!"'%!'&&

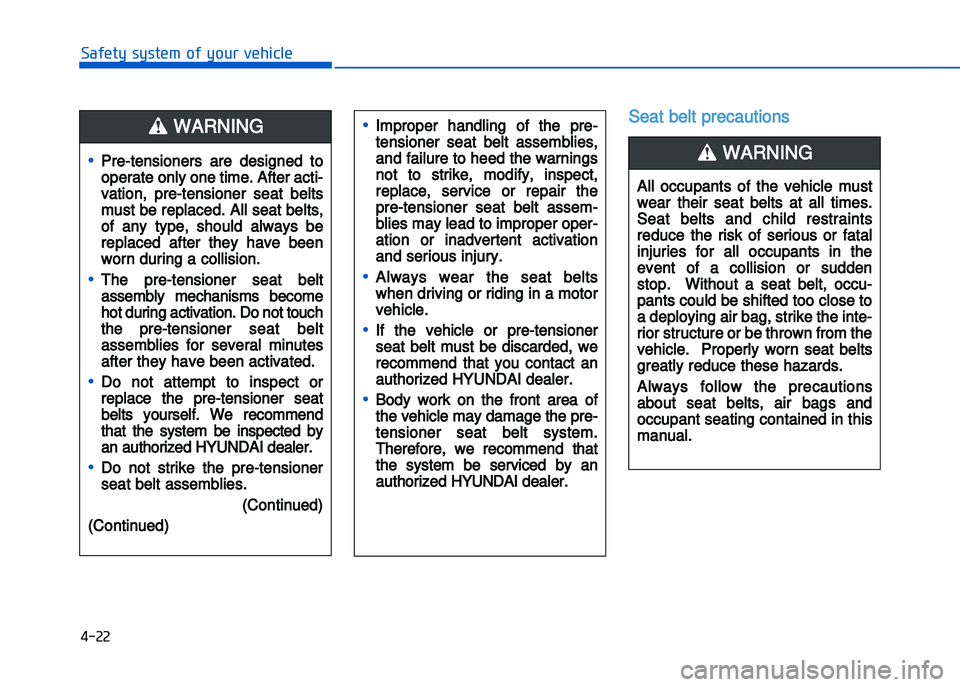

Seat belt precautions
•Pretensioners are designed to
operate only one time. After acti
vation, pretensioner seat belts
must be replaced. All seat belts,
of any type, should always be
replaced after they have been
worn during a collision.
•The pretensioner seat belt
assembly mechanisms become
hot during activation. Do not touch
the pretensioner seat belt
assemblies for several minutes
after they have been activated.
•Do not attempt to inspect or
replace the pretensioner seat
belts yourself. We recommend
that the system be inspected by
an authorized HYUNDAI dealer.
•Do not strike the pretensioner
seat belt assemblies.
(Continued)
(Continued)
WARNING
All occupants of the vehicle must
wear their seat belts at all times.
Seat belts and child restraints
reduce the risk of serious or fatal
injuries for all occupants in the
event of a collision or sudden
stop. Without a seat belt, occu
pants could be shifted too close to
a deploying air bag, strike the inte
rior structure or be thrown from the
vehicle. Properly worn seat belts
greatly reduce these hazards.
Always follow the preca

utions
about seat belts, air bags and
occupant seating contained in this
manual.
WARNING
•Improper handling of the pre
tensioner seat belt assemblies,
and failure to heed the warnings
not to strike, modify, inspect,
replace, service or repair the
pretensioner seat belt assem
blies may lead to improper oper
ation or inadvertent activation
and serious injury.
•Always wear the seat belts
when driving or riding in a motor
vehicle.
•If the vehicle or pretensioner
seat belt must be discarded, we
recommend that yo
u contact an
authorized HYUNDAI dealer.
•Body work on the front area of
the vehicle may damage the pre
tensioner seat belt system.
Therefore, we recommend that
the system be serviced by an
authorized HYUNDAI dealer.
