4-8
Safety system
Headrest
OAH2038004OAH2038004
The driver’s and front passenger’s seats
are equipped with a headrest for the
occupant’s safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your
headrests:
• Always properly adjust the headrests
for all passengers BEFORE starting
the vehicle.
• NEVER let anyone ride in a seat with
the headrests removed or reversed.
•
OLF034072NOLF034072N
Adjust the headrests so the middle of
the headrests is at the same height as
the height of the top of the eyes.
• NEVER adjust the headrest position
of the driver’s seat when the vehicle
is in motion.
• Adjust the headrest as close to the
passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.
• Make sure the headrest locks into
position after adjusting it.
NOTICE
To prevent damage, NEVER hit or pull
on the headrests.

4-9
04
OLF034015OLF034015
NOTICE
If you recline the seatback towards the
front with the head restraint and seat
at top most position, the head restraint
may come in contact with the sunvisor
or other parts of the vehicle.
OAI3039005OAI3039005
Adjusting the height up and down (if
equipped)
To raise the headrest, pull it up to
the desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
OQXI039006OQXI039006
Removal/Reinstall (if equipped)
To remove the headrest:
1. Recline the seatback (2) with the
recline lever (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button (3)
while pulling the headrest up (4).
WARNING
NEVER allow anyone to ride in a seat
with the headrest removed.

4-11
04
Rear seats
Headrest
OQXI039009OQXI039009
The rear seats are equipped with
headrests in the outboard seating
positions for the occupant’s safety and
comfort.
The headrest not only provides comfort
for passengers, but also helps to protect
the head and neck in the event of a
collision.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your
headrests:
• Always properly adjust the headrests
for all passengers BEFORE starting
the vehicle.
• NEVER let anyone ride in a seat with
the headrests removed.
•
OLF034072NOLF034072N
Adjust the headrests so the middle of
the headrests is at the same height as
the height of the top of the eyes.
• NEVER adjust the headrest position
of the driver’s seat when the vehicle
is in motion.
• Adjust the headrest as close to the
passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.
• Make sure the headrest locks into
position after adjusting it.
NOTICE
To prevent damage, NEVER hit or pull
on the headrests.

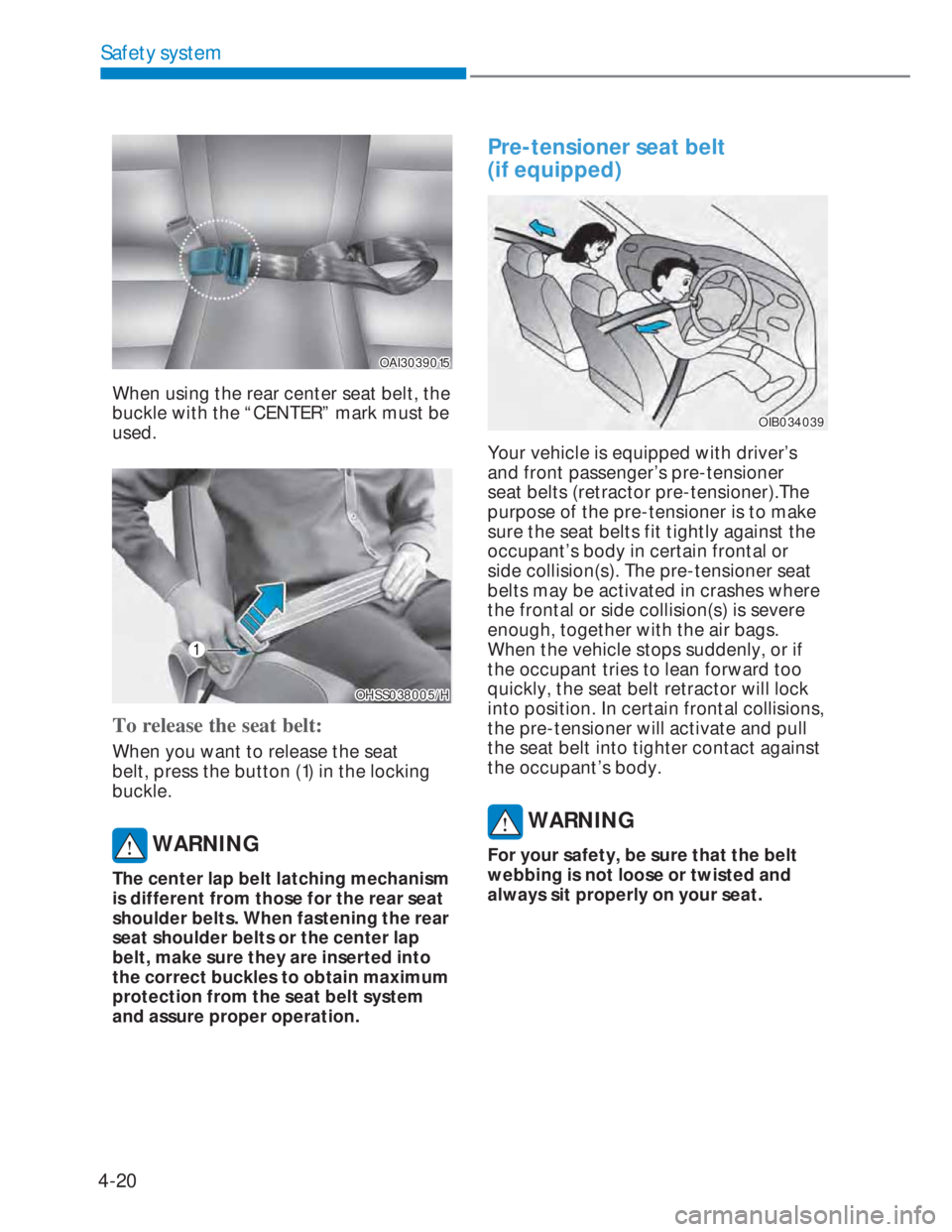

4-20
Safety system
OAI3039015OAI3039015
When using the rear center seat belt, the
buckle with the “CENTER” mark must be
used.
OHSS038005/HOHSS038005/H
To release the seat belt:
When you want to release the seat
belt, press the button (1) in the locking
buckle.
WARNING
The center lap belt latching mechanism
is different from those for the rear seat
shoulder belts. When fastening the rear
seat shoulder belts or the center lap
belt, make sure they are inserted into
the correct buckles to obtain maximum
protection from the seat belt system
and assure proper operation.
Pre-tensioner seat belt
(if equipped)
OIB034039OIB034039
Your vehicle is equipped with driver’s
and front passenger’s pre-tensioner
seat belts (retractor pre-tensioner).The
purpose of the pre-tensioner is to make
sure the seat belts fit tightly against the
occupant’s body in certain frontal or
side collision(s). The pre-tensioner seat
belts may be activated in crashes where
the frontal or side collision(s) is severe
enough, together with the air bags.
When the vehicle stops suddenly, or if
the occupant tries to lean forward too
quickly, the seat belt retractor will lock
into position. In certain frontal collisions,
the pre-tensioner will activate and pull
the seat belt into tighter contact against
the occupant’s body.
WARNING
For your safety, be sure that the belt
webbing is not loose or twisted and
always sit properly on your seat.

4-27
04

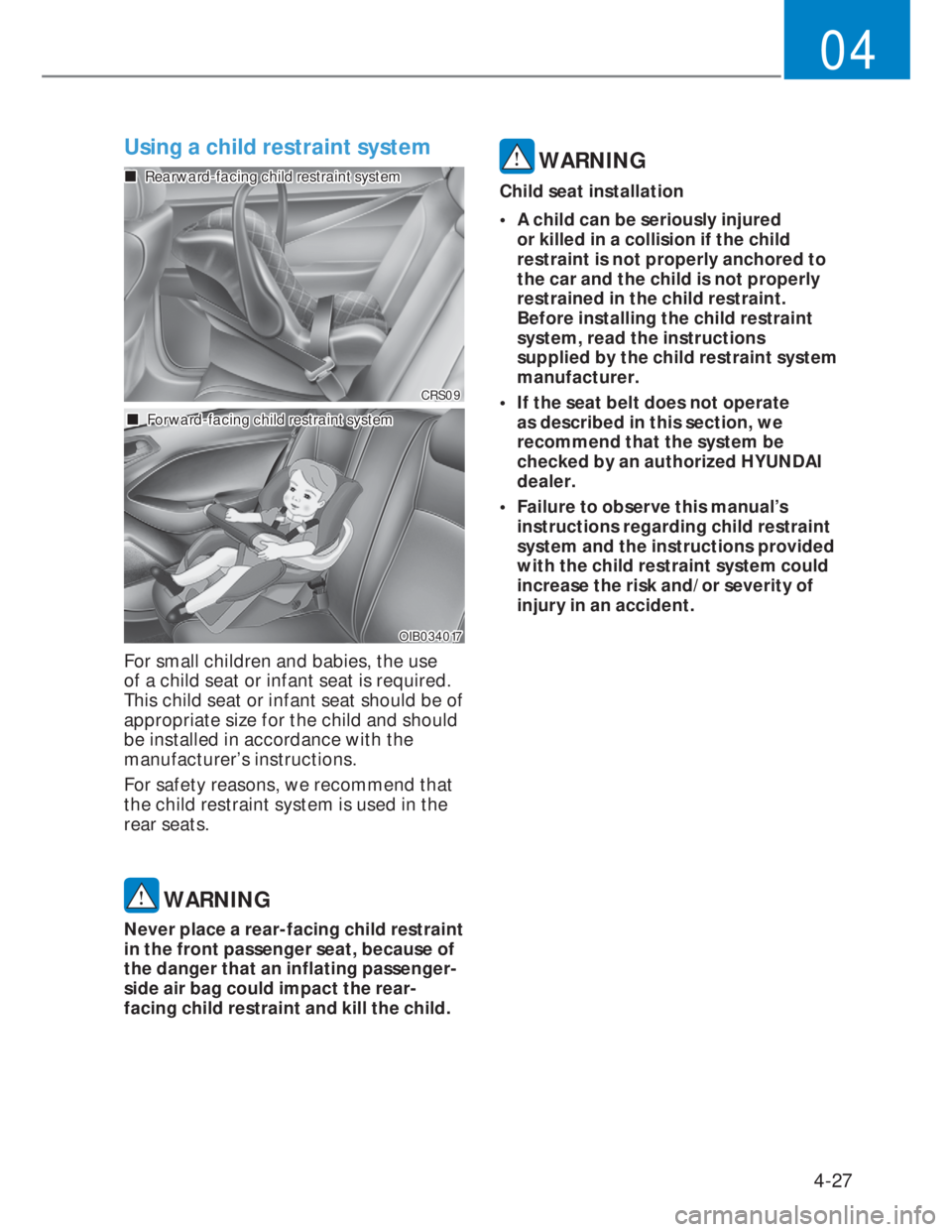

Using a child restraint system
CRS09CRS09
„„ Rearward-facing child restraint system Rearward-facing child restraint system
„„ Forward-facing child restraint system Forward-facing child restraint system
OIB034017OIB034017
For small children and babies, the use
of a child seat or infant seat is required.
This child seat or infant seat should be of
appropriate size for the child and should
be installed in accordance with the
manufacturer’s instructions.
For safety reasons, we recommend that
the child restraint system is used in the
rear seats.
WARNING
Never place a rear-facing child restraint
in the front passenger seat, because of
the danger that an inflating passenger-
side air bag could impact the rear-
facing child restraint and kill the child.
WARNING
Child seat installation
• A child can be seriously injured
or killed in a collision if the child
restraint is not properly anchored to
the car and the child is not properly
restrained in the child restraint.
Before installing the child restraint
system, read the instructions
supplied by the child restraint system
manufacturer.
• If the seat belt does not operate
as described in this section, we
recommend that the system be
checked by an authorized HYUNDAI
dealer.
• Failure to observe this manual’s
instructions regarding child restraint
system and the instructions provided
with the child restraint system could
increase the risk and/or severity of
injury in an accident.

4-47
04
Why didn’t my air bag go off in a
collision? (Inflation and non-inflation
conditions of the air bag)
There are many types of accidents
in which the air bag would not be
expected to provide additional
protection.
These include rear impacts, second
or third collisions in multiple impact
accidents, as well as low speed
impacts.
Side air bag (if equipped)
OIB034021OIB034021
OJK032063OJK032063
The actual air bags in the vehicle may differ
from the illustration.
Your vehicle is equipped with a side air
bag in each front seat.
The purpose of the air bag is to provide
the vehicle’s driver and/or the front
passenger with additional protection
than that offered by the seat belt alone. The side air bags are designed to
deploy only during certain side-
impact collisions, depending on the
crash severity, angle, speed and point
of impact. The side air bags are not
designed to deploy in all side impact
situations.
WARNING
Do not allow the passengers to lean
their heads or bodies onto doors,
put their arms on the doors, stretch
their arms out of the window, or
place objects between the doors and
passengers when they are seated
on seats equipped with side and/or
curtain air bags.
WARNING
• The side air bag is supplemental to
the driver’s and the passenger’s seat
belt systems and is not a substitute
for them. Therefore your seat belts
must be worn at all times while the
vehicle is in motion. The air bags
deploy only in certain side impact
conditions severe enough to cause
significant injury to the vehicle
occupants.
• For best protection from the side
air bag system and to avoid being
injured by the deploying side air bag,
both front seat occupants should sit
in an upright position with the seat
belt properly fastened. The driver’s
hands should be placed on the
steering wheel at the 9:00 and 3:00
positions. The passenger’s arms and
hands should be placed on their laps.
• Do not use any accessory seat covers.
• Use of seat covers could reduce or
prevent the effectiveness of the
system.
• Do not install any accessories on the
side or near the side air bag.

4-53
04
OBC3030028OBC3030028
• Front air bags may not inflate in side
impact collisions, because occupants
move to the direction of the collision,
and thus in side impacts, frontal air
bag deployment would not provide
additional occupant protection.
OGB034038OGB034038
• In a slant or angled collision, the force
of impact may direct the occupants in
a direction where the air bags would
not be able to provide any additional
benefit, and thus the sensors may not
deploy any air bags.
OBC3030032OBC3030032
• Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing
it to “ride” under a vehicle with a
higher ground clearance. Air bags
may not inflate in this “under-ride”
situation because deceleration forces
that are detected by sensor may be
significantly reduced by such “under-
ride” collisions.
OHI038166OHI038166
• Air bags do not inflate in rollover
accidents because vehicle can not
detect rollover accident.
However, side and/or curtain air bags
may inflate when the vehicle is rolled
over after side impact collision.

6-4
Convenient features
ACCESSING YOUR VEHICLE
Remote key (if equipped)
OIB034040OIB034040
Your HYUNDAI uses a remote key, which
you can use to lock or unlock a door
(and tailgate) and even start the engine.
1. Door Lock
2. Door Unlock
3. Tailgate Unlock
Locking
To lock :
1. Close all doors, engine hood and
tailgate.
2. Press the Door Lock button (1) on the
remote key.
3. The doors will lock. The hazard
warning lights will blink once.
4. Make sure the doors are locked by
checking the position of the door lock
button inside the vehicle.
WARNING
Do not leave the keys in your
vehicle with unsupervised children.
Unattended children could place the
key in the ignition switch and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking
To unlock:
1. Press the Door Unlock button (2) on
the remote key.
2. The doors will unlock. The hazard
warning lights will blink two times.
i Information
After unlocking the doors, the doors will
lock automatically after 30 seconds unless
a door is opened.
Tailgate unlocking
To unlock:
1. Press the Tailgate Unlock button (3)
on the remote key for more than one
second.
2. The hazard warning lights will blink
two times. Once the tailgate/trunk is
opened and then closed, the tailgate/
trunk will lock automatically.
i Information
• After unlocking the tailgate, the tailgate
will lock automatically.
• The word “HOLD” is written on the
button to inform you that you must
press and hold the button for more than
one second.
