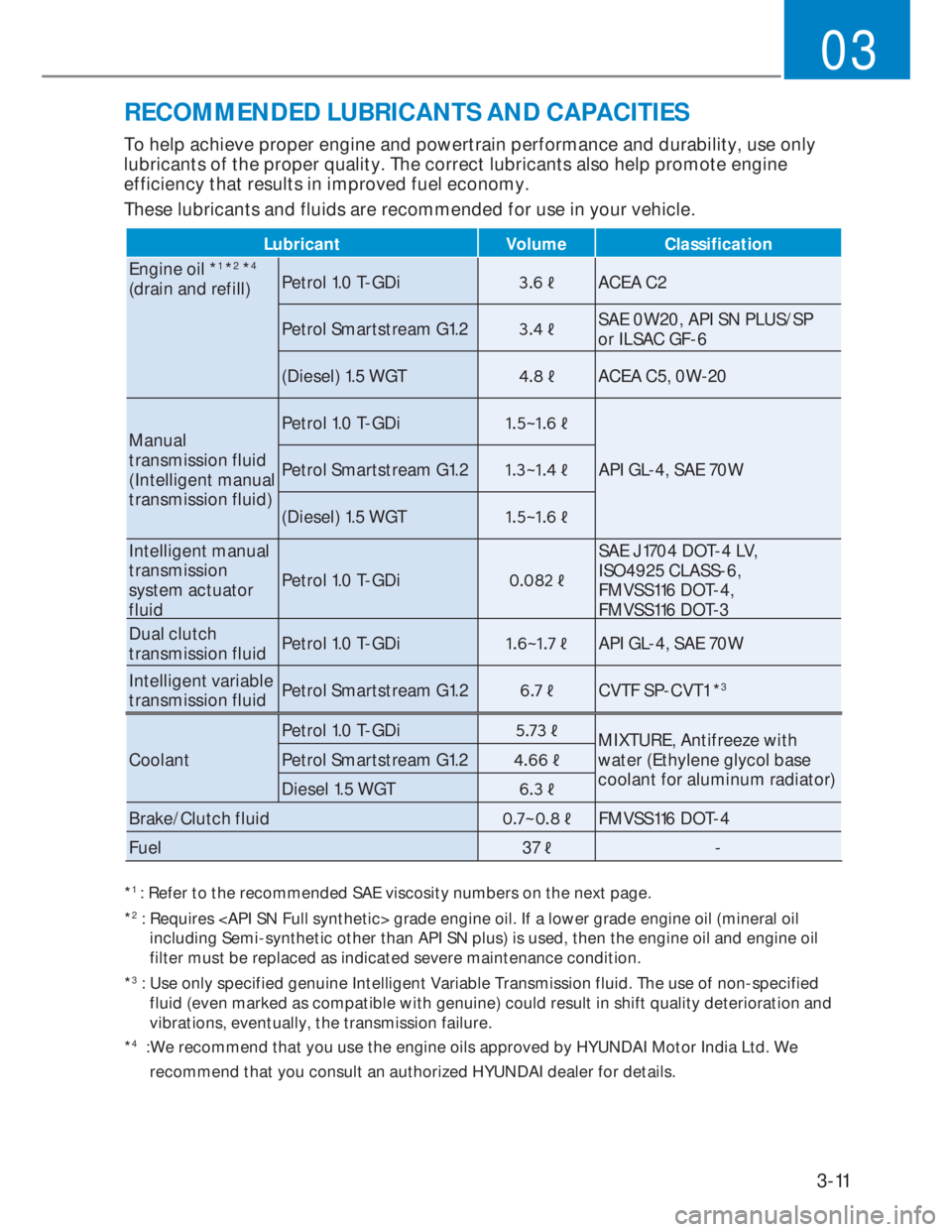

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2 *4
(drain and refill)Petrol 1.0 T-GDi
bACEA C2
Petrol Smartstream G1.2
bSAE 0W20, API SN PLUS/SP
or ILSAC GF-6
(Diesel) 1.5 WGT
bACEA C5, 0W-20
Manual
transmission fluid
(Intelligent manual
transmission fluid)Petrol 1.0 T-GDia
b
API GL-4, SAE 70W Petrol Smartstream G1.2a
b
(Diesel) 1.5 WGTa
b
Intelligent manual
transmission
system actuator
fluidPetrol 1.0 T-GDi
bSAE J1704 DOT-4 LV,
ISO4925 CLASS-6,
FMVSS116 DOT-4,
FMVSS116 DOT-3
Dual clutch
transmission fluidPetrol 1.0 T-GDia
bAPI GL-4, SAE 70W
Intelligent variable
transmission fluidPetrol Smartstream G1.2
bCVTF SP-CVT1 *
3
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*
2 : Requires grade engine oil. If a lower grade engine oil (mineral oil
including Semi-synthetic other than API SN plus) is used, then the engine oil and engine oil
filter must be replaced as indicated severe maintenance condition.
*
3 : Use only specified genuine Intelligent Variable Transmission fluid. The use of non-specified
fluid (even marked as compatible with genuine) could result in shift quality deterioration and
vibrations, eventually, the transmission failure.
*
4 :We recommend that you use the engine oils approved by HYUNDAI Motor India Ltd. We
recommend that you consult an authorized HYUNDAI dealer for details.
CoolantPetrol 1.0 T-GDi
b
MIXTURE, Antifreeze with
water (Ethylene glycol base
coolant for aluminum radiator) Petrol Smartstream G1.2
b
Diesel 1.5 WGT
b
Brake/Clutch fluida
bFMVSS116 DOT-4
Fuel 37
b-

4-14

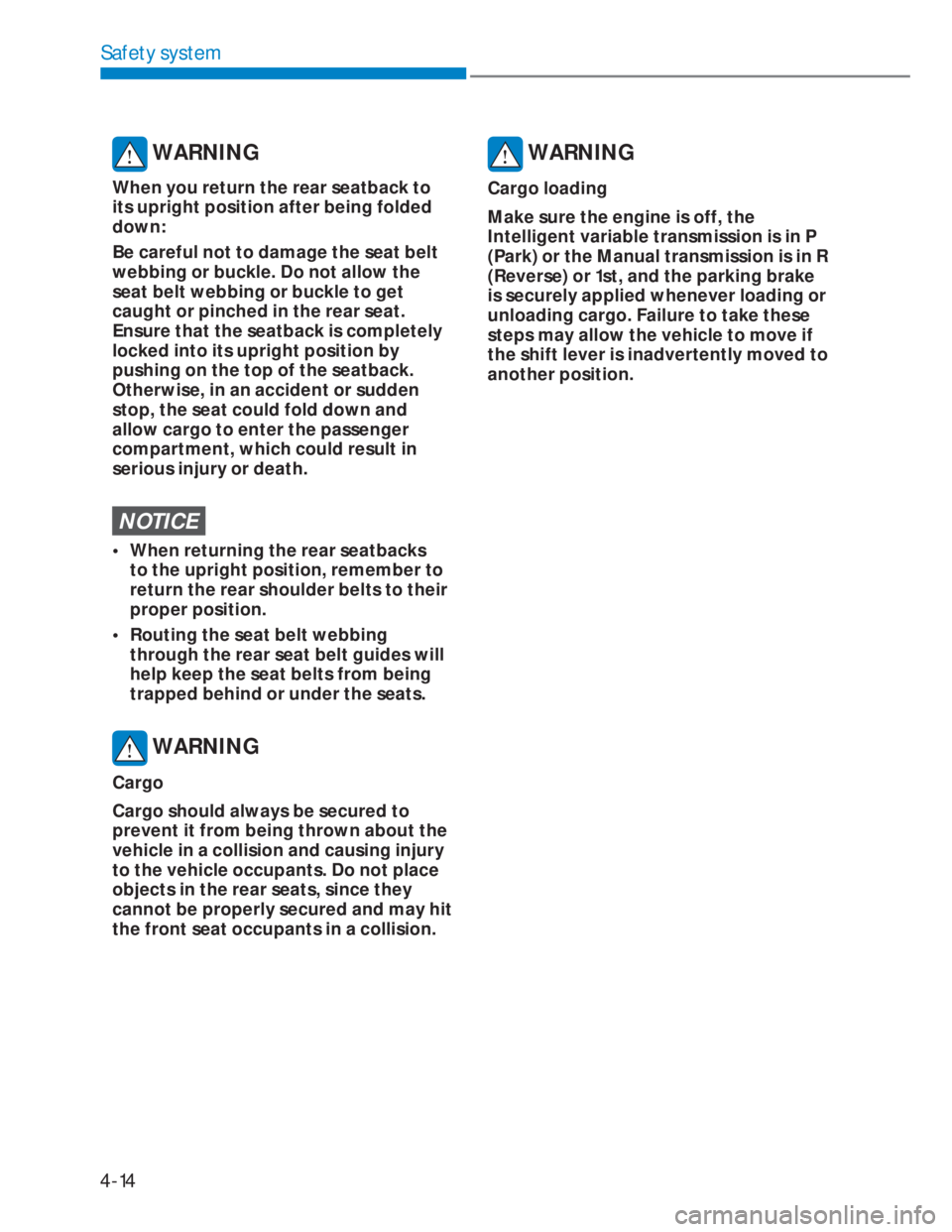

Safety system
WARNING
When you return the rear seatback to
its upright position after being folded
down:
Be careful not to damage the seat belt
webbing or buckle. Do not allow the
seat belt webbing or buckle to get
caught or pinched in the rear seat.
Ensure that the seatback is completely
locked into its upright position by
pushing on the top of the seatback.
Otherwise, in an accident or sudden
stop, the seat could fold down and
allow cargo to enter the passenger
compartment, which could result in
serious injury or death.
NOTICE
• When returning the rear seatbacks
to the upright position, remember to
return the rear shoulder belts to their
proper position.
• Routing the seat belt webbing
through the rear seat belt guides will
help keep the seat belts from being
trapped behind or under the seats.
WARNING
Cargo
Cargo should always be secured to
prevent it from being thrown about the
vehicle in a collision and causing injury
to the vehicle occupants. Do not place
objects in the rear seats, since they
cannot be properly secured and may hit
the front seat occupants in a collision.
WARNING
Cargo loading
Make sure the engine is off, the
Intelligent variable transmission is in P
(Park) or the Manual transmission is in R
(Reverse) or 1st, and the parking brake
is securely applied whenever loading or
unloading cargo. Failure to take these
steps may allow the vehicle to move if
the shift lever is inadvertently moved to
another position.

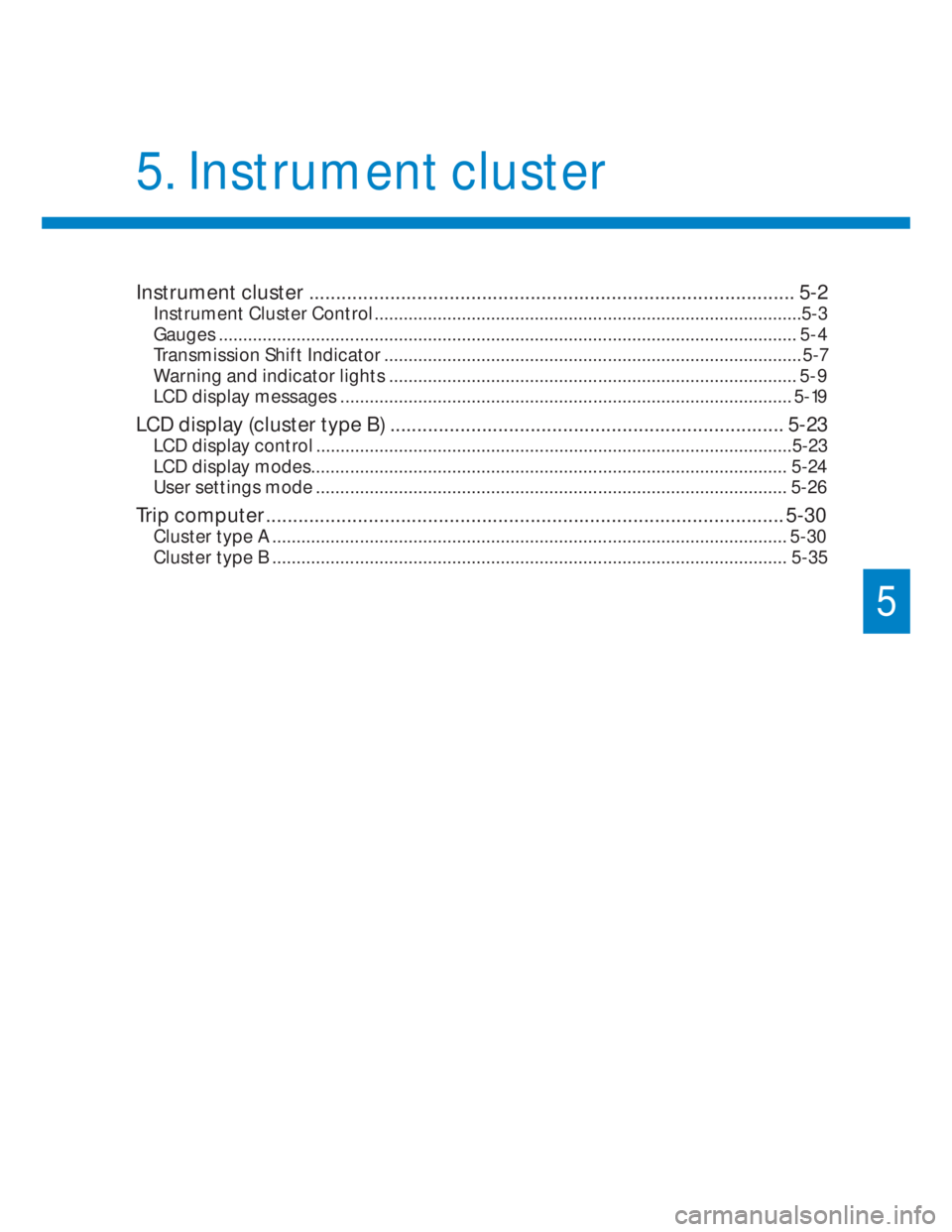

Instrument cluster .......................................................................................... 5-2
Instrument Cluster Control ........................................................................................5-3
Gauges ....................................................................................................................... 5-4
Transmission Shift Indicator ...................................................................................... 5-7
Warning and indicator lights .................................................................................... 5-9
LCD display messages
............................................................................................. 5-19
LCD display (cluster type B) ......................................................................... 5-23
LCD display control ..................................................................................................5-23
LCD display modes.................................................................................................. 5-24
User settings mode
................................................................................................. 5-26
Trip computer ................................................................................................ 5-30
Cluster type A .......................................................................................................... 5-30
Cluster type B
.......................................................................................................... 5-35
5. Instrument cluster
5

5-7
05

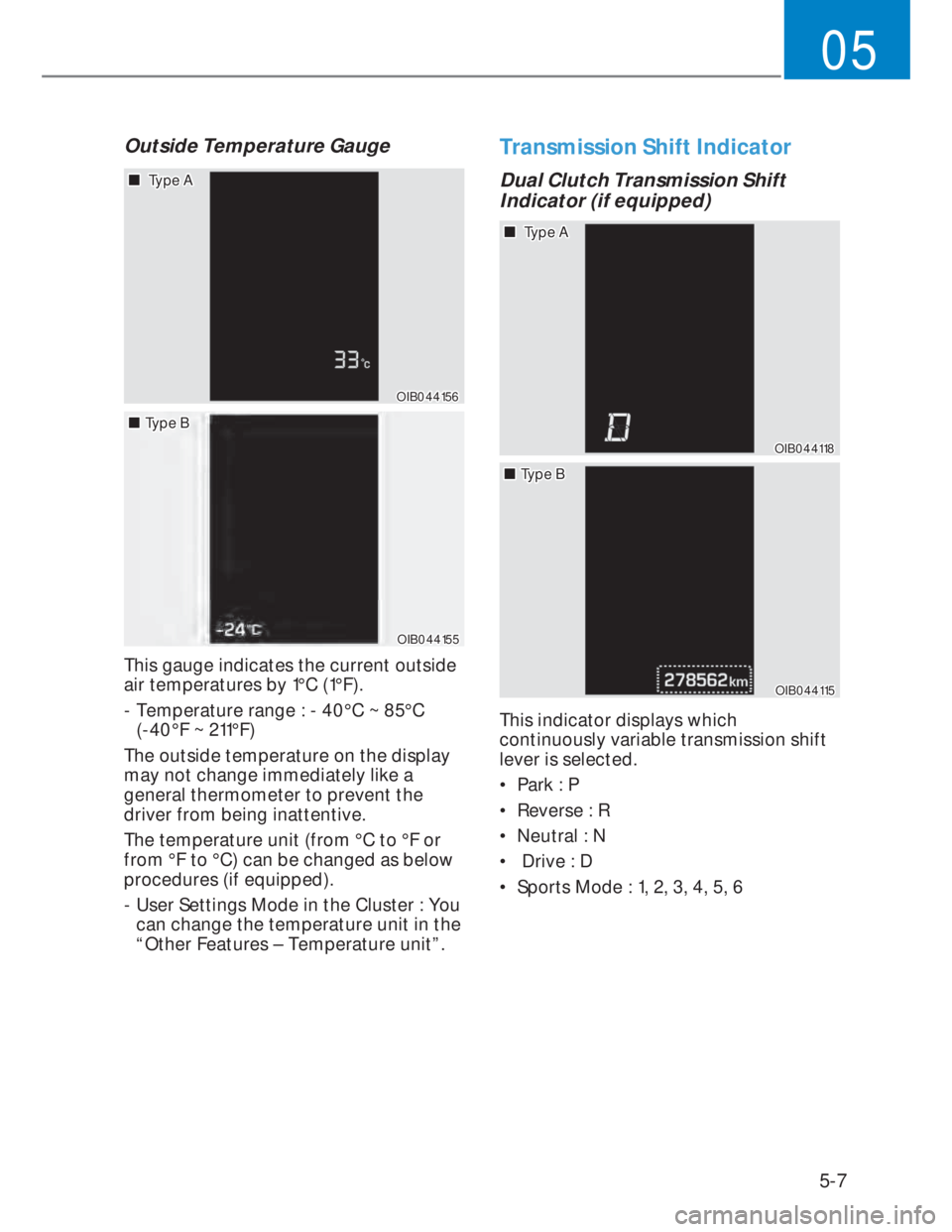

Outside Temperature Gauge
OIB044156OIB044156
„„ Type A Type A
OIB044155OIB044155
„„Type BType B
This gauge indicates the current outside
air temperatures by 1°C (1°F).
- Temperature range : - 40°C ~ 85°C
(-40°F ~ 211°F)
The outside temperature on the display
may not change immediately like a
general thermometer to prevent the
driver from being inattentive.
The temperature unit (from °C to °F or
from °F to °C) can be changed as below
procedures (if equipped).
- User Settings Mode in the Cluster : You
can change the temperature unit in the
“Other Features – Temperature unit”.
Transmission Shift Indicator
Dual Clutch Transmission Shift
Indicator (if equipped)
OIB044118OIB044118
„„ Type A Type A
OIB044115OIB044115
„„Type BType B
This indicator displays which
continuously variable transmission shift
lever is selected.
• Park : P
• Reverse : R
• Neutral : N
• Drive : D
• Sports Mode : 1, 2, 3, 4, 5, 6

5-8
Instrument cluster
Intelligent Variable Transmission
Shift Indicator (if equipped)
OIB044118OIB044118
„„ Type A Type A
OIB044115OIB044115
„„Type BType B
This indicator displays which
continuously variable transmission shift
lever is selected.
• Park : P
• Reverse : R
• Neutral : N
• Drive : D
• Sports Mode : 1, 2, 3, 5, 6, 7, 8
Manual Transmission Shift Indicator
(if equipped)
OIB044152OIB044152
„„ Type A Type A
OIB044151OIB044151
„„Type BType B
This indicator informs which gear is
recommended while driving, to save
fuel.
• Shifting up : 2, 3,
%4,
%5,
%6
• Shifting down :
'1,
'2,
'3,
'4,
'5
For example
: Indicates that shifting up to the 3rd
gear is recommended (currently the
shift lever is in the 2nd or 1st gear).
: Indicates that shifting down to the
3rd gear is recommended (currently
the shift lever is in the 4th, 5th, or
6th gear).
When the system is not working
properly, the indicator is not displayed.

5-19
05
LCD display messages
Key not in vehicle
(for smart key system)
This warning message is displayed if the
smart key is not in the vehicle when you
open or close door in the ACC position
or ON position. The warning sound is
heard when you close door without a
smart key in vehicle.
When attempting to start the vehicle
always have the smart key with you.
Key not detected
(for smart key system)
This warning message is displayed if
the smart key is not detected when you
press the Engine Start/Stop button.
Press START button with key (for
smart key system)
This warning message is displayed if
you press the Engine Start/Stop button
while the warning message “Key not
detected” is displayed.
At this time, the immobilizer indicator
light blinks.
Low key battery
(for smart key system)
This warning message is displayed if the
battery of the smart key is discharged
while changing the Engine Start/Stop
button to the OFF position.
Press brake pedal to start engine
(for smart key system and
Automatic transmission/Dual clutch
transmission)
This warning message is displayed if the
Engine Start/Stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
You can start the vehicle by depressing
the brake pedal.
Press clutch pedal to start engine
(for smart key system and Manual
transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Press START button again
(for smart key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, we recommend that you have
your vehicle inspected by an authorized
HYUNDAI dealer.

5-20
Instrument cluster
Shift to N to start engine
(for smart key system and
Automatic transmission/Dual clutch
transmission) / iMT (intelligent
manual transmission))
This warning message is displayed if
you try to start the engine with the shift
button not in the N (Neutral) position.
i Information
You can start the engine with the shift
lever in the N (Neutral) position.
Check BRAKE SWITCH fuse (for
smart key system and Automatic
transmission/Dual clutch
transmission)
This warning message is displayed if the
brake switch fuse is disconnected.
You need to replace the fuse with a new
one. If that is not possible, you can start
the engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Lights mode
OIK047163LOIK047163L
This indicator displays which exterior
light is selected using the lighting
control.

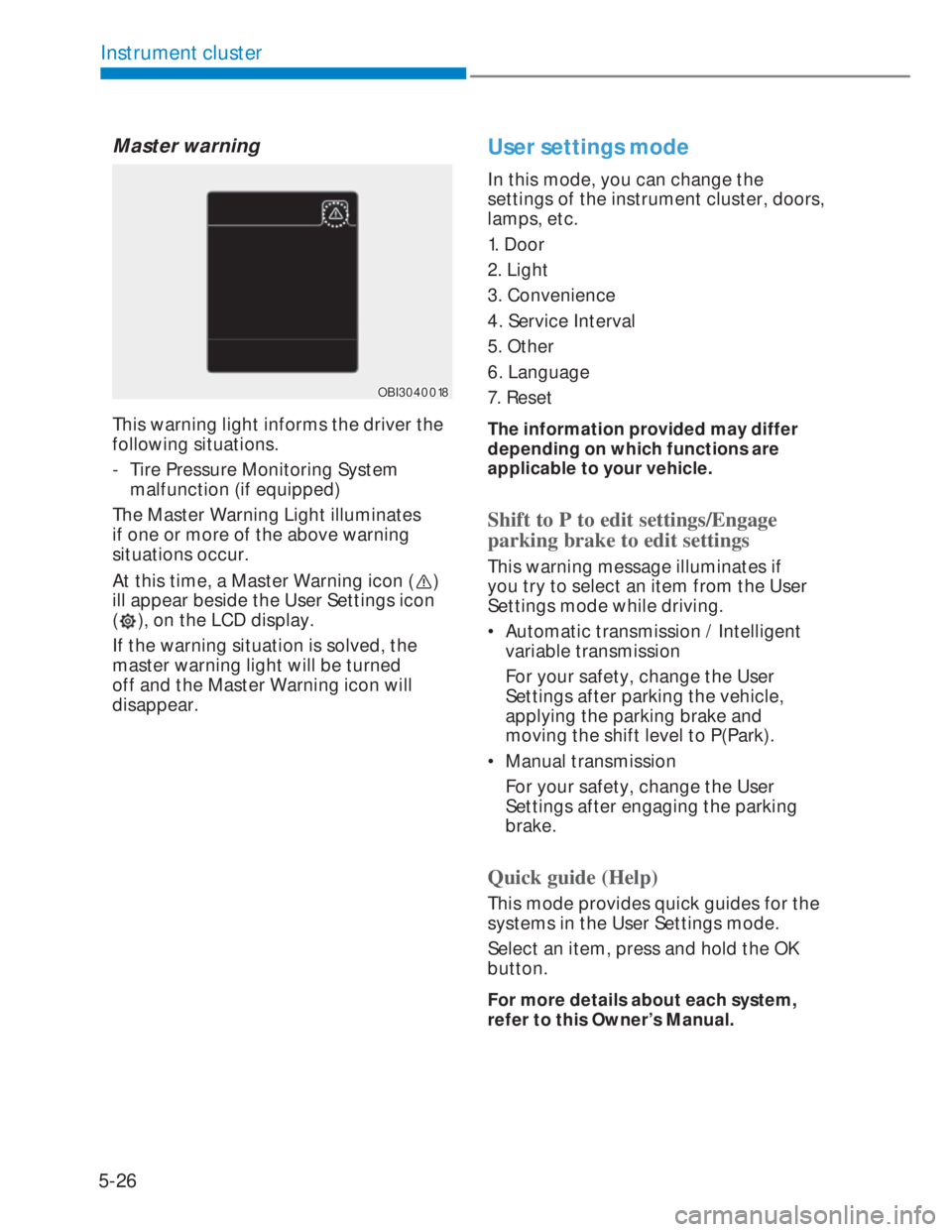

5-26
Instrument cluster
Master warning
OBI3040018OBI3040018
This warning light informs the driver the
following situations.
- Tire Pressure Monitoring System
malfunction (if equipped)
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
ill appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
User settings mode
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Door
2. Light
3. Convenience
4. Service Interval
5. Other
6. Language
7. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings/Engage
parking brake to edit settings
This warning message illuminates if
you try to select an item from the User
Settings mode while driving.
• Automatic transmission / Intelligent
variable transmission
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and
moving the shift level to P(Park).
• Manual transmission
For your safety, change the User
Settings after engaging the parking
brake.
Quick guide (Help)
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.

5-27
05

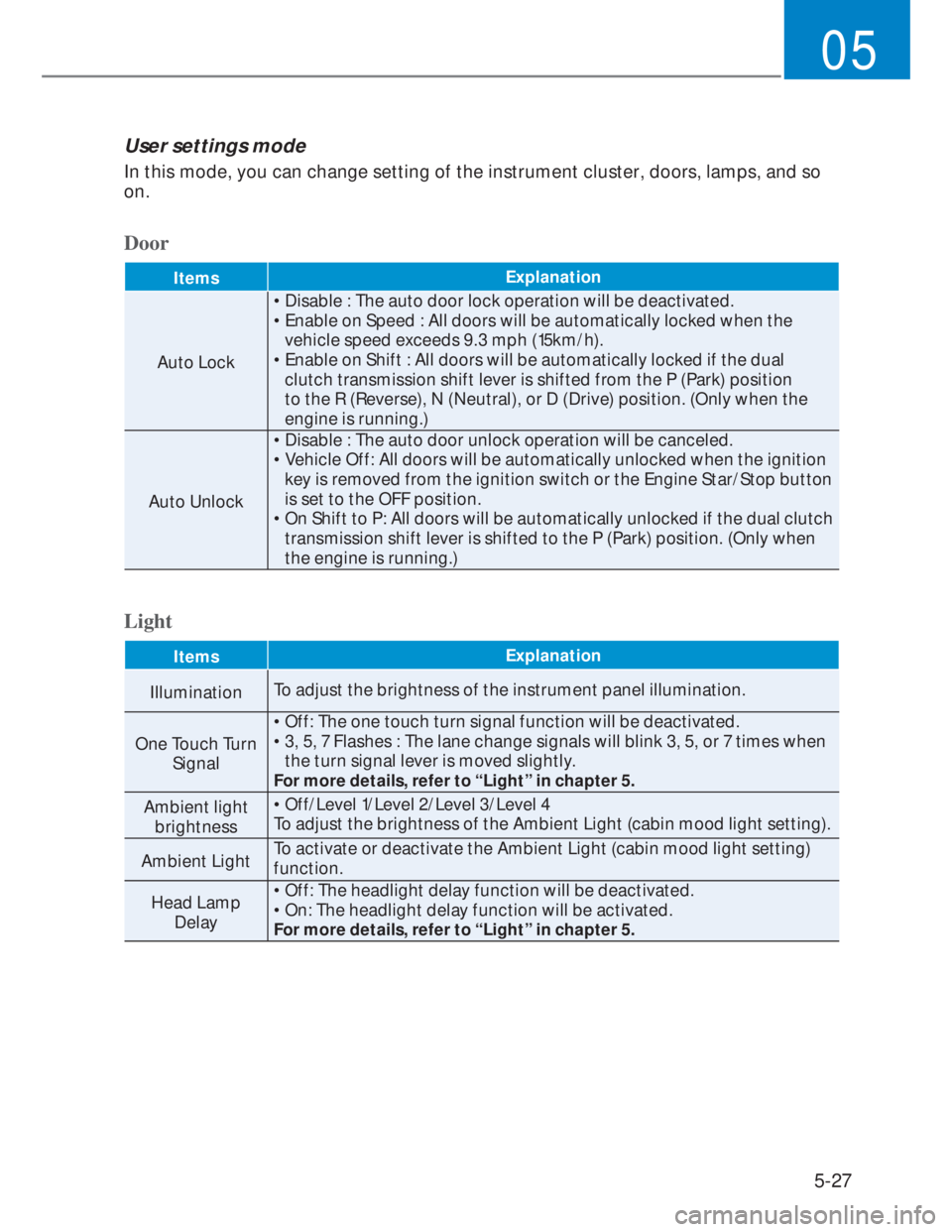

User settings mode
In this mode, you can change setting of the instrument cluster, doors, lamps, and so
on.
Door
ItemsExplanation
Auto Lock• Disable : The auto door lock operation will be deactivated.
• Enable on Speed : All doors will be automatically locked when the
vehicle speed exceeds 9.3 mph (15km/h).
• Enable on Shift : All doors will be automatically locked if the dual
clutch transmission shift lever is shifted from the P (Park) position
to the R (Reverse), N (Neutral), or D (Drive) position. (Only when the
engine is running.)
Auto Unlock• Disable : The auto door unlock operation will be canceled.
• Vehicle Off: All doors will be automatically unlocked when the ignition
key is removed from the ignition switch or the Engine Star/Stop button
is set to the OFF position.
• On Shift to P: All doors will be automatically unlocked if the dual clutch
transmission shift lever is shifted to the P (Park) position. (Only when
the engine is running.)
Light
ItemsExplanation
IlluminationTo adjust the brightness of the instrument panel illumination.
One Touch Turn
Signal• Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when
the turn signal lever is moved slightly.
For more details, refer to “Light” in chapter 5.
Ambient light
brightness• Off/Level 1/Level 2/Level 3/Level 4
To adjust the brightness of the Ambient Light (cabin mood light setting).
Ambient LightTo activate or deactivate the Ambient Light (cabin mood light setting)
function.
Head Lamp
Delay• Off: The headlight delay function will be deactivated.
• On: The headlight delay function will be activated.
For more details, refer to “Light” in chapter 5.
