HYUNDAI I20 2021 User Guide

1-7
01
Diesel engine
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable
standard. (EN stands for “European
Norm”). Do not use marine diesel fuel,
heating oils, or non-approved fuel
additives, as this will increase wear and
cause damage to the engine and fuel
system. The use of non-approved fuels
and / or fuel additives will result in a
limitation of your warranty rights.
Diesel fuel of above cetane 51 is used
in your vehicle. If two types of diesel
fuel are available, use summer or winter
fuel properly according to the following
temperature conditions.
• Above -5°C (23°F) ... Summer type
diesel fuel.
• Below -5°C (23°F) ... Winter type diesel
fuel.
Watch the fuel level in the tank very
carefully : If the engine stop s through
fuel failure, the circuits must be
completely purged to permit restarting.
CAUTION
Do not let any petrol or water enter the
tank. This would make it necessary to
drain it out and to bleed the lines to
avoid jamming the injection pump and
damaging the engine.
CAUTION
Diesel Fuel (if equipped with DPF)
It is recommended to use the regulated
automotive diesel fuel for diesel vehicle
equipped with the DPF system.
If you use diesel fuel including high
sulfur (more than 50 ppm sulfur) and
unspecified additives, it can cause the
DPF system to be damaged and white
smoke can be emitted.
Biodiesel
Commercially supplied Diesel blends of
no more than 7% biodiesel, commonly
known as “B7 Diesel” may be used
in your vehicle if Biodiesel meets EN
14214 or equivalent specifications. (EN
stands for “European Norm”). The use
of biofuels exceeding 7% made from
rapeseed methyl ester (RME), fatty
acid methyl ester (FAME), vegetable oil
methyl ester (VME) etc. or mixing diesel
exceeding 7% with biodiesel will cause
increased wear or damage to the engine
and fuel system. Repair or replacement
of worn or damaged components due to
the use of non approved fuels will not be
covered by the manufactures warranty.
CAUTION
• Never use any fuel, whether diesel,
B7 biodiesel or otherwise, that fails
to meet the latest petroleum industry
specification.
• Never use any fuel additives
or treatments that are not
recommended or approved by the
vehicle manufacturer.

1-8
Introduction

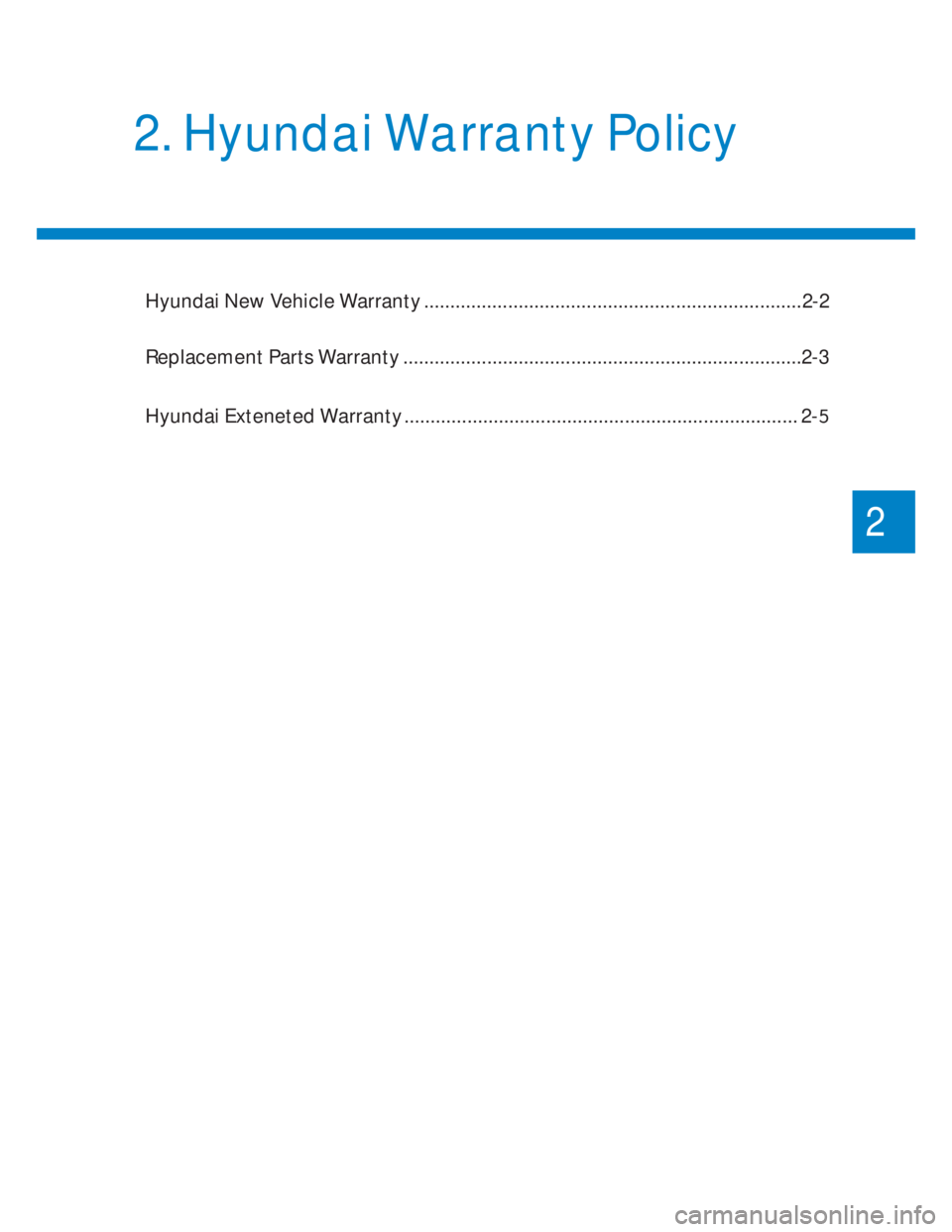

9(+,&/(%5($.

Hyundai New Vehicle Warranty ........................................................................2-2
Replacement Parts Warranty ............................................................................2-3
Hyundai Exteneted Warranty ...........................................................................2-
2. Hyundai Warranty Policy
2

2-2
Hyundai Warranty Policy
HYUNDAI NEW VEHICLE WARRANTY
Hyundai Motor India Limited herein-
after called “HMIL”, warrants that
each new Hyundai vehicle sold shall
be free from any defects in material
and workmanship, under normal use
and maintenance, subject to the fol-
lowing terms and conditions.
1. Warranty Period
This warranty for hyundai vehicle
shall exist for a period as per option
selected on page F1 by the first pur-
chaser from the date of delivery
whichsoever is earlier. However the
warranty for CRETA being used for
commercial purpose such as Taxi/
Tourist operation is 36
months/100,000 kilometers from the
date of delivery to the first purchaser
which soever is earlier. This warranty
is transferable to subsequent owner
for the remaining warranty period.
This warranty is applicable only in In-
dia and not transferable to any other
country.
2. What is covered
Except as provided in paragraph 3
hereof, our Authorized Dealers shall
either repair or replace, any Hyundai
genuine part that is acknowledged by
HMIL to be defective in material or
workmanship within the warranty pe-
riod stipulated above, at no cost to
the owner of the Hyundai vehicle for
parts or labour. Such defective parts
which have been replaced will be-
come the property of HMIL
3. What is not covered
This warranty shall not apply to:
▶Normal maintenance services
other than the three free ser-
vices, including without limita-
tion, cleaning and polishing, mi-
nor adjustments, engine tuning,
oil/fluid changes, filters replen-
ishment, fastener retightening,
wheel balancing, wheel align-
ment and tyre rotation etc.
▶Replacement of parts as a result
of normal wear and tear such as
spark plugs, belts, brake pads
and linings, clutch disc/facing,
filters, wiper blades, bulbs, fuses,
etc.
Damage or failure resulting from :
▶Negligence of proper mainte-
nance as required in this Owner’s
Manual and Service Booklet.
▶Misuse, abuse, accident, theft,-
flooding or fire.
▶Use of improper or insufficientfu-
el, fluids or lubricants.
▶Use of parts other than Hyundai
Genuine Parts.
▶Any device and/or accessories-
not supplied by HMIL.
▶Modifications, alterations, tam-
pering or improper repair.
▶Parts used in applications of-
which they were not designed or
not approved by HMIL.
▶Slight irregularities not rec-
ognised as affecting quality or-
function of the vehicle or parts,-
such as slight noise or
vibrations,or items considered-
characteristic of the vehicle.
▶Airborne “fallout”, Industrialfall
out, acid rain, hail and wind-
storms, or other Acts of God.

2-3
02
▶Paint scratches, dents or similar-
paint or body damage.
▶Action of road elements (sand,-
gravel, dust or road debris) which
results in stone chipping of paint
or glass.
▶Incidental or consequential dam-
ages, including without limita-
tion, loss of time, inconvenience,
loss of use of vehicle or commer-
cial loss.such as operation in extremely
dusty, rough, more repeated
short distance driving or heavy
city traffic during hot weather,
maintenance of vehicle should
be done more frequently as men-
tioned in this Owner’s Manual
and Service Booklet
▶Retention of maintenance service
records. It may be necessary for
the customer to show that the re-
quired maintenance has been
performed, as specified in this
Owner’s Manual and Service
Booklet.
▶Delivery of the vehicle during reg-
ular service business hours to
any authorized Hyundai Dealer to
obtain warranty service.
▶In order to maintain the validity of
this Basic Warranty, the vehicle
must be serviced by Hyundai Au-
thorized workshop in accordance
to the Owner’s Manual and Ser-
vice Booklet.
PARTS REPLACEMENT WAR
â
RANTY
Hyundai Motor India Limited herein-
after called “HMIL”, warrants that
each new Hyundai Genuine replace-
ment part purchased from and in-
stalled by Hyundai Authorized Dealer
shall be free from any defects in ma-
terial or workmanship, unde normal
use and maintenance, subject to the
following terms and conditions
1. Warranty period
This warranty shall exist for a period
of 6 months or until the vehicle has ▶This warranty is the entire war-
ranty given by HMIL for Hyundai
vehicles and no dealer or its or his
agent or employee is authorized
to extend or enlarge this warranty
and no dealer or its or his agent
or employee is authorized to
make any oral warranty on HMIL’s
behalf.
▶HMIL reserves the right to make
any change in design or make
any improvement on the vehicle
at any time without any obliga-
tion to make the same change on
vehicles previously sold.
▶HMIL reserves the right for the fi-
nal decision in all warranty mat-
ters.
Owner’s Responsibilities
▶Proper use, maintenance and care
of vehicle in accordance with the
instructions contained in this
Owner’s Manual and Service
Booklet. If the vehicle is subject
to severe usage conditions, su-
Audio Video Navigation System,
:LUHOHVV &KDUJHU $LU 3XULILHU
Batteries, Tyres & Tubes Audio
SysWems, RU DQ\ H[WHUQDO DFFHVRU\
originally equipped on Hyundai
vehicles are warranted directly by the
respective manufacturers and not by
HMIL.

2-4
Hyundai Warranty Policy
been driven for a distance of 10,000
Kilometers from the date of installa-
tion of replacement part by Hyundai
Authorized Dealer, whichever occurs
first.
2. What is covered
Our Authorized Dealers shall either
repair or replace, any Hyundai genu-
ine par listed in paragraph 3 hereof,
that is acknowledged by HMIL to be
defective in material or workmanship
within the warranty period stipulated
above, after examinations carried
out to confirm that none of the origi
al settings have been tampered with,
at no cost to the owner of the Hyund-
ai vehicle for parts or labour. Such
defective parts which have been re-
placed will become the property of
HMIL
3.
What is not covered
This warranty shall not apply to:
Normal maintenance services of
parts such as cleaning, adjust-
ment or replacement (i.e. spark
plugs that are oil fouled, lead
fouled, or which fail due to the
use of low grade fuel).
Parts that fail due to abuse, mis-
use, neglect, alteration or acci-
dent or which have been improp-
erly lubricated or repaired
Parts used in applications for-
which they were not designed or
approved by HMIL.
Failure due to normal wear of-
parts.
Direct or indirect failures caused
by misuse and improper mainte-nance of vehicle.
Any vehicle on which the odome-
ter reading has been altered so
that mileage cannot be accurate-
ly determined.
Incidental or consequential dam-
ages, including without limita-
tion, loss of time, inconvenience,
loss of use of vehicle or commer-
cial loss.
This warranty is the entire warranty
given by HMIL for Hyundai replace-
ment parts and no de aler or its or his
agent or employee is authorized to
extend or enlarge this warranty and
no dealer or its or his agent or em-
ployee is authorized to make any oral
warranty on HMIL’s behalf. HMIL re-
serves the right for the final decision
in all warranty matters.
Owner’s Responsibility :
Proper use, maintenance and re
of the vehicle in accordancewith
the instructions contained in the
Owner’s Manual and Service
Booklet.
Retention of maintenance ser-
vice records. It may be necessary
for the customer to show that the
required maintenance has been
performed, as specified in this
Owner’s Manual and Service
Booklet.
Retention of the customer’s copy
of the original repair order and
its invoice/bill against which the
part was replaced.
Delivery of the vehicle during
regular service business hours to
the same Hyundai Authorized
Dealer who had sold and installed
the replacement part

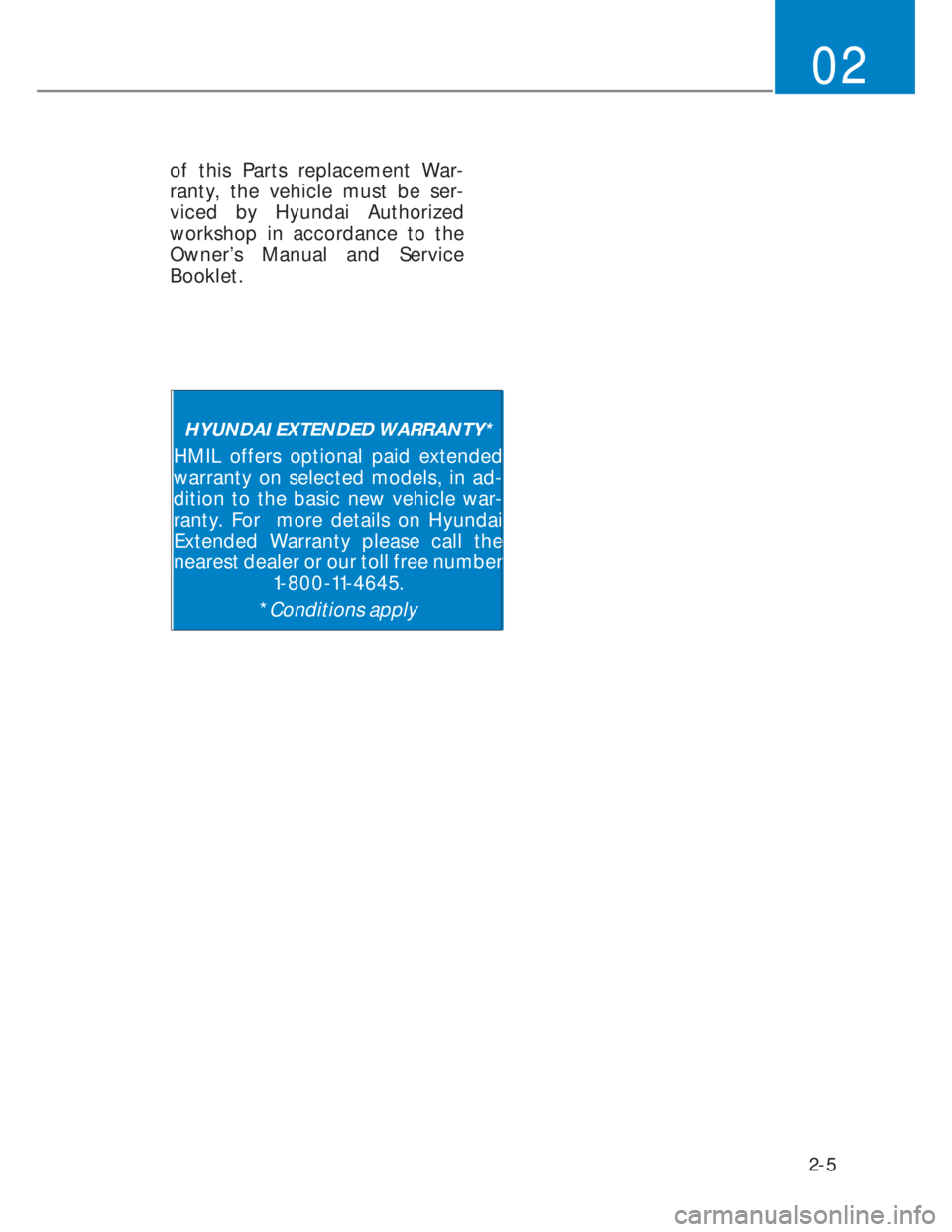

In order to maintain the validity

2-5
02
of this Parts replacement War-
ranty, the vehicle must be ser-
viced by Hyundai Authorized
workshop in accordance to the
Owner’s Manual and Service
Booklet.
HYUNDAI EXTENDED WARRANTY*
HMIL offers optional paid extended
warranty on selected models, in ad-
dition to the basic new vehicle war-
ranty. For more details on Hyundai
Extended Warranty please call the
nearest dealer or our toll free number
1-800-11-4645.
*Conditions apply

0009000e001c0015001a0017001c0005001b001a0014000d000b0011001c00070015000b000d001c001c000600170015000f0017000b00130013000e001c
000d0022001f0024000f0018001300140024001c0022001b00110014001f00240005000a00040004002400050004000600240007000900070008002400010021001d001a001a0024001f00140014000200030024
0001000400050006000700020024
00010002000200020002000200020003
00070020001d0017000d000a0013002100080018000a000d001b0013000d000e00210003000e0016000e001a0011000e0017000c002000210019001a0018001e0013000d000e000d0021000a0017002000210016000e000c0012000a00170013000c000a001500020021
000e0015000e000c001c001a0013000c000a00150021
0003000700090006000c0002000600080004000a00060005000c
00010004000a000a00060009000b000c
0002000500090013000e001500180007001100100008000a0016000a0011000f00150018000600120012000d001700030018
000500090014000e001500180004001100100008000b0016000c0011001000150018000a000100040045002d002a001f001b001e002d00210045002300350037004500430021001b0037003b00450020001b003d00210045003500230045
000b000100040045001b003b003b002b003b003d001b0032001f0021004500330022001c00380022003c003e0045
00130043004000320020001b002a004500200021001d002d002100370045004200350037002c003b00280035003600060045
000a001c000c000f001f0015000f00100026
000d001e0010000c0017000f001c0024001b0005001e001c000c000f00260020001e000c00120016000e0026000c000e000e0016000f0010001b002000030026
000b0016001e0010002600090021001b000e00200021001e00100001000a0010001d0019000c000e0010001a0010001b00200026001d0022001b000e00200022001e0010000f0026
001f001d000c001e00100026
00070010000c000f0026001f0020000c001e002000030026001000010008004500120035003b003d0045003700210036001b002b0038003b004500430035004000370045004100210028002a001f002d00210045
00320035003f0045
0040003200200021003700450019001b00380038001b0032003d004300090045
000d0001000400450038002b003f002900210045004100210028002a001f002d00210045001e0021002100320045
000f0001000400450036001b0039003b0045003800210036002d001b001f0021003100210032003d004500320035003d004500400032002d0021003b003b0045
0019001b00380038001b0034003f004300080045000a00010004002f00110023001b001f0018002f00150016000d002f001300240019001f0022001c002f000d00260026002f
001700150012000c002f001e002a002a00260029000c00060006001d002400240004001d002200060025001500270020002600090004002f
000b00020005002f001400230022001f0023001c002f0028001c002a0018001f0022002f00150016000d0003002f0021001f0023001b0022002e002f
001e002a002a00260029000c0007002f0008001e002e002b002f00040018002d0026001800290029001f0029002a00180023001a001c0004002f001f00230006002f

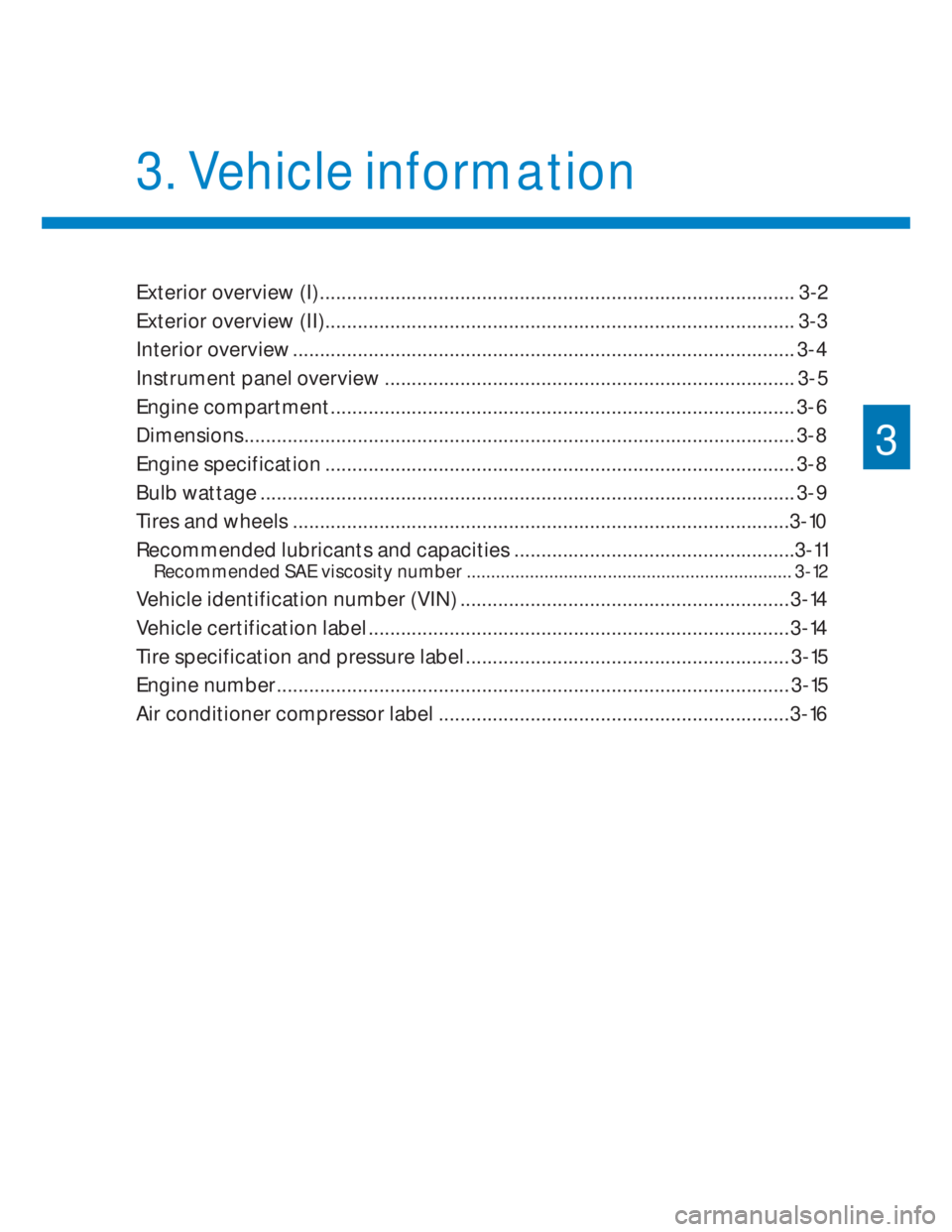

Exterior overview (I) ........................................................................................ 3-2
Exterior overview (II)
....................................................................................... 3-3
Interior overview
............................................................................................. 3-4
Instrument panel overview
............................................................................ 3-5
Engine compartment
...................................................................................... 3-6
Dimensions
...................................................................................................... 3-8
Engine specification
....................................................................................... 3-8
Bulb wattage
................................................................................................... 3-9
Tires and wheels
............................................................................................3-10
Recommended lubricants and capacities
....................................................3-11
Recommended SAE viscosity number ................................................................... 3-12
Vehicle identification number (VIN) .............................................................3-14
Vehicle certification label
..............................................................................3-14
Tire specification and pressure label
............................................................ 3-15
Engine number
............................................................................................... 3-15
Air conditioner compressor label
.................................................................3-16
3. Vehicle information
3

3-2

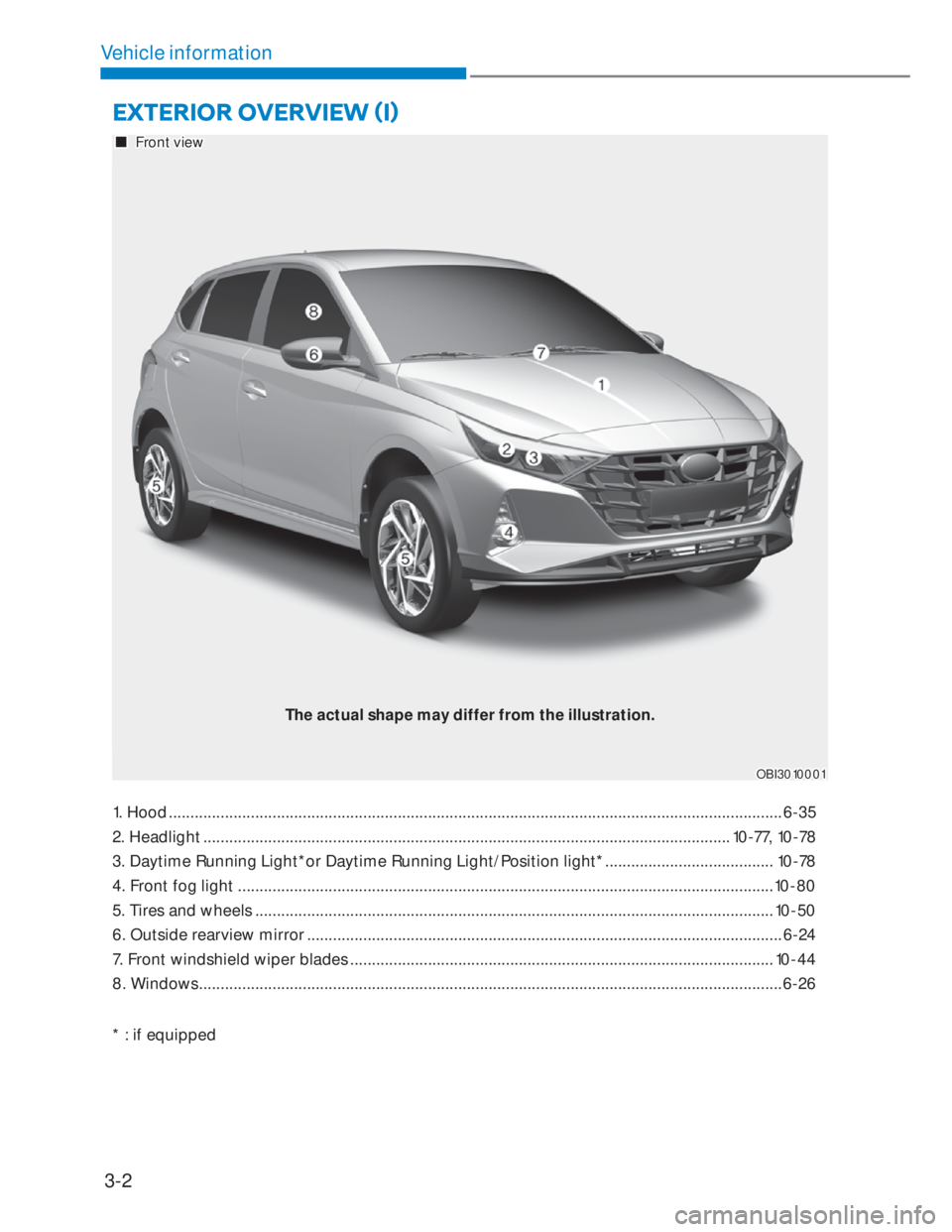

Vehicle information
1. Hood .............................................................................................................................................. 6-35
2. Headlight
.......................................................................................................................... 10-77, 10-78
3. Daytime Running Light*or Daytime Running Light/Position light*
....................................... 10-78
4. Front fog light
............................................................................................................................10-80
5. Tires and wheels
........................................................................................................................ 10-50
6. Outside rearview mirror
.............................................................................................................. 6-24
7. Front windshield wiper blades
.................................................................................................. 10-44
8. Windows
.......................................................................................................................................6-26
* : if equipped
(;7(5,2529(59,(:
