Page 402 of 444

HYUNDAI I20 2021 Repair Manual 10-63
10
OTA070039OTA070039

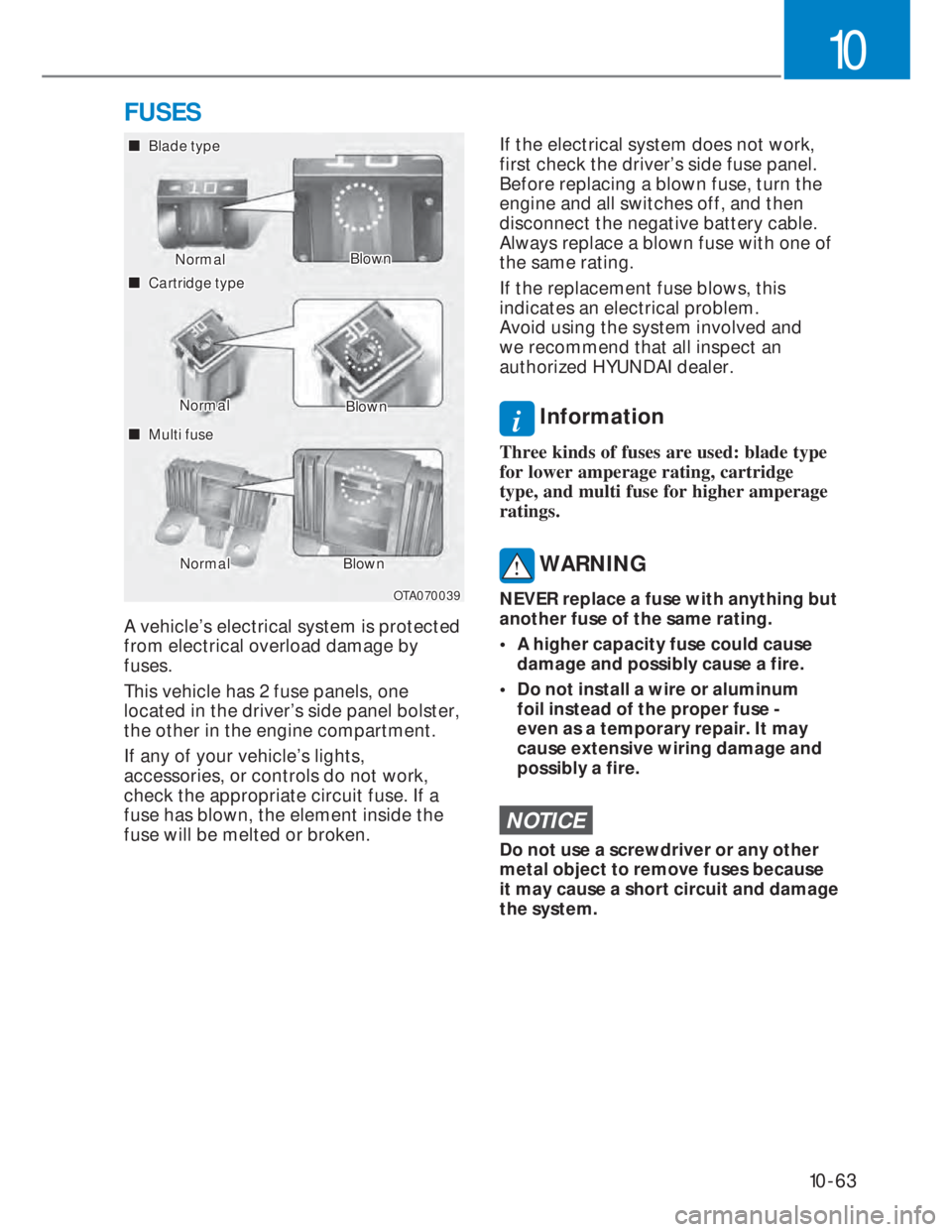

���„�„ Blade type Blade type
NormalNormalBlownBlown
���„�„ Cartridge type Cartridge type
���„�„ Multi fuse Multi fuse
NormalNormalBlownBlown
NormalNormalB

Page 403 of 444

HYUNDAI I20 2021 Repair Manual 10-64
Maintenance

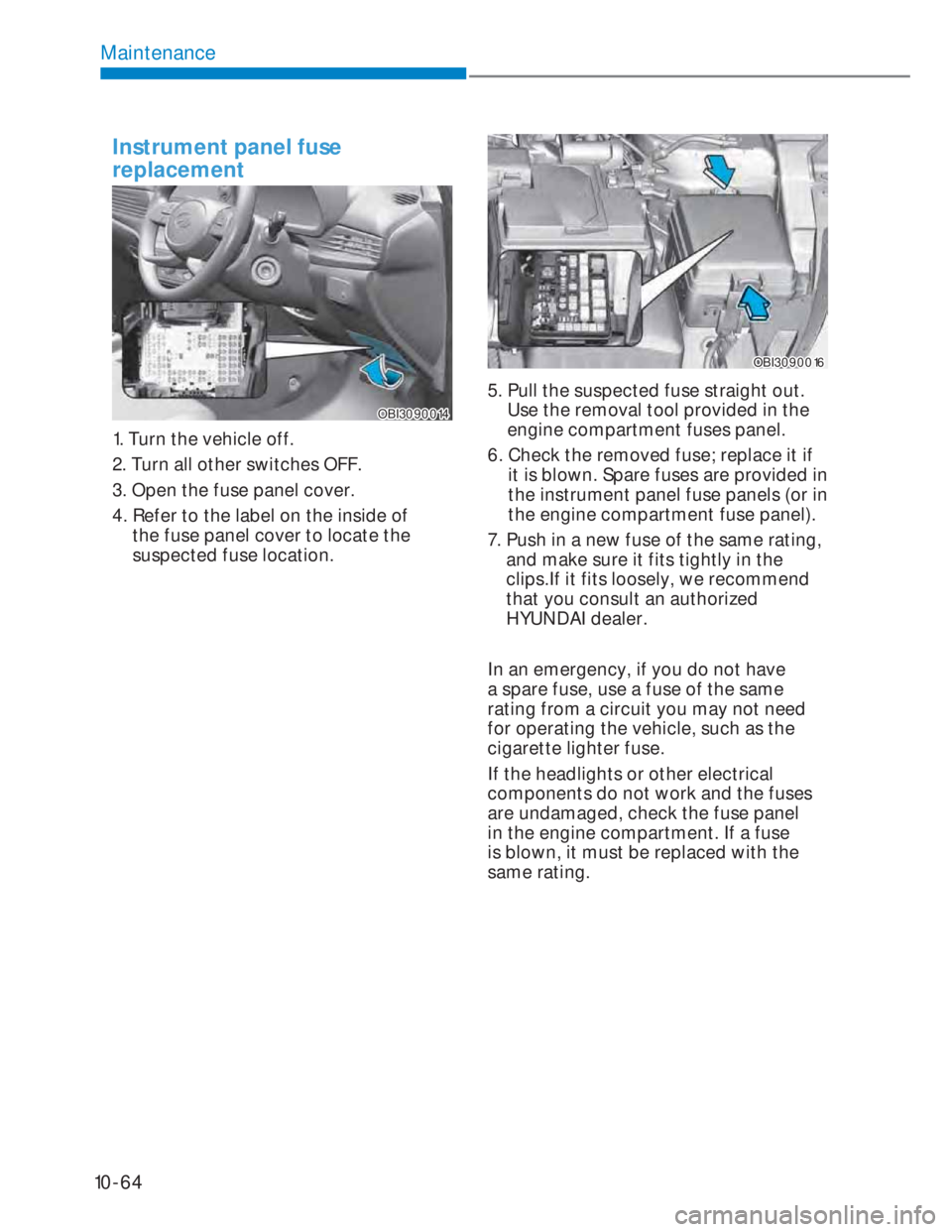

Instrument panel fuse
replacement
OBI3090014OBI3090014
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4.  Refer to the label on the inside of

Page 404 of 444

HYUNDAI I20 2021 Repair Manual 10-65
10

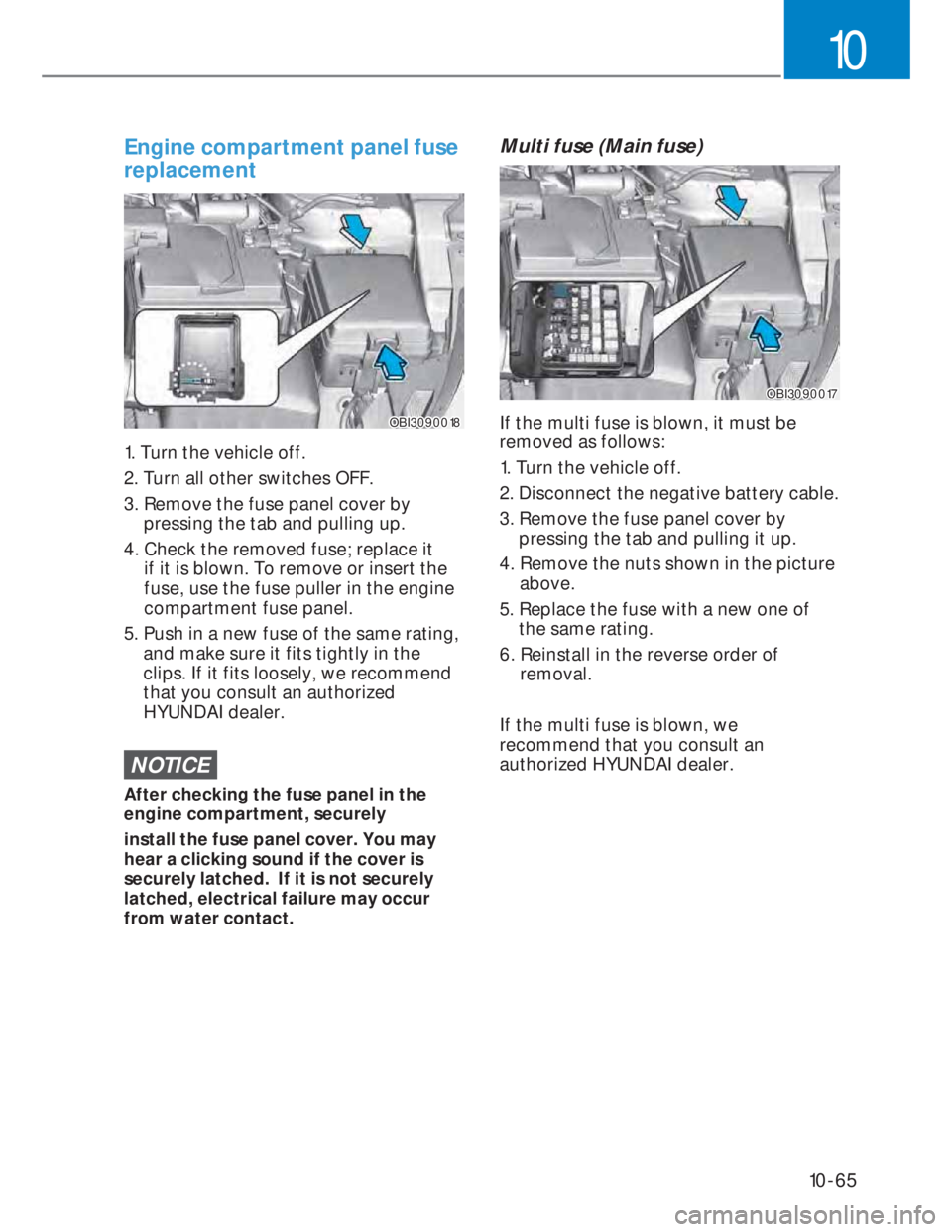

Engine compartment panel fuse
replacement
OBI3090018OBI3090018
1. Turn the vehicle off.
2. Turn all other switches OFF.
3.  Remove the fuse panel cover by
pressing the tab and pulling up.
4

Page 438 of 444

HYUNDAI I20 2021 Repair Manual 10-99
10

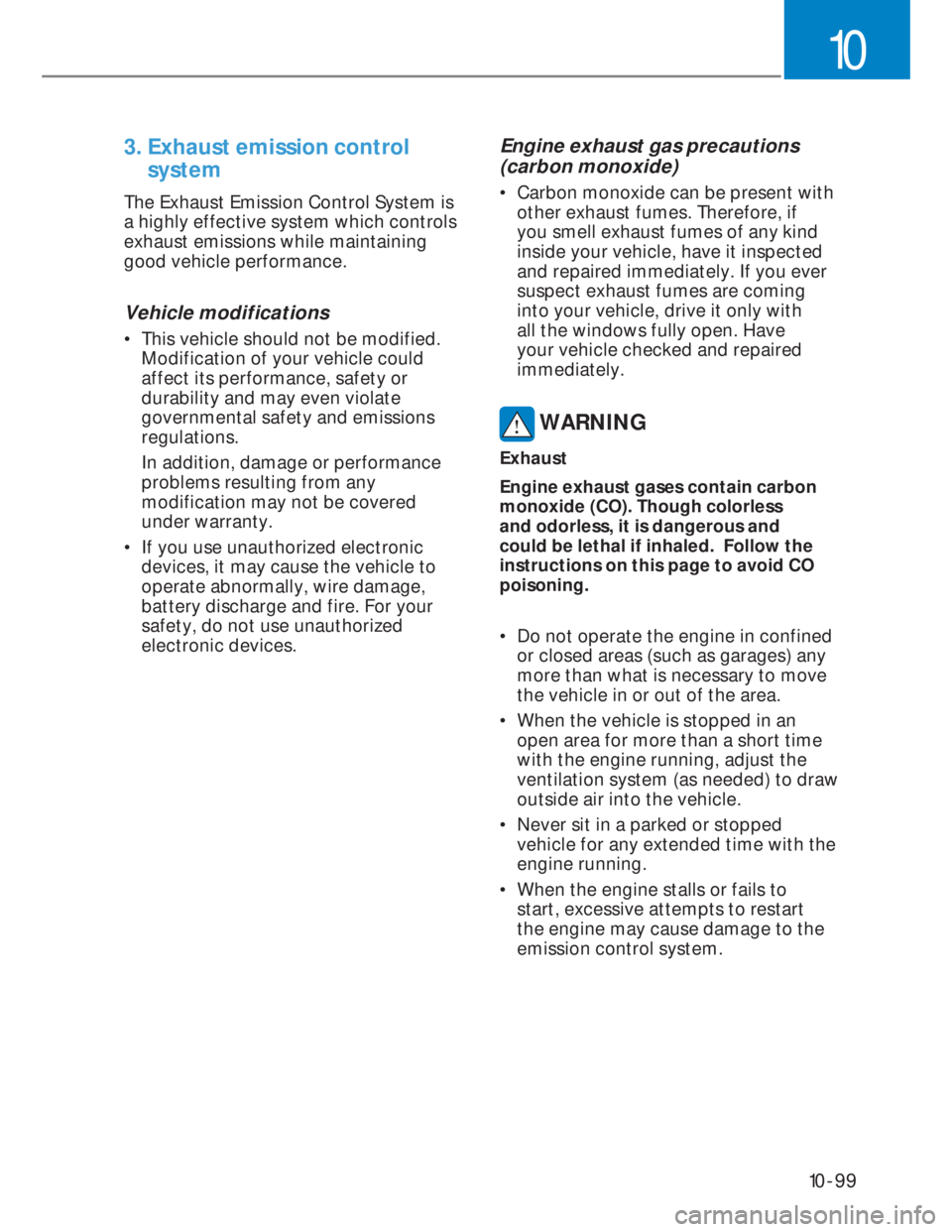

3.  Exhaust emission control
system
The Exhaust Emission Control System is
a highly effective system which controls
exhaust emissions while maintaining
good vehicle performance.
Vehicle m

Page 440 of 444

HYUNDAI I20 2021 Repair Manual 10-101
10

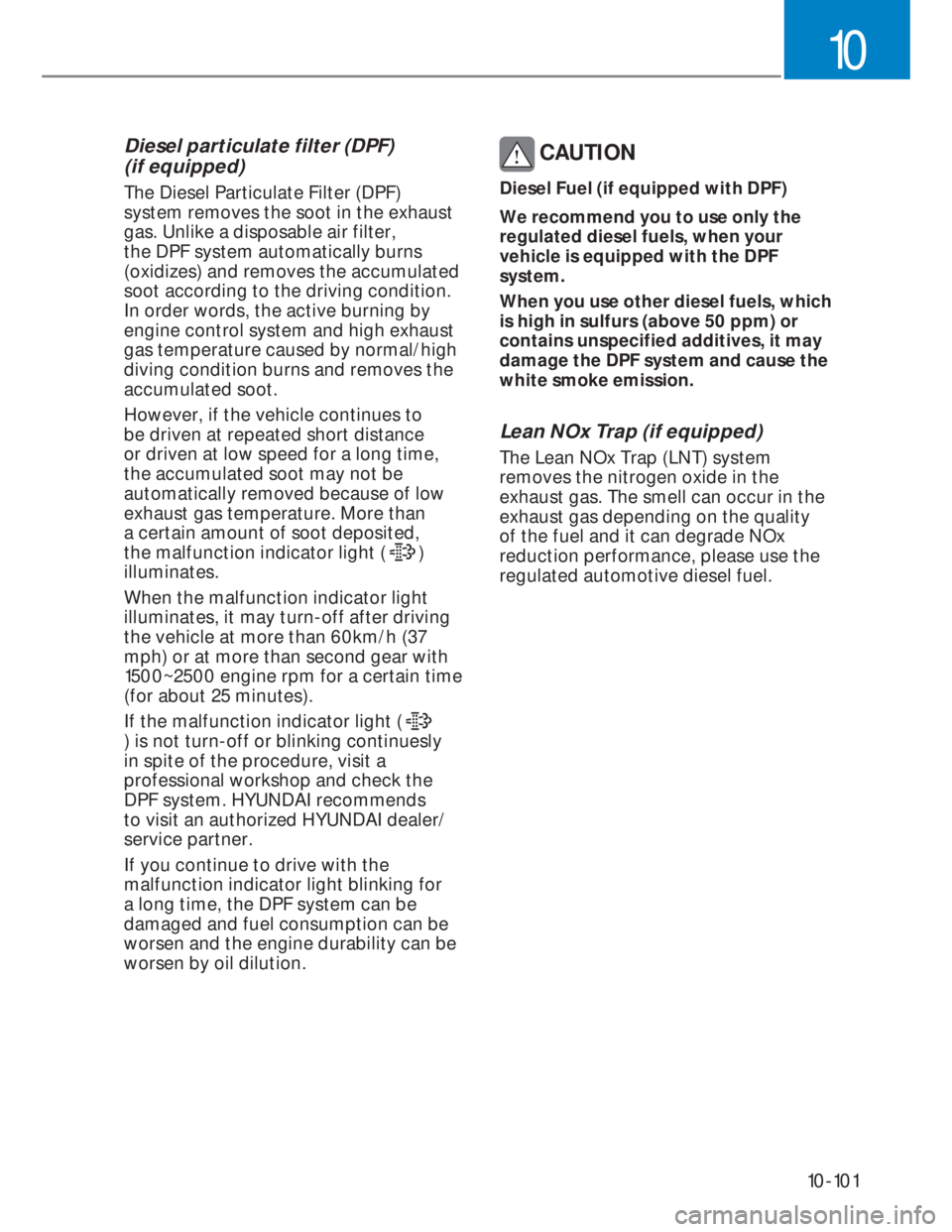

Diesel particulate filter (DPF)
(if equipped)
The Diesel Particulate Filter (DPF)
system removes the soot in the exhaust
gas. Unlike a disposable air filter,
the DPF system automatical

Page 441 of 444

HYUNDAI I20 2021 Repair Manual 10-102
Maintenance

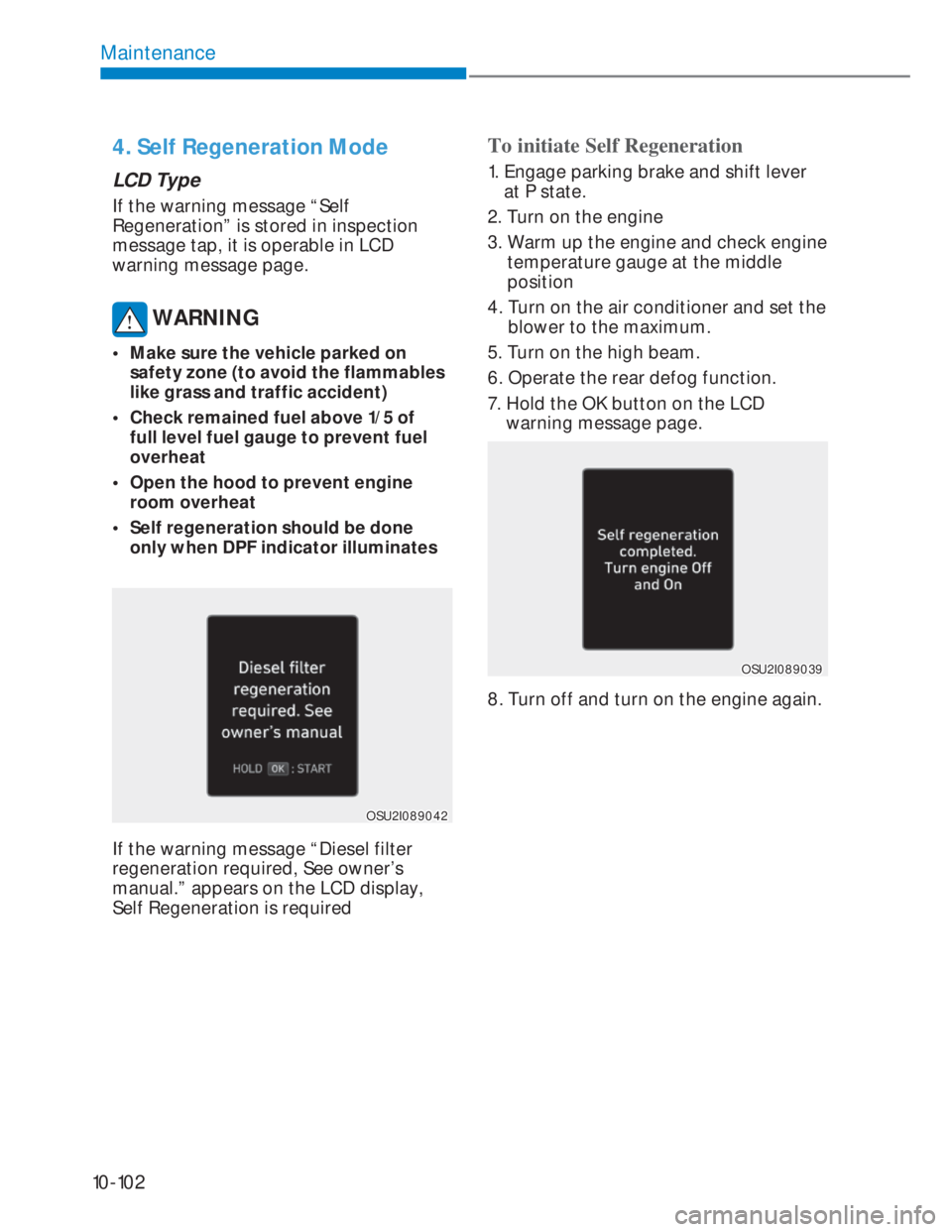

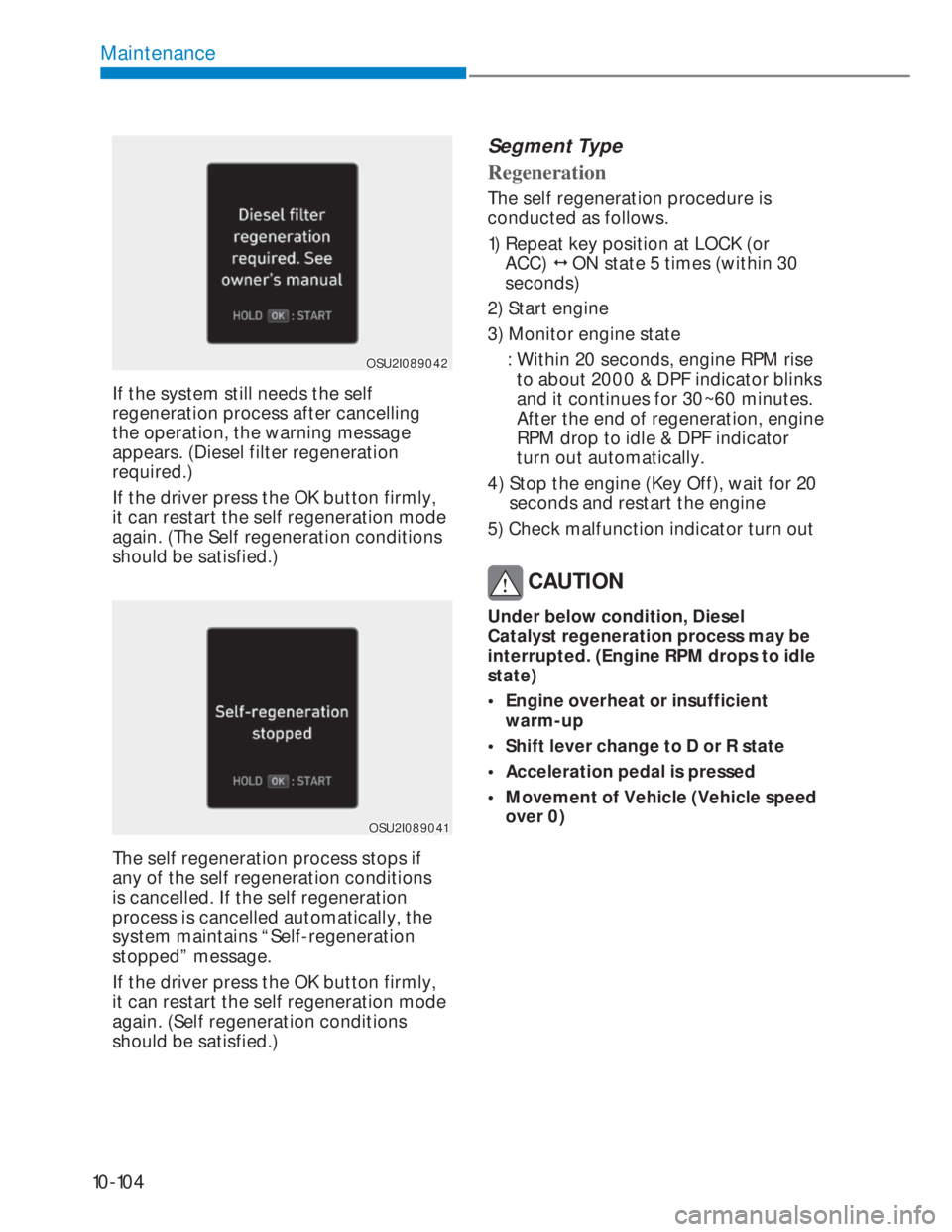

4. Self Regeneration Mode
LCD Type
If the warning message “Self
Regeneration” is stored in inspection
message tap, it is operable in LCD
warning message page.
 WARNING
•  M

Page 442 of 444

HYUNDAI I20 2021 Repair Manual 10-103
10
OSU2I089037OSU2I089037

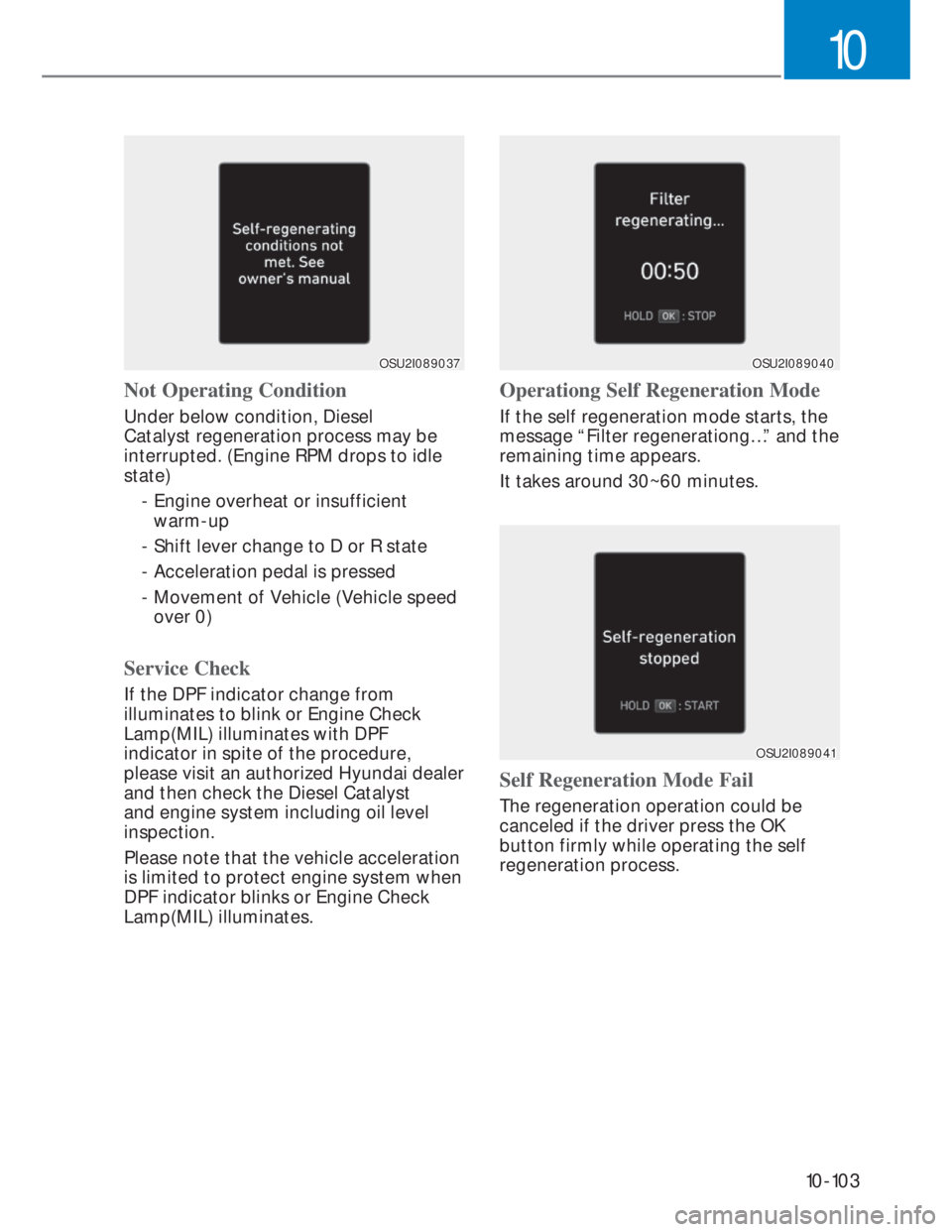

Not Operating Condition
Under below condition, Diesel
Catalyst regeneration process may be
interrupted. (Engine RPM drops to idle
state)
  -  Engine overheat or in

Page 443 of 444

HYUNDAI I20 2021 Repair Manual 10-104
Maintenance
OSU2I089042OSU2I089042
If the system still needs the self
regeneration process after cancelling
the operation, the warning message
appears. (Diesel filter regeneration
required.

Page 444 of 444

HYUNDAI I20 2021 Repair Manual 10-105
10

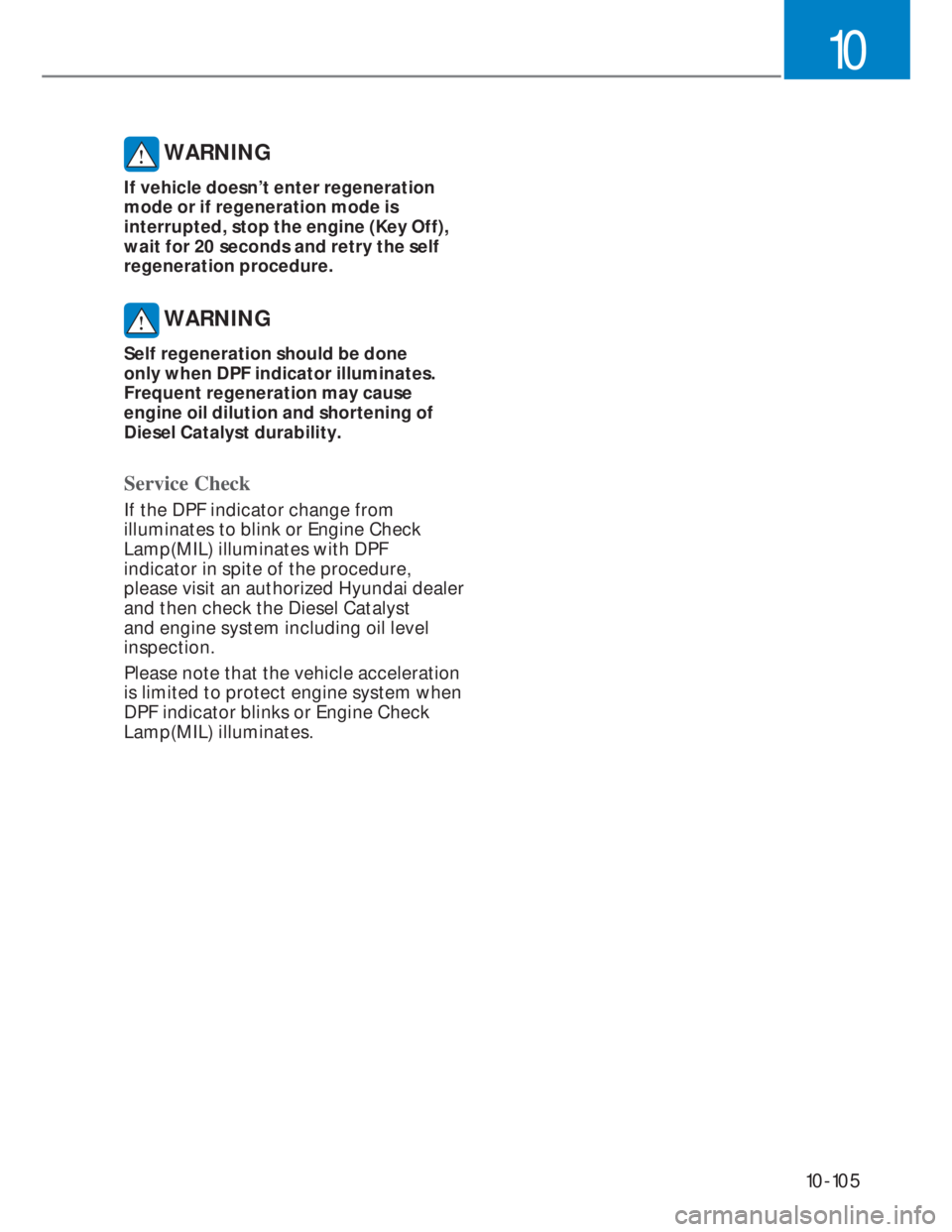

 WARNING
If vehicle doesn’t enter regeneration
mode or if regeneration mode is
interrupted, stop the engine (Key Off),
wait for 20 seconds and retry the self
regeneration procedure.
 W
