Page 6 of 444
1-2
Introduction
FOREWORD
Thank you for choosing HYUNDAI Vehicle. We are pleased to welcome you to the
growing number of discriminating people who drive HYUNDAI Vehicle. The advanced
engineering and high-quality construction of each HYUNDAI vehcile we build is
something of which we’re very proud.
Your Owner’s Manual will introduce you to the features and operation of your new
HYUNDAI vehicle. It is suggested that you read it carefully because the information it
contains can contribute greatly to the satisfaction you receive from your new car.
HYUNDAI Motor India Limited. also recommends that service and maintenance on
your vehicle be performed by an authorized HYUNDAI dealer.
HYUNDAI MOTOR INDIA LIMITED
Note : Because future owners will also need the information included in this manual,
if you sell this HYUNDAI, please leave the manual in the vehicle for their use.
Thank you.
CAUTION
Severe engine and transmission damage may result from the use of poor quality
fuels and lubricants that do not meet HYUNDAI specifications. You must always use
high quality fuels and lubricants that meet the specifications listed on Page 3-11 in
the Vehicle Specifications section of the Owner’s Manual.
Copyright 2020 HYUNDAI Motor India Limited. All rights reserved. No part of this
publication may be reproduced, stored in any retrieval system or transmitted in any
form or by any means without the prior written permission of HYUNDAI Motor India
Limited.
Page 8 of 444
1-4
Introduction
DANGER
DANGER indicates a hazardous
situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION indicates a hazardous
situation which, if not avoided, could
result in minor or moderate injury.
NOTICE
NOTICE indicates a situation which,
if not avoided, could result in vehicle
damage.
FUEL REQUIREMENTS
Petrol engine
Unleaded
Your new vehicle is designed to use only
unleaded fuel having an Octane Rating
of RON (Research Octane Number) 91 /
AKI (Anti-Knock Index) 87 or higher. (Do
not use methanol blended fuels)
Your new vehicle is designed to obtain
maximum performance with UNLEADED
FUEL, as well as minimize exhaust
emissions and spark plug fouling.
CAUTION
NEVER USE LEADED FUEL. The use
of leaded fuel is detrimental to the
catalytic converter and will damage the
engine control system’s oxygen sensor
and affect emission control.
Never add any fuel system cleaning
agents to the fuel tank other than what
has been specified (We recommend
that you consult an authorized
HYUNDAI dealer for details.)
WARNING
• Do not “top off” after the nozzle
automatically shuts off when
refueling.
• Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Page 9 of 444
1-5
01
Petrol containing alcohol and
methanol
Gasohol, a mixture of petrol and ethanol
(also known as grain alcohol), and
petrol or gasohol containing methanol
(also known as wood alcohol) are being
marketed along with or instead of leaded
or unleaded petrol.
Do not use gasohol containing more
than 10% ethanol, and do not use petrol
or gasohol containing any methanol.
Either of these fuels may cause
drivability problems and damage to the
fuel system, engine control system and
emission control system.
Discontinue using gasohol of any kind if
drivability problems occur.
Vehicle damage or driveability
problems may not be covered by the
manufacturer’s warranty if they result
from the use of:
1. Gasohol containing more than 10%
ethanol.
2. Petrol or gasohol containing methanol.
3. Leaded fuel or leaded gasohol.
CAUTION
Never use gasohol which contains
methanol. Discontinue use of any
gasohol product which impairs
drivability.
Other fuels
Using fuels such as;
- Silicone (Si) contained fuel,
- MMT (Manganese, Mn) contained fuel,
- Ferrocene (Fe) contained fuel, and
- Other metallic additives contained
fuels,
may cause vehicle and engine damage
or cause plugging, misfiring, poor
acceleration, engine stalling, catalyst
melting, abnormal corrosion, life cycle
reduction, etc.
Also, the Malfunction Indicator Lamp
(MIL) may illuminate.
NOTICE
Damage to the fuel system or
performance problem caused by the
use of these fuels may not be covered
by your New Vehicle Limited Warranty.
Page 10 of 444
1-6
Introduction
Use of MTBE
HYUNDAI recommends avoiding fuels
containing MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen Content
2.7% weight) in your vehicle.
Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle performance and
produce vapor lock or hard starting.
CAUTION
Your New Vehicle Limited Warranty
may not cover damage to the
fuel system and any performance
problems that are caused by the use
of fuels containing methanol or fuels
containing MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen Content
2.7% weight.)
Do not use methanol
Fuels containing methanol (wood
alcohol) should not be used in your
vehicle. This type of fuel can reduce
vehicle performance and damage
components of the fuel system, engine
control system and emission control
system.
Fuel Additives
HYUNDAI recommends that you use
unleaded petrol which has an Octane
Rating of RON (Research Octane
Number) 91 / AKI (Anti-Knock Index) 87
or higher.
For customers who do not use good
quality petrols including fuel additives
regularly, and have problems starting or
the engine does not run smoothly, one
bottle of additives added to the fuel tank
at every 10,000 km.
Additives are available from your
authorized HYUNDAI dealer along with
information on how to use them. Do not
mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:
• Observe all regulations regarding
registration and insurance.
• Determine that acceptable fuel is
available.
Page 11 of 444
1-7
01
Diesel engine
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable
standard. (EN stands for “European
Norm”). Do not use marine diesel fuel,
heating oils, or non-approved fuel
additives, as this will increase wear and
cause damage to the engine and fuel
system. The use of non-approved fuels
and / or fuel additives will result in a
limitation of your warranty rights.
Diesel fuel of above cetane 51 is used
in your vehicle. If two types of diesel
fuel are available, use summer or winter
fuel properly according to the following
temperature conditions.
• Above -5°C (23°F) ... Summer type
diesel fuel.
• Below -5°C (23°F) ... Winter type diesel
fuel.
Watch the fuel level in the tank very
carefully : If the engine stop s through
fuel failure, the circuits must be
completely purged to permit restarting.
CAUTION
Do not let any petrol or water enter the
tank. This would make it necessary to
drain it out and to bleed the lines to
avoid jamming the injection pump and
damaging the engine.
CAUTION
Diesel Fuel (if equipped with DPF)
It is recommended to use the regulated
automotive diesel fuel for diesel vehicle
equipped with the DPF system.
If you use diesel fuel including high
sulfur (more than 50 ppm sulfur) and
unspecified additives, it can cause the
DPF system to be damaged and white
smoke can be emitted.
Biodiesel
Commercially supplied Diesel blends of
no more than 7% biodiesel, commonly
known as “B7 Diesel” may be used
in your vehicle if Biodiesel meets EN
14214 or equivalent specifications. (EN
stands for “European Norm”). The use
of biofuels exceeding 7% made from
rapeseed methyl ester (RME), fatty
acid methyl ester (FAME), vegetable oil
methyl ester (VME) etc. or mixing diesel
exceeding 7% with biodiesel will cause
increased wear or damage to the engine
and fuel system. Repair or replacement
of worn or damaged components due to
the use of non approved fuels will not be
covered by the manufactures warranty.
CAUTION
• Never use any fuel, whether diesel,
B7 biodiesel or otherwise, that fails
to meet the latest petroleum industry
specification.
• Never use any fuel additives
or treatments that are not
recommended or approved by the
vehicle manufacturer.
Page 16 of 444
2-4
Hyundai Warranty Policy
been driven for a distance of 10,000
Kilometers from the date of installa-
tion of replacement part by Hyundai
Authorized Dealer, whichever occurs
first.
2. What is covered
Our Authorized Dealers shall either
repair or replace, any Hyundai genu-
ine par listed in paragraph 3 hereof,
that is acknowledged by HMIL to be
defective in material or workmanship
within the warranty period stipulated
above, after examinations carried
out to confirm that none of the origi
al settings have been tampered with,
at no cost to the owner of the Hyund-
ai vehicle for parts or labour. Such
defective parts which have been re-
placed will become the property of
HMIL
3.
What is not covered
This warranty shall not apply to:
Normal maintenance services of
parts such as cleaning, adjust-
ment or replacement (i.e. spark
plugs that are oil fouled, lead
fouled, or which fail due to the
use of low grade fuel).
Parts that fail due to abuse, mis-
use, neglect, alteration or acci-
dent or which have been improp-
erly lubricated or repaired
Parts used in applications for-
which they were not designed or
approved by HMIL.
Failure due to normal wear of-
parts.
Direct or indirect failures caused
by misuse and improper mainte-nance of vehicle.
Any vehicle on which the odome-
ter reading has been altered so
that mileage cannot be accurate-
ly determined.
Incidental or consequential dam-
ages, including without limita-
tion, loss of time, inconvenience,
loss of use of vehicle or commer-
cial loss.
This warranty is the entire warranty
given by HMIL for Hyundai replace-
ment parts and no de aler or its or his
agent or employee is authorized to
extend or enlarge this warranty and
no dealer or its or his agent or em-
ployee is authorized to make any oral
warranty on HMIL’s behalf. HMIL re-
serves the right for the final decision
in all warranty matters.
Owner’s Responsibility :
Proper use, maintenance and re
of the vehicle in accordancewith
the instructions contained in the
Owner’s Manual and Service
Booklet.
Retention of maintenance ser-
vice records. It may be necessary
for the customer to show that the
required maintenance has been
performed, as specified in this
Owner’s Manual and Service
Booklet.
Retention of the customer’s copy
of the original repair order and
its invoice/bill against which the
part was replaced.
Delivery of the vehicle during
regular service business hours to
the same Hyundai Authorized
Dealer who had sold and installed
the replacement part
In order to maintain the validity
Page 21 of 444
3-3
03
1. Antenna .........................................................................................................................................6-87
2. Doors............................................................................................................................................. 6-15
3. Fuel filler door
..............................................................................................................................6-39
4. Rear ultrasonic sensors
............................................................................................................... 8-10
5. High mounted stop light
........................................................................................................... 10-85
6. Rear view camera*
....................................................................................................................... 8-6
7. Rear window wiper blade*
........................................................................................................ 10-45
8. Tailgate
.........................................................................................................................................6-36
* : if equipped
( ; 7 ( 5 , 2 5 2 9 ( 5 9 , ( :
Page 29 of 444
3-11
03

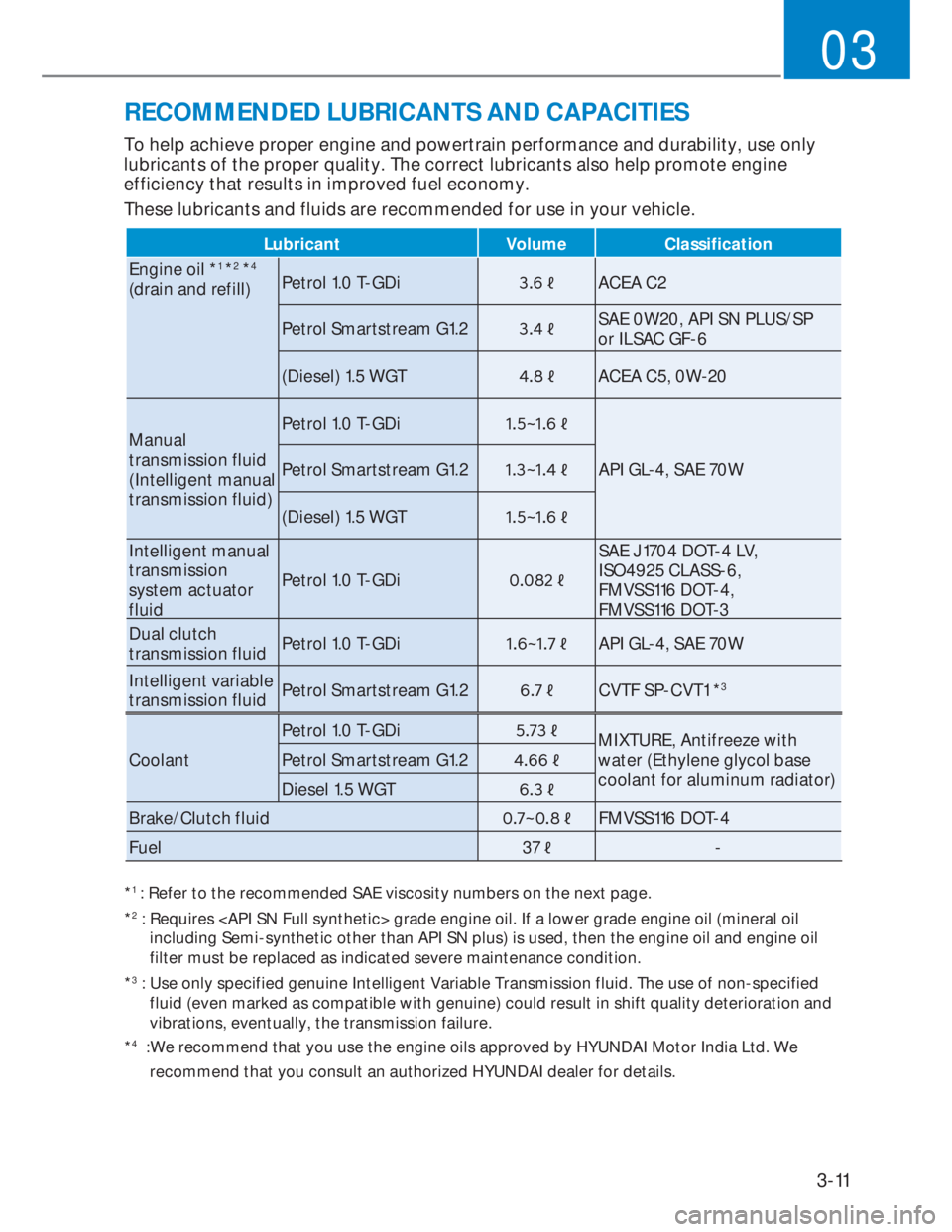

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2 *4
(drain and refill)Petrol 1.0 T-GDi b ACEA C2
Petrol Smartstream G1.2 bSAE 0W20, API SN PLUS/SP
or ILSAC GF-6
(Diesel) 1.5 WGT bACEA C5, 0W-20
Manual
transmission fluid
(Intelligent manual
transmission fluid)Petrol 1.0 T-GDi a b
API GL-4, SAE 70W Petrol Smartstream G1.2 a b
(Diesel) 1.5 WGT a b
Intelligent manual
transmission
system actuator
fluidPetrol 1.0 T-GDi b SAE J1704 DOT-4 LV,
ISO4925 CLASS-6,
FMVSS116 DOT-4,
FMVSS116 DOT-3
Dual clutch
transmission fluidPetrol 1.0 T-GDi a bAPI GL-4, SAE 70W
Intelligent variable
transmission fluidPetrol Smartstream G1.2 bCVTF SP-CVT1 *
3
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*
2 : Requires
including Semi-synthetic other than API SN plus) is used, then the engine oil and engine oil
filter must be replaced as indicated severe maintenance condition.
*
3 : Use only specified genuine Intelligent Variable Transmission fluid. The use of non-specified
fluid (even marked as compatible with genuine) could result in shift quality deterioration and
vibrations, eventually, the transmission failure.
*
4 :We recommend that you use the engine oils approved by HYUNDAI Motor India Ltd. We
recommend that you consult an authorized HYUNDAI dealer for details.
CoolantPetrol 1.0 T-GDi b
MIXTURE, Antifreeze with
water (Ethylene glycol base
coolant for aluminum radiator) Petrol Smartstream G1.2 b
Diesel 1.5 WGT b
Brake/Clutch fluid a b FMVSS116 DOT-4
Fuel 37b-
Page 30 of 444
3-12
Vehicle information
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher
viscosity engine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in engine
damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40
-10 0 20 40 60 80 100
0W-20/30
5W-30(Diesel) 1.5 WGT
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Petrol
Engine
Oil
0W-20
20W-50
10W-30
15W-40
0W-30, 5W-30, 5W-40
1.0 T-GDi
Smartstream
G1.2 *1
*1 : If mineral oil or semi-synthetic oil is used, it is a severe maintenance condition in
terms of engine oil change.
Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick
before checking or draining any lubricant. This is especially important in dusty or
sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended to only
use engine oils that uphold this API Certification Mark.
