spare tire location HYUNDAI I20 2021 Owners Manual

9-14
Emergency situations
WARNING
Changing a tire can be dangerous.
Follow the instructions in this section
when changing a tire to reduce the risk
of serious injury or death.
Jack and tools
OBI3080003OBI3080003
 Jack
 Jack handle
 Wheel lug nut wrench
 Towing hook
The jack, jack handle, and wheel lug nut
wrench, towing hook are stored in the
luggage compartment.
The jack is provided for emergency tire
changing only.
Removing and storing the spare
tire
OAI3079005OAI3079005
Turn the winged hold down bolt
counterclockwise to remove the spare
tire.
Store the spare tire in the same
compartment by turning the winged
hold down bolt clockwise.
To prevent the spare tire and tools from
“rattling” store them in their proper
location.
OAI3079006OAI3079006
If it is hard to loosen the tire hold-down
wing bolt by hand, you can loosen it
easily using the wheel lug nut wrench.
1. Put the wrench (1) inside of the tire
hold-down wing bolt.
2. Turn the tire hold-down wing bolt
counterclockwise with the wrench.
IF YOU HAVE A FLAT TIRE

9-17
09

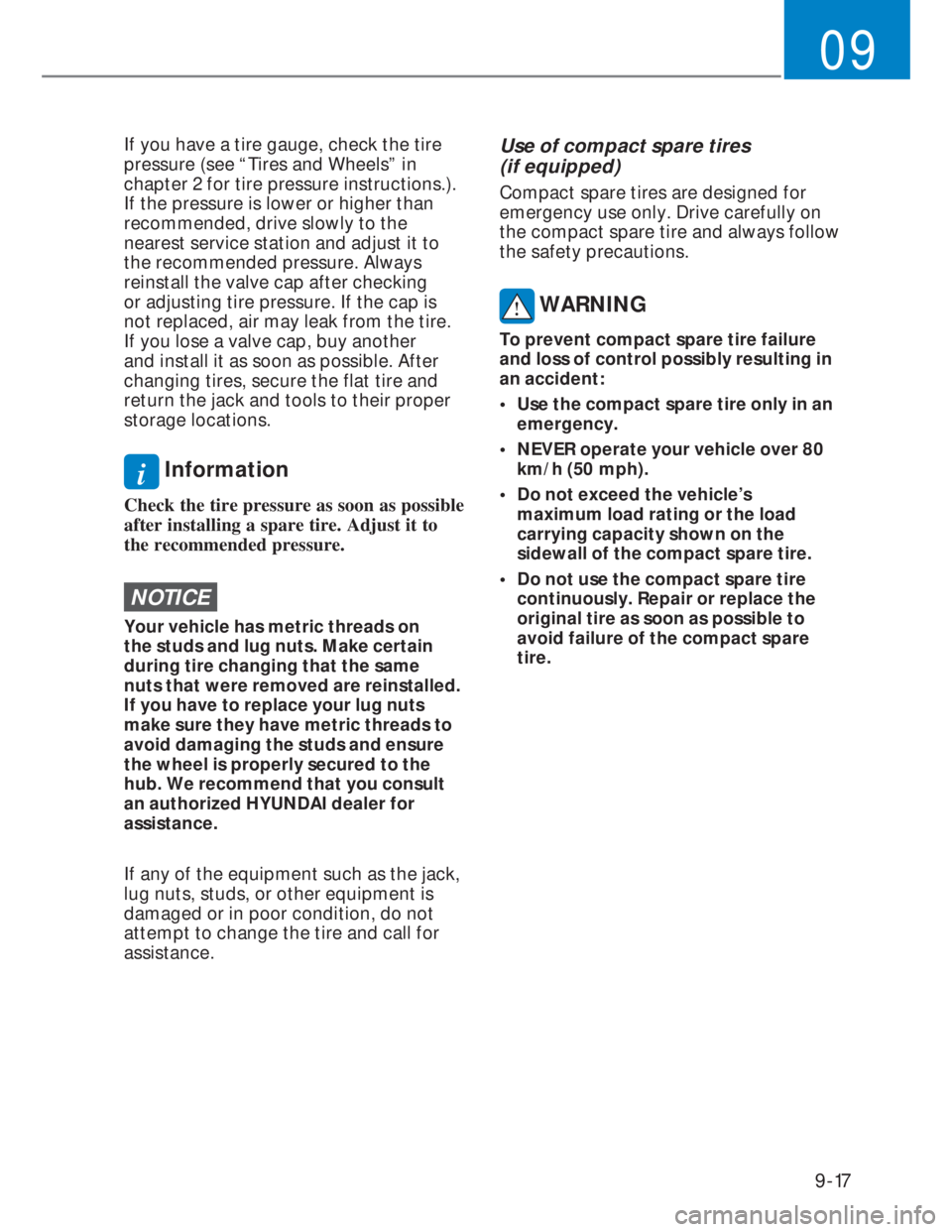

If you have a tire gauge, check the tire
pressure (see “Tires and Wheels” in
chapter 2 for tire pressure instructions.).
If the pressure is lower or higher than
recommended, drive slowly to the
nearest service station and adjust it to
the recommended pressure. Always
reinstall the valve cap after checking
or adjusting tire pressure. If the cap is
not replaced, air may leak from the tire.
If you lose a valve cap, buy another
and install it as soon as possible. After
changing tires, secure the flat tire and
return the jack and tools to their proper
storage locations.
i Information
Check the tire pressure as soon as possible
after installing a spare tire. Adjust it to
the recommended pressure.
NOTICE
Your vehicle has metric threads on
the studs and lug nuts. Make certain
during tire changing that the same
nuts that were removed are reinstalled.
If you have to replace your lug nuts
make sure they have metric threads to
avoid damaging the studs and ensure
the wheel is properly secured to the
hub. We recommend that you consult
an authorized HYUNDAI dealer for
assistance.
If any of the equipment such as the jack,
lug nuts, studs, or other equipment is
damaged or in poor condition, do not
attempt to change the tire and call for
assistance.
Use of compact spare tires
(if equipped)
Compact spare tires are designed for
emergency use only. Drive carefully on
the compact spare tire and always follow
the safety precautions.
WARNING
To prevent compact spare tire failure
and loss of control possibly resulting in
an accident:
• Use the compact spare tire only in an
emergency.
• NEVER operate your vehicle over 80
km/h (50 mph).
• Do not exceed the vehicle’s
maximum load rating or the load
carrying capacity shown on the
sidewall of the compact spare tire.
• Do not use the compact spare tire
continuously. Repair or replace the
original tire as soon as possible to
avoid failure of the compact spare
tire.
