[There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc. near the
parking space

[The road surface is bumpy (curbstone,
speed bump, etc.)

[The road is slippery

[The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.

[The parking space is Inclined

[There is heavy wind

[Operating the function on uneven
roads, gravel roads, bushes, etc.

[The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather

[The ultrasonic sensor is covered with
snow or water

[An object that generates ultrasonic
waves is nearby

[Wireless transmitters or mobile
phones are present near the sensor

[Your vehicle is affected by another
YHKLFOH
TV3DUNLQJ'LVWDQFH:DUQLQJ

[The sensor is mounted or positioned
incorrectly by an impact to the
bumper

[When the ultrasonic sensor cannot
detect the following objects:
- Sharp or slim objects such as ropes,
chains or small poles
- Objects smaller than 100 cm (40 in.)
in length and narrower than 14 cm (6
in.) in diameter
- Objects which tend to absorb sensor
frequency such as clothes, spongy
material or snowParking Assist may not operate normally
under the following circumstances:

[Parking on inclines
OBC3070082TU
Park manually when parking on
inclines.

[Parking in snow
OBC3070083TU
Snow may interfere with sensor
operation, or Parking Assist may
cancel if the road is slippery whilst
parking.

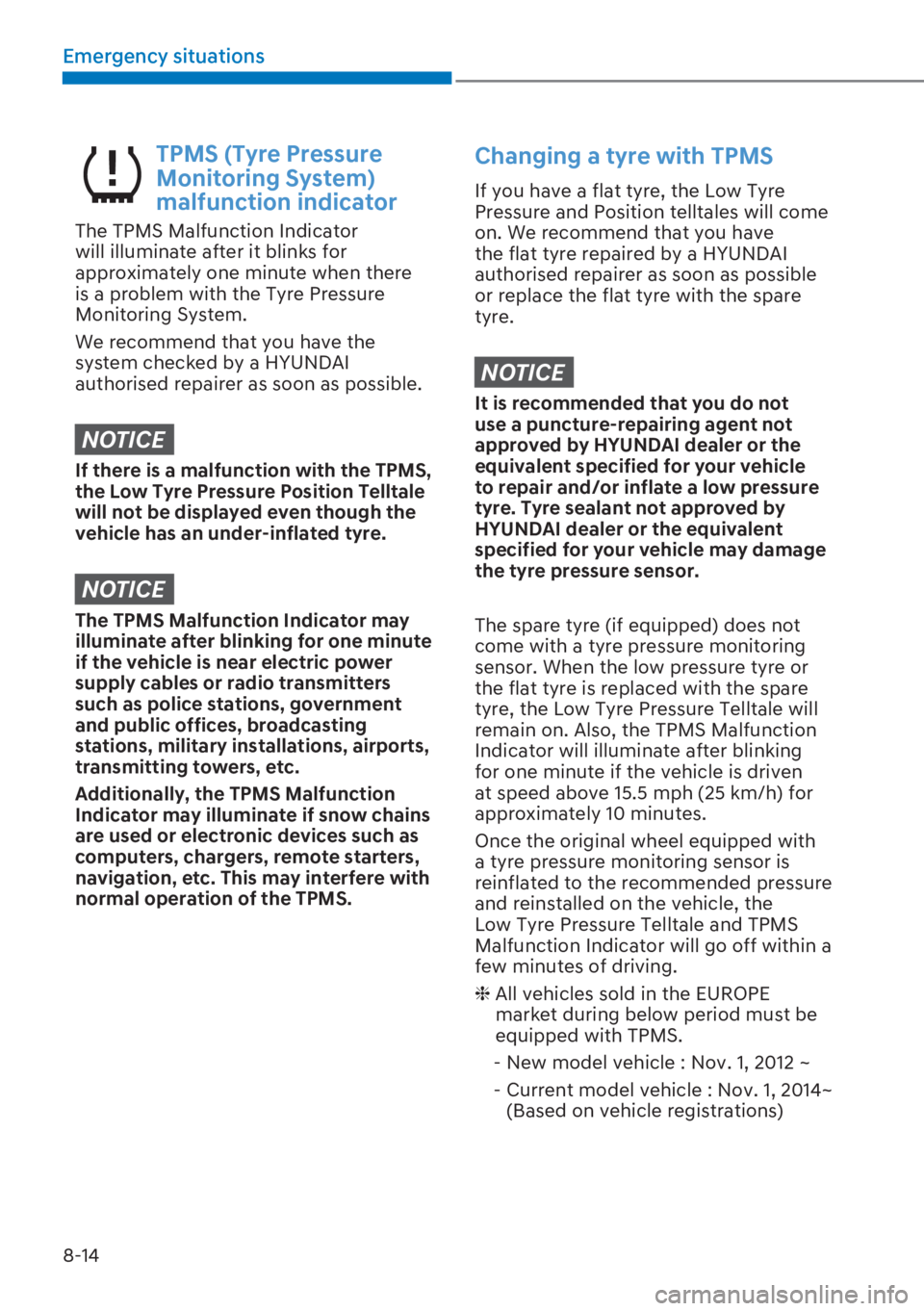

8-14
Emergency situations
TPMS (Tyre Pressure
Monitoring System)
malfunction indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tyre Pressure
Monitoring System.
We recommend that you have the
system checked by a HYUNDAI
authorised repairer as soon as possible.
NOTICE
If there is a malfunction with the TPMS,
the Low Tyre Pressure Position Telltale
will not be displayed even though the
vehicle has an under-inflated tyre.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.
Changing a tyre with TPMS
If you have a flat tyre, the Low Tyre
Pressure and Position telltales will come
on. We recommend that you have
the flat tyre repaired by a HYUNDAI
authorised repairer as soon as possible
or replace the flat tyre with the spare
tyre.
NOTICE
It is recommended that you do not
use a puncture-repairing agent not
approved by HYUNDAI dealer or the
equivalent specified for your vehicle
to repair and/or inflate a low pressure
tyre. Tyre sealant not approved by
HYUNDAI dealer or the equivalent
specified for your vehicle may damage
the tyre pressure sensor.
The spare tyre (if equipped) does not
come with a tyre pressure monitoring
sensor. When the low pressure tyre or
the flat tyre is replaced with the spare
tyre, the Low Tyre Pressure Telltale will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25 km/h) for
approximately 10 minutes.
Once the original wheel equipped with
a tyre pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tyre Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving.
❈ All vehicles sold in the EUROPE
market during below period must be
equipped with TPMS.
- New model vehicle : Nov. 1, 2012 ~
- Current model vehicle : Nov. 1, 2014~
(Based on vehicle registrations)

8-15
08
If the indicators do not extinguish after
a few minutes, it is recommended to
contact the nearest authorised HYUNDAI
dealer.
Each wheel is equipped with a tyre
pressure sensor mounted inside the tyre
behind the valve stem (except for the
spare tyre). You must use TPMS specific
wheels. It is recommended that you
always have your tyres serviced by a
HYUNDAI authorised repairer.
You may not be able to identify a tyre
with low pressure by simply looking at it.
Always use a good quality tyre pressure
gauge to measure. Please note that a
tyre that is hot (from being driven) will
have a higher pressure measurement
than a tyre that is cold.
A cold tyre means the vehicle has been
sitting for 3 hours and driven for less
than 1 mile (1.6 km) in that 3 hour period.
Allow the tyre to cool before measuring
the inflation pressure. Always be sure
the tyre is cold before inflating to the
recommended pressure.
WARNING

[The TPMS cannot alert you to severe
and sudden tyre damage caused by
external factors such as nails or road
debris.

[If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
WARNING
Tampering with, modifying, or disabling
the Tyre Pressure Monitoring System
(TPMS) components may interfere
with the system’s ability to warn the
driver of low tyre pressure conditions
and/or TPMS malfunctions. Tampering
with, modifying, or disabling the Tyre
Pressure Monitoring System (TPMS)
components may void the warranty for
that portion of the vehicle.
WARNING

[Do not modify the vehicle; it may
interfere with the TPMS function.

[The wheels on the market do not
have a TPMS sensor.

[For your safety, we recommend that
you use parts for replacement from a
HYUNDAI authorised repairer.

[If you use the wheels on the market,
use a TPMS sensor approved by a
HYUNDAI dealer or the equivalent
approved for your vehicle. If your
vehicle is not equipped with a TPMS
sensor or TPMS does not work
properly, you may fail the periodic
vehicle inspection conducted in your
country.

8-38
Emergency situations
Once the data which is stored in the Pan-European eCall system is delivered to the
rescue centre to assist the driver and passengers with proper rescue operations, the
data will be deleted after rescue operation is completed.
Description of the ecall in-vehicle system
OAC3079020TU
Overview of the 112-based eCall in-vehicle system, its operation and functionalities:
refer to this section. The 112-based eCall service is a public service of general interest
and is accessible free of charge.
The 112-based eCall in-vehicle system is activated by default. It is activated
automatically by means of in- vehicle sensors in the event of a severe accident.

9-25
09
i Information
,IWKHYHKLFOHLVRSHUDWHGLQH[WUHPHO\
GXVW\RUVDQG\DUHDVUHSODFHWKHSDUWV
PRUHRIWHQWKDQWKHXVXDOUHFRPPHQGHG
LQWHUYDOV
NOTICE

[ 'RQRWGULYHZLWKWKHDLUFOHDQHUILOWHU
removed. This will result in excessive
engine wear.

[ :KHQUHPRYLQJWKHDLUFOHDQHUILOWHU
be careful that dust or dirt does not
enter the air intake, or damage may
result.

[ 8VH+<81'$,JHQXLQHSDUWVRUWKH
equivalent specified one for your
vehicle. Use of non-genuine parts
could damage the air flow sensor.

9-51
09
6PDUWVWUHDP*7*'L6PDUWVWUHDP*7*'L+(9
Fuse Name Symbol (A) Circuit Protected
ALT(180A)
[150A]Alternator, Multi Fuse - F2, Fuse - F31/F32/F33/F34/
F35/F36
MDPS
80A MDPS Unit
DCT1
40ATCM
E-CLUTCH1Electronic Clutch Module
DCT2
40A TCM
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[With Smart Key] PDM Relay Box (IG1, ACC Relay)
[W/O Smart Key] Ignition Switch
FUEL PUMP
20A E/R Junction Block (RLY.5)
BATTERY
MANAGEMENT1
15A E/R Junction Block (Fuse - F40/F43)
ECU3
15A ECM, Clutch Switch
ECU2
15A ECM
A/CON 1
10A E/R Junction Block (RLY.10)
DCT4
40A Smart Gear Actuator
CVVD
40A CVVD Actuator
IG2
30A[With Smart Key] PDM Relay Box (IG2 Relay)
[W/O Smart Key] Ignition Switch, START MTR RLY
BATT1
50AICU Junction Block (IPS1, IPS3, IPS5, IPS7, IPS8,
IPS11)
BATT3
50AICU Junction Block (Fuse - F8/F15/F21/F25/F29,
Long Term Load Latch Relay-F16/F9/F22)
DCT3
15A TCM
E-CLUTCH2Electronic Clutch Module
HORN
15A E/R Junction Block (RLY.11, RLY.12)
AMS
10A Battery Sensor
BATT2
50A ICU Junction Block (IPS2, IPS4, IPS6, IPS9, IPS10)
BATT4
50AICU Junction Block (Power Window Relay-F5/F12,
Fuse - F3/F4/F10/F11)
C/FAN
60A E/R Junction Block (RLY.2)

9-52
Maintenance
Fuse Name Symbol (A) Circuit Protected
IGN COIL15A Ignition Coil #1/#2/#3
ECU5
20A ECM
ECU6
15A ECM
SENSOR 1
10AE/R Junction Block (RLY.2/10),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve, RCV Control, V_Oil
Pump Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ESP Control Module
BLOWER
40A E/R Junction Block (RLY.13)
PTC
HEATER
50A E/R Junction Block (RLY.14)
ABS 2
30A ESP Control Module
POWER
OUTLET
40A ICU Junction Block (Power Outlet Relay)
WIPER 2
10A E/T Junction Block (RLY. 4), Front Wiper Motor, IBU
SENSOR3
15A E/T Junction Block (RLY. 5)
MHSG
10A Mild Hybrid Starter & Generator Motor
BATTERY
C/FAN
10A BMS Cooling Fan, E/R Junction Block (Fuse - F8)
WIPER 1
25AE/T Junction Block (RLY. 4), Front Wiper Motor,
Ignition Switch
BATTERY
MANAGEMENT2
10ABMS Control Module, E/R Junction Block (Fuse -
F8)
6PDUWVWUHDP*7*'L6PDUWVWUHDP*7*'L+(9

9-54
Maintenance
Fuse Name Symbol (A) Circuit Protected
ALT(125A)
[150A]Alternator, Multi Fuse - F2, Fuse - F31/F32/F33/F34/
F35/F36
MDPS
80A MDPS Unit
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[With Smart Key] PDM Relay Box (IG1, ACC Relay)
[W/O Smart Key] Ignition Switch
FUEL PUMP
20A E/R Junction Block (RLY.5)
ECU3
15A ECM, Clutch Switch
ECU2
15A ECM
A/CON 1
10A E/R Junction Block (RLY.8)
IG2
30A[With Smart Key] PDM Relay Box (IG2 Relay)
[W/O Smart Key] Ignition Switch, START MTR RLY
BATT1
50AICU Junction Block (IPS1, IPS3, IPS5, IPS7, IPS8,
IPS11)
BATT3
50AICU Junction Block (Fuse - F8/F15/F21/F25/F29,
Long Term Load Latch Relay-F16/F9/F22)
HORN
15A E/R Junction Block (RLY.11, RLY.12)
AMS
10A Battery Sensor
BATT2
50A ICU Junction Block (IPS2, IPS4, IPS6, IPS9, IPS10)
BATT4
50AICU Junction Block (Power Window Relay-F5/F12,
Fuse - F3/F4/F10/F11)
C/FAN
40A E/R Junction Block (RLY.9/10)
IGN COIL
20A Ignition Coil #1/#2/#3/#4
ECU5
20A ECM
ECU6
15A ECM
SENSOR 1
10AE/R Junction Block (RLY.8/9/10),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ESP Control Module
6PDUWVWUHDP*

9-57
09
3HWURO
Fuse Name Symbol (A) Circuit Protected
ALT(125A)
[150A]Alternator, Multi Fuse - F2, Fuse - F31/F32/F33/F34/
F35/F36
MDPS
80A MDPS Unit
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[With Smart Key] PDM Relay Box (IG1, ACC Relay)
[W/O Smart Key] Ignition Switch
FUEL PUMP
20A E/R Junction Block (RLY.5)
TCU1
15A PCM, Clutch Switch
ECU2
15A ECM/PCM
EOP
40A Electronic Oil Pump
IG2
30A[With Smart Key] PDM Relay Box (IG2 Relay)
[W/O Smart Key] Ignition Switch, START MTR RLY
BATT1
50AICU Junction Block (IPS1, IPS3, IPS5, IPS7, IPS8,
IPS11)
BATT3
50AICU Junction Block (Fuse - F8/F15/F21/F25/F29,
Long Term Load Latch Relay-F16/F9/F22)
HORN
15A E/R Junction Block (RLY.11, RLY.12)
AMS
10A Battery Sensor
BATT2
50A ICU Junction Block (IPS2, IPS4, IPS6, IPS9, IPS10)
BATT4
50AICU Junction Block (Power Window Relay-F5/F12,
Fuse - F3/F4/F10/F11)
C/FAN
40A E/R Junction Block (RLY.9/10)
IGN COIL
20A Ignition Coil #1/#2/#3/#4, Condensor
ECU5
20A ECM/PCM
ECU6
15A ECM/PCM
SENSOR 1
10AE/R Junction Block (RLY.9/10),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve, Variable Intake
Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
