Page 361 of 635

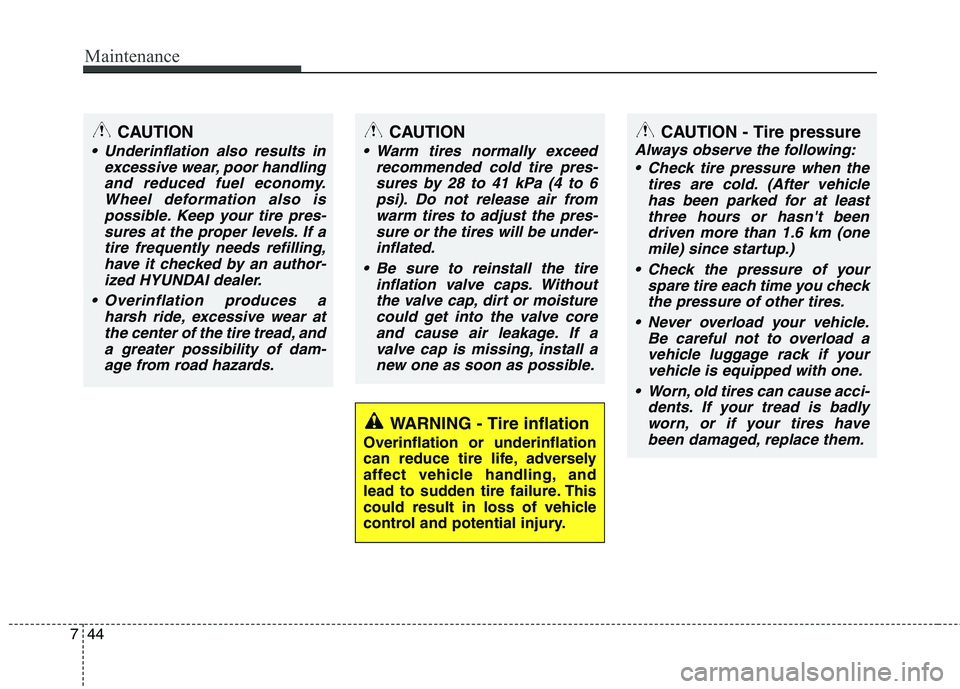

HYUNDAI I30 2015  Owners Manual Maintenance
44
7
WARNING - Tire inflation
Overinflation or underinflation
can reduce tire life, adversely
affect vehicle handling, and
lead to sudden tire failure. This
could result in loss of vehicl

Page 362 of 635

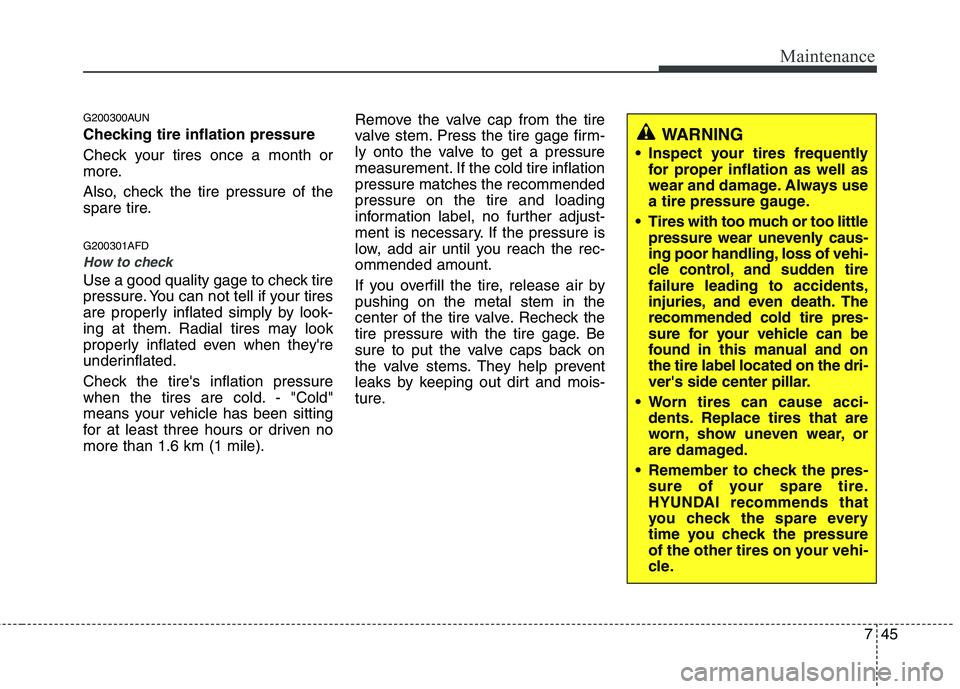

HYUNDAI I30 2015  Owners Manual 745
Maintenance
G200300AUN
Checking tire inflation pressure
Check your tires once a month or
more.
Also, check the tire pressure of the
spare tire. G200301AFD
How to check
Use a good quality gage

Page 363 of 635

HYUNDAI I30 2015  Owners Manual Maintenance
46
7
G200400AUN

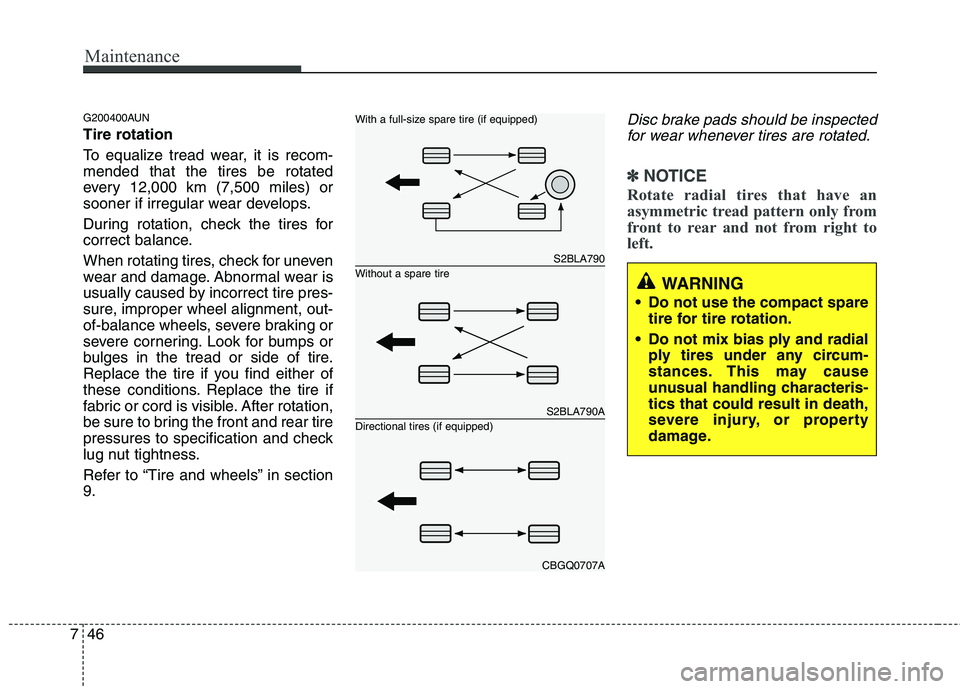

Tire rotation
To equalize tread wear, it is recom- mended that the tires be rotated
every 12,000 km (7,500 miles) or
sooner if irregular wear develops.
During rotation,

Page 364 of 635

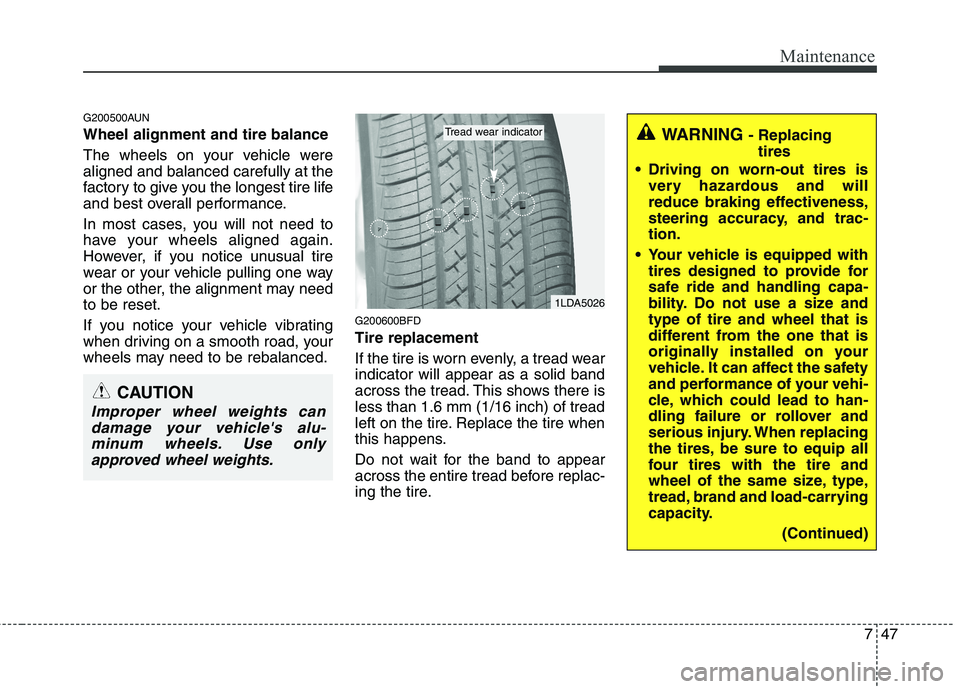

HYUNDAI I30 2015  Owners Manual 747
Maintenance
G200500AUN Wheel alignment and tire balance
The wheels on your vehicle were aligned and balanced carefully at the
factory to give you the longest tire life
and best overall performa

Page 365 of 635

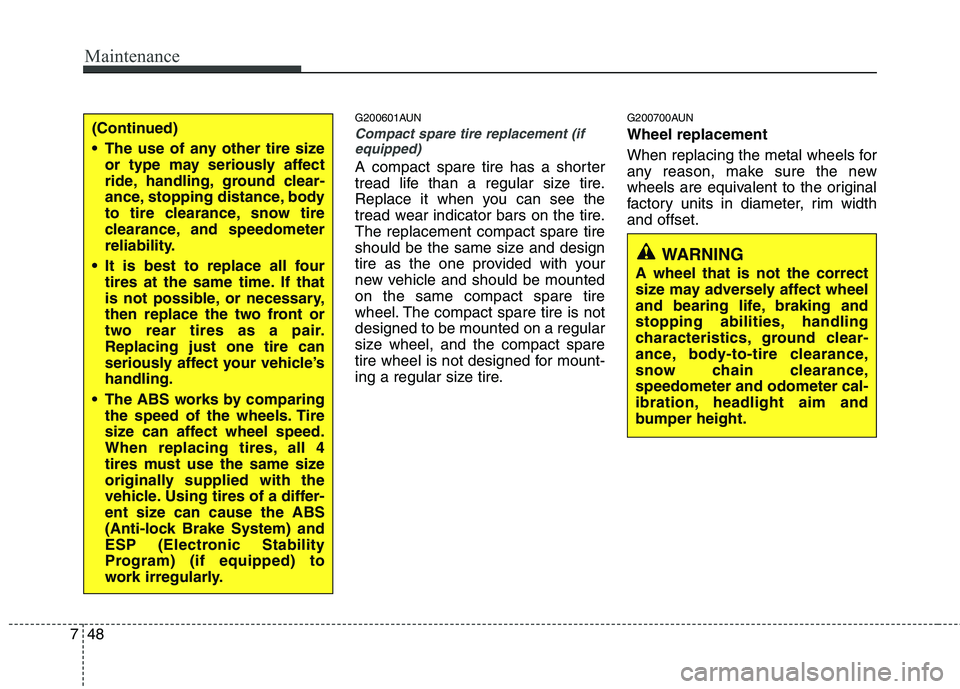

HYUNDAI I30 2015  Owners Manual Maintenance
48
7
G200601AUN
Compact spare tire replacement (if
equipped)
A compact spare tire has a shorter
tread life than a regular size tire.
Replace it when you can see the
tread wear indicator b

Page 366 of 635

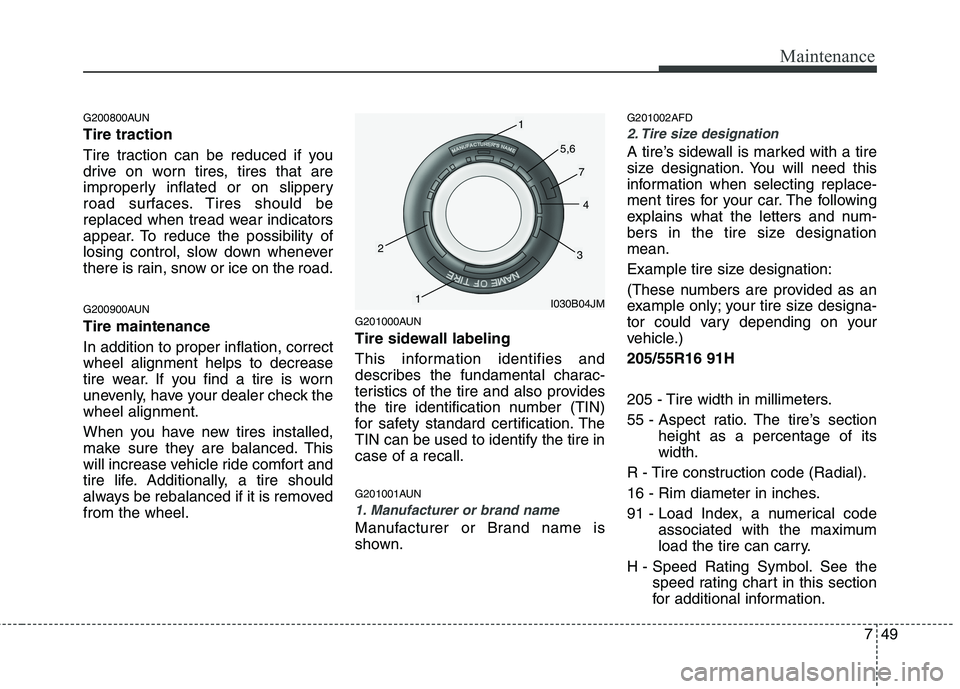

HYUNDAI I30 2015  Owners Manual 749
Maintenance
G200800AUN Tire traction
Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should be
replaced when tread

Page 367 of 635

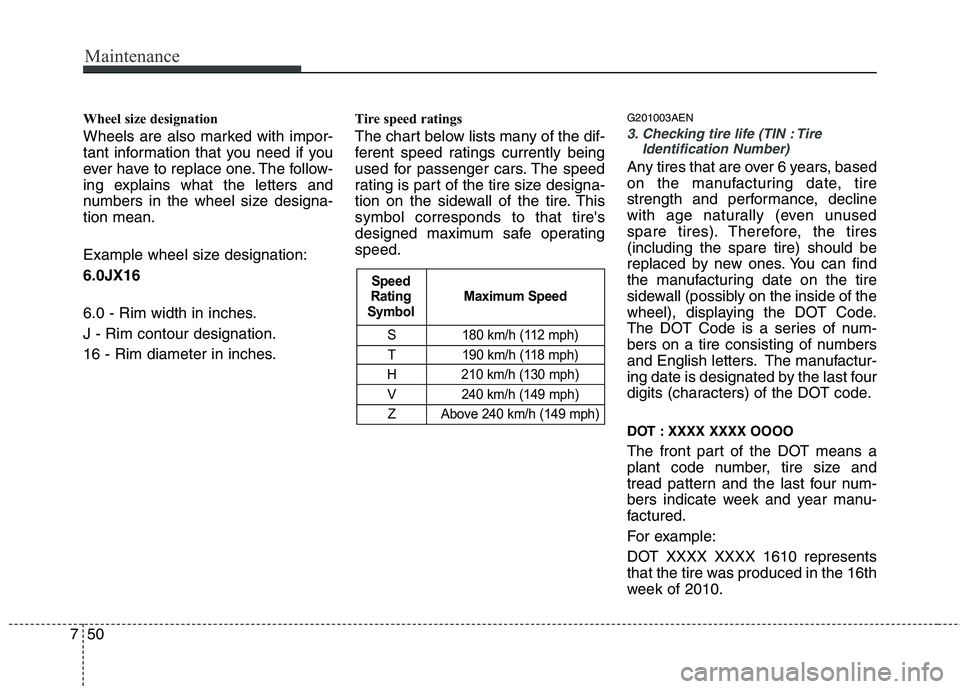

HYUNDAI I30 2015  Owners Manual Maintenance
50
7
S 180 km/h (112 mph)
T 190 km/h (118 mph)
H 210 km/h (130 mph) V 240 km/h (149 mph) Z Above 240 km/h (149 mph)
Maximum Speed
Speed
Rating
Symbol
Wheel size designation
Wheels are a

Page 368 of 635

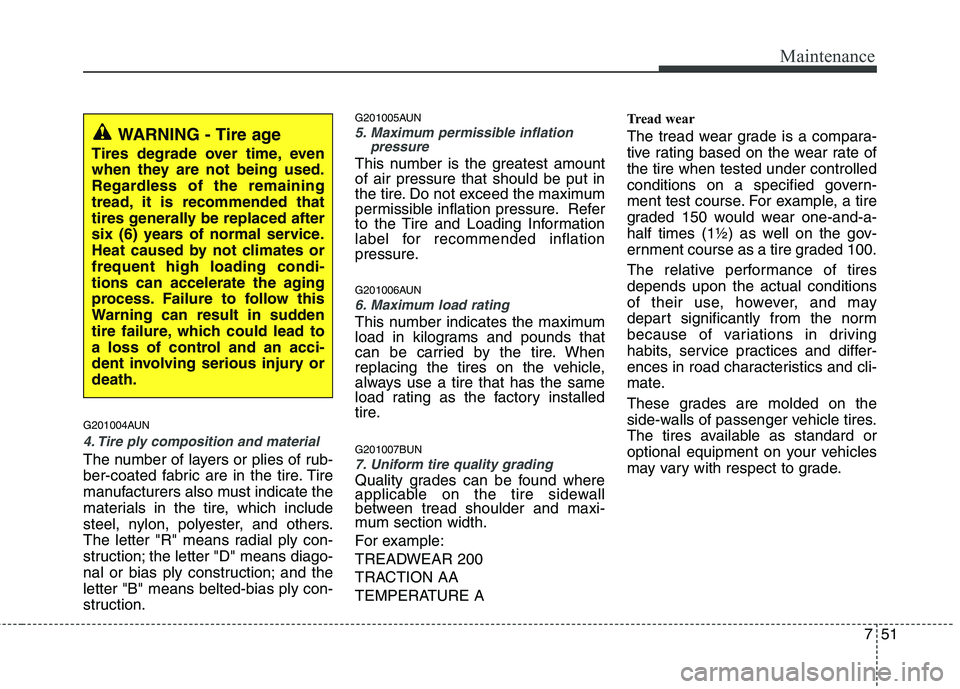

HYUNDAI I30 2015  Owners Manual 751
Maintenance
G201004AUN
4. Tire ply composition and material
The number of layers or plies of rub-
ber-coated fabric are in the tire. Tire
manufacturers also must indicate the
materials in the tir

Page 369 of 635

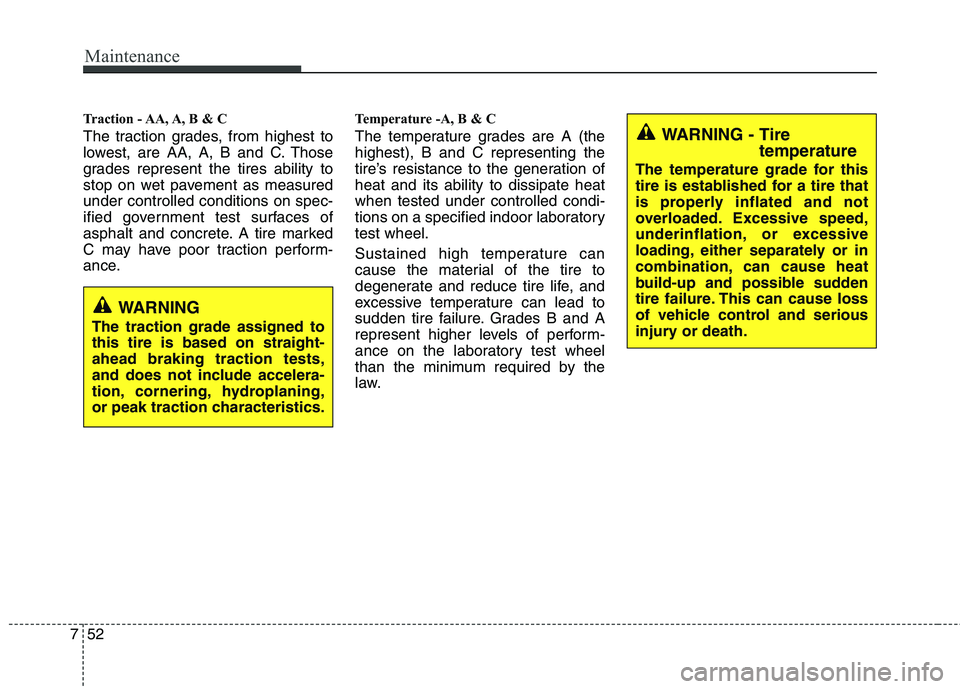

HYUNDAI I30 2015  Owners Manual Maintenance
52
7
Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tires ability to
stop on wet pavement as measuredunder controlle

Page 370 of 635

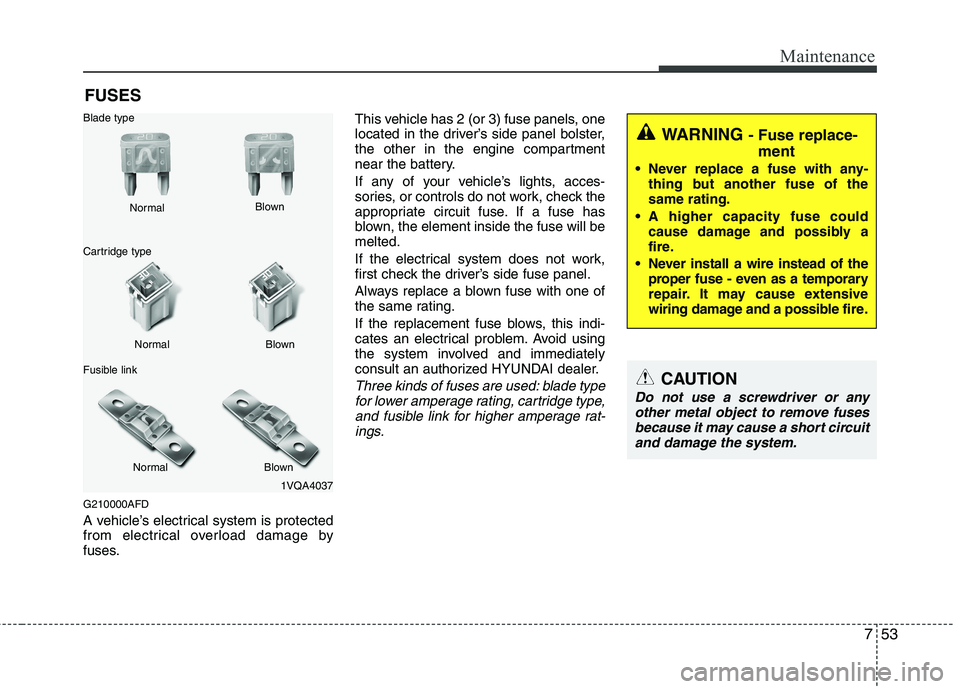

HYUNDAI I30 2015  Owners Manual 753
Maintenance
FUSES
G210000AFD
A vehicle’s electrical system is protected
from electrical overload damage by
fuses. This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side pane
