Page 411 of 635

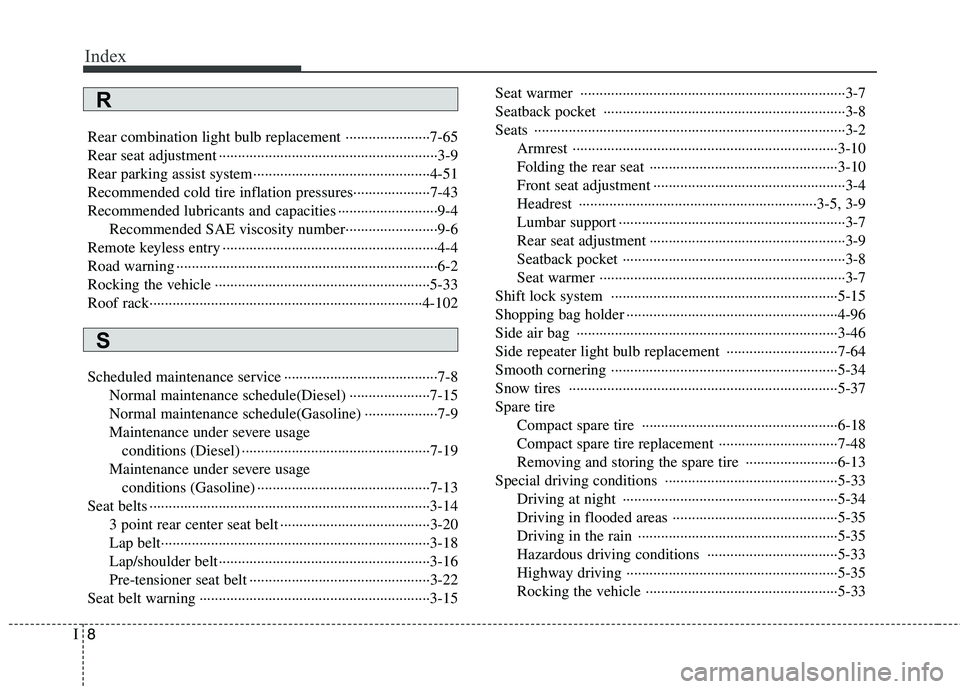

HYUNDAI I30 2015  Owners Manual Index
8
I
Rear combination light bulb replacement ······················7-65
Rear seat adjustment ·······································Â

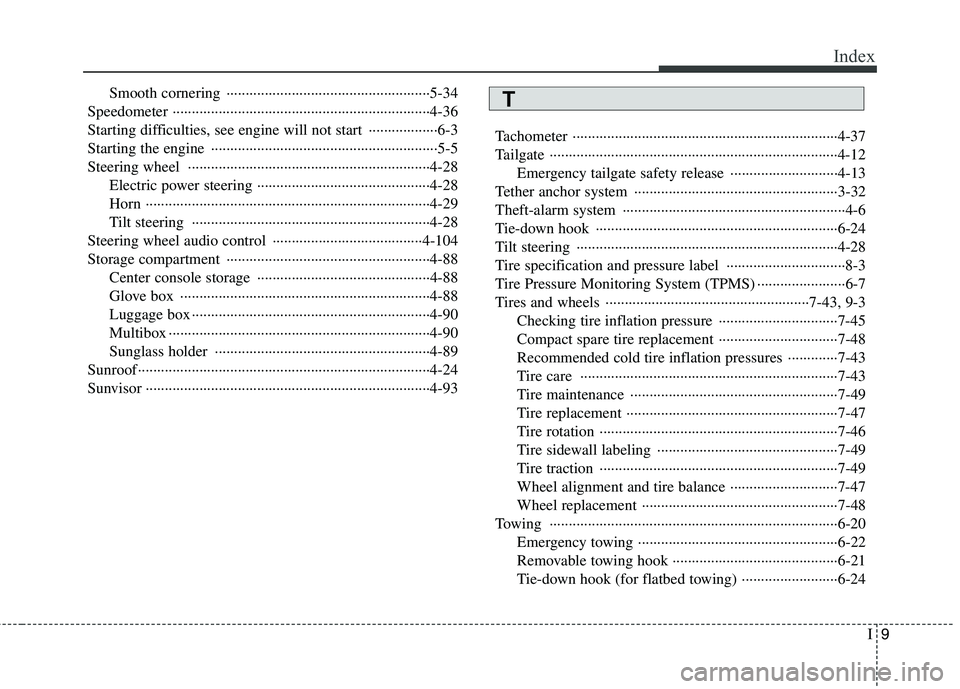

Page 412 of 635

HYUNDAI I30 2015  Owners Manual I9
Index
Smooth cornering  ·····················································5-34
Speedometer ·························

Page 413 of 635

HYUNDAI I30 2015  Owners Manual Index
10
I

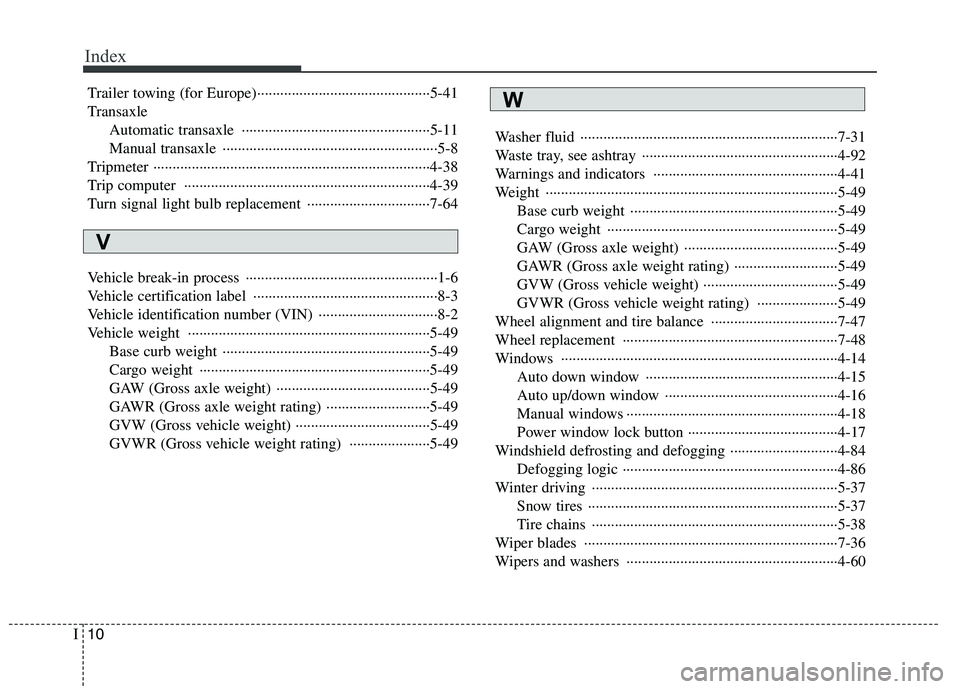

Trailer towing (for Europe)·············································5-41
Transaxle
Automatic transaxle  ·················Â

Page 414 of 635

HYUNDAI I30 2015  Owners Manual 3

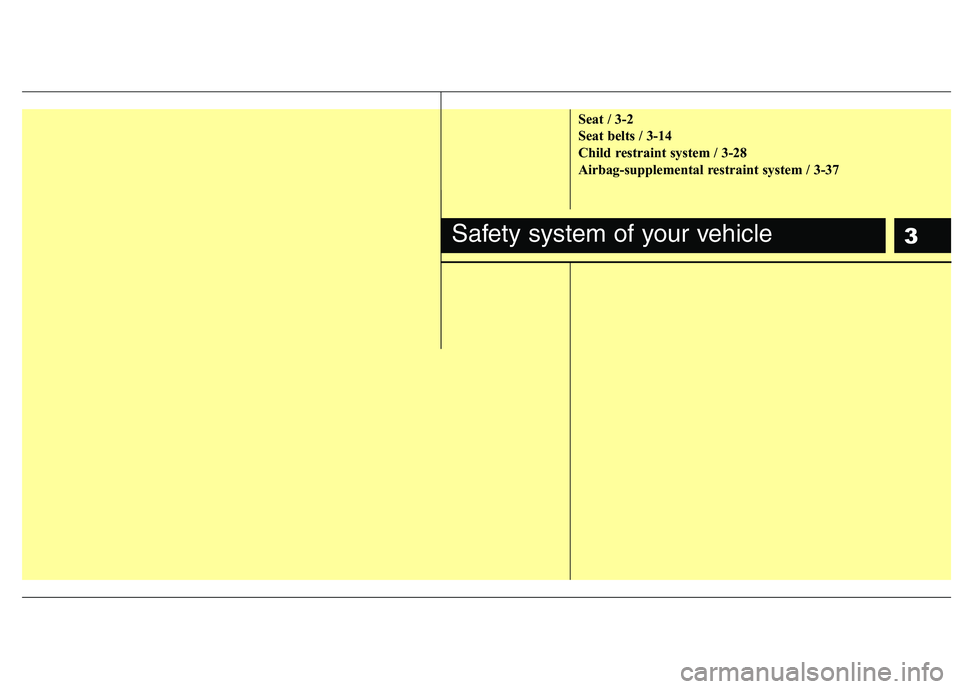

Seat / 3-2
Seat belts / 3-14
Child restraint system / 3-28
Airbag-supplemental restraint system / 3-37
Safety system of your vehicle

Page 415 of 635

HYUNDAI I30 2015  Owners Manual Safety system of your vehicle
2
3

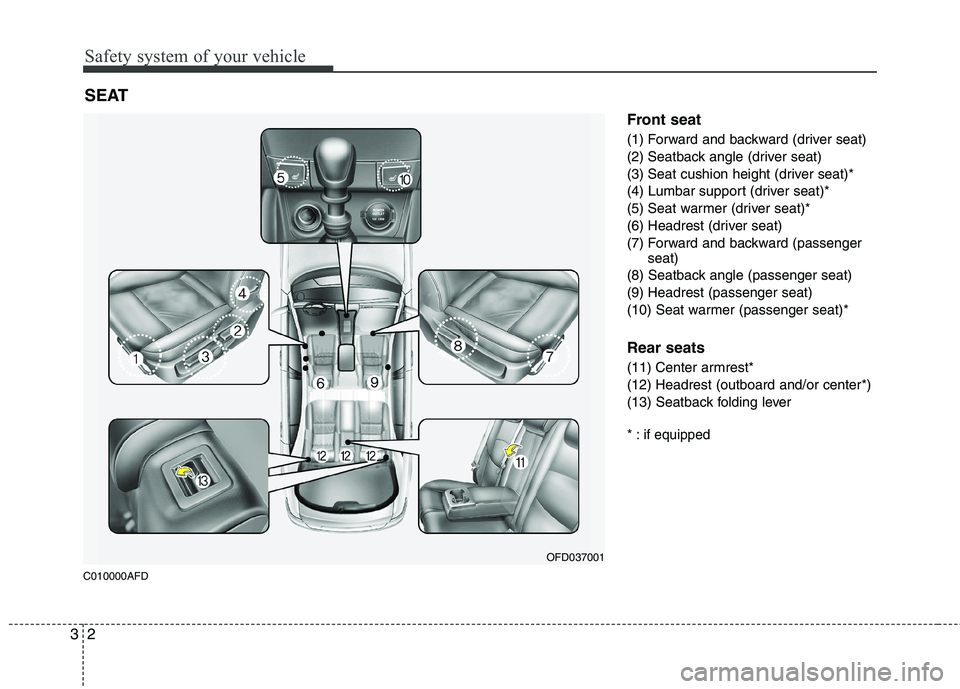

C010000AFD Front seat
(1) Forward and backward (driver seat)
(2) Seatback angle (driver seat)
(3) Seat cushion height (driver seat)*
(4) Lumbar support (driver seat

Page 416 of 635

HYUNDAI I30 2015  Owners Manual 33
Safety system of your vehicle

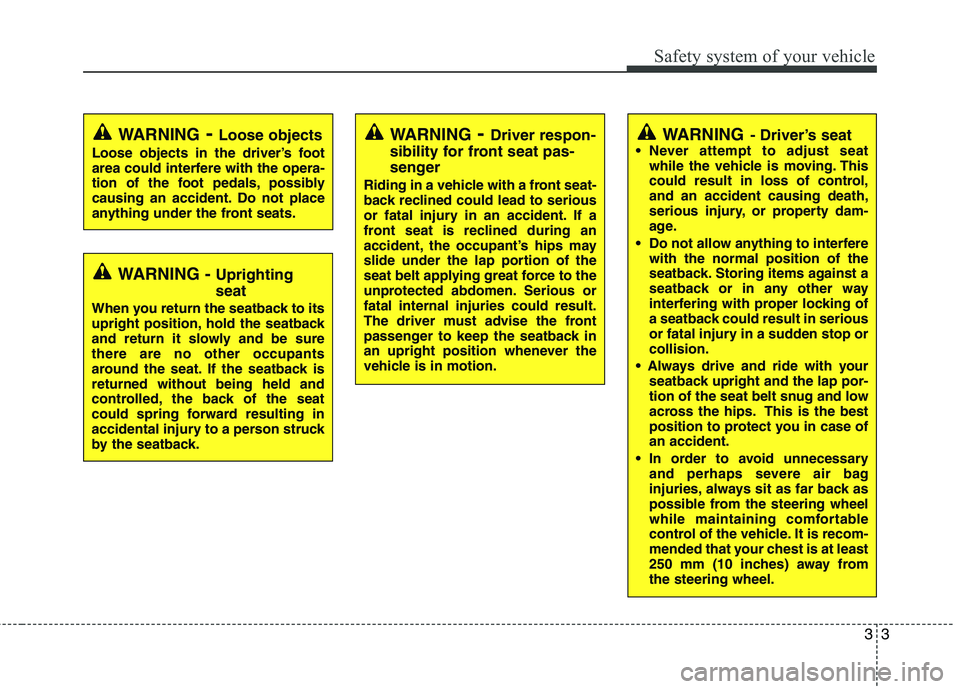

WARNING- Driver’s seat
 Never attempt to adjust seat while the vehicle is moving. This
could result in loss of control,and an accident causing death,
serious injury

Page 417 of 635

HYUNDAI I30 2015  Owners Manual Safety system of your vehicle
4
3

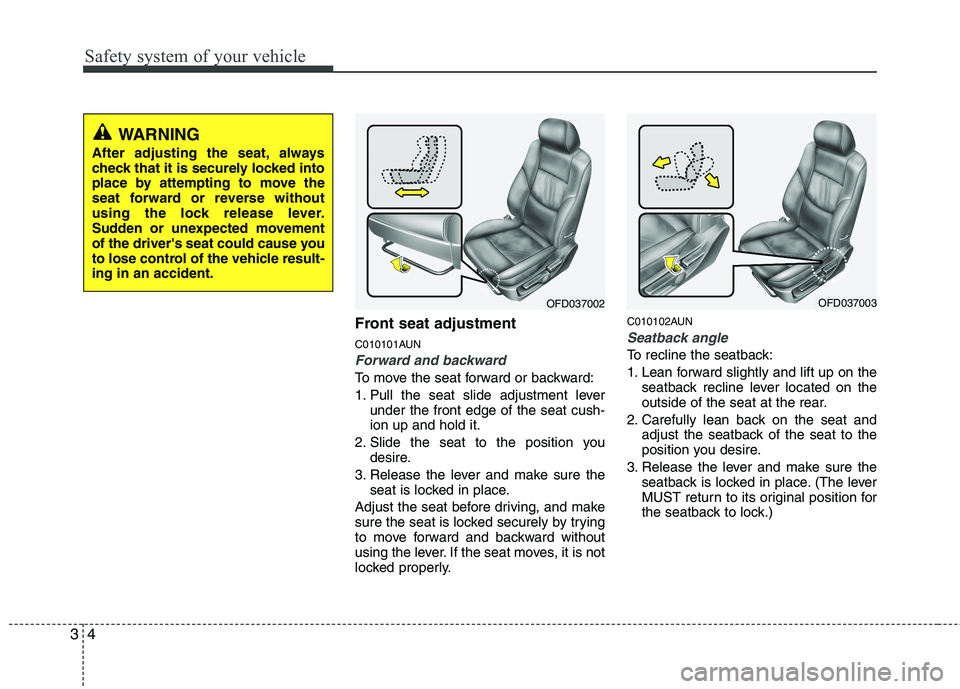

Front seat adjustment
C010101AUN
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment lever
under the front edge of the seat

Page 418 of 635

HYUNDAI I30 2015  Owners Manual 35
Safety system of your vehicle
C010103AUN

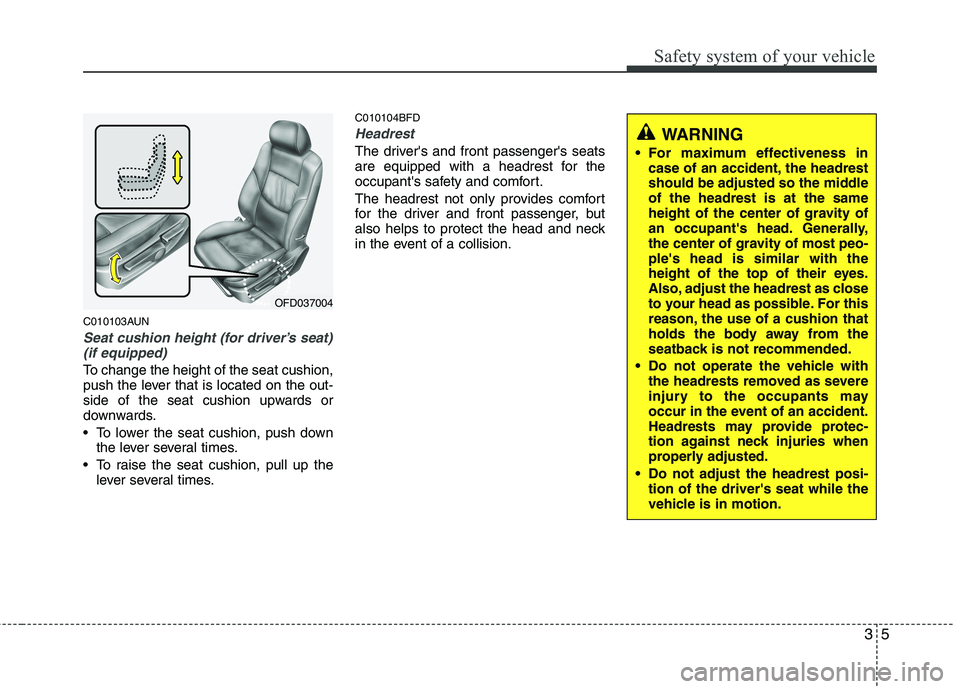

Seat cushion height (for driver’s seat)(if equipped)
To change the height of the seat cushion,
push the lever that is located on the out-
side of the sea

Page 419 of 635

HYUNDAI I30 2015  Owners Manual Safety system of your vehicle
6
3

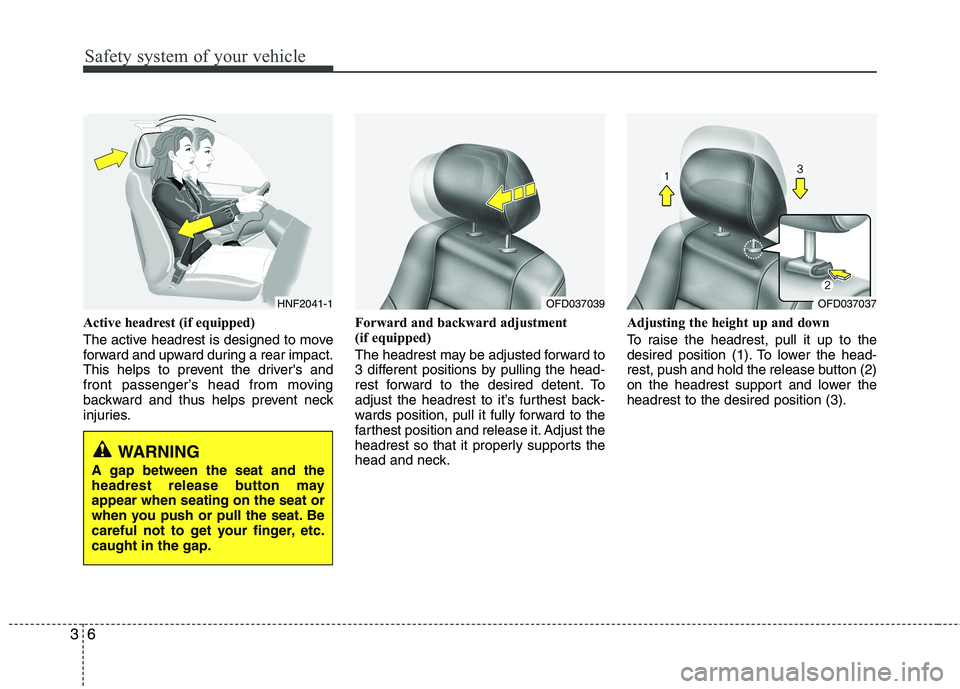

Active headrest (if equipped)
The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the drivers and
front passenge

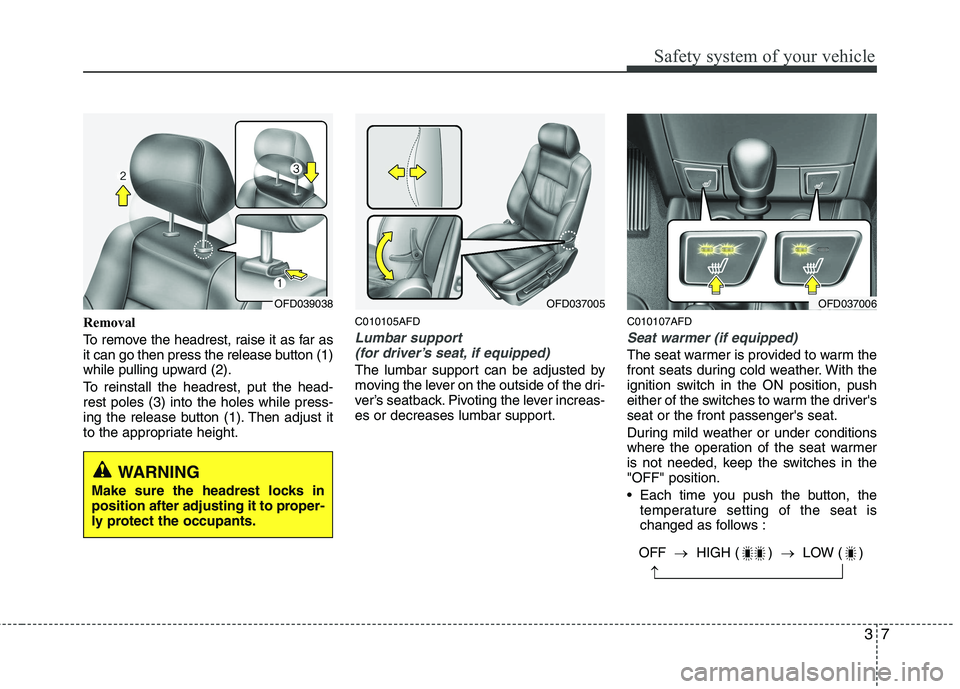

Page 420 of 635

HYUNDAI I30 2015  Owners Manual 37
Safety system of your vehicle
Removal
To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling upward (2).
To reinstall the headrest, put the head- re
