44
Vehicles with smart key system
Whenever the engine start/stop button is
changed to the ON position, the immobi-
lizer system checks and verifies if the key
is valid or not.
If the key is valid, the engine will start.
If the key is invalid, the engine will not
start.
To deactivate the immobilizer system
Change the engine start/stop button to
the ON position.
To activate the immobilizer system
Change the engine start/stop button to
the OFF position. The immobilizer sys-
tem activates automatically. Without a
valid smart key for your vehicle, the
engine will not start.
✽ ✽NOTICE
When starting the engine, do not use the
key with other immobilizer keys around.
Otherwise the engine may not start or
may stop soon after it starts. Keep each
key separately not to have any malfunc-
tion after you receive your new vehicle.
✽ ✽NOTICE
If you need additional keys or lose your
keys, consult an authorized HYUNDAI
dealer.
CAUTION
The transponder in your ignition
key is an important part of theimmobilizer system. It is designed to give years of trouble-free service,however you should avoid expo-sure to moisture, static electricity and rough handling. Immobilizersystem malfunction could occur.
CAUTION
Do not change, alter or adjust the immobilizer system because itcould cause the immobilizer sys- tem to malfunction and should onlybe serviced by an authorizedHYUNDAI dealer.
Malfunctions caused by improperalterations, adjustments or modifi-cations to the immobilizer system are not covered by your vehiclemanufacturer warranty.
WARNING
In order to prevent theft of your vehi-
cle, do not leave spare keys any-
where in your vehicle. Your immobi-
lizer password is a customer unique
password and should be kept confi-
dential. Do not leave this number
anywhere in your vehicle.
CAUTION
Do not put metal accessories near the ignition switch.
The engine may not start for themetal accessories may interrupt thetransponder signal from normallytransmitting.

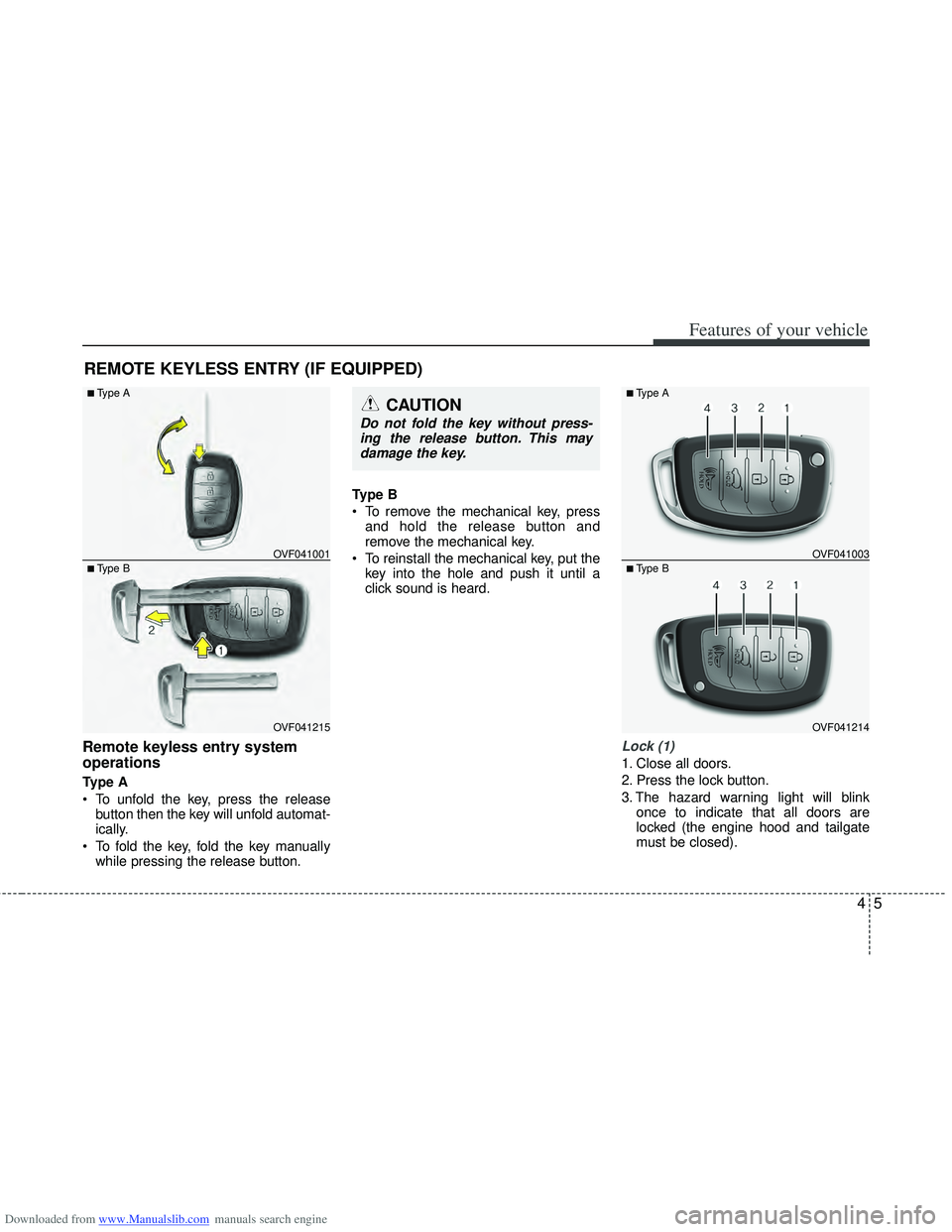

Downloaded from www.Manualslib.com manuals search engine 45
Features of your vehicle
Remote keyless entry system
operations
Type A
To unfold the key, press the releasebutton then the key will unfold automat-
ically.
To fold the key, fold the key manually while pressing the release button. Type B
To remove the mechanical key, press
and hold the release button and
remove the mechanical key.
To reinstall the mechanical key, put the key into the hole and push it until a
click sound is heard.
Lock (1)
1. Close all doors.
2. Press the lock button.
3. The hazard warning light will blink once to indicate that all doors are
locked (the engine hood and tailgate
must be closed).
REMOTE KEYLESS ENTRY (IF EQUIPPED)
OVF041215
■Type B OVF041001
■Type ACAUTION
Do not fold the key without press-
ing the release button. This maydamage the key.
OVF041214
■Type B OVF041003
■Type A

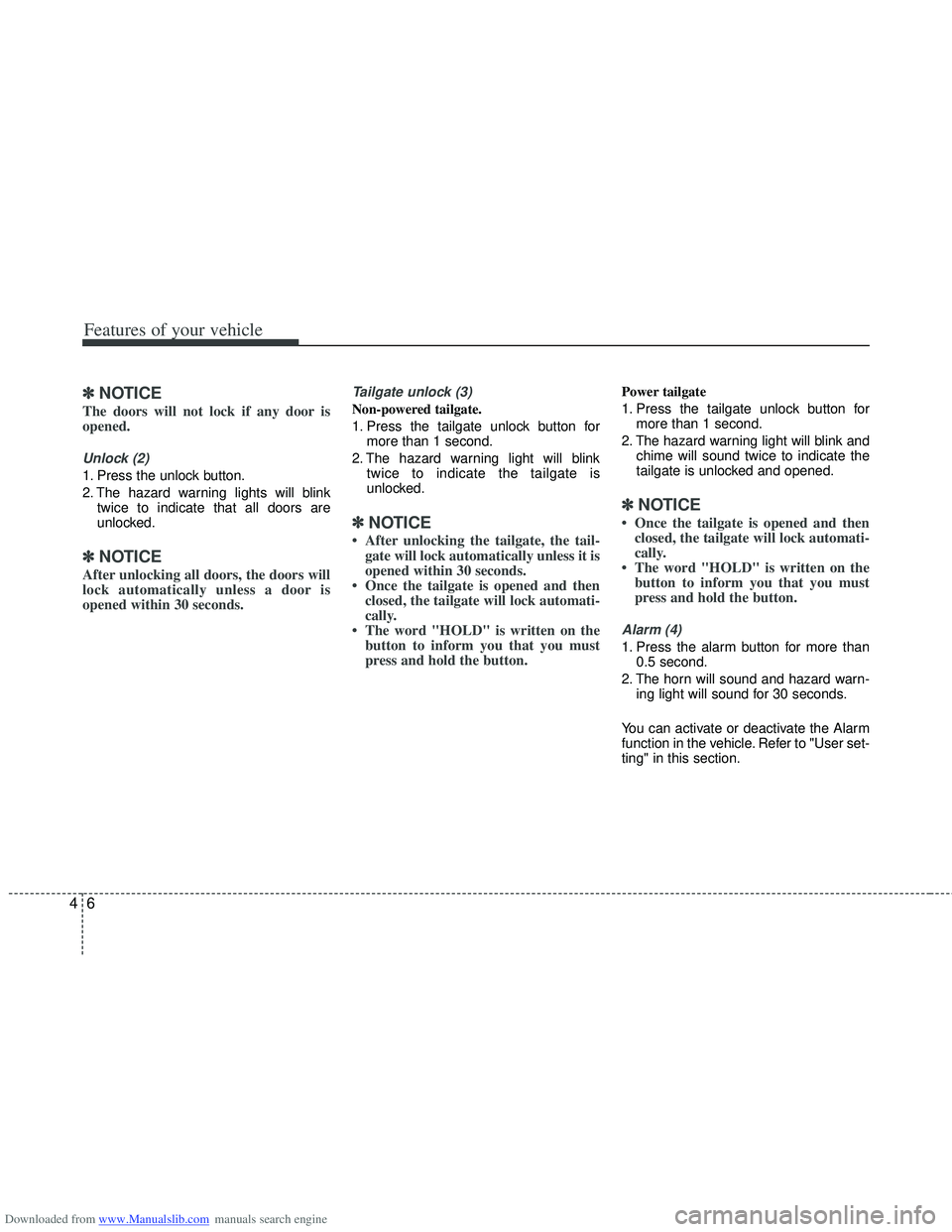

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
64
✽
✽NOTICE
The doors will not lock if any door is
opened.
Unlock (2)
1. Press the unlock button.
2. The hazard warning lights will blink
twice to indicate that all doors are
unlocked.
✽ ✽NOTICE
After unlocking all doors, the doors will
lock automatically unless a door is
opened within 30 seconds.
Tailgate unlock (3)
Non-powered tailgate.
1. Press the tailgate unlock button for
more than 1 second.
2. The hazard warning light will blink twice to indicate the tailgate is
unlocked.
✽ ✽NOTICE
• After unlocking the tailgate, the tail-
gate will lock automatically unless it is
opened within 30 seconds.
• Once the tailgate is opened and then closed, the tailgate will lock automati-
cally.
• The word "HOLD" is written on the button to inform you that you must
press and hold the button.
Power tailgate
1. Press the tailgate unlock button for
more than 1 second.
2. The hazard warning light will blink and chime will sound twice to indicate the
tailgate is unlocked and opened.
✽ ✽NOTICE
• Once the tailgate is opened and then
closed, the tailgate will lock automati-
cally.
• The word "HOLD" is written on the button to inform you that you must
press and hold the button.
Alarm (4)
1. Press the alarm button for more than
0.5 second.
2. The horn will sound and hazard warn- ing light will sound for 30 seconds.
You can activate or deactivate the Alarm
function in the vehicle. Refer to "User set-
ting" in this section.

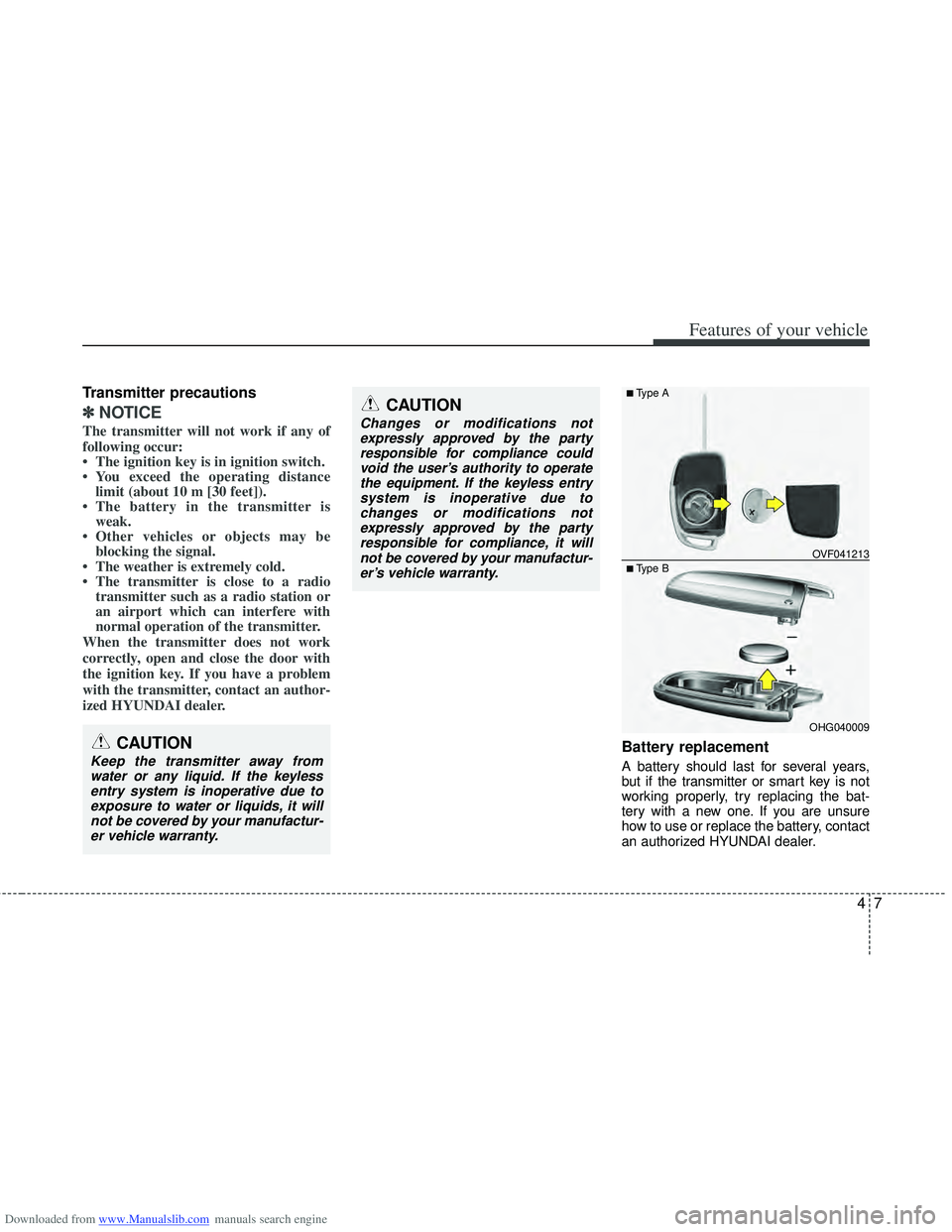

Downloaded from www.Manualslib.com manuals search engine 47
Features of your vehicle
Transmitter precautions
✽
✽NOTICE
The transmitter will not work if any of
following occur:
• The ignition key is in ignition switch.
• You exceed the operating distance
limit (about 10 m [30 feet]).
• The battery in the transmitter is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The transmitter is close to a radio transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an author-
ized HYUNDAI dealer.
Battery replacement
A battery should last for several years,
but if the transmitter or smart key is not
working properly, try replacing the bat-
tery with a new one. If you are unsure
how to use or replace the battery, contact
an authorized HYUNDAI dealer.
CAUTION
Changes or modifications not expressly approved by the partyresponsible for compliance couldvoid the user’s authority to operatethe equipment. If the keyless entry system is inoperative due tochanges or modifications notexpressly approved by the partyresponsible for compliance, it willnot be covered by your manufactur-er’s vehicle warranty.
CAUTION
Keep the transmitter away fromwater or any liquid. If the keylessentry system is inoperative due to exposure to water or liquids, it willnot be covered by your manufactur-er vehicle warranty.
■Type B OVF041213
■Type A
OHG040009

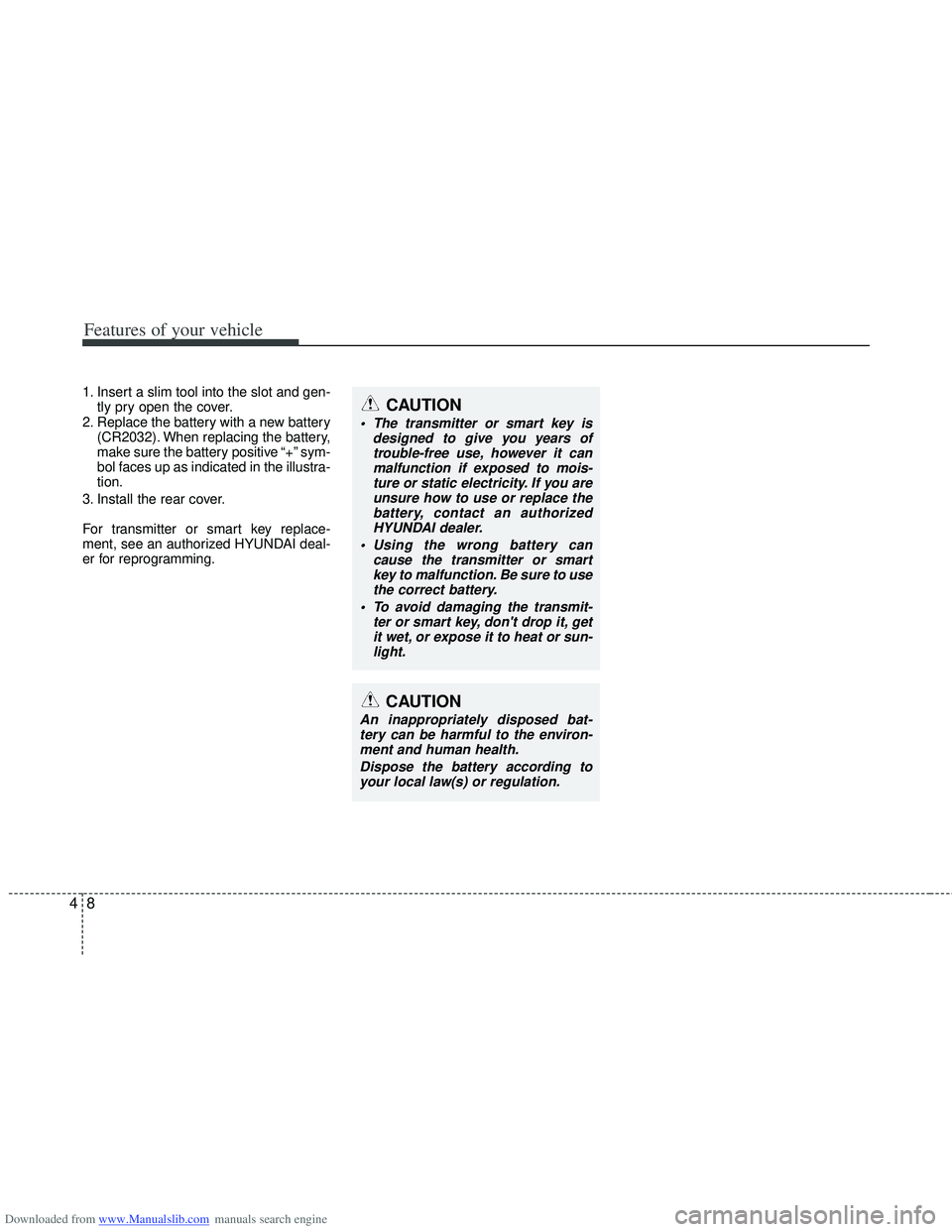

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
84
1. Insert a slim tool into the slot and gen-tly pry open the cover.
2. Replace the battery with a new battery (CR2032). When replacing the battery,
make sure the battery positive “+” sym-
bol faces up as indicated in the illustra-
tion.
3. Install the rear cover.
For transmitter or smart key replace-
ment, see an authorized HYUNDAI deal-
er for reprogramming.CAUTION
The transmitter or smart key is designed to give you years oftrouble-free use, however it canmalfunction if exposed to mois-ture or static electricity. If you are unsure how to use or replace thebattery, contact an authorizedHYUNDAI dealer.
Using the wrong battery can cause the transmitter or smartkey to malfunction. Be sure to usethe correct battery.
To avoid damaging the transmit- ter or smart key, don't drop it, getit wet, or expose it to heat or sun-light.
CAUTION
An inappropriately disposed bat-tery can be harmful to the environ-ment and human health.
Dispose the battery according toyour local law(s) or regulation.

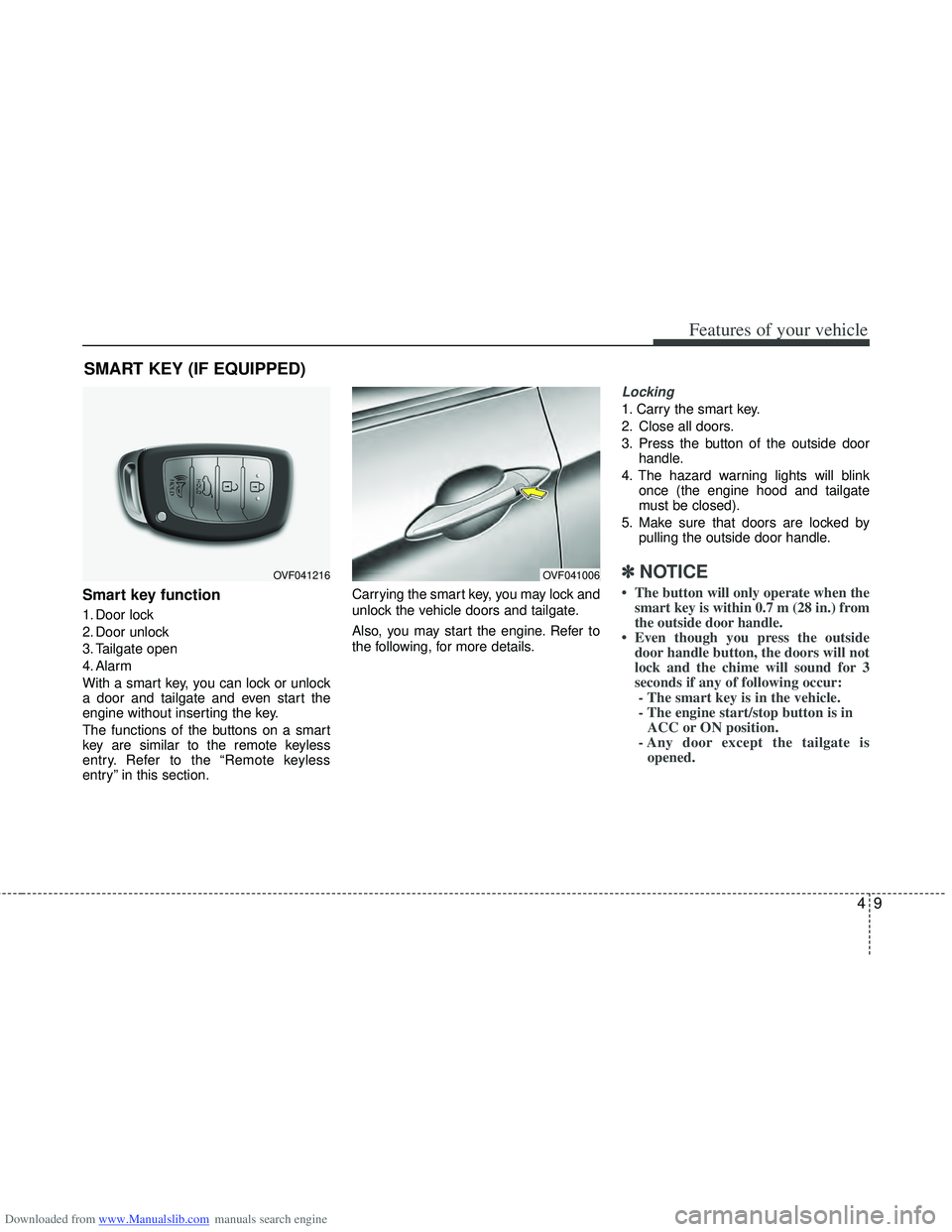

Downloaded from www.Manualslib.com manuals search engine 49
Features of your vehicle
Smart key function
1. Door lock
2. Door unlock
3. Tailgate open
4. Alarm
With a smart key, you can lock or unlock
a door and tailgate and even start the
engine without inserting the key.
The functions of the buttons on a smart
key are similar to the remote keyless
entry. Refer to the “Remote keyless
entry” in this section.Carrying the smart key, you may lock and
unlock the vehicle doors and tailgate.
Also, you may start the engine. Refer to
the following, for more details.
Locking
1. Carry the smart key.
2. Close all doors.
3. Press the button of the outside door
handle.
4. The hazard warning lights will blink once (the engine hood and tailgate
must be closed).
5. Make sure that doors are locked by pulling the outside door handle.
✽ ✽NOTICE
• The button will only operate when the
smart key is within 0.7 m (28 in.) from
the outside door handle.
• Even though you press the outside door handle button, the doors will not
lock and the chime will sound for 3
seconds if any of following occur:- The smart key is in the vehicle.
- The engine start/stop button is in ACC or ON position.
- Any door except the tailgate is opened.
SMART KEY (IF EQUIPPED)
OVF041216OVF041006

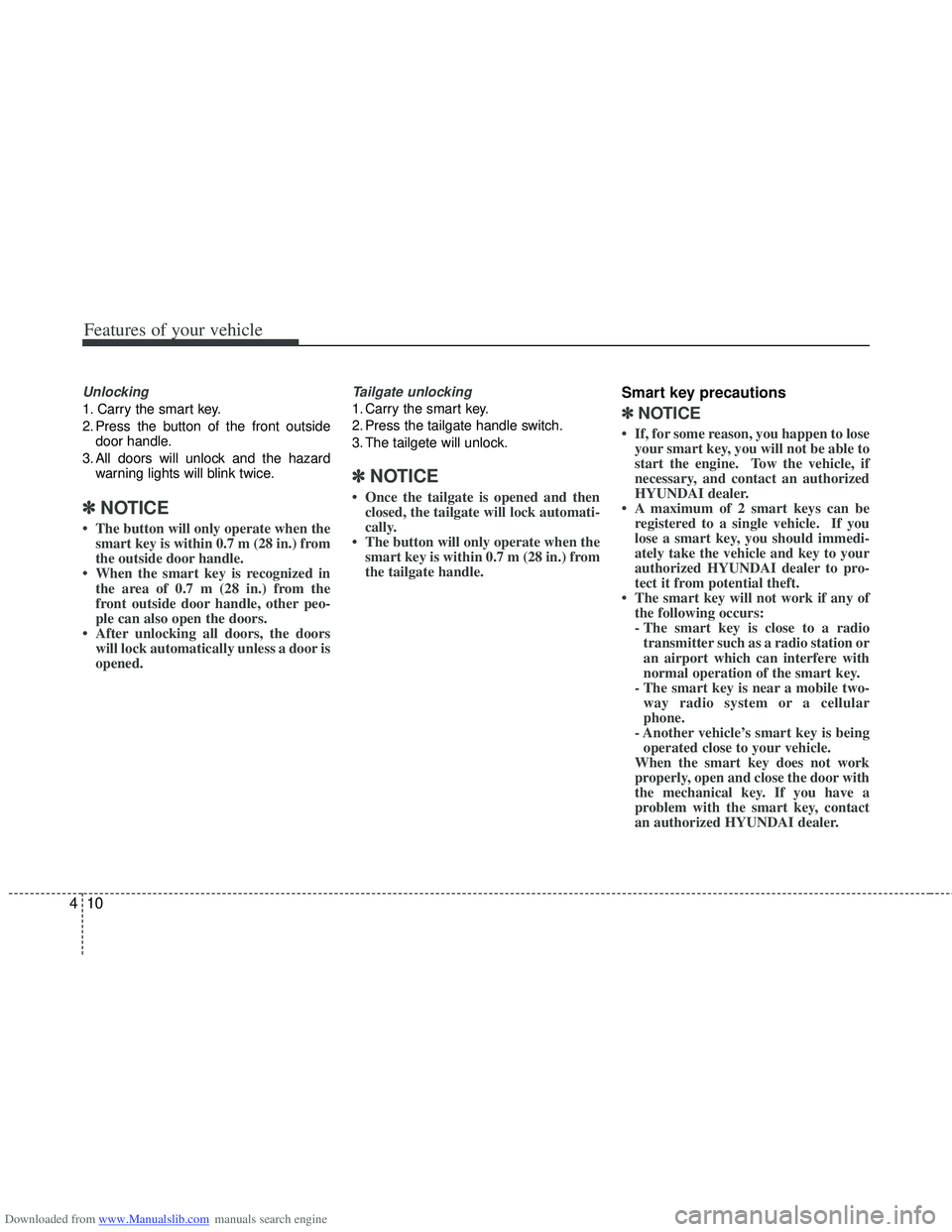

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
10
4
Unlocking
1. Carry the smart key.
2. Press the button of the front outside
door handle.
3. All doors will unlock and the hazard warning lights will blink twice.
✽ ✽ NOTICE
• The button will only operate when the
smart key is within 0.7 m (28 in.) from
the outside door handle.
• When the smart key is recognized in the area of 0.7 m (28 in.) from the
front outside door handle, other peo-
ple can also open the doors.
• After unlocking all doors, the doors will lock automatically unless a door is
opened.
Tailgate unlocking
1. Carry the smart key.
2. Press the tailgate handle switch.
3. The tailgete will unlock.
✽ ✽ NOTICE
• Once the tailgate is opened and then
closed, the tailgate will lock automati-
cally.
• The button will only operate when the smart key is within 0.7 m (28 in.) from
the tailgate handle.
Smart key precautions
✽ ✽ NOTICE
• If, for some reason, you happen to lose
your smart key, you will not be able to
start the engine. Tow the vehicle, if
necessary, and contact an authorized
HYUNDAI dealer.
• A maximum of 2 smart keys can be registered to a single vehicle. If you
lose a smart key, you should immedi-
ately take the vehicle and key to your
authorized HYUNDAI dealer to pro-
tect it from potential theft.
• The smart key will not work if any of the following occurs:
- The smart key is close to a radiotransmitter such as a radio station or
an airport which can interfere with
normal operation of the smart key.
- The smart key is near a mobile two- way radio system or a cellular
phone.
- Another vehicle’s smart key is being operated close to your vehicle.
When the smart key does not work
properly, open and close the door with
the mechanical key. If you have a
problem with the smart key, contact
an authorized HYUNDAI dealer.

Downloaded from www.Manualslib.com manuals search engine 411
Features of your vehicle

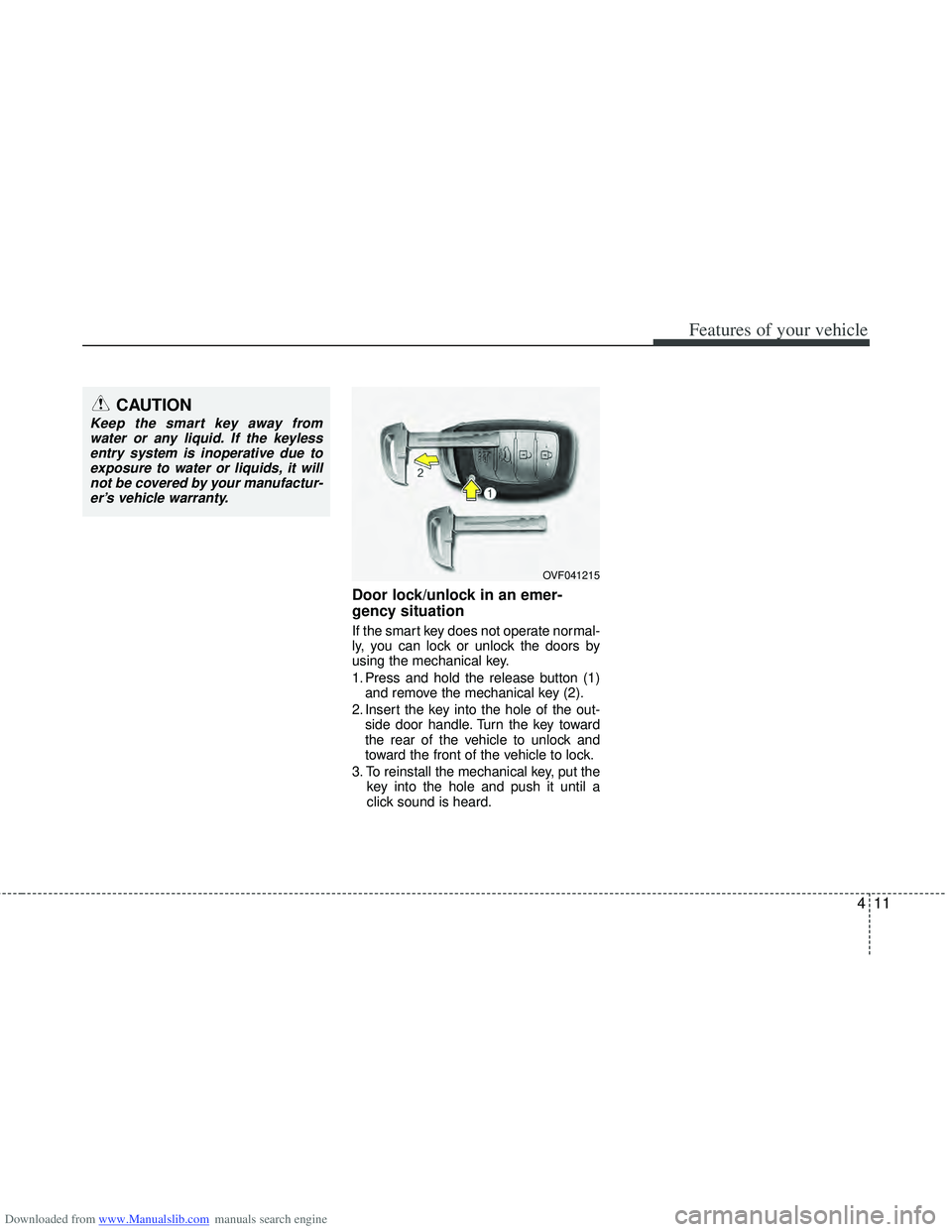

Door lock/unlock in an emer-
gency situation
If the smart key does not operate normal-
ly, you can lock or unlock the doors by
using the mechanical key.
1. Press and hold the release button (1)and remove the mechanical key (2).
2. Insert the key into the hole of the out- side door handle. Turn the key toward
the rear of the vehicle to unlock and
toward the front of the vehicle to lock.
3. To reinstall the mechanical key, put the key into the hole and push it until a
click sound is heard.
CAUTION
Keep the smart key away fromwater or any liquid. If the keylessentry system is inoperative due toexposure to water or liquids, it willnot be covered by your manufactur- er’s vehicle warranty.
OVF041215

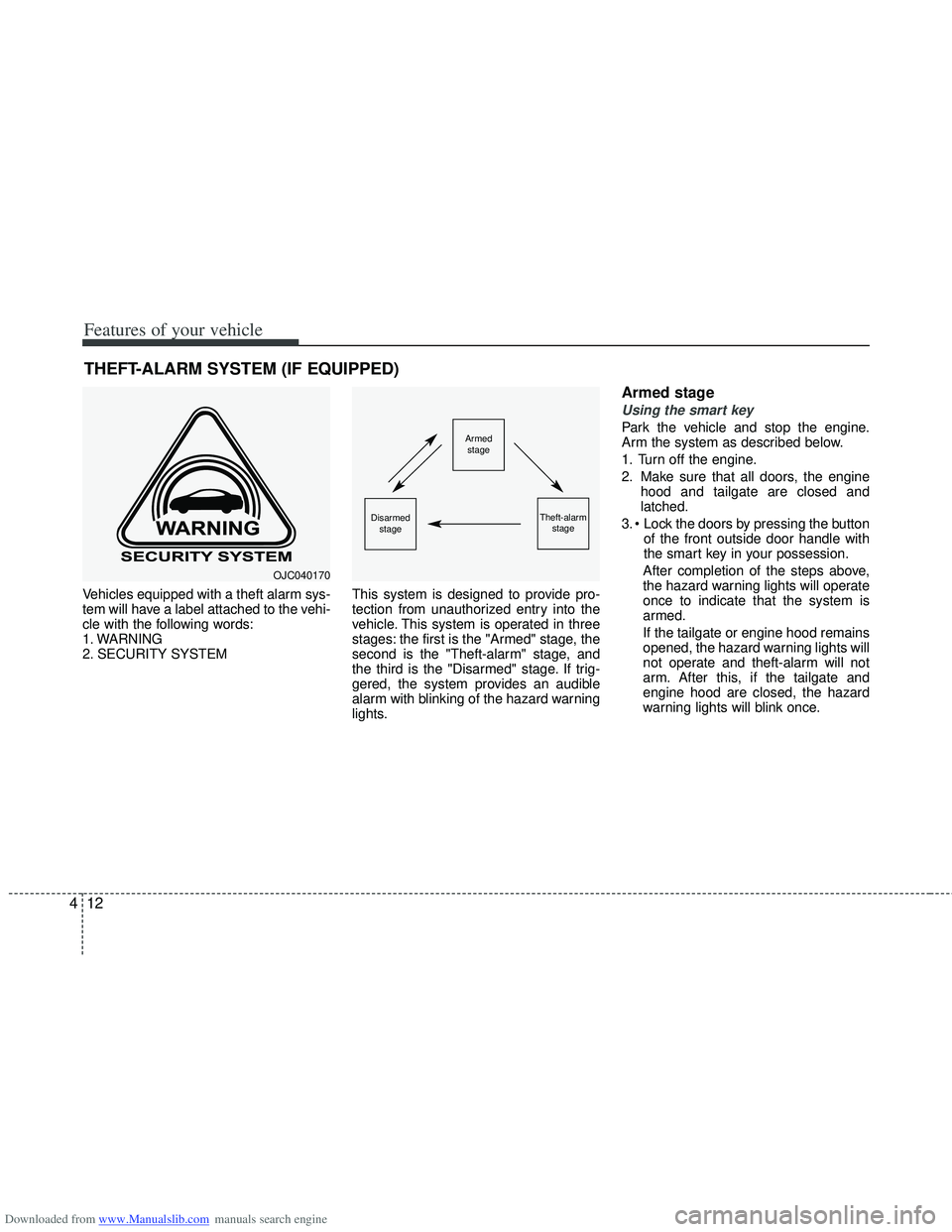

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
12
4
Vehicles equipped with a theft alarm sys-
tem will have a label attached to the vehi-
cle with the following words:
1. WARNING
2. SECURITY SYSTEM This system is designed to provide pro-
tection from unauthorized entry into the
vehicle. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Theft-alarm" stage, and
the third is the "Disarmed" stage. If trig-
gered, the system provides an audible
alarm with blinking of the hazard warning
lights.
Armed stage
Using the smart key
Park the vehicle and stop the engine.
Arm the system as described below.
1. Turn off the engine.
2. Make sure that all doors, the engine
hood and tailgate are closed and
latched.
3. of the front outside door handle with
the smart key in your possession.
After completion of the steps above,
the hazard warning lights will operate
once to indicate that the system is
armed.
If the tailgate or engine hood remains
opened, the hazard warning lights will
not operate and theft-alarm will not
arm. After this, if the tailgate and
engine hood are closed, the hazard
warning lights will blink once.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed stage
Theft-alarm stageDisarmedstage
OJC040170

Downloaded from www.Manualslib.com manuals search engine 413

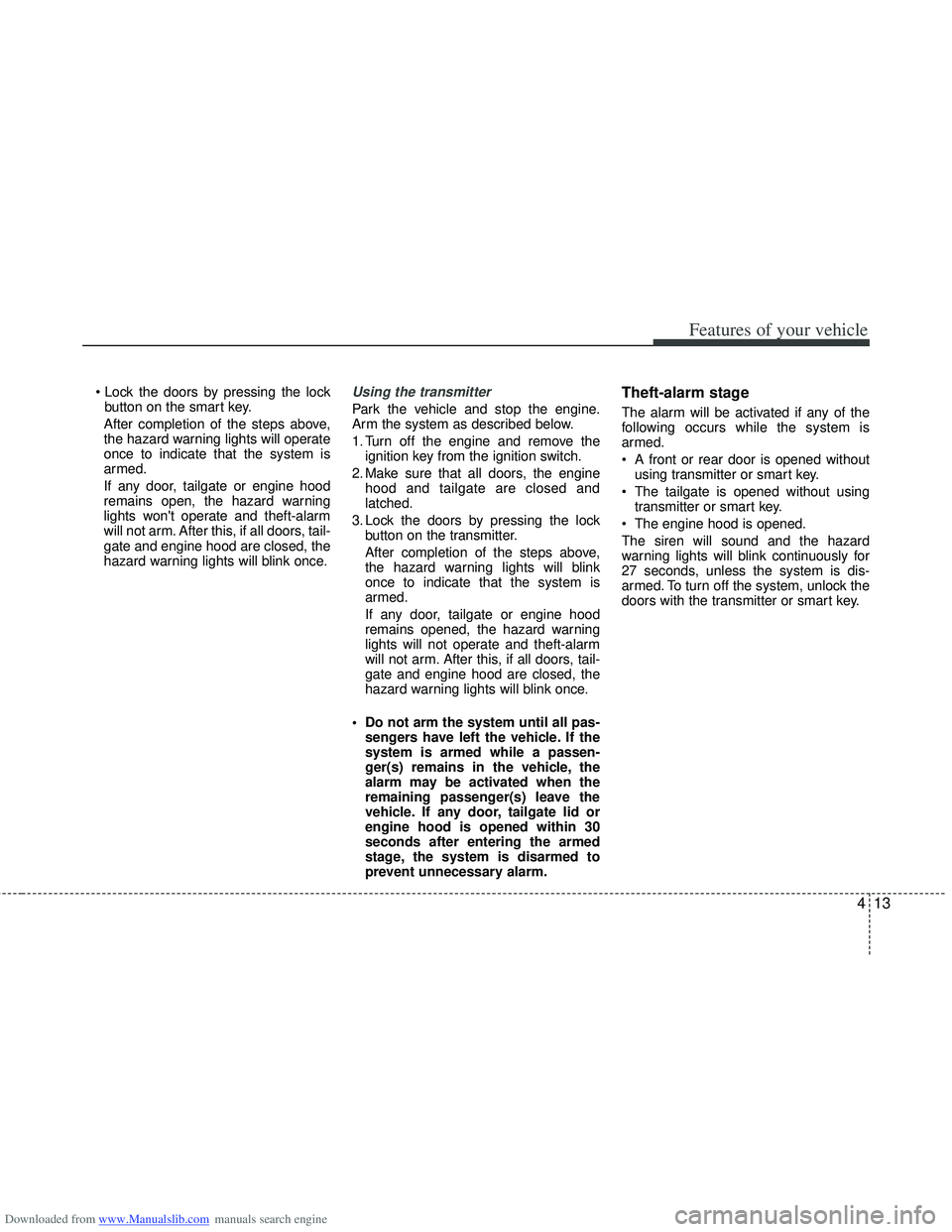

Features of your vehicle
button on the smart key.
After completion of the steps above,
the hazard warning lights will operate
once to indicate that the system is
armed.
If any door, tailgate or engine hood
remains open, the hazard warning
lights won't operate and theft-alarm
will not arm. After this, if all doors, tail-
gate and engine hood are closed, the
hazard warning lights will blink once.Using the transmitter
Park the vehicle and stop the engine.
Arm the system as described below.
1. Turn off the engine and remove the ignition key from the ignition switch.
2. Make sure that all doors, the engine hood and tailgate are closed and
latched.
3. Lock the doors by pressing the lock button on the transmitter.
After completion of the steps above,
the hazard warning lights will blink
once to indicate that the system is
armed.
If any door, tailgate or engine hood
remains opened, the hazard warning
lights will not operate and theft-alarm
will not arm. After this, if all doors, tail-
gate and engine hood are closed, the
hazard warning lights will blink once.
Do not arm the system until all pas- sengers have left the vehicle. If the
system is armed while a passen-
ger(s) remains in the vehicle, the
alarm may be activated when the
remaining passenger(s) leave the
vehicle. If any door, tailgate lid or
engine hood is opened within 30
seconds after entering the armed
stage, the system is disarmed to
prevent unnecessary alarm.
Theft-alarm stage
The alarm will be activated if any of the
following occurs while the system is
armed.
A front or rear door is opened withoutusing transmitter or smart key.
The tailgate is opened without using transmitter or smart key.
The engine hood is opened.
The siren will sound and the hazard
warning lights will blink continuously for
27 seconds, unless the system is dis-
armed. To turn off the system, unlock the
doors with the transmitter or smart key.
