HYUNDAI I40 2013 Owners Manual

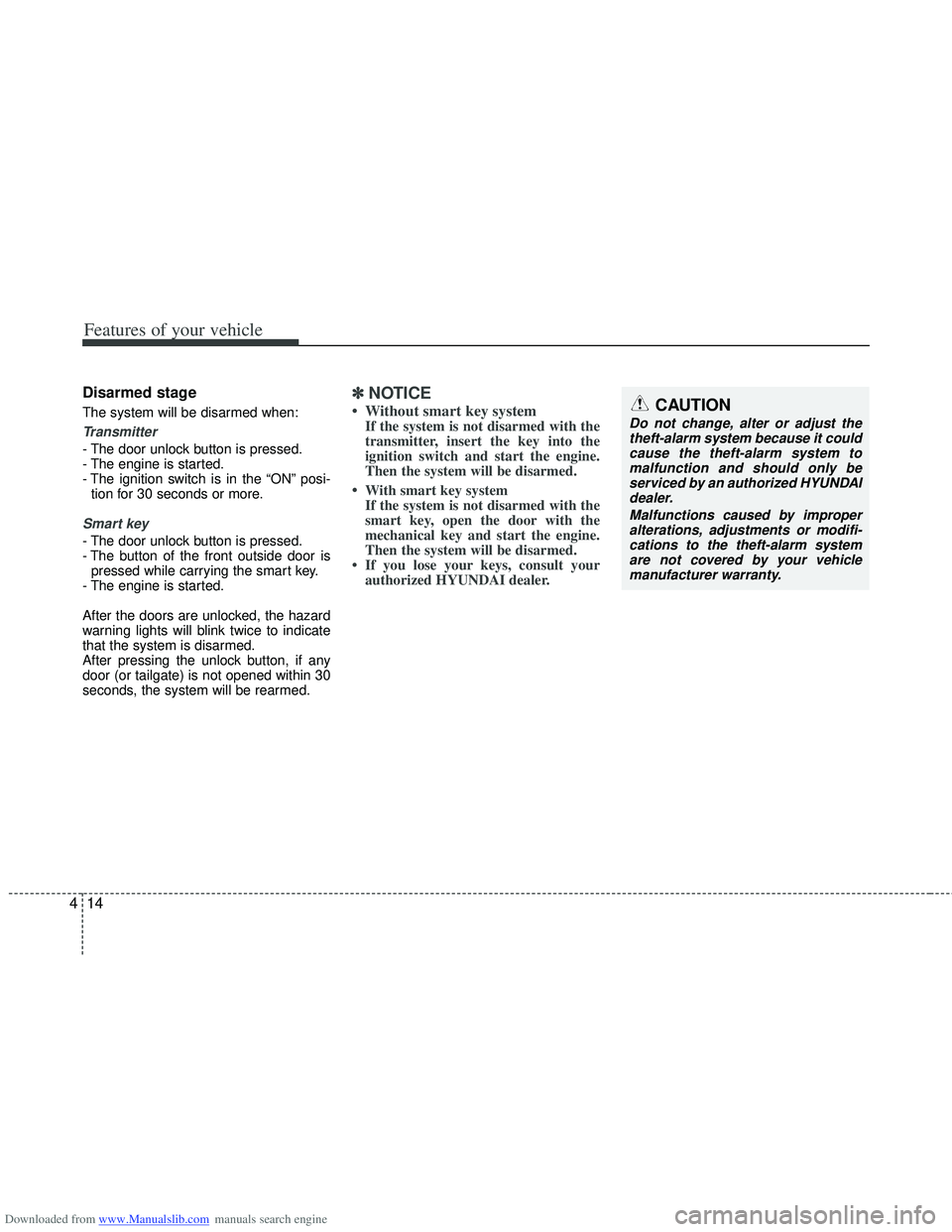

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
14
4
Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The engine is started.
- The ignition switch is in the “ON” posi-
tion for 30 seconds or more.
Smart key
- The door unlock button is pressed.
- The button of the front outside door ispressed while carrying the smart key.
- The engine is started.
After the doors are unlocked, the hazard
warning lights will blink twice to indicate
that the system is disarmed.
After pressing the unlock button, if any
door (or tailgate) is not opened within 30
seconds, the system will be rearmed.
✽ ✽ NOTICE
• Without smart key systemIf the system is not disarmed with the
transmitter, insert the key into the
ignition switch and start the engine.
Then the system will be disarmed.
•With smart key system
If the system is not disarmed with the
smart key, open the door with the
mechanical key and start the engine.
Then the system will be disarmed.
• If you lose your keys, consult your authorized HYUNDAI dealer.
CAUTION
Do not change, alter or adjust the
theft-alarm system because it couldcause the theft-alarm system to malfunction and should only beserviced by an authorized HYUNDAIdealer.
Malfunctions caused by improperalterations, adjustments or modifi-cations to the theft-alarm system are not covered by your vehiclemanufacturer warranty.

Downloaded from www.Manualslib.com manuals search engine 415

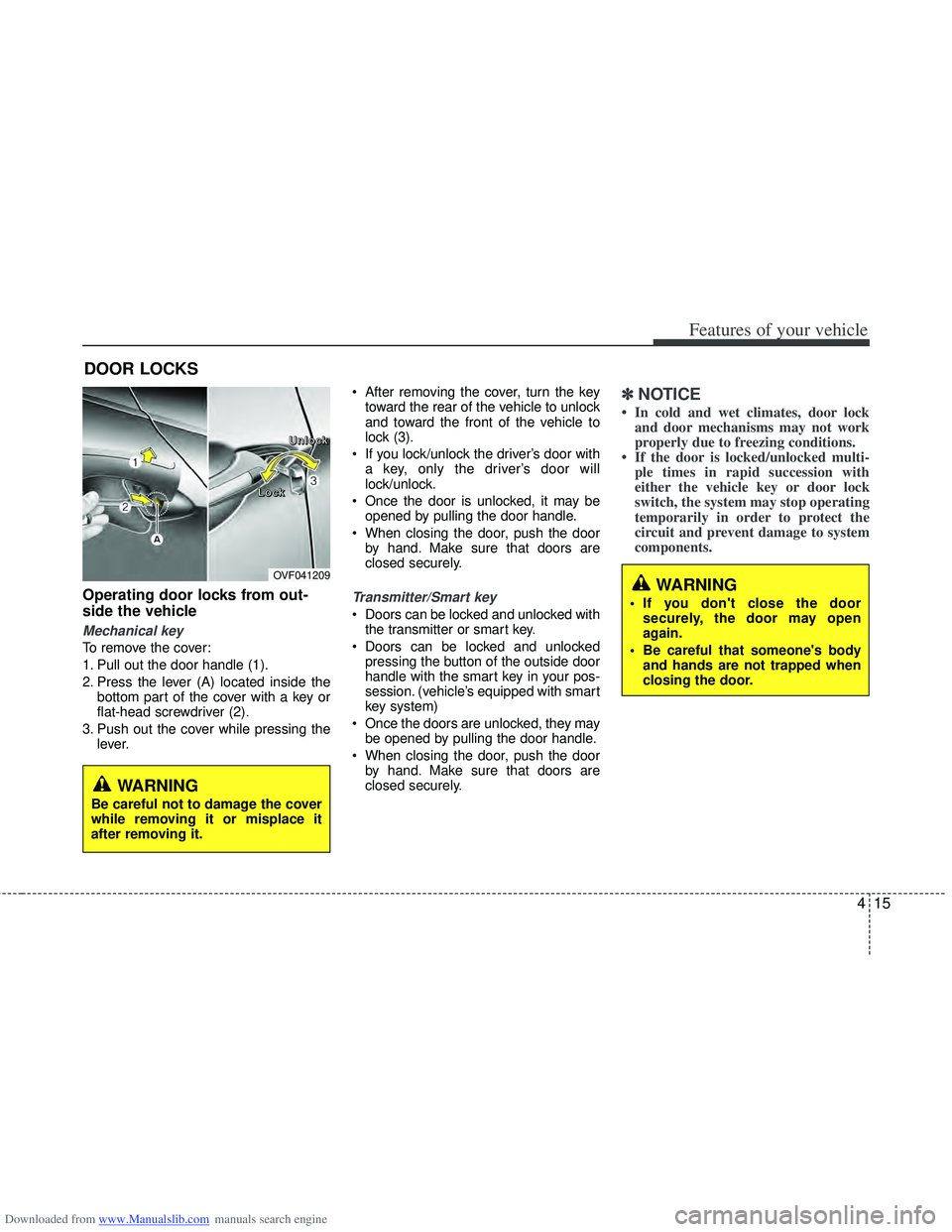

Features of your vehicle
Operating door locks from out-
side the vehicle
Mechanical key
To remove the cover:
1. Pull out the door handle (1).
2. Press the lever (A) located inside thebottom part of the cover with a key or
flat-head screwdriver (2).
3. Push out the cover while pressing the lever. After removing the cover, turn the key
toward the rear of the vehicle to unlock
and toward the front of the vehicle to
lock (3).
If you lock/unlock the driver’s door with a key, only the driver’s door will
lock/unlock.
Once the door is unlocked, it may be opened by pulling the door handle.
When closing the door, push the door by hand. Make sure that doors are
closed securely.
Transmitter/Smart key
Doors can be locked and unlocked withthe transmitter or smart key.
Doors can be locked and unlocked pressing the button of the outside door
handle with the smart key in your pos-
session. (vehicle’s equipped with smart
key system)
Once the doors are unlocked, they may be opened by pulling the door handle.
When closing the door, push the door by hand. Make sure that doors are
closed securely.
✽ ✽ NOTICE
• In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
• If the door is locked/unlocked multi- ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operating
temporarily in order to protect the
circuit and prevent damage to system
components.
DOOR LOCKS
WARNING
If you don't close the door
securely, the door may open
again.
Be careful that someone's body and hands are not trapped when
closing the door.
OVF041209
L
L
L
L
o
o
o
o
c
c
c
c
k
k
k
k U
U
U
U
n
n
n
n
l
l
l
l
o
o
o
o
c
c
c
c
k
k
k
k
WARNING
Be careful not to damage the cover
while removing it or misplace it
after removing it.

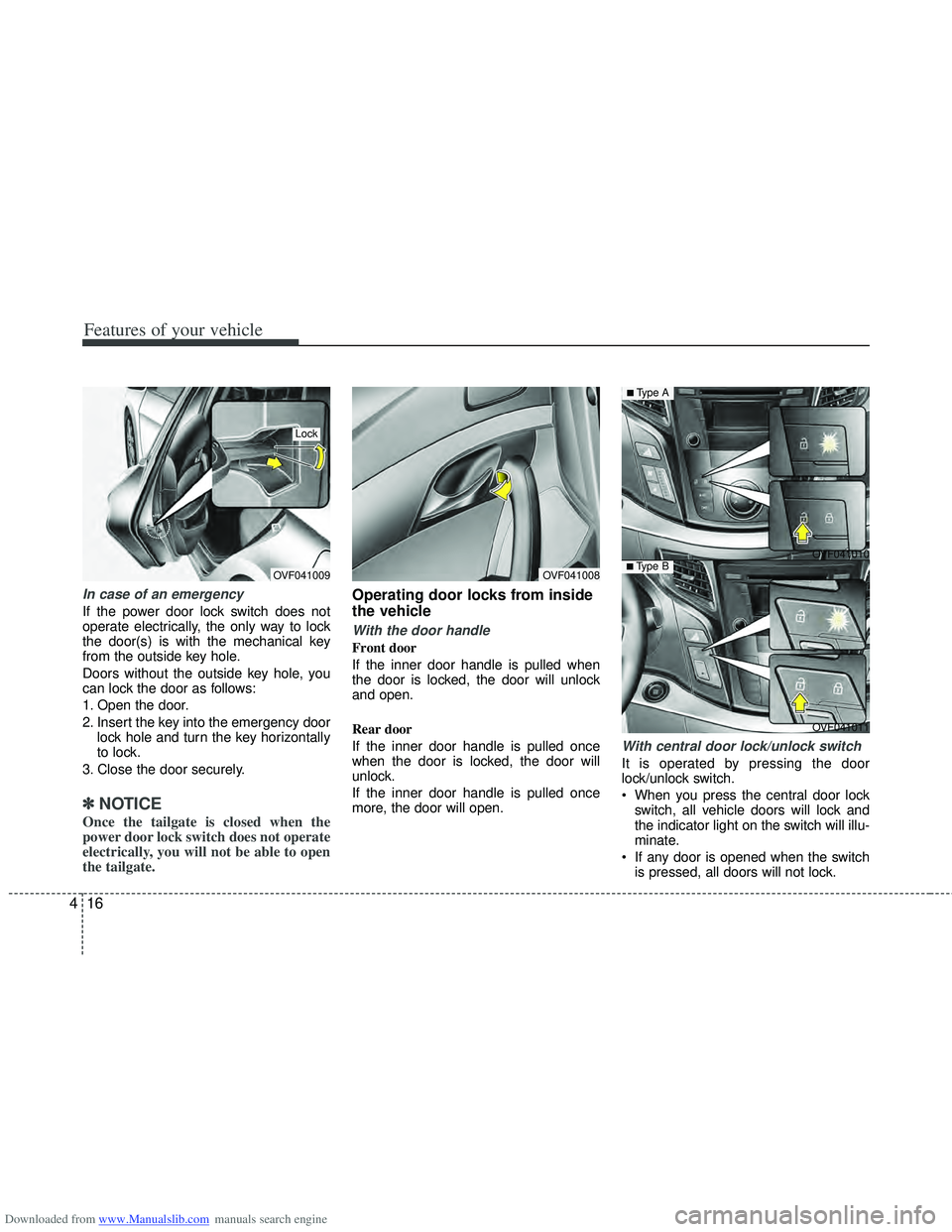

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
16
4
In case of an emergency
If the power door lock switch does not
operate electrically, the only way to lock
the door(s) is with the mechanical key
from the outside key hole.
Doors without the outside key hole, you
can lock the door as follows:
1. Open the door.
2. Insert the key into the emergency door
lock hole and turn the key horizontally
to lock.
3. Close the door securely.
✽ ✽ NOTICE
Once the tailgate is closed when the
power door lock switch does not operate
electrically, you will not be able to open
the tailgate.
Operating door locks from inside
the vehicle
With the door handle
Front door
If the inner door handle is pulled when
the door is locked, the door will unlock
and open.
Rear door
If the inner door handle is pulled once
when the door is locked, the door will
unlock.
If the inner door handle is pulled once
more, the door will open.
With central door lock/unlock switch
It is operated by pressing the door
lock/unlock switch.
When you press the central door lock
switch, all vehicle doors will lock and
the indicator light on the switch will illu-
minate.
If any door is opened when the switch is pressed, all doors will not lock.
OVF041009
Lock
OVF041008
OVF041011
■Type B OVF041010
■Type A

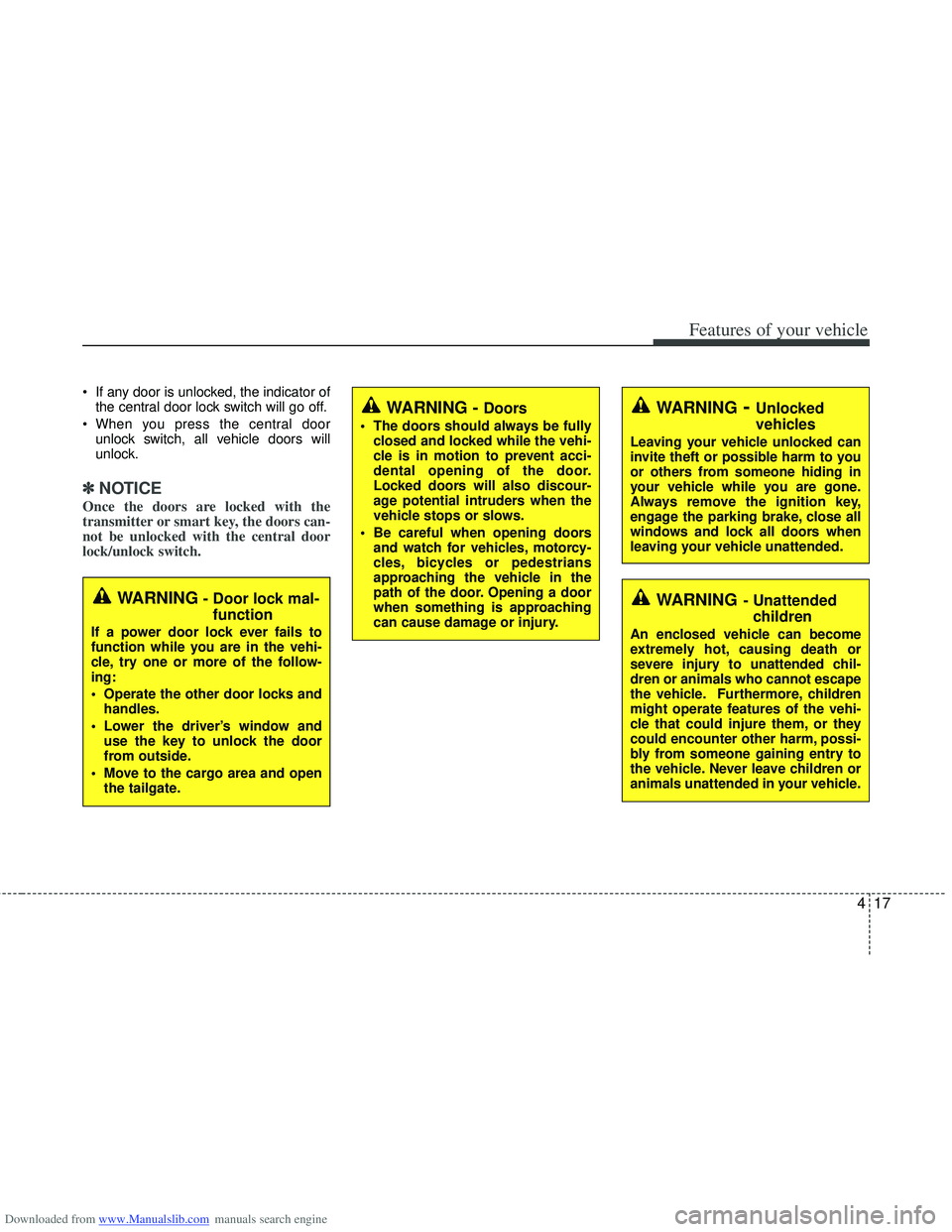

Downloaded from www.Manualslib.com manuals search engine 417
Features of your vehicle
If any door is unlocked, the indicator ofthe central door lock switch will go off.
When you press the central door unlock switch, all vehicle doors will
unlock.
✽ ✽ NOTICE
Once the doors are locked with the
transmitter or smart key, the doors can-
not be unlocked with the central door
lock/unlock switch.
WARNING - Doors
The doors should always be fully
closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows.
Be careful when opening doors and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.
WARNING- Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING- Unattendedchildren
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
WARNING - Door lock mal-function
If a power door lock ever fails to
function while you are in the vehi-
cle, try one or more of the follow-
ing:
Operate the other door locks and
handles.
Lower the driver’s window and use the key to unlock the door
from outside.
Move to the cargo area and open the tailgate.

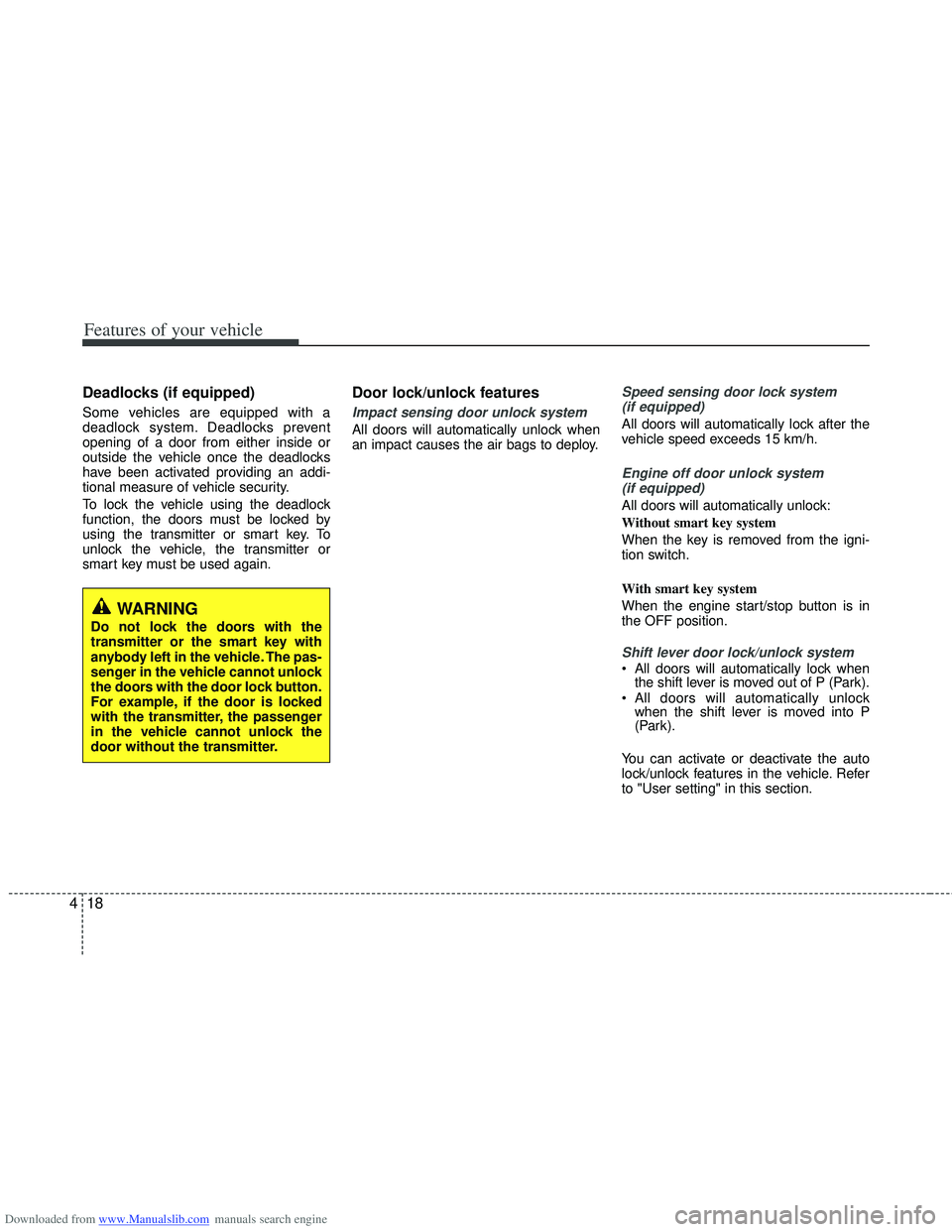

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
18
4
Deadlocks (if equipped)
Some vehicles are equipped with a
deadlock system. Deadlocks prevent
opening of a door from either inside or
outside the vehicle once the deadlocks
have been activated providing an addi-
tional measure of vehicle security.
To lock the vehicle using the deadlock
function, the doors must be locked by
using the transmitter or smart key. To
unlock the vehicle, the transmitter or
smart key must be used again.
Door lock/unlock features
Impact sensing door unlock system
All doors will automatically unlock when
an impact causes the air bags to deploy.
Speed sensing door lock system
(if equipped)
All doors will automatically lock after the
vehicle speed exceeds 15 km/h.
Engine off door unlock system (if equipped)
All doors will automatically unlock:
Without smart key system
When the key is removed from the igni-
tion switch.
With smart key system
When the engine start/stop button is in
the OFF position.
Shift lever door lock/unlock system
All doors will automatically lock when the shift lever is moved out of P (Park).
All doors will automatically unlock when the shift lever is moved into P
(Park).
You can activate or deactivate the auto
lock/unlock features in the vehicle. Refer
to "User setting" in this section.
WARNING
Do not lock the doors with the
transmitter or the smart key with
anybody left in the vehicle. The pas-
senger in the vehicle cannot unlock
the doors with the door lock button.
For example, if the door is locked
with the transmitter, the passenger
in the vehicle cannot unlock the
door without the transmitter.

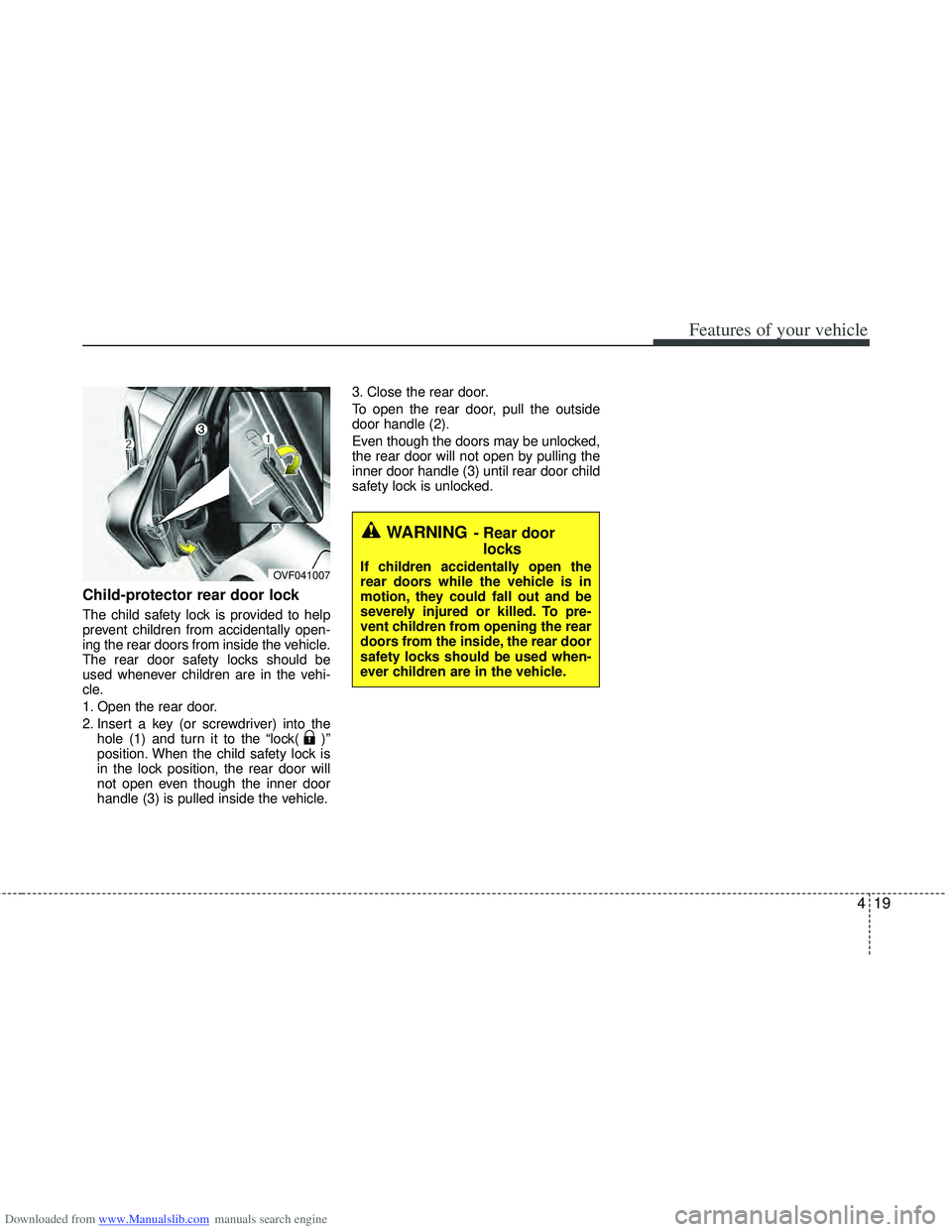

Downloaded from www.Manualslib.com manuals search engine 419
Features of your vehicle
Child-protector rear door lock
The child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be
used whenever children are in the vehi-
cle.
1. Open the rear door.
2. Insert a key (or screwdriver) into thehole (1) and turn it to the “lock( )”
position. When the child safety lock is
in the lock position, the rear door will
not open even though the inner door
handle (3) is pulled inside the vehicle. 3. Close the rear door.
To open the rear door, pull the outside
door handle (2).
Even though the doors may be unlocked,
the rear door will not open by pulling the
inner door handle (3) until rear door child
safety lock is unlocked.
WARNING- Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
severely injured or killed. To pre-
vent children from opening the rear
doors from the inside, the rear door
safety locks should be used when-
ever children are in the vehicle.OVF041007

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
20
4

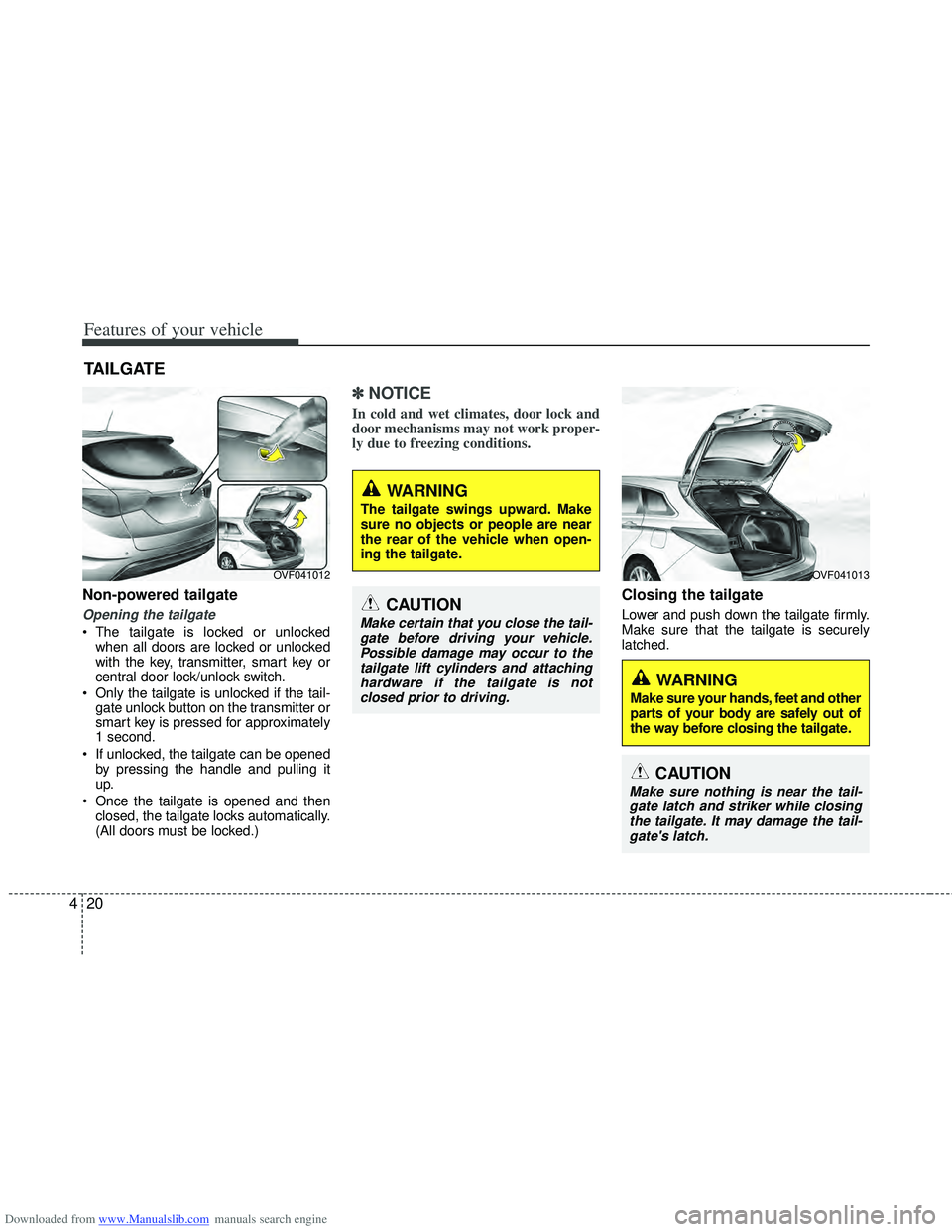

Non-powered tailgate
Opening the tailgate
The tailgate is locked or unlocked
when all doors are locked or unlocked
with the key, transmitter, smart key or
central door lock/unlock switch.
Only the tailgate is unlocked if the tail- gate unlock button on the transmitter or
smart key is pressed for approximately
1 second.
If unlocked, the tailgate can be opened by pressing the handle and pulling it
up.
Once the tailgate is opened and then closed, the tailgate locks automatically.
(All doors must be locked.)
✽ ✽ NOTICE
In cold and wet climates, door lock and
door mechanisms may not work proper-
ly due to freezing conditions.
Closing the tailgate
Lower and push down the tailgate firmly.
Make sure that the tailgate is securely
latched.
TAILGATE
OVF041012
WARNING
The tailgate swings upward. Make
sure no objects or people are near
the rear of the vehicle when open-
ing the tailgate.
CAUTION
Make certain that you close the tail-
gate before driving your vehicle.Possible damage may occur to thetailgate lift cylinders and attachinghardware if the tailgate is not closed prior to driving.
OVF041013
WARNING
Make sure your hands, feet and other
parts of your body are safely out of
the way before closing the tailgate.
CAUTION
Make sure nothing is near the tail-gate latch and striker while closing the tailgate. It may damage the tail-gate's latch.

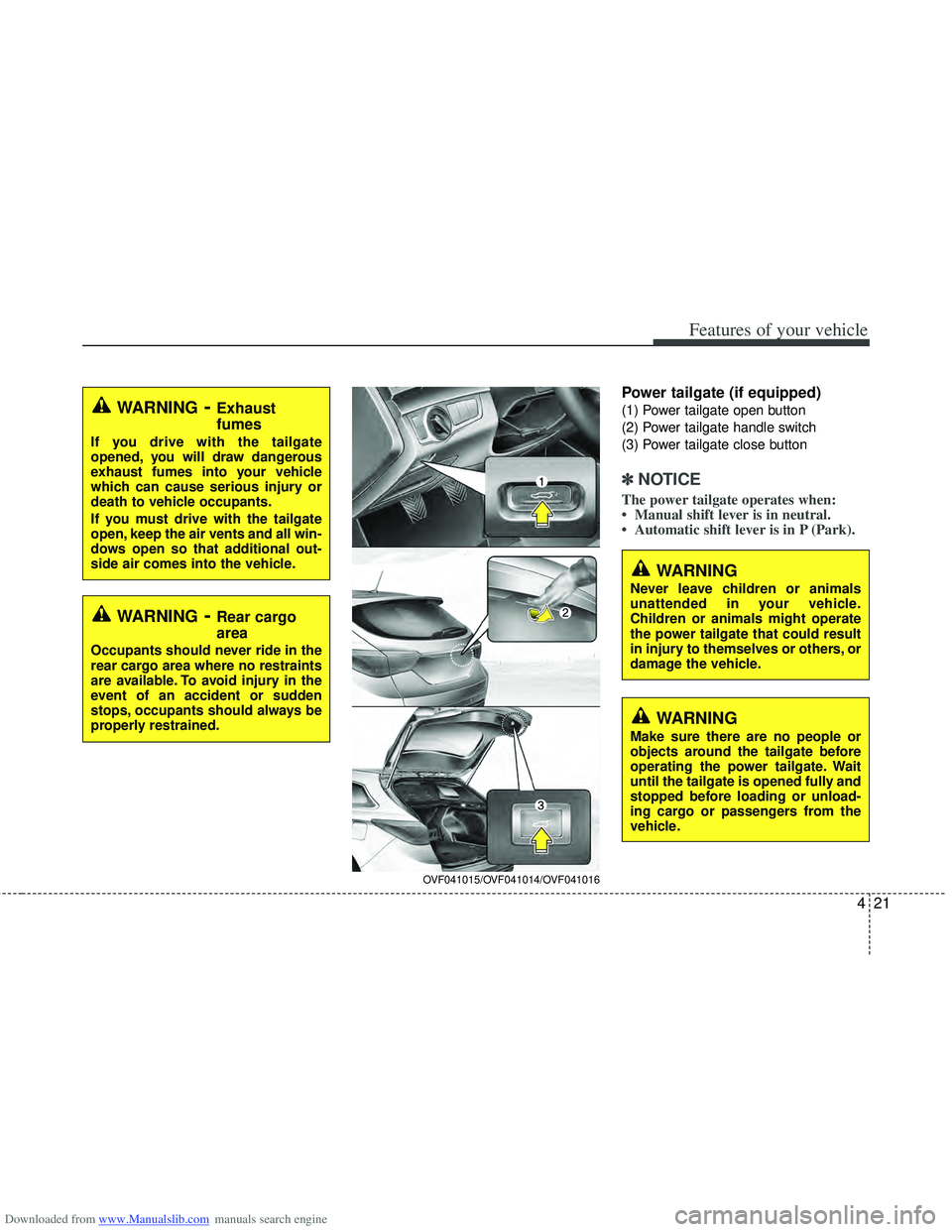

Downloaded from www.Manualslib.com manuals search engine 421
Features of your vehicle
Power tailgate (if equipped)
(1) Power tailgate open button
(2) Power tailgate handle switch
(3) Power tailgate close button
✽ ✽NOTICE
The power tailgate operates when:
• Manual shift lever is in neutral.
• Automatic shift lever is in P (Park).
WARNING- Exhaust
fumes
If you drive with the tailgate
opened, you will draw dangerous
exhaust fumes into your vehicle
which can cause serious injury or
death to vehicle occupants.
If you must drive with the tailgate
open, keep the air vents and all win-
dows open so that additional out-
side air comes into the vehicle.
WARNING- Rear cargo
area
Occupants should never ride in the
rear cargo area where no restraints
are available. To avoid injury in the
event of an accident or sudden
stops, occupants should always be
properly restrained.
OVF041015/OVF041014/OVF041016
WARNING
Never leave children or animals
unattended in your vehicle.
Children or animals might operate
the power tailgate that could result
in injury to themselves or others, or
damage the vehicle.
WARNING
Make sure there are no people or
objects around the tailgate before
operating the power tailgate. Wait
until the tailgate is opened fully and
stopped before loading or unload-
ing cargo or passengers from the
vehicle.

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
22
4

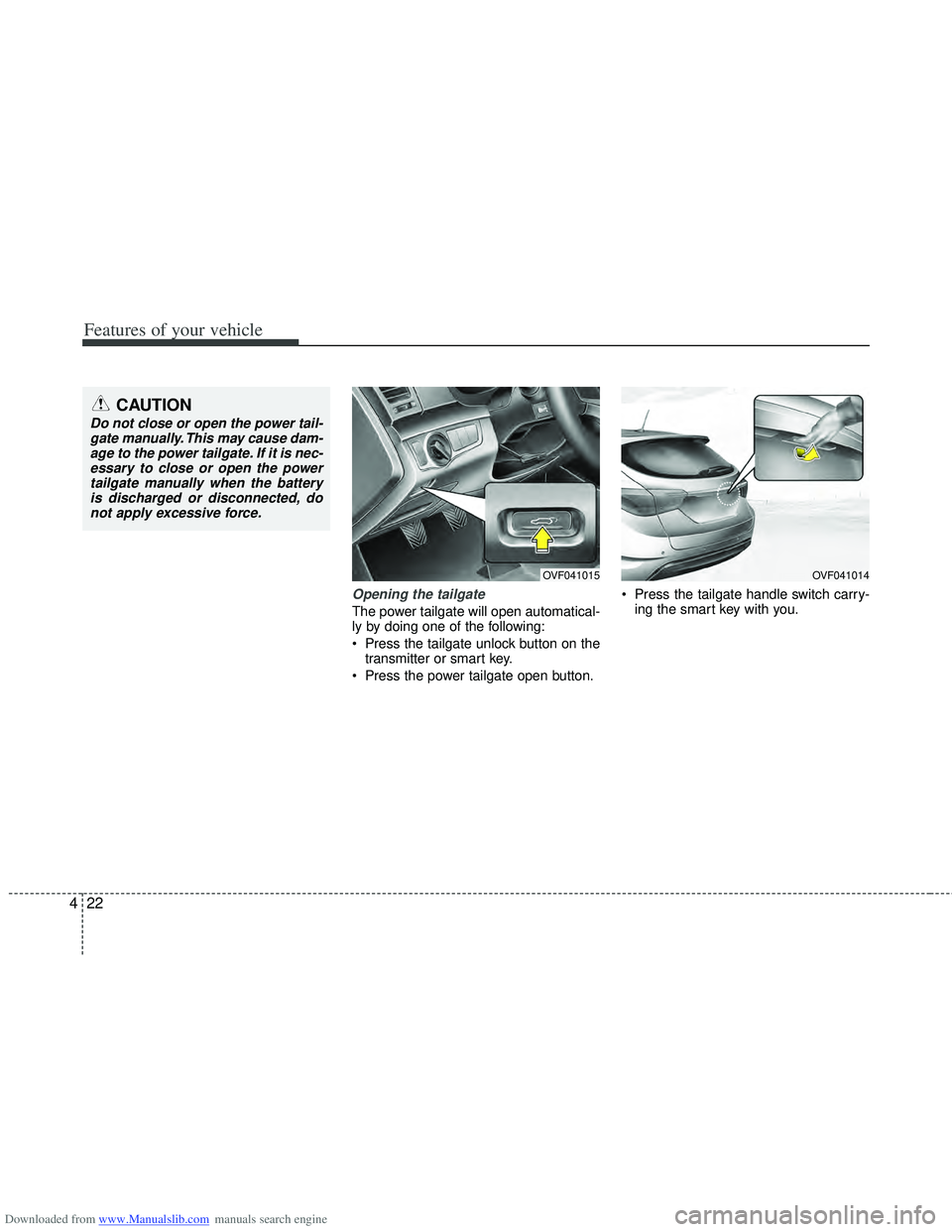

Opening the tailgate
The power tailgate will open automatical-
ly by doing one of the following:
Press the tailgate unlock button on the
transmitter or smart key.
Press the power tailgate open button. Press the tailgate handle switch carry-
ing the smart key with you.
OVF041015OVF041014
CAUTION
Do not close or open the power tail-gate manually. This may cause dam-age to the power tailgate. If it is nec-essary to close or open the powertailgate manually when the battery is discharged or disconnected, donot apply excessive force.

Downloaded from www.Manualslib.com manuals search engine 423
Features of your vehicle

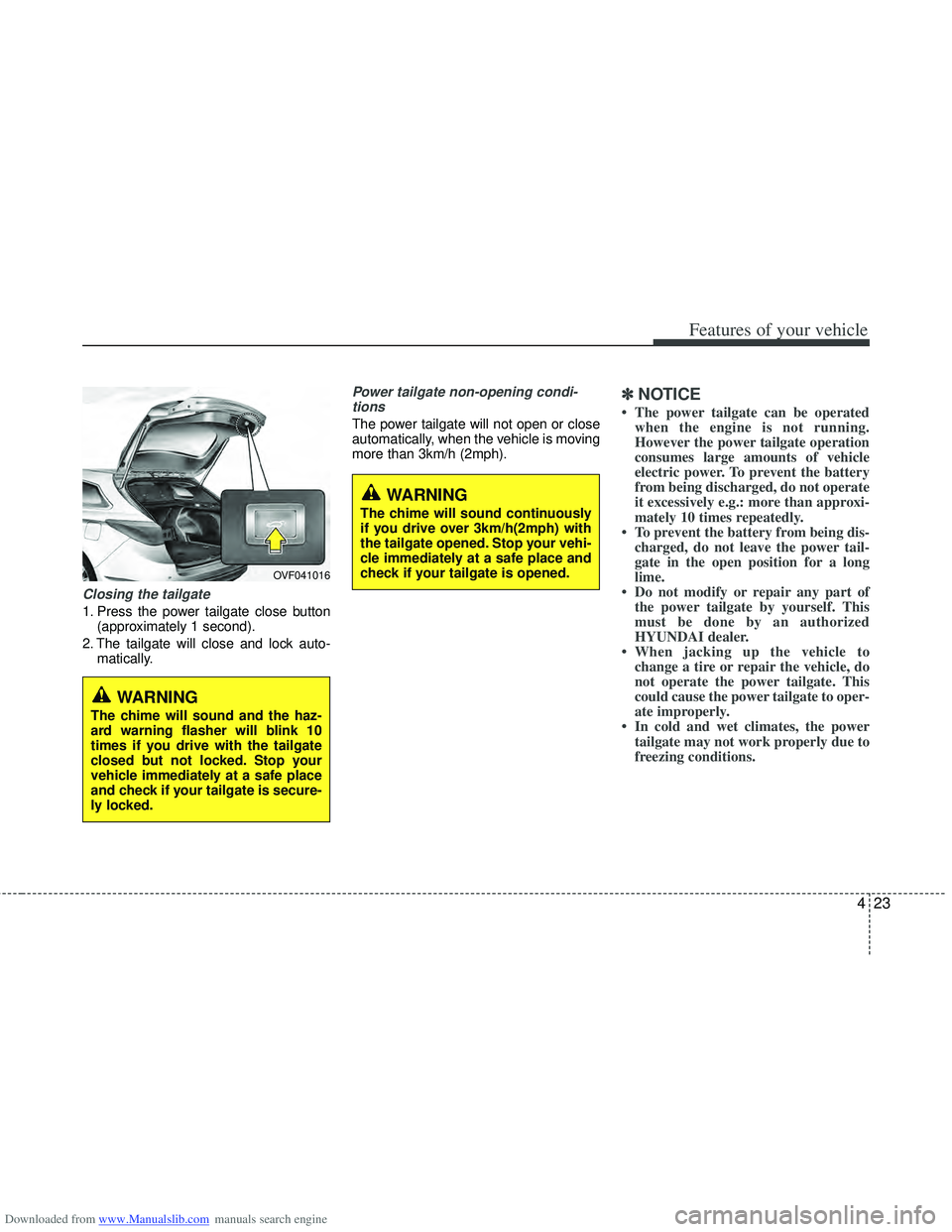

Closing the tailgate
1. Press the power tailgate close button(approximately 1 second).
2. The tailgate will close and lock auto- matically.
Power tailgate non-opening condi-tions
The power tailgate will not open or close
automatically, when the vehicle is moving
more than 3km/h (2mph).
✽ ✽ NOTICE
• The power tailgate can be operated
when the engine is not running.
However the power tailgate operation
consumes large amounts of vehicle
electric power. To prevent the battery
from being discharged, do not operate
it excessively e.g.: more than approxi-
mately 10 times repeatedly.
• To prevent the battery from being dis- charged, do not leave the power tail-
gate in the open position for a long
lime.
• Do not modify or repair any part of the power tailgate by yourself. This
must be done by an authorized
HYUNDAI dealer.
• When jacking up the vehicle to change a tire or repair the vehicle, do
not operate the power tailgate. This
could cause the power tailgate to oper-
ate improperly.
• In cold and wet climates, the power tailgate may not work properly due to
freezing conditions.
OVF041016
WARNING
The chime will sound and the haz-
ard warning flasher will blink 10
times if you drive with the tailgate
closed but not locked. Stop your
vehicle immediately at a safe place
and check if your tailgate is secure-
ly locked.
WARNING
The chime will sound continuously
if you drive over 3km/h(2mph) with
the tailgate opened. Stop your vehi-
cle immediately at a safe place and
check if your tailgate is opened.
