HYUNDAI I40 2014 Owner's Manual
Manufacturer: HYUNDAI, Model Year: 2014, Model line: I40, Model: HYUNDAI I40 2014Pages: 534, PDF Size: 11.05 MB

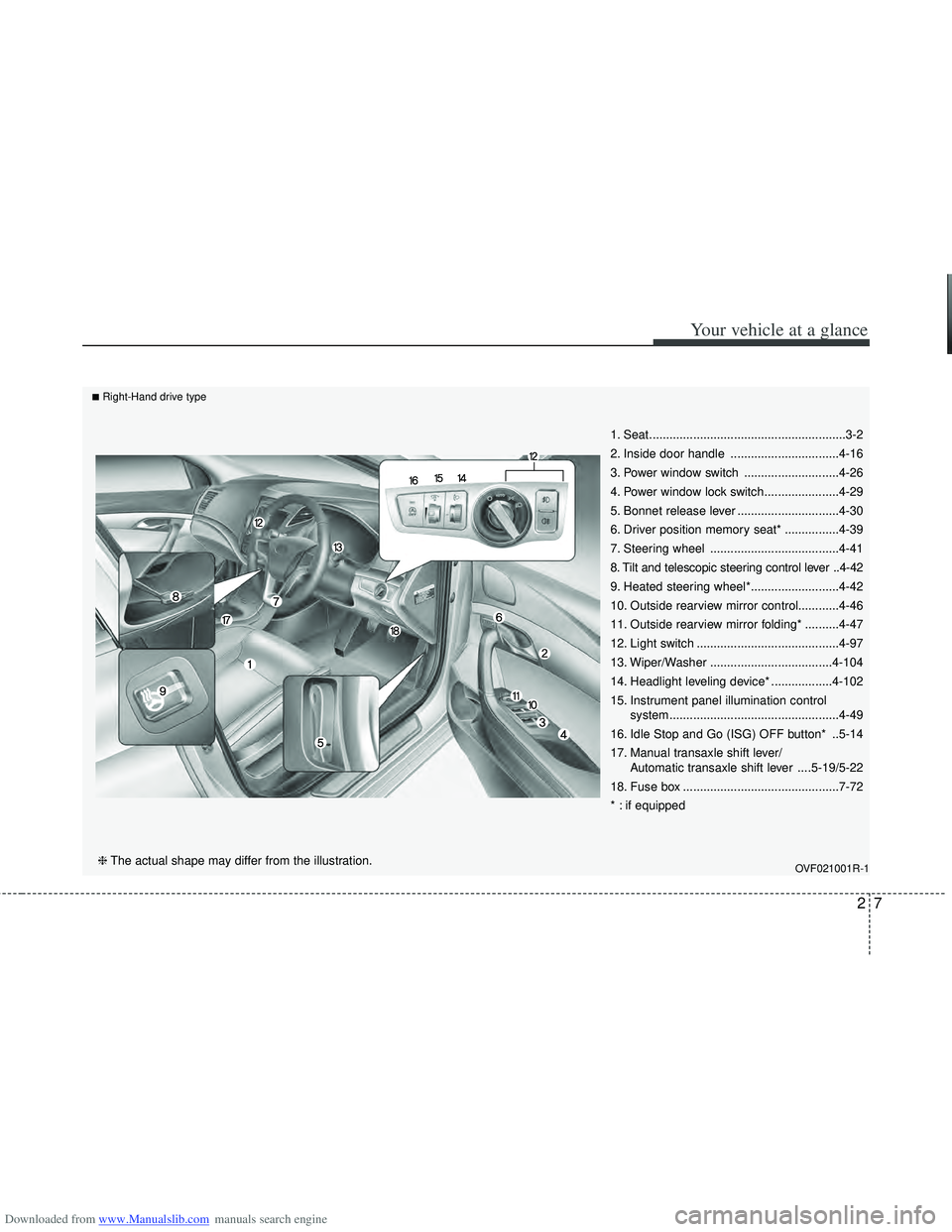

Page 21 of 534
Downloaded from www.Manualslib.com manuals search engine 27
Your vehicle at a glance
1. Seat..........................................................3-2
2. Inside door handle ................................4-16
3. Power window switch ............................4-26
4. Power window lock switch......................4-29
5. Bonnet release lever ..............................4-30
6. Driver position memory seat* ................4-39
7. Steering wheel ......................................4-41
8. Tilt and telescopic steering control lever ..4-42
9. Heated steering wheel*..........................4-42
10. Outside rearview mirror control............4-46
11. Outside rearview mirror folding* ..........4-47
12. Light switch ..........................................4-97
13. Wiper/Washer ....................................4-104
14. Headlight leveling device* ..................4-102
15. Instrument panel illumination control system..................................................4-49
16. Idle Stop and Go (ISG) OFF button* ..5-14
17. Manual transaxle shift lever/ Automatic transaxle shift lever ....5-19/5-22
18. Fuse box ..............................................7-72
* : if equipped
OVF021001R-1❈ The actual shape may differ from the illustration.
■Right-Hand drive type

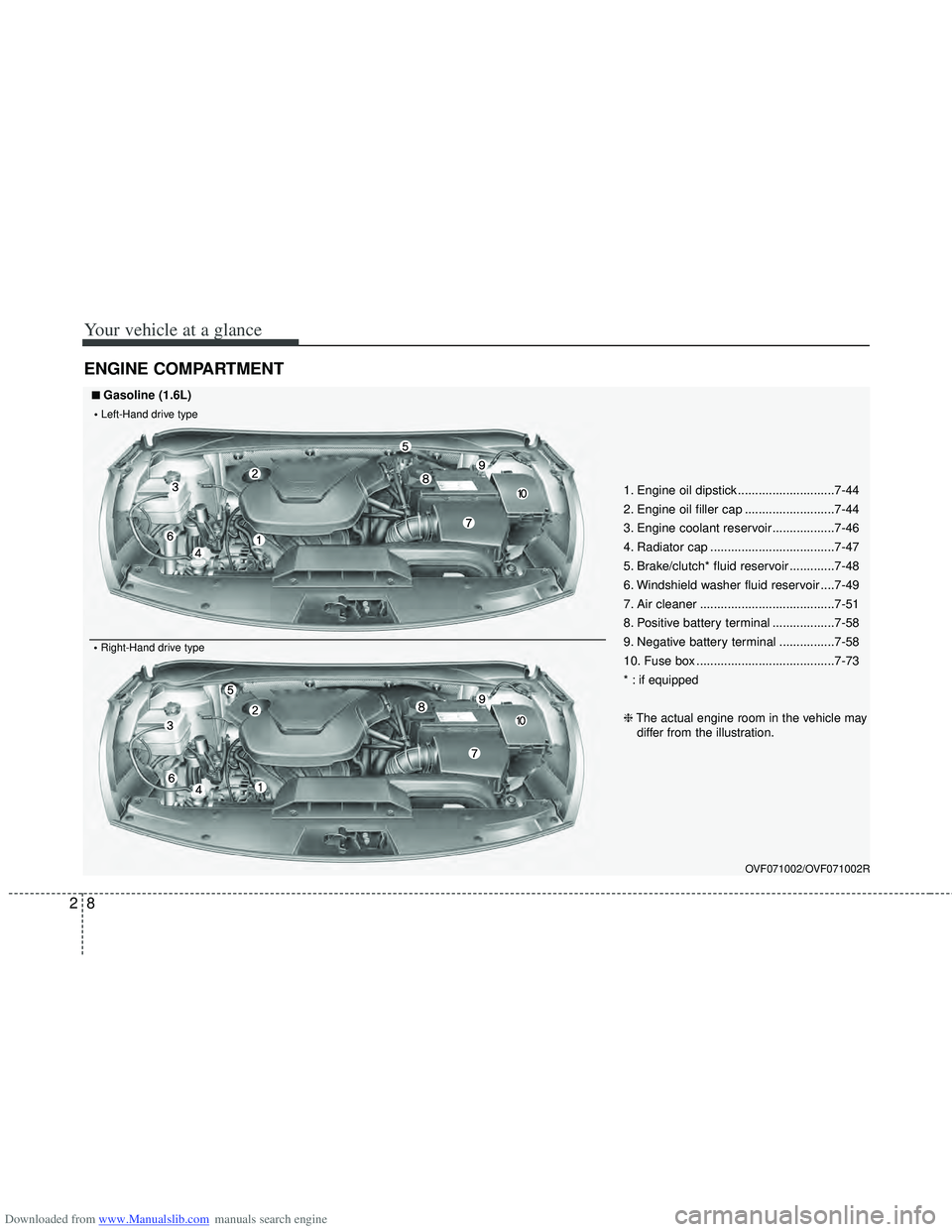

Page 22 of 534
Downloaded from www.Manualslib.com manuals search engine Your vehicle at a glance
82
ENGINE COMPARTMENT
OVF071002/OVF071002R
1. Engine oil dipstick ............................7-44
2. Engine oil filler cap ..........................7-44
3. Engine coolant reservoir ..................7-46
4. Radiator cap ....................................7-47
5. Brake/clutch* fluid reservoir .............7-48
6. Windshield washer fluid reservoir ....7-49
7. Air cleaner .......................................7-51
8. Positive battery terminal ..................7-58
9. Negative battery terminal ................7-58
10. Fuse box ........................................7-73
* : if equipped
❈The actual engine room in the vehicle may
differ from the illustration.
■
■Gasoline (1.6L)
• Right-Hand drive type
Left-Hand drive type

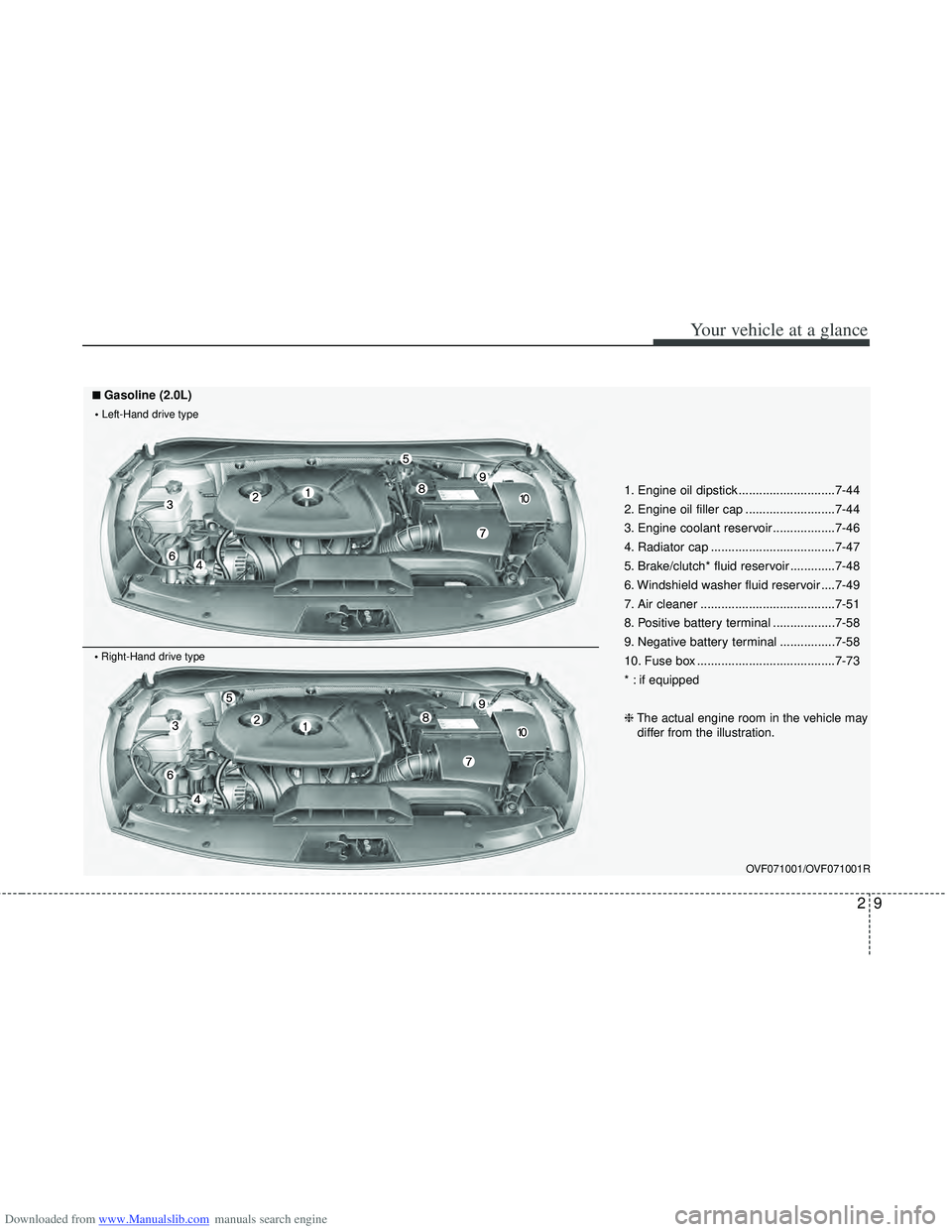

Page 23 of 534
Downloaded from www.Manualslib.com manuals search engine 29
Your vehicle at a glance
OVF071001/OVF071001R
1. Engine oil dipstick ............................7-44
2. Engine oil filler cap ..........................7-44
3. Engine coolant reservoir ..................7-46
4. Radiator cap ....................................7-47
5. Brake/clutch* fluid reservoir .............7-48
6. Windshield washer fluid reservoir ....7-49
7. Air cleaner .......................................7-51
8. Positive battery terminal ..................7-58
9. Negative battery terminal ................7-58
10. Fuse box ........................................7-73
* : if equipped
❈The actual engine room in the vehicle may
differ from the illustration.
■
■Gasoline (2.0L)
Right-Hand drive type
Left-Hand drive type
Page 24 of 534
Downloaded from www.Manualslib.com manuals search engine 210
Your vehicle at a glance
OVF071003/OVF071003R
1. Engine oil dipstick ............................7-44
2. Engine oil filler cap ..........................7-44
3. Engine coolant reservoir ..................7-46
4. Radiator cap ....................................7-47
5. Brake/clutch* fluid reservoir .............7-48
6. Windshield washer fluid reservoir ....7-49
7. Fuel filter ..........................................7-50
8. Air cleaner ........................................7-51
9. Positive battery terminal ..................7-58
10. Negative battery terminal ..............7-58
11. Fuse box ........................................7-73
* : if equipped
❈The actual engine room in the vehicle may
differ from the illustration.
■
■Diesel Engine (1.7L)
Right-Hand drive type
Left-Hand drive type

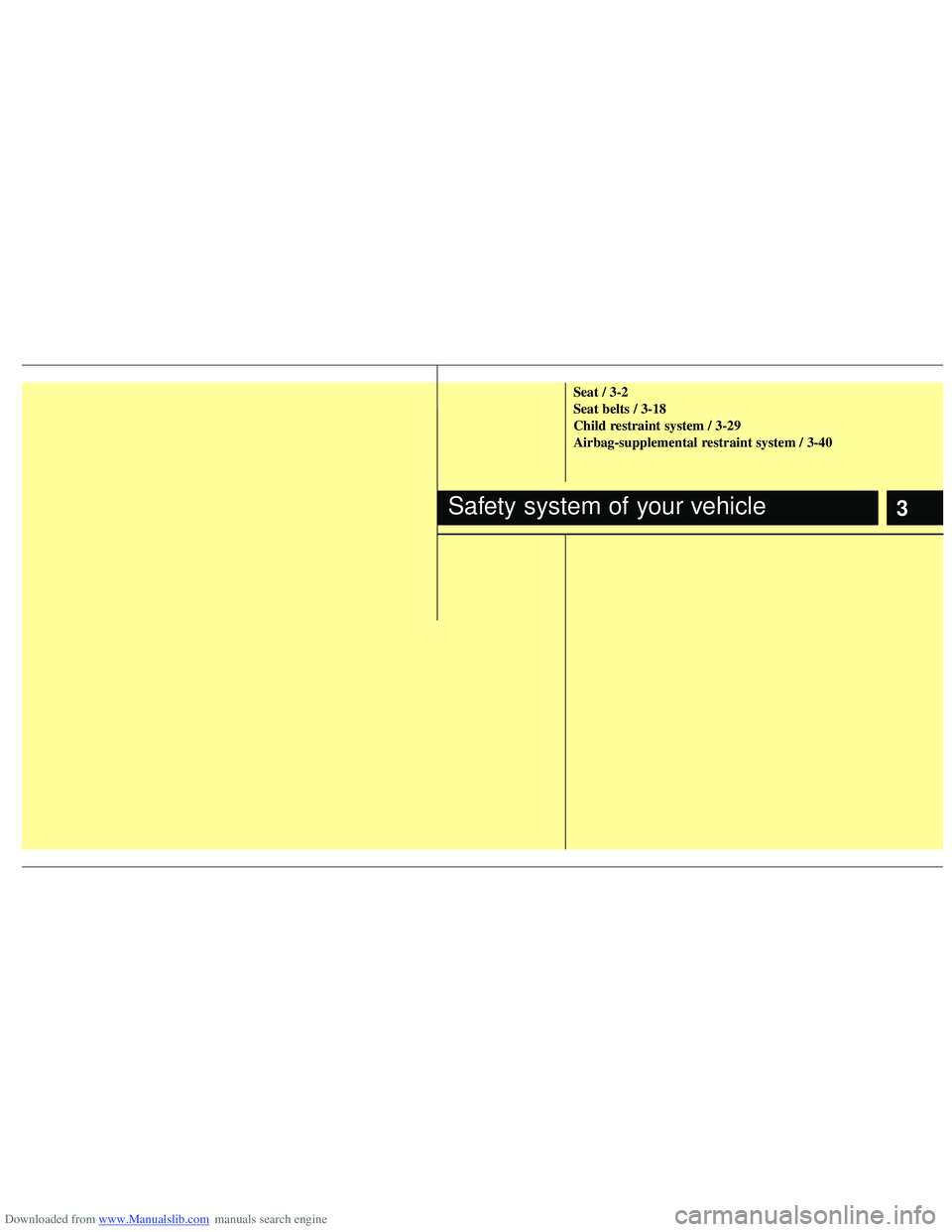

Page 25 of 534
Downloaded from www.Manualslib.com manuals search engine 3
Seat / 3-2
Seat belts / 3-18
Child restraint system / 3-29
Airbag-supplemental restraint system / 3-40
Safety system of your vehicle

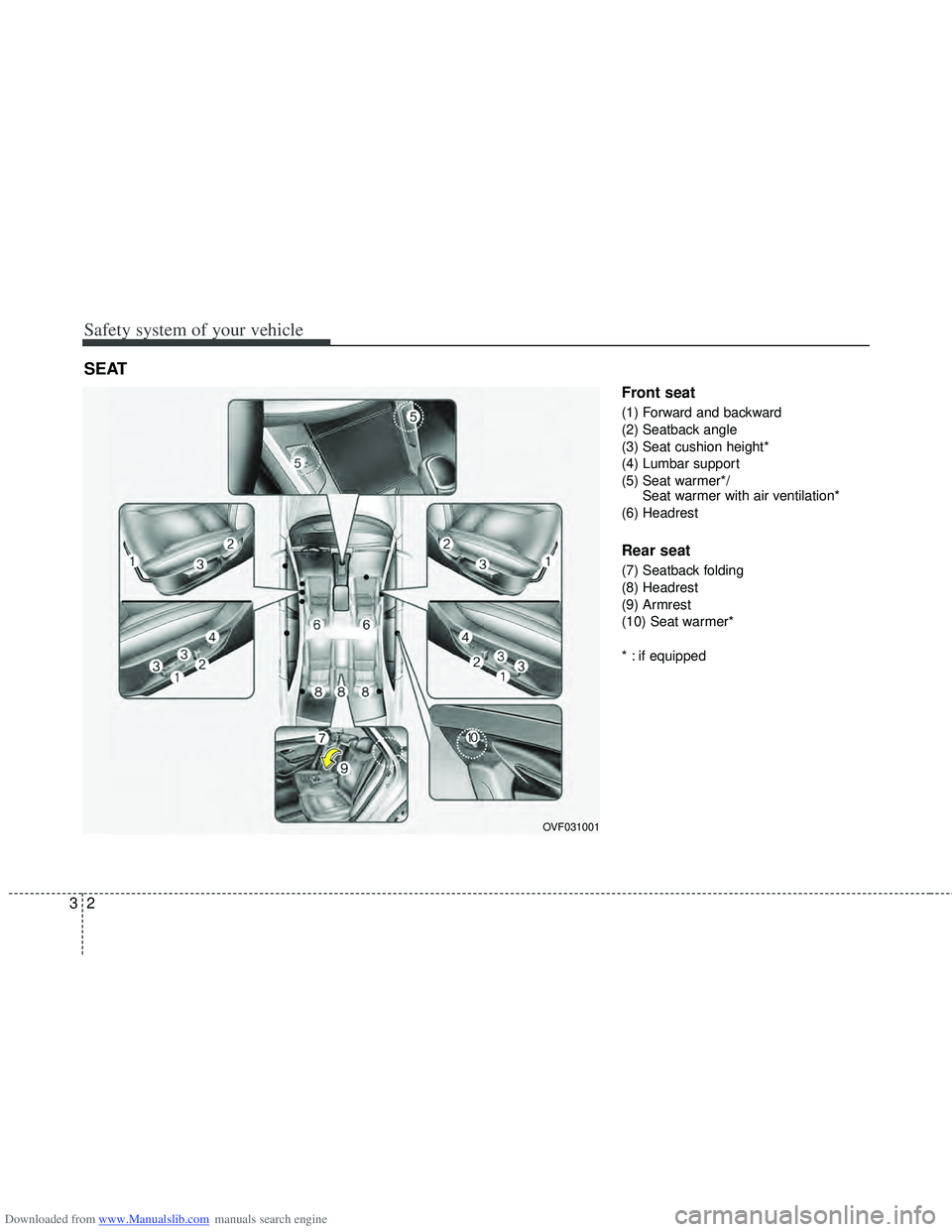

Page 26 of 534
Downloaded from www.Manualslib.com manuals search engine Safety system of your vehicle
23
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height*
(4) Lumbar support
(5) Seat warmer*/Seat warmer with air ventilation*
(6) Headrest
Rear seat
(7) Seatback folding
(8) Headrest
(9) Armrest
(10) Seat warmer*
* : if equipped
SEAT
OVF031001

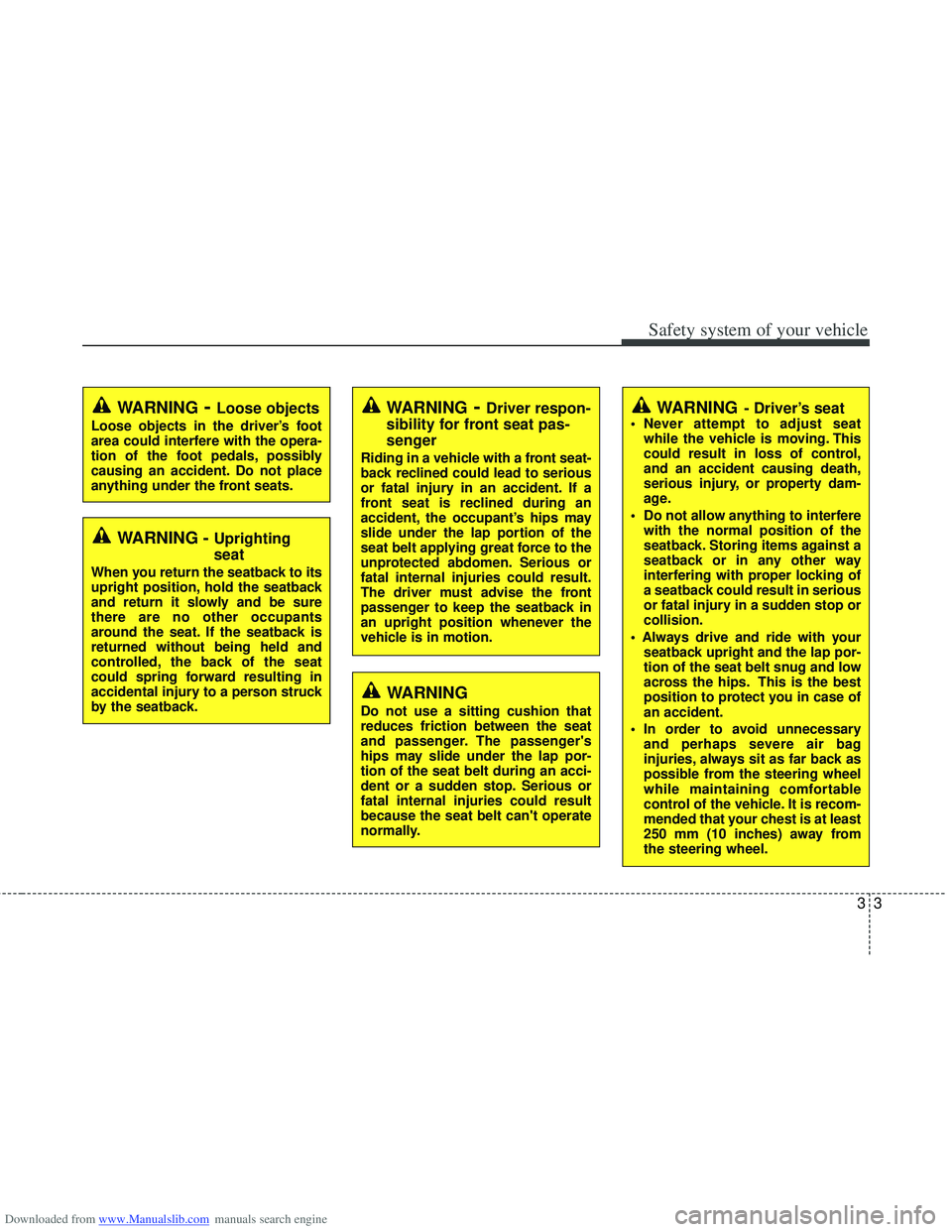

Page 27 of 534
Downloaded from www.Manualslib.com manuals search engine 33
Safety system of your vehicle
WARNING- Driver’s seat Never attempt to adjust seatwhile the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case of
an accident.
In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. It is recom-
mended that your chest is at least
250 mm (10 inches) away from
the steering wheel.
WARNING - Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be sure
there are no other occupants
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could spring forward resulting in
accidental injury to a person struck
by the seatback.
WARNING- Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
WARNING- Driver respon-
sibility for front seat pas-
senger
Riding in a vehicle with a front seat-
back reclined could lead to serious
or fatal injury in an accident. If a
front seat is reclined during an
accident, the occupant’s hips may
slide under the lap portion of the
seat belt applying great force to the
unprotected abdomen. Serious or
fatal internal injuries could result.
The driver must advise the front
passenger to keep the seatback in
an upright position whenever the
vehicle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the seat
and passenger. The passenger's
hips may slide under the lap por-
tion of the seat belt during an acci-
dent or a sudden stop. Serious or
fatal internal injuries could result
because the seat belt can't operate
normally.

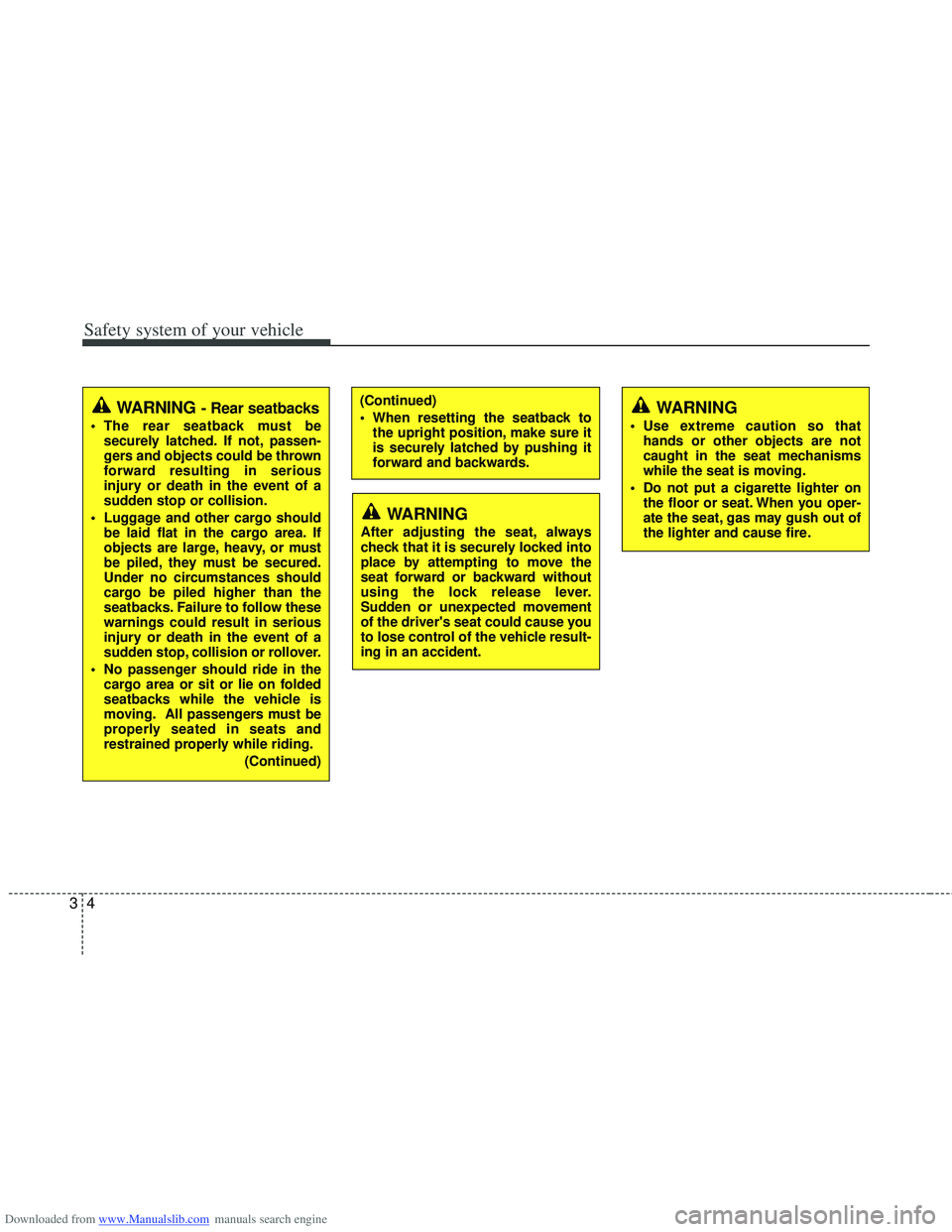

Page 28 of 534
Downloaded from www.Manualslib.com manuals search engine Safety system of your vehicle
43
(Continued)
When resetting the seatback tothe upright position, make sure it
is securely latched by pushing it
forward and backwards.WARNING- Rear seatbacks
The rear seatback must besecurely latched. If not, passen-
gers and objects could be thrown
forward resulting in serious
injury or death in the event of a
sudden stop or collision.
Luggage and other cargo should be laid flat in the cargo area. If
objects are large, heavy, or must
be piled, they must be secured.
Under no circumstances should
cargo be piled higher than the
seatbacks. Failure to follow these
warnings could result in serious
injury or death in the event of a
sudden stop, collision or rollover.
No passenger should ride in the cargo area or sit or lie on folded
seatbacks while the vehicle is
moving. All passengers must be
properly seated in seats and
restrained properly while riding.
(Continued)
WARNING
After adjusting the seat, always
check that it is securely locked into
place by attempting to move the
seat forward or backward without
using the lock release lever.
Sudden or unexpected movement
of the driver's seat could cause you
to lose control of the vehicle result-
ing in an accident.
WARNING
Use extreme caution so thathands or other objects are not
caught in the seat mechanisms
while the seat is moving.
Do not put a cigarette lighter on the floor or seat. When you oper-
ate the seat, gas may gush out of
the lighter and cause fire.

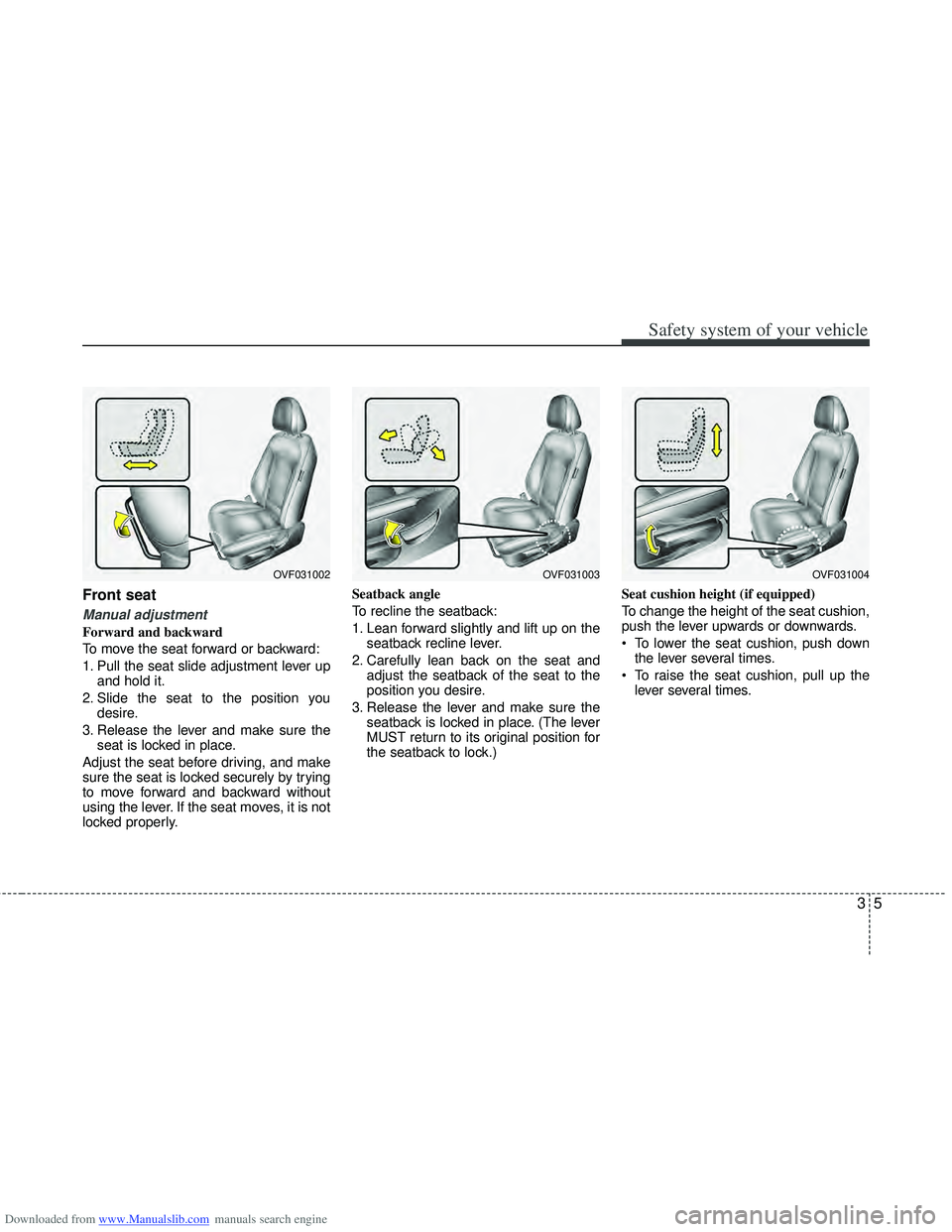

Page 29 of 534
Downloaded from www.Manualslib.com manuals search engine 35
Safety system of your vehicle
Front seat
Manual adjustment
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment lever upand hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly. Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up on the
seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.) Seat cushion height (if equipped)
To change the height of the seat cushion,
push the lever upwards or downwards.
• To lower the seat cushion, push down
the lever several times.
To raise the seat cushion, pull up the lever several times.
OVF031002OVF031003OVF031004

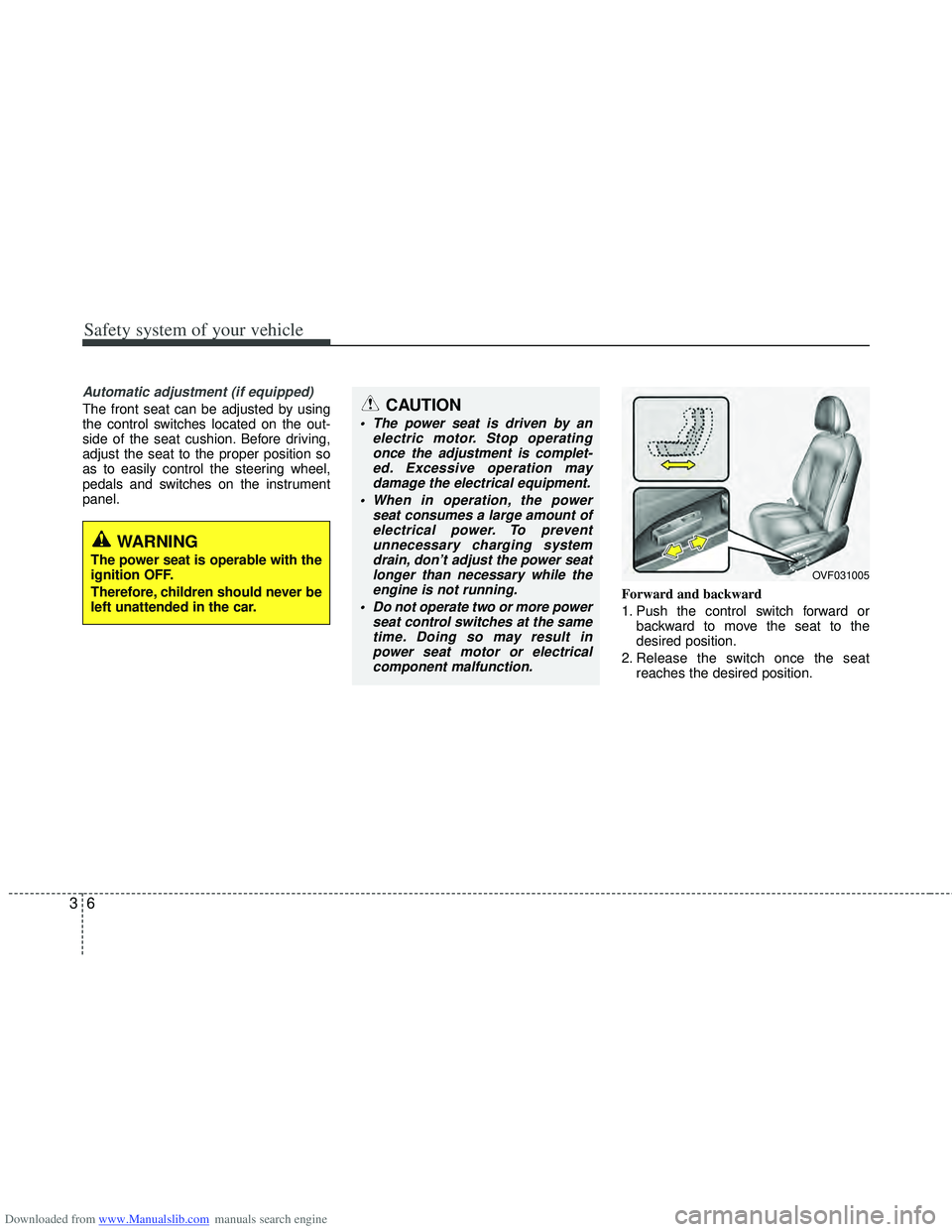

Page 30 of 534
Downloaded from www.Manualslib.com manuals search engine Safety system of your vehicle
63
Automatic adjustment (if equipped)
The front seat can be adjusted by using
the control switches located on the out-
side of the seat cushion. Before driving,
adjust the seat to the proper position so
as to easily control the steering wheel,
pedals and switches on the instrument
panel.Forward and backward
1. Push the control switch forward orbackward to move the seat to the
desired position.
2. Release the switch once the seat reaches the desired position.
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the car.
CAUTION
The power seat is driven by an electric motor. Stop operatingonce the adjustment is complet-ed. Excessive operation maydamage the electrical equipment.
When in operation, the power seat consumes a large amount ofelectrical power. To preventunnecessary charging systemdrain, don’t adjust the power seatlonger than necessary while theengine is not running.
Do not operate two or more power seat control switches at the sametime. Doing so may result inpower seat motor or electricalcomponent malfunction.
OVF031005
