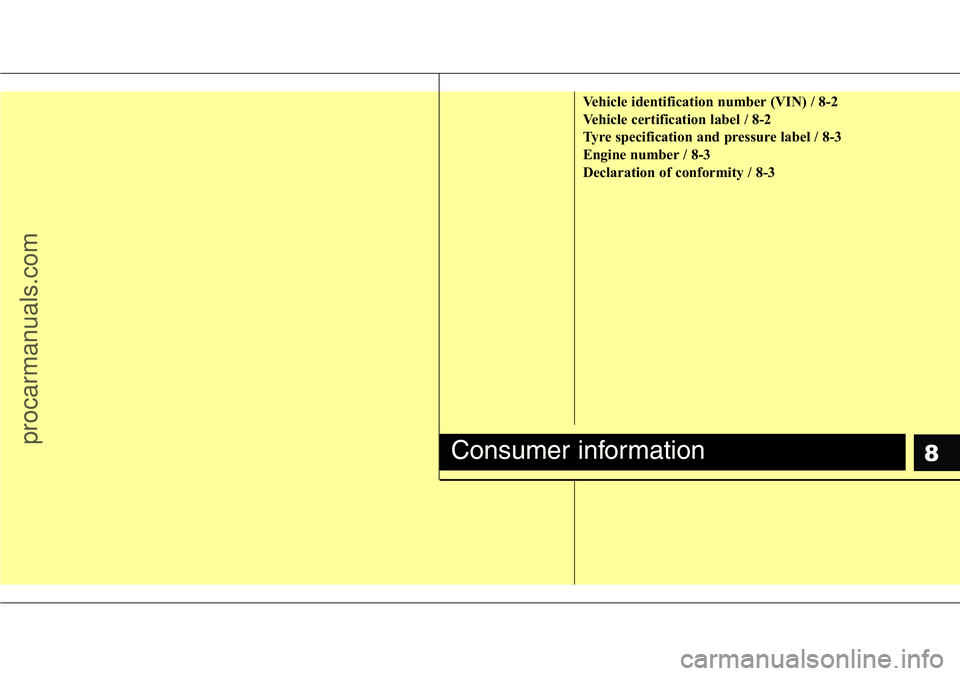

8
Vehicle identification number (VIN) / 8-2
Vehicle certification label / 8-2
Tyre specification and pressure label / 8-3
Engine number / 8-3
Declaration of conformity / 8-3
Consumer information
procarmanuals.com

Consumer information
2 8

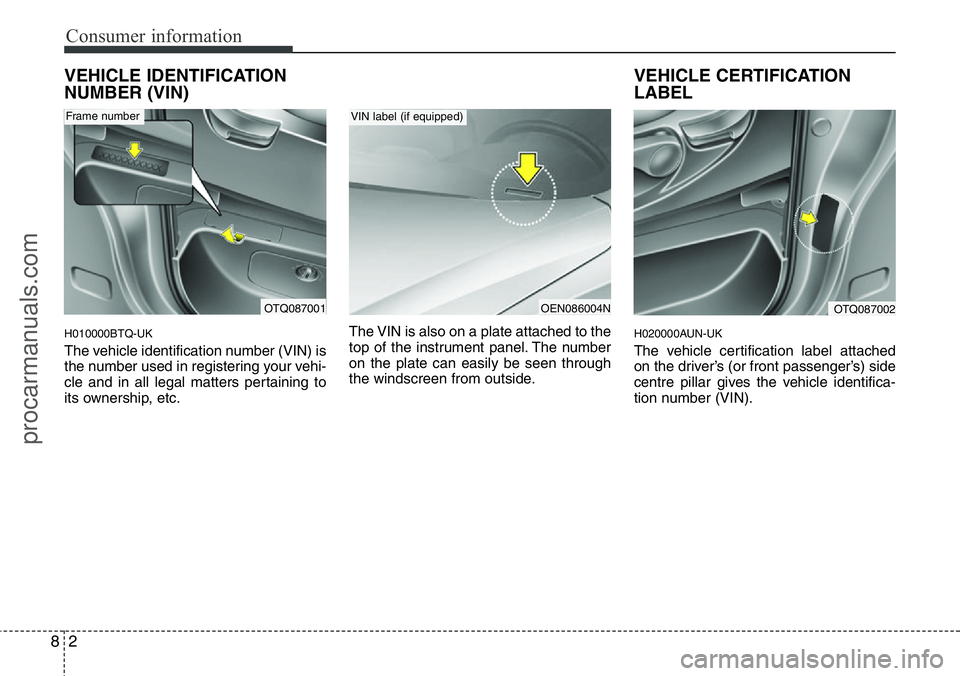

VEHICLE IDENTIFICATION
NUMBER (VIN)
H010000BTQ-UK
The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.The VIN is also on a plate attached to the
top of the instrument panel. The number
on the plate can easily be seen through
the windscreen from outside.
VEHICLE CERTIFICATION
LABEL
H020000AUN-UK
The vehicle certification label attached
on the driver’s (or front passenger’s) side
centre pillar gives the vehicle identifica-
tion number (VIN).
OTQ087001OEN086004N
VIN label (if equipped)Frame number
OTQ087002
procarmanuals.com

83
Consumer information

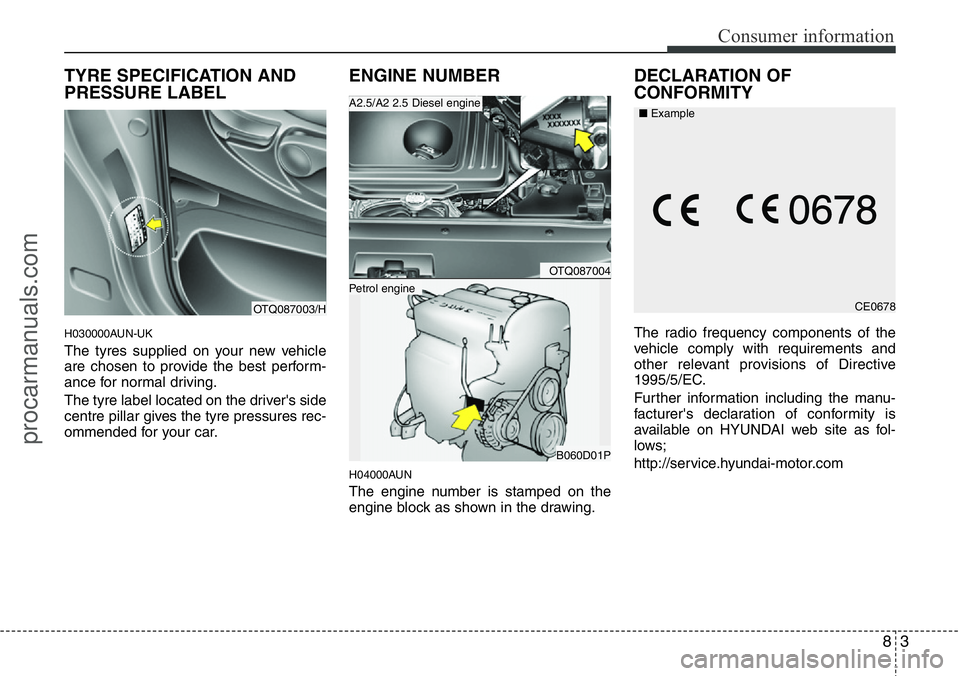

TYRE SPECIFICATION AND
PRESSURE LABEL
H030000AUN-UK
The tyres supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tyre label located on the driver's side
centre pillar gives the tyre pressures rec-
ommended for your car.
ENGINE NUMBER
H04000AUN
The engine number is stamped on the
engine block as shown in the drawing.
DECLARATION OF
CONFORMITY
The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on HYUNDAI web site as fol-
lows;
http://service.hyundai-motor.com
OTQ087003/H
OTQ087004
B060D01P
Petrol engine
A2.5/A2 2.5 Diesel engine
CE0678 ■Example
procarmanuals.com

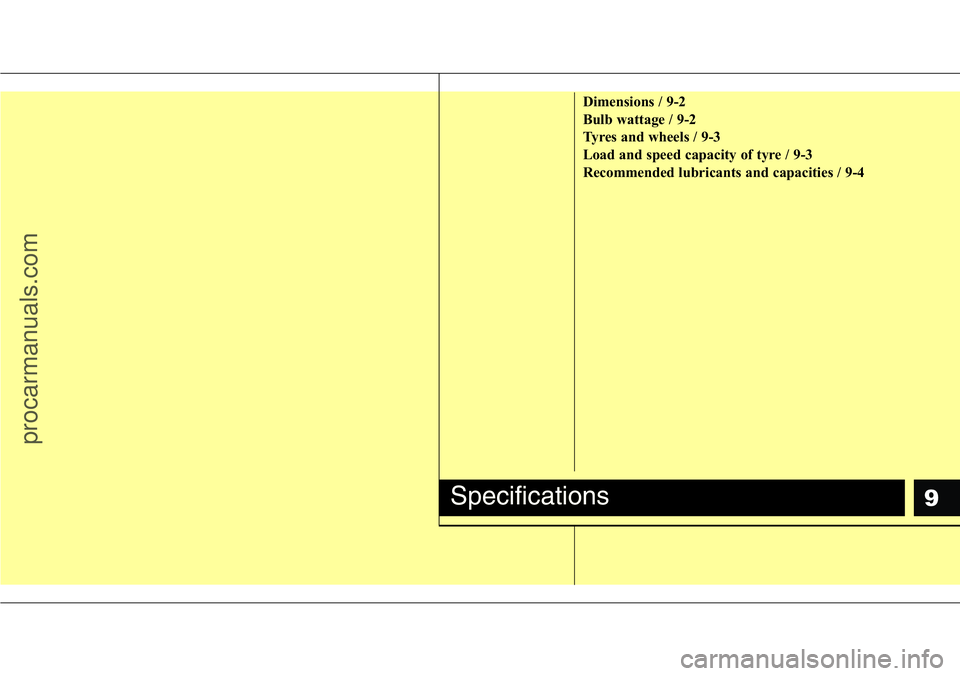

9
Dimensions / 9-2
Bulb wattage / 9-2
Tyres and wheels / 9-3
Load and speed capacity of tyre / 9-3
Recommended lubricants and capacities / 9-4
Specifications
procarmanuals.com

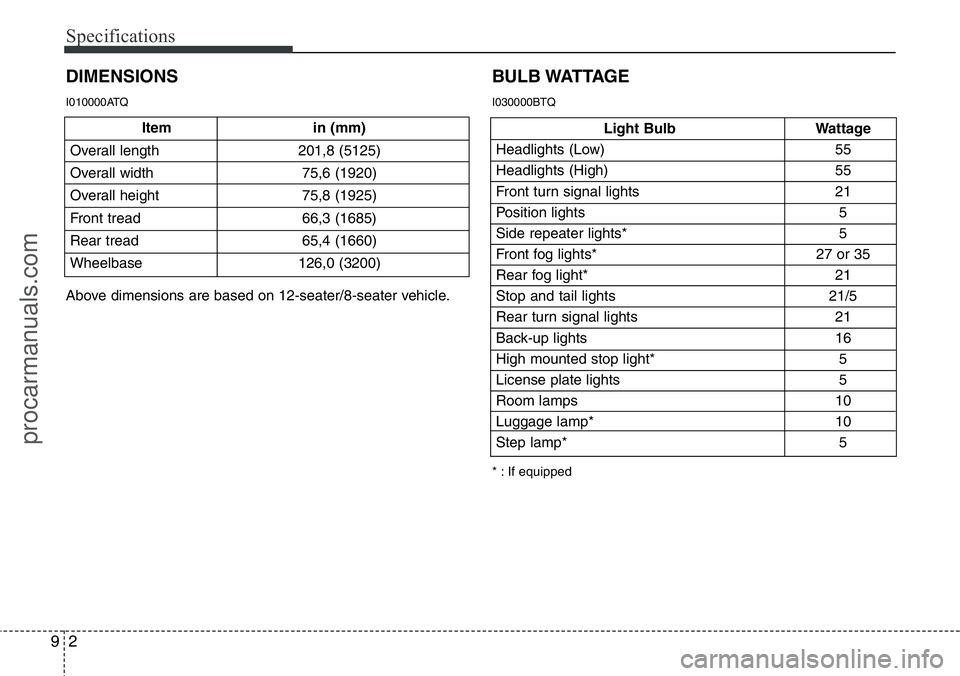

Specifications
2 9
Item in (mm)
Overall length 201,8 (5125)
Overall width 75,6 (1920)
Overall height 75,8 (1925)
Front tread 66,3 (1685)
Rear tread 65,4 (1660)
Wheelbase 126,0 (3200)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights 21
Position lights 5
Side repeater lights* 5
Front fog lights* 27 or 35
Rear fog light* 21
Stop and tail lights 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light* 5
License plate lights 5
Room lamps 10
Luggage lamp* 10
Step lamp* 5
BULB WATTAGE
* : If equipped
Above dimensions are based on 12-seater/8-seater vehicle.
I010000ATQI030000BTQ
procarmanuals.com

93
Specifications

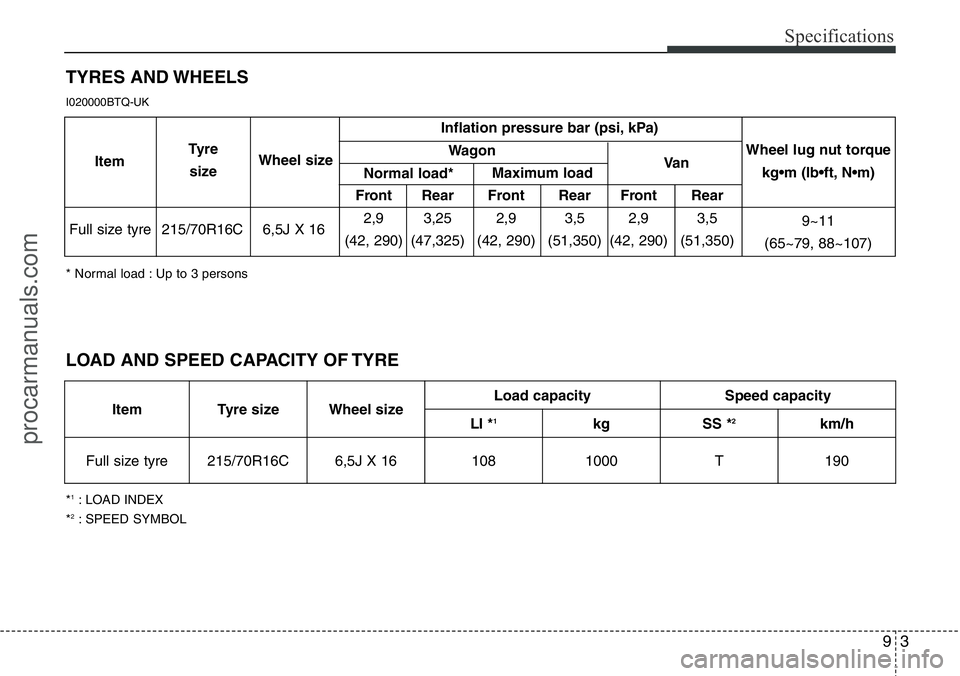

TYRES AND WHEELS
* Normal load : Up to 3 persons
*
1: LOAD INDEX
*2: SPEED SYMBOL
I020000BTQ-UK
Inflation pressure bar (psi, kPa)
Wagon
Front Rear Front Rear Front Rear
215/70R16C 6,5J X 162,9 3,25 2,9 3,5 2,9 3,5
(42, 290) (47,325) (42, 290) (51,350) (42, 290) (51,350)
Full size tyreWheel lug nut torque
kg•m (lb•ft, N•m)
9~11
(65~79, 88~107) ItemTyre
sizeWheel size
Normal load*Maximum loadVa n
ItemTyre sizeWheel sizeLoad capacitySpeed capacity
LI *1kgSS *2km/h
Full size tyre215/70R16C6,5J X 161081000T190
LOAD AND SPEED CAPACITY OF TYRE
procarmanuals.com

Specifications
4 9
RECOMMENDED LUBRICANTS AND CAPACITIES
I040000HTQ-UK
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*
1Refer to the recommended SAE viscosity numbers on page 9-6.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo-
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3VGT : Variable Geometry Turbocharger
*4WGT : Waste Gate Turbocharger
*5DPF : Diesel Particulate Filter
*6 If the API service SM engine oil is not available in your country, you are able to use API service SL.Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
RecommendsDiesel engine7,4 l
(6,51 Imp. qts.)VGT*
3
- without DPF*5: API Service CH-4 or above, ACEA B4
- with DPF*5: ACEA C3
WGT*4
- without DPF*5: API Service CF-4 or above, ACEA B4
- with DPF*5: ACEA C3
Petrol engine5,1 l
(4,49 Imp. qts.)API Service SM *
6, ILSAC GF-4 or above
Engine oil
consumptionNormal driving conditionMAX. 1 l/1500 km
-
Severe driving conditionMAX. 1 l/1000 km
-
Manual transmission
fluid Diesel engineA2,53,0 l (2,64 Imp. qts.)
API Service GL-4
SAE 75W/85 A2 2,52,2l (1,94 Imp. qts.)
Petrol engine1,95 l
(1,71 Imp. qts.)
procarmanuals.com

95
Specifications
Lubricant Volume Classification
Automatic transmis-
sion fluidDiesel engine10,0 l
(8,79 Imp. qts.)APOLLOIL ATF RED-1
Petrol engine8,0 l (7,03 Imp. qts.)CASTLE AUTO FLUID T-IV, DIAMOND ATF SP-I
Power steering
0,9~1,0 l
(0,79~0,87 Imp. qts.)PSF-3
CoolantWagonDiesel engine13 l (11,43 Imp. qts.)
Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminium radiator) Petrol engine10,2 l
(8,97 Imp. qts.)
Va nDiesel engine10 l (8,79 Imp. qts.)
Petrol engine7,1 l (6,24 Imp. qts.)
Brake fluid0,7~0,8 l
(0,61~0,70 Imp. qts.)FMVSS116 DOT-3 or DOT-4
Rear axle oil2,1l (1,85 Imp. qts.)The temperate zone (-30°C~30°C) : API GL-4 (SAE 90)
The torrid zone (30°C~) : API GL-4 (SAE 140)
The frigid zone (~-30°C) : API GL-5 (SAE 80)
Fuel75 l(16,49 Imp. gal.)
-
Available Engine oil (For Europe A2 2.5 Diesel engine)
Supplier Product
Shell HELIX ULTRA AP 5W-30
SK ZIC LS 5W-30
Chevron KIXX D1 5W-30
Total QUARTZ INEO MC3 5W-30
procarmanuals.com

Specifications
6 9
I040100DUN-UK

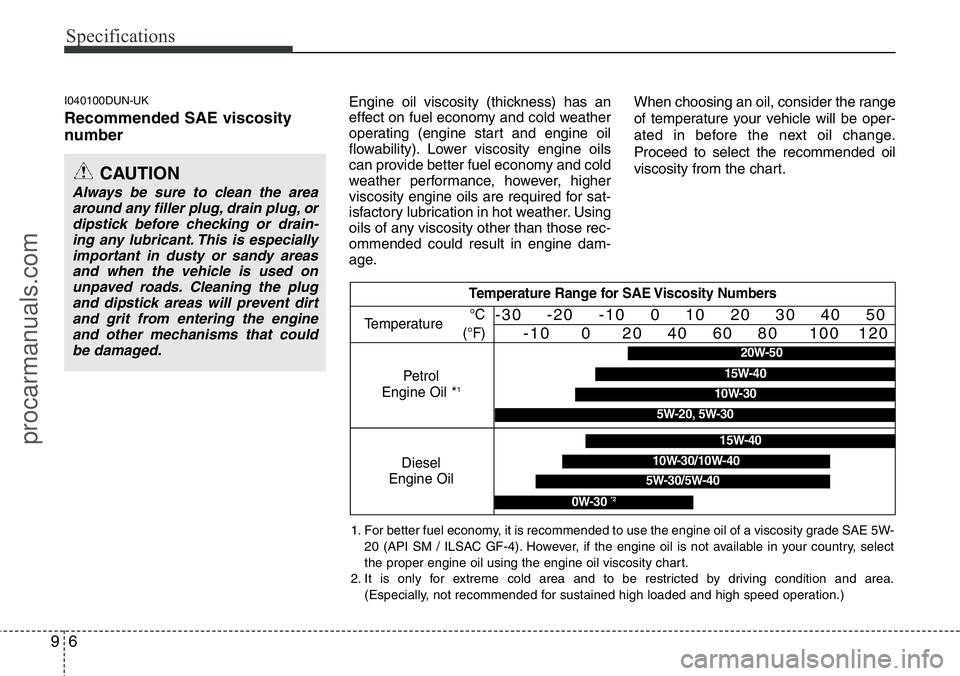

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Petrol
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30/5W-40
15W-40
10W-30/10W-40
0W-30 *2
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
2. It is only for extreme cold area and to be restricted by driving condition and area.
(Especially, not recommended for sustained high loaded and high speed operation.)
20W-50
10W-30
15W-40
5W-20, 5W-30
