HYUNDAI IONIQ 5 2022 Owners Manual

04
4-33

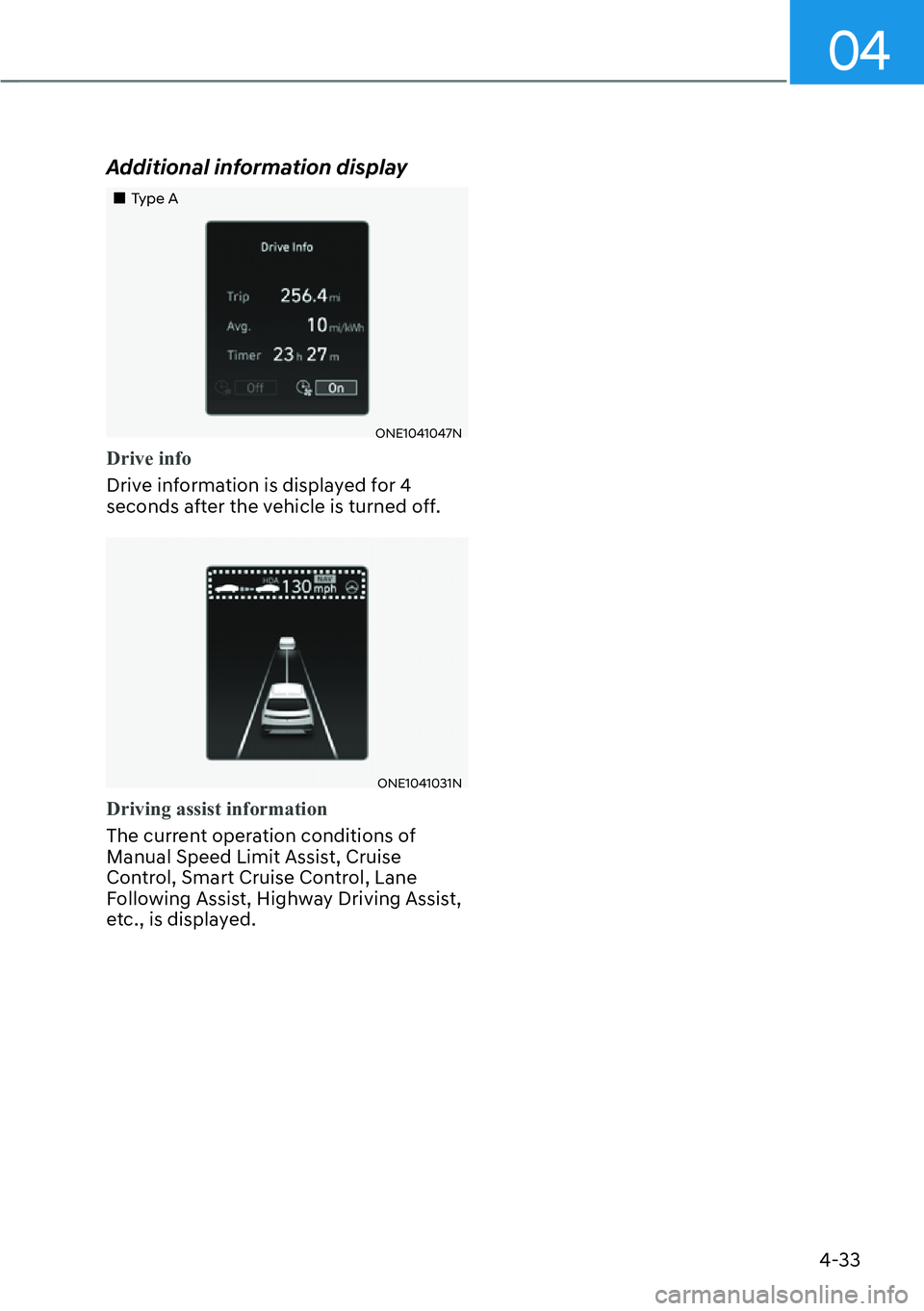

Additional information display
„Type A
ONE1041047N
Drive info
Drive information is displayed for 4
seconds after the vehicle is turned off.
ONE1041031N
Driving assist information
The current operation conditions of
Manual Speed Limit Assist, Cruise
Control, Smart Cruise Control, Lane
Following Assist, Highway Driving Assist,
etc., is displayed.

Instrument Cluster
4-34
9(+,&/(6(77,1*6

5
5. Convenience Features
Accessing Your Vehicle ..................................................................................... 5-4Smart Key ......................................................................................................................5-4
Immobilizer System ................................................................................................... 5-14
Hyundai Digital Key ....................................................................................................5-15
Door Locks ....................................................................................................... 5-30Operating Door Unlocks from Outside the Vehicle (Manual type) .........................5-30
Operating Door Unlocks from Outside the Vehicle (Electric type) ........................5-30
Operating Door Locks from Outside the Vehicle (Manual type) ............................. 5-32
Operating Door Locks from Outside the Vehicle (Electric type) ............................ 5-32
Operating Door Lock/Unlock from Inside the Vehicle ............................................. 5-34
Automatic Door Lock and Unlock Features ..............................................................5-36
Electronic Child Safety Lock ...................................................................................... 5-37
Vehicle Auto-Shut Off Function ................................................................................5-38
Theft-alarm System ........................................................................................ 5-39
Integrated memory system ............................................................................ 5-40
Storing Memory Positions ........................................................................................ 5-40
Recalling Memory Positions ..................................................................................... 5-40
Resetting the System ................................................................................................. 5-41
Seat Easy Access ........................................................................................................5-42
Memory Seat Configurations ......................................................................... 5-43Storing Memory Positions .........................................................................................5-43
Recalling Memory Positions ......................................................................................5-43
Steering Wheel ................................................................................................ 5-44Electric Power Steering (EPS) ................................................................................... 5-44
Tilt/Telescopic Steering .............................................................................................5-45
Horn............................................................................................................................ 5-46
Heated Steering Wheel ............................................................................................. 5-46
Mirrors ............................................................................................................. 5-48Inside Rearview Mirror .............................................................................................. 5-48
Side View Mirrors .......................................................................................................5-59
Reverse Parking Aid ................................................................................................... 5-61
Windows .......................................................................................................... 5-63Power Windows ......................................................................................................... 5-64
Vision Roof ...................................................................................................... 5-67Resetting the Vision Roof ......................................................................................... 5-69

5
Exterior Features ............................................................................................. 5-70Hood ............................................................................................................................ 5-70
Front trunk ...................................................................................................................5-71
Power Liftgate ............................................................................................................ 5-72
Smart Liftgate ............................................................................................................. 5-78
Electric Charging Door ....................................................................................5-81
Augmented reality HUD ................................................................................. 5-82
Head-up display Settings ..........................................................................................5-82
Head-up display Information ....................................................................................5-83
Precautions while Using the Head-up display ........................................................ 5-84
Lighting ............................................................................................................ 5-85Exterior Lights ............................................................................................................5-85
Interior Lights ............................................................................................................ 5-89
High Beam Assist (HBA) ................................................................................ 5-93High Beam Assist Settings .........................................................................................5-93
High Beam Assist Operation ..................................................................................... 5-94
High Beam Assist Malfunction and Limitations .......................................................5-95
Wipers and Washers ....................................................................................... 5-96Front Windshield Wipers .......................................................................................... 5-96
Front Windshield Washers ........................................................................................ 5-98
Automatic Climate Control System ............................................................... 5-99Climate ...................................................................................................................... 5-100
Automatic Temperature Control Mode ................................................................... 5-100
Manual Temperature Control Mode ........................................................................ 5-102
System Operation ...................................................................................................... 5-110
System Maintenance ................................................................................................. 5-111
Windshield Defrosting and Defogging ..........................................................5-113To Defog Inside Windshield ...................................................................................... 5-113
To Defrost Outside Windshield ................................................................................. 5-114
Defogging Logic ........................................................................................................ 5-114
Rear Window Defroster............................................................................................. 5-115

5

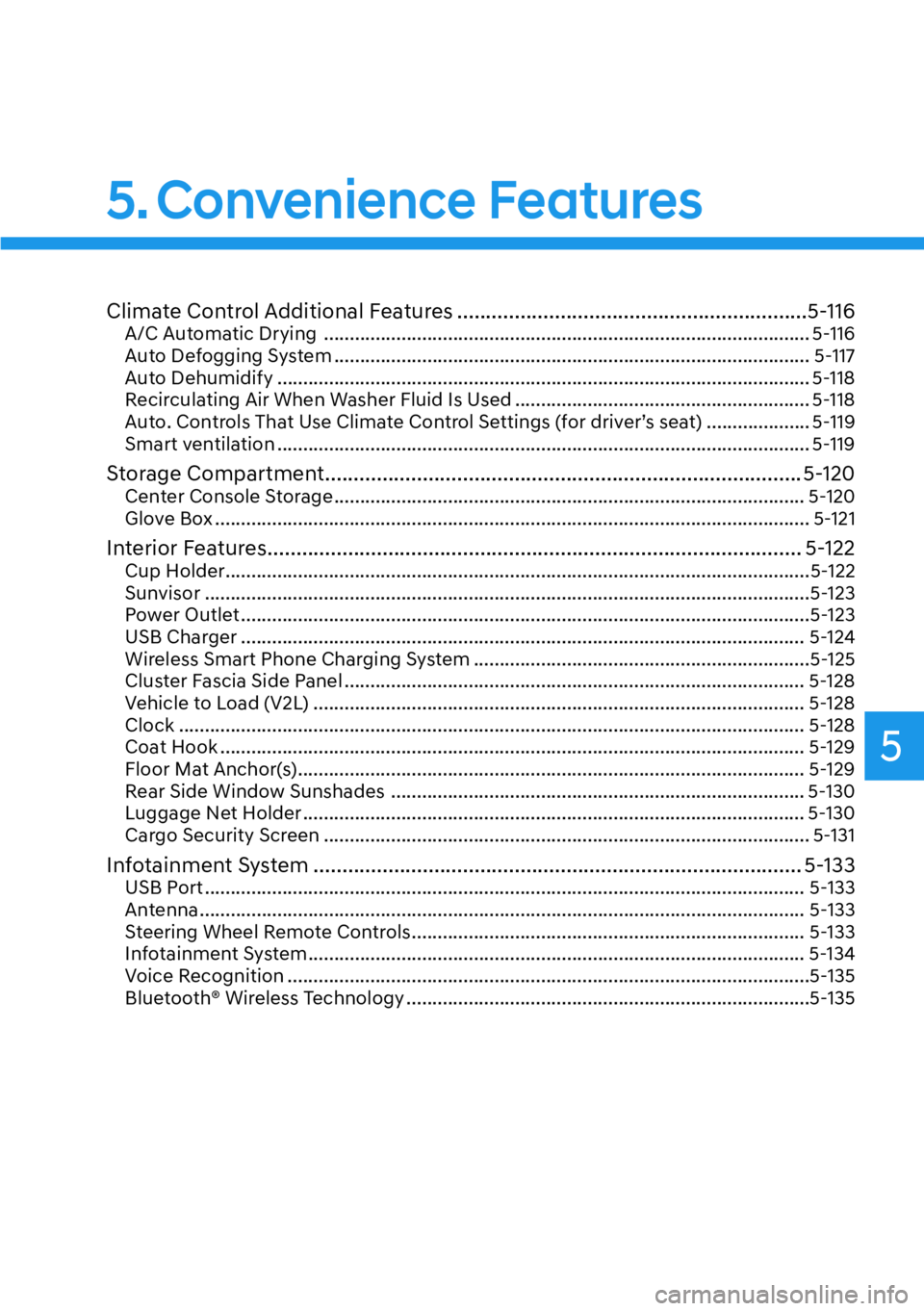

Climate Control Additional Features .............................................................5-116A/C Automatic Drying .............................................................................................. 5-116
Auto Defogging System ............................................................................................ 5-117
Auto Dehumidify ....................................................................................................... 5-118
Recirculating Air When Washer Fluid Is Used ......................................................... 5-118
Auto. Controls That Use Climate Control Settings (for driver’s seat) .................... 5-119
Smart ventilation ....................................................................................................... 5-119
Storage Compartment ................................................................................... 5-120Center Console Storage ........................................................................................... 5-120
Glove Box ................................................................................................................... 5-121
Interior Features ............................................................................................. 5-122Cup Holder .................................................................................................................5-122
Sunvisor .....................................................................................................................5-123
Power Outlet ..............................................................................................................5-123
USB Charger ............................................................................................................. 5-124
Wireless Smart Phone Charging System .................................................................5-125
Cluster Fascia Side Panel ......................................................................................... 5-128
Vehicle to Load (V2L) ............................................................................................... 5-128
Clock .........................................................................................................................5-128
Coat Hook ................................................................................................................. 5-129
Floor Mat Anchor(s) .................................................................................................. 5-129
Rear Side Window Sunshades ................................................................................ 5-130
Luggage Net Holder ................................................................................................. 5-130
Cargo Security Screen .............................................................................................. 5-131
Infotainment System ..................................................................................... 5-133
USB Port .................................................................................................................... 5-133
Antenna ..................................................................................................................... 5-133
Steering Wheel Remote Controls ............................................................................ 5-133
Infotainment System ................................................................................................ 5-134
Voice Recognition .....................................................................................................5-135
Bluetooth® Wireless Technology ..............................................................................5-135
5. Convenience Features

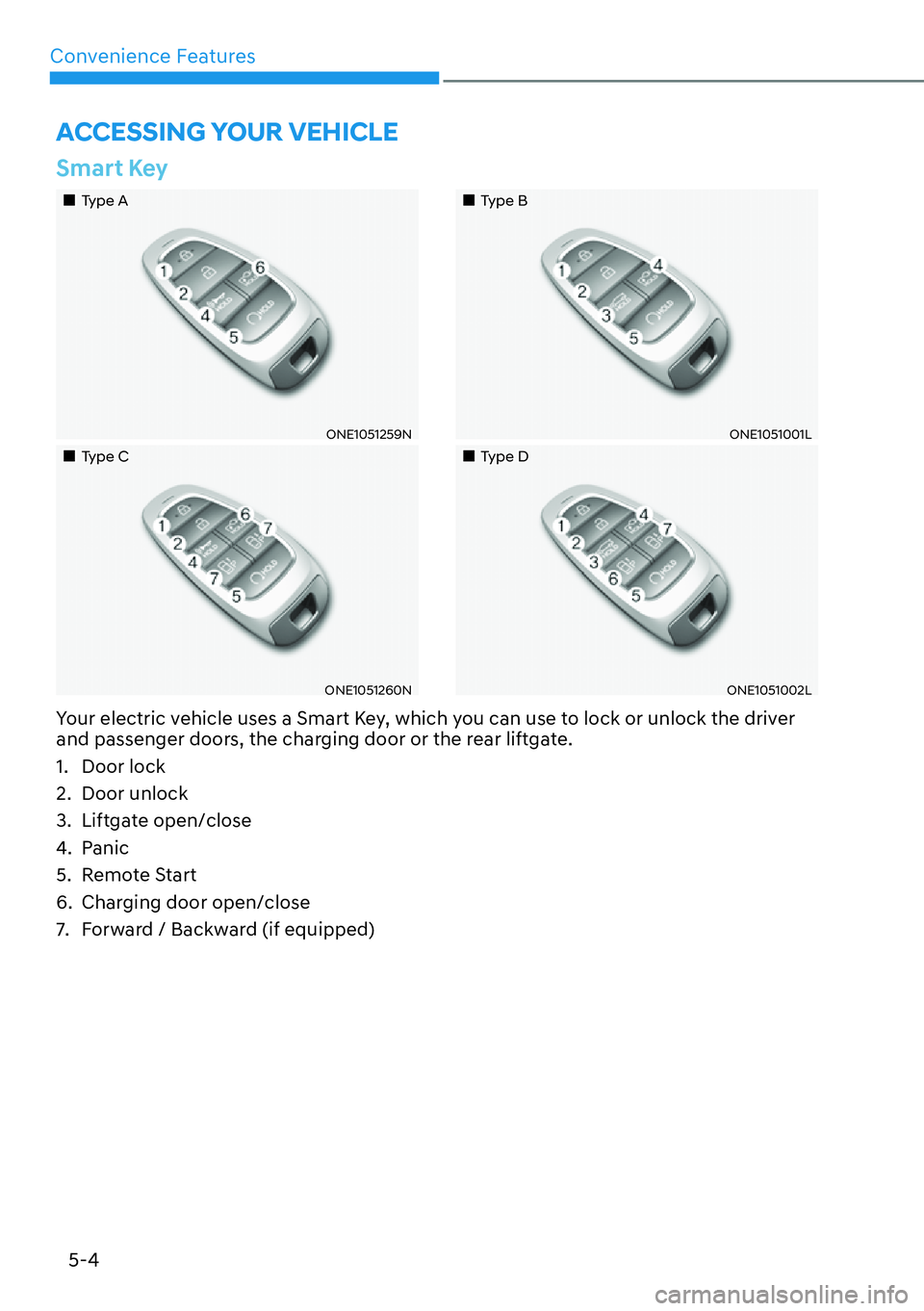

Convenience Features
5-4
Your electric vehicle uses a Smart Key, which you can use to lock or unlock the driver
and passenger doors, the charging door or the rear liftgate.
1. Door lock
2. Door unlock
3. Liftgate open/close
4. Panic
5. Remote Start
6. Charging door open/close
7. Forward / Backward (if equipped)
Smart Key
„Type A
ONE1051259N
„Type C
ONE1051260N
„Type B
ONE1051001L
„Type D
ONE1051002L
ACCESSING YOUR VEHICLE

05
5-5
Locking your vehicle
„Manual type
ONE1051004L
To lock your vehicle using the door
handle button or the Smart Key:
1. Make sure all doors, the hood and the
liftgate are closed.
2. Press the Door Lock button (1) on the
Smart Key. The hazard warning lights
will blink with an alarm, and the doors
will be locked.
3. In addition, pushing the button on
the door handle (the engraved part)
while keeping the smart key will lock
all doors.
„Electric type (if equipped)
ONE1051003
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
liftgate are closed.
2. Press the Door Lock button (1) on
the Smart key. The hazard warning
lights will blink with an alarm, and the
handles will retract back.

[In addition, touching the touch sensor
on the door handle (the engraved
part) while keeping the smart key will
lock all doors and let the door handle
to retract back.

Convenience Features
5-6
Information

[The outside rearview mirror will
fold if ‘Enable on Door Unlock’ is
selected from the Settings menu in the
infotainment system screen. Select:
-6HWXS
:9HKLFOH6HWWLQJV
:
&RQYHQLHQFH
::HOFRPH0LUURU
:
Enable on Door Unlock

[The door handle touch sensor will only
operate when the smart key is within
0.7~1 m (28~40 in.) from the outside
door handle.

[Touching the door handle touch sensor
does not unlock the doors. To unlock
the doors, refer to the following page.
Note that you cannot lock your vehicle
using the door handle touch sensor if any
of the following occur:

[The Smart Key is in the vehicle.

[The Start/Stop button is in ACC or ON
position.

[Any of the doors are open except for
the liftgate.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Start/ Stop button and may operate
power windows or other controls, or
even make the vehicle move, which
could result in serious injury or death.
Information

[To fold/unfold the rearview mirror
simultaneously when the door is locked/
XQORFNHGVHOHFW

05
5-7
Unlocking your vehicle
„Manual type
ONE1051004L
To unlock your vehicle using the door
handle button or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Pushing the button on the door
handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All doors handles will be unlocked
and the hazard warning lights will
blink twice.
3. After unlocking the doors, the doors
will automictically re-lock after 30
seconds unless a door is opened.
„Electric type (if equipped)
ONE1051004
:KHQ\RXUHOHDVHWKH7ZR3UHVV8QORFN
function
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All door handles will pop out and
the doors will be unlocked and the
hazard warning lights will blink and
the chime will sound.
3. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.

Convenience Features
5-8
:KHQ\RXVHWWKH7ZR3UHVV8QORFN
function
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle(engraved part) or press the
Door Unlock button (2) on the smart
key. The driver’s door handle will
pop out and the driver’s door will be
unlocked.
3. Touch the touch sensor on the door
handle(engraved part) or press the
Door Unlock button (2) on the smart
key within 4 seconds again. All door
handles will pop out and the doors will
be unlocked and the hazard warning
lights will blink twice and the chime
will sound.
4. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with
one press may be adjusted in the User
Settings menu in the LCD cluster display.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
Select or Deselect the Two Press Unlock
Feature in the User Settings menu in the
LCD cluster display. The option can be
found under the following menu:
86(56(77,1*6
