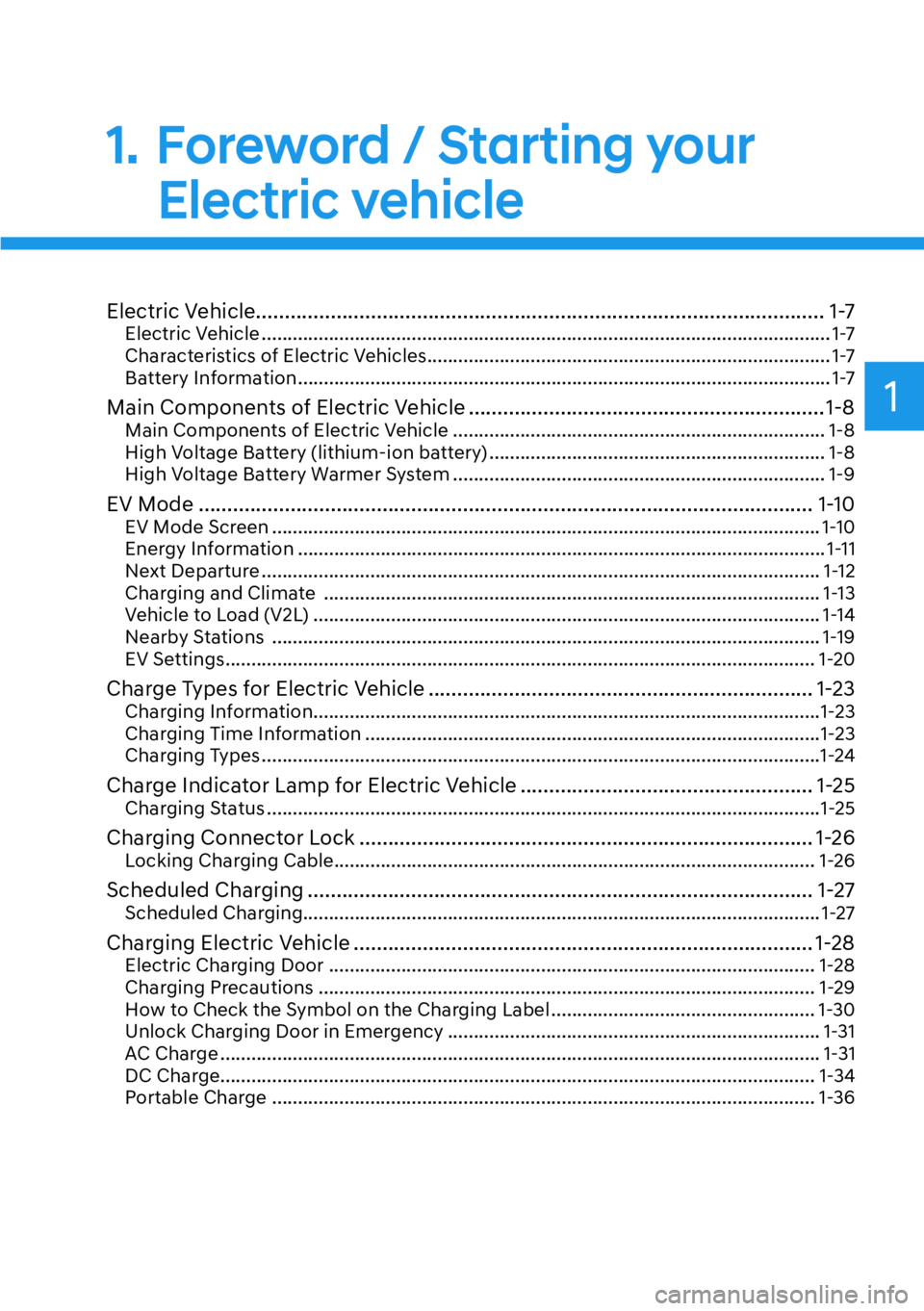

Lock HYUNDAI IONIQ 5 2022 Owners Manual

1
Electric Vehicle................................................................................................... 1-7Electric Vehicle ..............................................................................................................1-7
Characteristics of Electric Vehicles .............................................................................. 1-7
Battery Information ....................................................................................................... 1-7
Main Components of Electric Vehicle ..............................................................1-8Main Components of Electric Vehicle ........................................................................ 1-8
High Voltage Battery (lithium-ion battery) ................................................................. 1-8
High Voltage Battery Warmer System ........................................................................ 1-9
EV Mode ........................................................................................................... 1-10EV Mode Screen .......................................................................................................... 1-10
Energy Information ...................................................................................................... 1-11
Next Departure ............................................................................................................ 1-12
Charging and Climate ................................................................................................ 1-13
Vehicle to Load (V2L) .................................................................................................. 1-14
Nearby Stations .......................................................................................................... 1-19
EV Settings .................................................................................................................. 1-20
Charge Types for Electric Vehicle ................................................................... 1-23Charging Information ..................................................................................................1-23
Charging Time Information ........................................................................................1-23
Charging Types ............................................................................................................1-24
Charge Indicator Lamp for Electric Vehicle ................................................... 1-25Charging Status ...........................................................................................................1-25
Charging Connector Lock ............................................................................... 1-26Locking Charging Cable............................................................................................. 1-26
Scheduled Charging ........................................................................................ 1-27Scheduled Charging.................................................................................................... 1-27
Charging Electric Vehicle ................................................................................ 1-28Electric Charging Door .............................................................................................. 1-28
Charging Precautions ................................................................................................ 1-29
How to Check the Symbol on the Charging Label ................................................... 1-30
Unlock Charging Door in Emergency ........................................................................ 1-31
AC Charge .................................................................................................................... 1-31
DC Charge................................................................................................................... 1-34
Portable Charge ......................................................................................................... 1-36
1. Foreword / Starting your
Electric vehicle

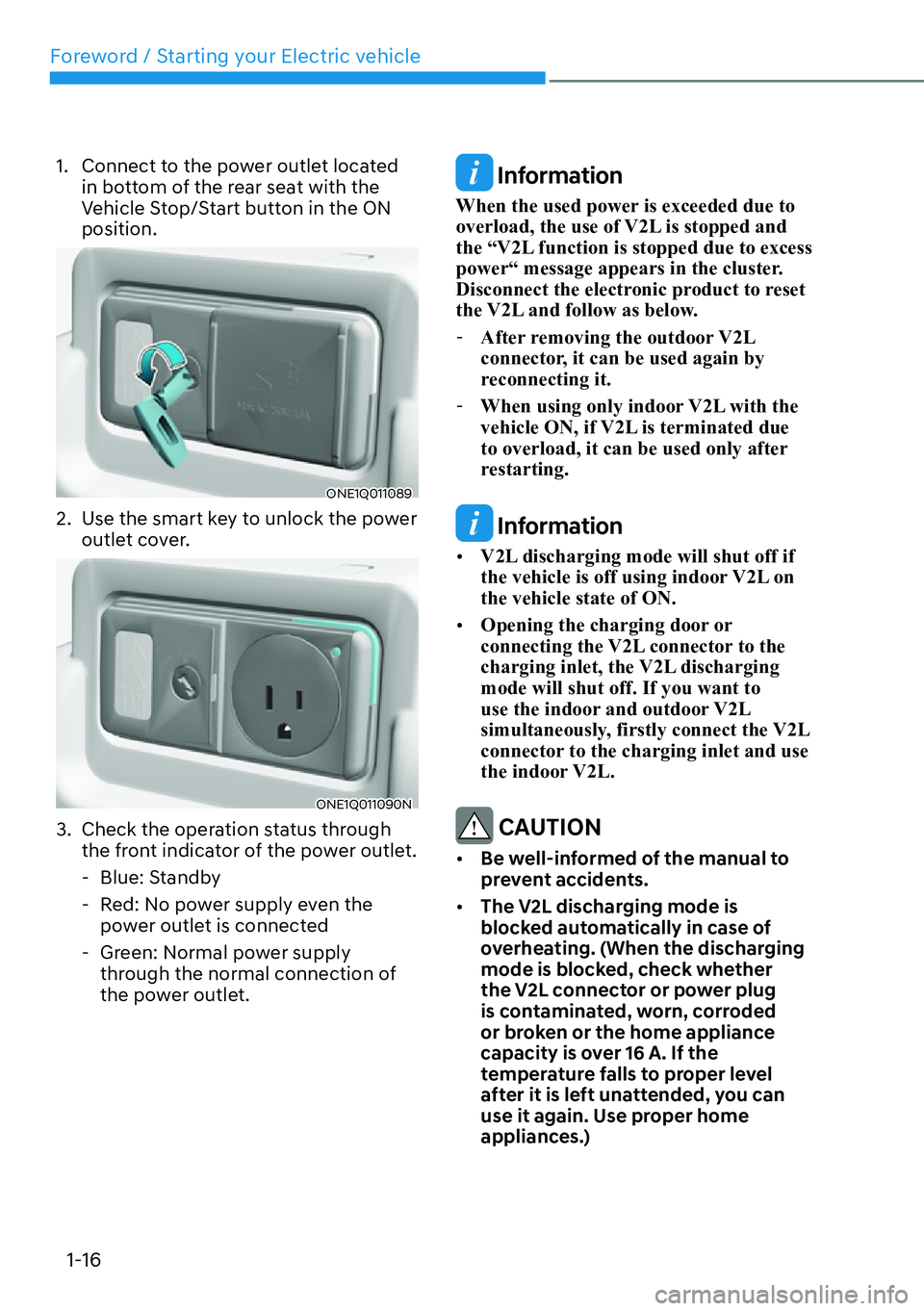

Foreword / Starting your Electric vehicle
1-16
1. Connect to the power outlet located
in bottom of the rear seat with the
Vehicle Stop/Start button in the ON
position.
ONE1Q011089
2. Use the smart key to unlock the power
outlet cover.
ONE1Q011090N
3. Check the operation status through
the front indicator of the power outlet.
- Blue: Standby
- Red: No power supply even the
power outlet is connected
- Green: Normal power supply
through the normal connection of
the power outlet.
Information
When the used power is exceeded due to
overload, the use of V2L is stopped and
the “V2L function is stopped due to excess
power“ message appears in the cluster.
Disconnect the electronic product to reset
the V2L and follow as below.
-After removing the outdoor V2L
connector, it can be used again by
reconnecting it.
-When using only indoor V2L with the
vehicle ON, if V2L is terminated due
to overload, it can be used only after
restarting.
Information

[V2L discharging mode will shut off if
the vehicle is off using indoor V2L on
the vehicle state of ON.

[Opening the charging door or
connecting the V2L connector to the
charging inlet, the V2L discharging
mode will shut off. If you want to
use the indoor and outdoor V2L
simultaneously, firstly connect the V2L
connector to the charging inlet and use
the indoor V2L.
CAUTION

[Be well-informed of the manual to
prevent accidents.

[The V2L discharging mode is
blocked automatically in case of
overheating. (When the discharging
mode is blocked, check whether
the V2L connector or power plug
is contaminated, worn, corroded
or broken or the home appliance
capacity is over 16 A. If the
temperature falls to proper level
after it is left unattended, you can
use it again. Use proper home
appliances.)

Foreword / Starting your Electric vehicle
1-26
High voltage indicator
ONE1051278N
The high voltage indicator is located on
top of the crash pad.
When the 12 volt auxiliary battery is
discharged, it is charged from the high
voltage battery of the vehicle.
When the high voltage electricity flow
in the vehicle, the color of the indicator
changes to amber and turns off after
charging is finished.
WARNING
When the function is activating, the
Charging Indicator Lamp will turn on
and high voltage electricity will be
flowing in the vehicle. Do not touch
the high voltage electric wire (orange),
connector, and all electric components
and devices. This may cause electric
shock and lead to injuries. Also, do not
modify your vehicle in any way. This
may affect your vehicle performance
and lead to an accident.
CHARGING CONNECTOR
LOCK
Locking Charging Cable
ONE1Q011092L
You may select when the charging
connector can be locked and unlocked in
the charging inlet.
6HOHFW
S6HWWLQJV

01
1-27
Scheduled Charging
(if equipped)

[You can set-up a charging
schedule for your vehicle using the
Infotainment system or Blue Link
application.
Refer to the infotainment system
manual or the Blue Link application
for detailed information about setting
scheduled charging.

[Scheduled charging can only be
done when using a AC charger or
the portable charger (ICCB: In-Cable
Control Box).
ONE1Q011039

[When scheduled charging is set
and the AC charger or the portable
charger (ICCB: In-Cable Control
Box) is connected for charging, the
indicator lamp blinks from the first
level to the last for about 3 minutes
to indicate that scheduled charging
is set.

[When scheduled charging is set,
charging is not initiated immediately
when the AC charger or portable
charger (ICCB: In-Cable Control
Box) is connected. When immediate
charging is required, press the
charging door open button in the
smart key for 2 seconds or deactivate
the scheduled charge setting with
the infotainment system or Blue Link
application.
Refer to “AC Charge (Station) or Trickle
Charge” for details about connecting
the AC charger and the portable charger
(ICCB: In-Cable Control Box).
When the Charging Connector Is
Locked
Always
lockLock
while
chargingDo not
lock
Before
chargingOX X
While
chargingOO X
Finished
chargingOX X

[‘Always lock’ mode :
The connector locks when the
charging connector is plugged into
the charging inlet. The connector is
locked until all doors are unlocked by
the driver. This mode can be used to
prevent charging cable theft.
- If the charging connector is
unlocked when all doors are
unlocked, but the charging cable
is not disconnected within 15 sec-
onds, the connector will be auto-
matically locked again.
- If the charging connector is
unlocked when all doors are
unlocked, but all doors are locked
again, immediately, the connector
will be automatically locked again.

[‘Lock while charging’ mode :
The connector locks when charg- ing
starts. The connector unlocks when
charging is complete. This mode can
be used when charging in a public
charging station.

[‘Do not lock’ mode :
The connector unlocks regardless of
the state of charging.
Press the charging connector release
button, disconnect the connector.
Be careful to theft of the charging
cable.
SCHEDULED CHARGING

01
1-31

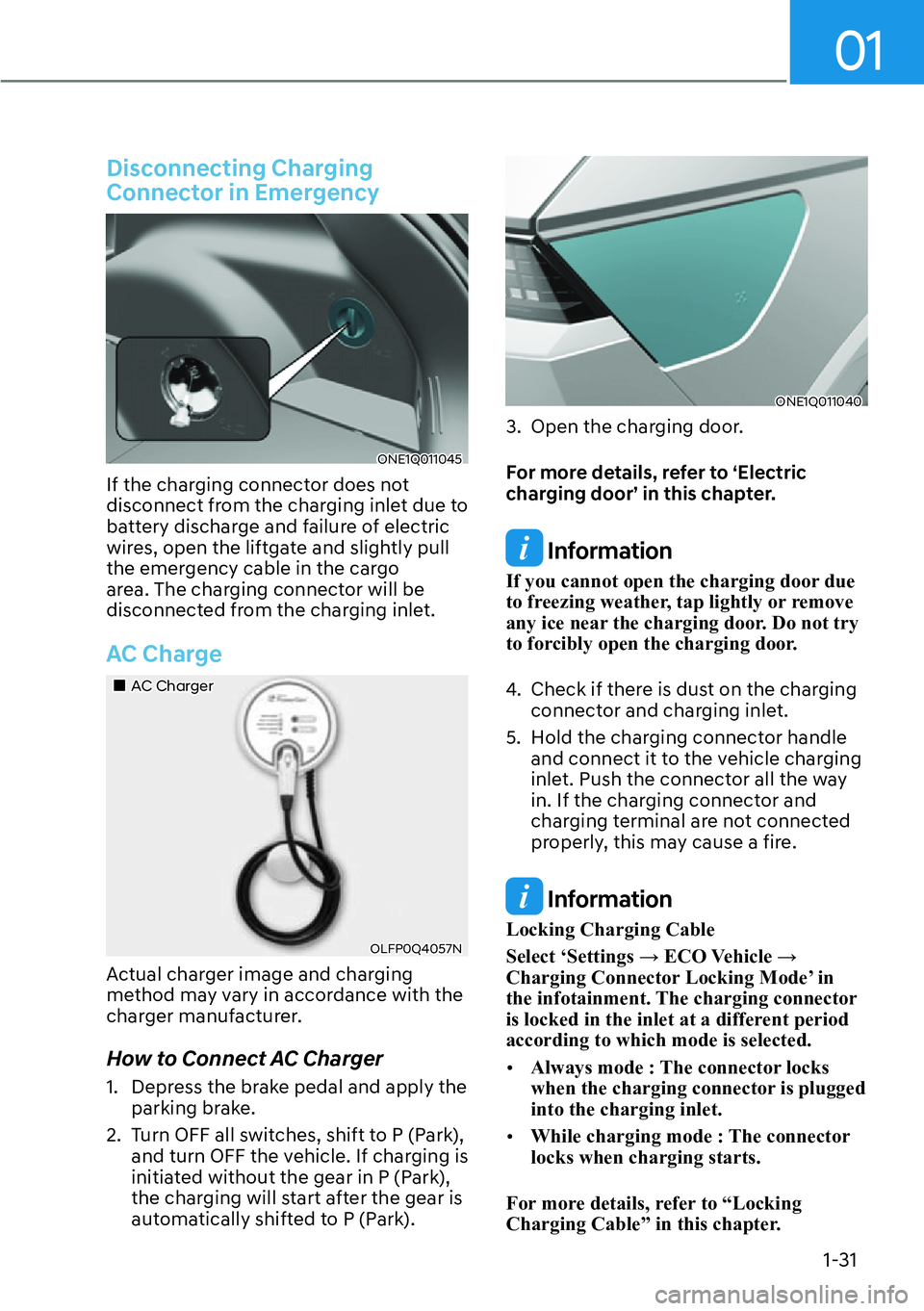

Disconnecting Charging
Connector in Emergency
ONE1Q011045
If the charging connector does not
disconnect from the charging inlet due to
battery discharge and failure of electric
wires, open the liftgate and slightly pull
the emergency cable in the cargo
area. The charging connector will be
disconnected from the charging inlet.
AC Charge
„AC Charger
OLFP0Q4057N
Actual charger image and charging
method may vary in accordance with the
charger manufacturer.
How to Connect AC Charger
1. Depress the brake pedal and apply the
parking brake.
2. Turn OFF all switches, shift to P (Park),
and turn OFF the vehicle. If charging is
initiated without the gear in P (Park),
the charging will start after the gear is
automatically shifted to P (Park).
ONE1Q011040
3. Open the charging door.
For more details, refer to ‘Electric
charging door’ in this chapter.
Information
If you cannot open the charging door due
to freezing weather, tap lightly or remove
any ice near the charging door. Do not try
to forcibly open the charging door.
4. Check if there is dust on the charging
connector and charging inlet.
5. Hold the charging connector handle
and connect it to the vehicle charging
inlet. Push the connector all the way
in. If the charging connector and
charging terminal are not connected
properly, this may cause a fire.
Information
Locking Charging Cable
6HOHFW

01
1-33

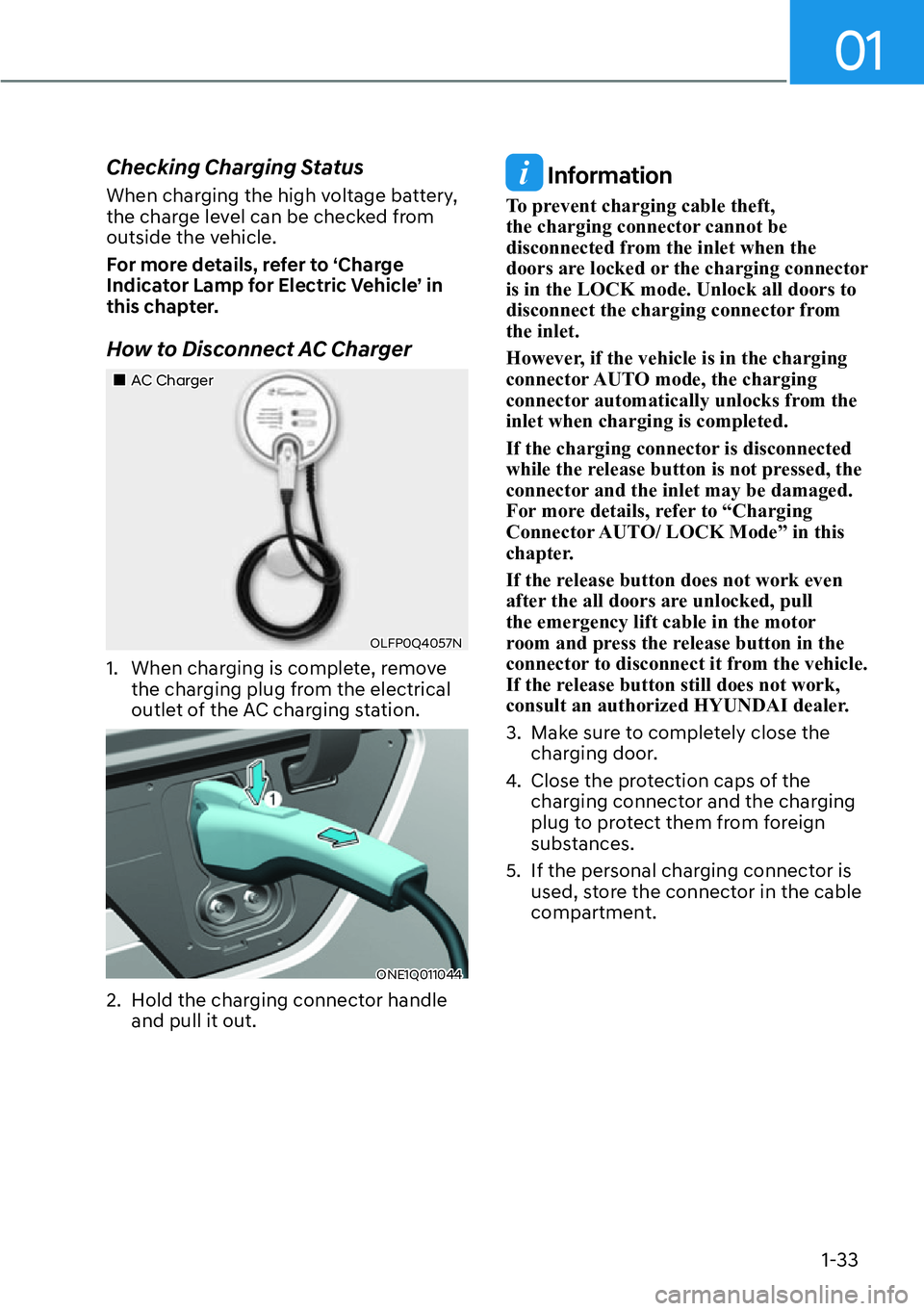

Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.
How to Disconnect AC Charger
„AC Charger
OLFP0Q4057N
1. When charging is complete, remove
the charging plug from the electrical
outlet of the AC charging station.
ONE1Q011044
2. Hold the charging connector handle
and pull it out.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked or the charging connector
is in the LOCK mode. Unlock all doors to
disconnect the charging connector from
the inlet.
However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the
inlet when charging is completed.
If the charging connector is disconnected
while the release button is not pressed, the
connector and the inlet may be damaged.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
If the release button does not work even
after the all doors are unlocked, pull
the emergency lift cable in the motor
room and press the release button in the
connector to disconnect it from the vehicle.
If the release button still does not work,
consult an authorized HYUNDAI dealer.
3. Make sure to completely close the
charging door.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.

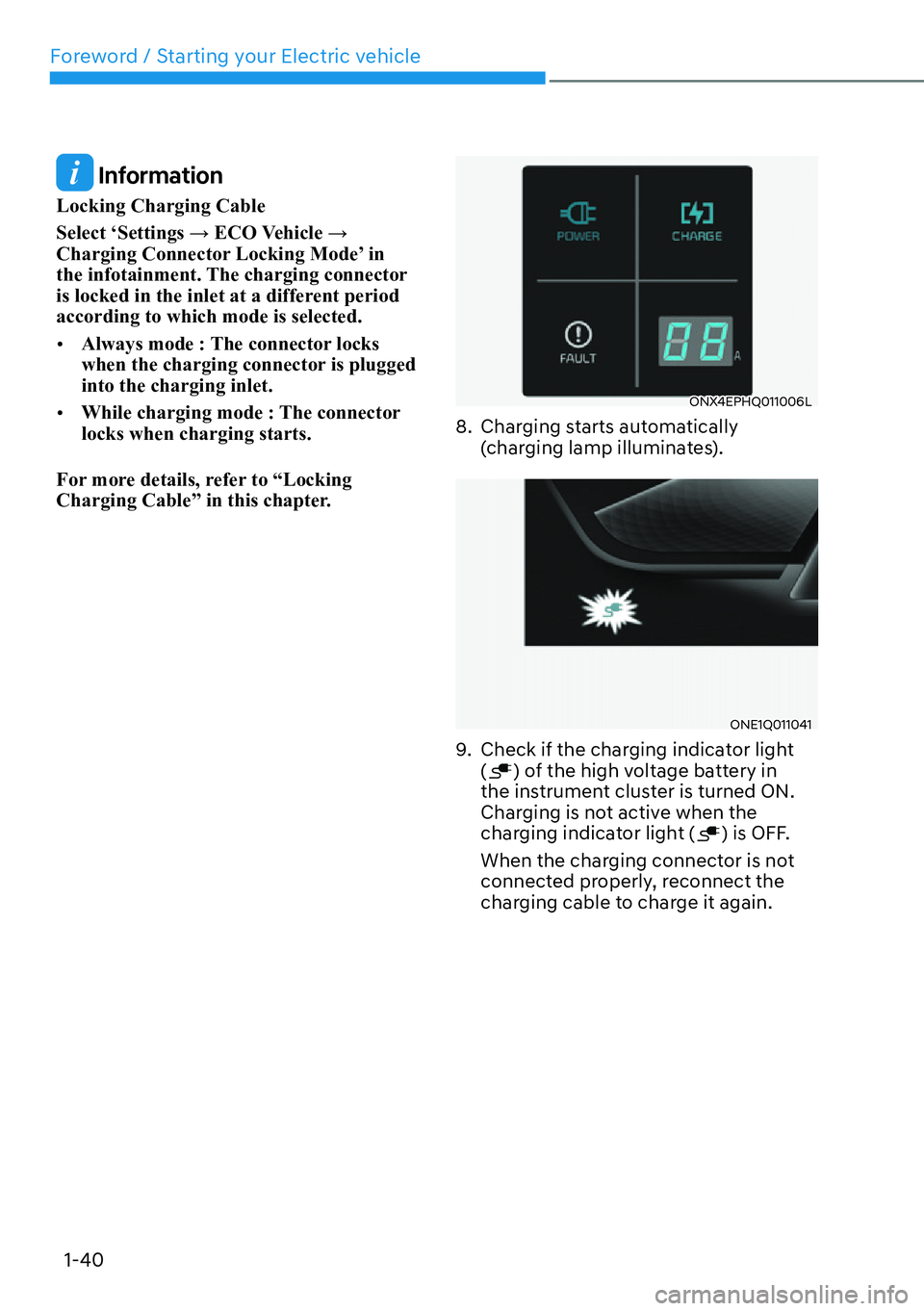

Foreword / Starting your Electric vehicle
1-40
Information
Locking Charging Cable
6HOHFW

01
1-47

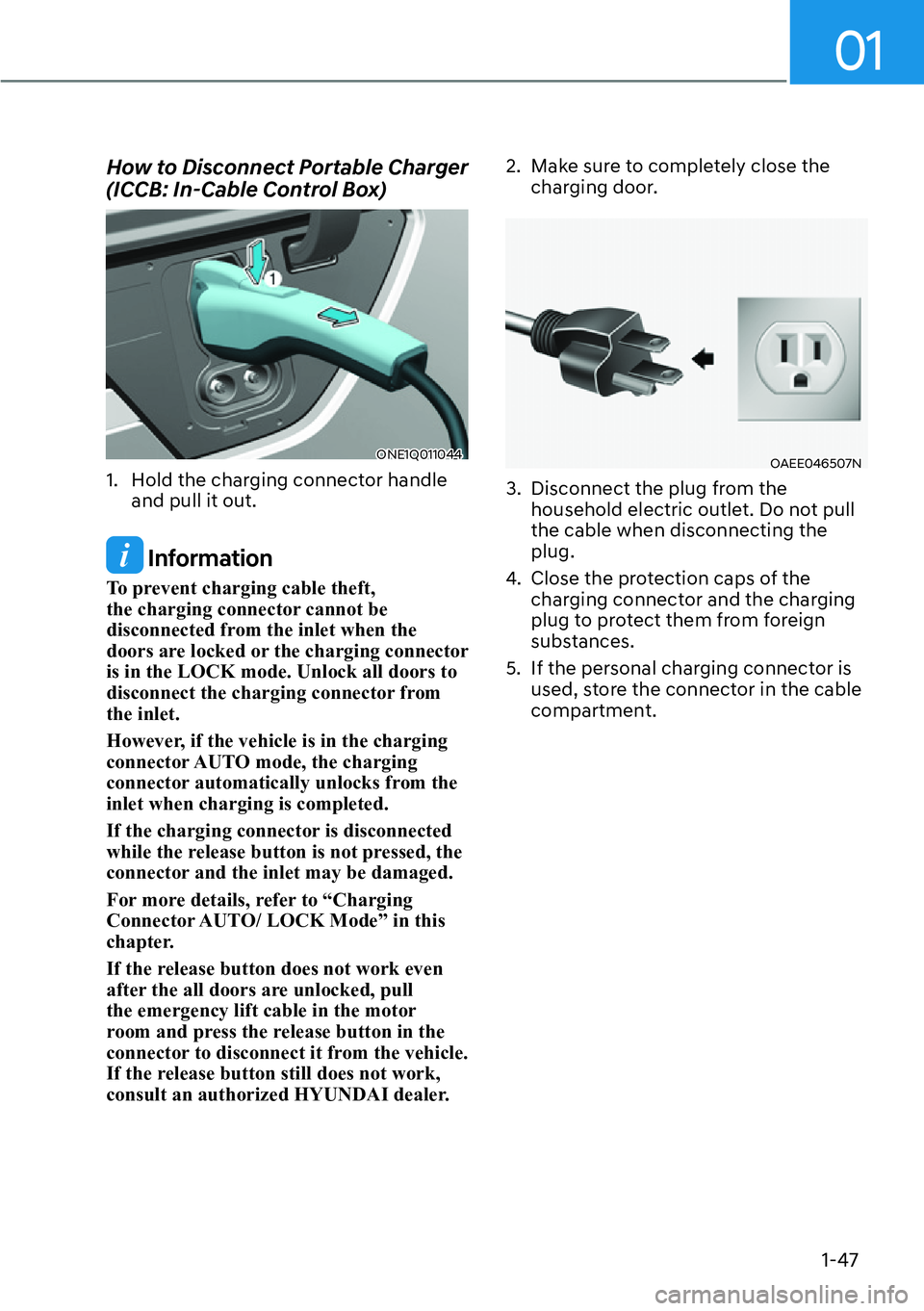

How to Disconnect Portable Charger
(ICCB: In-Cable Control Box)
ONE1Q011044
1. Hold the charging connector handle
and pull it out.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked or the charging connector
is in the LOCK mode. Unlock all doors to
disconnect the charging connector from
the inlet.
However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the
inlet when charging is completed.
If the charging connector is disconnected
while the release button is not pressed, the
connector and the inlet may be damaged.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
If the release button does not work even
after the all doors are unlocked, pull
the emergency lift cable in the motor
room and press the release button in the
connector to disconnect it from the vehicle.
If the release button still does not work,
consult an authorized HYUNDAI dealer.2. Make sure to completely close the
charging door.
OAEE046507N
3. Disconnect the plug from the
household electric outlet. Do not pull
the cable when disconnecting the
plug.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.

2-4

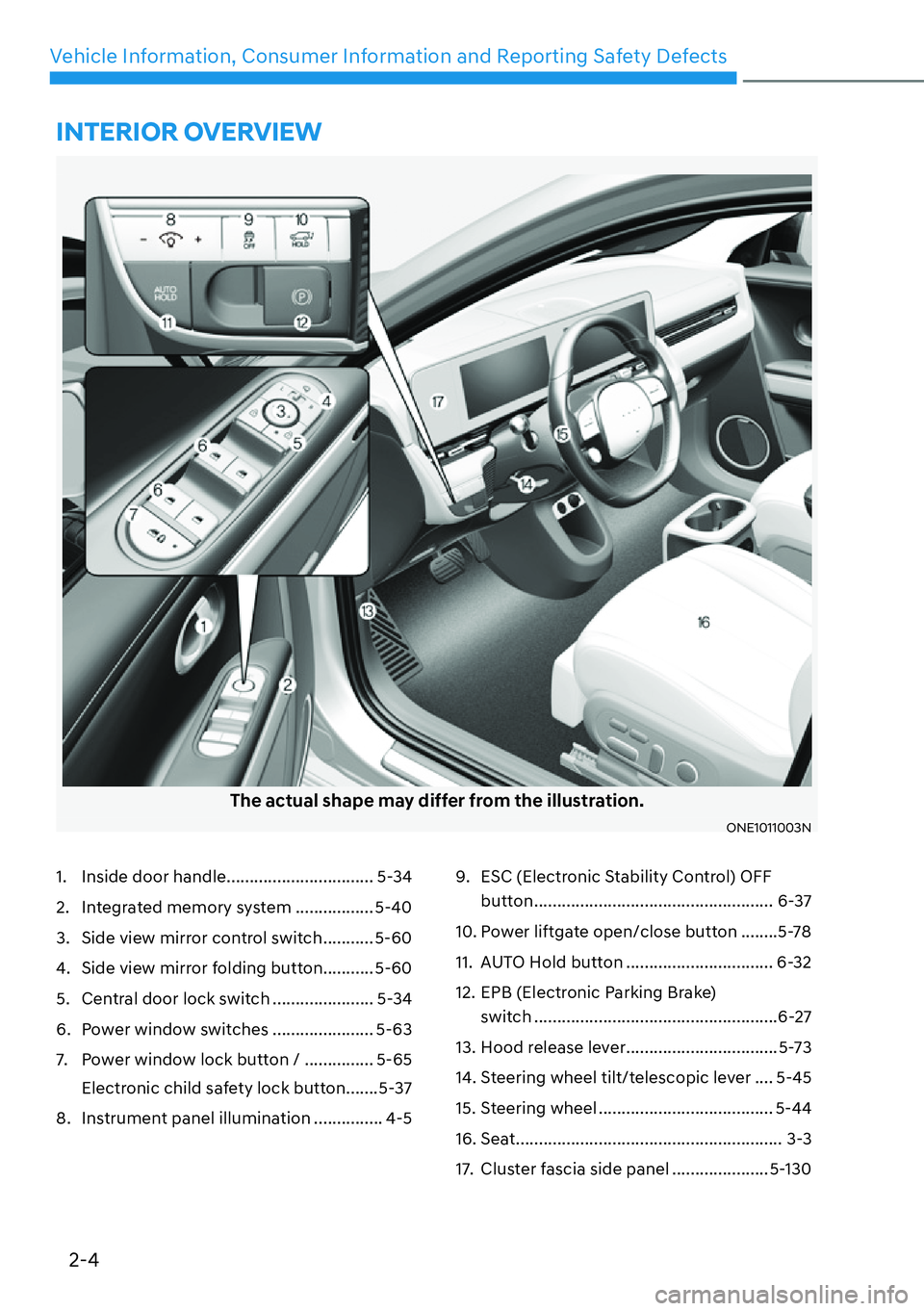

Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
ONE1011003N
1. Inside door handle ................................ 5-34
2. Integrated memory system ................. 5-40
3. Side view mirror control switch ........... 5-60
4. Side view mirror folding button........... 5-60
5. Central door lock switch ...................... 5-34
6. Power window switches ...................... 5-63
7. Power window lock button / ............... 5-65
Electronic child safety lock button .......5-37
8. Instrument panel illumination ............... 4-59. ESC (Electronic Stability Control) OFF
button .................................................... 6-37
10. Power liftgate open/close button ........5-78
11. AUTO Hold button ................................ 6-32
12. EPB (Electronic Parking Brake)
switch .....................................................6-27
13. Hood release lever .................................5-73
14. Steering wheel tilt/telescopic lever .... 5-45
15. Steering wheel ...................................... 5-44
16. Seat .......................................................... 3-3
17. Cluster fascia side panel ..................... 5-130
INTERIOR OVERVIEW

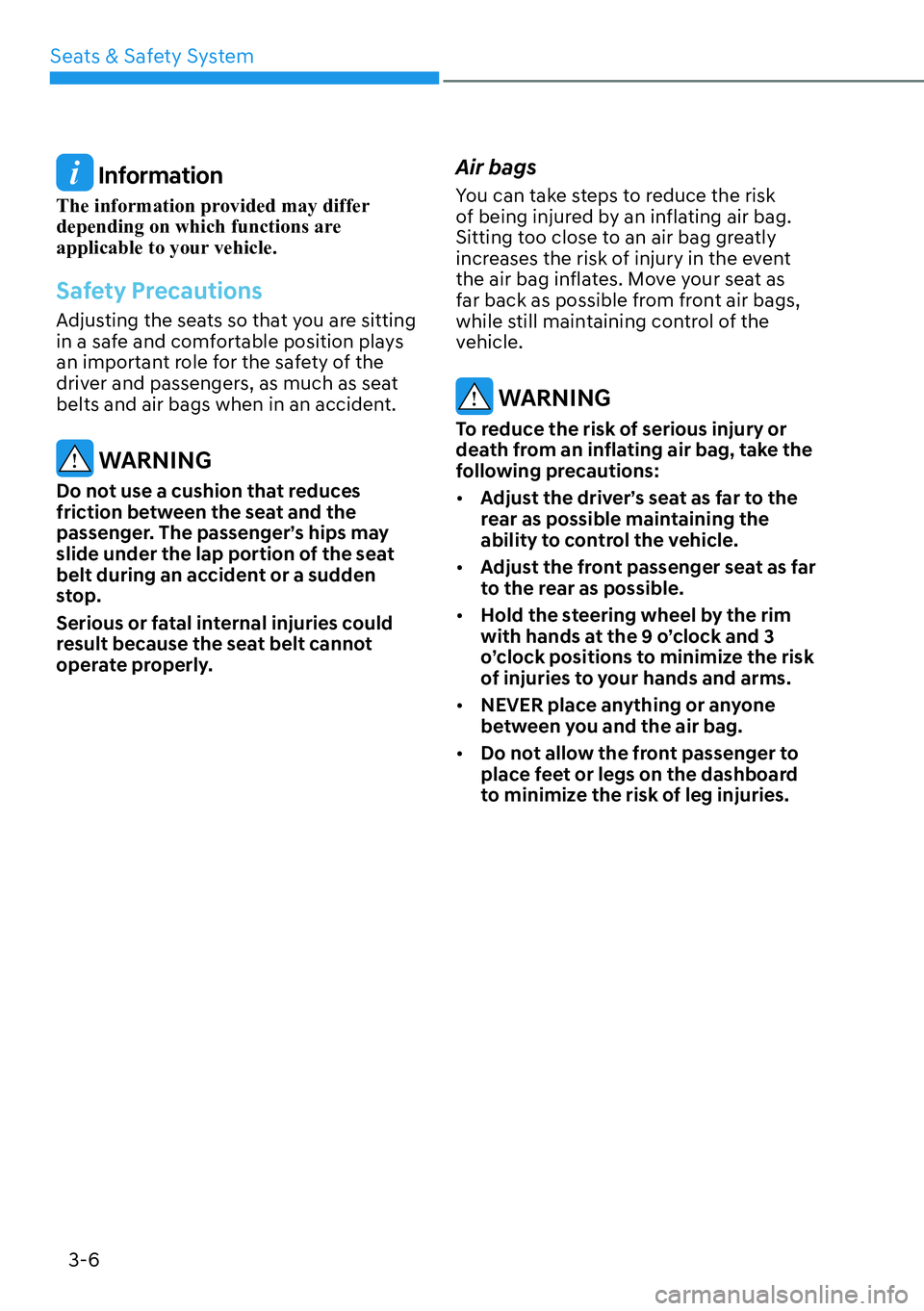

Seats & Safety System
3-6
Information
The information provided may differ
depending on which functions are
applicable to your vehicle.
Safety Precautions
Adjusting the seats so that you are sitting
in a safe and comfortable position plays
an important role for the safety of the
driver and passengers, as much as seat
belts and air bags when in an accident.
WARNING
Do not use a cushion that reduces
friction between the seat and the
passenger. The passenger’s hips may
slide under the lap portion of the seat
belt during an accident or a sudden
stop.
Serious or fatal internal injuries could
result because the seat belt cannot
operate properly.
Air bags
You can take steps to reduce the risk
of being injured by an inflating air bag.
Sitting too close to an air bag greatly
increases the risk of injury in the event
the air bag inflates. Move your seat as
far back as possible from front air bags,
while still maintaining control of the
vehicle.
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:

[Adjust the driver’s seat as far to the
rear as possible maintaining the
ability to control the vehicle.

[Adjust the front passenger seat as far
to the rear as possible.

[Hold the steering wheel by the rim
with hands at the 9 o’clock and 3
o’clock positions to minimize the risk
of injuries to your hands and arms.

[NEVER place anything or anyone
between you and the air bag.

[Do not allow the front passenger to
place feet or legs on the dashboard
to minimize the risk of leg injuries.
