Page 188 of 663
Instrument Cluster
4-30
ONE1041019N
Driving Assist, Turn by Turn, Utility view
modes are displayed in the center (A) of
the instrument cluster.
Driving Assist view
ONE1041006
The status of Manual Speed Limit Assist,
Smart Cruise Control, Lane Following
Assist, Highway Driving Assist, etc., is
displayed when Driving Assist view is
selected.
For more details, refer to each function
information section in chapter 7.
Turn By Turn (TBT) view
OIK040085L
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.
Page 479 of 663
Driver Assistance System
7-76
Overtaking Acceleration Assist
Overtaking Acceleration Assist operates
when the turn signal indicator is turned
on to the left while Smart Cruise Control
is operating, and the following conditions
are satisfied:
[ Your vehicle speed is above 40 mph
(60 km/h)
[ The hazard warning flasher is off
[ A vehicle is detected in front of your
vehicle
[ Deceleration is not needed to
maintain distance with the vehicle in
front
WARNING
[ When the turn signal indicator is
turned on to the left (left-hand drive)
or turned on to the right (right-
hand drive) while there is a vehicle
ahead, the vehicle may accelerate
temporarily. Pay attention to the
road conditions at all times.
[ Regardless of your countries driving
direction, Overtaking Acceleration
Assist will operate when the
conditions are satisfied. When
using the function in countries with
different driving direction, always
check the road conditions at all
times.
Display and control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist view on the cluster. Refer to “View
Modes” section in chapter 4.
Smart Cruise Control will be displayed
as below depending on the status of the
function.
„Operating „Temporarily canceled
ONE1071094NONE1071095N
[ When operating
(1) Whether there is a vehicle ahead and
the selected distance level
(2) Set speed
(3) Whether there is a vehicle ahead and
the target vehicle distance
[ When temporarily canceled
(1)
indicator
(2) The previous set speed is shaded.
(3) Vehicle ahead and distance level not
displayed
Page 510 of 663
07
7-107
Highway Lane Change Assist (if
equipped)
Display and control
You can see the status of the Highway
Lane Change Assist function operation
in the Driving Assist view on the cluster.
Refer to “View Modes” section in chapter
4.
Highway Lane Change Assist function
will be displayed as below depending on
the status of the function.
„Ready/Operating „Standby/Canceled
ONE1071283NONE1071179L
(1) Highway Lane Change Assist
indicator
[ Green
on : Ready state
[ Green
blink : Operating state
[ Grey
on : Standby state
[ White
blink : Canceled state
(2) Lane line
The lane line is displayed in the same
way as the Highway Lane Change
Assist indicator (1) above. However,
if the function is in the standby state,
it displays whether the lane line is
recognized or not.(3) Green arrow and shade
The green arrow is displayed when a
certain amount of time has passed
after the function has started
operating, and until the lane change
has completed.
(4) Message
[ Message is displayed when the
function does not operate even
though the turn signal lever is used.
[ Message is displayed when
the function is canceled while
operating.
To turn on Highway Lane Change Assist
Highway Lane Change Assist function
will turn on when the following
conditions are satisfied.
[ The Driving Assist button or Lane
Driving Assist button is used to turn
on Highway Driving Assist.
Highway Lane Change Assist ready to
operate
While Highway Lane Change Assist
function is on, the function will be
ready to operate when all the following
conditions are satisfied:
[ Highway Driving Assist is operating
[ Lane Following Assist is operating
[ A vehicle in the rear area of your
vehicle is detected more than once
after the vehicle is turned on
[ Your vehicle speed is above 40 mph
(60 km/h)
[ Hands-off warning is not displayed on
the cluster
[ Hazard warning flasher is off

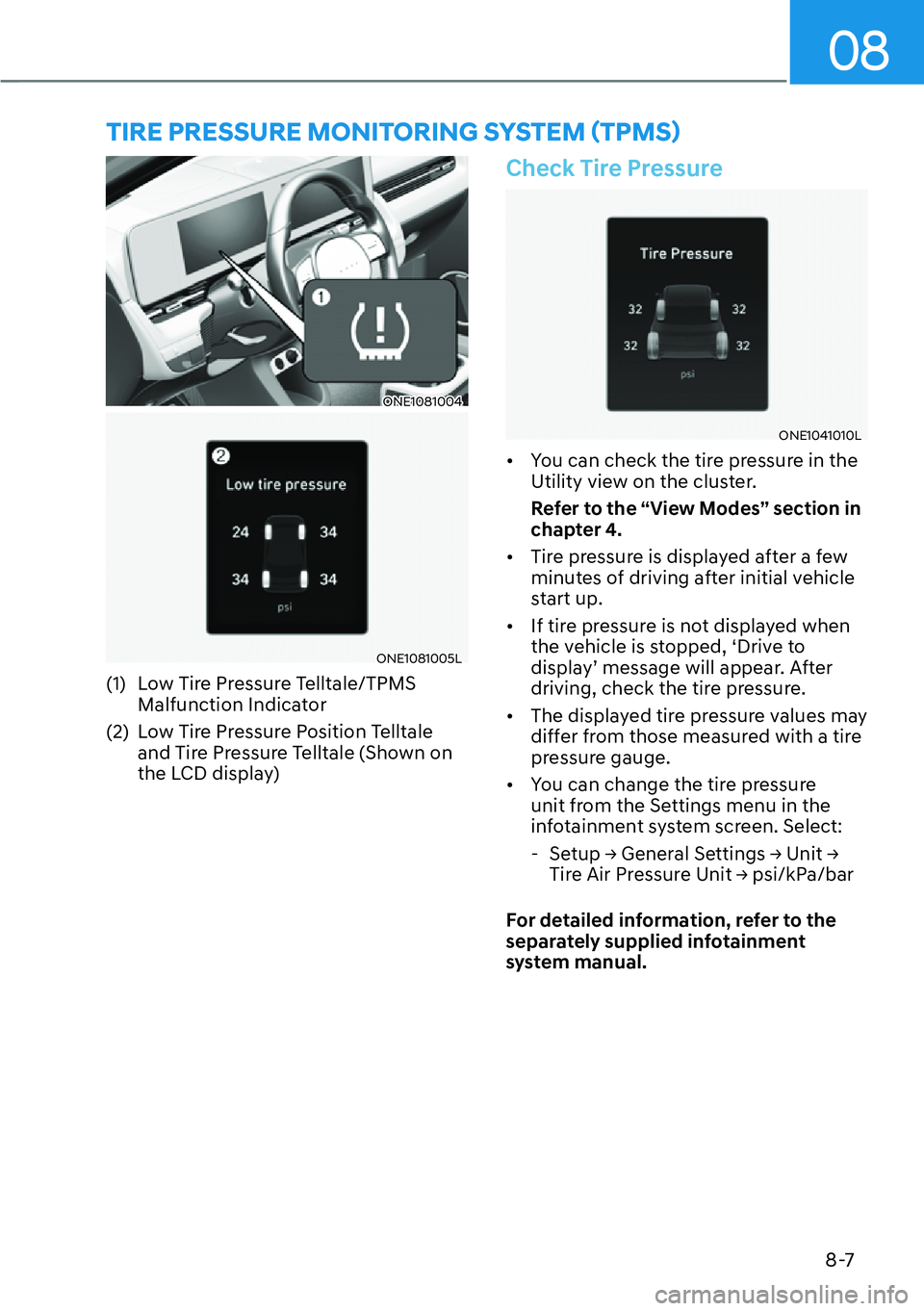

Page 586 of 663
08
8-7
ONE1081004
ONE1081005L
(1) Low Tire Pressure Telltale/TPMS
Malfunction Indicator
(2) Low Tire Pressure Position Telltale
and Tire Pressure Telltale (Shown on
the LCD display)
Check Tire Pressure
ONE1041010L
[ You can check the tire pressure in the
Utility view on the cluster.
Refer to the “View Modes” section in
chapter 4.
[ Tire pressure is displayed after a few
minutes of driving after initial vehicle
start up.
[ If tire pressure is not displayed when
the vehicle is stopped, ‘Drive to
display’ message will appear. After
driving, check the tire pressure.
[ The displayed tire pressure values may
differ from those measured with a tire
pressure gauge.
[ You can change the tire pressure
unit from the Settings menu in the
infotainment system screen. Select:
- 6 H W X S
