05
5-111
System Maintenance

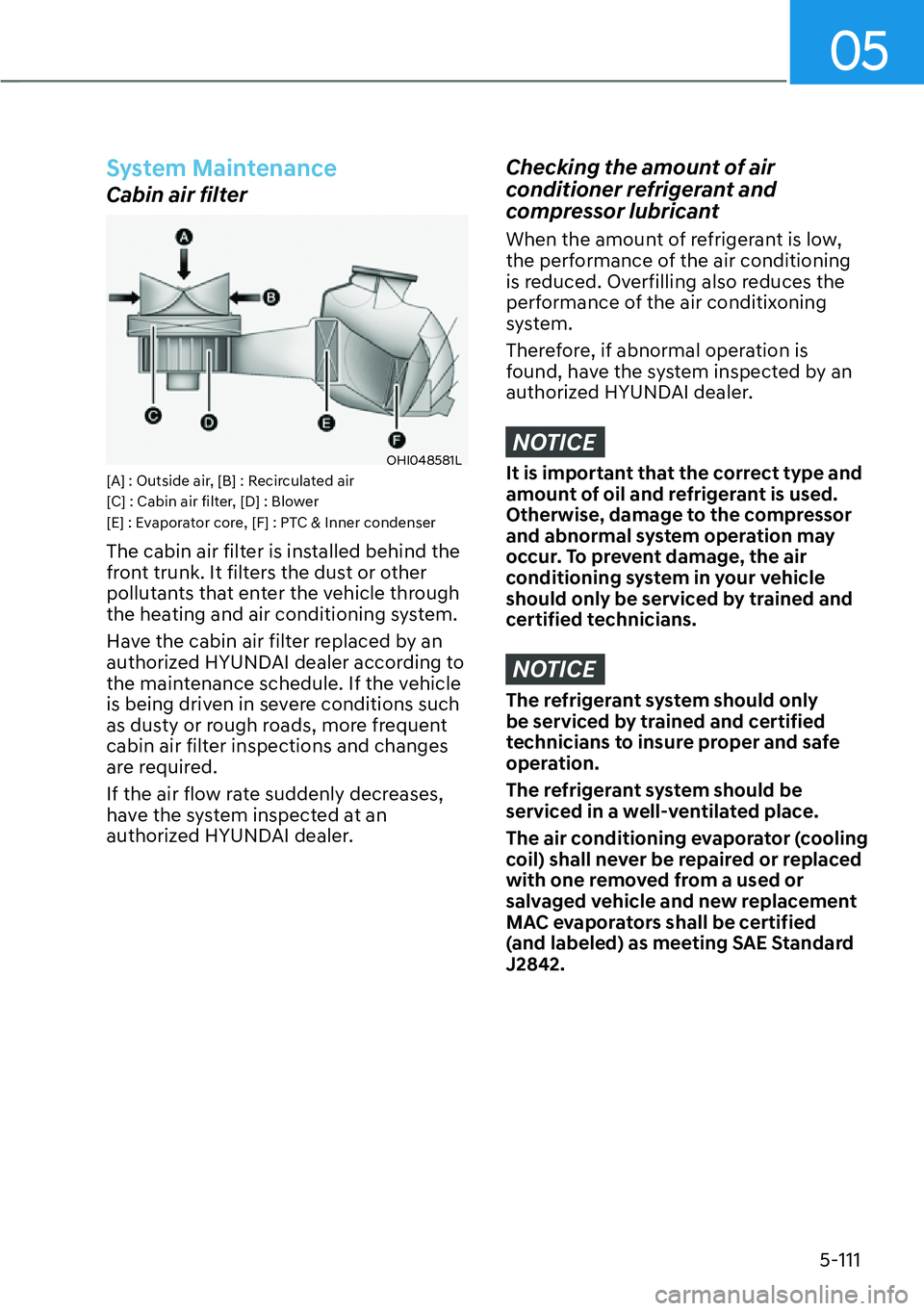

Cabin air filter
OHI048581L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : PTC & Inner condenser
The cabin air filter is installed behind the
front trunk. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
have the system inspected at an
authorized HYUNDAI dealer.
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditixoning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
NOTICE
The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.
The refrigerant system should be
serviced in a well-ventilated place.
The air conditioning evaporator (cooling
coil) shall never be repaired or replaced
with one removed from a used or
salvaged vehicle and new replacement
MAC evaporators shall be certified
(and labeled) as meeting SAE Standard
J2842.

Driver Assistance System
7-30

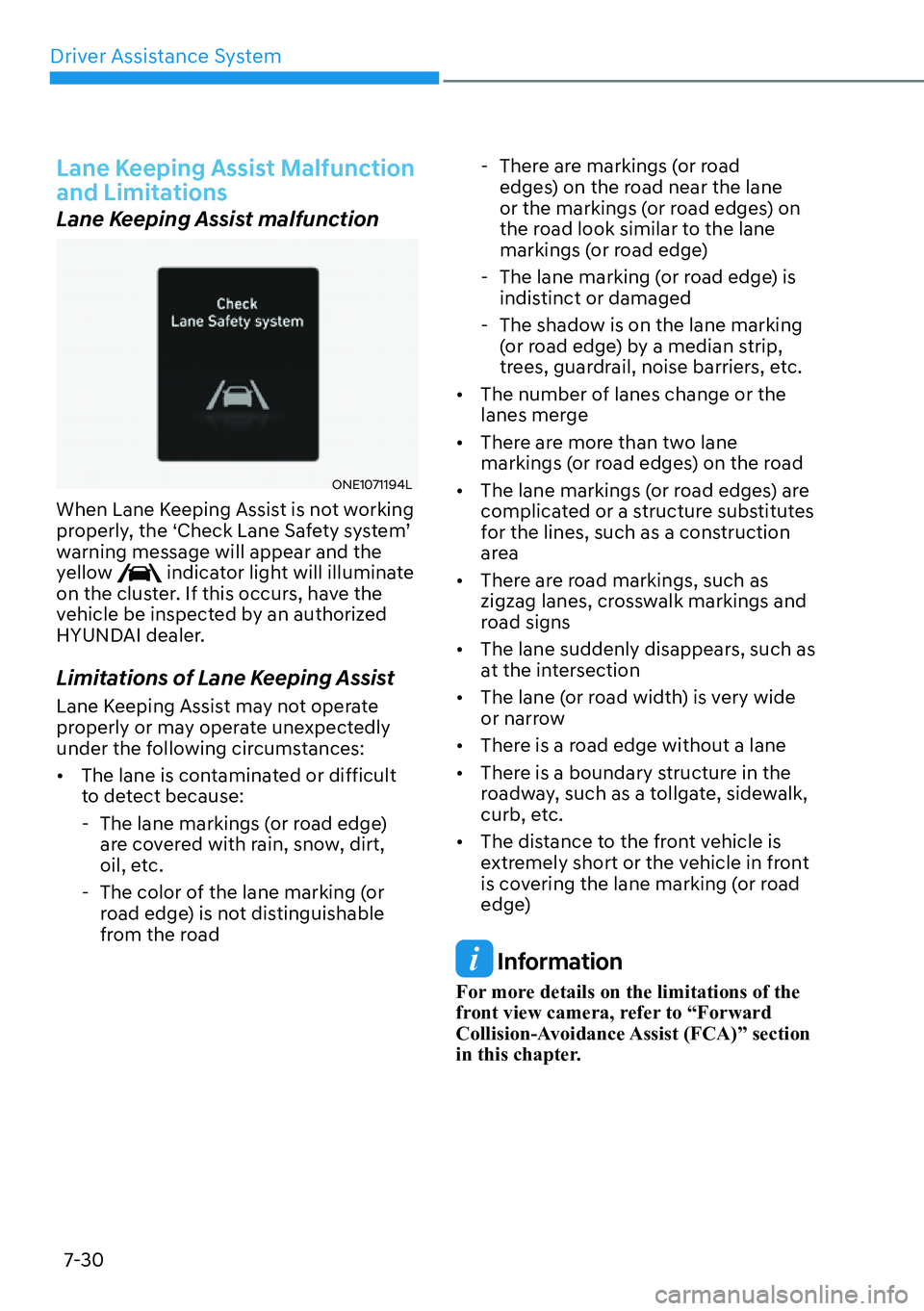

Lane Keeping Assist Malfunction
and Limitations
Lane Keeping Assist malfunction
ONE1071194L
When Lane Keeping Assist is not working
properly, the ‘Check Lane Safety system’
warning message will appear and the
yellow
indicator light will illuminate
on the cluster. If this occurs, have the
vehicle be inspected by an authorized
HYUNDAI dealer.
Limitations of Lane Keeping Assist
Lane Keeping Assist may not operate
properly or may operate unexpectedly
under the following circumstances:

[The lane is contaminated or difficult
to detect because:
- The lane markings (or road edge)
are covered with rain, snow, dirt,
oil, etc.
- The color of the lane marking (or
road edge) is not distinguishable
from the road - There are markings (or road
edges) on the road near the lane
or the markings (or road edges) on
the road look similar to the lane
markings (or road edge)
- The lane marking (or road edge) is
indistinct or damaged
- The shadow is on the lane marking
(or road edge) by a median strip,
trees, guardrail, noise barriers, etc.

[The number of lanes change or the
lanes merge

[There are more than two lane
markings (or road edges) on the road

[The lane markings (or road edges) are
complicated or a structure substitutes
for the lines, such as a construction
area

[There are road markings, such as
zigzag lanes, crosswalk markings and
road signs

[The lane suddenly disappears, such as
at the intersection

[The lane (or road width) is very wide
or narrow

[There is a road edge without a lane

[There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.

09
9-13

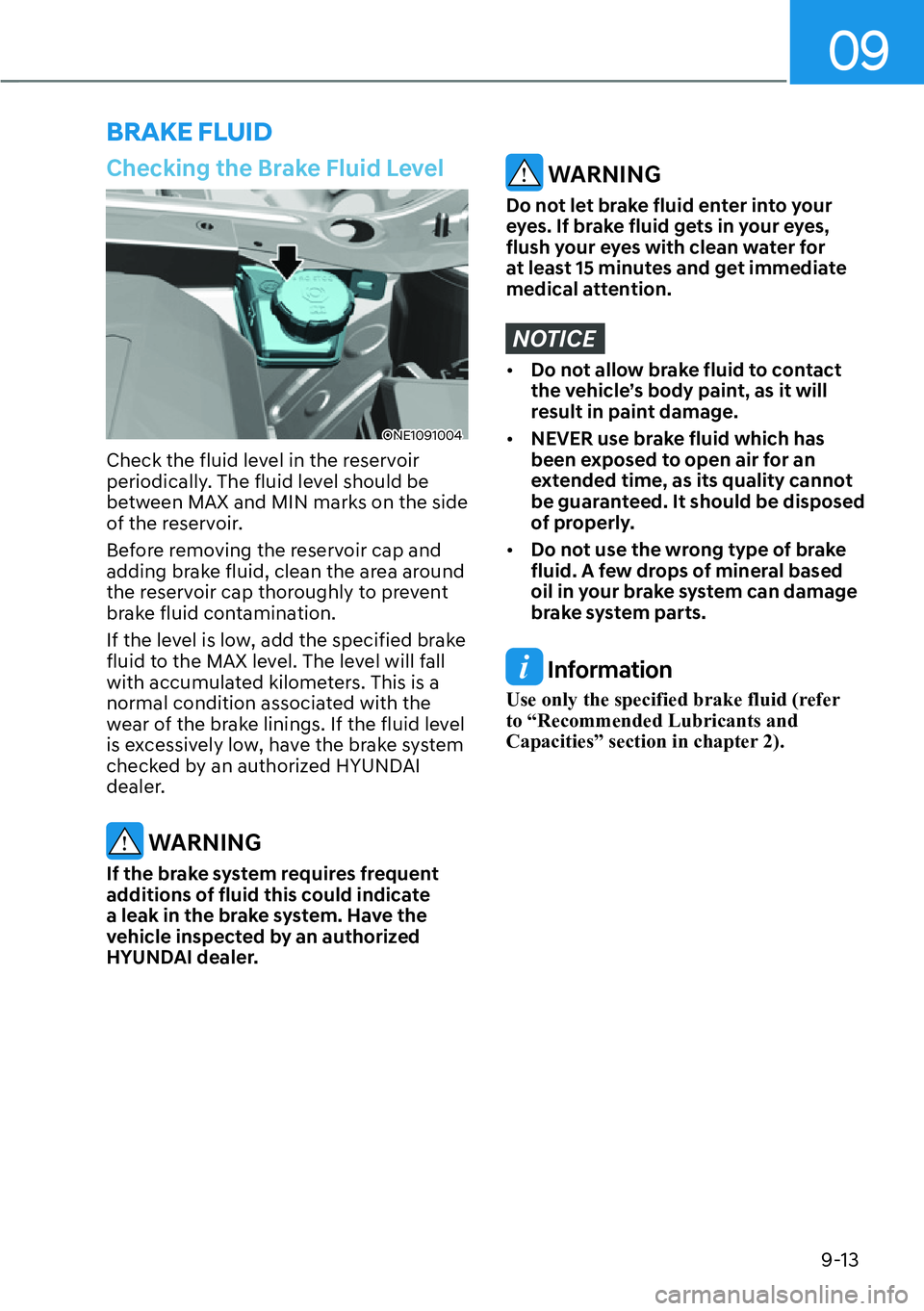

Checking the Brake Fluid Level
ONE1091004
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the side
of the reservoir.
Before removing the reservoir cap and
adding brake fluid, clean the area around
the reservoir cap thoroughly to prevent
brake fluid contamination.
If the level is low, add the specified brake
fluid to the MAX level. The level will fall
with accumulated kilometers. This is a
normal condition associated with the
wear of the brake linings. If the fluid level
is excessively low, have the brake system
checked by an authorized HYUNDAI
dealer.
WARNING
If the brake system requires frequent
additions of fluid this could indicate
a leak in the brake system. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING
Do not let brake fluid enter into your
eyes. If brake fluid gets in your eyes,
flush your eyes with clean water for
at least 15 minutes and get immediate
medical attention.
NOTICE

[Do not allow brake fluid to contact
the vehicle’s body paint, as it will
result in paint damage.

[NEVER use brake fluid which has
been exposed to open air for an
extended time, as its quality cannot
be guaranteed. It should be disposed
of properly.

[Do not use the wrong type of brake
fluid. A few drops of mineral based
oil in your brake system can damage
brake system parts.
Information
Use only the specified brake fluid (refer
to “Recommended Lubricants and
Capacities” section in chapter 2).
BRAKE FLUID

09
9-21

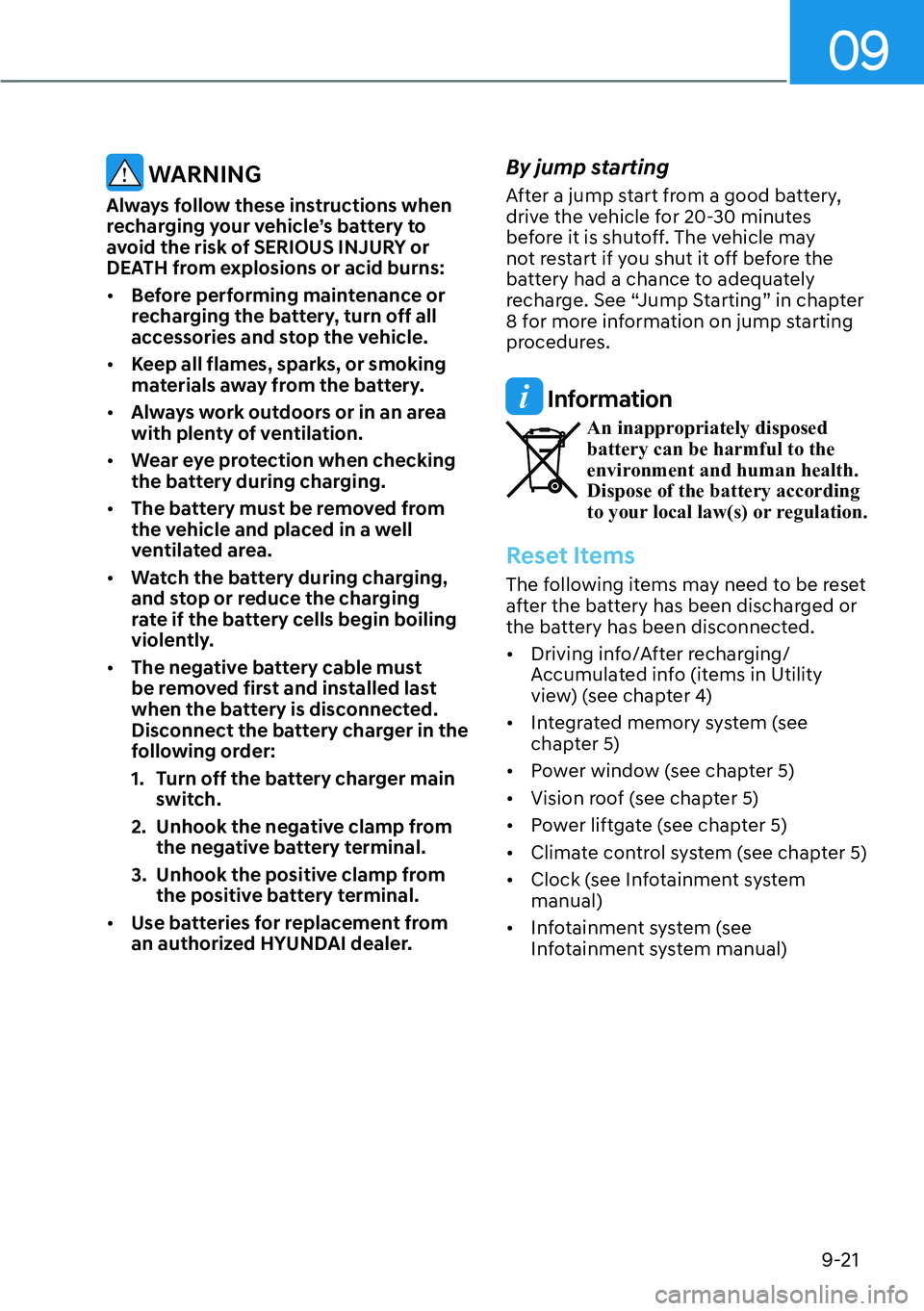

WARNING
Always follow these instructions when
recharging your vehicle’s battery to
avoid the risk of SERIOUS INJURY or
DEATH from explosions or acid burns:

[Before performing maintenance or
recharging the battery, turn off all
accessories and stop the vehicle.

[Keep all flames, sparks, or smoking
materials away from the battery.

[Always work outdoors or in an area
with plenty of ventilation.

[Wear eye protection when checking
the battery during charging.

[The battery must be removed from
the vehicle and placed in a well
ventilated area.

[Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin boiling
violently.

[The negative battery cable must
be removed first and installed last
when the battery is disconnected.
Disconnect the battery charger in the
following order:
1. Turn off the battery charger main
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from
the positive battery terminal.

[Use batteries for replacement from
an authorized HYUNDAI dealer.
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
8 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.
Reset Items
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected.

[Driving info/After recharging/
Accumulated info (items in Utility
view) (see chapter 4)

[Integrated memory system (see
chapter 5)

[Power window (see chapter 5)

[Vision roof (see chapter 5)

[Power liftgate (see chapter 5)

[Climate control system (see chapter 5)

[Clock (see Infotainment system
manual)

[Infotainment system (see
Infotainment system manual)

09
9-35

v
Blade type

v
Cartridge type

v
Multi typeNormal Blown
Normal Blown
Normal Blown
OTM078035

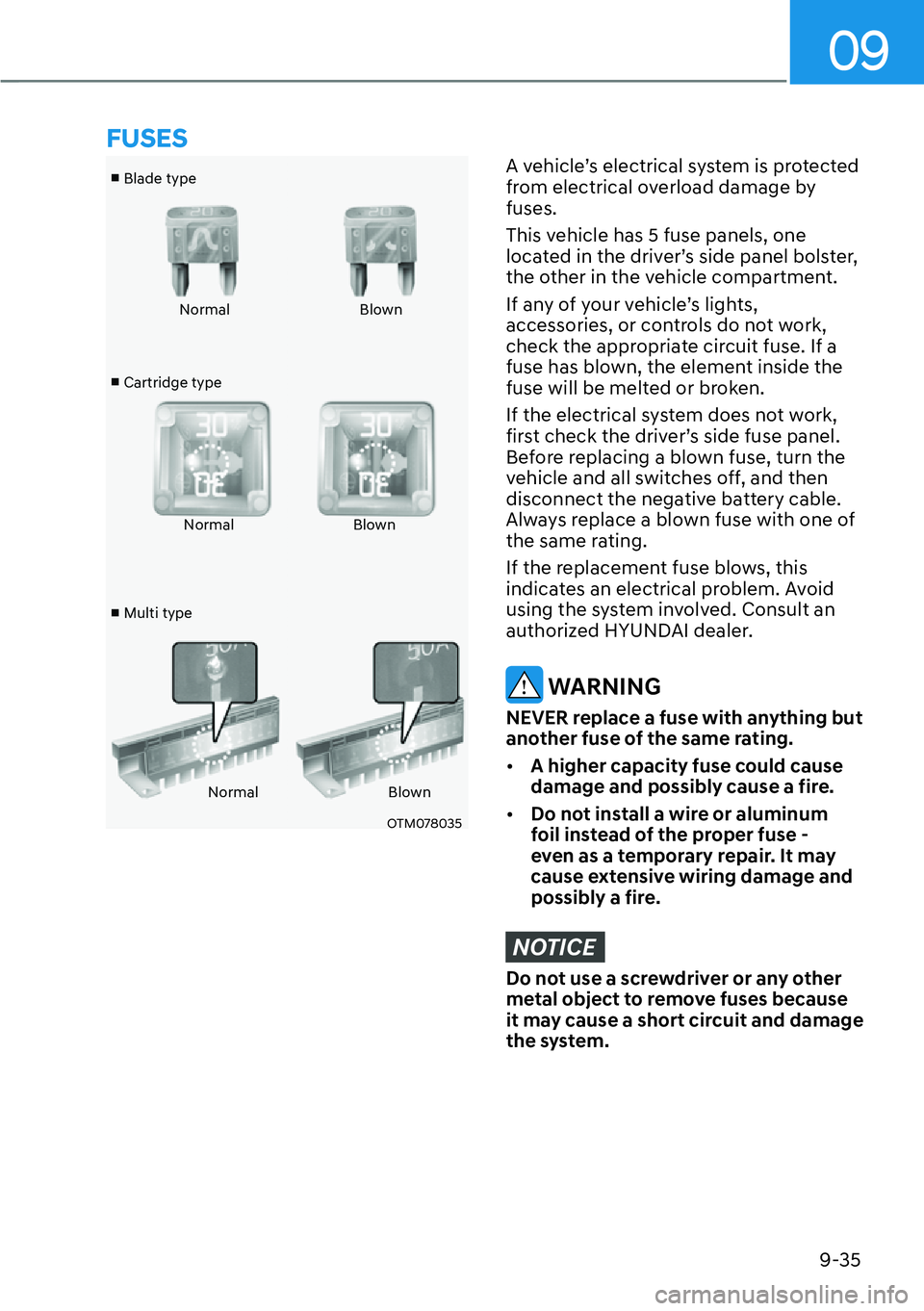

A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the vehicle compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
vehicle and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved. Consult an
authorized HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[A higher capacity fuse could cause
damage and possibly cause a fire.

[Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES

09
9-47

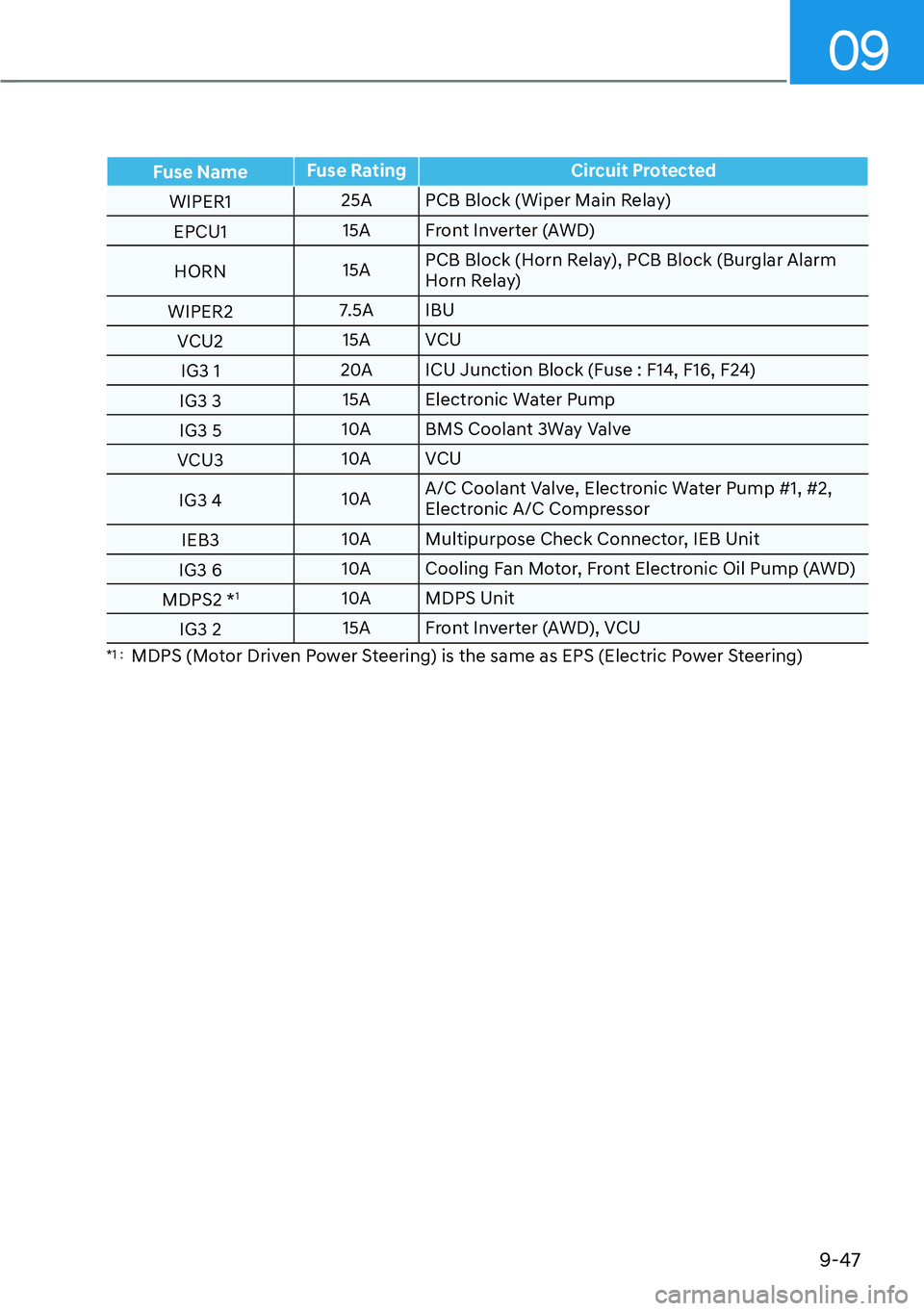

Fuse NameFuse Rating Circuit Protected
WIPER125A PCB Block (Wiper Main Relay)
EPCU115A Front Inverter (AWD)
HORN15APCB Block (Horn Relay), PCB Block (Burglar Alarm
Horn Relay)
WIPER27.5A IBU
VCU215A VCU
IG3 120A ICU Junction Block (Fuse : F14, F16, F24)
IG3 315A Electronic Water Pump
IG3 510A BMS Coolant 3Way Valve
VCU310A VCU
IG3 410AA/C Coolant Valve, Electronic Water Pump #1, #2,
Electronic A/C Compressor
IEB310A Multipurpose Check Connector, IEB Unit
IG3 610A Cooling Fan Motor, Front Electronic Oil Pump (AWD)
MDPS2 *
110A MDPS Unit
IG3 215A Front Inverter (AWD), VCU
*1 : MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)

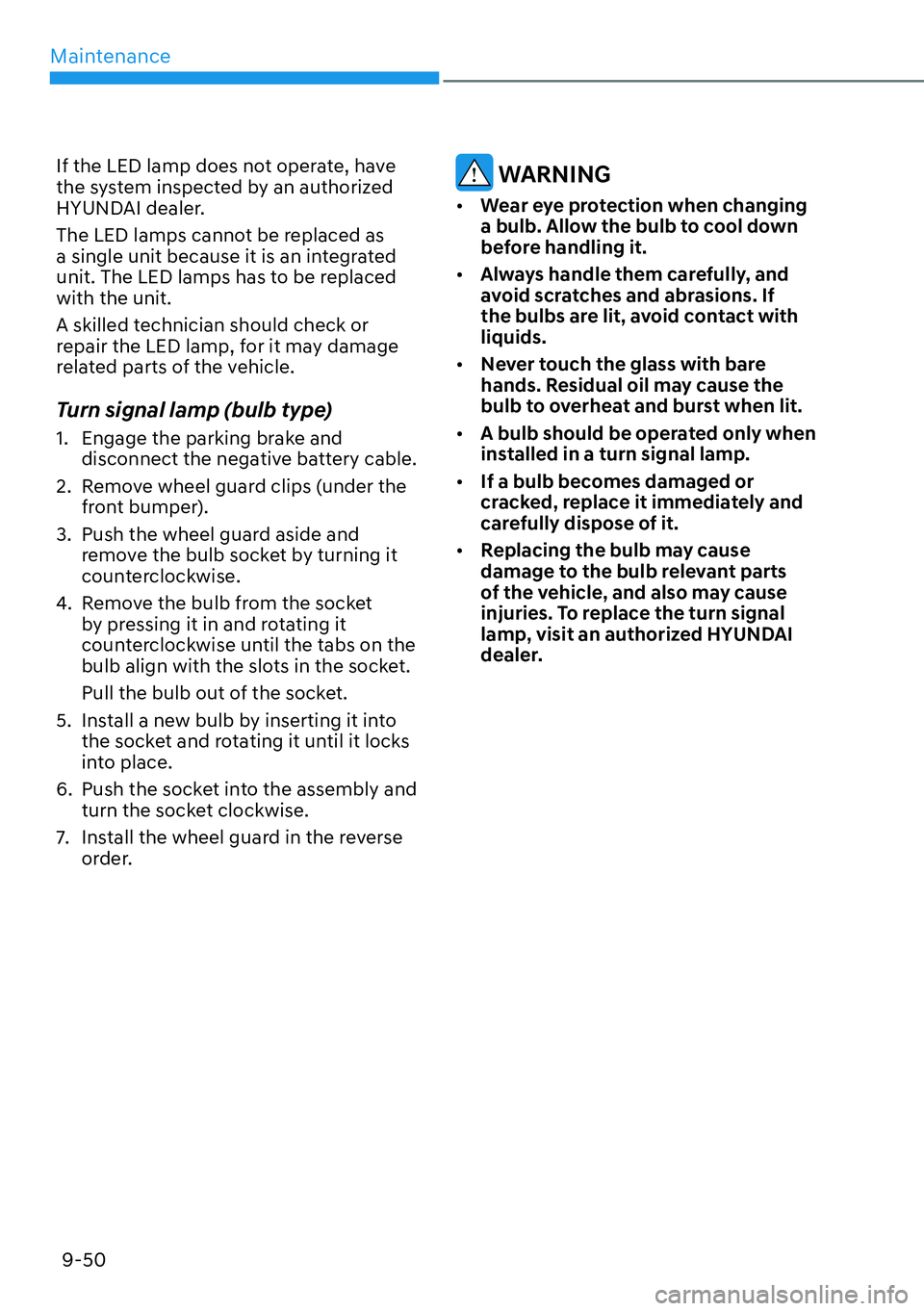

Maintenance
9-50
If the LED lamp does not operate, have
the system inspected by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Turn signal lamp (bulb type)
1. Engage the parking brake and
disconnect the negative battery cable.
2. Remove wheel guard clips (under the
front bumper).
3. Push the wheel guard aside and
remove the bulb socket by turning it
counterclockwise.
4. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
5. Install a new bulb by inserting it into
the socket and rotating it until it locks
into place.
6. Push the socket into the assembly and
turn the socket clockwise.
7. Install the wheel guard in the reverse
order.
WARNING

[Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.

[Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.

[Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.

[A bulb should be operated only when
installed in a turn signal lamp.

[If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.

[Replacing the bulb may cause
damage to the bulb relevant parts
of the vehicle, and also may cause
injuries. To replace the turn signal
lamp, visit an authorized HYUNDAI
dealer.
