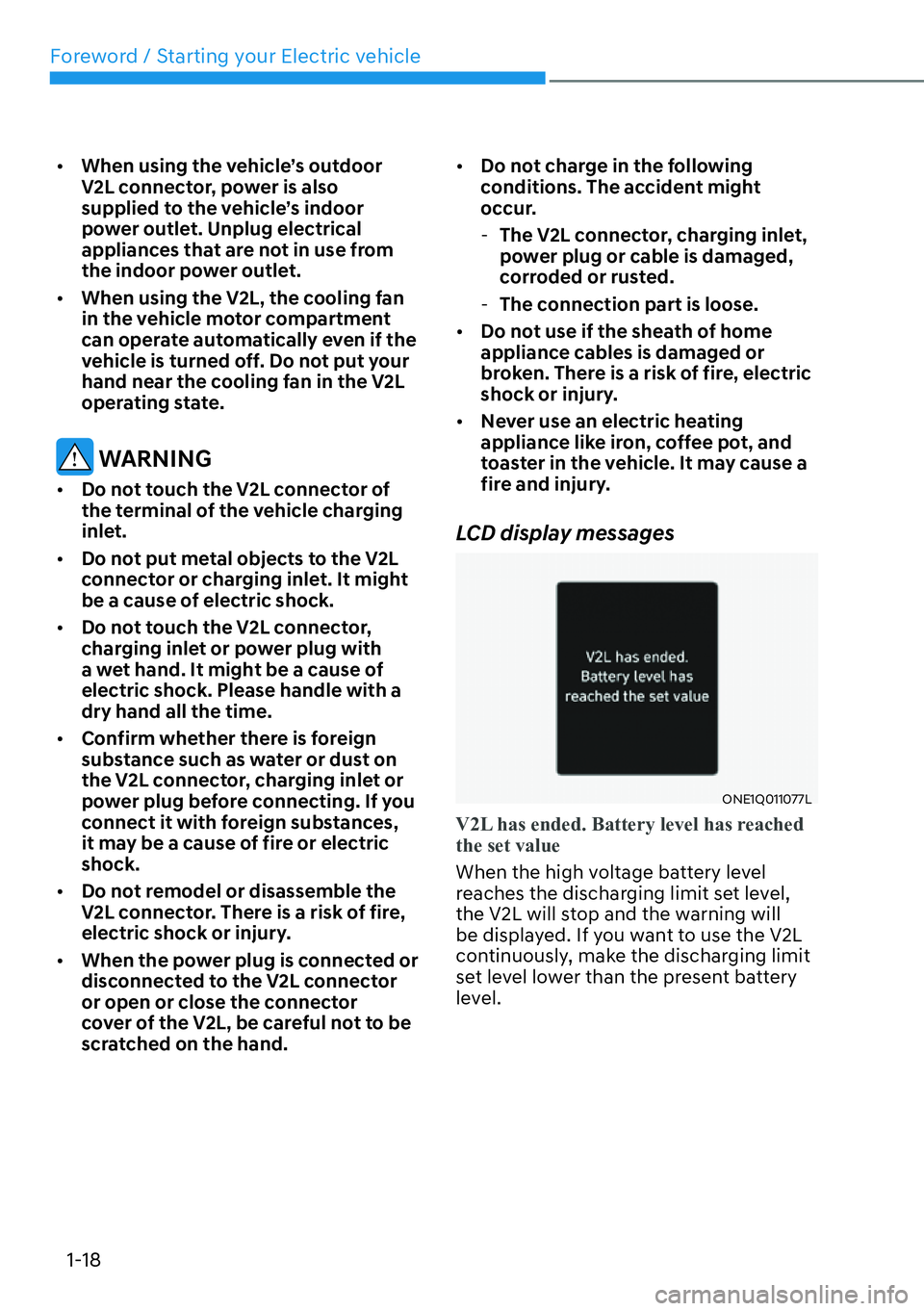

Foreword / Starting your Electric vehicle
1-18

[When using the vehicle’s outdoor
V2L connector, power is also
supplied to the vehicle’s indoor
power outlet. Unplug electrical
appliances that are not in use from
the indoor power outlet.

[When using the V2L, the cooling fan
in the vehicle motor compartment
can operate automatically even if the
vehicle is turned off. Do not put your
hand near the cooling fan in the V2L
operating state.
WARNING

[Do not touch the V2L connector of
the terminal of the vehicle charging
inlet.

[Do not put metal objects to the V2L
connector or charging inlet. It might
be a cause of electric shock.

[Do not touch the V2L connector,
charging inlet or power plug with
a wet hand. It might be a cause of
electric shock. Please handle with a
dry hand all the time.

[Confirm whether there is foreign
substance such as water or dust on
the V2L connector, charging inlet or
power plug before connecting. If you
connect it with foreign substances,
it may be a cause of fire or electric
shock.

[Do not remodel or disassemble the
V2L connector. There is a risk of fire,
electric shock or injury.

[When the power plug is connected or
disconnected to the V2L connector
or open or close the connector
cover of the V2L, be careful not to be
scratched on the hand.
[Do not charge in the following
conditions. The accident might
occur.
-The V2L connector, charging inlet,
power plug or cable is damaged,
corroded or rusted.
-The connection part is loose.

[Do not use if the sheath of home
appliance cables is damaged or
broken. There is a risk of fire, electric
shock or injury.

[Never use an electric heating
appliance like iron, coffee pot, and
toaster in the vehicle. It may cause a
fire and injury.
LCD display messages
ONE1Q011077L
V2L has ended. Battery level has reached
the set value
When the high voltage battery level
reaches the discharging limit set level,
the V2L will stop and the warning will
be displayed. If you want to use the V2L
continuously, make the discharging limit
set level lower than the present battery
level.

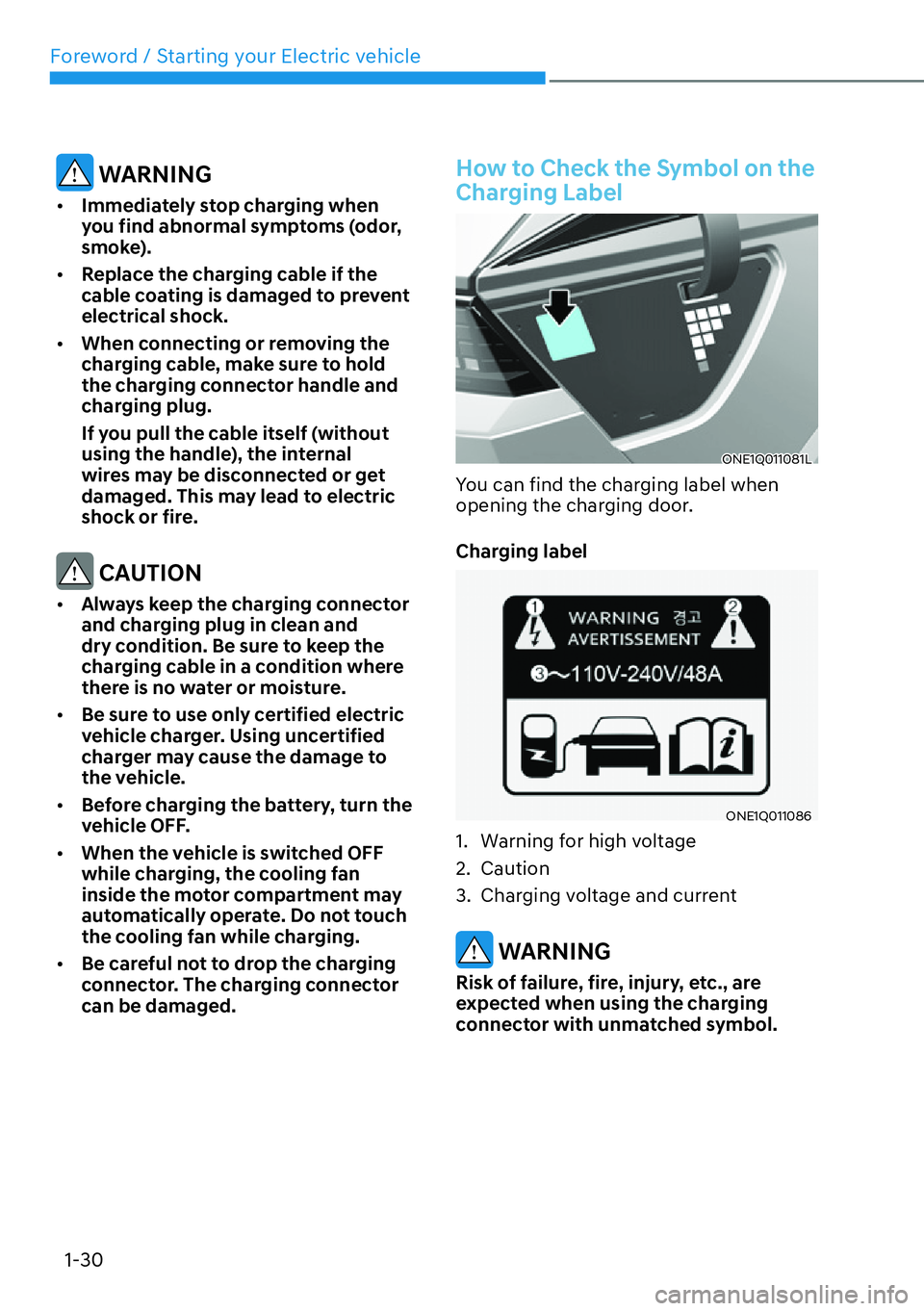

Foreword / Starting your Electric vehicle
1-30
WARNING

[Immediately stop charging when
you find abnormal symptoms (odor,
smoke).

[Replace the charging cable if the
cable coating is damaged to prevent
electrical shock.

[When connecting or removing the
charging cable, make sure to hold
the charging connector handle and
charging plug.
If you pull the cable itself (without
using the handle), the internal
wires may be disconnected or get
damaged. This may lead to electric
shock or fire.
CAUTION

[Always keep the charging connector
and charging plug in clean and
dry condition. Be sure to keep the
charging cable in a condition where
there is no water or moisture.

[Be sure to use only certified electric
vehicle charger. Using uncertified
charger may cause the damage to
the vehicle.

[Before charging the battery, turn the
vehicle OFF.

[When the vehicle is switched OFF
while charging, the cooling fan
inside the motor compartment may
automatically operate. Do not touch
the cooling fan while charging.

[Be careful not to drop the charging
connector. The charging connector
can be damaged.
How to Check the Symbol on the
Charging Label
ONE1Q011081L
You can find the charging label when
opening the charging door.
Charging label
ONE1Q011086
1. Warning for high voltage
2. Caution
3. Charging voltage and current
WARNING
Risk of failure, fire, injury, etc., are
expected when using the charging
connector with unmatched symbol.

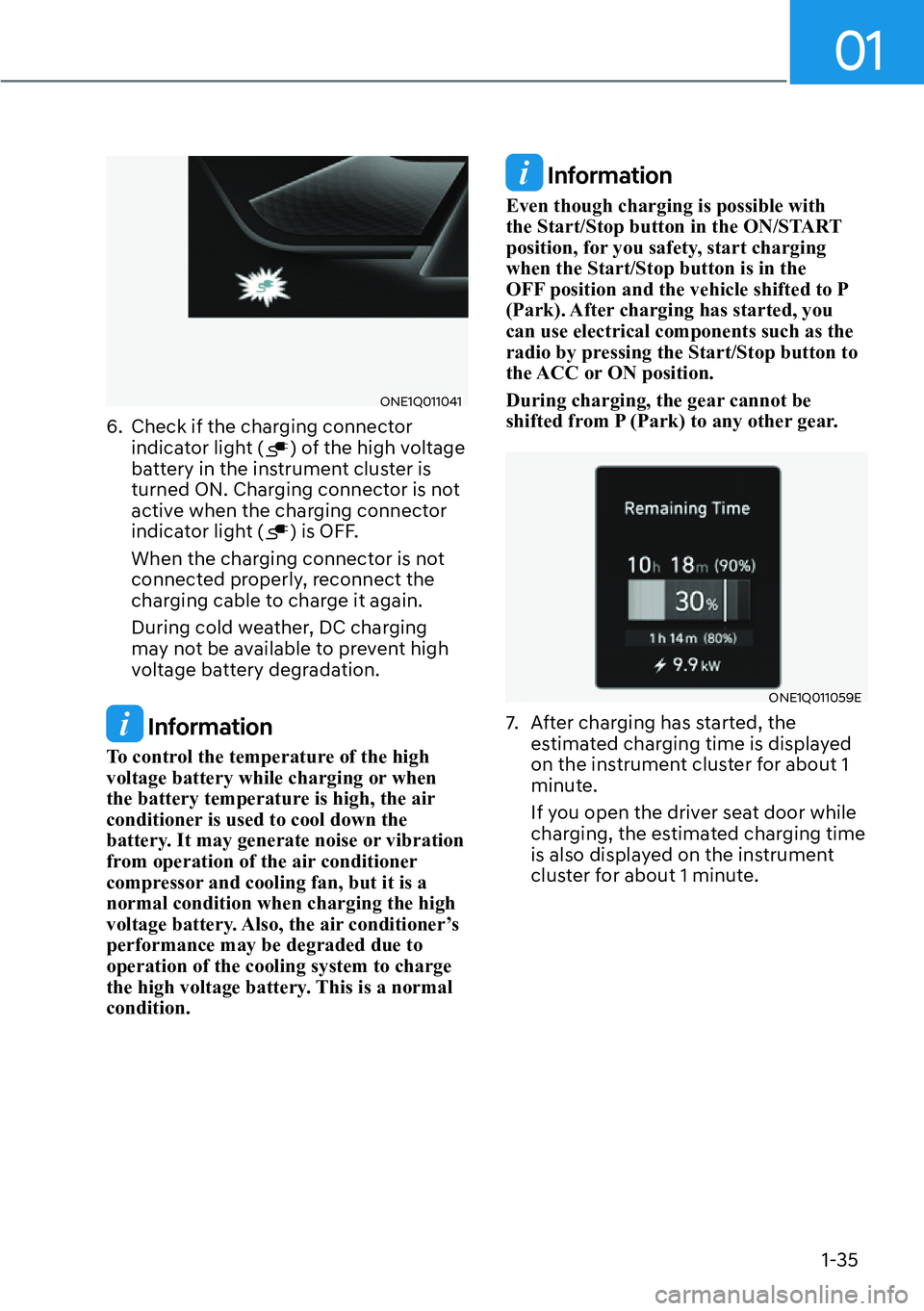

01
1-35
ONE1Q011041
6. Check if the charging connector
indicator light () of the high voltage
battery in the instrument cluster is
turned ON. Charging connector is not
active when the charging connector
indicator light (
) is OFF.
When the charging connector is not
connected properly, reconnect the
charging cable to charge it again.
During cold weather, DC charging
may not be available to prevent high
voltage battery degradation.
Information
To control the temperature of the high
voltage battery while charging or when
the battery temperature is high, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be degraded due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.
Information
(YHQWKRXJKFKDUJLQJLVSRVVLEOHZLWK
the Start/Stop button in the ON/START
position, for you safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to P
(Park). After charging has started, you
can use electrical components such as the
radio by pressing the Start/Stop button to
the ACC or ON position.
During charging, the gear cannot be
shifted from P (Park) to any other gear.
ONE1Q011059E
7. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.

01
1-41
Information
To control the temperature of the high
voltage battery while charging, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be degraded due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.
Information
(YHQWKRXJKFKDUJLQJLVSRVVLEOHZLWK
the Start/Stop button in the ON/START
position, for you safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to P
(Park). After charging has started, you
can use electrical components such as the
radio by pressing the Start/Stop button to
the START or ON position.
During charging, the gear cannot be
shifted from P (Park) to any other gear.
ONE1Q011058E
10. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute. When
scheduled charging or scheduled
air conditioner/heater is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.
Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.

Foreword / Starting your Electric vehicle
1-52

[Distance to empty that is displayed
on the instrument cluster after
completing a recharge may vary
significantly depending on previous
operating patterns.
When previous driving patterns
include high speed driving, resulting
in the high voltage battery using more
electricity than usual, the estimated
distance to empty is reduced. When
the high voltage battery uses little
electricity in ECO mode, the estimated
distance to empty increases.

[Distance to empty may depend on
many factors such as the charge
amount of the high voltage battery,
weather, temperature, durability of
the battery, geographical features,
and driving style. When the ambient
temperature is low such as in winter,
the actual driving distance may
reduce due to degradation of the
battery.

[Natural degradation may occur with
the high voltage battery depending
on the number of years the vehicle is
used. This may reduce the distance to
empty.
When destination is set
When the destination is set, the distance
to empty may change. The distance
to empty is recalculated using the
information of the destination. However,
the distance to empty may vary
significantly based on traffic conditions,
driving habits, and condition of the
vehicle.
Tips for Improving Distance to
Empty

[If you operate the air conditioner /
heater too much, the driving battery
uses too much electricity. This
may reduce the distance to empty.
Therefore, it is recommended that
you set the cabin temperature to
22°C AUTO. This setting that has
been certified by various assessment
tests to maintain optimal energy
consumption rates while keeping the
temperature fresh.
Turn OFF the heater and air
conditioner if you do not need them.

[When the heater or air conditioning
system is on the energy consumption
is reduced if recirculation mode is
selected instead of selecting the fresh
mode. The fresh mode requires large
amount of energy consumption as
the outside air has to be re-heated or
cooled.

[When using the heater or air
conditioning system use the DRIVER
ONLY or scheduled air conditioner/
heater function.

[Depress and hold the accelerator
pedal to maintain speed and drive
economically.

[Gradually depress and release the
accelerator pedal when accelerating
or decelerating.

[Always maintain specified tire
pressures.

[Do not use unnecessary electrical
components while driving.

[Do not load unnecessary items in the
vehicle.

[Do not mount parts that may increase
air resistance.

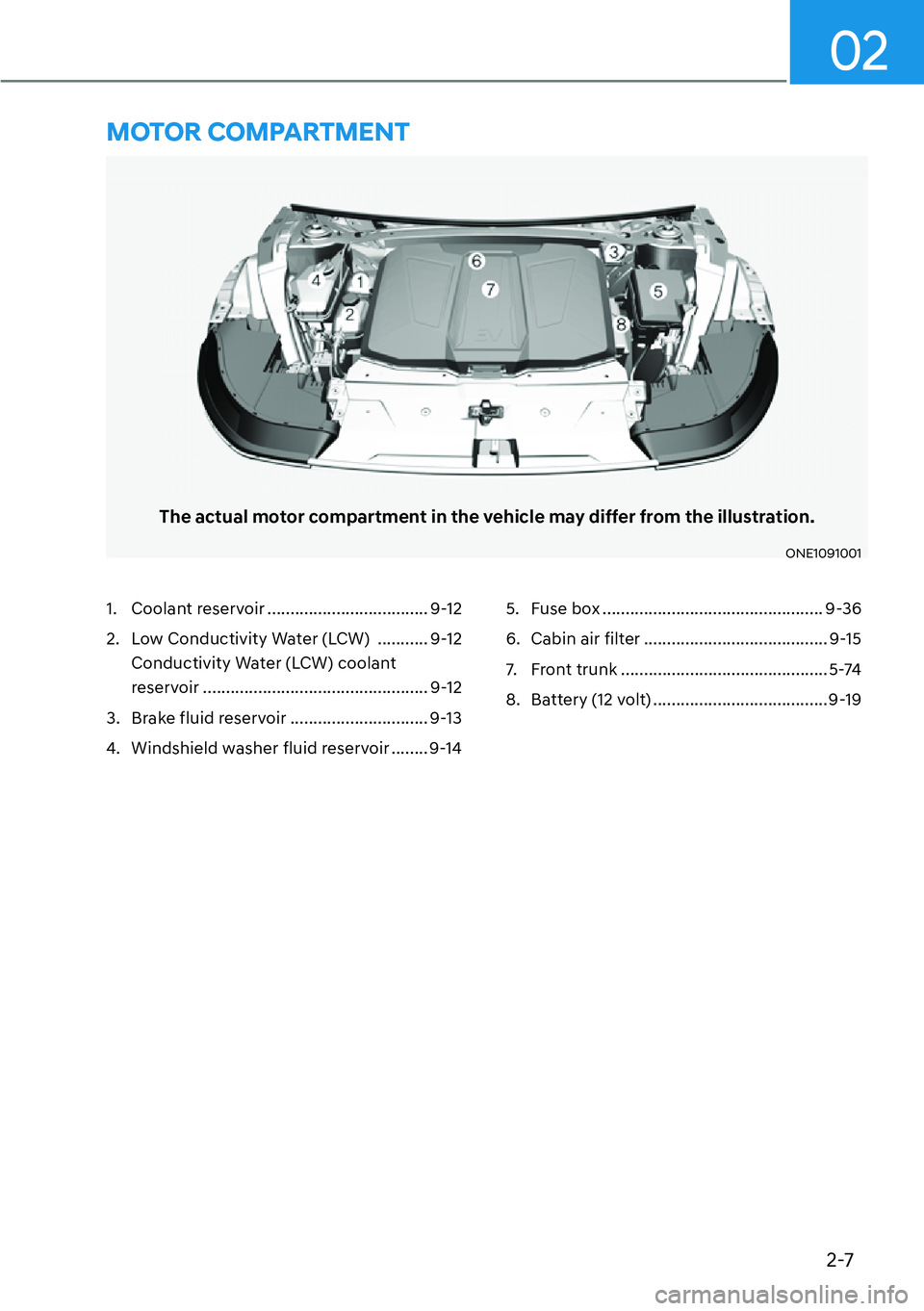

2-7
02
The actual motor compartment in the vehicle may differ from the illustration.
ONE1091001
1. Coolant reservoir ................................... 9-12
2. Low Conductivity Water (LCW) ........... 9-12
Conductivity Water (LCW) coolant
reservoir ................................................. 9-12
3. Brake fluid reservoir .............................. 9-13
4. Windshield washer fluid reservoir ........ 9-145. Fuse box ................................................ 9-36
6. Cabin air filter ........................................ 9-15
7. Front trunk ............................................. 5-74
8. Battery (12 volt) ...................................... 9-19
MOTOR COMPARTMENT

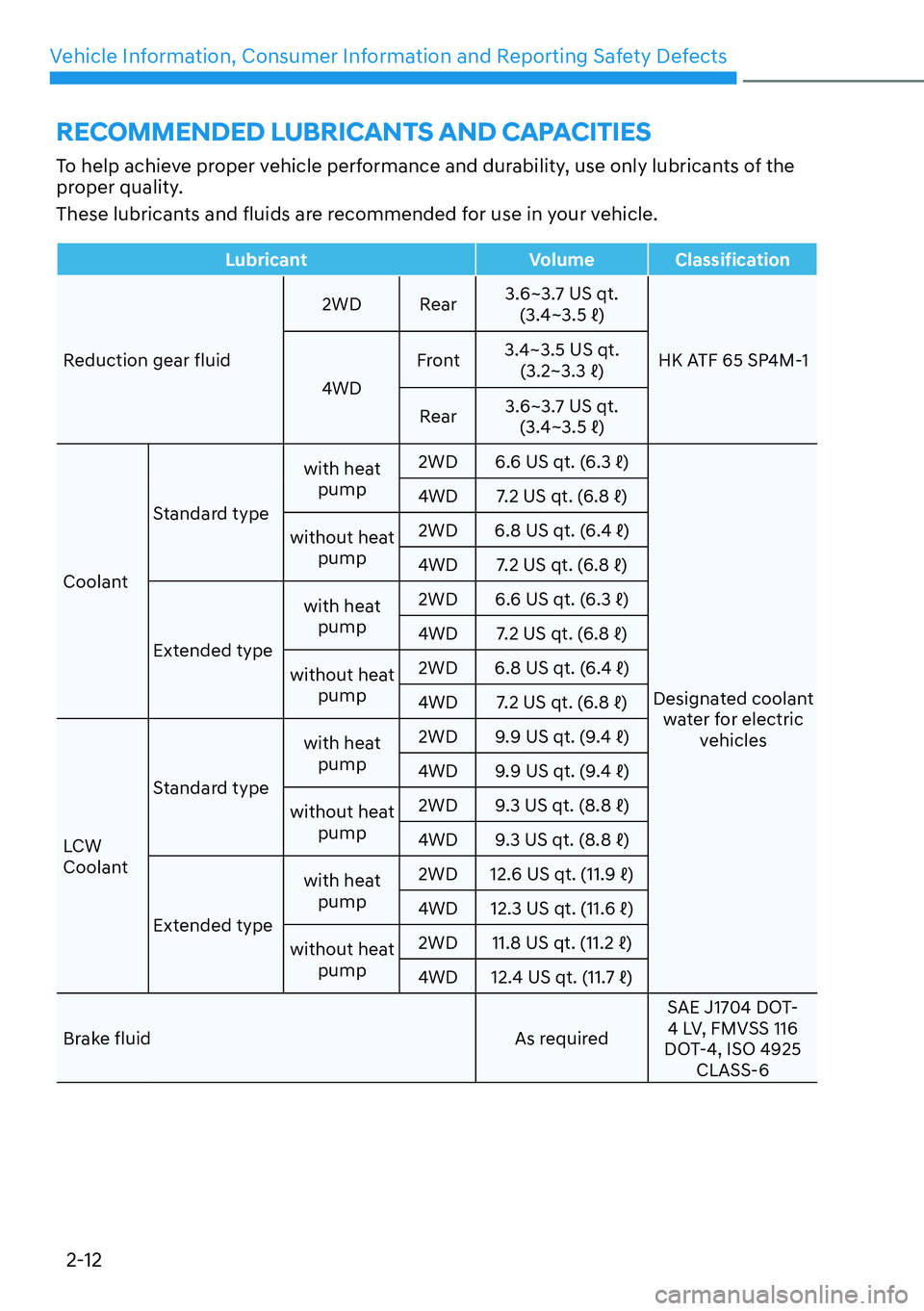

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
To help achieve proper vehicle performance and durability, use only lubricants of the
proper quality.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Reduction gear fluid2WD Rear3.6~3.7 US qt.
a
b
HK ATF 65 SP4M-1
4WDFront3.4~3.5 US qt.
a
b
Rear3.6~3.7 US qt.
a
b
CoolantStandard typewith heat
pump2WD86TW
b
Designated coolant
water for electric
vehicles 4WD86TW
b
without heat
pump2WD86TW
b
4WD86TW
b
Extended typewith heat
pump2WD86TW
b
4WD86TW
b
without heat
pump2WD86TW
b
4WD86TW
b
LCW
CoolantStandard typewith heat
pump2WD86TW
b
4WD86TW
b
without heat
pump2WD86TW
b
4WD86TW
b
Extended typewith heat
pump2WD86TW
b
4WD86TW
b
without heat
pump2WD86TW
b
4WD86TW
b
Brake fluid As requiredSAE J1704 DOT-
4 LV, FMVSS 116
DOT-4, ISO 4925
CLASS-6
RECOMMENDED LUBRICANTS AND CAPACITIES

Seats & Safety System
3-26

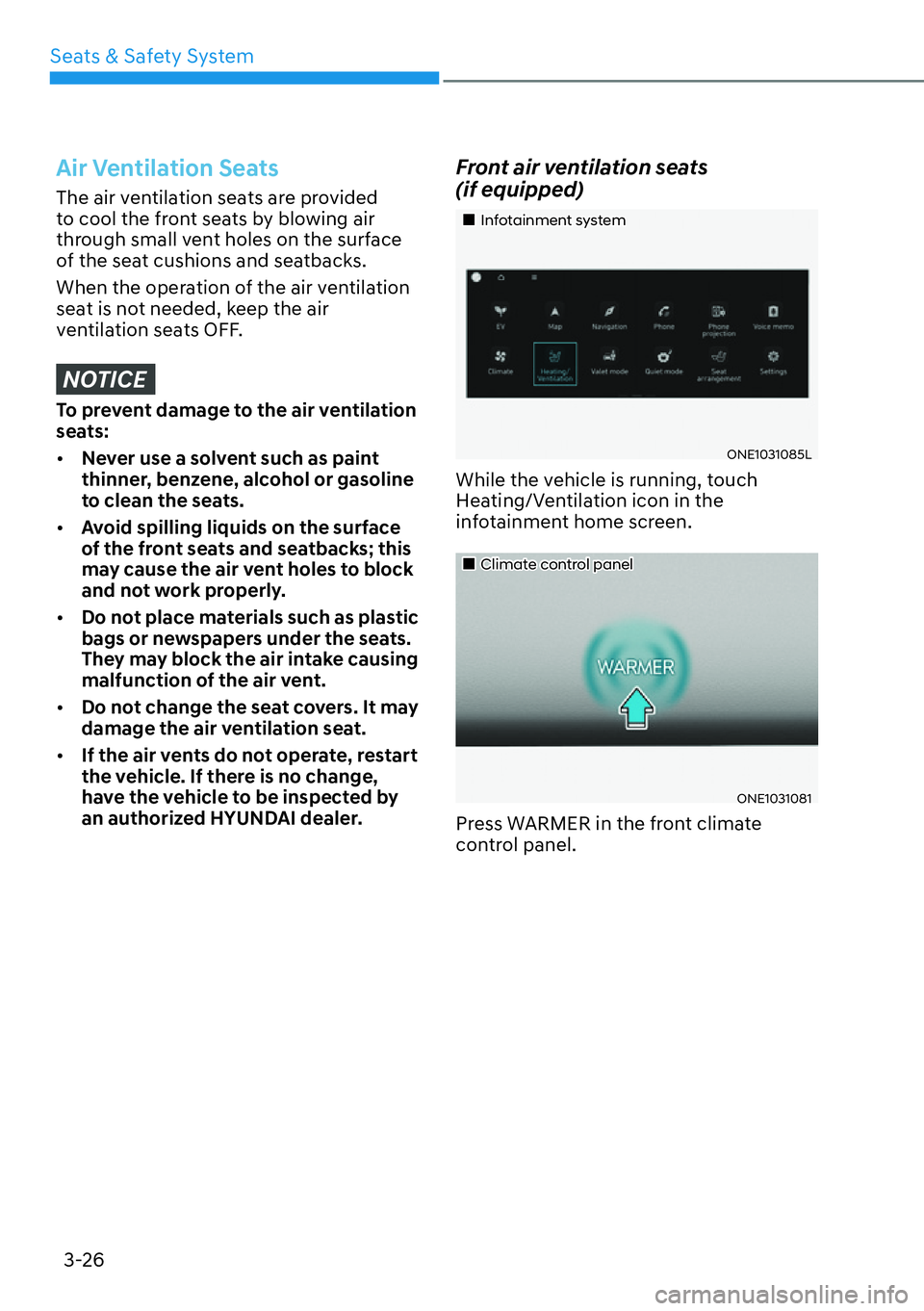

Air Ventilation Seats
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the air
ventilation seats OFF.
NOTICE
To prevent damage to the air ventilation
seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[Avoid spilling liquids on the surface
of the front seats and seatbacks; this
may cause the air vent holes to block
and not work properly.

[Do not place materials such as plastic
bags or newspapers under the seats.
They may block the air intake causing
malfunction of the air vent.

[Do not change the seat covers. It may
damage the air ventilation seat.

[If the air vents do not operate, restart
the vehicle. If there is no change,
have the vehicle to be inspected by
an authorized HYUNDAI dealer.
Front air ventilation seats
(if equipped)
„Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment home screen.
„Climate control panel
ONE1031081
Press WARMER in the front climate
control panel.

05
5-11
Remotely moving vehicle forward or
backward (if equipped)
With the smart key, the driver can move
the vehicle forward or backward using
the Forward or Backward button (6, 7) on
the smart key.
For more details, refer to “Remote
Smart Parking Assist (RSPA)” section in
chapter 7.
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Start/
Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[Avoid dropping or throwing the
smart key.

[Protect the smart key from extreme
temperatures.
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
To remove the mechanical key from the
smart key FOB:
OFE048007
1. Press the mechanical key and remove
it from the smart key FOB.
2. Move the release lever in the direction
of the arrow (1) and then remove
the mechanical key (2). Insert the
mechanical key into the key hole on
the door.
To reinstall the mechanical key, put
the key into the hole and push it until
a click sound is heard.
Loss of a smart key
A maximum of three Smart Keys can
be registered to a single vehicle. If
you happen to lose your smart key,
it is recommended that you should
immediately take the vehicle and
remaining keys to your authorized
HYUNDAI dealer or tow the vehicle, if
necessary.

05
5-73

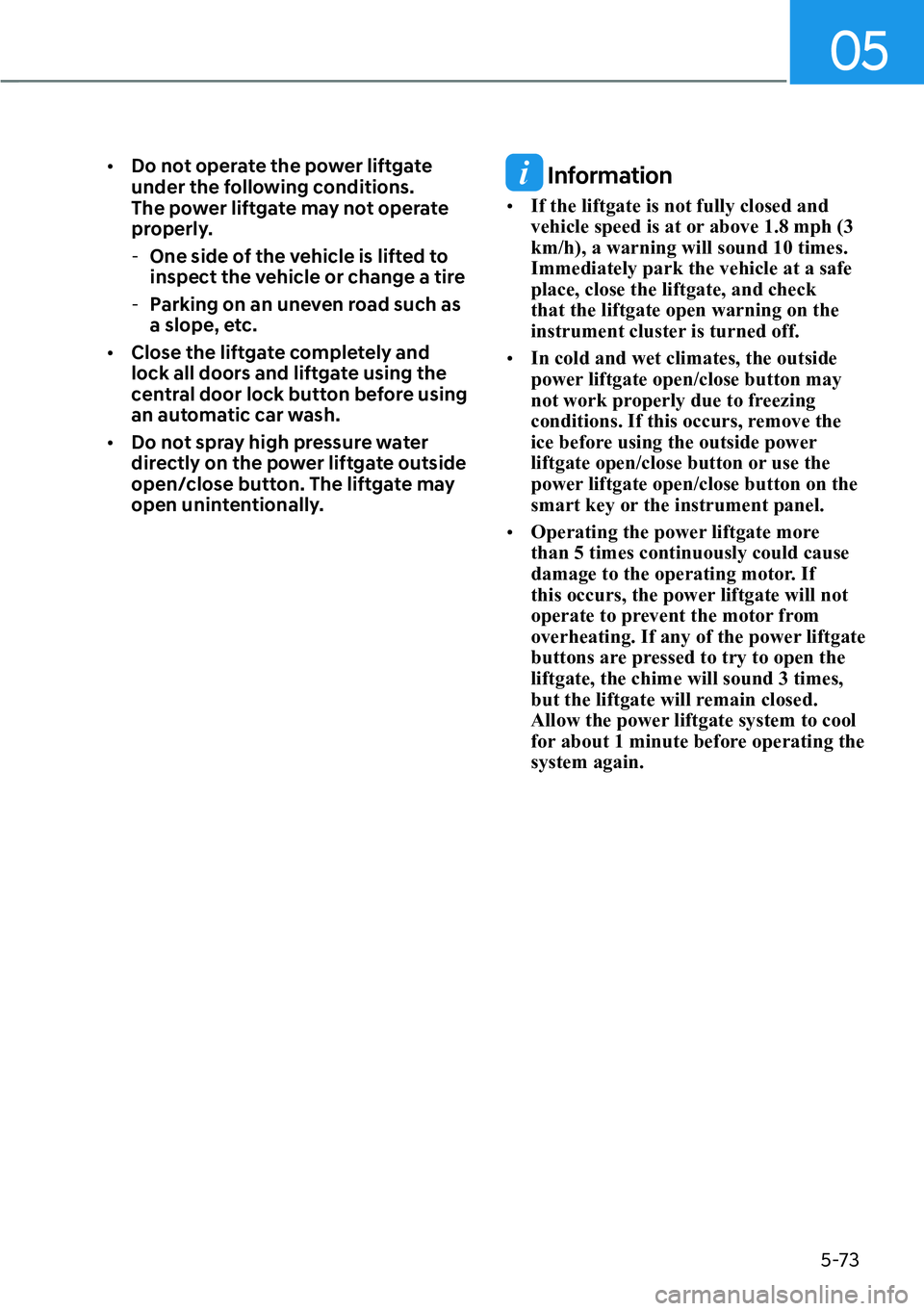

[Do not operate the power liftgate
under the following conditions.
The power liftgate may not operate
properly.
-One side of the vehicle is lifted to
inspect the vehicle or change a tire
-Parking on an uneven road such as
a slope, etc.

[Close the liftgate completely and
lock all doors and liftgate using the
central door lock button before using
an automatic car wash.

[Do not spray high pressure water
directly on the power liftgate outside
open/close button. The liftgate may
open unintentionally. Information

[If the liftgate is not fully closed and
vehicle speed is at or above 1.8 mph (3
km/h), a warning will sound 10 times.
Immediately park the vehicle at a safe
place, close the liftgate, and check
that the liftgate open warning on the
instrument cluster is turned off.

[In cold and wet climates, the outside
power liftgate open/close button may
not work properly due to freezing
conditions. If this occurs, remove the
ice before using the outside power
liftgate open/close button or use the
power liftgate open/close button on the
smart key or the instrument panel.

[Operating the power liftgate more
than 5 times continuously could cause
damage to the operating motor. If
this occurs, the power liftgate will not
operate to prevent the motor from
overheating. If any of the power liftgate
buttons are pressed to try to open the
liftgate, the chime will sound 3 times,
but the liftgate will remain closed.
Allow the power liftgate system to cool
for about 1 minute before operating the
system again.
