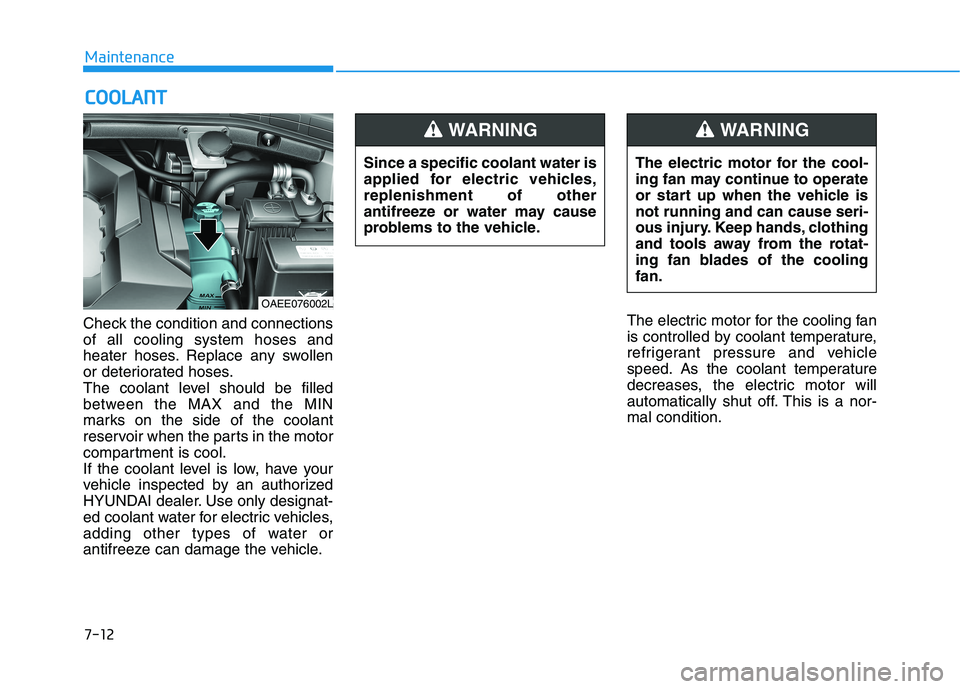

Page 471 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-12
MaintenanceC
C OO OO LLAA NN TT
Check the condition and connections of all cooling system hoses and
heater hoses. Replace any swollen
or deteriorated hoses.
The coolant level should be filled
bet

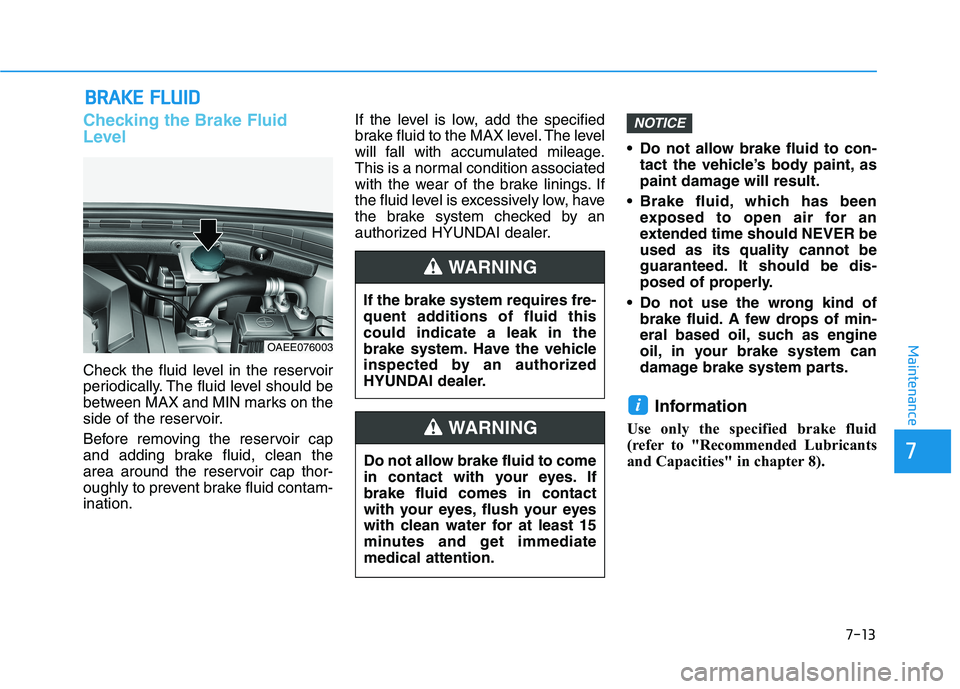

Page 472 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-13
7
Maintenance
BBRRAA KKEE  FF LLUU IIDD
Checking the Brake Fluid
Level
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the
side of th

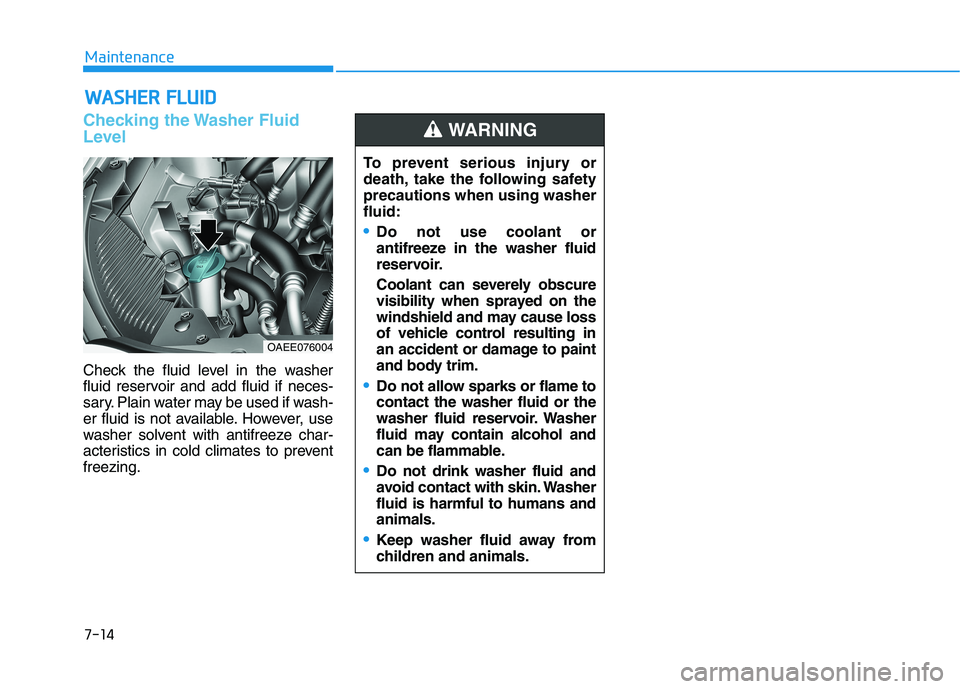

Page 473 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-14
MaintenanceW
W AASSHH EERR   FF LLUU IIDD
Checking the Washer Fluid
Level
Check the fluid level in the washer
fluid reservoir and add fluid if neces-
sary. Plain water may be used if wash-
er f

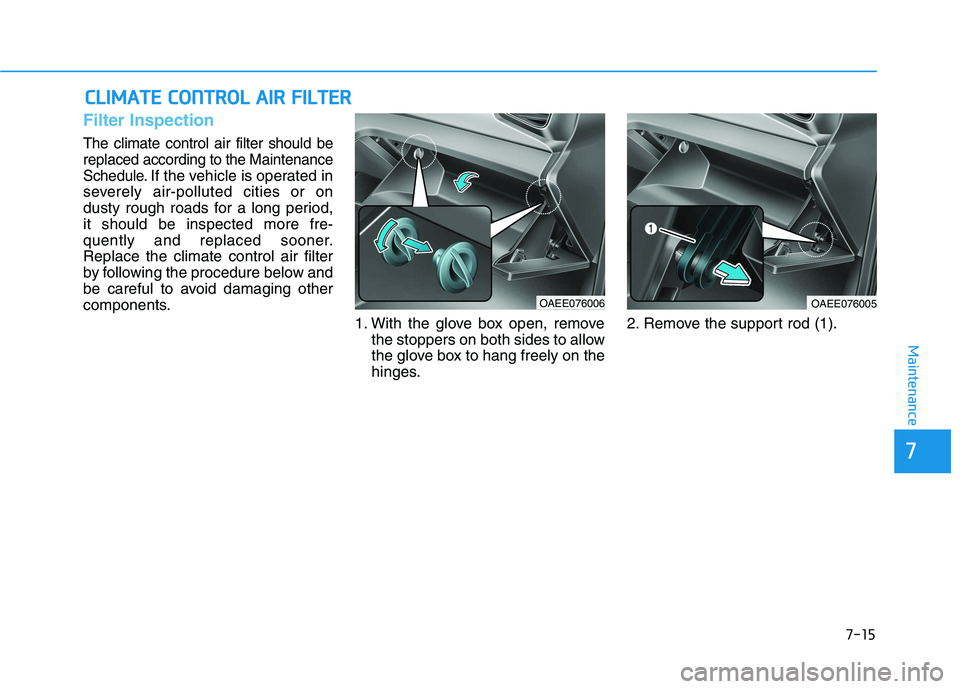

Page 474 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-15
7
Maintenance
CCLLIIMM AATTEE  CC OO NNTTRR OO LL  AA IIRR   FF IILL TT EERR
Filter Inspection
The climate control air filter should be replaced according to the Maintenance
Schedule.
If the vehi

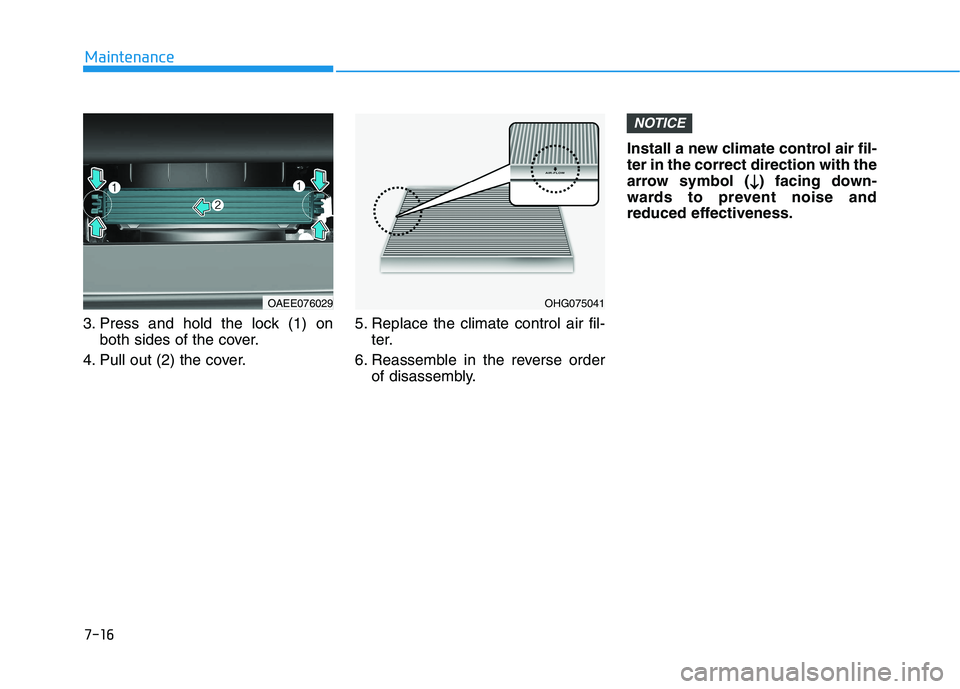

Page 475 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-16
Maintenance
3. Press and hold the lock (1) onboth sides of the cover.
4. Pull out (2) the cover. 5. Replace the climate control air fil-
ter.
6. Reassemble in the reverse order of disassembly. In

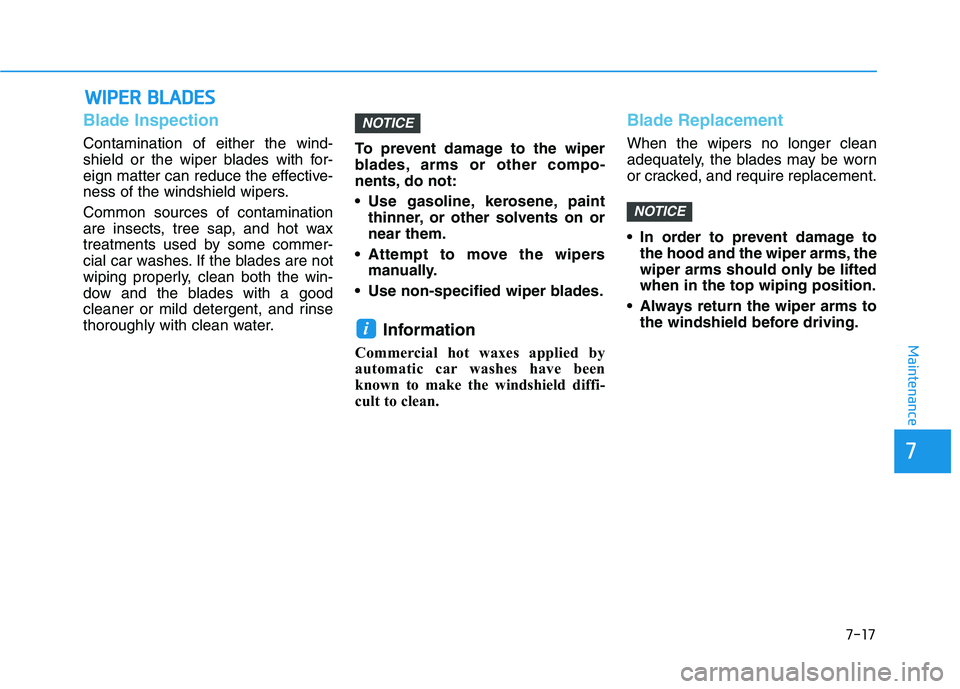

Page 476 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-17
7
Maintenance
WWIIPP EERR   BB LLAA DDEESS
Blade Inspection
Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wi

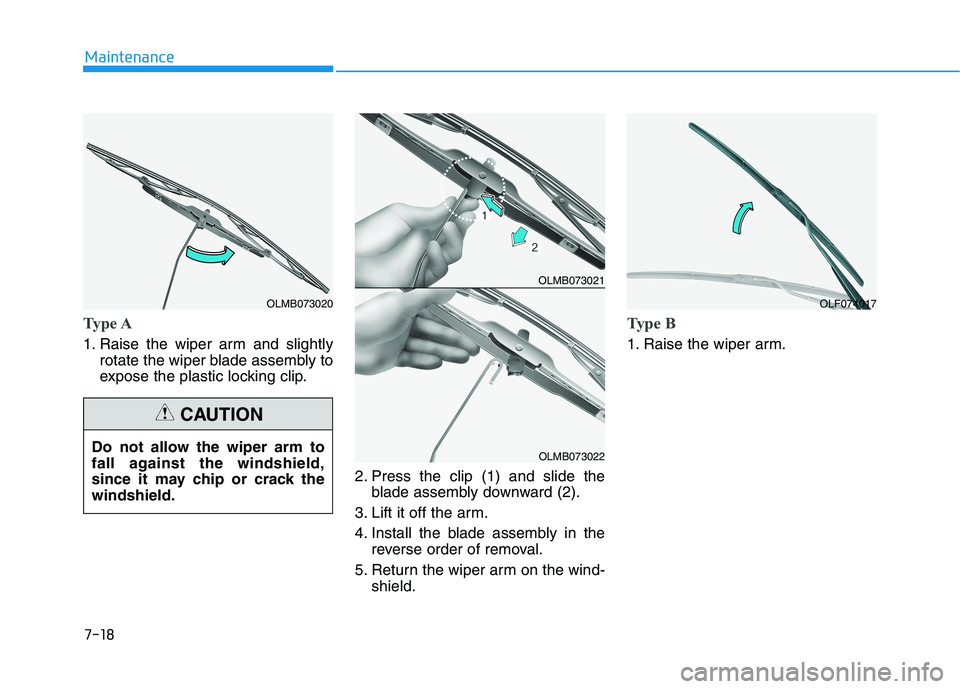

Page 477 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-18
Maintenance
Type A
1. Raise the wiper arm and slightlyrotate the wiper blade assembly to
expose the plastic locking clip.
2. Press the clip (1) and slide theblade assembly downward (2).
3. Lift

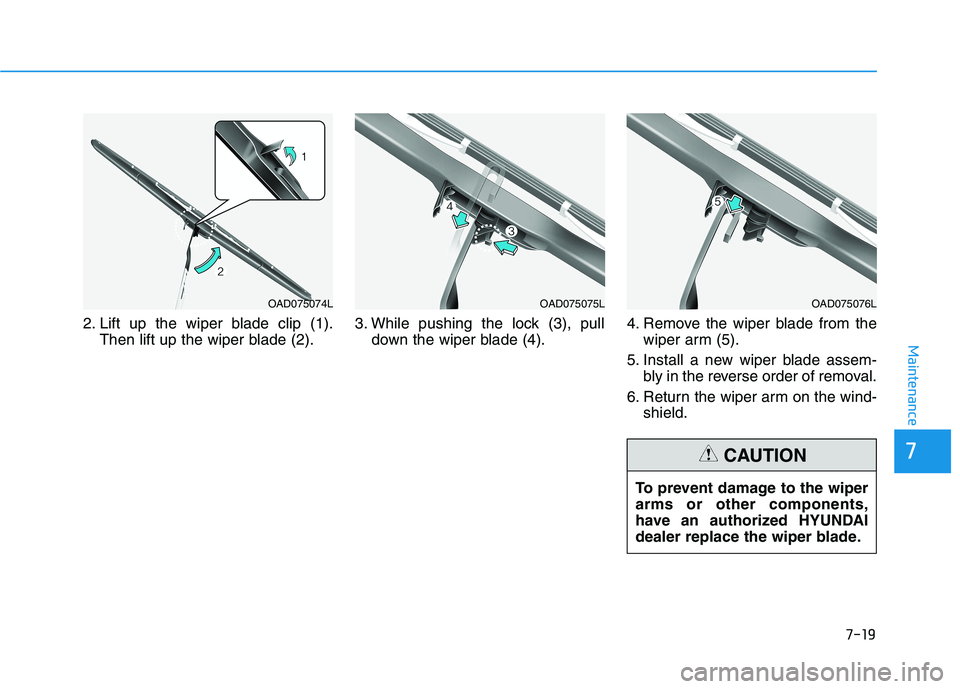

Page 478 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-19
7
Maintenance
2. Lift up the wiper blade clip (1).Then lift up the wiper blade (2). 3. While pushing the lock (3), pull
down the wiper blade (4). 4. Remove the wiper blade from the
wiper arm (5).

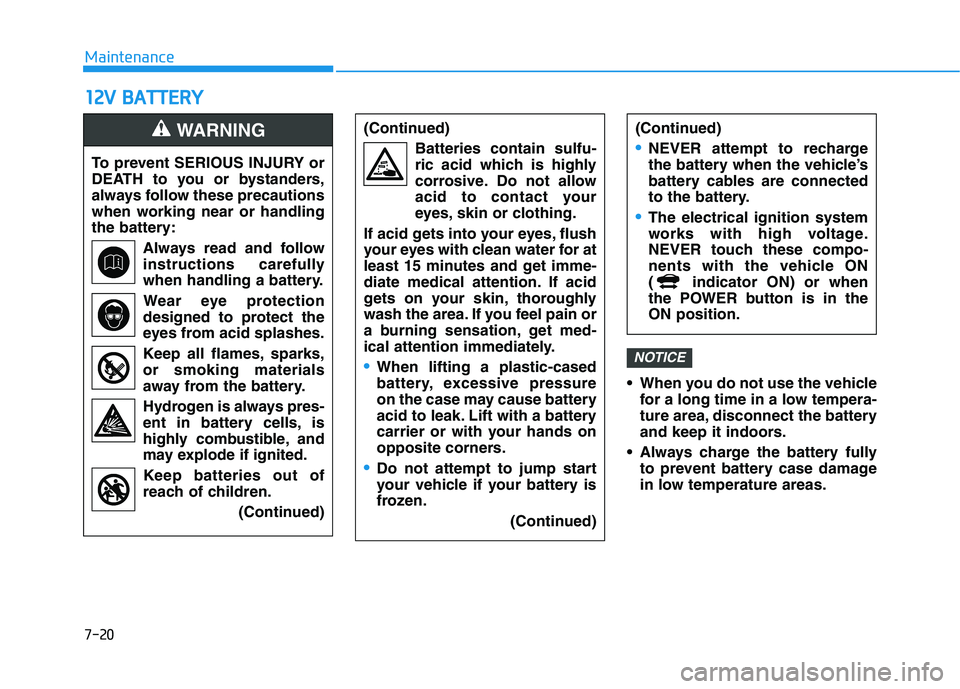

Page 479 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-20
Maintenance1
1 22VV   BB AA TTTTEERR YY
 When you do not use the vehicle
for a long time in a low tempera-
ture area, disconnect the battery
and keep it indoors.
 Always charge the battery fully

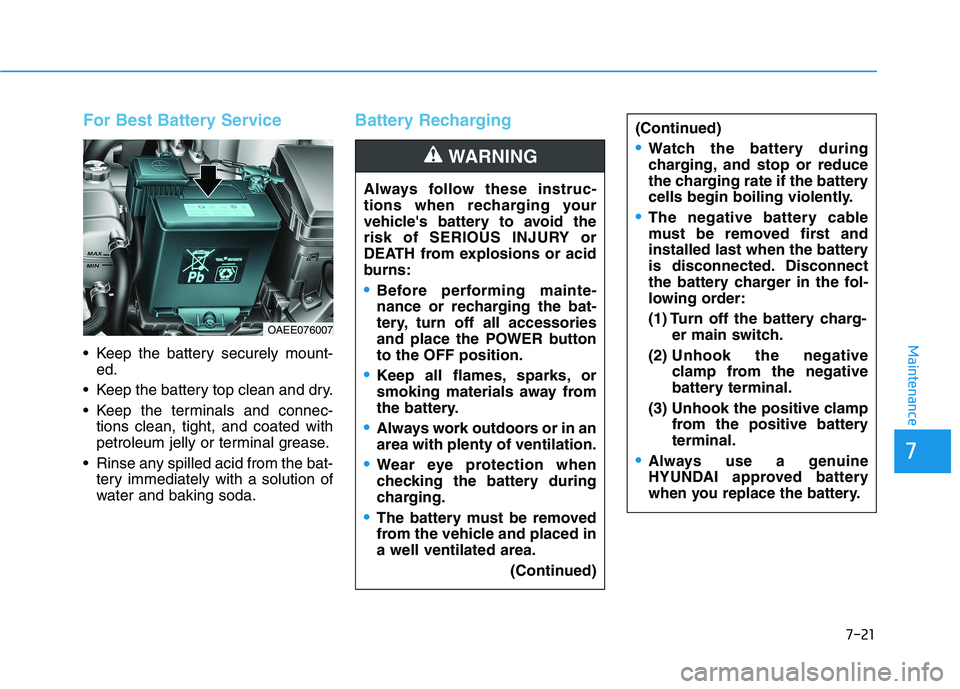

Page 480 of 546

HYUNDAI IONIQ ELECTRIC 2022  Owners Manual 7-21
7
Maintenance
For Best Battery Service
 Keep the battery securely mount-ed.
 Keep the battery top clean and dry.
 Keep the terminals and connec- tions clean, tight, and coated with
petroleum j
