HYUNDAI IONIQ ELECTRIC 2022 Owners Manual

888
Specifications & Consumer information
8

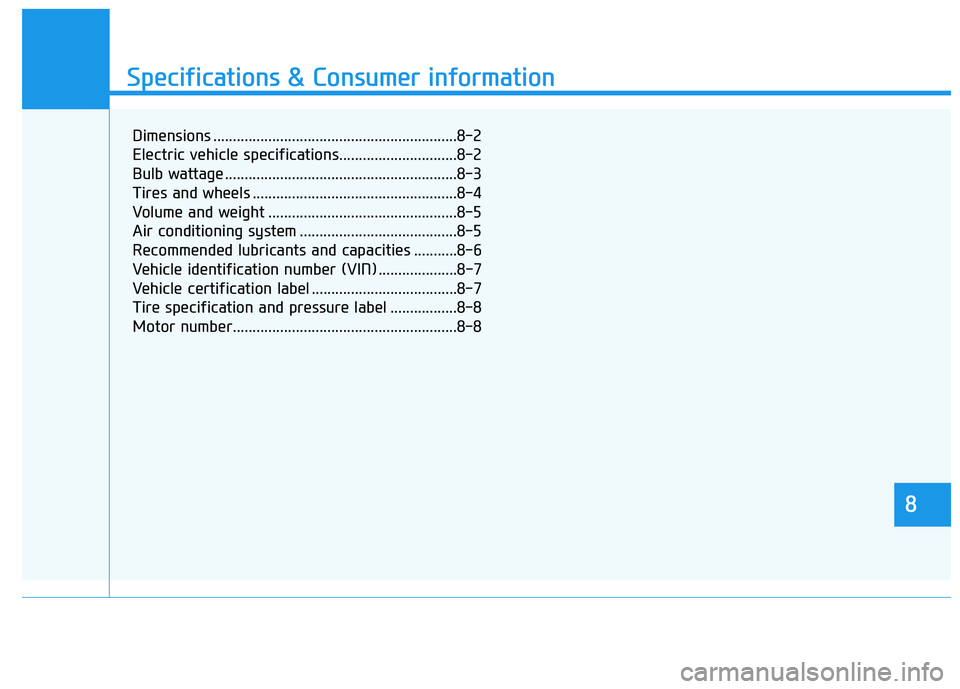

Specifications & Consumer information
8
Dimensions ..............................................................8-2
Electric vehicle specifications..............................8-2
Bulb wattage ...........................................................8-3
Tires and wheels ....................................................8-4
Volume and weight ................................................8-5
Air conditioning system ........................................8-5
Recommended lubricants and capacities ...........8-6
Vehicle identification number (VIN) ....................8-7
Vehicle certification label .....................................8-7
Tire specification and pressure label .................8-8
Motor number.........................................................8-8

DDIIMM EENN SSIIOO NNSS
8-2
Specifications & Consumer information
Itemsmm (in)
Overall length4,470 (175.9)
Overall width1,820 (71.6)
Overall height1,475(58)
Front tread1,555 (61.2)
Rear tread 1,564 (61.5)
Wheelbase2,700 (106.3)
EELLEE CCTT RR IICC VV EEHH IICC LLEE SS PP EECCIIFF IICC AA TTIIOO NNSS
Motor Battery (Lithium-Ion Polymer)Charger (OBC)
Max. Output (kW)
Max. Torque (Nm) Capacity (kWh)Power Output (kW)Voltage (V)Max. Output (kW)
100
295 38.31133197.2
OBC : On-Board Battery Chargers

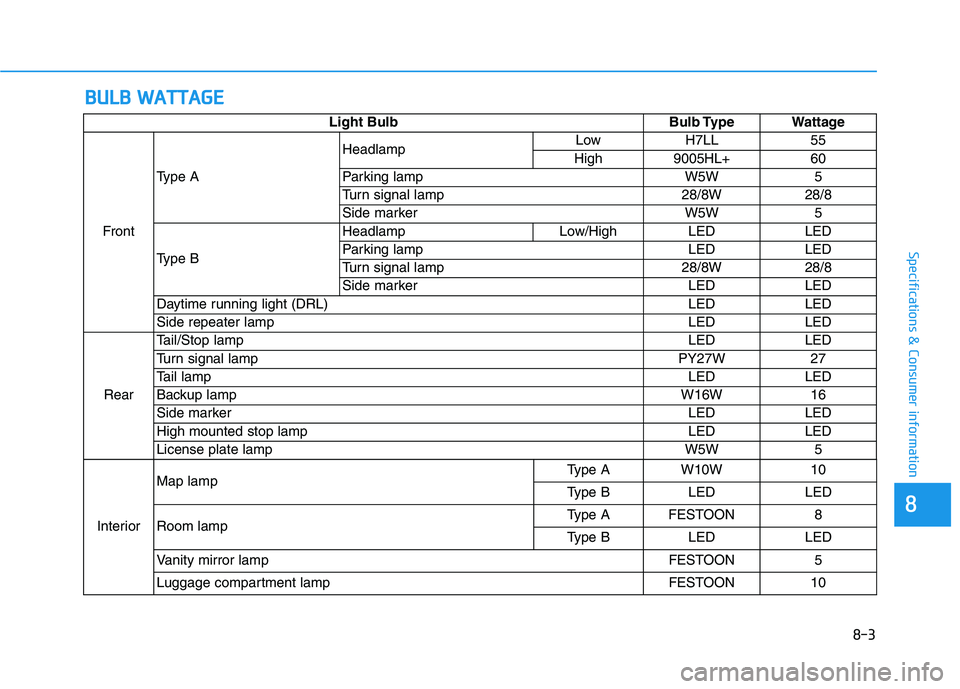

8-3
88
Specifications & Consumer information
BBUU LLBB WW AATTTTAA GG EE
Light Bulb Bulb Type Wattage
Front Type A
Headlamp
Low H7LL 55
High 9005HL+ 60
Parking lamp W5W 5
Turn signal lamp 28/8W 28/8
Side marker W5W 5
Type B Headlamp Low/High LED LED
Parking lamp
LED LED
Turn signal lamp 28/8W 28/8
Side marker LED LED
Daytime running light (DRL) LED LED
Side repeater lamp LED LED
Rear Tail/Stop lamp
LED LED
Turn signal lamp PY27W 27
Tail lamp LED LED
Backup lamp W16W 16
Side marker LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
InteriorMap lamp
Type A W10W 10
Type B LED LED
Room lamp Type A FESTOON 8
Type B LED LED
Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 10

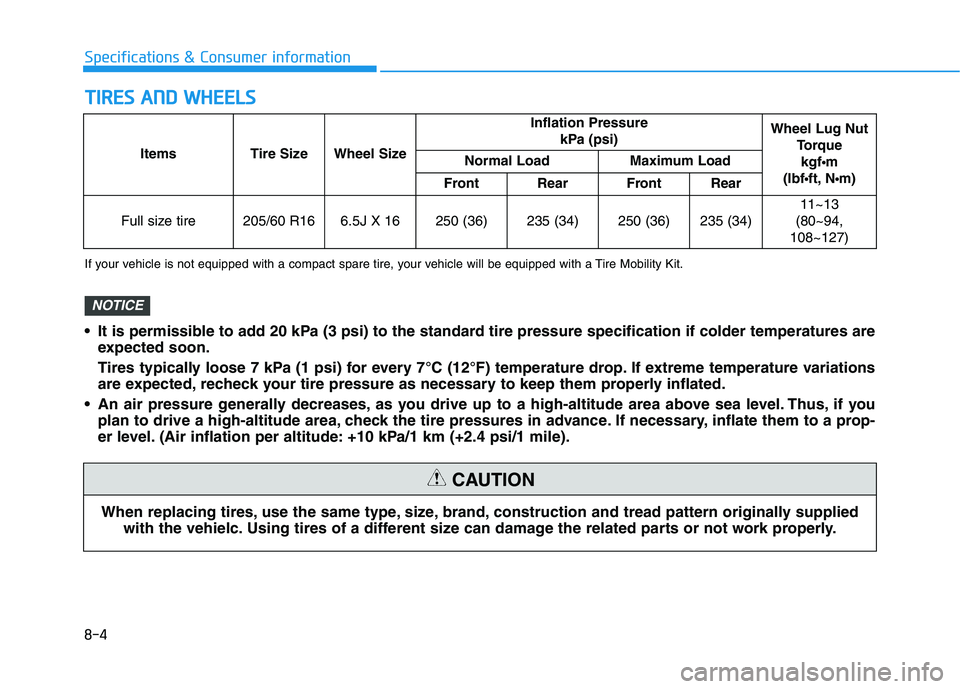

8-4
Specifications & Consumer informationT
T IIRR EESS AA NN DD WW HHEEEELLSS
When replacing tires, use the same type, size, brand, construction and tread pattern originally supplied
with the vehielc. Using tires of a different size can damage the related parts or not work properly.
CAUTION
If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.
Items Tire SizeWheel Size
Inflation Pressure
kPa (psi)Wheel Lug NutTorque kgf •m
(lbf ft, N m)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire205/60 R166.5J X 16250 (36)235 (34)250 (36)235 (34)
11~13
(80~94,
108~127)
It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expected soon.
Tires typically loose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme temperature variations
are expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile).
NOTICE

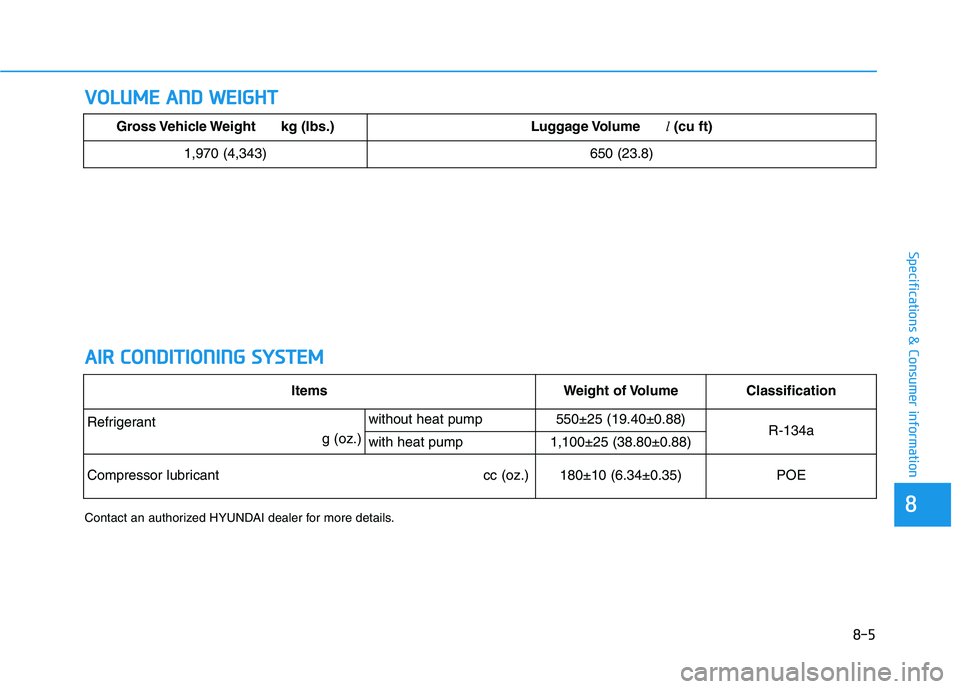

8-5
88
Specifications & Consumer information
VVOO LLUU MM EE AA NN DD WW EEIIGG HH TT
A
A IIRR CC OO NNDDIITT IIOO NNIINN GG SS YY SSTT EEMM
Contact an authorized HYUNDAI dealer for more details.
ItemsWeight of VolumeClassification
Refrigerant
g (oz.) without heat pump550±25 (19.40±0.88)R-134awith heat pump1,100±25 (38.80±0.88)
Compressor lubricant cc (oz.)180±10 (6.34±0.35)POE
Gross Vehicle Weight kg (lbs.)Luggage Volumel(cu ft)
1,970 (4,343)650 (23.8)

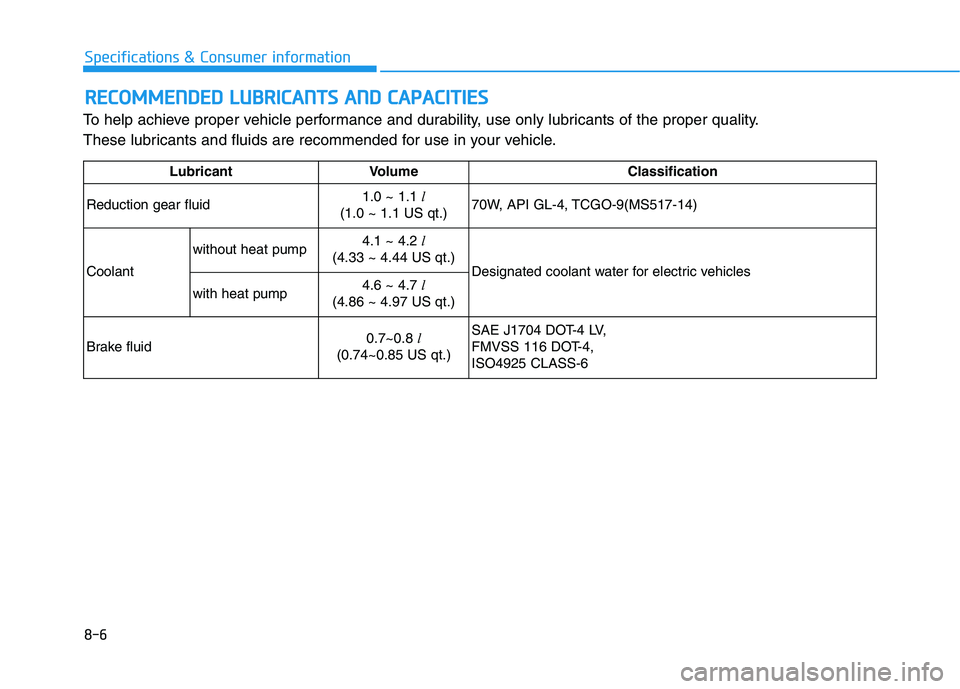

8-6
Specifications & Consumer informationR
R EECCOO MM MMEENN DDEEDD LL UU BBRRIICC AA NN TTSS AA NN DD CC AA PPAA CCIITT IIEE SS
To help achieve proper vehicle performance and durability, use only lubricants of the proper quality.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Reduction gear fluid 1.0 ~ 1.1
l
(1.0 ~ 1.1 US qt.) 70W, API GL-4, TCGO-9(MS517-14)
Coolant without heat pump
4.1 ~ 4.2
l
(4.33 ~ 4.44 US qt.) Designated coolant water for electric vehicles
with heat pump 4.6 ~ 4.7
l
(4.86 ~ 4.97 US qt.)
Brake fluid 0.7~0.8
l
(0.74~0.85 US qt.) SAE J1704 DOT-4 LV,
FMVSS 116 DOT-4,ISO4925 CLASS-6

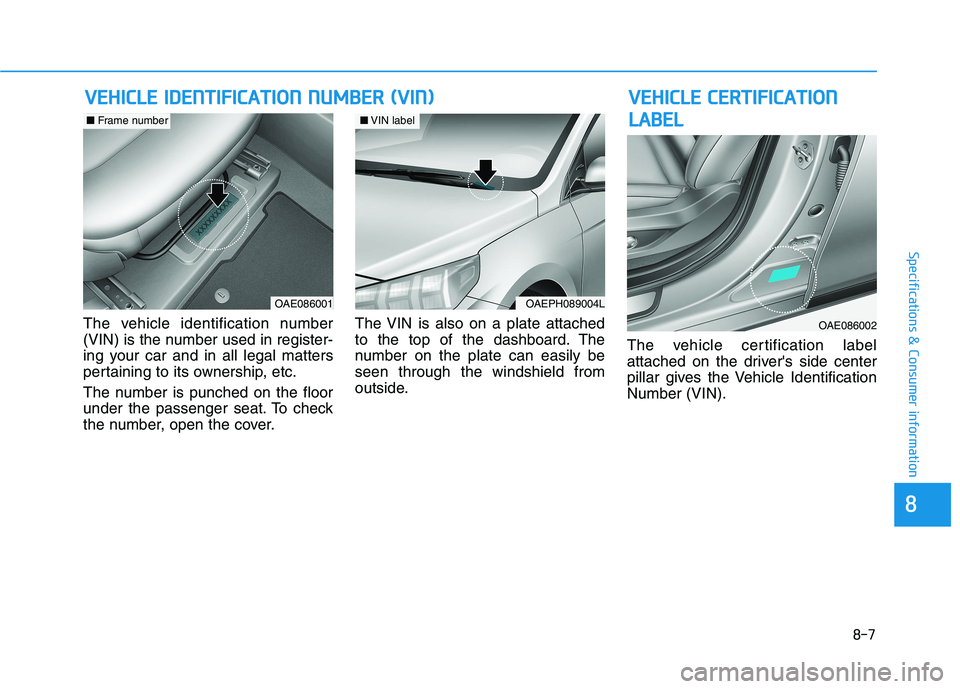

8-7
88
Specifications & Consumer information
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windshield from
outside.
The vehicle certification label
attached on the driver's side center
pillar gives the Vehicle IdentificationNumber (VIN).
VV
EEHH IICC LLEE IIDD EENN TTIIFF IICC AA TTIIOO NN NN UU MM BBEERR (( VV IINN ))
OAEPH089004L
■VIN label
OAE086001
■ Frame number
OAE086002
VV EEHH IICC LLEE CC EE RR TTIIFF IICC AA TTIIOO NN
L
L AA BBEELL

8-8

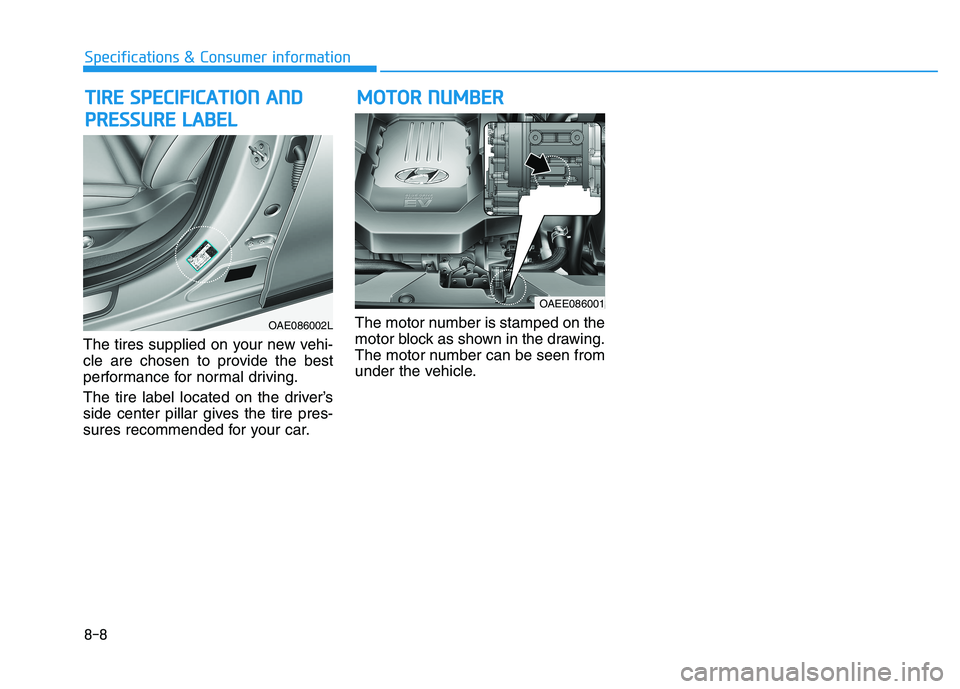

Specifications & Consumer information
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pres-
sures recommended for your car.The motor number is stamped on the
motor block as shown in the drawing.
The motor number can be seen from
under the vehicle.
MM
OOTTOO RR NN UU MM BBEERR
TT IIRR EE SS PP EECCIIFF IICC AA TTIIOO NN AA NN DD
P
P RR EESSSS UU RREE LL AA BBEELL
OAE086002L
OAEE086001

I

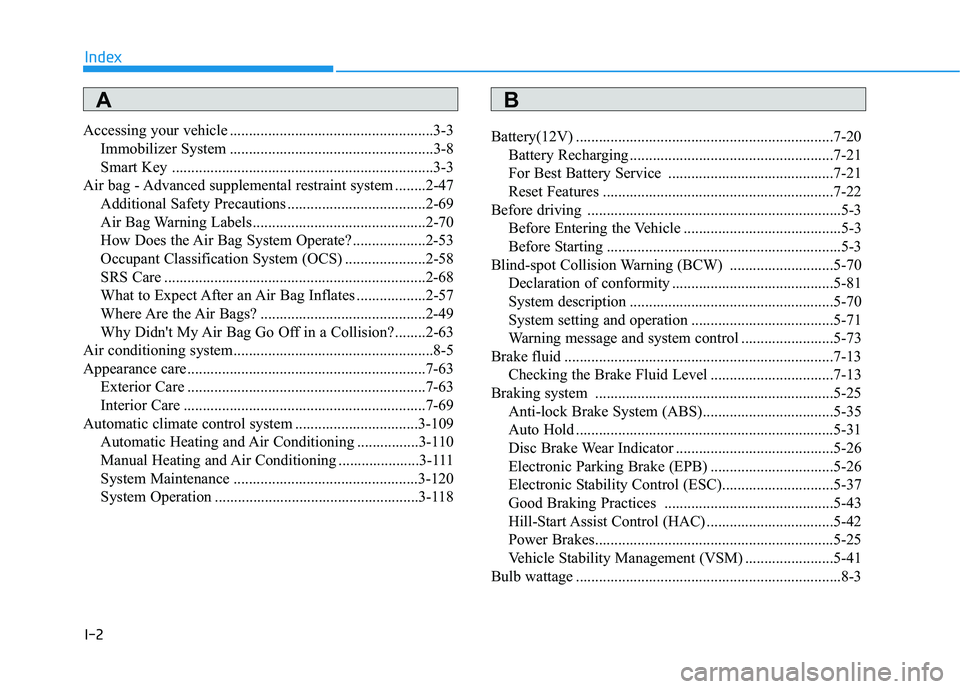

Index
I

I-2
Accessing your vehicle .....................................................3-3
Immobilizer System .....................................................3-8
Smart Key ....................................................................3-3
Air bag - Advanced supplemental restraint system ........2-47 Additional Safety Precautions ....................................2-69
Air Bag Warning Labels.............................................2-70
How Does the Air Bag System Operate? ...................2-53
Occupant Classification System (OCS) .....................2-58
SRS Care ....................................................................2-68
What to Expect After an Air Bag Inflates ..................2-57
Where Are the Air Bags? ...........................................2-49
Why Didn't My Air Bag Go Off in a Collision?........2-63
Air conditioning system....................................................8-5
Appearance care..............................................................7-63 Exterior Care ..............................................................7-63
Interior Care ...............................................................7-69
Automatic climate control system ................................3-109
Automatic Heating and Air Conditioning ................3-110
Manual Heating and Air Conditioning .....................3-111
System Maintenance ................................................3-120
System Operation .....................................................3-118 Battery(12V) ...................................................................7-20
Battery Recharging .....................................................7-21
For Best Battery Service ...........................................7-21
Reset Features ............................................................7-22
Before driving ..................................................................5-3 Before Entering the Vehicle .........................................5-3
Before Starting .............................................................5-3
Blind-spot Collision Warning (BCW) ...........................5-70
Declaration of conformity ..........................................5-81
System description .....................................................5-70
System setting and operation .....................................5-71
Warning message and system control ........................5-73
Brake fluid ......................................................................7-13 Checking the Brake Fluid Level ................................7-13
Braking system ..............................................................5-25 Anti-lock Brake System (ABS)..................................5-35
Auto Hold ...................................................................5-31
Disc Brake Wear Indicator .........................................5-26
Electronic Parking Brake (EPB) ................................5-26
Electronic Stability Control (ESC).............................5-37
Good Braking Practices ............................................5-43
Hill-Start Assist Control (HAC) .................................5-42
Power Brakes..............................................................5-25
Vehicle Stability Management (VSM) .......................5-41
Bulb wattage .....................................................................8-3
Index
AB
