Hyundai Ioniq Hybrid 2018 Owner's Manual

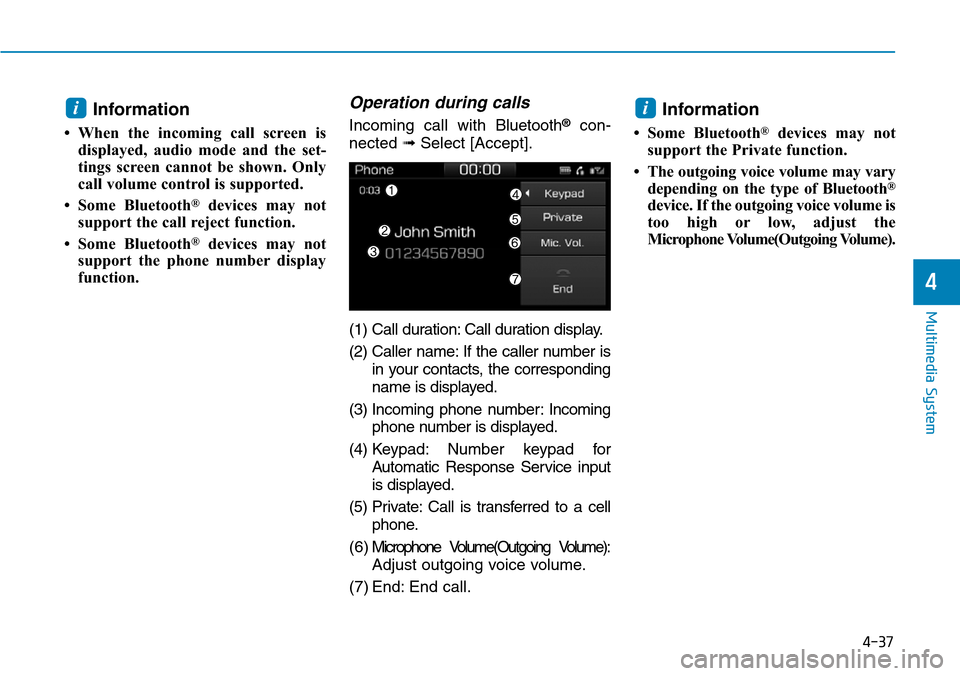

4-37
Multimedia System
4
Information
• When the incoming call screen is
displayed, audio mode and the set-
tings screen cannot be shown. Only
call volume control is supported.
• Some Bluetooth
®devices may not
support the call reject function.
• Some Bluetooth
®devices may not
support the phone number display
function.
Operation during calls
Incoming call with Bluetooth®con-
nected ➟Select [Accept].
(1) Call duration: Call duration display.
(2) Caller name: If the caller number is
in your contacts, the corresponding
name is displayed.
(3) Incoming phone number: Incoming
phone number is displayed.
(4) Keypad: Number keypad for
Automatic Response Service input
is displayed.
(5) Private: Call is transferred to a cell
phone.
( 6 ) Microphone Volume(Outgoing Volume):
Adjust outgoing voice volume.
(7) End: End call.Information
• Some Bluetooth®devices may not
support the Private function.
• The outgoing voice volume may vary
depending on the type of Bluetooth
®
device. If the outgoing voice volume is
too high or low, adjust the
Microphone Volume(Outgoing Volume).
ii

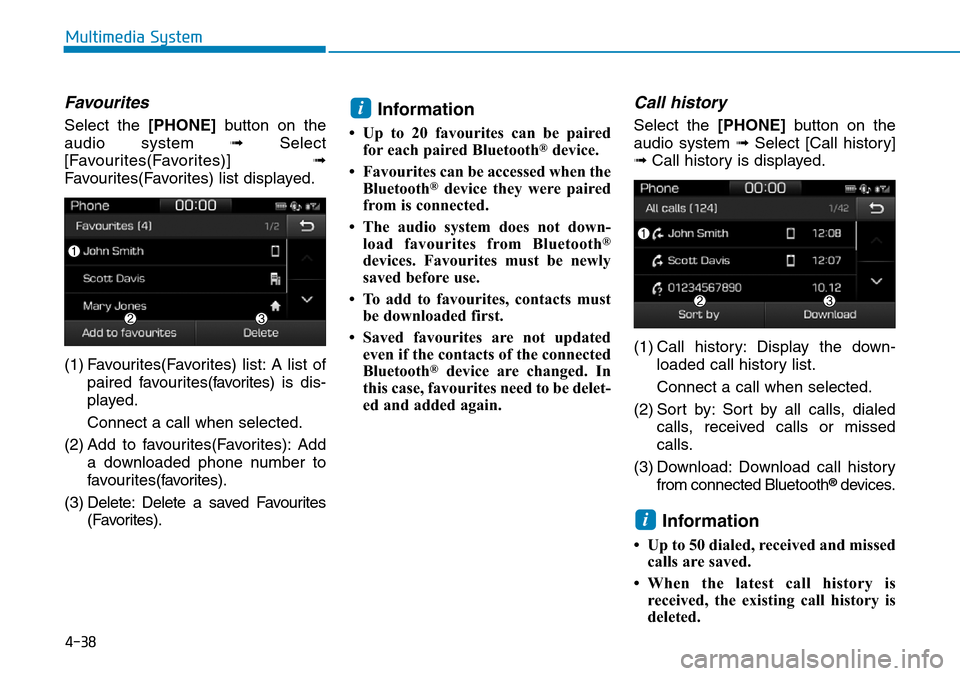

4-38
Multimedia System
Favourites
Select the [PHONE]button on the
audio system ➟Select
[Favourites(Favorites)] ➟
Favourites(Favorites) list displayed.
(1) Favourites(Favorites) list: A list of
paired favourites(favorites) is dis-
played.
Connect a call when selected.
(2) Add to favourites(Favorites): Add
a downloaded phone number to
favourites(favorites).
(3) Delete: Delete a saved Favourites
(Favorites).Information
• Up to 20 favourites can be paired
for each paired Bluetooth®device.
• Favourites can be accessed when the
Bluetooth
®device they were paired
from is connected.
• The audio system does not down-
load favourites from Bluetooth
®
devices. Favourites must be newly
saved before use.
• To add to favourites, contacts must
be downloaded first.
• Saved favourites are not updated
even if the contacts of the connected
Bluetooth
®device are changed. In
this case, favourites need to be delet-
ed and added again.
Call history
Select the [PHONE]button on the
audio system ➟Select [Call history]
➟Call history is displayed.
(1) Call history: Display the down-
loaded call history list.
Connect a call when selected.
(2) Sort by: Sort by all calls, dialed
calls, received calls or missed
calls.
(3) Download: Download call history
from connected Bluetooth
®devices.
Information
• Up to 50 dialed, received and missed
calls are saved.
• When the latest call history is
received, the existing call history is
deleted.
i
i

4-39
Multimedia System
4
Contacts
Select the [PHONE]button on the
audio system ➟Select [Contacts] ➟
Select letter (ABC) ➟Contacts dis-
played.
(1) Contacts: Display downloaded
contacts.
Connect a call when selected.
(2) Download: Download contacts from
connected Bluetooth
®devices.
Information
• Up to 2,000 contacts can be saved.
• In some cases, additional confirmation
from your Bluetooth
®device is neces-
sary when downloading contacts. If
downloading of contacts unsuccessful,
consult your Bluetooth
®device’s set-
tings or the audio screen to approve
the download.
• Contacts without phone numbers
are not displayed.
Dial
Select the [PHONE]button on the
audio ➟Select [Dial].
(1) Phone number entry window: The
phone number entered using the
keypad is displayed.
(2) Clear
- Press to delete individual digits.
- Press and hold to delete the
entire phone number.
(3) Keypad: Enter phone number.
(4) Bluetooth
®Phone name
- The name of the connected
Bluetooth
®device is displayed.
- Contacts matching the keypad
number/letter input aredisplayed.
i

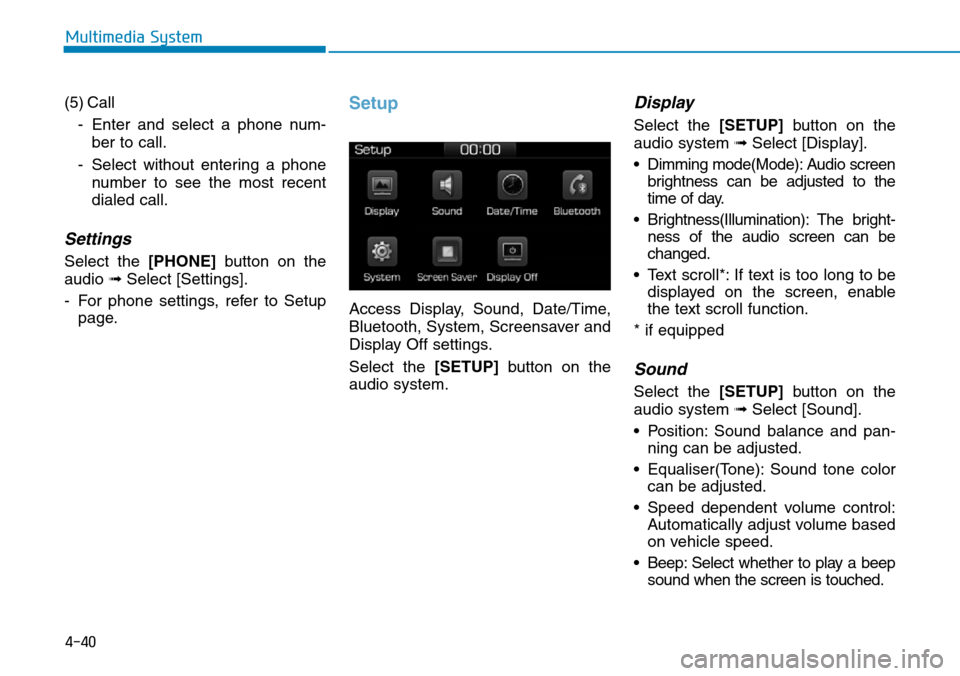

4-40
Multimedia System
(5) Call
- Enter and select a phone num-
ber to call.
- Select without entering a phone
number to see the most recent
dialed call.
Settings
Select the [PHONE]button on the
audio ➟Select [Settings].
- For phone settings, refer to Setup
page.
Setup
Access Display, Sound, Date/Time,
Bluetooth, System, Screensaver and
Display Off settings.
Select the [SETUP]button on the
audio system.
Display
Select the [SETUP]button on the
audio system ➟Select [Display].
• Dimming mode(Mode): Audio screen
brightness can be adjusted to the
time of day.
• Brightness(Illumination): The bright-
ness of the audio screen can be
changed.
• Text scroll*: If text is too long to be
displayed on the screen, enable
the text scroll function.
* if equipped
Sound
Select the [SETUP]button on the
audio system ➟Select [Sound].
• Position: Sound balance and pan-
ning can be adjusted.
• Equaliser(Tone): Sound tone color
can be adjusted.
• Speed dependent volume control:
Automatically adjust volume based
on vehicle speed.
• Beep: Select whether to play a beep
sound when the screen is touched.

4-41
Multimedia System
4
Date/Time
Select the [SETUP]button on the
audio system ➟Select [Date/Time].
• Set time: Set the time displayed on
the audio screen.
• Time format: Choose between 12-
hour and 24-hour time formats.
• Set date: Set the date displayed on
the audio screen.
Bluetooth
Select the [SETUP]button on the
audio system ➟Select [Bluetooth].
• Connections: Control pairing, dele-
tion, connection and disconnection
of Bluetooth
®devices.
• Auto connection priority: Set the
connection priority of Bluetooth
®
devices when the vehicle is started.
• Update contacts: Contacts can be
downloaded from connected
Bluetooth
®devices.
• Bluetooth voice guidance*: Play or
mute voice prompts for Bluetooth
®
device pairing, connection and
errors.
* if equipped
Information
• When paired devices are deleted,
the call history and contacts of the
device saved to the audio system are
deleted.
• For Bluetooth
®connections with
low connection priority, some time
may be required for the connection
to be established.
• Contacts can be downloaded only
from the currently connected
Bluetooth
®device.
• If no Bluetooth
®device is connected,
the Download Contacts button is
disabled.
• If the language setting is Slovakian,
Hungarian or Korean, Bluetooth
voice guidance* is not supported.
* if equipped
System
Select the [SETUP]button on the
audio system ➟Select [System].
• Memory information: View My
Music memory usage.
• Language: Change the user lan-
guage.
• Default: Reset the audio system.
Information
The system resets to the default val-
ues, and all saved data and settings
are lost.
i
i

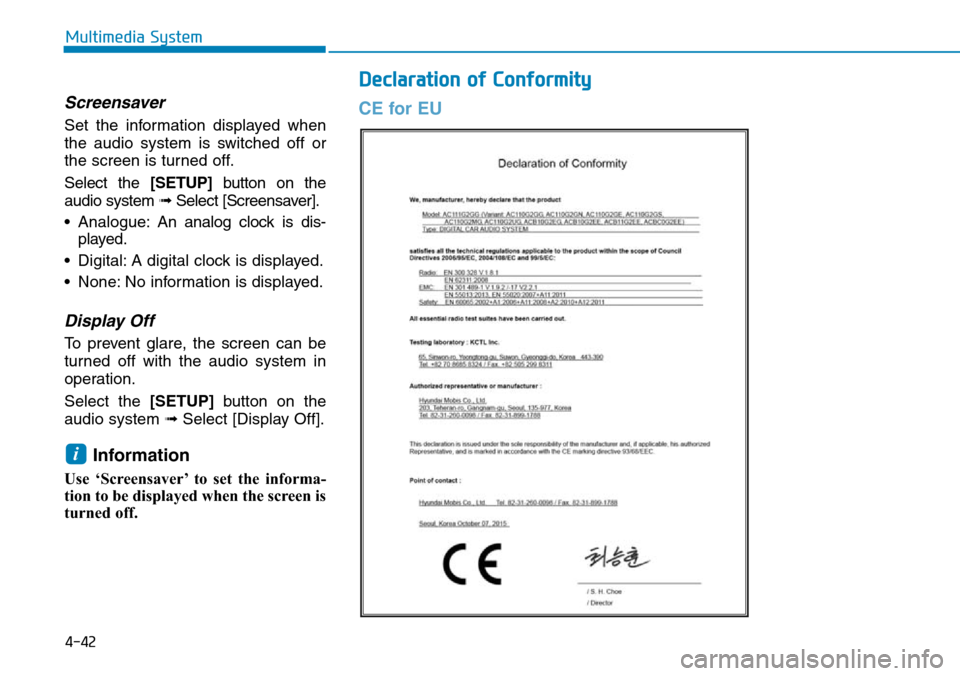

4-42
Multimedia System
Screensaver
Set the information displayed when
the audio system is switched off or
the screen is turned off.
Select the [SETUP]button on the
audio system ➟Select [Screensaver].
• Analogue: An analog clock is dis-
played.
• Digital: A digital clock is displayed.
• None: No information is displayed.
Display Off
To prevent glare, the screen can be
turned off with the audio system in
operation.
Select the [SETUP]button on the
audio system ➟Select [Display Off].
Information
Use ‘Screensaver’ to set the informa-
tion to be displayed when the screen is
turned off.
i
Declaration of Conformity
CE for EU

4-43
Multimedia System
4

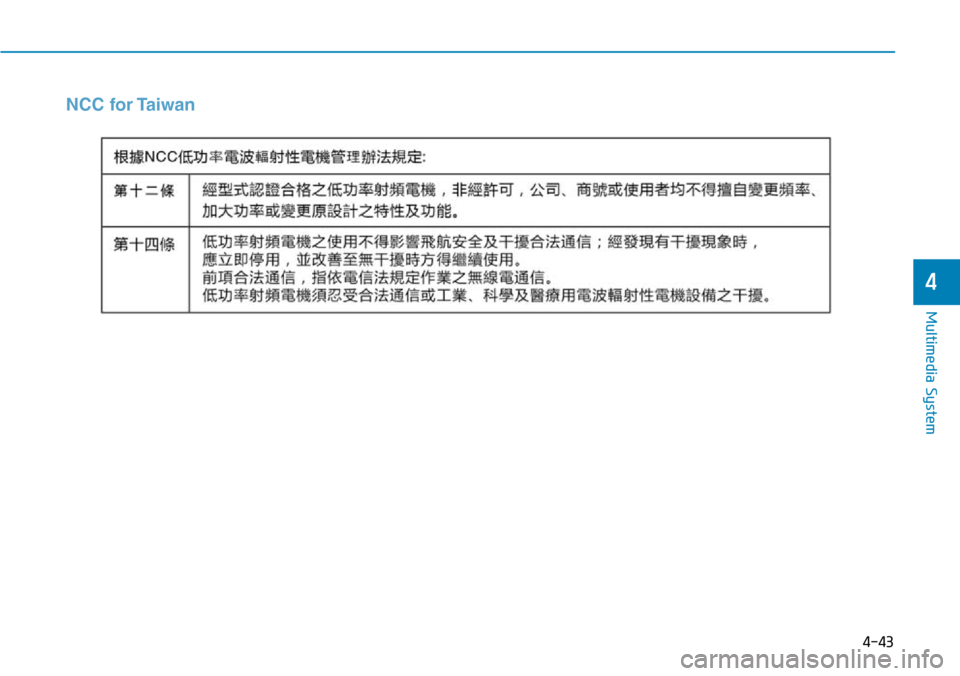

NCC for Taiwan

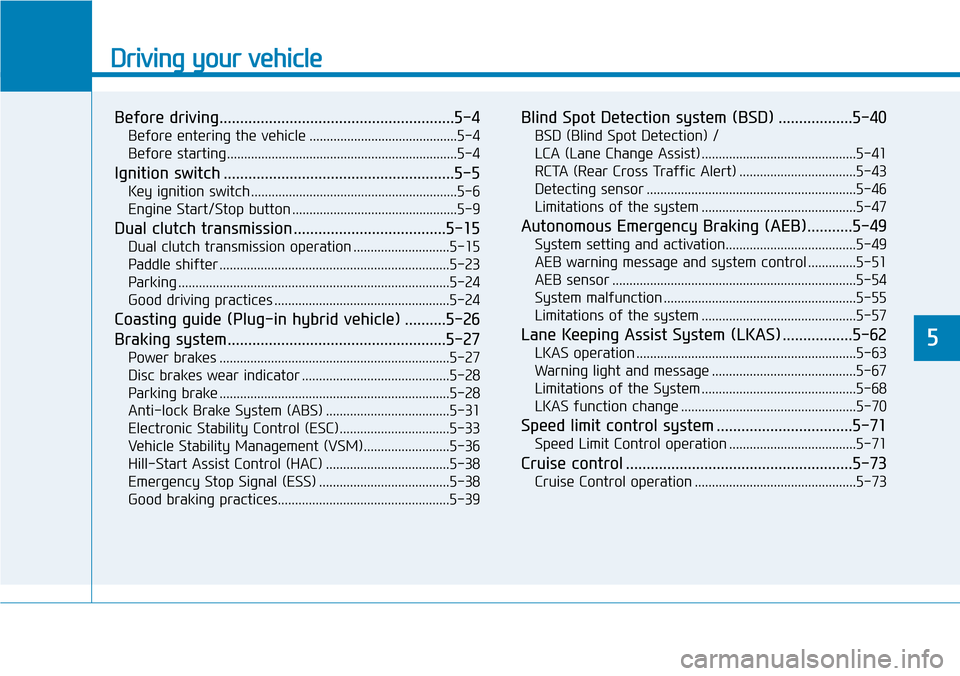

Driving your vehicle
Before driving.........................................................5-4
Before entering the vehicle ...........................................5-4
Before starting...................................................................5-4
Ignition switch ........................................................5-5
Key ignition switch ............................................................5-6
Engine Start/Stop button ................................................5-9
Dual clutch transmission .....................................5-15
Dual clutch transmission operation ............................5-15
Paddle shifter ...................................................................5-23
Parking ...............................................................................5-24
Good driving practices ...................................................5-24
Coasting guide (Plug-in hybrid vehicle) ..........5-26
Braking system.....................................................5-27
Power brakes ...................................................................5-27
Disc brakes wear indicator ...........................................5-28
Parking brake ...................................................................5-28
Anti-lock Brake System (ABS) ....................................5-31
Electronic Stability Control (ESC)................................5-33
Vehicle Stability Management (VSM).........................5-36
Hill-Start Assist Control (HAC) ....................................5-38
Emergency Stop Signal (ESS) ......................................5-38
Good braking practices..................................................5-39
Blind Spot Detection system (BSD) ..................5-40
BSD (Blind Spot Detection) /
LCA (Lane Change Assist) .............................................5-41
RCTA (Rear Cross Traffic Alert) ..................................5-43
Detecting sensor .............................................................5-46
Limitations of the system .............................................5-47
Autonomous Emergency Braking (AEB)...........5-49
System setting and activation......................................5-49
AEB warning message and system control ..............5-51
AEB sensor .......................................................................5-54
System malfunction ........................................................5-55
Limitations of the system .............................................5-57
Lane Keeping Assist System (LKAS) .................5-62
LKAS operation ................................................................5-63
Warning light and message ..........................................5-67
Limitations of the System .............................................5-68
LKAS function change ...................................................5-70
Speed limit control system .................................5-71
Speed Limit Control operation .....................................5-71
Cruise control .......................................................5-73
Cruise Control operation ...............................................5-73
5

5
Smart Cruise Control system..............................5-79
Smart Cruise Control speed ..........................................5-81
Smart Cruise Control Vehicle-to-Vehicle
Distance .............................................................................5-85
Sensor to detect distance to the vehicle ahead .....5-88
To adjust the sensitivity of Smart Cruise Control ..5-90
To convert to Cruise Control mode ............................5-90
Limitations of the system .............................................5-91
Special driving conditions ...................................5-96
Hazardous driving conditions.......................................5-96
Rocking the vehicle ........................................................5-96
Smooth cornering ...........................................................5-97
Driving at night ................................................................5-97
Driving in the rain ...........................................................5-97
Driving in flooded areas ................................................5-98
Highway driving ...............................................................5-98
Winter driving .......................................................5-99
Snow or icy conditions ..................................................5-99
Winter Precautions .......................................................5-101
Trailer towing (for europe) ..............................5-104
If you decide to pull a trailer?...................................5-105
Trailer towing equipment ............................................5-107
Driving with a trailer ....................................................5-108
Maintenance when towing a Trailer ........................5-112
Vehicle weight ....................................................5-113
Overloading ....................................................................5-113

5-3
Driving your vehicle
5
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows immediately. Exposure to CO can cause
unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If
you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the
vehicle, we recommend that the exhaust system be checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Run the engine only
long enough to start the engine and to move the vehicle out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the vehicle, be sure to do so only in an
open area with the air intake set at "Fresh" and fan control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes located in front of the windshield
clear of snow, ice, leaves, or other obstructions.
If you must drive with the tailgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan control set to high.
WARNING
