Page 11 of 642
HEV (Hybrid Electric Vehicle) System ................H2
Hybrid Vehicle ......................................................................H2
Plug-in Hybrid Vehicle .....................................................H3
Charging the Plug-in Hybrid Vehicle....................H4
Charging Information .........................................................H4
Charging Time .....................................................................H4
Charging Types ...................................................................H4
Charging Status ...................................................................H5
Scheduled Charging ............................................................H6
Charging Connector AUTO/ LOCK Mode ......................H7
Charging Precautions .........................................................H8
Normal Charge ...................................................................H10
Trickle Charge ....................................................................H16
Driving the Hybrid/Plug-in Hybrid Vehicle .......H26
Starting the Vehicle ..........................................................H26
Special Features ..............................................................H27
Hybrid System Gauge ......................................................H29
Plug-in Hybrid Mode (Plug-in hybrid vehicle)..........H30
Aux. Battery Saver+ (Plug-in hybrid vehicle) ..........H31
Warning and Indicator Lights ........................................H33
LCD Display Messages.....................................................H35
Energy Flow ......................................................................H43
Safety Precautions for Hybrid System ..............H47
Hybrid Vehicle Components Safety Precautions ......H47
Service Plug .......................................................................H50
Hybrid Battery Cooling Duct ........................................H51
If an Accident Occurs ......................................................H52
When the Hybrid Vehicle Shuts Off ............................H53
Hybrid system overview

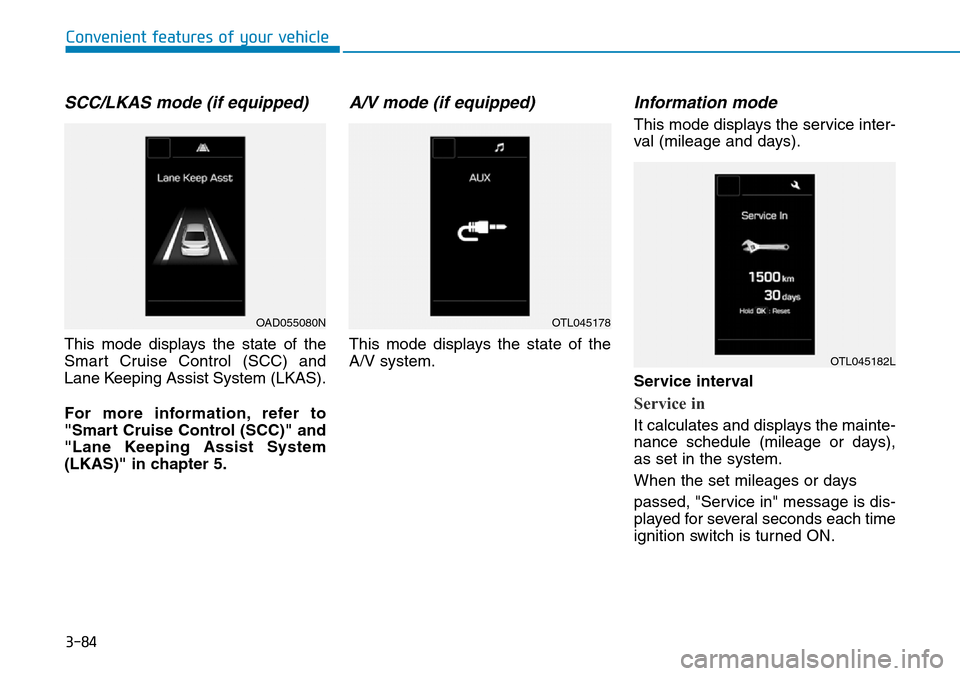

Page 234 of 642
3-84
Convenient features of your vehicle
SCC/LKAS mode (if equipped)
This mode displays the state of the
Smart Cruise Control (SCC) and
Lane Keeping Assist System (LKAS).
For more information, refer to
"Smart Cruise Control (SCC)" and
"Lane Keeping Assist System
(LKAS)" in chapter 5.
A/V mode (if equipped)
This mode displays the state of the
A/V system.
Information mode
This mode displays the service inter-
val (mileage and days).
Service interval
Service in
It calculates and displays the mainte-
nance schedule (mileage or days),
as set in the system.
When the set mileages or days
passed, "Service in" message is dis-
played for several seconds each time
ignition switch is turned ON.
OAD055080NOTL045178
OTL045182L

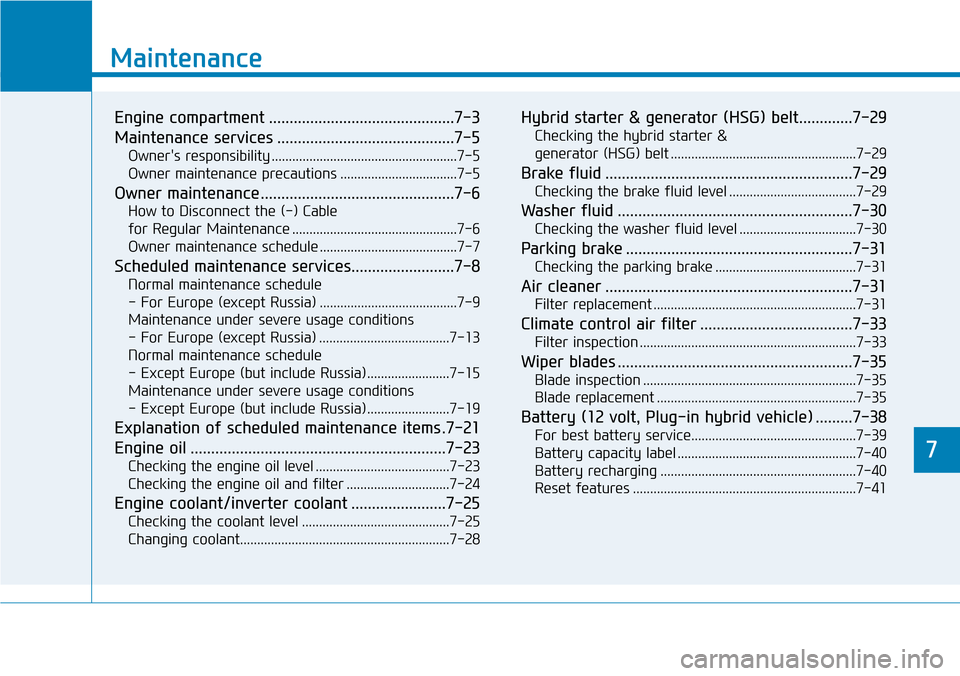

Page 508 of 642
7
Maintenance
7
Maintenance
Engine compartment .............................................7-3
Maintenance services ...........................................7-5
Owner's responsibility ......................................................7-5
Owner maintenance precautions ..................................7-5
Owner maintenance ...............................................7-6
How to Disconnect the (-) Cable
for Regular Maintenance ................................................7-6
Owner maintenance schedule ........................................7-7
Scheduled maintenance services.........................7-8
Normal maintenance schedule
- For Europe (except Russia) ........................................7-9
Maintenance under severe usage conditions
- For Europe (except Russia) ......................................7-13
Normal maintenance schedule
- Except Europe (but include Russia) ........................7-15
Maintenance under severe usage conditions
- Except Europe (but include Russia) ........................7-19
Explanation of scheduled maintenance items .7-21
Engine oil ..............................................................7-23
Checking the engine oil level .......................................7-23
Checking the engine oil and filter ..............................7-24
Engine coolant/inverter coolant .......................7-25
Checking the coolant level ...........................................7-25
Changing coolant.............................................................7-28
Hybrid starter & generator (HSG) belt.............7-29
Checking the hybrid starter &
generator (HSG) belt ......................................................7-29
Brake fluid ............................................................7-29
Checking the brake fluid level .....................................7-29
Washer fluid .........................................................7-30
Checking the washer fluid level ..................................7-30
Parking brake .......................................................7-31
Checking the parking brake .........................................7-31
Air cleaner ............................................................7-31
Filter replacement ...........................................................7-31
Climate control air filter .....................................7-33
Filter inspection ...............................................................7-33
Wiper blades .........................................................7-35
Blade inspection ..............................................................7-35
Blade replacement ..........................................................7-35
Battery (12 volt, Plug-in hybrid vehicle) .........7-38
For best battery service................................................7-39
Battery capacity label ....................................................7-40
Battery recharging .........................................................7-40
Reset features .................................................................7-41
7
Page 512 of 642
7-5
7
Maintenance
MAINTENANCE SERVICES
You should exercise the utmost care
to prevent damage to your vehicle
and injury to yourself whenever per-
forming any maintenance or inspec-
tion procedures.
We recommend you have your vehi-
cle maintained and repaired by an
authorized HYUNDAI dealer. An
authorized HYUNDAI dealer meets
HYUNDAI’s high service quality
standards and receives technical
support from HYUNDAI in order to
provide you with a high level of serv-
ice satisfaction.Owner’s responsibility
Maintenance service and record reten-
tion are the owner’s responsibility.
You should retain documents that
show proper maintenance has been
performed on your vehicle in accor-
dance with the scheduled mainte-
nance service charts shown on the
following pages. You need this infor-
mation to establish your compliance
with the servicing and maintenance
requirements of your vehicle war-
ranties.
Detailed warranty information is pro-
vided in your Service Passport.
Repairs and adjustments required as
a result of improper maintenance or
a lack of required maintenance are
not covered.
Ownermaintenance precau-
tions
Inadequate, incomplete or insuffi-
cient servicing may result in opera-
tional problems with your vehicle that
could lead to vehicle damage, an
accident, or personal injury. This
chapter provides instructions only for
the maintenance items that are easy
to perform. Several procedures can
be done only by an authorized
HYUNDAI dealer with special tools.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance,
safety or durability of your vehicle
and may, in addition, violate condi-
tions of the limited warranties cover-
ing the vehicle.
Improper owner maintenance dur-
ing the warranty period may affect
warranty coverage. For details, read
the separate Service Passport pro-
vided with the vehicle. If you’re
unsure about any service or mainte-
nance procedure, have it done by an
authorized HYUNDAI dealer.
NOTICE

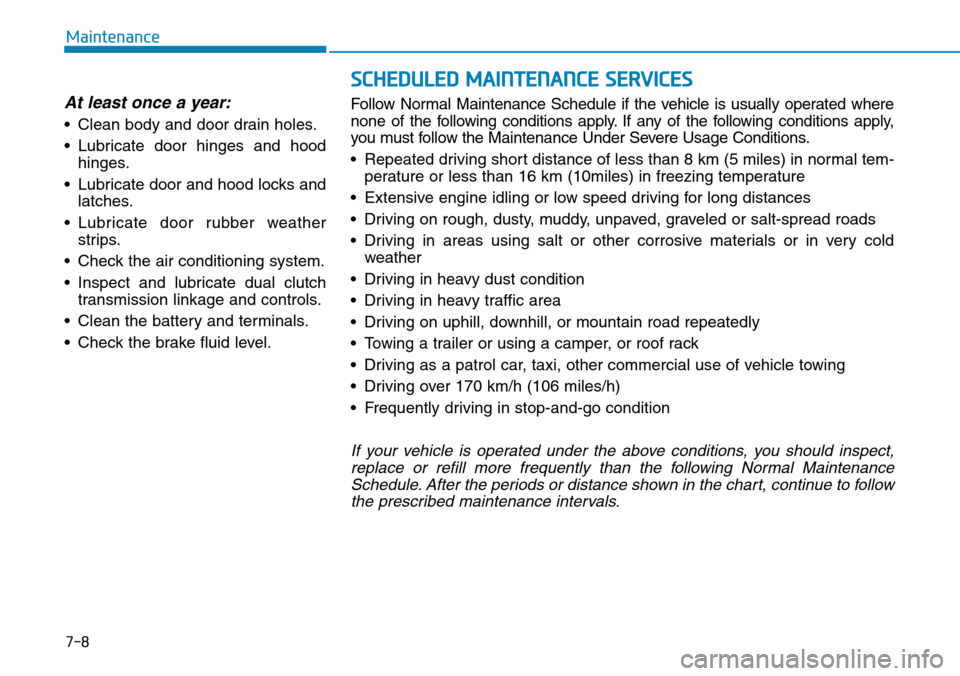

Page 515 of 642
7-8
Maintenance
SCHEDULED MAINTENANCE SERVICES
At least once a year:
• Clean body and door drain holes.
• Lubricate door hinges and hood
hinges.
• Lubricate door and hood locks and
latches.
• Lubricate door rubber weather
strips.
• Check the air conditioning system.
• Inspect and lubricate dual clutch
transmission linkage and controls.
• Clean the battery and terminals.
• Check the brake fluid level.Follow Normal Maintenance Schedule if the vehicle is usually operated where
none of the following conditions apply. If any of the following conditions apply,
you must follow the Maintenance Under Severe Usage Conditions.
• Repeated driving short distance of less than 8 km (5 miles) in normal tem-
perature or less than 16 km (10miles) in freezing temperature
• Extensive engine idling or low speed driving for long distances
• Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
• Driving in areas using salt or other corrosive materials or in very cold
weather
• Driving in heavy dust condition
• Driving in heavy traffic area
• Driving on uphill, downhill, or mountain road repeatedly
• Towing a trailer or using a camper, or roof rack
• Driving as a patrol car, taxi, other commercial use of vehicle towing
• Driving over 170 km/h (106 miles/h)
• Frequently driving in stop-and-go condition
If your vehicle is operated under the above conditions, you should inspect,
replace or refill more frequently than the following Normal Maintenance
Schedule. After the periods or distance shown in the chart, continue to follow
the prescribed maintenance intervals.

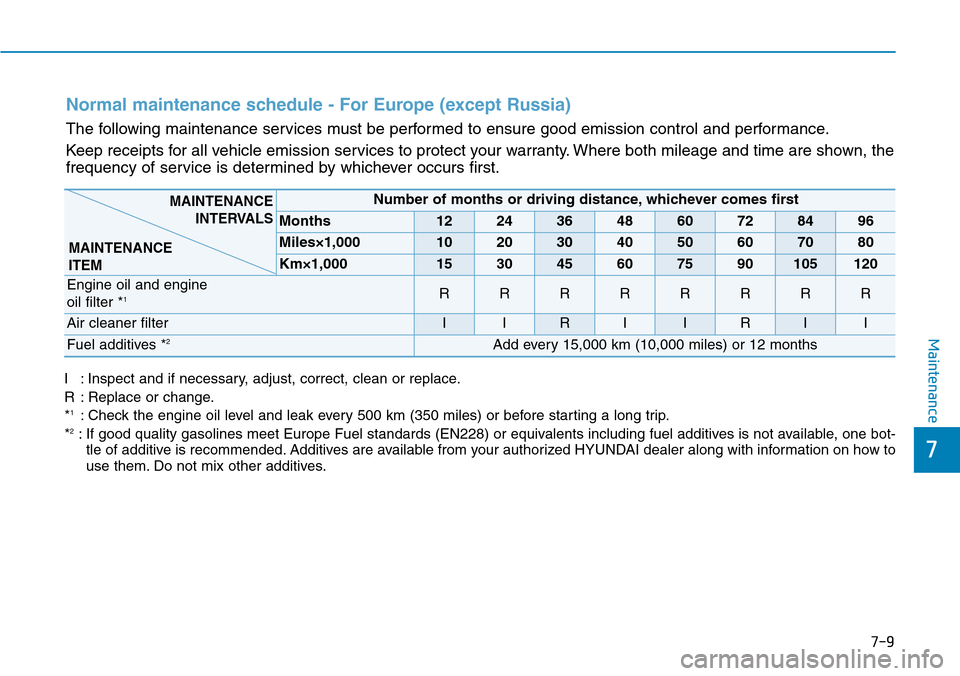

Page 516 of 642
7-9
7
Maintenance
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*
1: Check the engine oil level and leak every 500 km (350 miles) or before starting a long trip.
*2: If good quality gasolines meet Europe Fuel standards (EN228) or equivalents including fuel additives is not available, one bot-
tle of additive is recommended. Additives are available from your authorized HYUNDAI dealer along with information on how to
use them. Do not mix other additives.
Normal maintenance schedule - For Europe (except Russia)
The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the
frequency of service is determined by whichever occurs first.
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Engine oil and engine
oil filter *1RRRRRRRR
Air cleaner filterIIRIIRII
Fuel additives *2Add every 15,000 km (10,000 miles) or 12 months
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
Page 522 of 642
7-15
7
Maintenance
Normal maintenance schedule - Except Europe (but include Russia)
The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the
frequency of service is determined by whichever occurs first.
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Engine oil and engine
oil filter *1
For Middle East *2,
Central & South AmericaReplace every 10,000 km (6,000 miles) or 12 months
Except Middle East *2,
Central & South AmericaRRRRRRRR
Fuel additives *3
For Middle East *2,
Central & South AmericaReplace every 10,000 km (6,000 miles) or 12 months
Except Middle East *2,
Central & South AmericaRRRRRRRR
Air cleaner filterFor Middle East *2RRRRRRRR
Except Middle East *2IIRIIRII
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*
1: Check the engine oil level and leak every 500 km (350 miles) or before starting a long trip.
*2: Middle East includes Libya, Algeria, Morocco, Tunisia, Sudan, Egypt and Iran.
*3: If good quality gasolines meet Europe Fuel standards (EN228) or equivalents including fuel additives is not available, one bot-
tle of additive is recommended. Additives are available from your authorized HYUNDAI dealer along with information on how to
use them. Do not mix other additives.
Page 637 of 642
I-8
Interior overview ............................................................1-4
Inverter coolant .............................................................7-25
Jack and tools ...............................................................6-20
Jump starting ..............................................................6-6, 9
Label
Air conditioner compressor label ................................8-9
Tire sidewall labeling.................................................7-48
Tire specification and pressure label ...........................8-9
Vehicle certification label ............................................8-8
Lane keeping assist system (LKAS) ............................5-62
Lap/shoulder belt ..........................................................2-29
LCD display..................................................................3-71
Assist mode................................................................3-91
Information mode ......................................................3-84
LCD display modes .............................................3-82, 89
SCC/LKAS mode ......................................................3-84
Trip computer mode ............................................3-83, 90
Turn By Turn (TBT) mode ..................................3-83, 91
User settings mode ..............................................3-86, 92
Warning mode ............................................................3-92
LCD display control .....................................................3-81
LCD display messages .................................................3-66
LCD display modes ................................................3-82, 89Light............................................................................3-104
Auto light position ...................................................3-107
Battery saver function ..............................................3-111
Daytime running light (DRL) ..................................3-111
Headlamp delay function .........................................3-111
Headlamp leveling device........................................3-112
Headlamp position ...................................................3-108
High beam operation ...............................................3-108
Position lamp position .............................................3-108
Rear fog lamp...........................................................3-110
Rear fog lamp...........................................................3-110
Turn signals..............................................................3-109
Light bulbs ....................................................................7-67
Lubricants and capacities ...............................................8-6
Luggage compartment lamp .......................................3-115
Luggage net (holder) ..................................................3-154
Luggage volume .............................................................8-5
Main fuse ......................................................................7-56
Maintenance
Explanation of scheduled maintenance items............7-21
Maintenance services ...................................................7-5
Maintenance under severe usage conditions .......7-13, 19
Normal maintenance service .................................7-9, 15
Owner maintenance .....................................................7-6
Scheduled maintenance services .................................7-8
Tire maintenance........................................................7-48
Index
M
J
L
Page 639 of 642
I-10
Rear center seatbelt.......................................................2-31
Rear fog lamp .............................................................3-110
Rear parking assist system .........................................3-121
Rear seat adjustment .....................................................2-13
Armrest ......................................................................2-16
Folding the rear seat ..................................................2-13
Rear seat headrests .......................................................2-20
Adjusting the height up and down.............................2-20
Rear seat warmers.........................................................2-24
Rear view camera .......................................................3-120
Recommended cold tire inflation pressures .................7-43
Recommended lubricants and capacities........................8-6
Recommended SAE viscosity number ........................8-7
Remote key .....................................................................3-4
Battery replacement .....................................................3-6
Mechanical key ............................................................3-5
Removable towing hook ...............................................6-44
Replacement light bulb .................................................7-66
Returning used vehicles ................................................F-9
Rocking the vehicle ......................................................5-96
Rotation (Tire) ..............................................................7-45Safety messages..............................................................F-5
Scheduled maintenance services ....................................7-8
Seat belt warning light..................................................2-26
Seat belts .......................................................................2-25
Additional seat belt safety precautions ......................2-34
Care of seat belts .......................................................2-36
Do not lie down .........................................................2-36
Height adjustment ......................................................2-30
Keep belts clean and dry............................................2-36
Lap/shoulder belt .......................................................2-29
One person per belt ....................................................2-36
Periodic inspection.....................................................2-36
Pre-tensioner seat belt ................................................2-31
Rear center seatbelt ....................................................2-31
Seat belt restraint system ...........................................2-29
Seat belt safety precautions .......................................2-25
Seat belt use and children ..........................................2-34
Seat belt use and injured people ................................2-36
Seat belt use during pregnancy ..................................2-34
Seat belt warning light ...............................................2-26
When to replace seat belts .........................................2-37
Seat warmers
Front ..........................................................................2-21
Rear ............................................................................2-24
Index
RS
