Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).Maintenance
7-78

888
Specifications & Consumer information
8
Specifications, Consumer information and Reporting safety defects
8

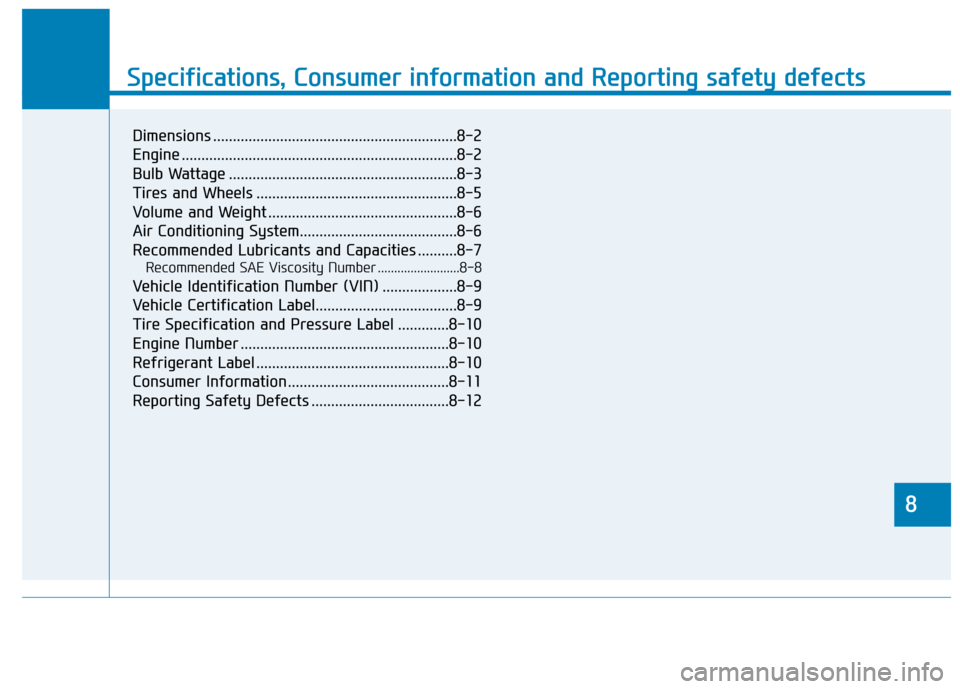

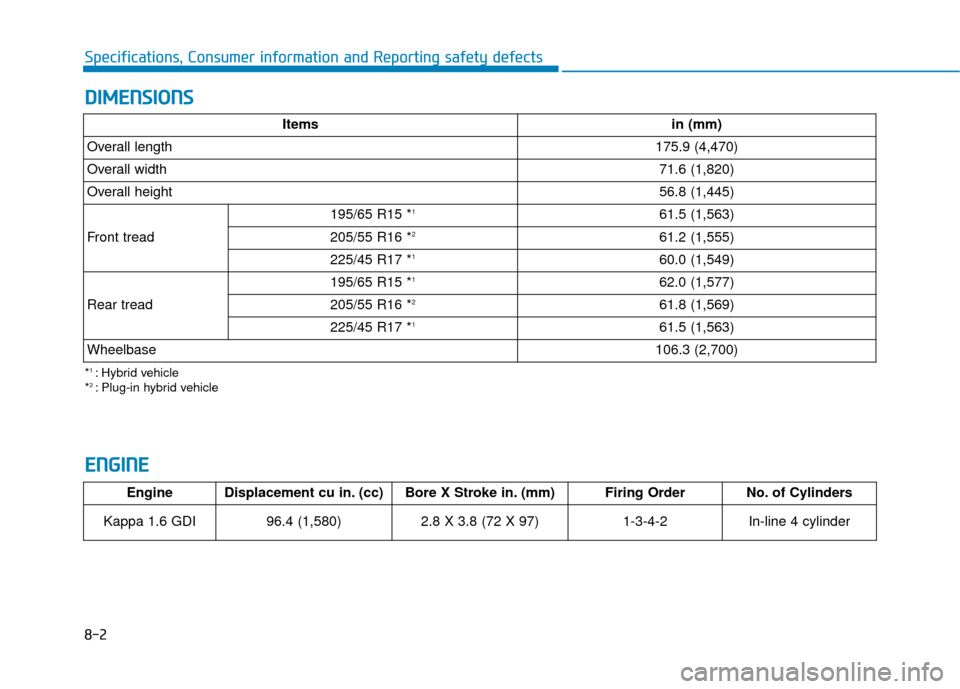

Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE Viscosity Number .........................8-8
Vehicle Identification Number (VIN) ...................8-9
Vehicle Certification Label....................................8-9
Tire Specification and Pressure Label .............8-10
Engine Number .....................................................8-10
Refrigerant Label .................................................8-10
Consumer Information .........................................8-11
Reporting Safety Defects ...................................8-12

D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
N G
GI
IN
N E
E
Itemsin (mm)
Overall length175.9 (4,470)
Overall width71.6 (1,820)
Overall height56.8 (1,445)
Front tread
195/65 R15 *161.5 (1,563)
205/55 R16 *261.2 (1,555)
225/45 R17 *160.0 (1,549)
Rear tread
195/65 R15 *162.0 (1,577)
205/55 R16 *261.8 (1,569)
225/45 R17 *161.5 (1,563)
Wheelbase106.3 (2,700)
EngineDisplacement cu in. (cc)Bore X Stroke in. (mm)Firing OrderNo. of Cylinders
Kappa 1.6 GDI96.4 (1,580)2.8 X 3.8 (72 X 97)1-3-4-2In-line 4 cylinder
*1 : Hybrid vehicle
*2 : Plug-in hybrid vehicle

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
8-3
88
Specifications, Consumer information and Reporting safety defects

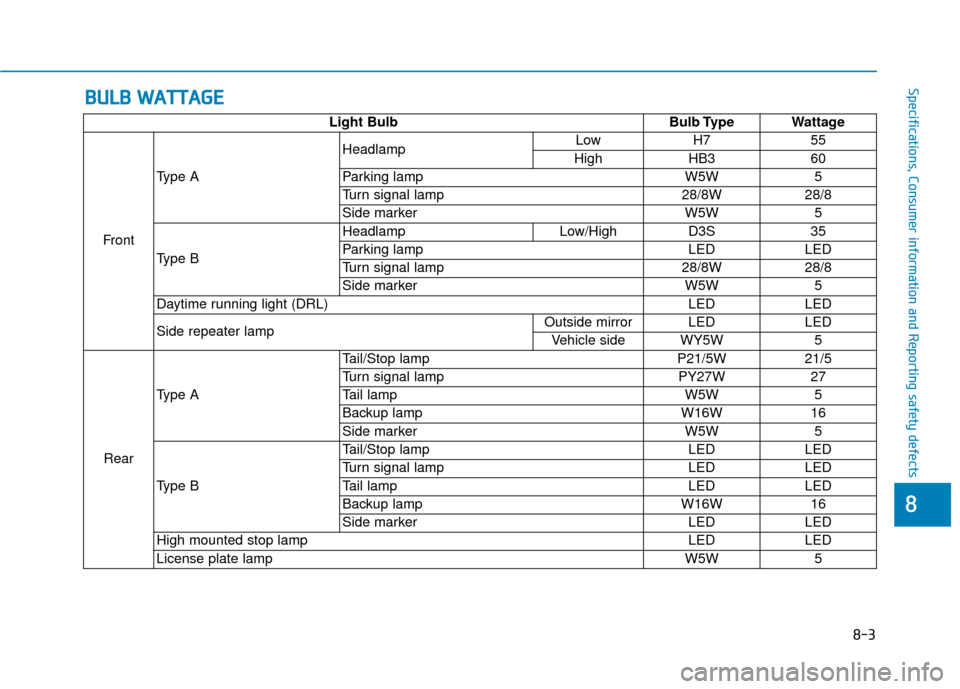

Light Bulb Bulb Type Wattage
Front Type A
Headlamp
Low
H7 55
High HB3 60
Parking lamp W5W5
Turn signal lamp 28/8W28/8
Side marker W5W5
Type B Headlamp
Low/HighD3S35
Parking lamp LEDLED
Turn signal lamp 28/8W28/8
Side marker W5W5
Daytime running light (DRL) LEDLED
Side repeater lamp Outside mirror LED
LED
Vehicle side WY5W 5
Rear Type A
Tail/Stop lamp
P21/5W21/5
Turn signal lamp PY27W27
Tail lamp W5W5
Backup lamp W16W16
Side marker W5W5
Type B Tail/Stop lamp
LEDLED
Turn signal lamp LEDLED
Tail lamp LEDLED
Backup lamp W16W16
Side marker LEDLED
High mounted stop lamp LEDLED
License plate lamp W5W5

8-4
Specifications, Consumer information and Reporting safety defects

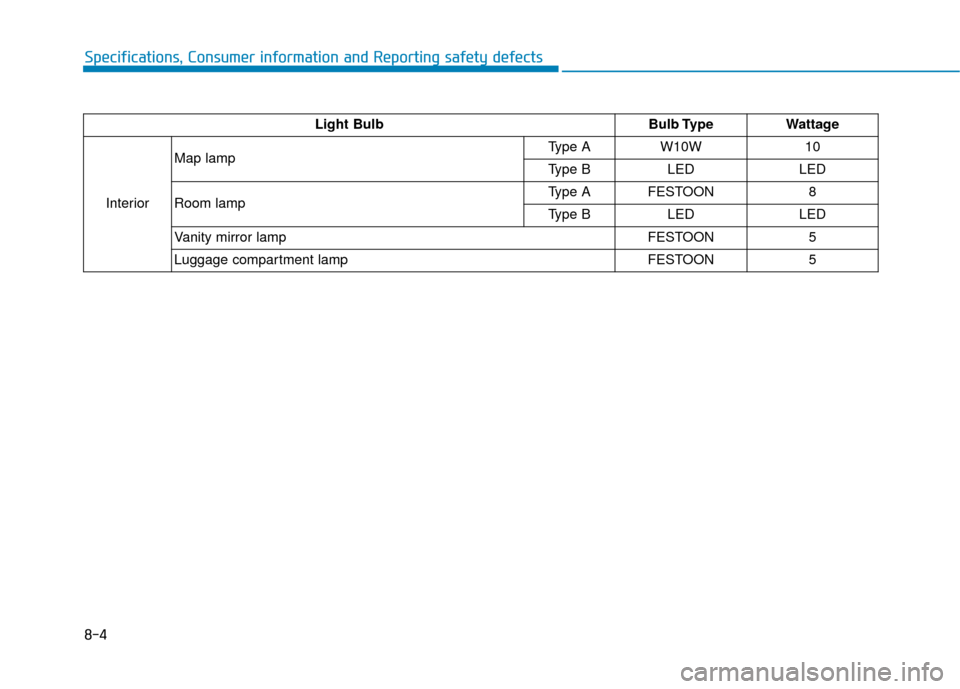

Light BulbBulb TypeWattage
Interior Map lamp
Type A
W10W 10
Type B LED LED
Room lamp Type A FESTOON
8
Type B LED LED
Vanity mirror lamp FESTOON5
Luggage compartment lamp FESTOON5

T
TI
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S
8-5
88
Specifications, Consumer information and Reporting safety defects
If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

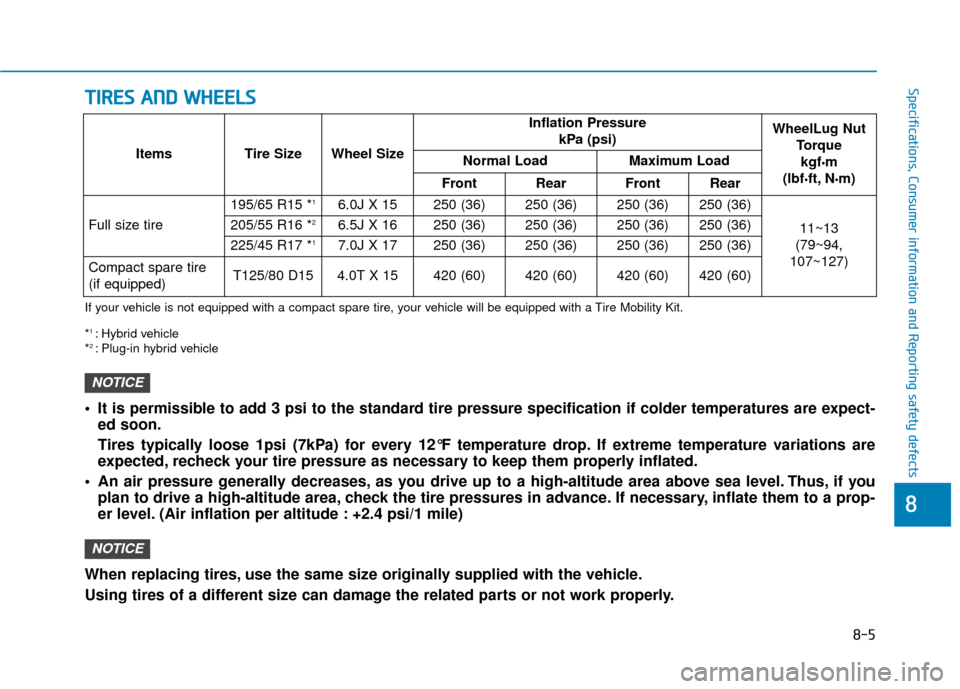

Items Tire SizeWheel Size
Inflation Pressure
kPa (psi)WheelLug NutTorque kgf
•m
(lbf
ft, Nm)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire
195/65 R15 *16.0J X 15250 (36)250 (36)250 (36)250 (36)
11~13
(79~94,
107~127)205/55 R16 *26.5J X 16250 (36)250 (36)250 (36)250 (36)
225/45 R17 *17.0J X 17250 (36)250 (36)250 (36)250 (36)
Compact spare tire
(if equipped)T125/80 D154.0T X 15420 (60)420 (60)420 (60)420 (60)
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect- ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
NOTICE
*1 : Hybrid vehicle
*2 : Plug-in hybrid vehicle

8-6
Specifications, Consumer information and Reporting safety defects
V
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
Contact an authorized HYUNDAI dealer for more details.

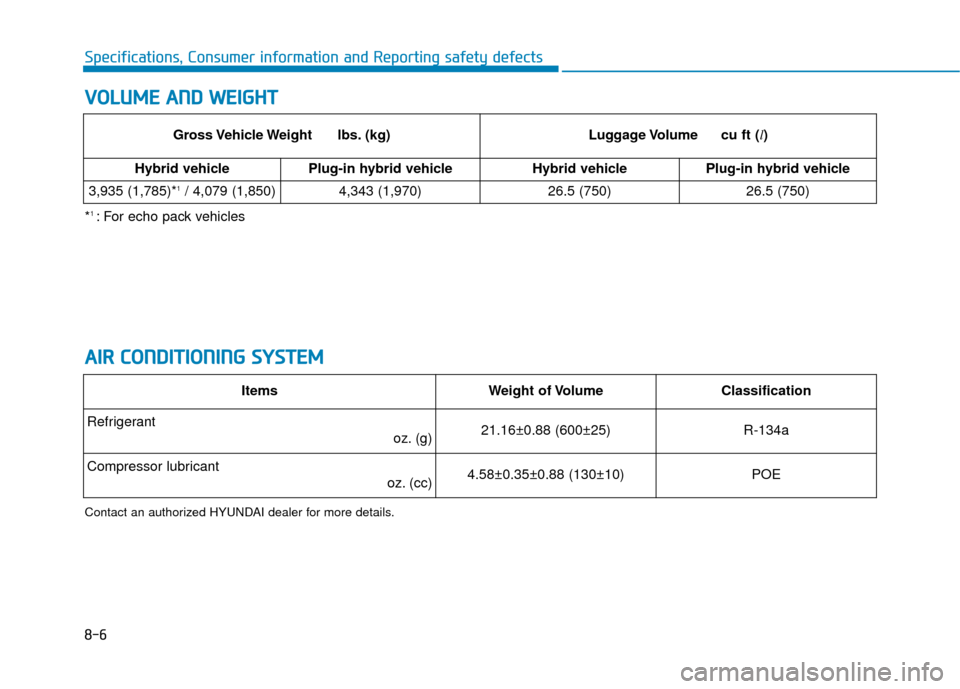

ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 21.16±0.88 (600±25)R-134a
Compressor lubricantoz. (cc) 4.58±0.35±0.88 (130±10)POE
Gross Vehicle Weight lbs. (kg)Luggage Volume cu ft (l)
Hybrid vehiclePlug-in hybrid vehicleHybrid vehiclePlug-in hybrid vehicle
3,935 (1,785)*1/ 4,079 (1,850)4,343 (1,970)26.5 (750)26.5 (750)
*1 : For echo pack vehicles

8-7
88
Specifications, Consumer information and Reporting safety defects

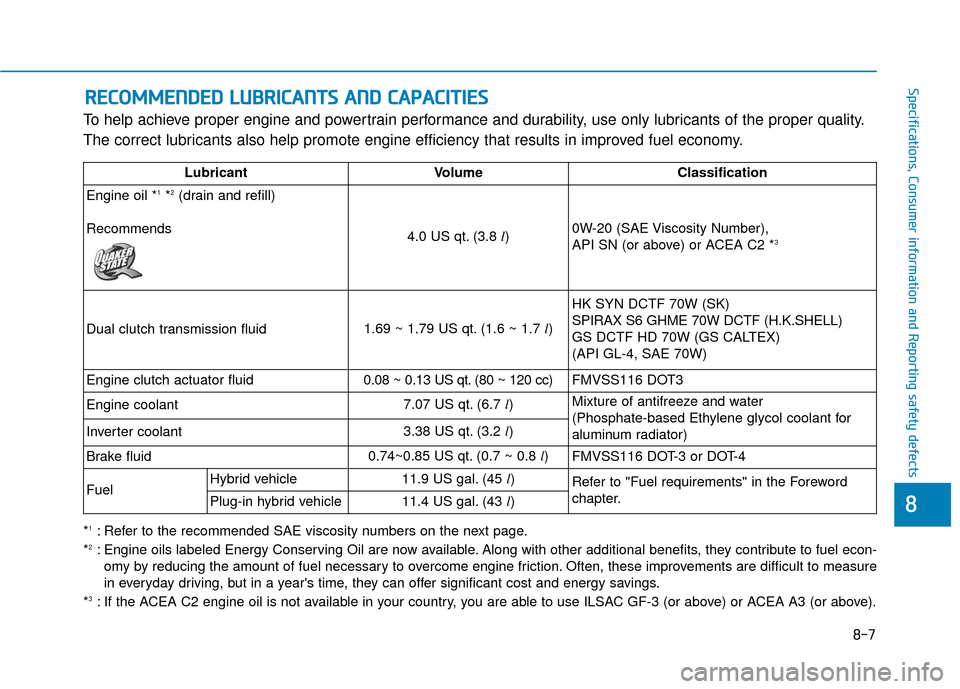

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
R RE
EC
CO
O M
M M
ME
EN
N D
DE
ED
D
L
L U
U B
BR
RI
IC
C A
A N
N T
TS
S
A
A N
N D
D
C
C A
A P
PA
A C
CI
IT
T I
IE
E S
S
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
Recommends
4.0 US qt. (3.8 l)0W-20 (SAE Viscosity Number),
API SN (or above) or ACEA C2 *3
Dual clutch transmission fluid1.69 ~ 1.79 US qt. (1.6 ~ 1.7
l)
HK SYN DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF (H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)
Engine clutch actuator fluid0.08 ~ 0.13 US qt. (80 ~ 120 cc)FMVSS116 DOT3
Engine coolant7.07 US qt. (6.7 l)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for
aluminum radiator)
Inverter coolant3.38 US qt. (3.2 l)
Brake fluid0.74~0.85 US qt. (0.7 ~ 0.8 l)FMVSS116 DOT-3 or DOT-4
FuelHybrid vehicle11.9 US gal. (45 l)Refer to "Fuel requirements" in the Foreword
chapter.
Plug-in hybrid vehicle11.4 US gal. (43 l)
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year's time, they can offer significant cost and energy savings.
*
3: If the ACEA C2 engine oil is not available in your country, you are able to use ILSAC GF-3 (or above) or ACEA A3 (or above).

8-8
Specifications, Consumer information and Reporting safety defects

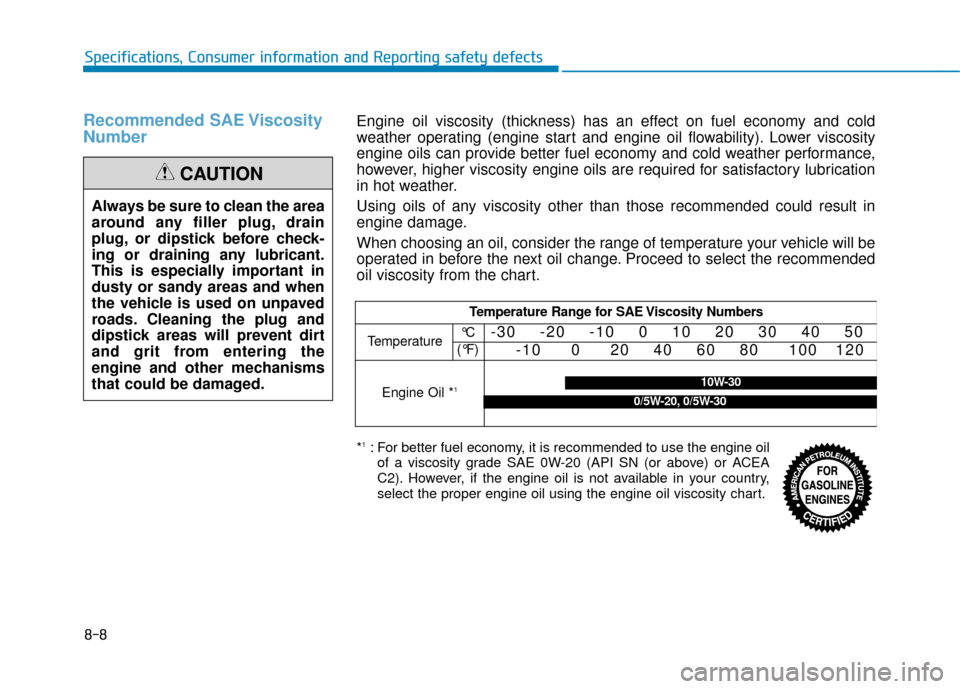

Recommended SAE Viscosity
Number
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *1
°C
(°F)
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 0W-20 (API SN (or above) or ACEA
C2). However, if the engine oil is not available in your country,
select the proper engine oil using the engine oil viscosity chart.
10W-30
0/5W-20, 0/5W-30
Engine oil viscosity (thickness) has an effect on fuel economy and cold
weather operating (engine start and engine oil flowability). Lower viscosity
engine oils can provide better fuel economy and cold weather performance,
however, higher viscosity engine oils are required for satisfactory lubrication
in hot weather.
Using oils of any viscosity other than those recommended could result in
engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.

8-9
88
Specifications, Consumer information and Reporting safety defects

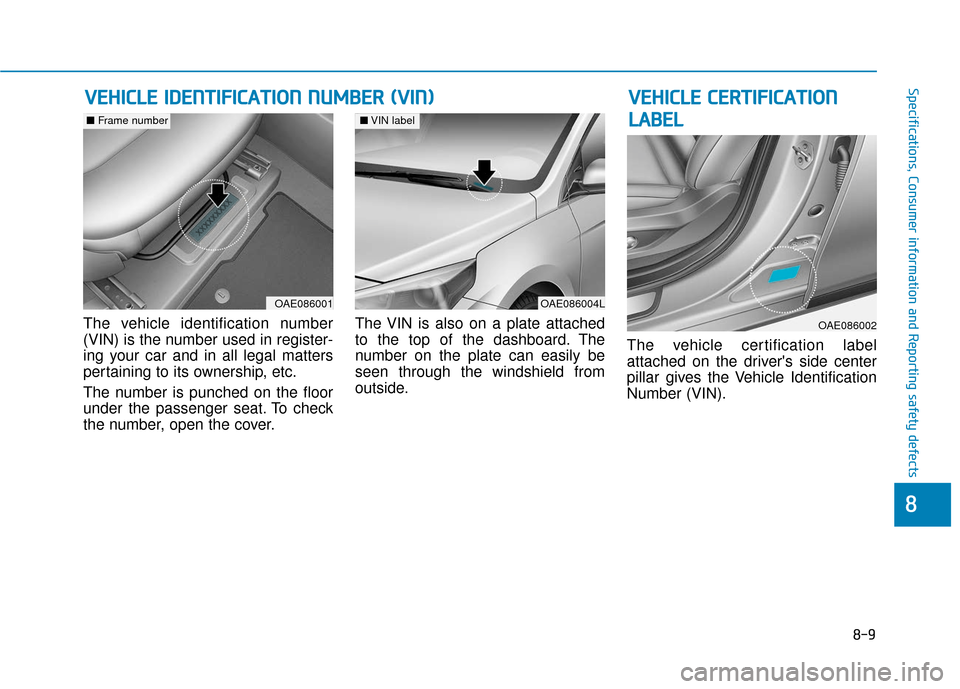

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver's side center
pillar gives the Vehicle Identification
Number (VIN).
V V
E
EH
H I
IC
C L
LE
E
I
ID
D E
EN
N T
TI
IF
F I
IC
C A
A T
TI
IO
O N
N
N
N U
U M
M B
BE
ER
R
(
( V
V I
IN
N )
)
OAE086004L
■ VIN label
OAE086001
■ Frame number
OAE086002
V
VE
EH
H I
IC
C L
LE
E
C
C E
E R
R T
TI
IF
F I
IC
C A
A T
TI
IO
O N
N
L
L A
A B
BE
EL
L
