lumbar support Hyundai Ioniq Plug-in Hybrid 2020 Owner's Manual

2-4
S SE
EA
AT
TS
S
Safety system of your vehicle
OAEPH039001N

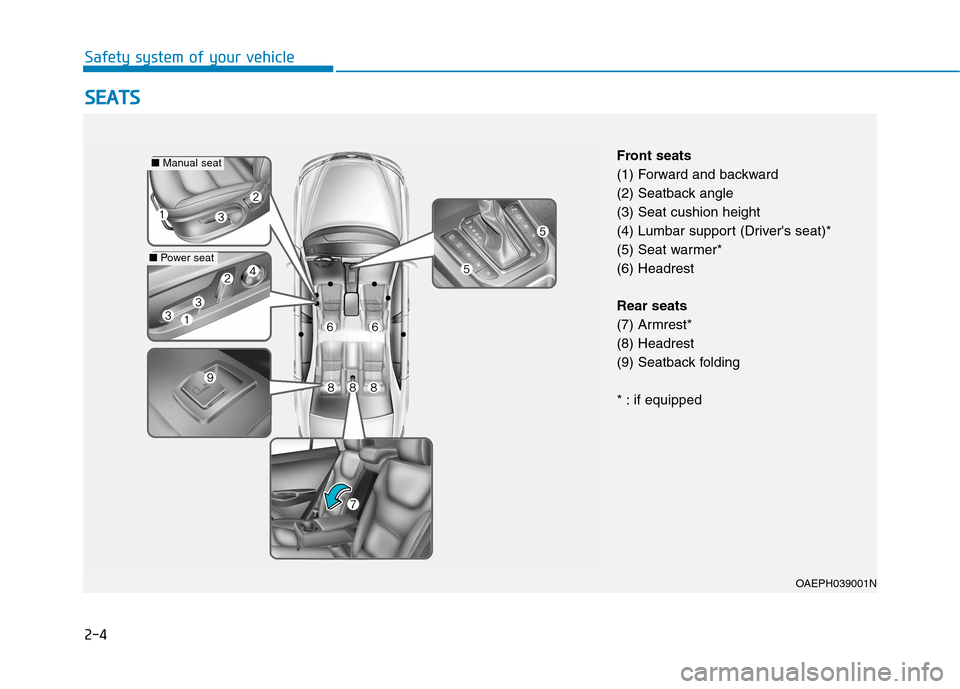

Front seats
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support (Driver's seat)*
(5) Seat warmer*
(6) Headrest
Rear seats
(7) Armrest*
(8) Headrest
(9) Seatback folding
* : if equipped■Manual seat
■Power seat

2-11
Safety system of your vehicle
2
Seat belts must be snug against your
hips and chest to work properly.
When the seatback is reclined, the
shoulder belt cannot do its job
because it will not be snug against
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
the passenger's neck will strike the
shoulder belt.

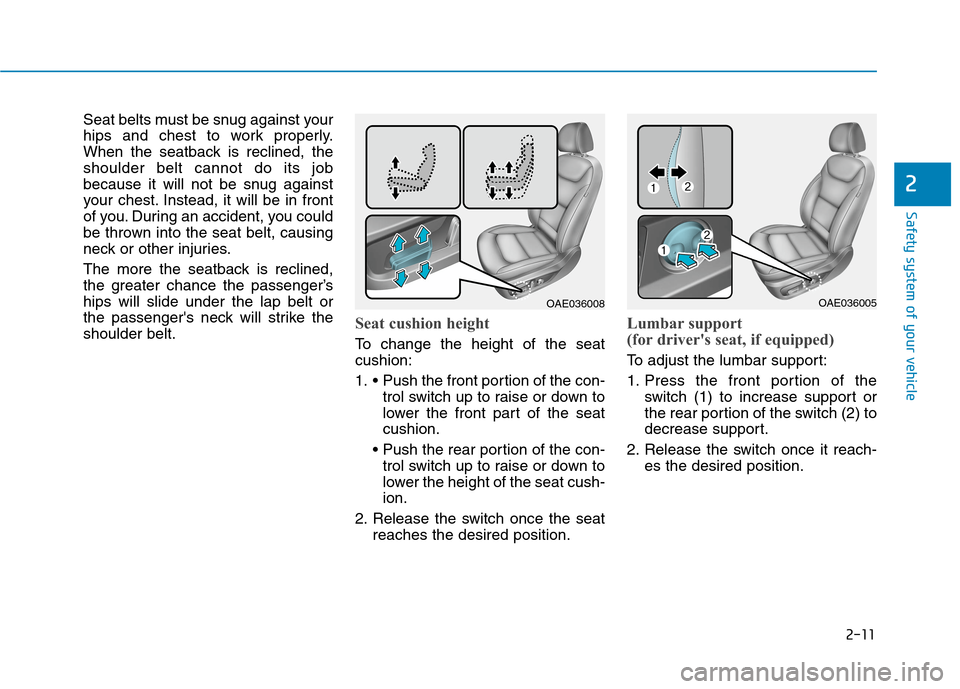

Seat cushion height
To change the height of the seat
cushion:
1.
trol switch up to raise or down to
lower the front part of the seat
cushion.

trol switch up to raise or down to
lower the height of the seat cush-
ion.
2. Release the switch once the seat
reaches the desired position.
Lumbar support
(for driver's seat, if equipped)
To adjust the lumbar support:
1. Press the front portion of the
switch (1) to increase support or
the rear portion of the switch (2) to
decrease support.
2. Release the switch once it reach-
es the desired position.
OAE036008OAE036005
