Page 371 of 420

HYUNDAI IX20 2011  Owners Manual Maintenance
58
7

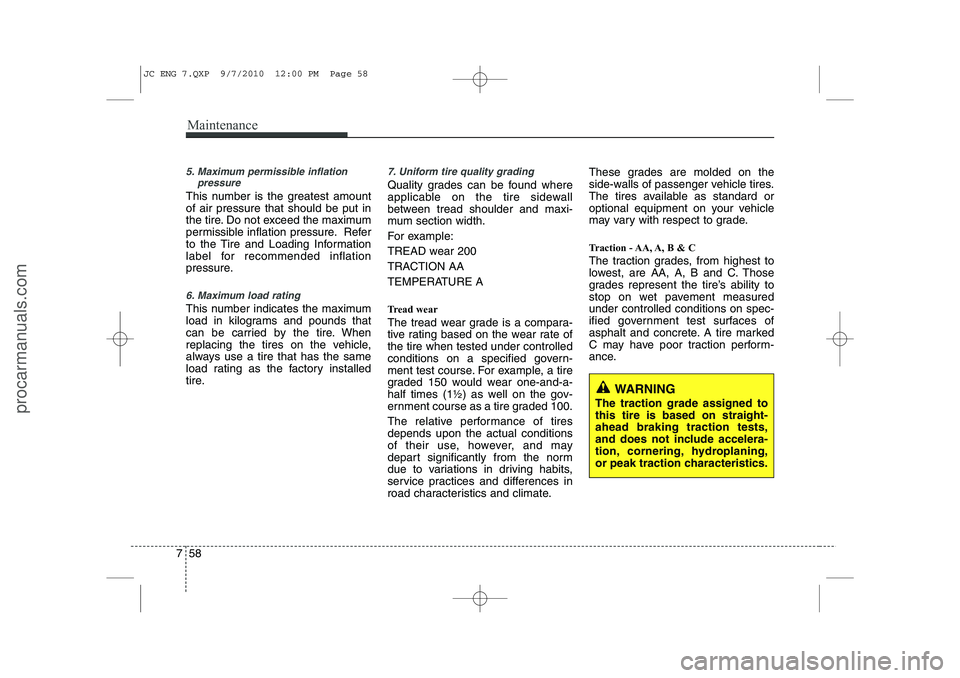

5. Maximum permissible inflation
pressure
This number is the greatest amount of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.

Page 372 of 420

HYUNDAI IX20 2011  Owners Manual 759
Maintenance

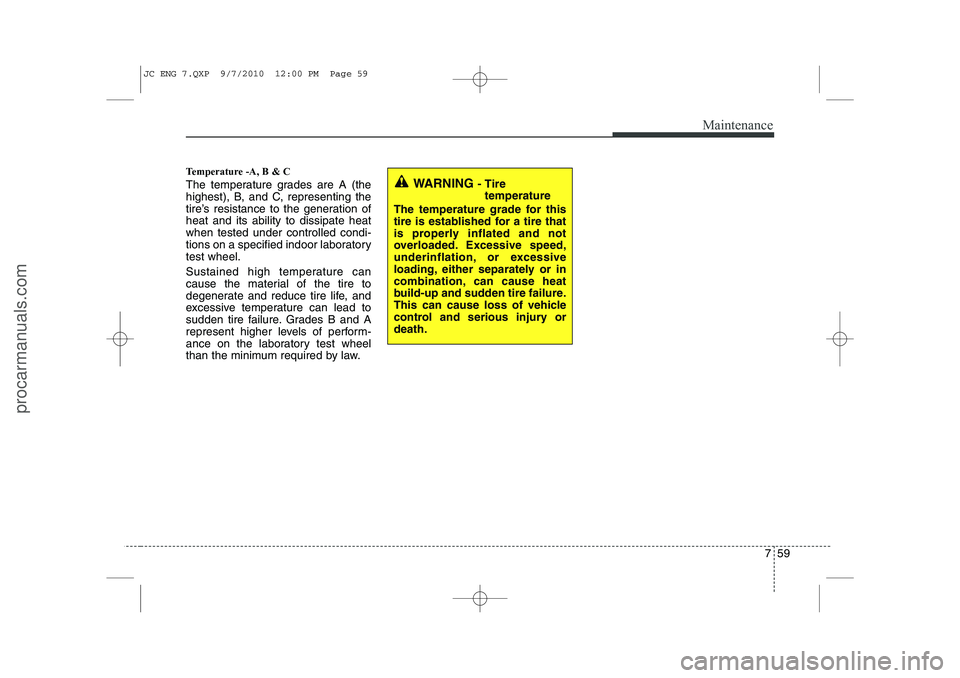

Temperature -A, B & C
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation ofheat and its ability to dissipate heatwhen teste

Page 373 of 420

HYUNDAI IX20 2011  Owners Manual Maintenance
60
7

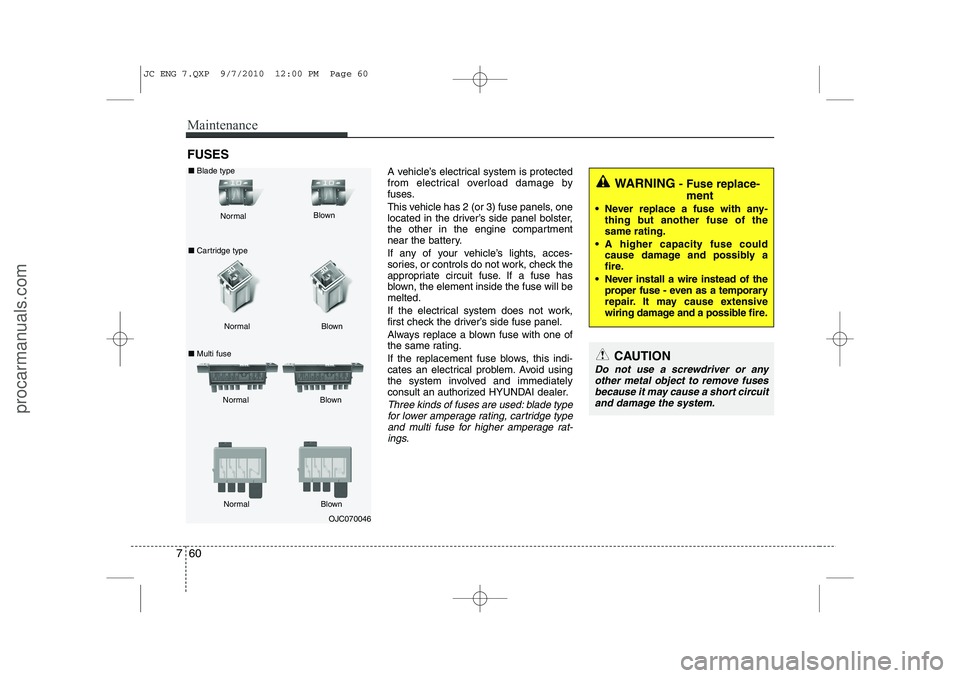

FUSES
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster

Page 374 of 420

HYUNDAI IX20 2011  Owners Manual 761
Maintenance

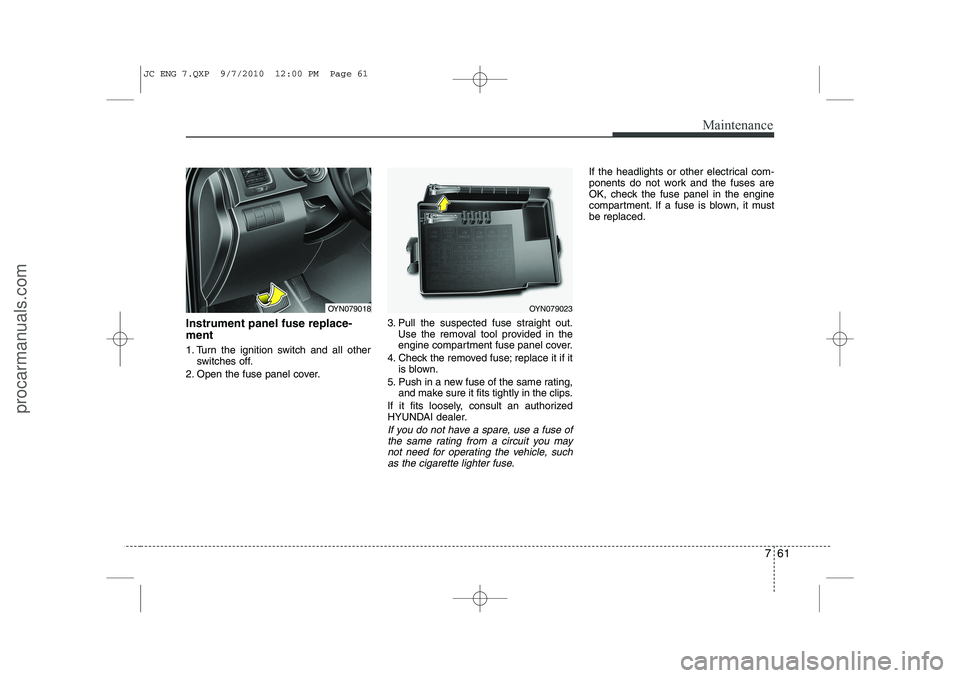

Instrument panel fuse replace- ment
1. Turn the ignition switch and all otherswitches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight out.
Use the removal tool

Page 375 of 420

HYUNDAI IX20 2011  Owners Manual Maintenance
62
7

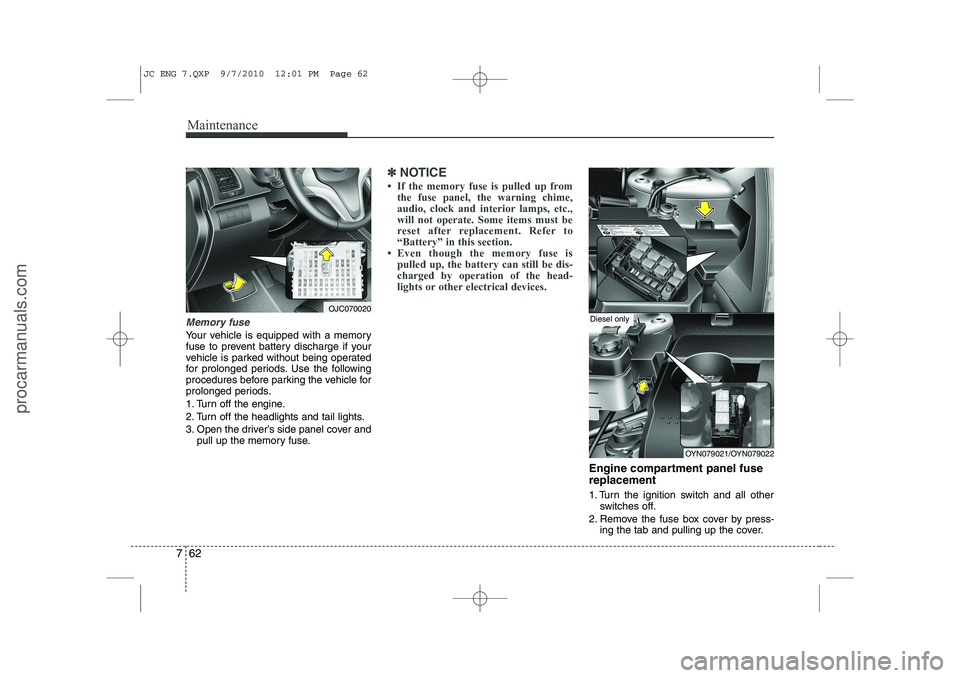

Memory fuse
Your vehicle is equipped with a memory
fuse to prevent battery discharge if your
vehicle is parked without being operated
for prolonged periods. Use the following
procedu

Page 376 of 420

HYUNDAI IX20 2011  Owners Manual 763
Maintenance

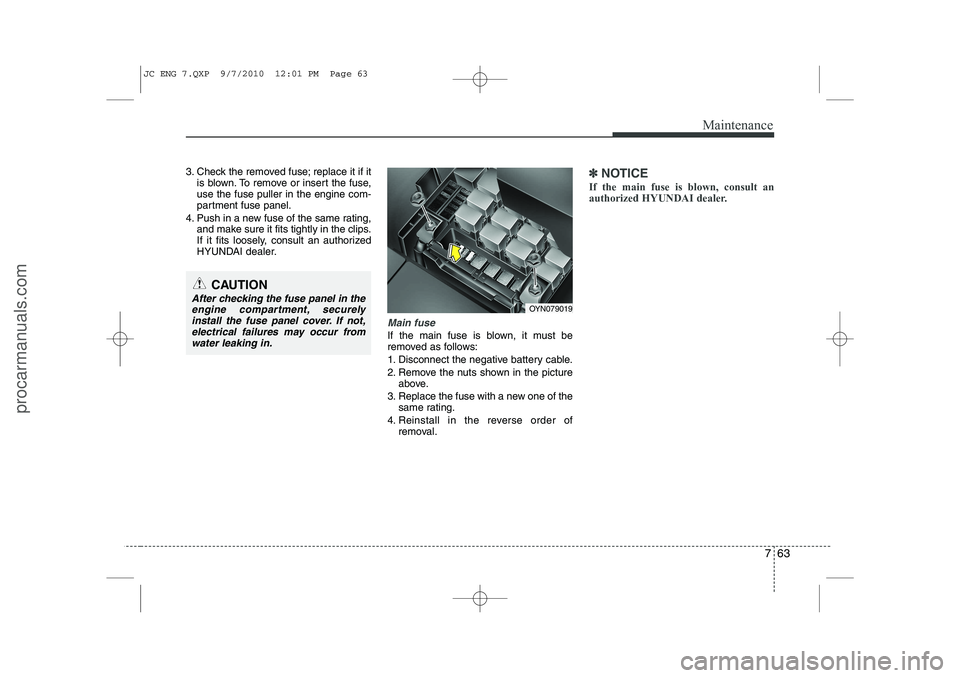

3. Check the removed fuse; replace it if itis blown. To remove or insert the fuse, use the fuse puller in the engine com-
partment fuse panel.
4. Push in a new fuse of the same rating,

Page 377 of 420

HYUNDAI IX20 2011  Owners Manual Maintenance
64
7
✽✽

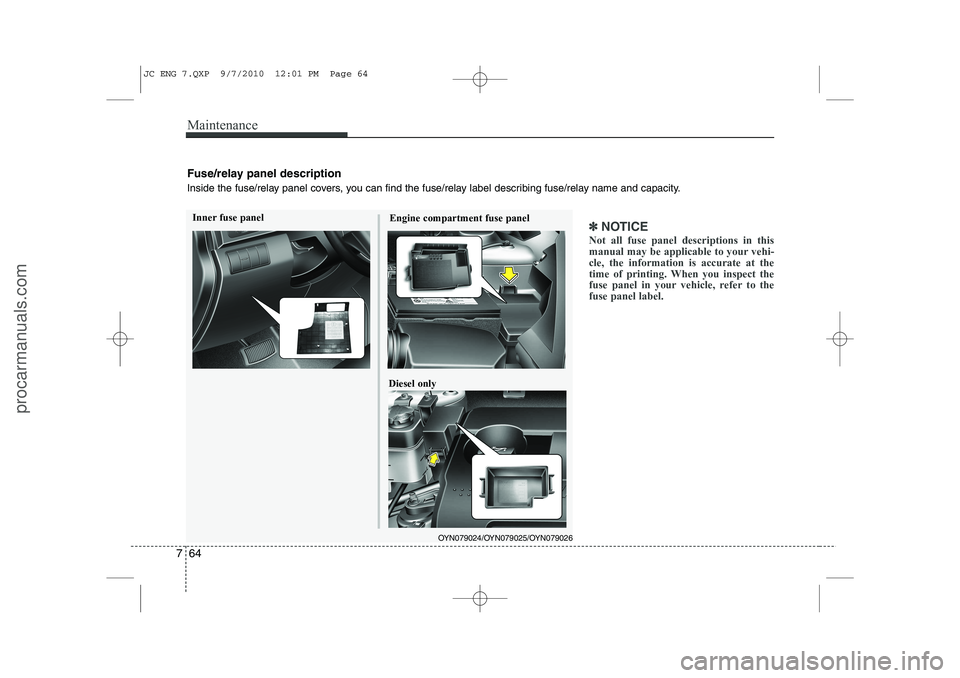

NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-cle, the information is accurate at the
time of printing. When you inspect the
fuse panel

Page 378 of 420

HYUNDAI IX20 2011  Owners Manual 765
Maintenance

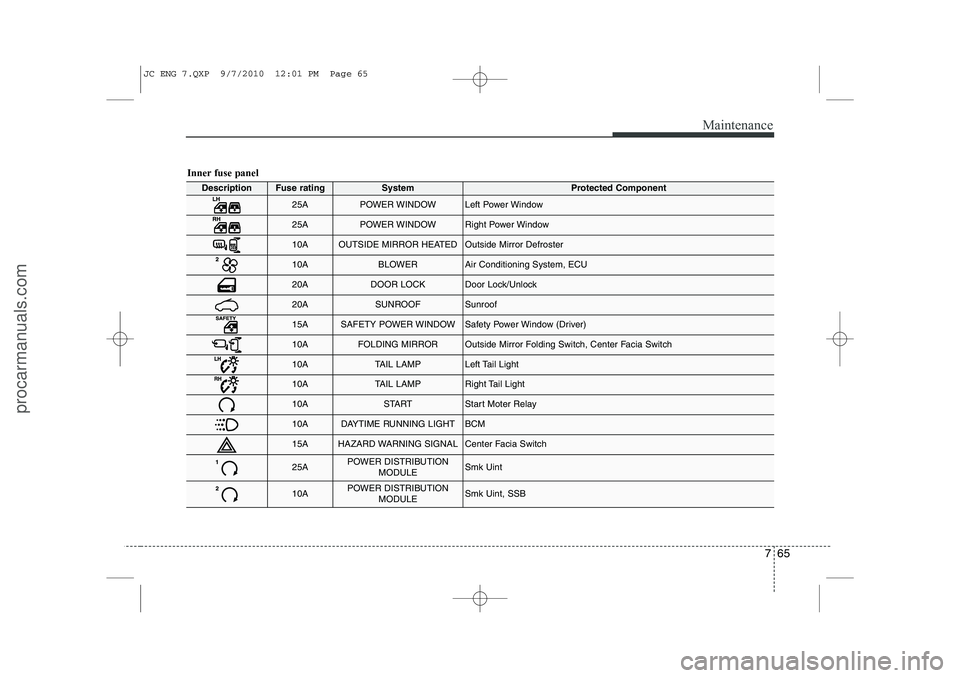

Inner fuse panel
DescriptionFuse ratingSystemProtected Component
25APOWER WINDOWLeft Power Window
25APOWER WINDOWRight Power Window
10AOUTSIDE MIRROR HEATEDOutside Mirror Defroster
10A

Page 379 of 420

HYUNDAI IX20 2011  Owners Manual Maintenance
66
7

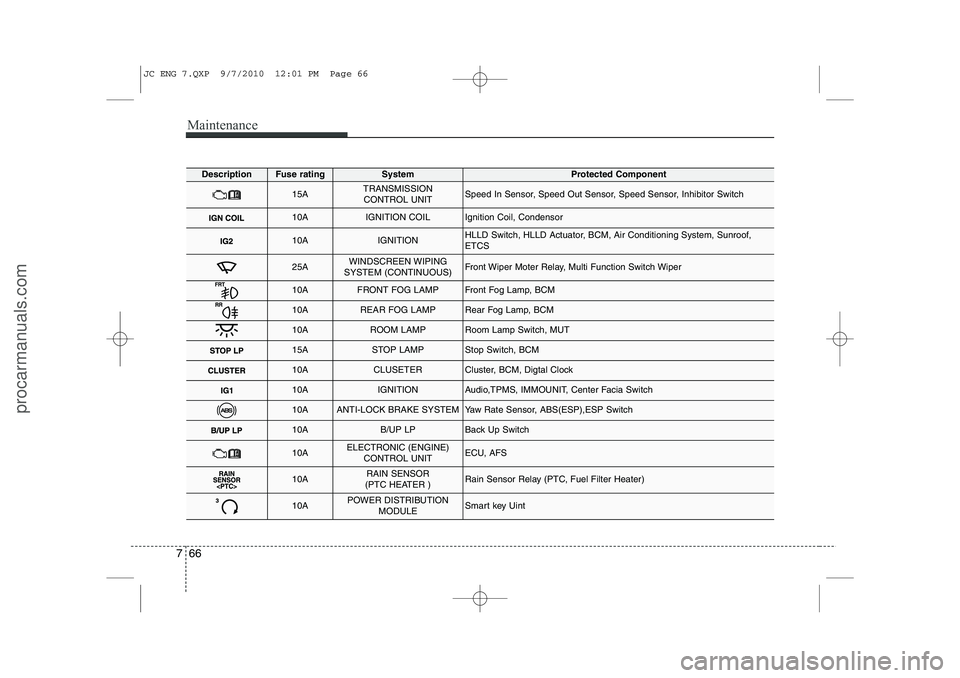

DescriptionFuse ratingSystemProtected Component
15ATRANSMISSION
CONTROL UNITSpeed In Sensor, Speed Out Sensor, Speed Sensor, Inhibitor Switch
10AIGNITION COILIgnition Coil, Condensor

Page 380 of 420

HYUNDAI IX20 2011  Owners Manual 767
Maintenance

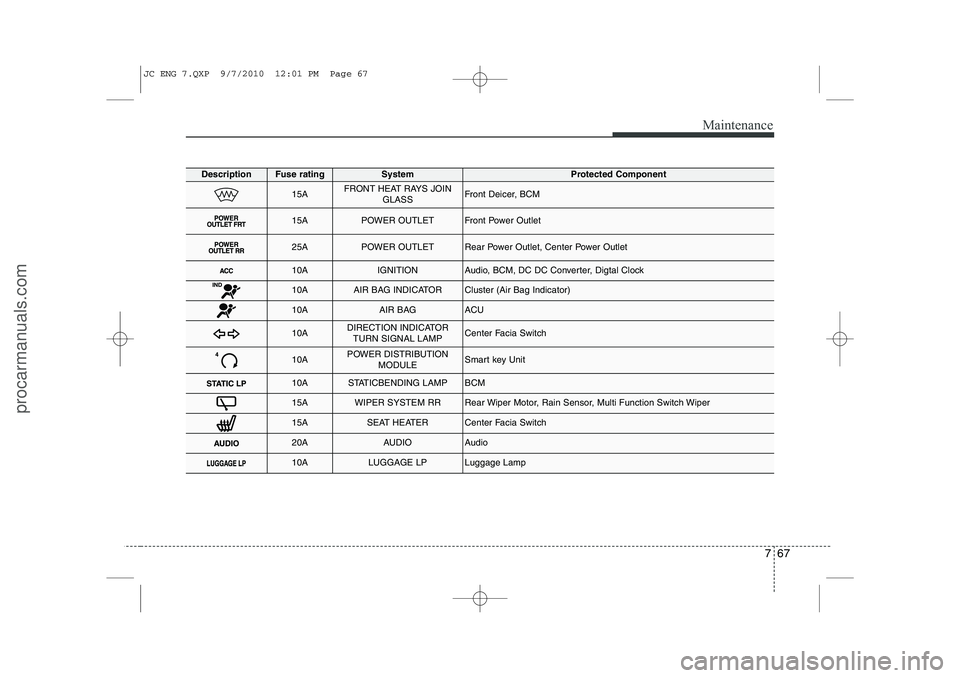

DescriptionFuse ratingSystemProtected Component
15AFRONT HEAT RAYS JOINGLASSFront Deicer, BCM
15APOWER OUTLETFront Power Outlet
25APOWER OUTLETRear Power Outlet, Center Power Outlet
10
