HYUNDAI IX20 2017 Owners Manual

Maintenance
72
7

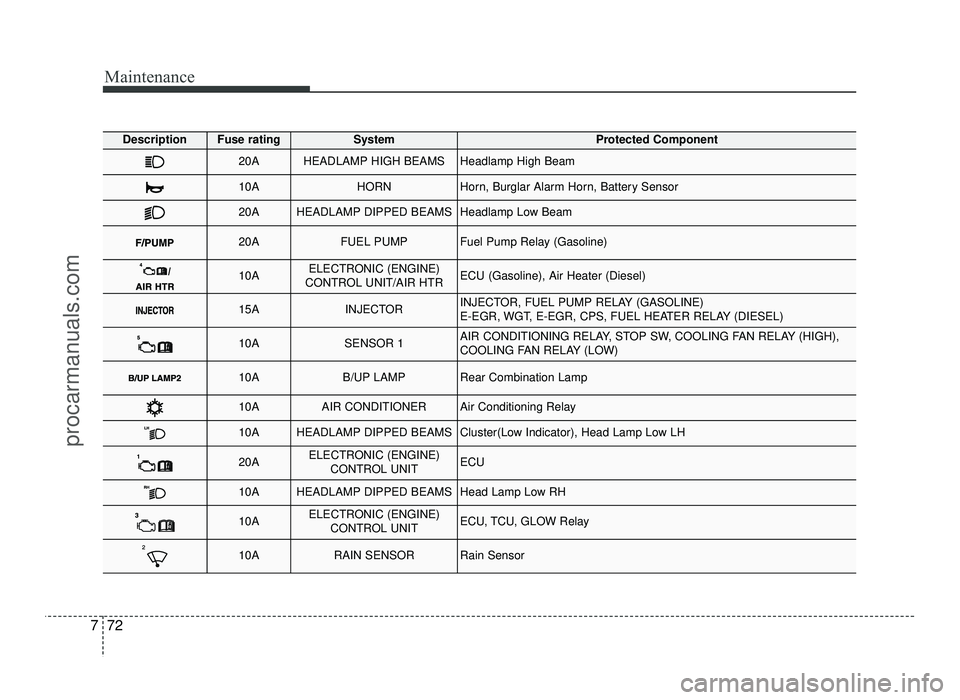

DescriptionFuse ratingSystemProtected Component
20AHEADLAMP HIGH BEAMSHeadlamp High Beam
10AHORNHorn, Burglar Alarm Horn, Battery Sensor
20AHEADLAMP DIPPED BEAMSHeadlamp Low Beam
20AFUEL PUMPFuel Pump Relay (Gasoline)
10AELECTRONIC (ENGINE)
CONTROL UNIT/AIR HTRECU (Gasoline), Air Heater (Diesel)
15AINJECTORINJECTOR, FUEL PUMP RELAY (GASOLINE)
E-EGR, WGT, E-EGR, CPS, FUEL HEATER RELAY (DIESEL)
10ASENSOR 1AIR CONDITIONING RELAY, STOP SW, COOLING FAN RELAY (HIGH),
COOLING FAN RELAY (LOW)
10AB/UP LAMPRear Combination Lamp
10AAIR CONDITIONERAir Conditioning Relay
10AHEADLAMP DIPPED BEAMSCluster(Low Indicator), Head Lamp Low LH
20AELECTRONIC (ENGINE) CONTROL UNITECU
10AHEADLAMP DIPPED BEAMSHead Lamp Low RH
10AELECTRONIC (ENGINE) CONTROL UNITECU, TCU, GLOW Relay
10ARAIN SENSORRain Sensor
procarmanuals.com

773
Maintenance

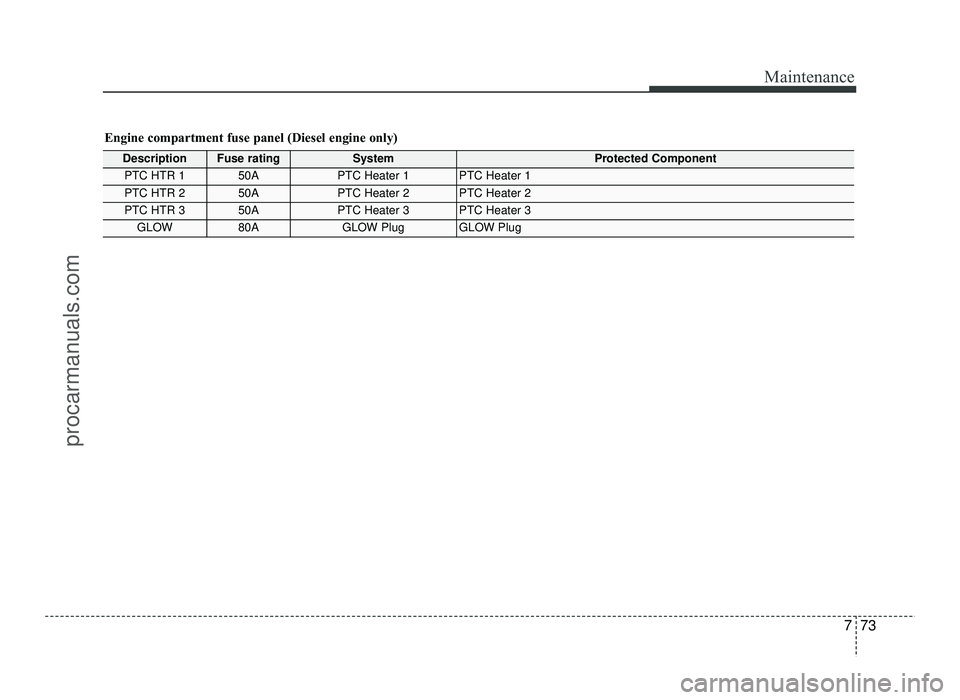

Engine compartment fuse panel (Diesel engine only)
DescriptionFuse ratingSystemProtected Component
PTC HTR 150APTC Heater 1PTC Heater 1
PTC HTR 250APTC Heater 2PTC Heater 2
PTC HTR 350APTC Heater 3PTC Heater 3
GLOW80AGLOW PlugGLOW Plug
procarmanuals.com

Maintenance
74
7

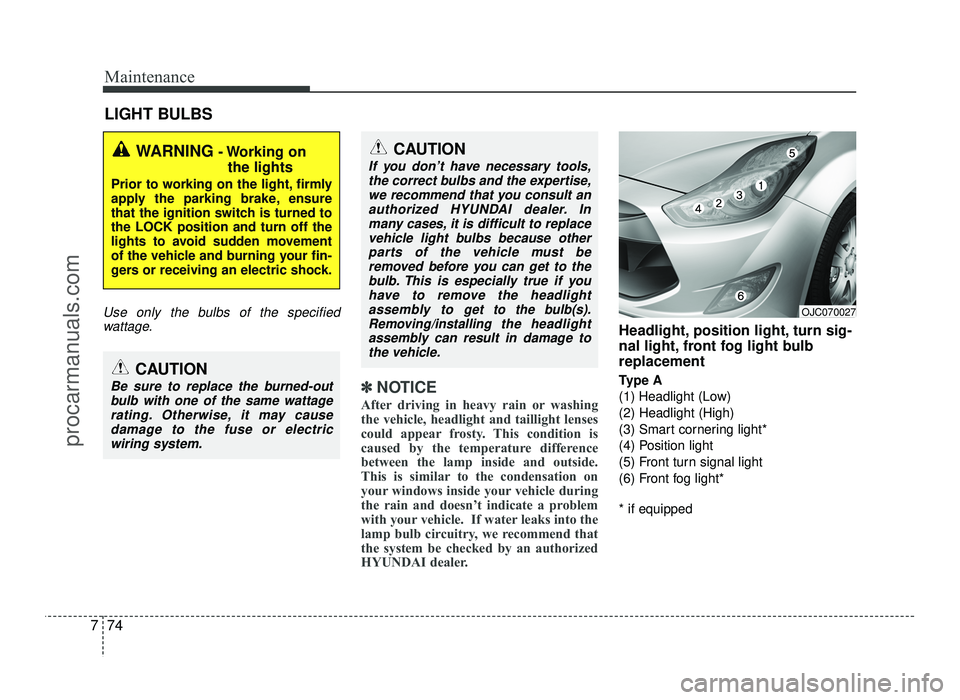

LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽✽ NOTICE
After driving in heavy rain or washing
the vehicle, headlight and taillight lenses
could appear frosty. This condition is
caused by the temperature difference
between the lamp inside and outside.
This is similar to the condensation on
your windows inside your vehicle during
the rain and doesn’t indicate a problem
with your vehicle. If water leaks into the
lamp bulb circuitry, we recommend that
the system be checked by an authorized
HYUNDAI dealer.
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
Type A
(1) Headlight (Low) (2) Headlight (High)
(3) Smart cornering light*
(4) Position light
(5) Front turn signal light
(6) Front fog light* * if equipped
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattage rating. Otherwise, it may cause
damage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,
the correct bulbs and the expertise,we recommend that you consult an
authorized HYUNDAI dealer. In many cases, it is difficult to replacevehicle light bulbs because other
parts of the vehicle must be removed before you can get to the
bulb. This is especially true if you have to remove the headlight
assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to
the vehicle.OJC070027
procarmanuals.com

775
Maintenance

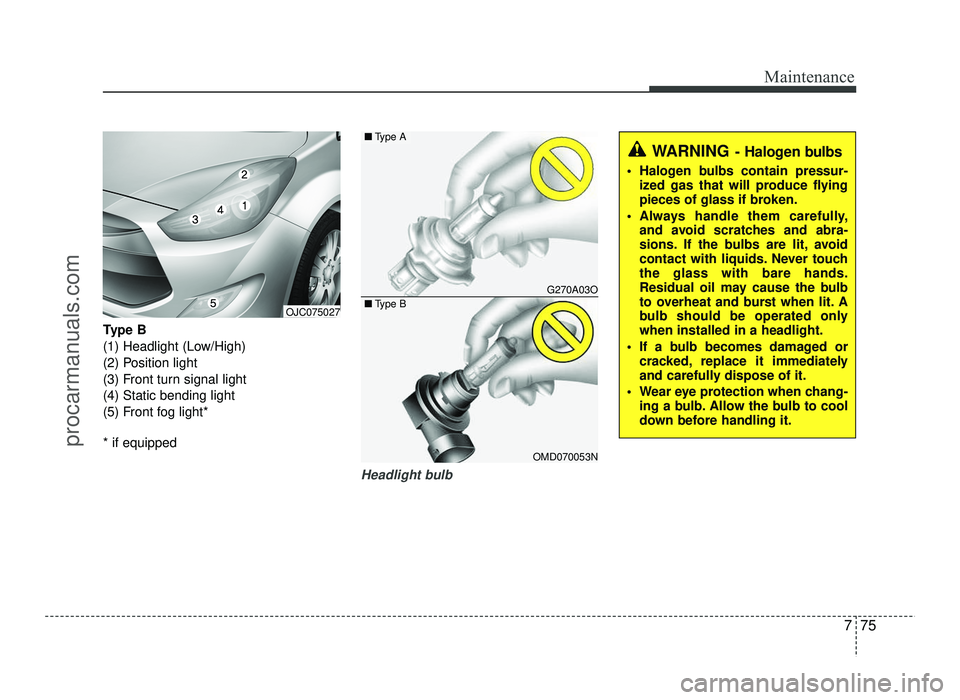

Type B
(1) Headlight (Low/High)
(2) Position light
(3) Front turn signal light(4) Static bending light
(5) Front fog light* * if equipped
Headlight bulb
OJC075027
G270A03O
OMD070053N
WARNING- Halogen bulbs
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touchthe glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated onlywhen installed in a headlight.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
■Type A
■Type B
procarmanuals.com

Maintenance
76
7
❈❈

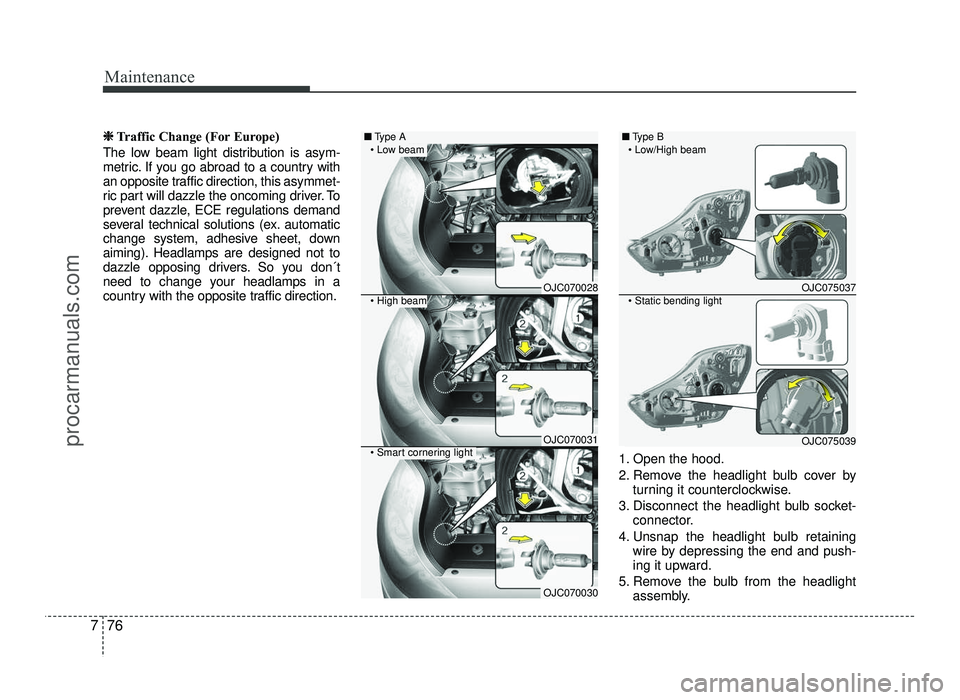

Traffic Change (For Europe)
The low beam light distribution is asym-
metric. If you go abroad to a country with
an opposite traffic direction, this asymmet-
ric part will dazzle the oncoming driver. To
prevent dazzle, ECE regulations demand
several technical solutions (ex. automatic
change system, adhesive sheet, down
aiming). Headlamps are designed not to
dazzle opposing drivers. So you don´t
need to change your headlamps in a
country with the opposite traffic direction.
1. Open the hood.
2. Remove the headlight bulb cover byturning it counterclockwise.
3. Disconnect the headlight bulb socket- connector.
4. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it upward.
5. Remove the bulb from the headlight assembly.
OJC070028
OJC070031
OJC070030

■Type A

OJC075037
OJC075039

■Type B
procarmanuals.com

777
Maintenance

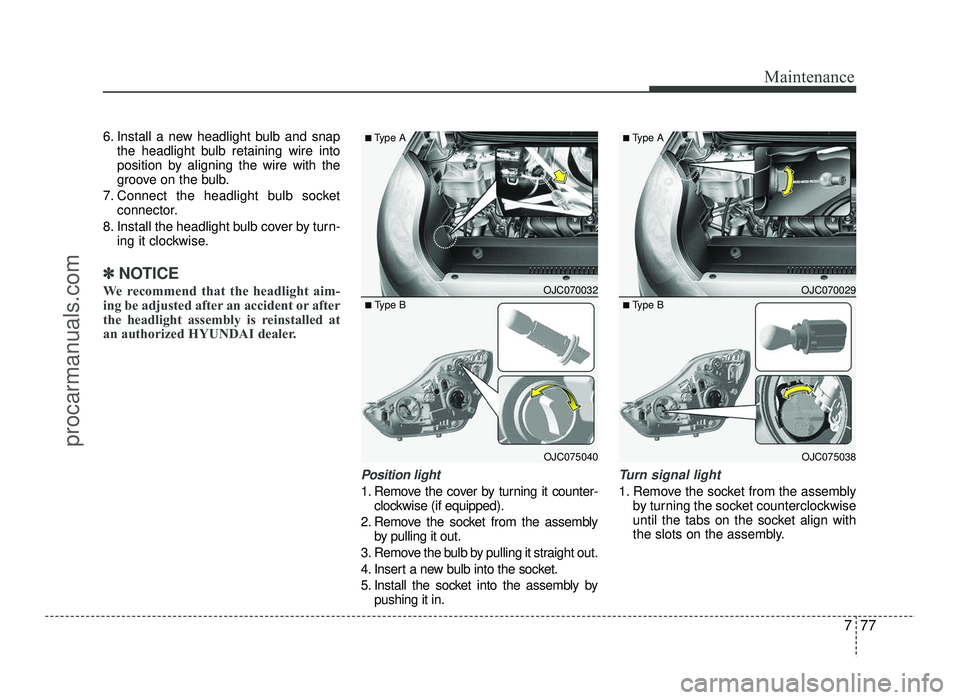

6. Install a new headlight bulb and snapthe headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlight bulb socket connector.
8. Install the headlight bulb cover by turn- ing it clockwise.
✽✽ NOTICE
We recommend that the headlight aim-
ing be adjusted after an accident or after
the headlight assembly is reinstalled at
an authorized HYUNDAI dealer.
Position light
1. Remove the cover by turning it counter- clockwise (if equipped).
2. Remove the socket from the assembly by pulling it out.
3. Remove the bulb by pulling it straight out.
4. Insert a new bulb into the socket.
5. Install the socket into the assembly by pushing it in.
Turn signal light
1. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
OJC070032
OJC075040
■
Type A
■ Type B
OJC070029
OJC075038
■
Type A
■ Type B
procarmanuals.com

Maintenance
78
7

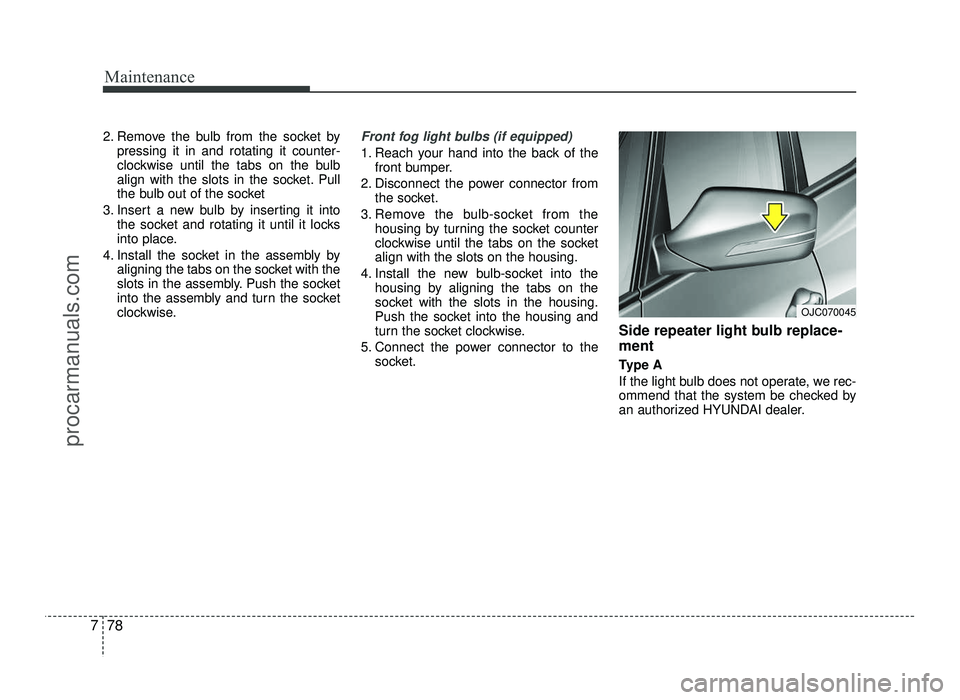

2. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket
3. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
4. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.Front fog light bulbs (if equipped)
1. Reach your hand into the back of the
front bumper.
2. Disconnect the power connector from the socket.
3. Remove the bulb-socket from the housing by turning the socket counter
clockwise until the tabs on the socketalign with the slots on the housing.
4. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
5. Connect the power connector to the socket. Side repeater light bulb replace- ment
Type A
If the light bulb does not operate, we rec-
ommend that the system be checked by
an authorized HYUNDAI dealer.
OJC070045
procarmanuals.com

779
Maintenance

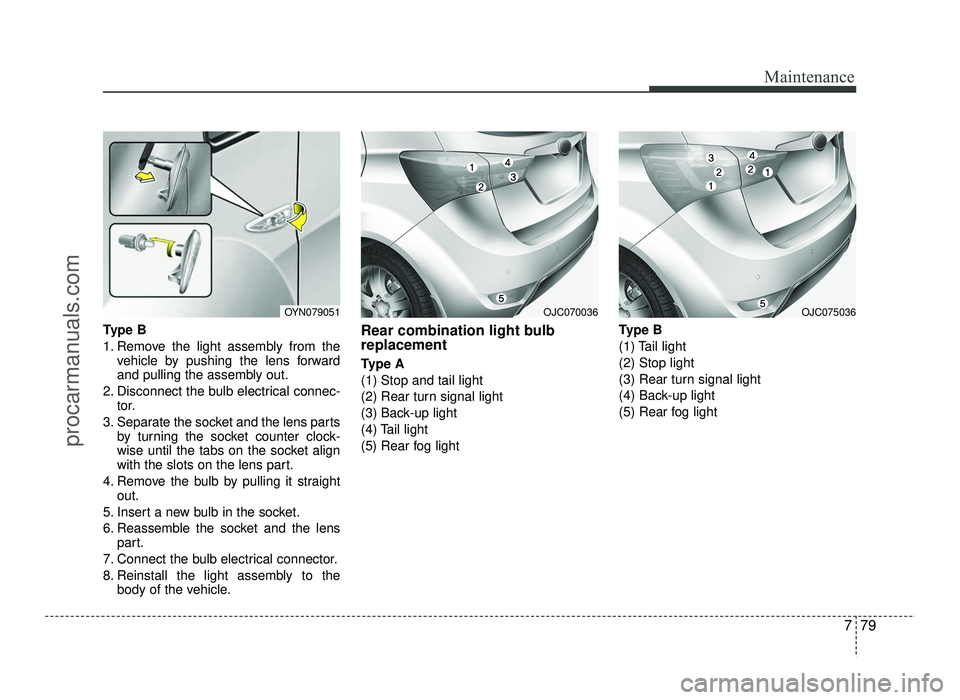

Type B
1. Remove the light assembly from thevehicle by pushing the lens forward
and pulling the assembly out.
2. Disconnect the bulb electrical connec- tor.
3. Separate the socket and the lens parts by turning the socket counter clock-
wise until the tabs on the socket align
with the slots on the lens part.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical connector.
8. Reinstall the light assembly to the body of the vehicle. Rear combination light bulb replacement
Type A (1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light
(4) Tail light
(5) Rear fog light
Type B
(1) Tail light(2) Stop light
(3) Rear turn signal light
(4) Back-up light
(5) Rear fog light
OYN079051OJC075036OJC070036
procarmanuals.com

Maintenance
80
7

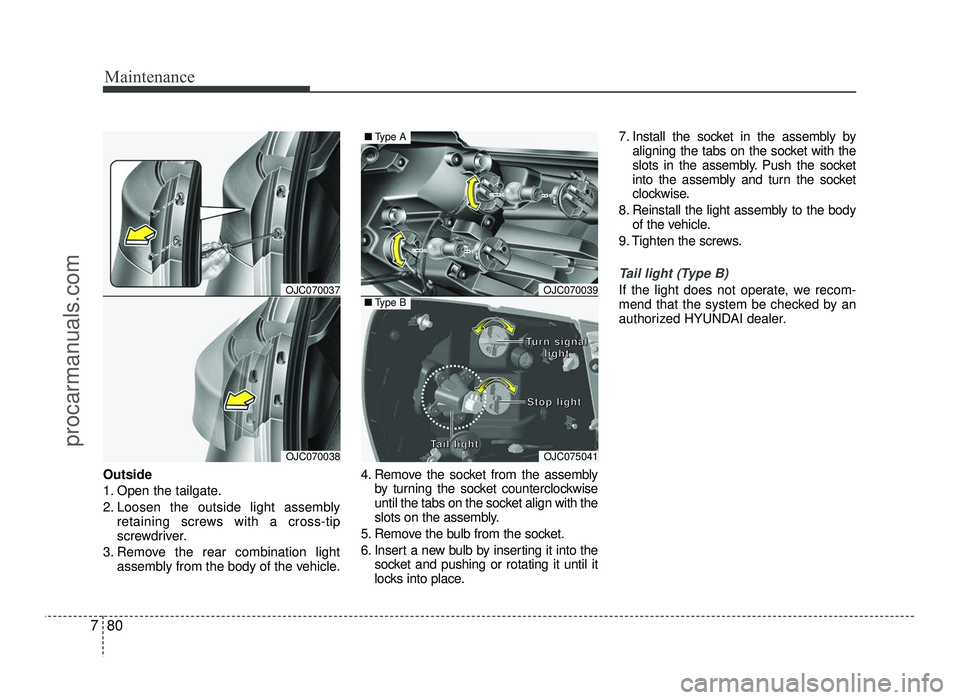

Outside
1. Open the tailgate.
2. Loosen the outside light assembly
retaining screws with a cross-tip
screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with the
slots on the assembly.
5. Remove the bulb from the socket.
6. Insert a new bulb by inserting it into the socket and pushing or rotating it until it
locks into place. 7. Install the socket in the assembly by
aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
8. Reinstall the light assembly to the body of the vehicle.
9. Tighten the screws.
Tail light (Type B)
If the light does not operate, we recom-
mend that the system be checked by an
authorized HYUNDAI dealer.OJC070037
OJC070038
OJC070039
OJC075041
■ Type A
■Type B
TTTTuuuurrrrnnnn ssssiiiiggggnnnnaaaalllllllliiiigggghhhhtttt
SSSSttttoooopppp lllliiiigggghhhhtttt
TTTTaaaaiiiillll lllliiiigggghhhhtttt
procarmanuals.com

781
Maintenance

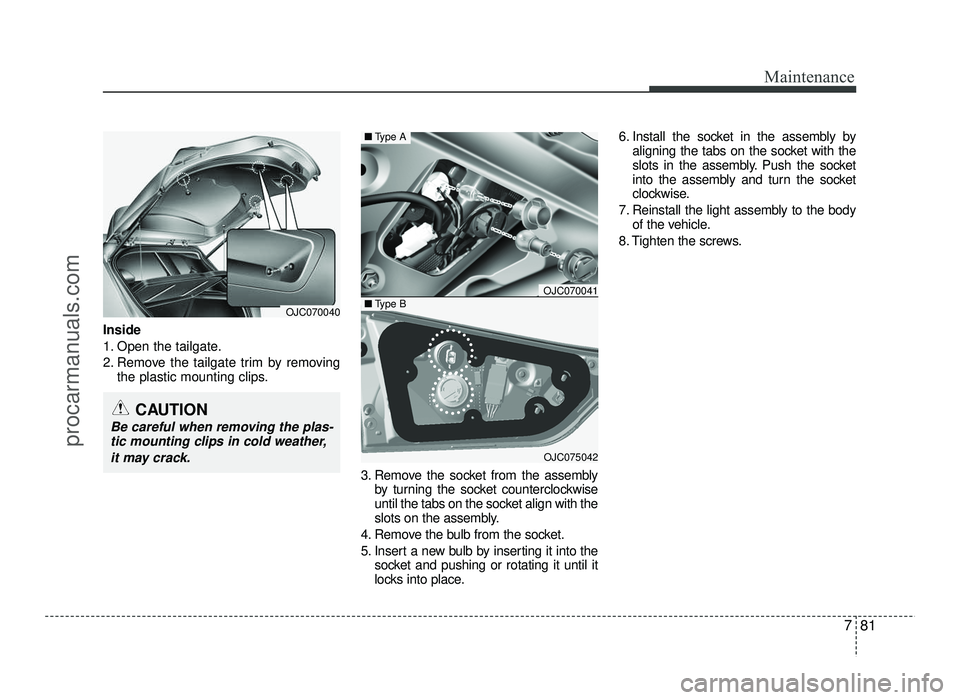

Inside
1. Open the tailgate.
2. Remove the tailgate trim by removingthe plastic mounting clips.
3. Remove the socket from the assemblyby turning the socket counterclockwise
until the tabs on the socket align with the
slots on the assembly.
4. Remove the bulb from the socket.
5. Insert a new bulb by inserting it into the socket and pushing or rotating it until it
locks into place. 6. Install the socket in the assembly by
aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
7. Reinstall the light assembly to the body of the vehicle.
8. Tighten the screws.
OJC070040
CAUTION
Be careful when removing the plas- tic mounting clips in cold weather,
it may crack.
OJC070041
OJC075042
■ Type A
■ Type B
