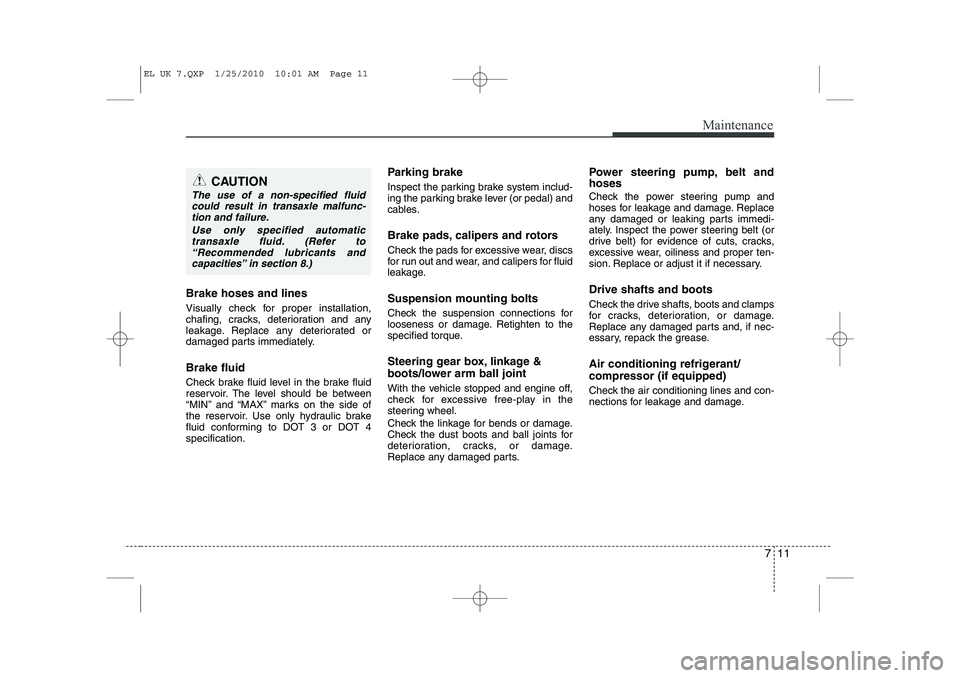

Page 331 of 560

HYUNDAI IX35 2011  Owners Manual 711
Maintenance
Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately. Brake fluid
Chec

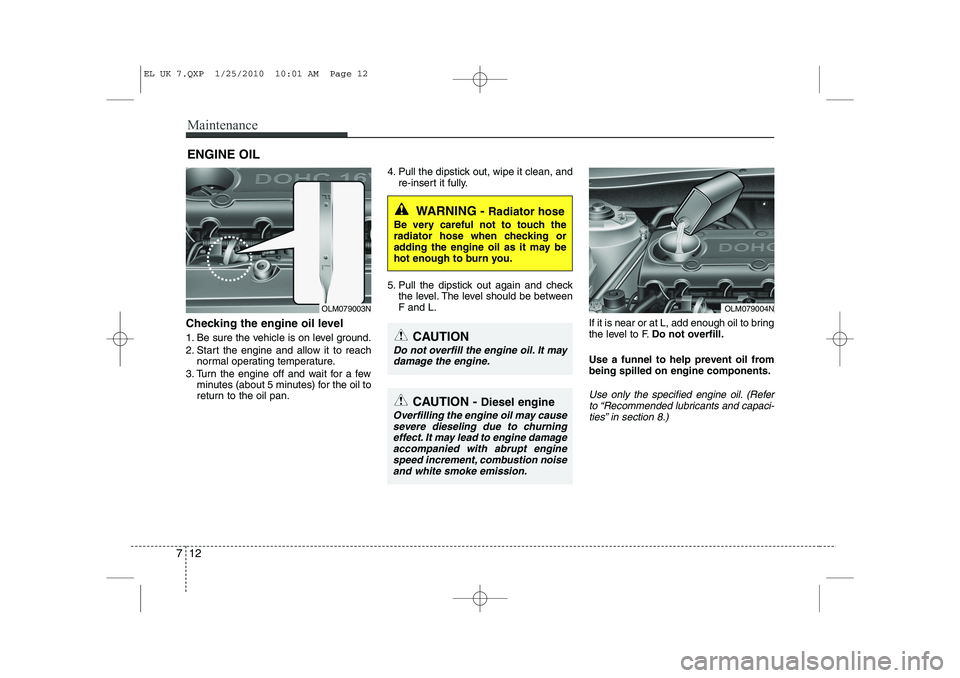

Page 332 of 560

HYUNDAI IX35 2011  Owners Manual Maintenance
12
7
ENGINE OIL
Checking the engine oil level
1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reach normal operating temperature.
3. Turn the engine off

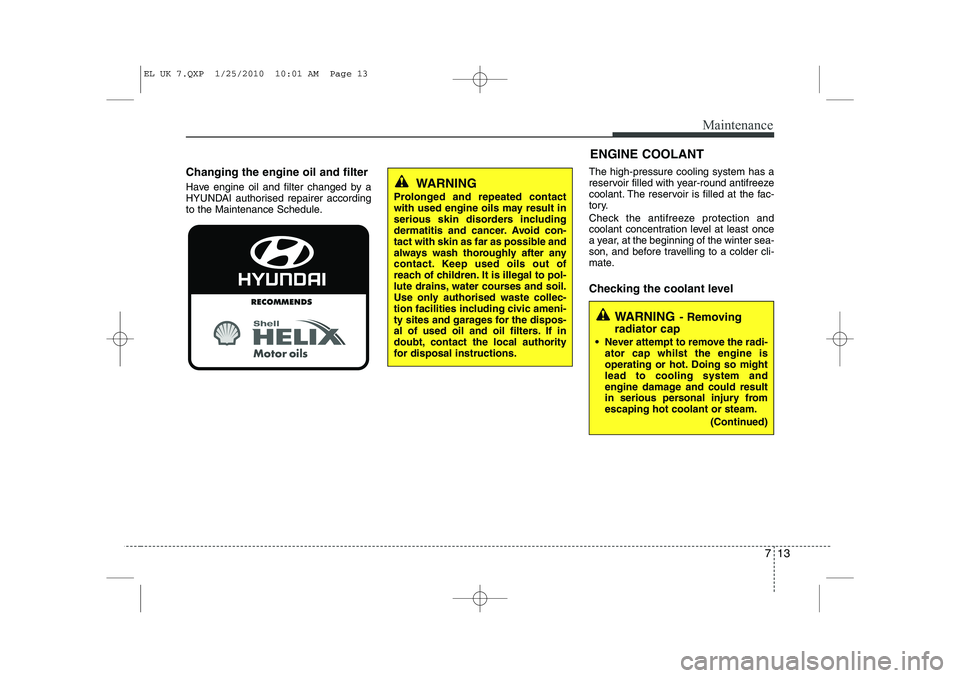

Page 333 of 560

HYUNDAI IX35 2011  Owners Manual 713
Maintenance
ENGINE COOLANT
Changing the engine oil and filter
Have engine oil and filter changed by a
HYUNDAI authorised repairer according
to the Maintenance Schedule. The high-pressure cooling

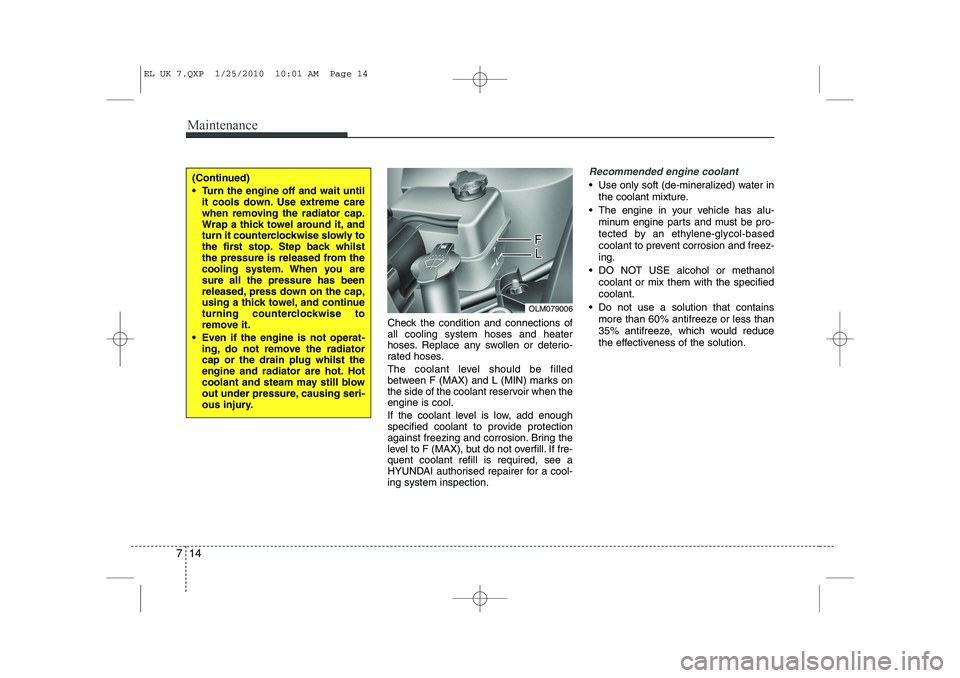

Page 334 of 560

HYUNDAI IX35 2011  Owners Manual Maintenance
14
7
Check the condition and connections of all cooling system hoses and heater
hoses. Replace any swollen or deterio-
rated hoses.
The coolant level should be filled
between F (MAX) and

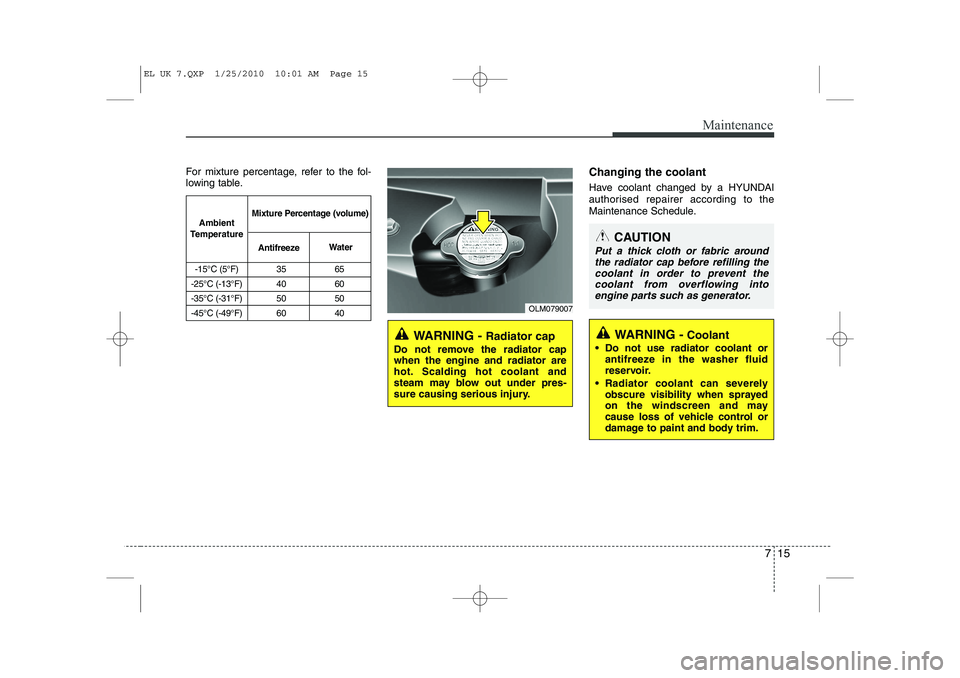

Page 335 of 560

HYUNDAI IX35 2011  Owners Manual 715
Maintenance
For mixture percentage, refer to the fol-
lowing table.Changing the coolant
Have coolant changed by a HYUNDAI
authorised repairer according to the
Maintenance Schedule.
WARNING -
R

Page 336 of 560

HYUNDAI IX35 2011  Owners Manual Maintenance
16
7
BRAKE/CLUTCH FLUID
Checking the brake fluid level
Check the fluid level in the reservoir peri-
odically. The fluid level should be
between MAX and MIN marks on the
side of the res

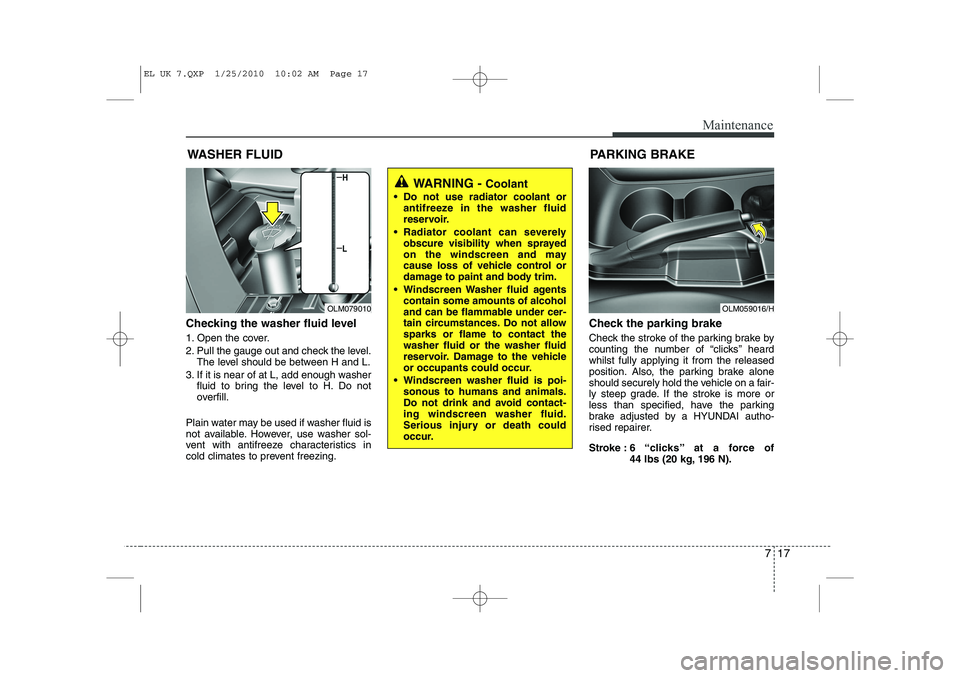

Page 337 of 560

HYUNDAI IX35 2011  Owners Manual 717
Maintenance
WASHER FLUID
Checking the washer fluid level
1. Open the cover.
2. Pull the gauge out and check the level. The level should be between H and L.
3. If it is near of at L, add enough

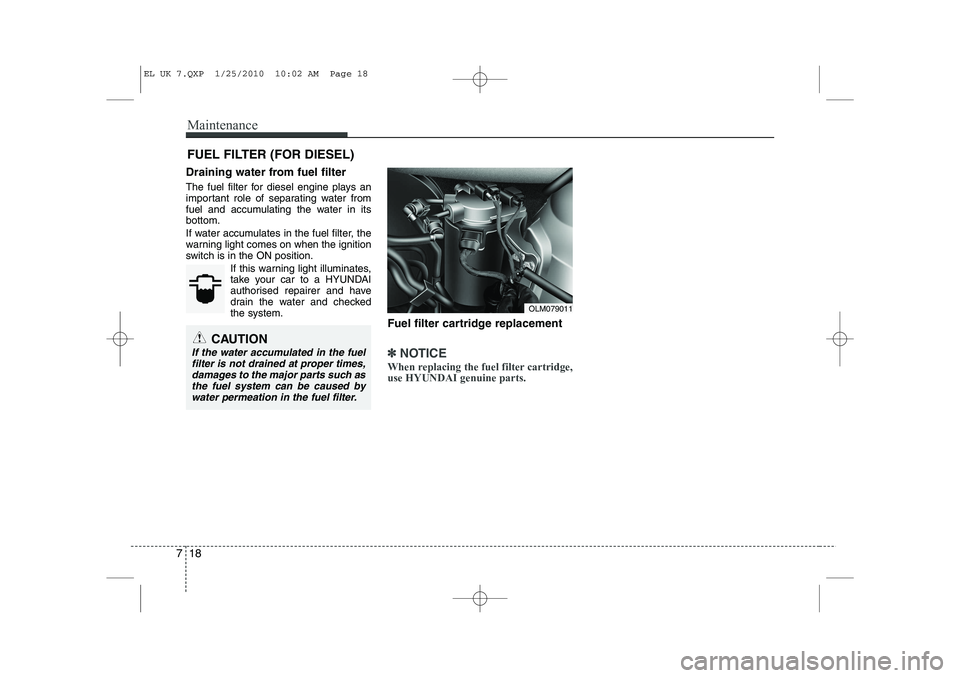

Page 338 of 560

HYUNDAI IX35 2011  Owners Manual Maintenance
18
7
FUEL FILTER (FOR DIESEL)
Draining water from fuel filter
The fuel filter for diesel engine plays an
important role of separating water from
fuel and accumulating the water in itsbot

Page 339 of 560

HYUNDAI IX35 2011  Owners Manual 719
Maintenance
AIR CLEANER
Filter replacement
It must be replaced when necessary, and
should not be washed.
You can clean the filter when inspecting the air cleaner element.
Clean the filter b

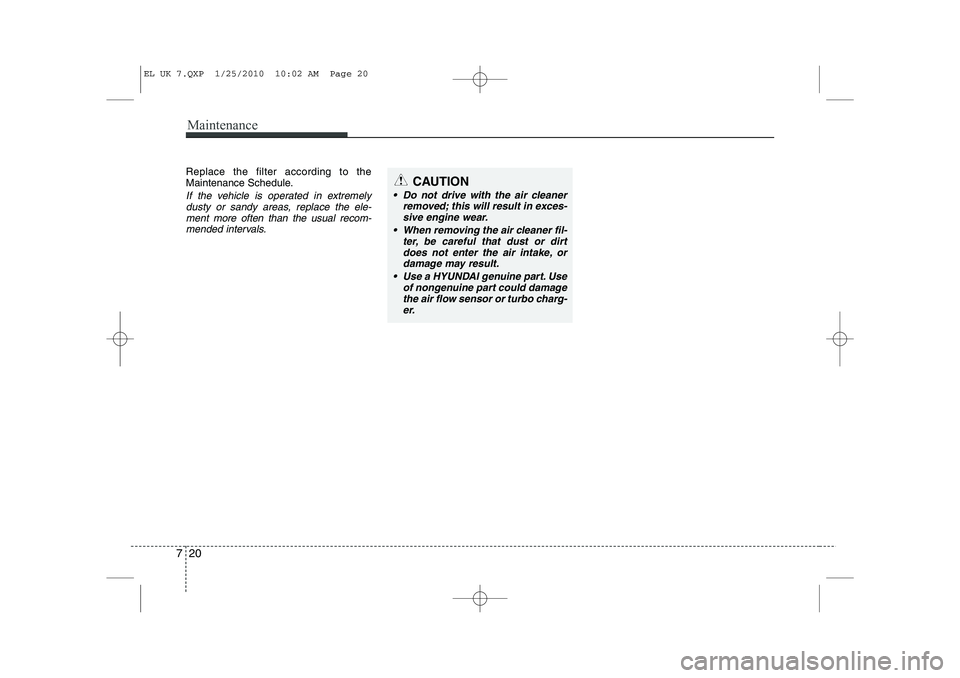

Page 340 of 560

HYUNDAI IX35 2011  Owners Manual Maintenance
20
7
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-ment more often than the usual recom-
mended i
