Maintenance
WASHER FLUID
Checking the washer fluid level
1. Open the cover.
2. Pull the gauge out and check the level. The level should be between H (High)
and L (Low).
3. If it is near of at L (Low), add enough washer fluid to bring the level to H
(High). Do not overfill.
Plain water may be used if washer fluid is
not available. However, use washer sol-
vent with antifreeze characteristics in
cold climates to prevent freezing. Check the parking brake
Check the stroke of the parking brake by
counting the number of “clicks’’ heardwhilst fully applying it from the released
position. Also, the parking brake alone
should securely hold the vehicle on a fair-
ly steep grade. If the stroke is more or
less than specified, we recommend that
the system be checked by an authorised
HYUNDAI dealer.
Stroke : 6 “clicks’’ at a force of
20 kg (44 lbs, 196 N).
OLM079010
WARNING - Coolant
 Do not use radiator coolant or antifreeze in the washer fluid
reservoir.
 Radiator coolant can severely obscure visibility when sprayed
on the windscreen and may
cause loss of vehicle control or
damage to paint and body trim.
 Windscreen Washer fluid agents contain some amounts of alcohol
and can be flammable under cer-
tain circumstances. Do not allowsparks or flame to contact thewasher fluid or the washer fluid
reservoir. Damage to the vehicle
or occupants could occur.
 Windscreen washer fluid is poi- sonous to humans and animals.
Do not drink and avoid contact-ing windscreen washer fluid.
Serious injury or death could
occur.
PARKING BRAKE
OLM059016/H
EL(FL) Aust 7.QXP 7/26/2013 2:23 PM Page 27

Maintenance
28
7
FUEL FILTER (FOR DIESEL)

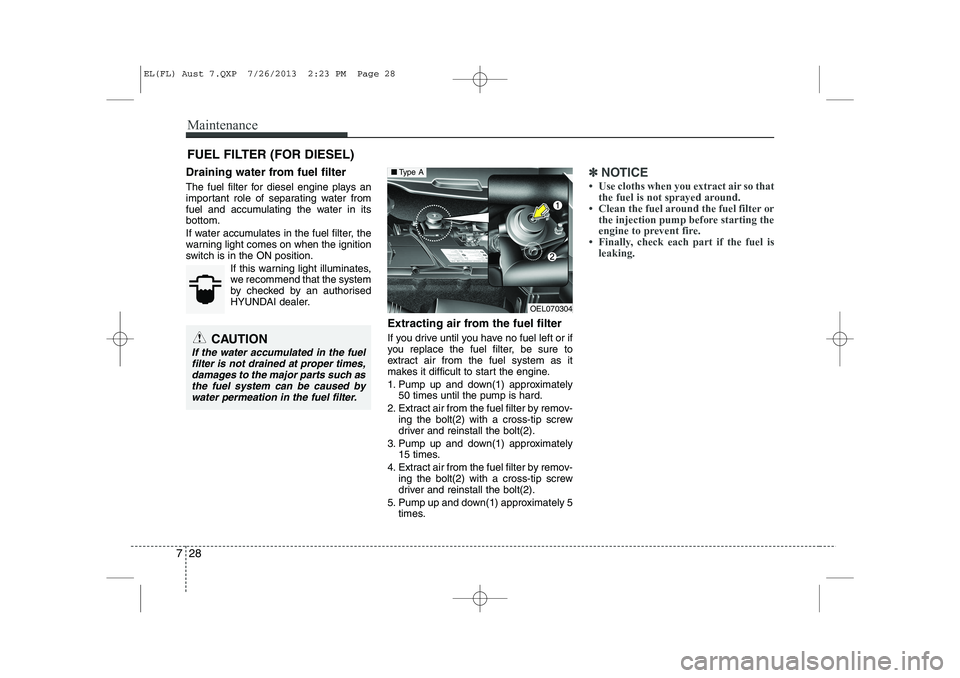

Draining water from fuel filter
The fuel filter for diesel engine plays an
important role of separating water from
fuel and accumulating the water in itsbottom.
If water accumulates in the fuel filter, the
warning light comes on when the ignition
switch is in the ON position. If this warning light illuminates,
we recommend that the system
by checked by an authorised
HYUNDAI dealer.
Extracting air from the fuel filter
If you drive until you have no fuel left or if
you replace the fuel filter, be sure to
extract air from the fuel system as it
makes it difficult to start the engine.
1. Pump up and down(1) approximately50 times until the pump is hard.
2. Extract air from the fuel filter by remov- ing the bolt(2) with a cross-tip screw
driver and reinstall the bolt(2).
3. Pump up and down(1) approximately 15 times.
4. Extract air from the fuel filter by remov- ing the bolt(2) with a cross-tip screw
driver and reinstall the bolt(2).
5. Pump up and down(1) approximately 5 times.
✽✽ NOTICE

729
Maintenance

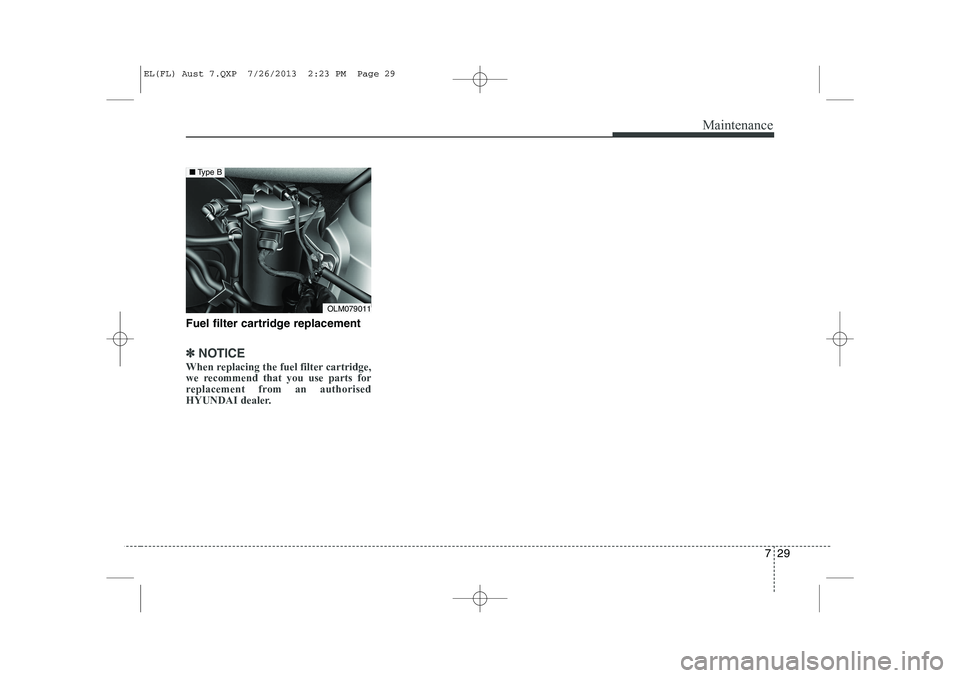

Fuel filter cartridge replacement
✽✽NOTICE
When replacing the fuel filter cartridge,
we recommend that you use parts for
replacement from an authorised
HYUNDAI dealer.
OLM079011
■ Type B
EL(FL) Aust 7.QXP 7/26/2013 2:23 PM Page 29

Maintenance
30
7
AIR CLEANER
Filter replacement
It must be replaced when necessary, and
should not be washed.
You can clean the filter when inspecting the air cleaner element.
Clean the filter by using compressed air. 1. Loosen the air cleaner cover attachingclips and open the cover. 2. Wipe the inside of the air cleaner.
3. Replace the air cleaner filter.
4. Lock the cover with the cover attaching
clips.
OLM079013N
OEL070013
■Type A
■Type BOLM079012NOLM079014
EL(FL) Aust 7.QXP 7/26/2013 2:23 PM Page 30

731
Maintenance
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremelydusty or sandy areas, replace the ele-ment more often than the usual recom-
mended intervals. (Refer to “Maintenance under severe usage conditions” in thissection.)
CAUTION
 Do not drive with the air cleaner removed; this will result in exces-
sive engine wear.
 When removing the air cleaner fil- ter, be careful that dust or dirtdoes not enter the air intake, or
damage may result.
 We recommend that you use parts for replacement from anauthorised HYUNDAI dealer.Improper parts could damage the
air flow sensor, turbocharger or engine.
EL(FL) Aust 7.QXP 7/26/2013 2:23 PM Page 31

Maintenance
32
7
CLIMATE CONTROL AIR FILTER (IF EQUIPPED)

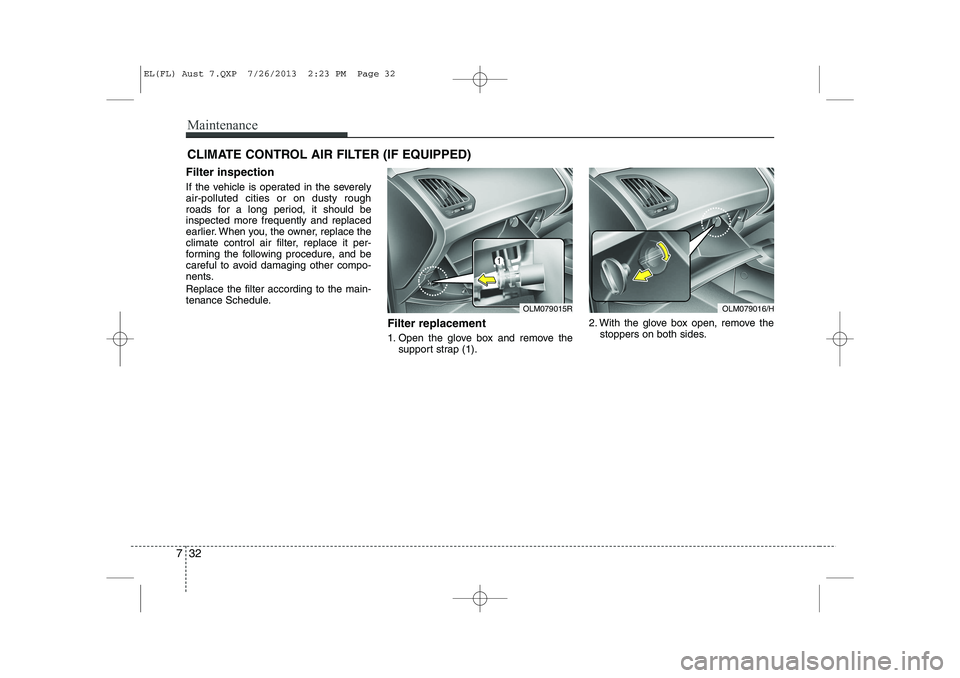

Filter inspection
If the vehicle is operated in the severely air-polluted cities or on dusty rough
roads for a long period, it should beinspected more frequently and replaced
earlier. When you, the owner, replace the
climate control air filter, replace it per-
forming the following procedure, and be
careful to avoid damaging other compo-
nents. Replace the filter according to the main-
tenance Schedule.
Filter replacement
1. Open the glove box and remove thesupport strap (1). 2. With the glove box open, remove the
stoppers on both sides.
OLM079015ROLM079016/H
EL(FL) Aust 7.QXP 7/26/2013 2:23 PM Page 32

733
Maintenance

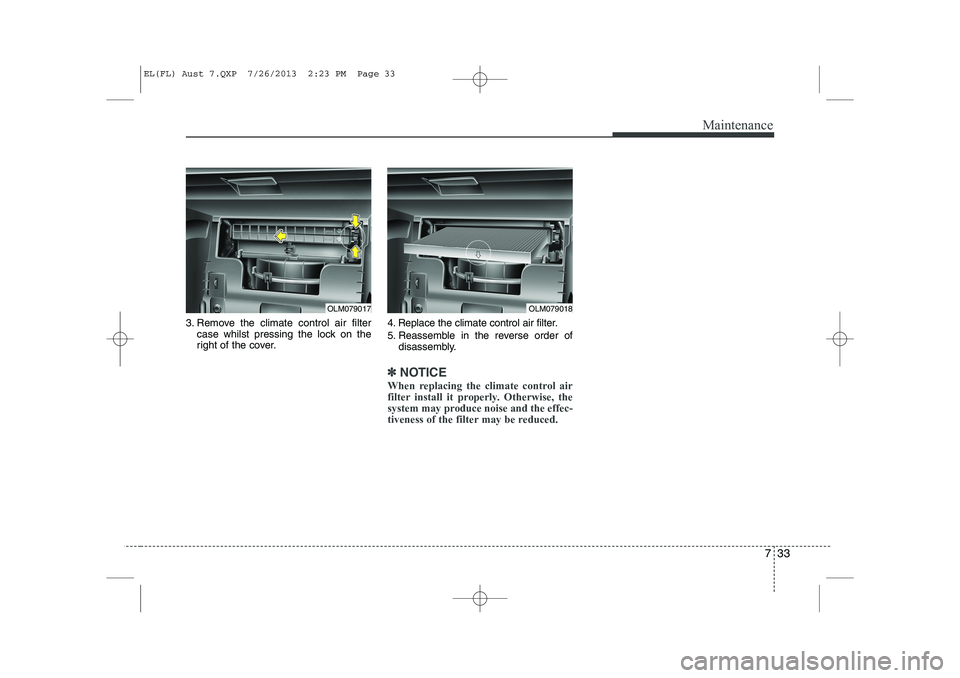

3. Remove the climate control air filtercase whilst pressing the lock on the
right of the cover. 4. Replace the climate control air filter.
5. Reassemble in the reverse order of
disassembly.
✽✽ NOTICE
When replacing the climate control air
filter install it properly. Otherwise, the
system may produce noise and the effec-
tiveness of the filter may be reduced.
OLM079018OLM079017
EL(FL) Aust 7.QXP 7/26/2013 2:23 PM Page 33

Maintenance
34
7

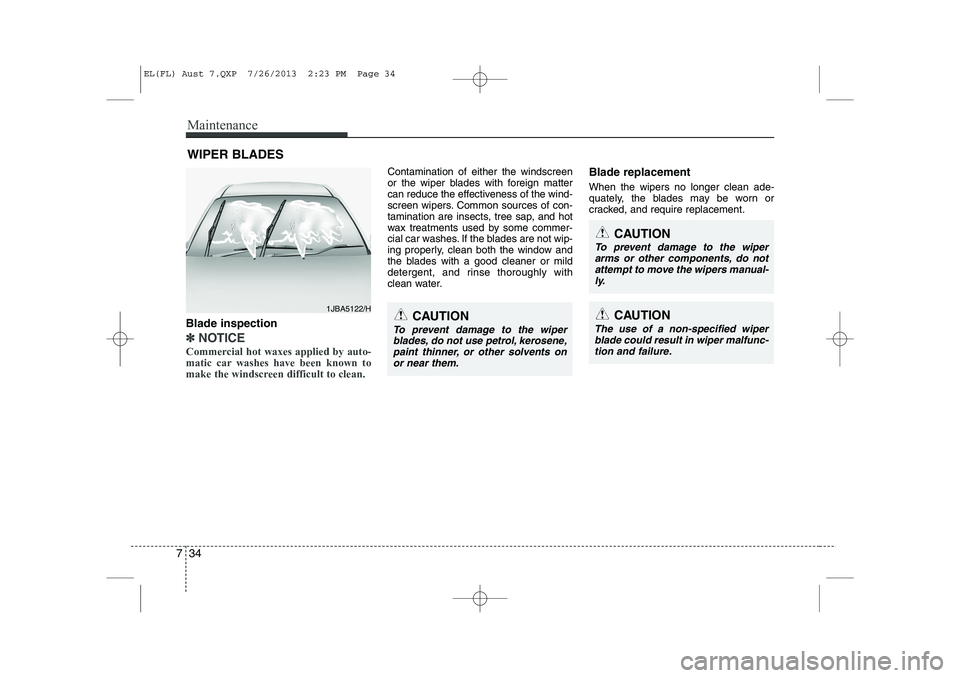

WIPER BLADES
Blade inspection
✽✽ NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windscreen difficult to clean.
Contamination of either the windscreen
or the wiper blades with foreign matter
can reduce the effectiveness of the wind-
screen wipers. Common sources of con-
tamination are insects, tree sap, and hot
wax treatments used by some commer-
cial car washes. If the blades are not wip-
ing properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water. Blade replacement When the wipers no longer clean ade-
quately, the blades may be worn or
cracked, and require replacement.
CAUTION
To prevent damage to the wiper
blades, do not use petrol, kerosene,paint thinner, or other solvents on
or near them.
CAUTION
To prevent damage to the wiperarms or other components, do not
attempt to move the wipers manual- ly.
CAUTION
The use of a non-specified wiper
blade could result in wiper malfunc-tion and failure.
1JBA5122/H
EL(FL) Aust 7.QXP 7/26/2013 2:23 PM Page 34

735
Maintenance

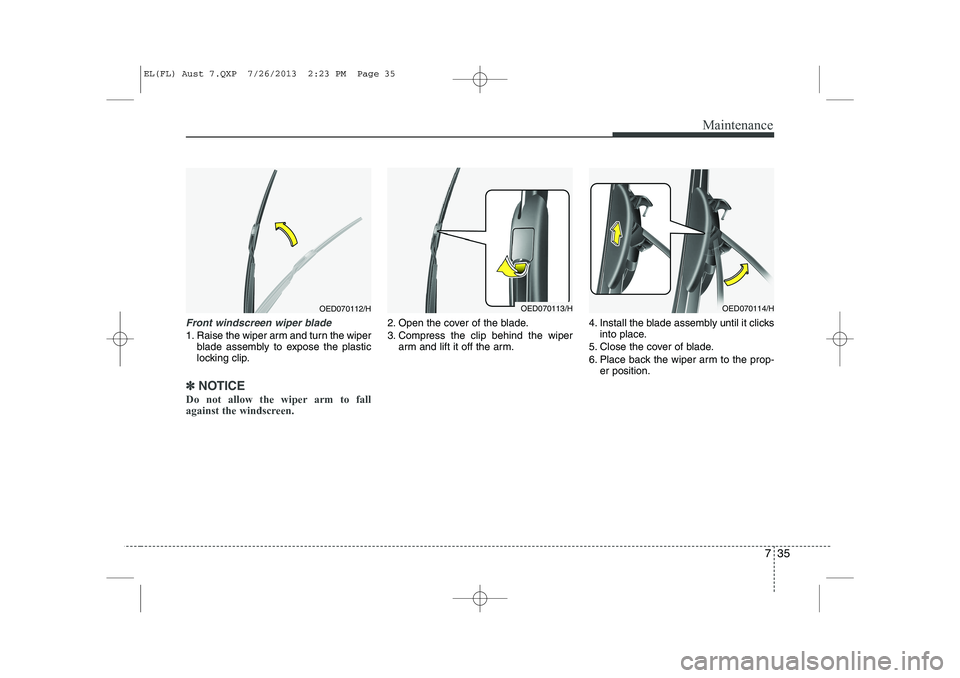

Front windscreen wiper blade
1. Raise the wiper arm and turn the wiperblade assembly to expose the plastic
locking clip.
✽✽ NOTICE
Do not allow the wiper arm to fall
against the windscreen.
2. Open the cover of the blade.
3. Compress the clip behind the wiper arm and lift it off the arm. 4. Install the blade assembly until it clicks
into place.
5. Close the cover of blade.
6. Place back the wiper arm to the prop- er position.
OED070112/HOED070113/HOED070114/H
EL(FL) Aust 7.QXP 7/26/2013 2:23 PM Page 35

Maintenance
36
7

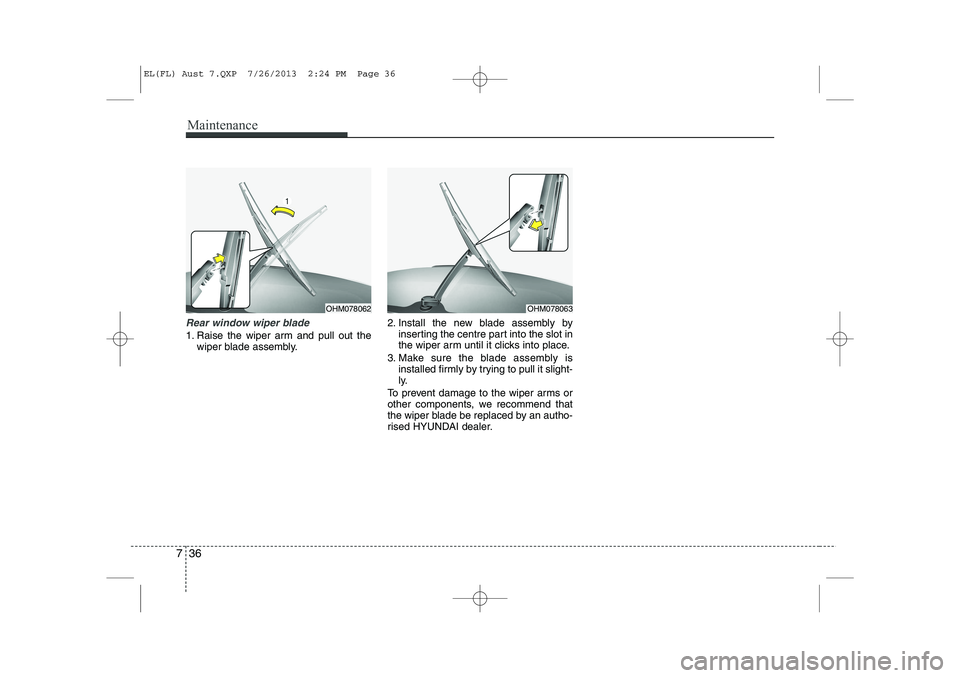

Rear window wiper blade
1. Raise the wiper arm and pull out the
wiper blade assembly. 2. Install the new blade assembly by
inserting the centre part into the slot in
the wiper arm until it clicks into place.
3. Make sure the blade assembly is installed firmly by trying to pull it slight-
ly.
To prevent damage to the wiper arms or
other components, we recommend that
the wiper blade be replaced by an autho-
rised HYUNDAI dealer.
OHM078062OHM078063
