HYUNDAI IX35 2014 Owners Manual

4 151
Features of your vehicle

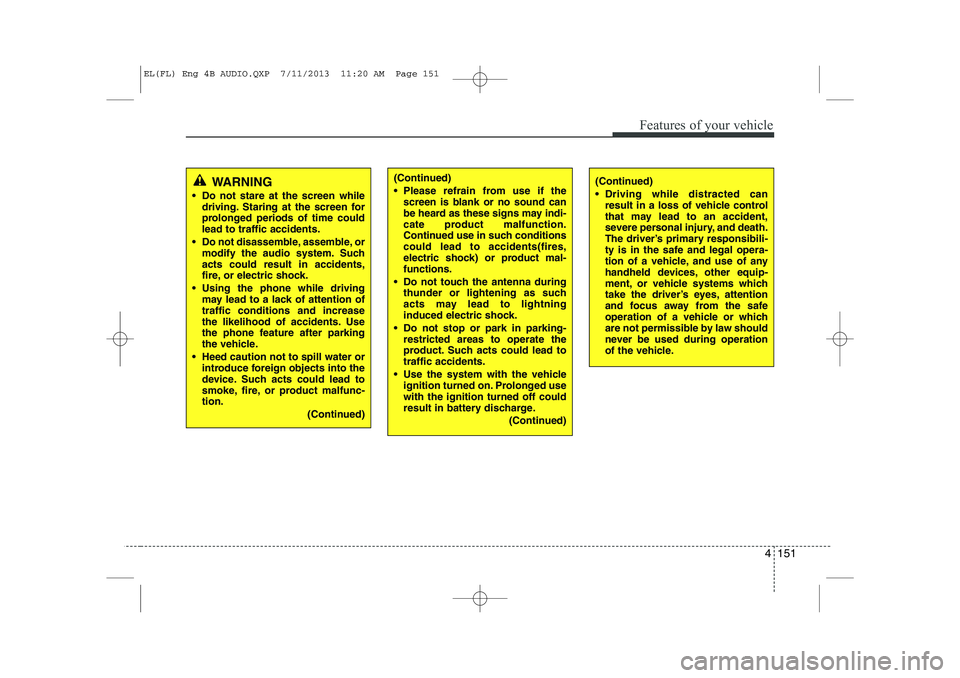

WARNING
 Do not stare at the screen while driving. Staring at the screen for
prolonged periods of time couldlead to traffic accidents.
 Do not disassemble, assemble, or modify the audio system. Suchacts could result in accidents,
fire, or electric shock.
 Using the phone while driving may lead to a lack of attention oftraffic conditions and increase
the likelihood of accidents. Use
the phone feature after parking
the vehicle.
 Heed caution not to spill water or introduce foreign objects into the
device. Such acts could lead to
smoke, fire, or product malfunc-tion.
(Continued)(Continued)
 Driving while distracted canresult in a loss of vehicle control
that may lead to an accident,
severe personal injury, and death.
The driver’s primary responsibili-
ty is in the safe and legal opera-
tion of a vehicle, and use of any
handheld devices, other equip-
ment, or vehicle systems which
take the driver’s eyes, attention
and focus away from the safe
operation of a vehicle or which
are not permissible by law should
never be used during operation
of the vehicle.(Continued)
 Please refrain from use if thescreen is blank or no sound can
be heard as these signs may indi-
cate product malfunction.
Continued use in such conditionscould lead to accidents(fires,
electric shock) or product mal-functions.
 Do not touch the antenna during thunder or lightening as such
acts may lead to lightning
induced electric shock.
 Do not stop or park in parking- restricted areas to operate the
product. Such acts could lead totraffic accidents.
 Use the system with the vehicle ignition turned on. Prolonged usewith the ignition turned off could
result in battery discharge.
(Continued)
EL(FL) Eng 4B AUDIO.QXP 7/11/2013 11:20 AM Page 151

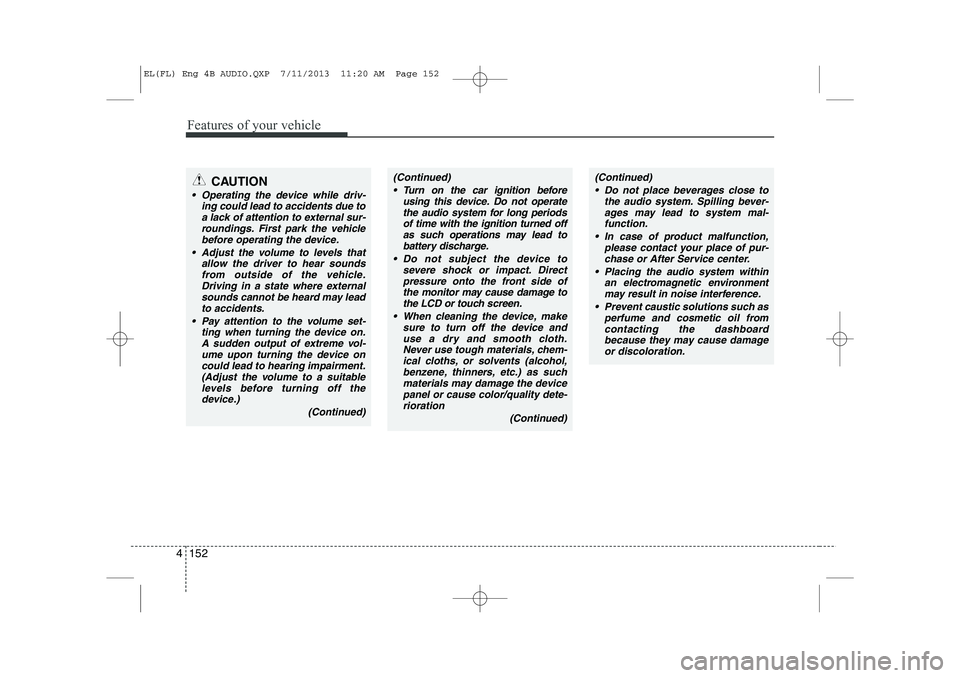

Features of your vehicle
152
4
(Continued)
 Turn on the car ignition before using this device. Do not operatethe audio system for long periodsof time with the ignition turned off
as such operations may lead tobattery discharge.
 Do not subject the device to severe shock or impact. Direct
pressure onto the front side of the monitor may cause damage tothe LCD or touch screen.
 When cleaning the device, make sure to turn off the device anduse a dry and smooth cloth.Never use tough materials, chem- ical cloths, or solvents (alcohol,
benzene, thinners, etc.) as such materials may damage the devicepanel or cause color/quality dete- rioration
(Continued)(Continued) Do not place beverages close to the audio system. Spilling bever-ages may lead to system mal-function.
 In case of product malfunction, please contact your place of pur-chase or After Service center.
 Placing the audio system within an electromagnetic environment
may result in noise interference.
 Prevent caustic solutions such as perfume and cosmetic oil fromcontacting the dashboard
because they may cause damageor discoloration.CAUTION
 Operating the device while driv- ing could lead to accidents due to
a lack of attention to external sur-roundings. First park the vehiclebefore operating the device.
 Adjust the volume to levels that allow the driver to hear soundsfrom outside of the vehicle.Driving in a state where externalsounds cannot be heard may lead
to accidents.
 Pay attention to the volume set- ting when turning the device on.A sudden output of extreme vol-
ume upon turning the device oncould lead to hearing impairment. (Adjust the volume to a suitablelevels before turning off the
device.)
(Continued)
EL(FL) Eng 4B AUDIO.QXP 7/11/2013 11:20 AM Page 152

4 153
Features of your vehicle

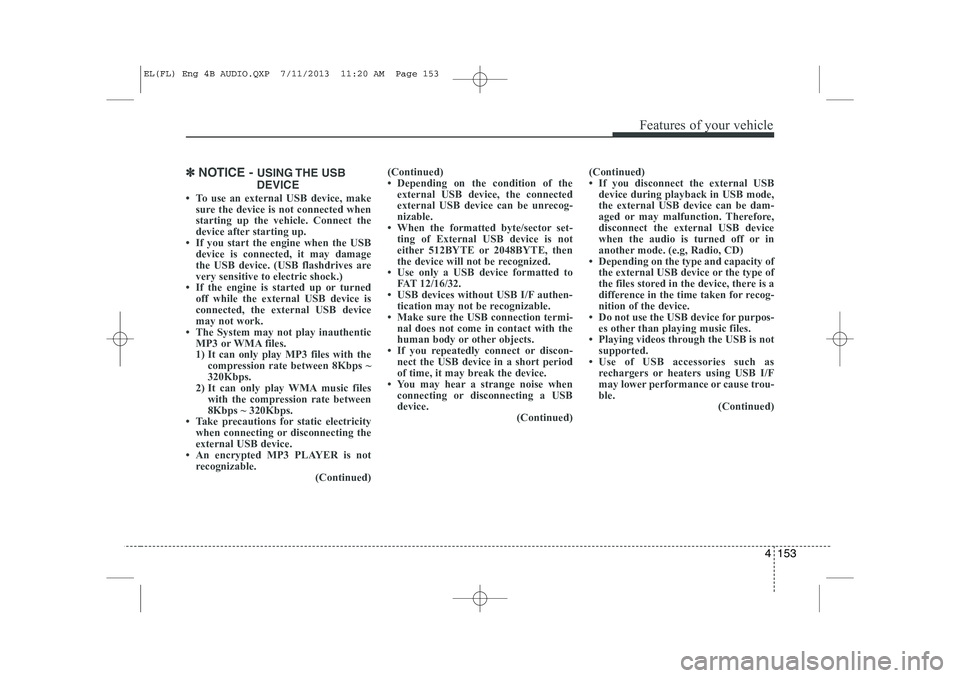

✽✽NOTICE - USING THE USB
DEVICE

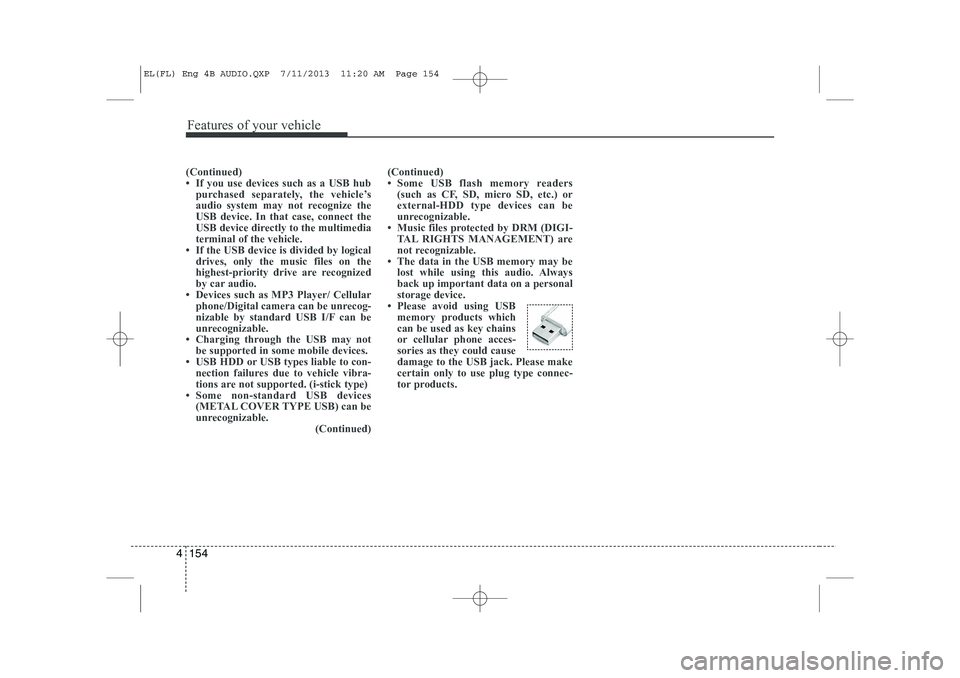

Features of your vehicle
154
4
(Continued)

4 155
Features of your vehicle

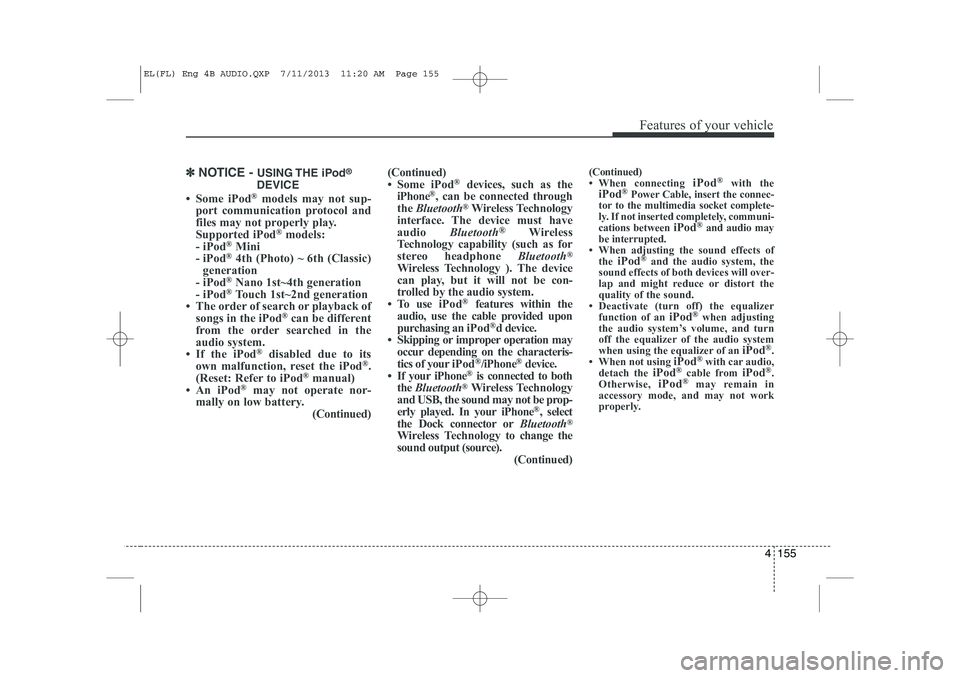

✽✽NOTICE - USING THE iPod ®
DEVICE

Features of your vehicle
156
4
■■

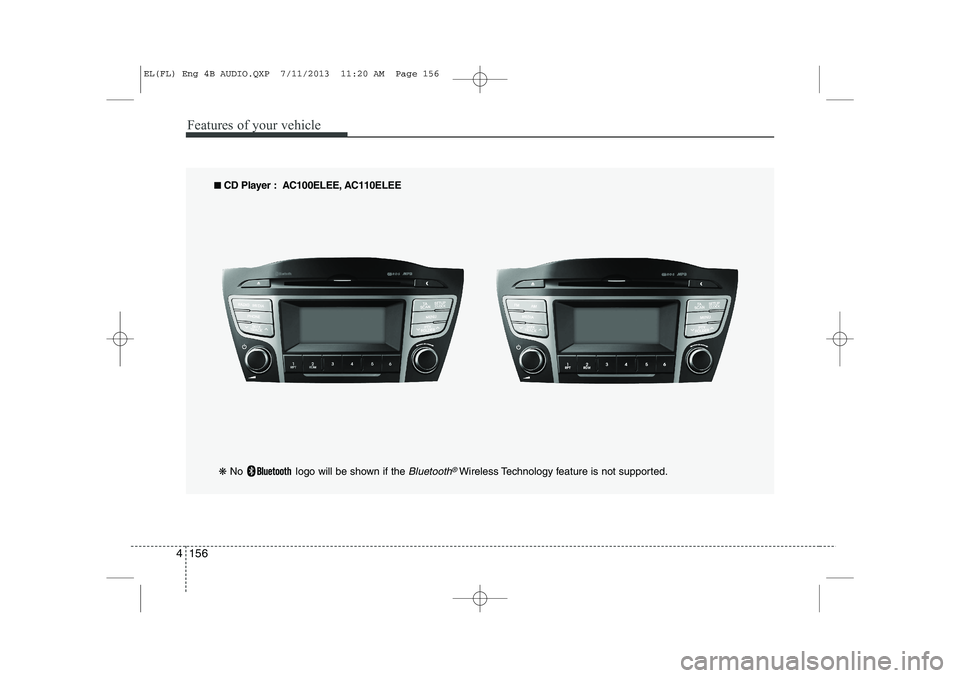

CD Player : AC100ELEE, AC110ELEE
❋ No logo will be shown if the
Bluetooth®Wireless Technology feature is not supported.
EL(FL) Eng 4B AUDIO.QXP 7/11/2013 11:20 AM Page 156

4 157
Features of your vehicle

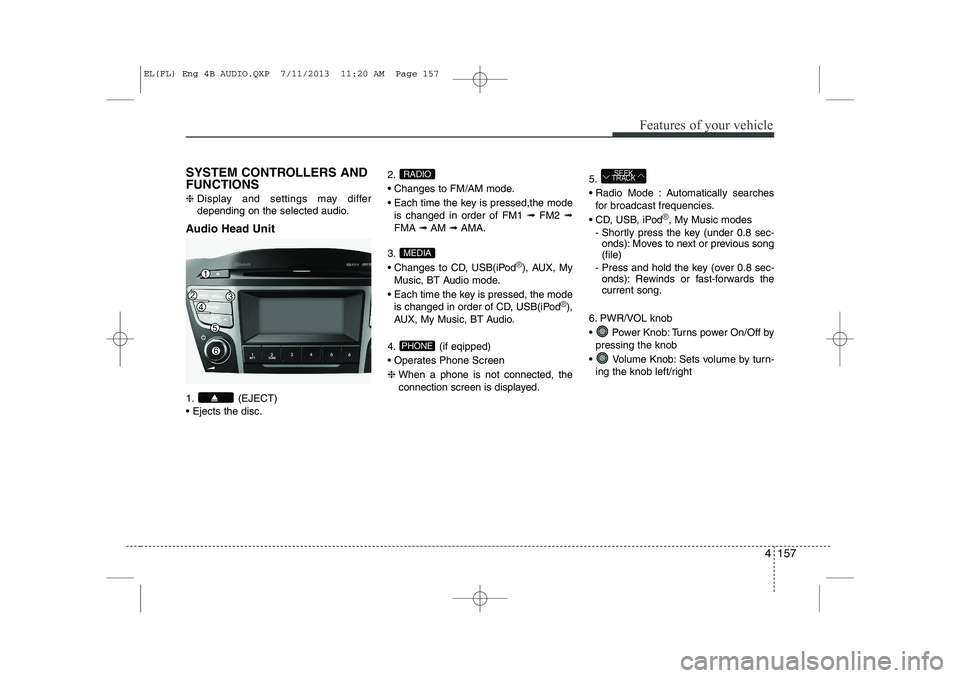

SYSTEM CONTROLLERS AND FUNCTIONS ❈Display and settings may differ
depending on the selected audio.
Audio Head Unit
1. (EJECT)  Ejects the disc. 2.
 Changes to FM/AM mode.
 Each time the key is pressed,the mode
is changed in order of FM1 ➟FM2 ➟
FMA ➟AM ➟AMA.
3.
 Changes to CD, USB(iPod
®), AUX, My
Music, BT Audio mode.
 Each time the key is pressed, the mode is changed in order of CD, USB(iPod
®),
AUX, My Music, BT Audio.
4. (if eqipped)
 Operates Phone Screen❈ When a phone is not connected, the
connection screen is displayed. 5.
 Radio Mode : Automatically searches
for broadcast frequencies.
 CD, USB, iPod
®, My Music modes
- Shortly press the key (under 0.8 sec- onds): Moves to next or previous song (file)
- Press and hold the key (over 0.8 sec- onds): Rewinds or fast-forwards thecurrent song.
6. PWR/VOL knob
 Power Knob: Turns power On/Off by pressing the knob
 Volume Knob: Sets volume by turn- ing the knob left/right
SEEK
TRACK
PHONE
MEDIA
RADIO
EL(FL) Eng 4B AUDIO.QXP 7/11/2013 11:20 AM Page 157

Features of your vehicle
158
4

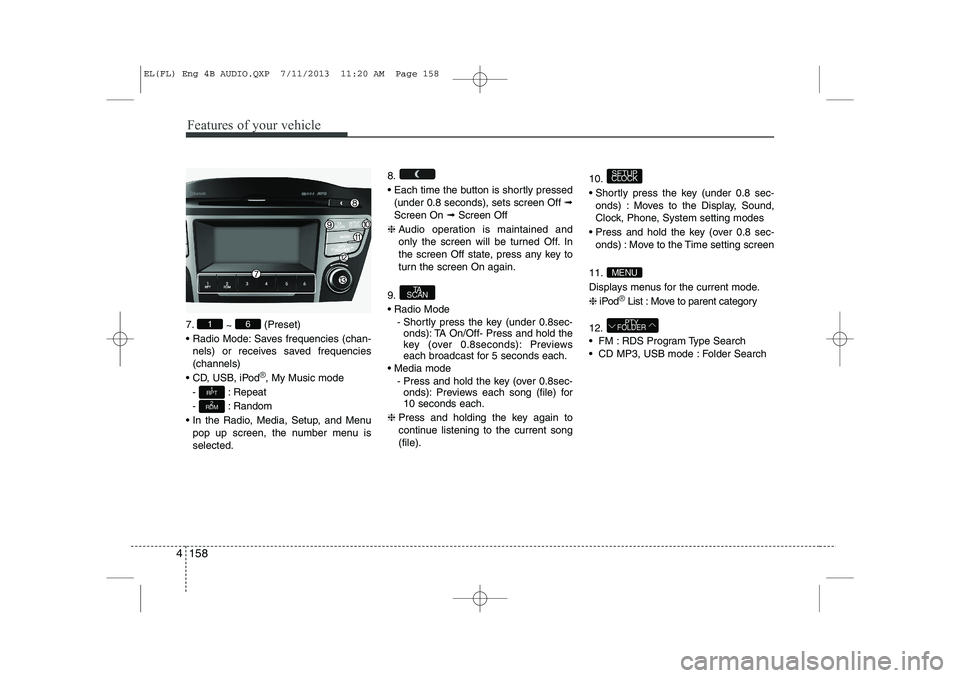

7.
~ (Preset)
 Radio Mode: Saves frequencies (chan- nels) or receives saved frequencies (channels)
 CD, USB, iPod
®, My Music mode
- : Repeat
- : Random
 In the Radio, Media, Setup, and Menu pop up screen, the number menu is selected. 8.
 Each time the button is shortly pressed
(under 0.8 seconds), sets screen Off ➟
Screen On ➟Screen Off
❈ Audio operation is maintained and
only the screen will be turned Off. In
the screen Off state, press any key to
turn the screen On again.
9.  Radio Mode - Shortly press the key (under 0.8sec-onds): TA On/Off- Press and hold the
key (over 0.8seconds): Previews
each broadcast for 5 seconds each.
 Media mode - Press and hold the key (over 0.8sec-onds): Previews each song (file) for10 seconds each.
❈ Press and holding the key again to
continue listening to the current song(file). 10.
 Shortly press the key (under 0.8 sec-
onds) : Moves to the Display, Sound,
Clock, Phone, System setting modes
 Press and hold the key (over 0.8 sec- onds) : Move to the Time setting screen
11.
Displays menus for the current mode.❈ iPod
®List : Move to parent category
12.
 FM : RDS Program Type Search
 CD MP3, USB mode : Folder Search
PTY
FOLDER
MENU
SETUP
CLOCK
TA
SCAN
2
RDM
1
RPT
61
EL(FL) Eng 4B AUDIO.QXP 7/11/2013 11:20 AM Page 158

4 159
Features of your vehicle

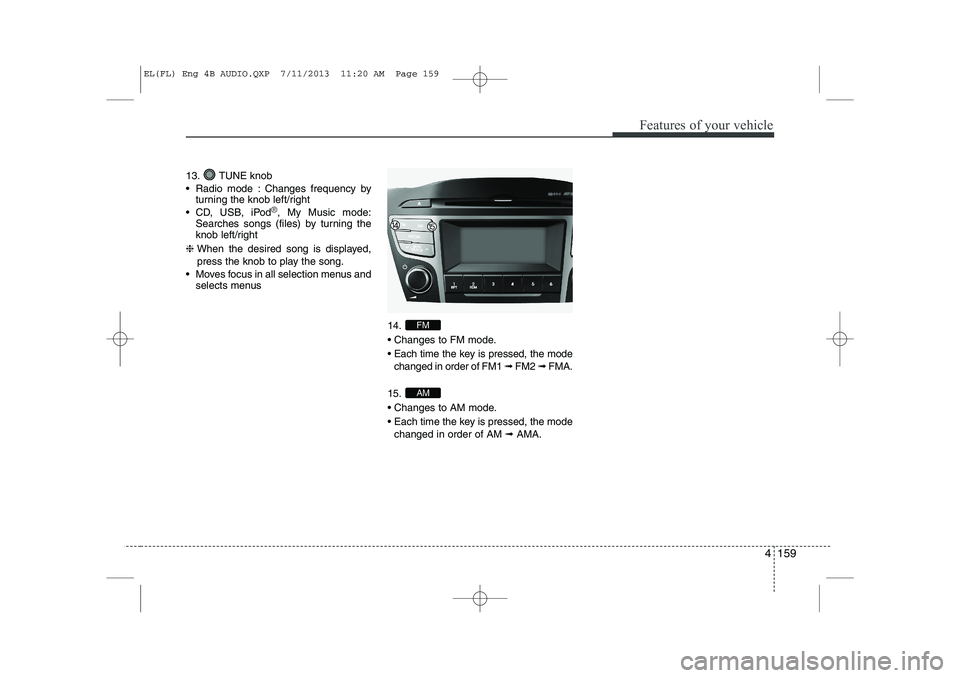

13. TUNE knob
 Radio mode : Changes frequency byturning the knob left/right
 CD, USB, iPod
®, My Music mode:
Searches songs (files) by turning the
knob left/right
❈ When the desired song is displayed,
press the knob to play the song.
 Moves focus in all selection menus and selects menus
14.
 Changes to FM mode.
 Each time the key is pressed, the modechanged in order of FM1 ➟ FM2 ➟ FMA.
15.
 Changes to AM mode.
 Each time the key is pressed, the mode changed in order of AM ➟AMA.
AM
FM
EL(FL) Eng 4B AUDIO.QXP 7/11/2013 11:20 AM Page 159

Features of your vehicle
160
4

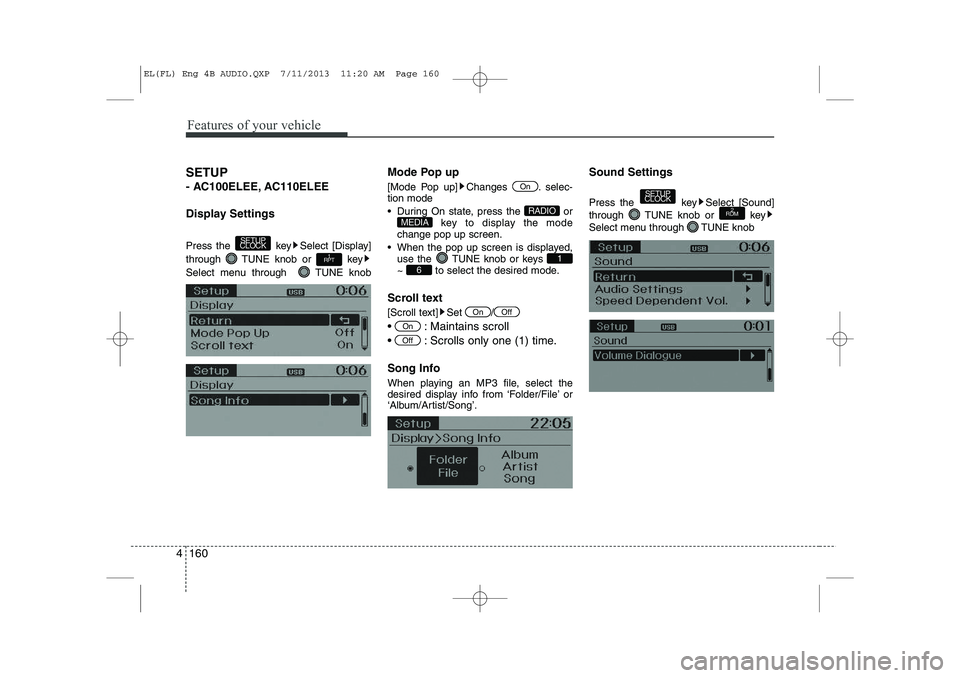

SETUP
- AC100ELEE, AC110ELEE
Display Settings
Press the key Select [Display]
through TUNE knob or key
Select menu through TUNE knob Mode Pop up
[Mode Pop up] Changes . selec- tion mode
 During On state, press the or
key to display the mode
change pop up screen.
 When the pop up screen is displayed, use the TUNE knob or keys
~ to select the desired mode.
Scroll text
[Scroll text] Set /
 : Maintains scroll
 : Scrolls only one (1) time.
Song Info
When playing an MP3 file, select the
desired display info from ‘Folder/File’ or
‘Album/Artist/Song’. Sound Settings
Press the key Select [Sound]
through TUNE knob or key
Select menu through TUNE knob
2
RDM
SETUP
CLOCK
Off
On
OffOn
6
1
MEDIA
RADIO
On
1
RPT
SETUP
CLOCK
