HYUNDAI IX35 2014 Owners Manual

Maintenance
96
7

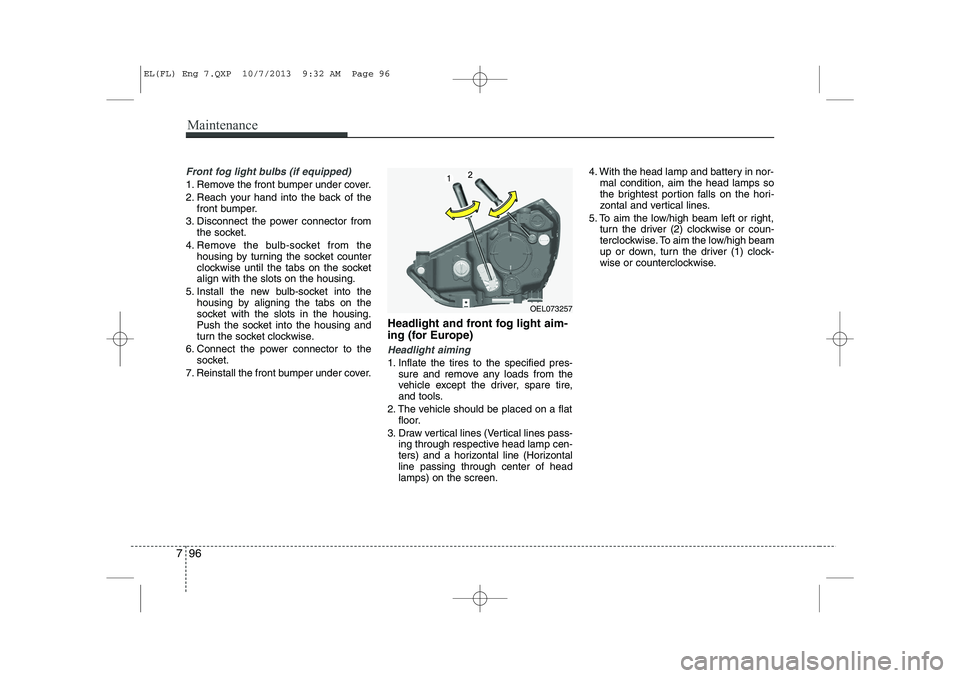

Front fog light bulbs (if equipped)
1. Remove the front bumper under cover.
2. Reach your hand into the back of the
front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket counter
clockwise until the tabs on the socketalign with the slots on the housing.
5. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector to the socket.
7. Reinstall the front bumper under cover. Headlight and front fog light aim-
ing (for Europe)
Headlight aiming
1. Inflate the tires to the specified pres-
sure and remove any loads from the
vehicle except the driver, spare tire,
and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines pass- ing through respective head lamp cen-
ters) and a horizontal line (Horizontalline passing through center of headlamps) on the screen. 4. With the head lamp and battery in nor-
mal condition, aim the head lamps so
the brightest portion falls on the hori-
zontal and vertical lines.
5. To aim the low/high beam left or right, turn the driver (2) clockwise or coun-
terclockwise. To aim the low/high beam
up or down, turn the driver (1) clock-
wise or counterclockwise.
OEL073257
EL(FL) Eng 7.QXP 10/7/2013 9:32 AM Page 96

797
Maintenance

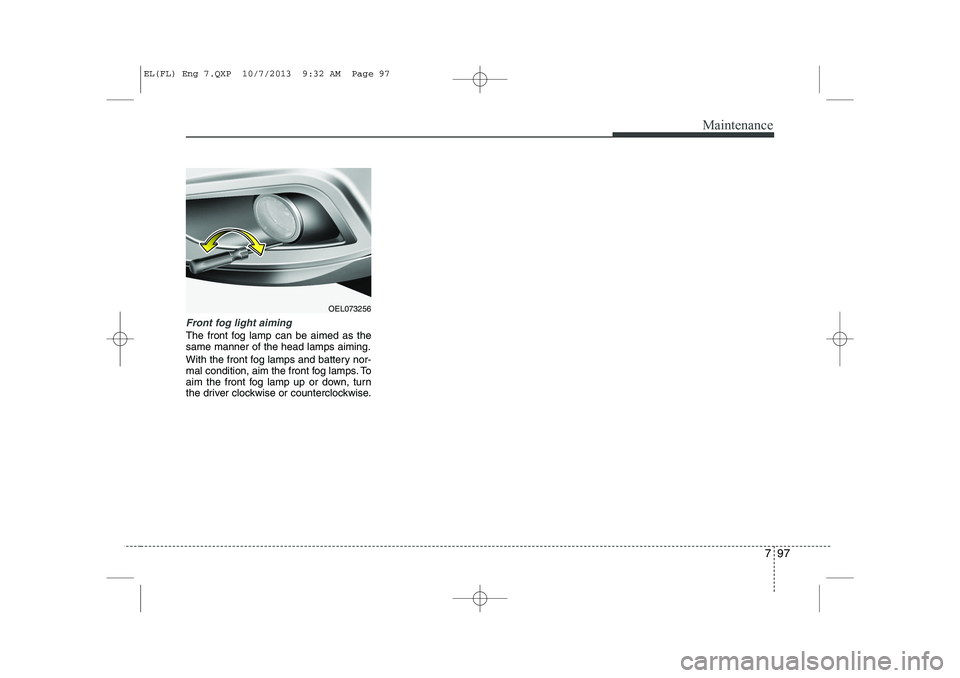

Front fog light aiming
The front fog lamp can be aimed as the same manner of the head lamps aiming.
With the front fog lamps and battery nor-
mal condition, aim the front fog lamps. To
aim the front fog lamp up or down, turn
the driver clockwise or counterclockwise.
OEL073256
EL(FL) Eng 7.QXP 10/7/2013 9:32 AM Page 97

Maintenance
98
7

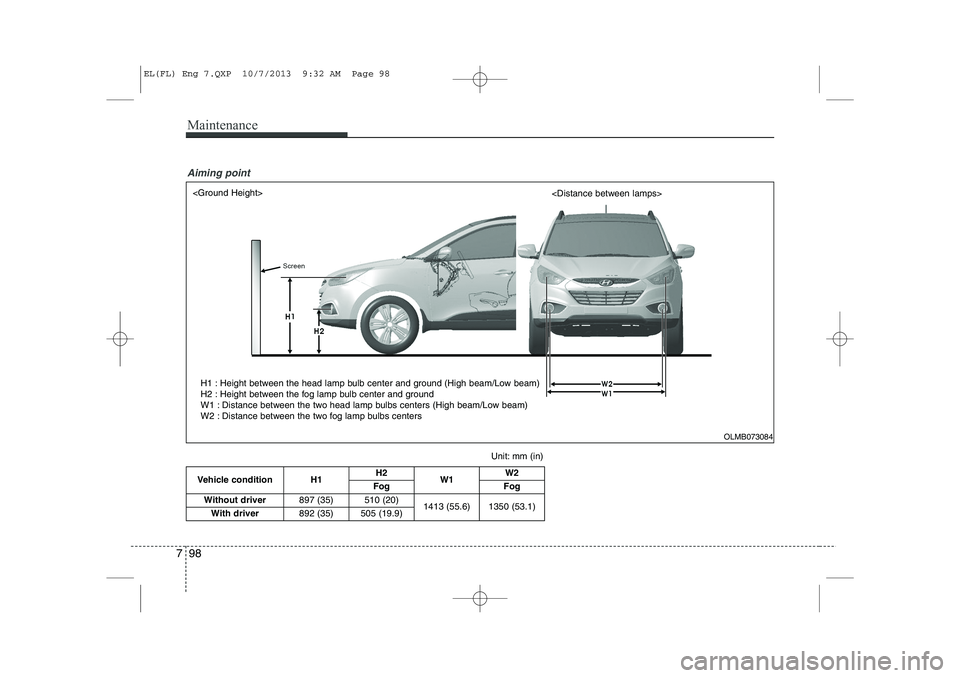

Vehicle condition H1 H2
W1 W2
Fog Fog
Without driver 897 (35) 510 (20)
1413 (55.6) 1350 (53.1)
With driver 892 (35) 505 (19.9)
Unit: mm (in)


H1 : Height between the head lamp bulb center and ground (High beam/Low beam)
H2 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (High beam/Low beam)
W2 : Distance between the two fog lamp bulbs centers
Aiming point
OLMB073084
EL(FL) Eng 7.QXP 10/7/2013 9:32 AM Page 98

799
Maintenance

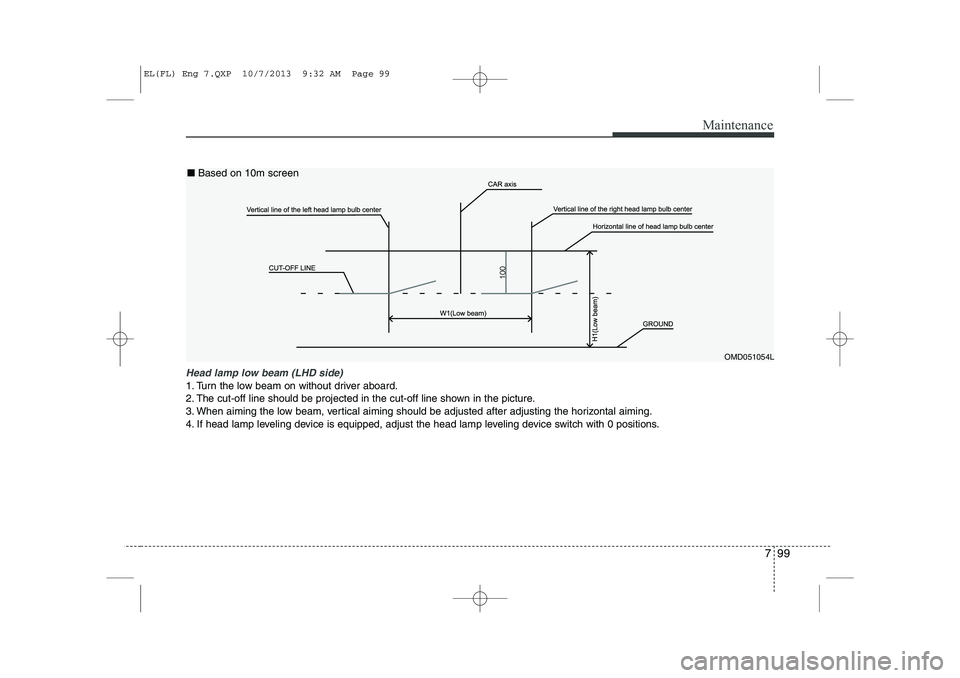

Head lamp low beam (LHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
OMD051054L
■
Based on 10m screen
EL(FL) Eng 7.QXP 10/7/2013 9:32 AM Page 99

Maintenance
100
7

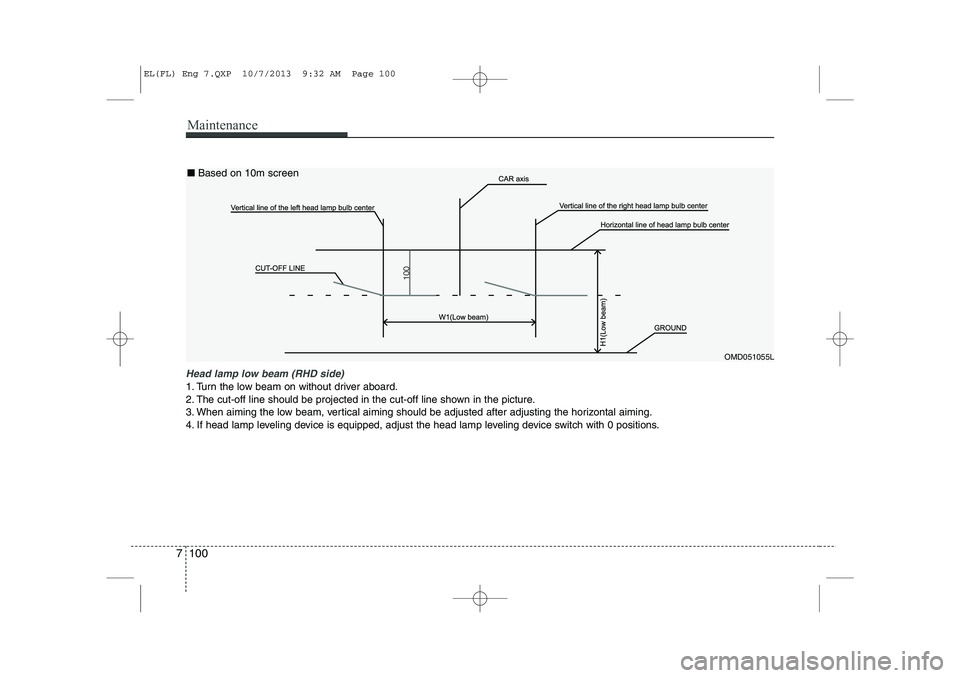

Head lamp low beam (RHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
OMD051055L
■
Based on 10m screen
EL(FL) Eng 7.QXP 10/7/2013 9:32 AM Page 100

7 101
Maintenance

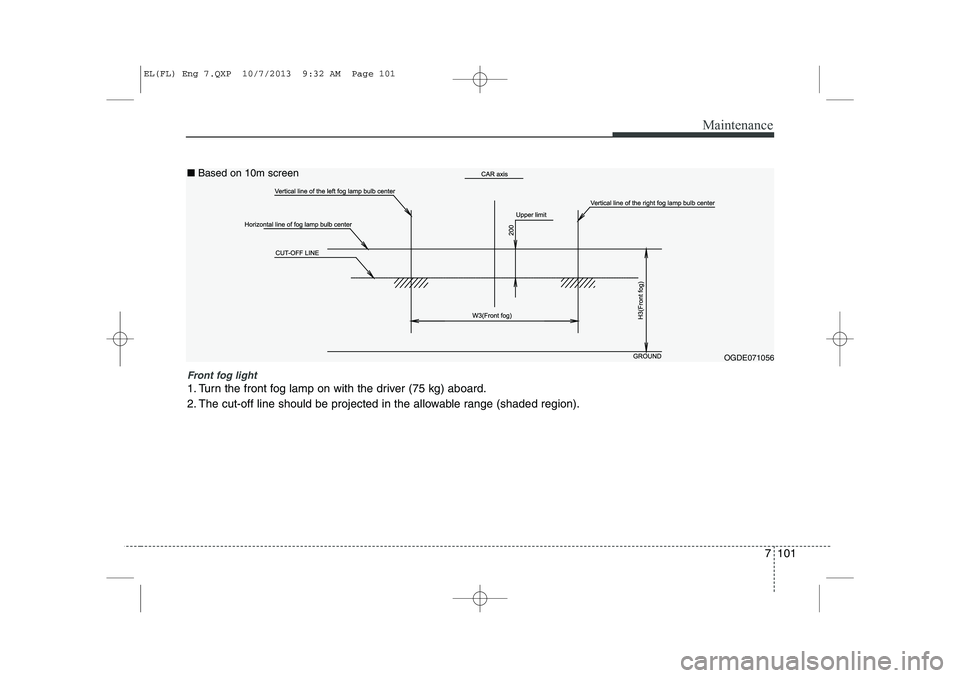

Front fog light
1. Turn the front fog lamp on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
OGDE071056
■
Based on 10m screen
EL(FL) Eng 7.QXP 10/7/2013 9:32 AM Page 101

Maintenance
102
7

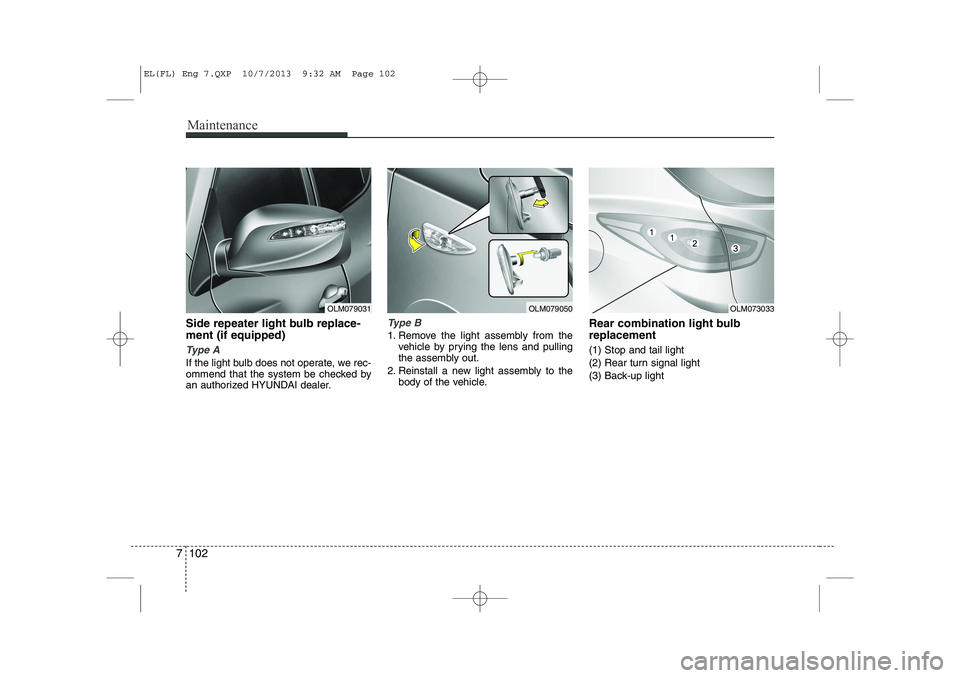

Side repeater light bulb replace- ment (if equipped)
Type A
If the light bulb does not operate, we rec-
ommend that the system be checked by
an authorized HYUNDAI dealer.
Type B
1. Remove the light assembly from the
vehicle by prying the lens and pulling
the assembly out.
2. Reinstall a new light assembly to the body of the vehicle. Rear combination light bulb replacement (1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light
OLM079031OLM079050OLM073033
EL(FL) Eng 7.QXP 10/7/2013 9:32 AM Page 102

7 103
Maintenance

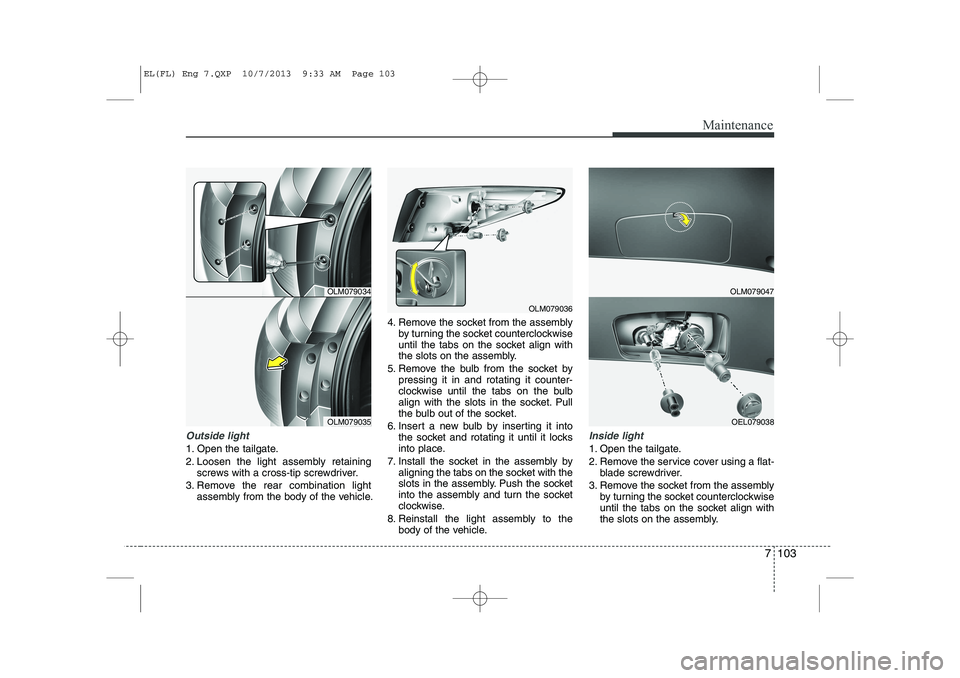

Outside light
1. Open the tailgate.
2. Loosen the light assembly retainingscrews with a cross-tip screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
8. Reinstall the light assembly to the body of the vehicle.
Inside light
1. Open the tailgate.
2. Remove the service cover using a flat- blade screwdriver.
3. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
OLM079034
OLM079035
OLM079036
OLM079047
OEL079038
EL(FL) Eng 7.QXP 10/7/2013 9:33 AM Page 103

Maintenance
104
7
4. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
7. Install the service cover by putting it into the service hole.

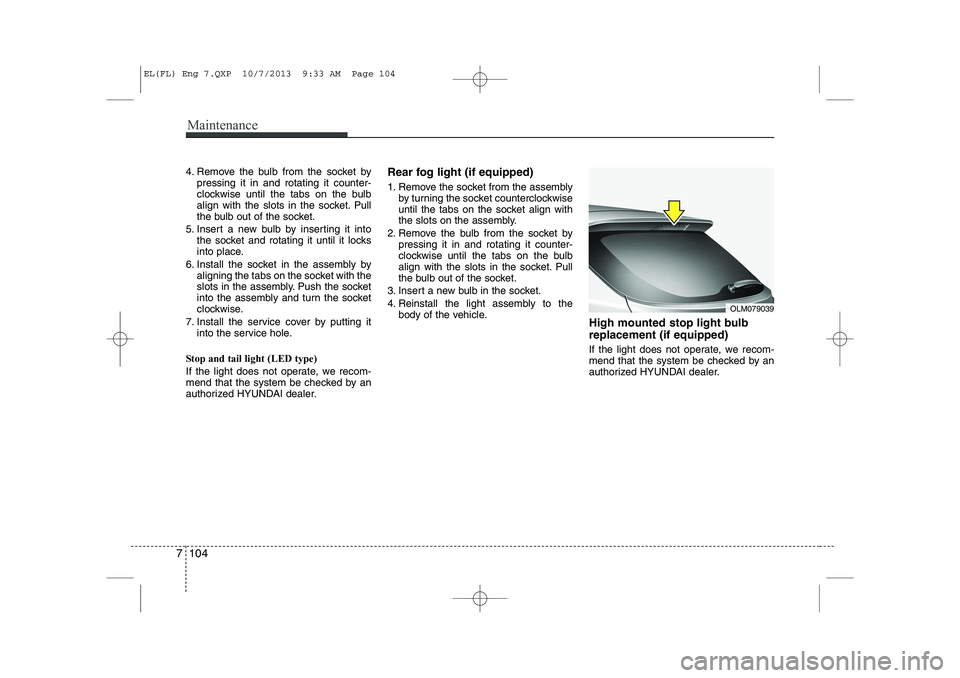

Stop and tail light (LED type)
If the light does not operate, we recom-
mend that the system be checked by an
authorized HYUNDAI dealer. Rear fog light (if equipped)
1. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
3. Insert a new bulb in the socket.
4. Reinstall the light assembly to the body of the vehicle. High mounted stop light bulb replacement (if equipped)
If the light does not operate, we recom-
mend that the system be checked by an
authorized HYUNDAI dealer.
OLM079039
EL(FL) Eng 7.QXP 10/7/2013 9:33 AM Page 104

7 105
Maintenance

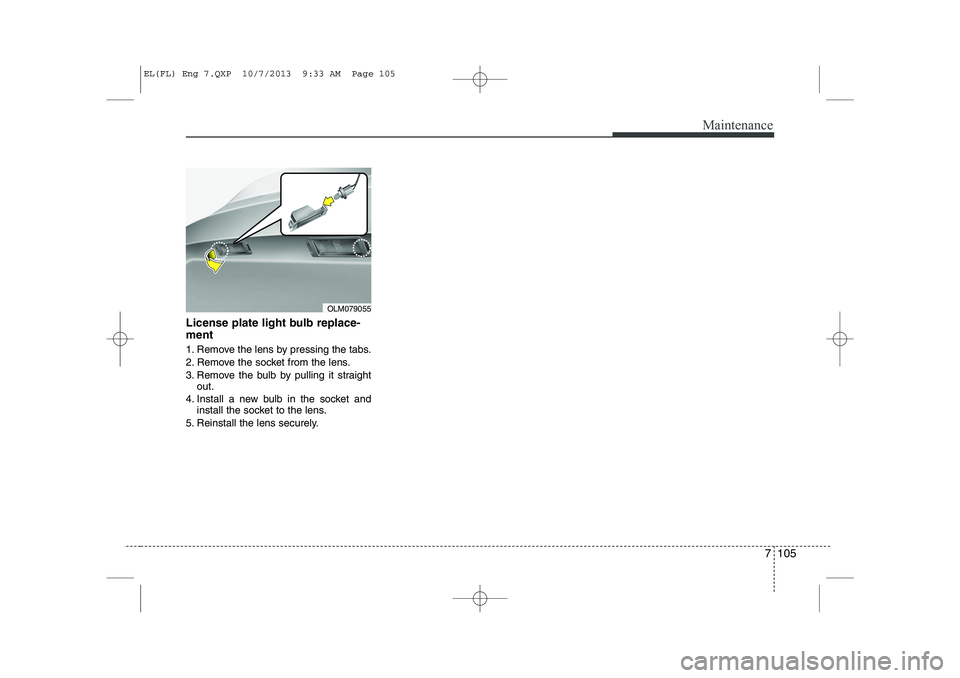

License plate light bulb replace- ment
1. Remove the lens by pressing the tabs.
2. Remove the socket from the lens.
3. Remove the bulb by pulling it straightout.
4. Install a new bulb in the socket and install the socket to the lens.
5. Reinstall the lens securely.
OLM079055
EL(FL) Eng 7.QXP 10/7/2013 9:33 AM Page 105
