HYUNDAI IX35 2016 Owners Manual

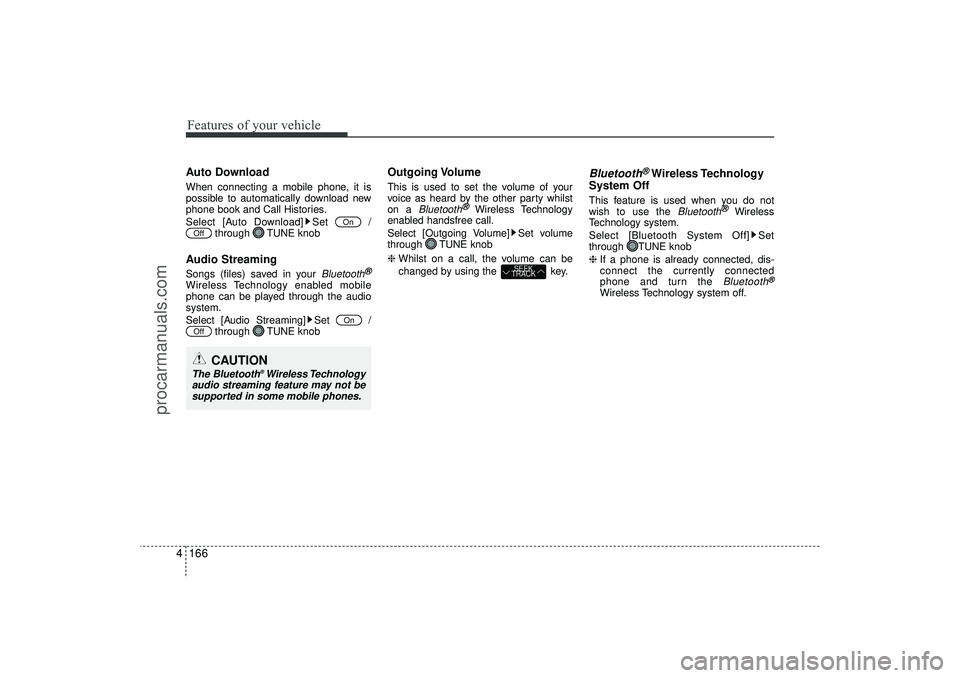

Features of your vehicle166
4Auto DownloadWhen connecting a mobile phone, it is
possible to automatically download new
phone book and Call Histories.
Select [Auto Download] Set /
through TUNE knobAudio StreamingSongs (files) saved in your
Bluetooth
®
Wireless Technology enabled mobile
phone can be played through the audio
system.
Select [Audio Streaming] Set /through TUNE knob
Outgoing VolumeThis is used to set the volume of your
voice as heard by the other party whilst
on a
Bluetooth
®
Wireless Technology
enabled handsfree call.
Select [Outgoing Volume] Set volume
through TUNE knob
❈ Whilst on a call, the volume can be
changed by using the key.
Bluetooth
®Wireless Technology
System Off
This feature is used when you do not
wish to use the
Bluetooth
®
Wireless
Technology system.
Select [Bluetooth System Off] Set
through TUNE knob
❈ If a phone is already connected, dis-
connect the currently connected
phone and turn the
Bluetooth
®
Wireless Technology system off.
SEEK
TRACK
Off
On
Off
On
CAUTION
The Bluetooth
®Wireless Technology
audio streaming feature may not be supported in some mobile phones.
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 166
procarmanuals.com

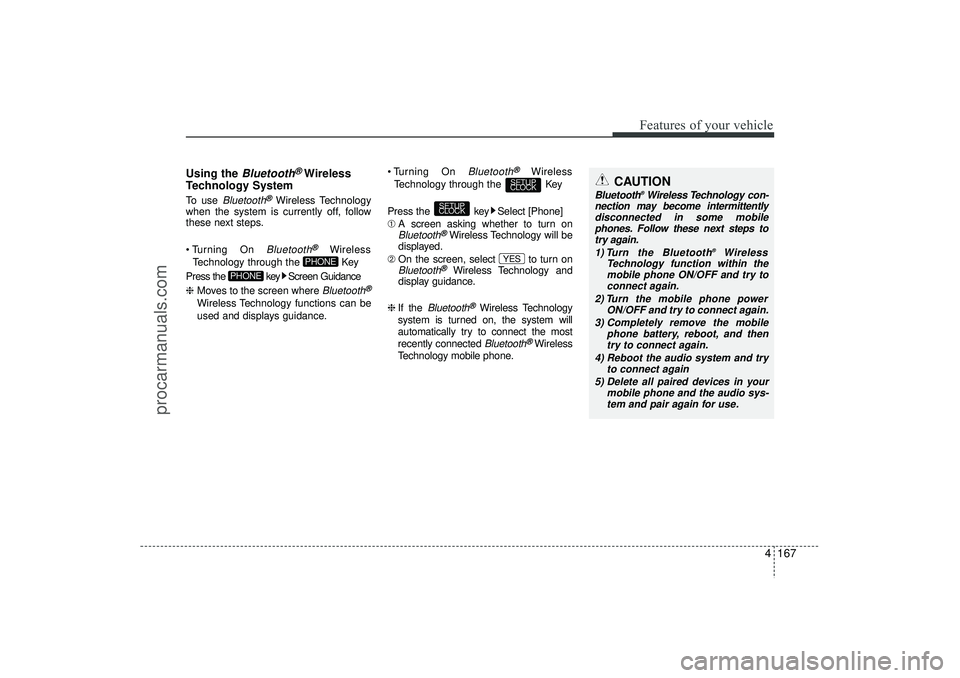

4 167
Features of your vehicle
Using the
Bluetooth
®Wireless
Technology System
To use
Bluetooth
®Wireless Technology
when the system is currently off, follow
these next steps.
 Turning On Bluetooth
®
Wireless
Technology through the Key
Press the key Screen Guidance
❈ Moves to the screen where Bluetooth
®
Wireless Technology functions can be
used and displays guidance.  Turning On
Bluetooth
®
Wireless
Technology through the Key
Press the key Select [Phone]
➀ A screen asking whether to turn on
Bluetooth
®Wireless Technology will be
displayed.
➁ On the screen, select to turn on
Bluetooth
®
Wireless Technology and
display guidance.
❈ If the
Bluetooth
®Wireless Technology
system is turned on, the system will
automatically try to connect the most
recently connected Bluetooth
®Wireless
Technology mobile phone.
YES
SETUP
CLOCK
SETUP
CLOCK
PHONE
PHONE
CAUTION
Bluetooth
®Wireless Technology con-
nection may become intermittently disconnected in some mobilephones. Follow these next steps totry again.
1) Turn the Bluetooth
®
Wireless
Technology function within the mobile phone ON/OFF and try to connect again.
2) Turn the mobile phone power ON/OFF and try to connect again.
3) Completely remove the mobile phone battery, reboot, and thentry to connect again.
4) Reboot the audio system and try to connect again
5) Delete all paired devices in your mobile phone and the audio sys-tem and pair again for use.
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 167
procarmanuals.com

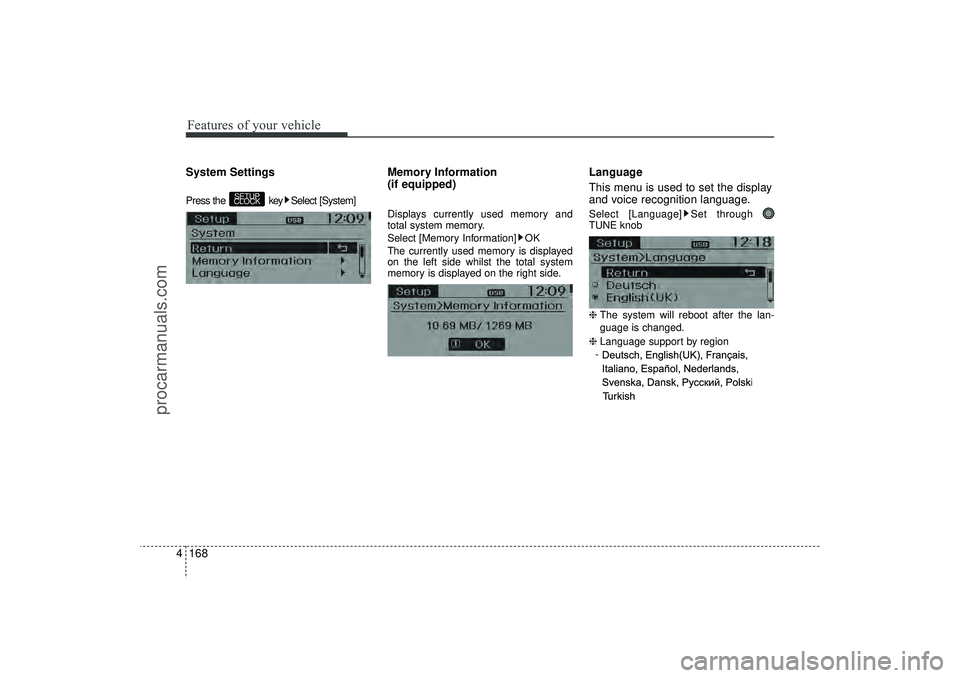

Features of your vehicle168
4System SettingsPress the key Select [System]
Memory Information
(if equipped)Displays currently used memory and
total system memory.
Select [Memory Information] OK
The currently used memory is displayed
on the left side whilst the total system
memory is displayed on the right side.
Language
This menu is used to set the display
and voice recognition language.Select [Language] Set through
TUNE knob
❈ The system will reboot after the lan-
guage is changed.
❈ Language support by region
-
SETUP
CLOCK
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 168
procarmanuals.com

4 169
Features of your vehicle

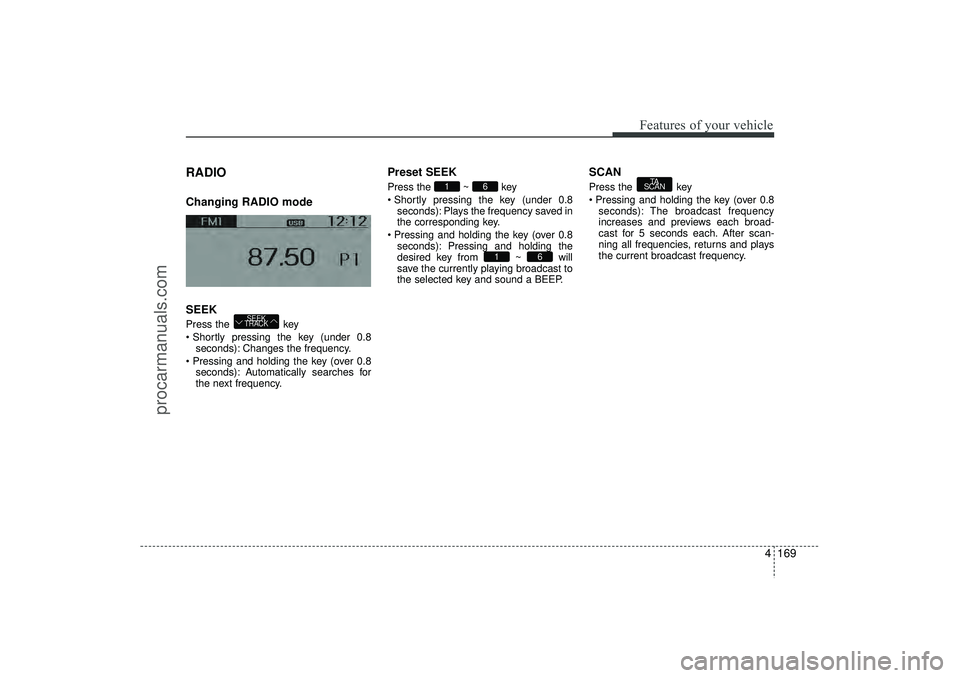

RADIO Changing RADIO mode
SEEKPress the key
 Shortly pressing the key (under 0.8seconds): Changes the frequency.
 Pressing and holding the key (over 0.8 seconds): Automatically searches for
the next frequency.
Preset SEEKPress the ~ key
 Shortly pressing the key (under 0.8seconds): Plays the frequency saved in
the corresponding key.
 Pressing and holding the key (over 0.8 seconds): Pressing and holding the
desired key from ~ will
save the currently playing broadcast to
the selected key and sound a BEEP.
SCANPress the key
 Pressing and holding the key (over 0.8seconds): The broadcast frequency
increases and previews each broad-
cast for 5 seconds each. After scan-
ning all frequencies, returns and plays
the current broadcast frequency.
TA
SCAN
6
1
6
1
SEEK
TRACK
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 169
procarmanuals.com

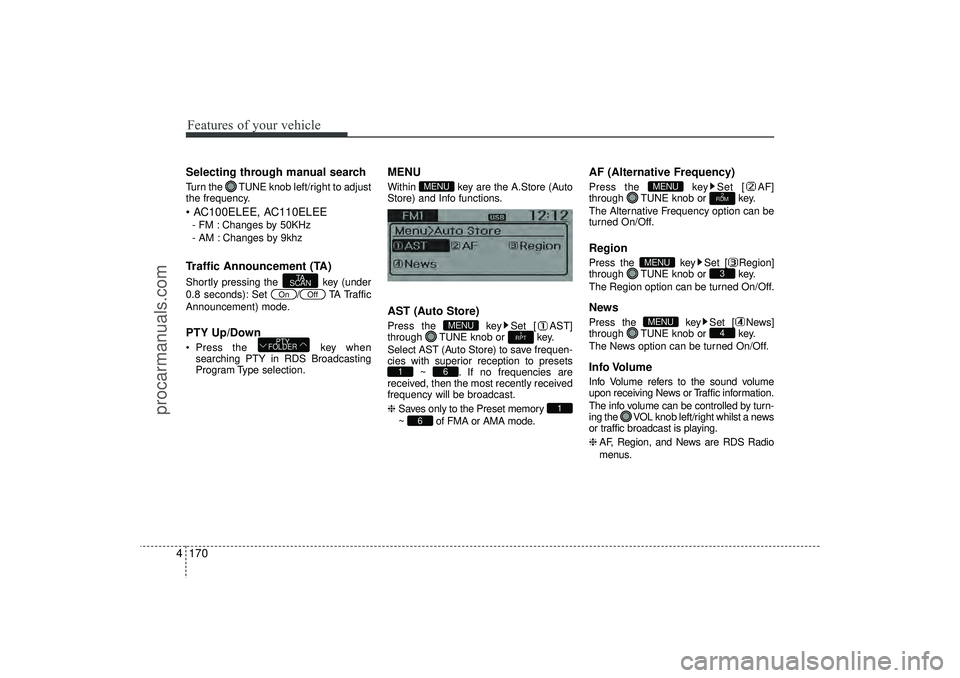

Features of your vehicle170
4Selecting through manual searchTurn the TUNE knob left/right to adjust
the frequency. AC100ELEE, AC110ELEE- FM : Changes by 50KHz
- AM : Changes by 9khzTraffic Announcement (TA)Shortly pressing the key (under
0.8 seconds): Set / TA Traffic
Announcement) mode.PTY Up/Down Press the key when
searching PTY in RDS Broadcasting
Program Type selection.
MENUWithin key are the A.Store (Auto
Store) and Info functions.AST (Auto Store)Press the key Set [ AST]
through TUNE knob or key.
Select AST (Auto Store) to save frequen-
cies with superior reception to presets ~ . If no frequencies are
received, then the most recently received
frequency will be broadcast.
❈ Saves only to the Preset memory
~ of FMA or AMA mode.
AF (Alternative Frequency)Press the key Set [ AF]
through TUNE knob or key.
The Alternative Frequency option can be
turned On/Off.RegionPress the key Set [ Region]
through TUNE knob or key.
The Region option can be turned On/Off.NewsPress the key Set [ News]
through TUNE knob or key.
The News option can be turned On/Off.Info VolumeInfo Volume refers to the sound volume
upon receiving News or Traffic information.
The info volume can be controlled by turn-
ing the VOL knob left/right whilst a news
or traffic broadcast is playing.
❈ AF, Region, and News are RDS Radio
menus.
4
MENU
3
MENU
2
RDM
MENU
6
1
6
1
1
RPT
MENU
MENU
PTY
FOLDER
Off
On
TA
SCAN
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 170
procarmanuals.com

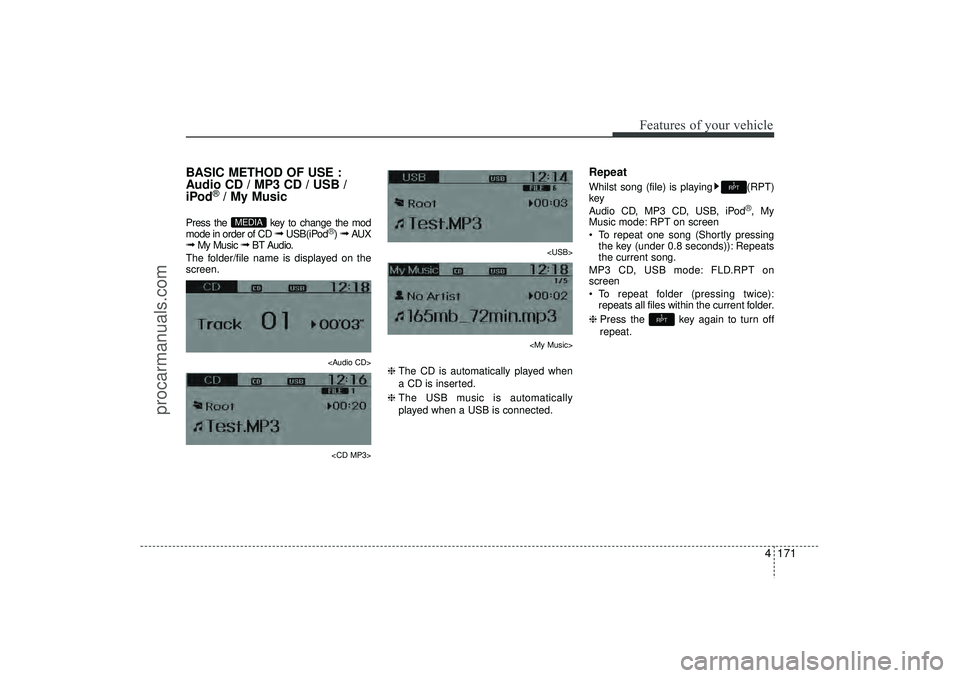

4 171
Features of your vehicle
BASIC METHOD OF USE :
Audio CD / MP3 CD / USB /
iPod
®/ My Music
Press the key to change the mod
mode in order of CD
➟
USB(iPod
®) ➟
AUX
➟
My Music
➟
BT Audio.
The folder/file name is displayed on the
screen.

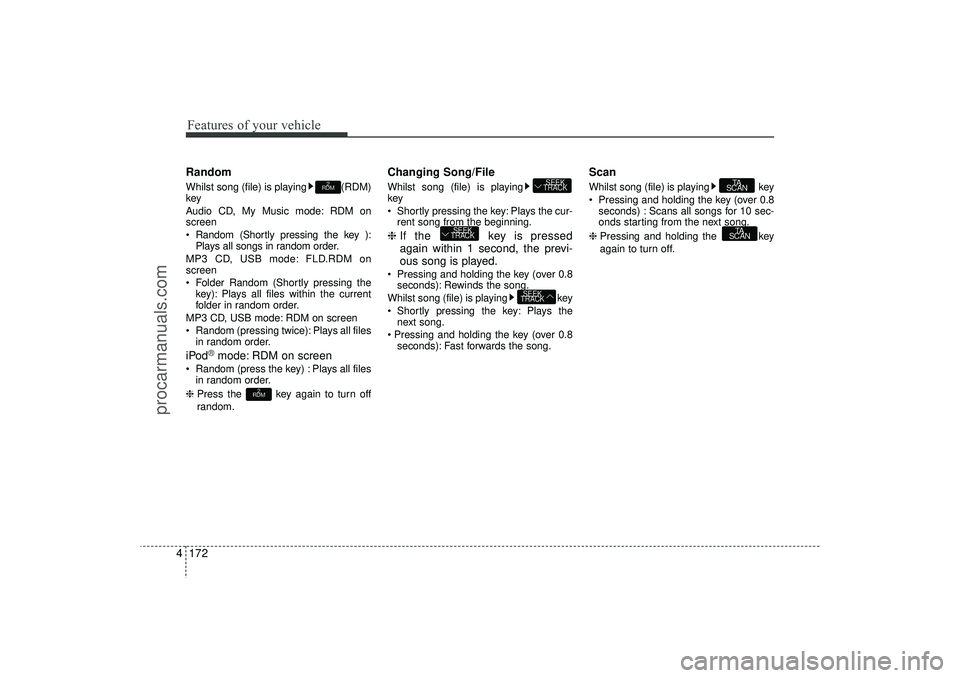

Features of your vehicle172
4RandomWhilst song (file) is playing (RDM)
key
Audio CD, My Music mode: RDM on
screen
 Random (Shortly pressing the key ):
Plays all songs in random order.
MP3 CD, USB mode: FLD.RDM on
screen
 Folder Random (Shortly pressing the key): Plays all files within the current
folder in random order.
MP3 CD, USB mode: RDM on screen
 Random (pressing twice): Plays all files in random order.iPod
®mode: RDM on screen
 Random (press the key) : Plays all filesin random order.
❈ Press the key again to turn off
random.
Changing Song/FileWhilst song (file) is playing
key
 Shortly pressing the key: Plays the cur-
rent song from the beginning.❈ If the key is pressed
again within 1 second, the previ-
ous song is played. Pressing and holding the key (over 0.8
seconds): Rewinds the song.
Whilst song (file) is playing key
 Shortly pressing the key: Plays the next song.
 Pressing and holding the key (over 0.8 seconds): Fast forwards the song.
ScanWhilst song (file) is playing key
 Pressing and holding the key (over 0.8seconds) : Scans all songs for 10 sec-
onds starting from the next song.
❈ Pressing and holding the key
again to turn off.
TA
SCANTA
SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
2
RDM
2
RDM
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 172
procarmanuals.com

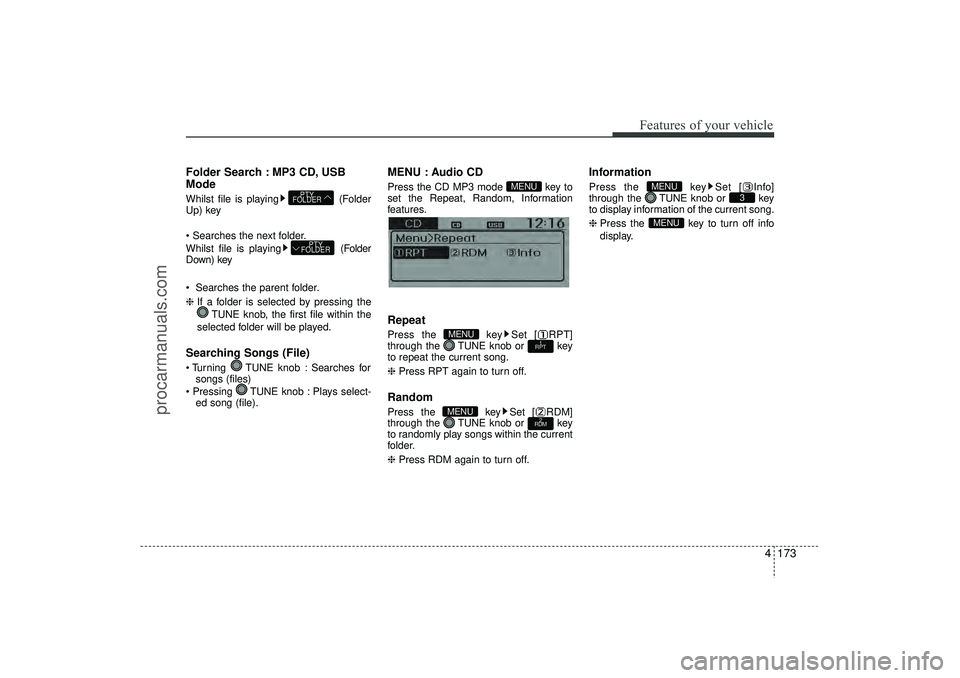

4 173
Features of your vehicle
Folder Search : MP3 CD, USB
ModeWhilst file is playing(Folder
Up) key
 Searches the next folder.
Whilst file is playing (Folder
Down) key
 Searches the parent folder.
❈ If a folder is selected by pressing the
TUNE knob, the first file within the
selected folder will be played.Searching Songs (File) Turning TUNE knob : Searches for songs (files)
 Pressing TUNE knob : Plays select- ed song (file).
MENU : Audio CDPress the CD MP3 mode key to
set the Repeat, Random, Information
features.
Information features.RepeatPress the key Set [ RPT]
through the TUNE knob or key
to repeat the current song.
❈ Press RPT again to turn off.RandomPress the key Set [ RDM]
through the TUNE knob or key
to randomly play songs within the current
folder.
❈ Press RDM again to turn off.
InformationPress the key Set [ Info]
through the TUNE knob or key
to display information of the current song.
❈ Press the key to turn off info
display.
MENU
3
MENU
2
RDM
MENU
1
RPT
MENU
MENU
PTY
FOLDERPTY
FOLDER
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 173
procarmanuals.com

Features of your vehicle174

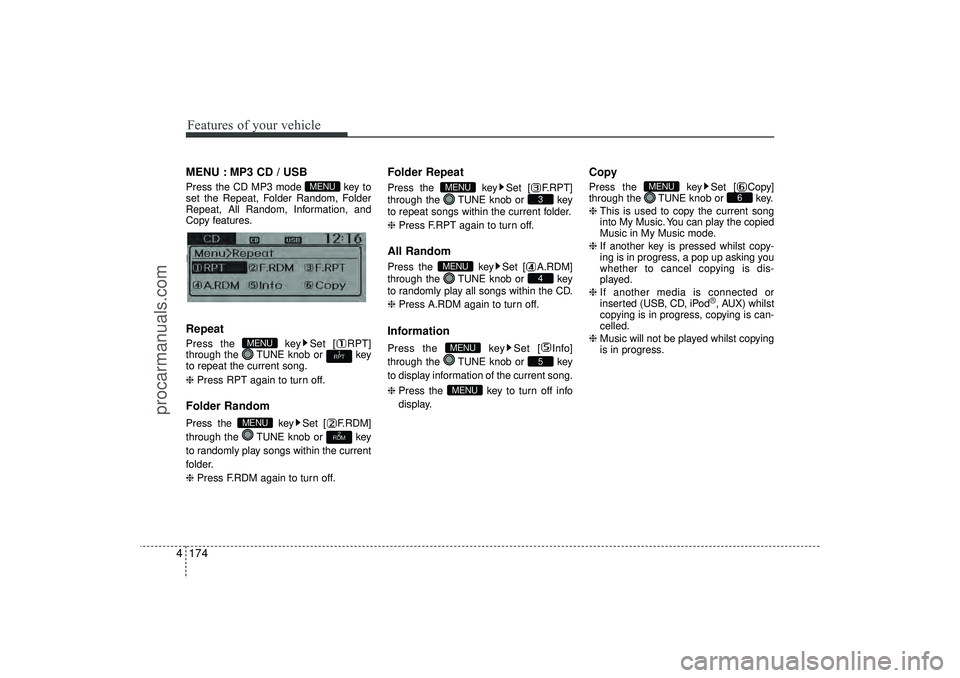

4MENU : MP3 CD / USBPress the CD MP3 mode key to
set the Repeat, Folder Random, Folder
Repeat, All Random, Information, and
Copy features.
Information, and Copy features.RepeatPress the key Set [ RPT]
through the TUNE knob or key
to repeat the current song.
❈ Press RPT again to turn off.Folder RandomPress the key Set [ F.RDM]
through the TUNE knob or key
to randomly play songs within the current
folder.
❈ Press F.RDM again to turn off.
Folder RepeatPress the key Set [ F.RPT]
through the TUNE knob or key
to repeat songs within the current folder.
❈ Press F.RPT again to turn off.All RandomPress the key Set [ A.RDM]
through the TUNE knob or key
to randomly play all songs within the CD.
❈ Press A.RDM again to turn off.InformationPress the key Set [ Info]
through the TUNE knob or key
to display information of the current song.
❈ Press the key to turn off info
display.
CopyPress the key Set [ Copy]
through the TUNE knob or key.
❈ This is used to copy the current song
into My Music. You can play the copied
Music in My Music mode.
❈ If another key is pressed whilst copy-
ing is in progress, a pop up asking you
whether to cancel copying is dis-
played.
❈ If another media is connected or
inserted (USB, CD, iPod
®, AUX) whilst
copying is in progress, copying is can-
celled.
❈ Music will not be played whilst copying
is in progress.
6
MENU
MENU
5
MENU
4
MENU
3
MENU
2
RDM
MENU
1
RPT
MENU
MENU
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 174
procarmanuals.com

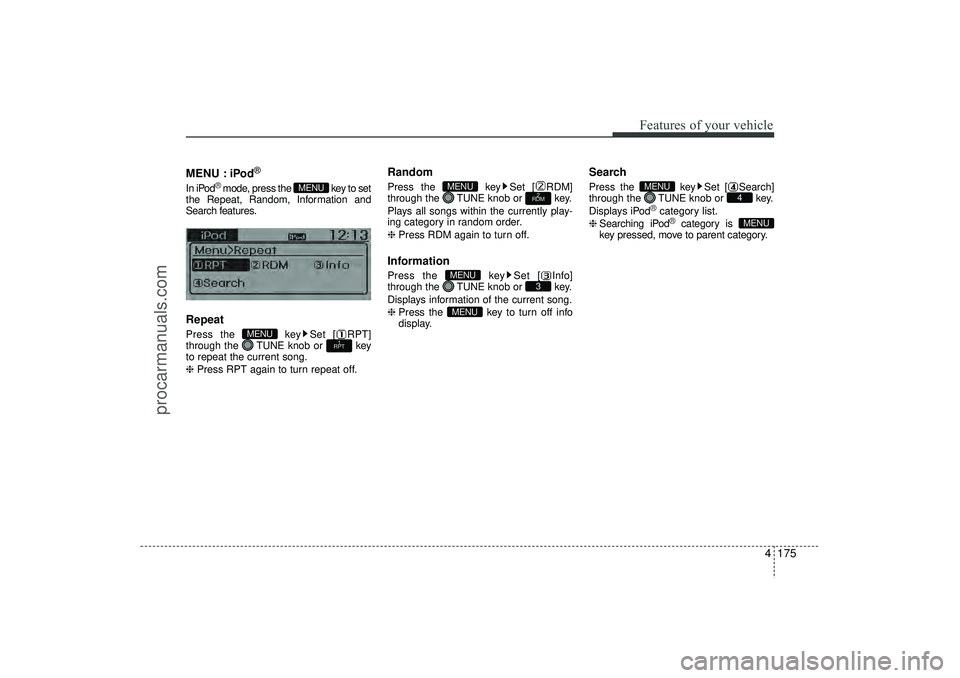

4 175
Features of your vehicle
MENU : iPod
®
In iPod
®mode, press the key to set
the Repeat, Random, Information and
Search features.
RepeatPress the key Set [ RPT]
through the TUNE knob or key
to repeat the current song.
❈ Press RPT again to turn repeat off.
RandomPress the key Set [ RDM]
through the TUNE knob or key.
Plays all songs within the currently play-
ing category in random order.
❈ Press RDM again to turn off.InformationPress the key Set [ Info]
through the TUNE knob or key.
Displays information of the current song.
❈ Press the key to turn off info
display.
SearchPress the key Set [ Search]
through the TUNE knob or key.
Displays iPod
®category list.
❈ Searching iPod®
category is
key pressed, move to parent category.
MENU4
MENU
MENU
3
MENU
2
RDM
MENU
1
RPT
MENU
MENU
EL(FL) UK 4B AUDIO.QXP 3/13/2015 4:19 PM Page 175
