HYUNDAI KONA 2021 Owners Manual

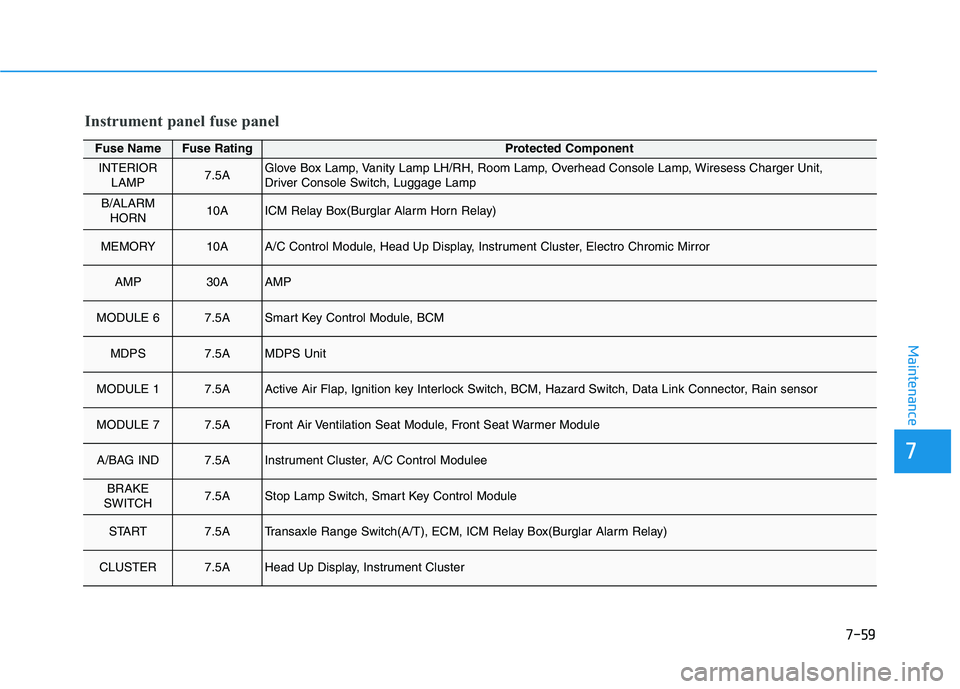

7-59
7
Maintenance
Fuse NameFuse RatingProtected Component
INTERIOR
LAMP7.5AGlove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Wiresess Charger Unit,
Driver Console Switch, Luggage Lamp
B/ALARM
HORN10AICM Relay Box(Burglar Alarm Horn Relay)
MEMORY10AA/C Control Module, Head Up Display, Instrument Cluster, Electro Chromic Mirror
AMP30AAMP
MODULE 67.5ASmart Key Control Module, BCM
MDPS7.5AMDPS Unit
MODULE 17.5AActive Air Flap, Ignition key Interlock Switch, BCM, Hazard Switch, Data Link Connector, Rain sensor
MODULE 77.5AFront Air Ventilation Seat Module, Front Seat Warmer Module
A/BAG IND7.5AInstrument Cluster, A/C Control Modulee
BRAKE
SWITCH7.5AStop Lamp Switch, Smart Key Control Module
START7.5ATransaxle Range Switch(A/T), ECM, ICM Relay Box(Burglar Alarm Relay)
CLUSTER7.5AHead Up Display, Instrument Cluster
Instrument panel fuse panel

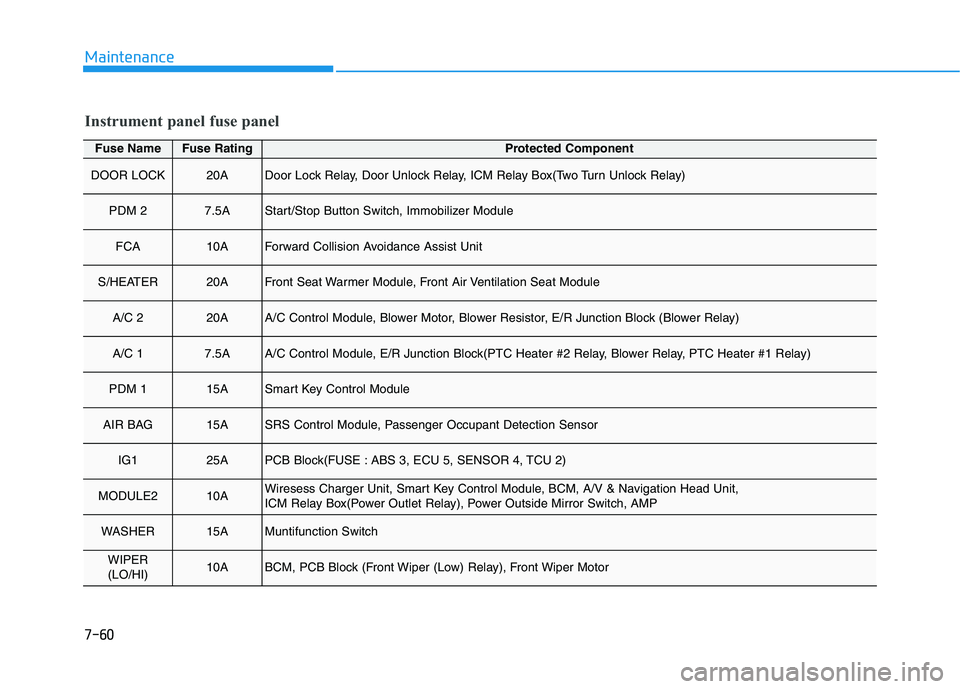

7-60
Maintenance
Fuse NameFuse RatingProtected Component
DOOR LOCK20ADoor Lock Relay, Door Unlock Relay, ICM Relay Box(Two Turn Unlock Relay)
PDM 27.5AStart/Stop Button Switch, Immobilizer Module
FCA10AForward Collision Avoidance Assist Unit
S/HEATER20AFront Seat Warmer Module, Front Air Ventilation Seat Module
A/C 220AA/C Control Module, Blower Motor, Blower Resistor, E/R Junction Block (Blower Relay)
A/C 17.5AA/C Control Module, E/R Junction Block(PTC Heater #2 Relay, Blower Relay, PTC Heater #1 Relay)
PDM 115ASmart Key Control Module
AIR BAG15ASRS Control Module, Passenger Occupant Detection Sensor
IG125APCB Block(FUSE : ABS 3, ECU 5, SENSOR 4, TCU 2)
MODULE210AWiresess Charger Unit, Smart Key Control Module, BCM, A/V & Navigation Head Unit,
ICM Relay Box(Power Outlet Relay), Power Outside Mirror Switch, AMP
WASHER15AMuntifunction Switch
WIPER
(LO/HI)10ABCM, PCB Block (Front Wiper (Low) Relay), Front Wiper Motor
Instrument panel fuse panel

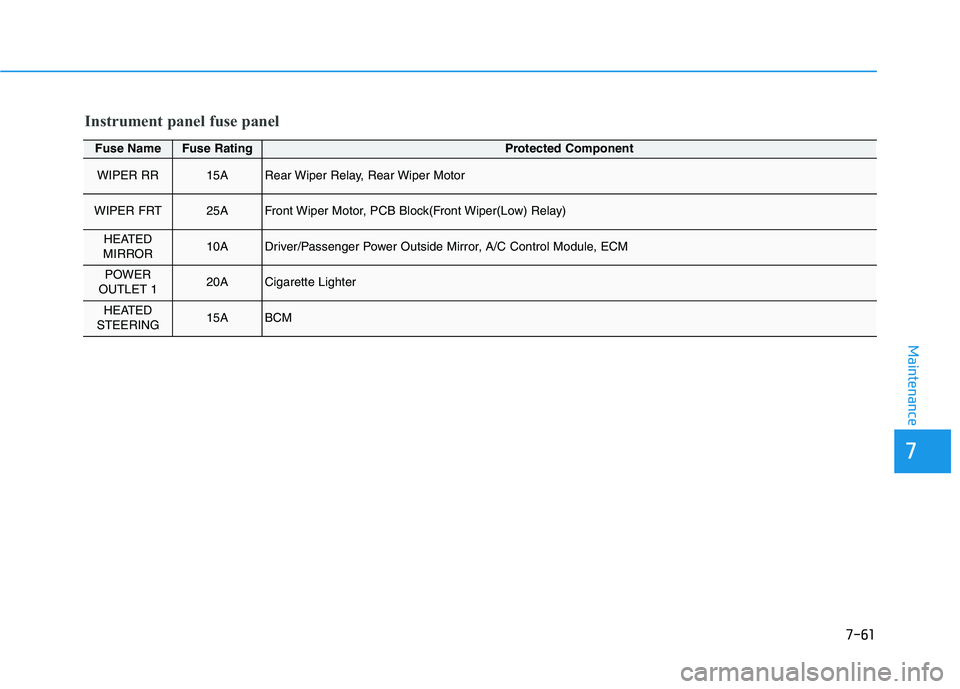

7-61
7
Maintenance
Fuse NameFuse RatingProtected Component
WIPER RR15ARear Wiper Relay, Rear Wiper Motor
WIPER FRT25AFront Wiper Motor, PCB Block(Front Wiper(Low) Relay)
HEATED
MIRROR10ADriver/Passenger Power Outside Mirror, A/C Control Module, ECM
POWER
OUTLET 120ACigarette Lighter
HEATED
STEERING15ABCM
Instrument panel fuse panel

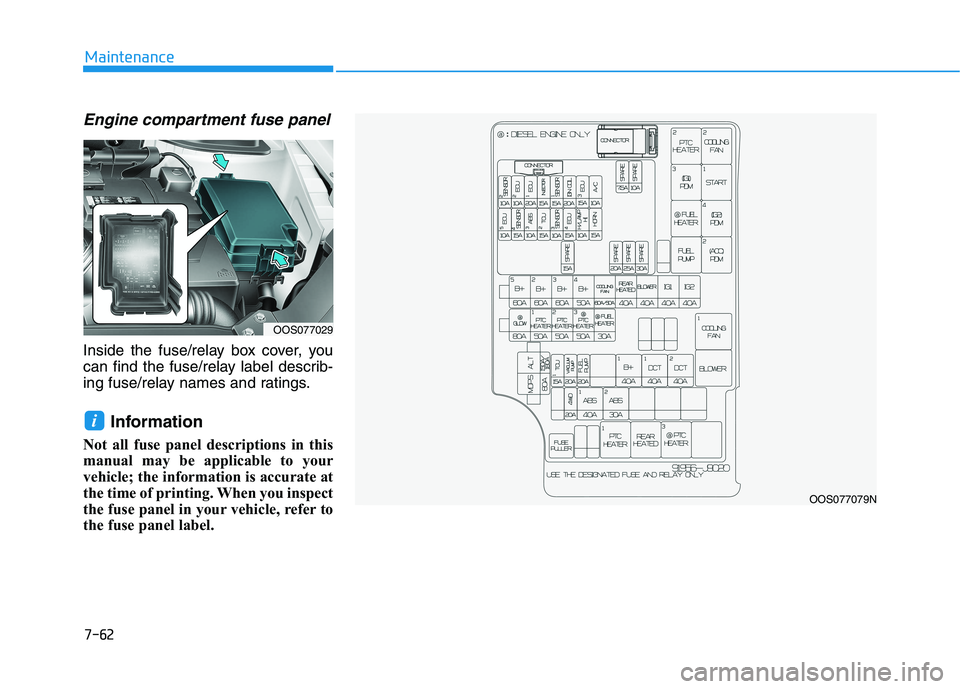

7-62
Maintenance
Engine compartment fuse panel
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OOS077029
OOS077079N

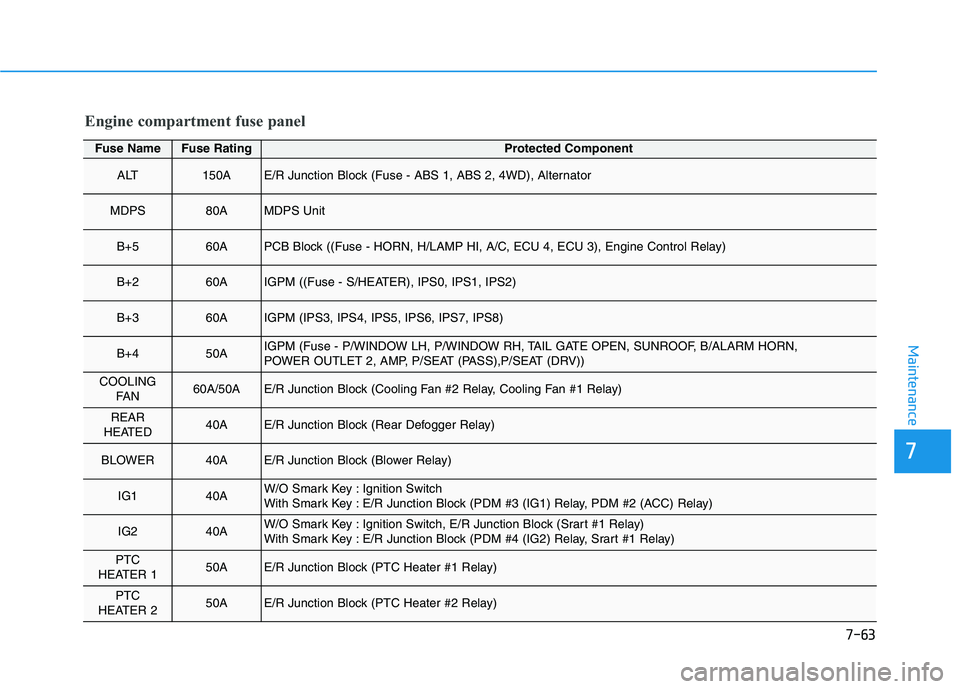

7-63
7
Maintenance
Engine compartment fuse panel
Fuse NameFuse RatingProtected Component
ALT150AE/R Junction Block (Fuse - ABS 1, ABS 2, 4WD), Alternator
MDPS80AMDPS Unit
B+560APCB Block ((Fuse - HORN, H/LAMP HI, A/C, ECU 4, ECU 3), Engine Control Relay)
B+260AIGPM ((Fuse - S/HEATER), IPS0, IPS1, IPS2)
B+360AIGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8)
B+450AIGPM (Fuse - P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN, SUNROOF, B/ALARM HORN,
POWER OUTLET 2, AMP, P/SEAT (PASS),P/SEAT (DRV))
COOLING
FA N60A/50AE/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay)
REAR
HEATED40AE/R Junction Block (Rear Defogger Relay)
BLOWER40AE/R Junction Block (Blower Relay)
IG140AW/O Smark Key : Ignition Switch
With Smark Key : E/R Junction Block (PDM #3 (IG1) Relay, PDM #2 (ACC) Relay)
IG240AW/O Smark Key : Ignition Switch, E/R Junction Block (Srart #1 Relay)
With Smark Key : E/R Junction Block (PDM #4 (IG2) Relay, Srart #1 Relay)
PTC
HEATER 150AE/R Junction Block (PTC Heater #1 Relay)
PTC
HEATER 250AE/R Junction Block (PTC Heater #2 Relay)

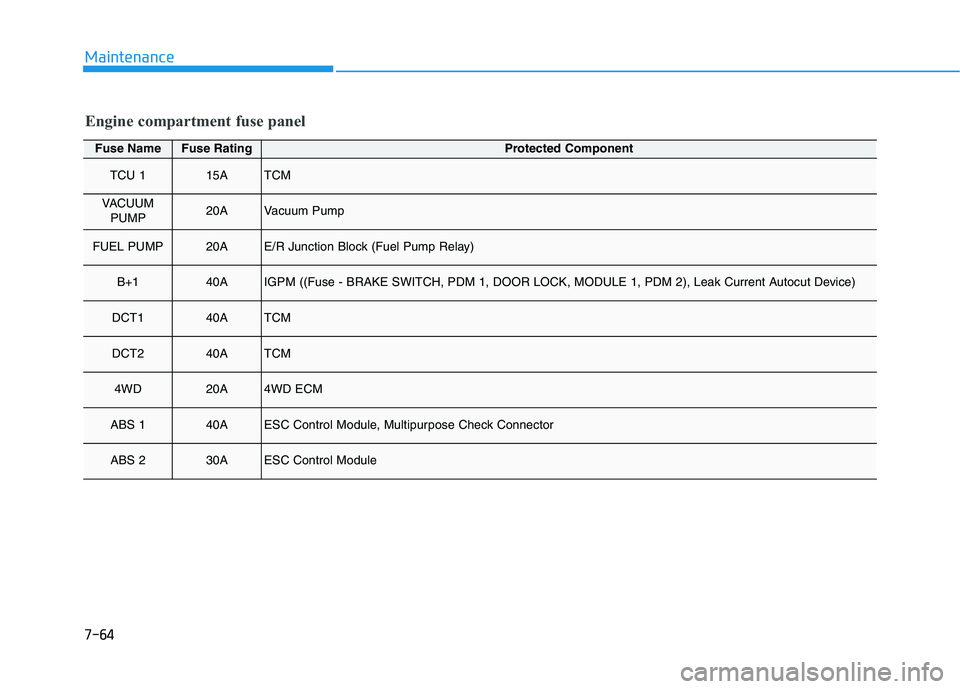

7-64
Maintenance
Engine compartment fuse panel
Fuse NameFuse RatingProtected Component
TCU 115ATCM
VACUUM
PUMP20AVacuum Pump
FUEL PUMP20AE/R Junction Block (Fuel Pump Relay)
B+140AIGPM ((Fuse - BRAKE SWITCH, PDM 1, DOOR LOCK, MODULE 1, PDM 2), Leak Current Autocut Device)
DCT140ATCM
DCT240ATCM
4WD20A4WD ECM
ABS 140AESC Control Module, Multipurpose Check Connector
ABS 230AESC Control Module

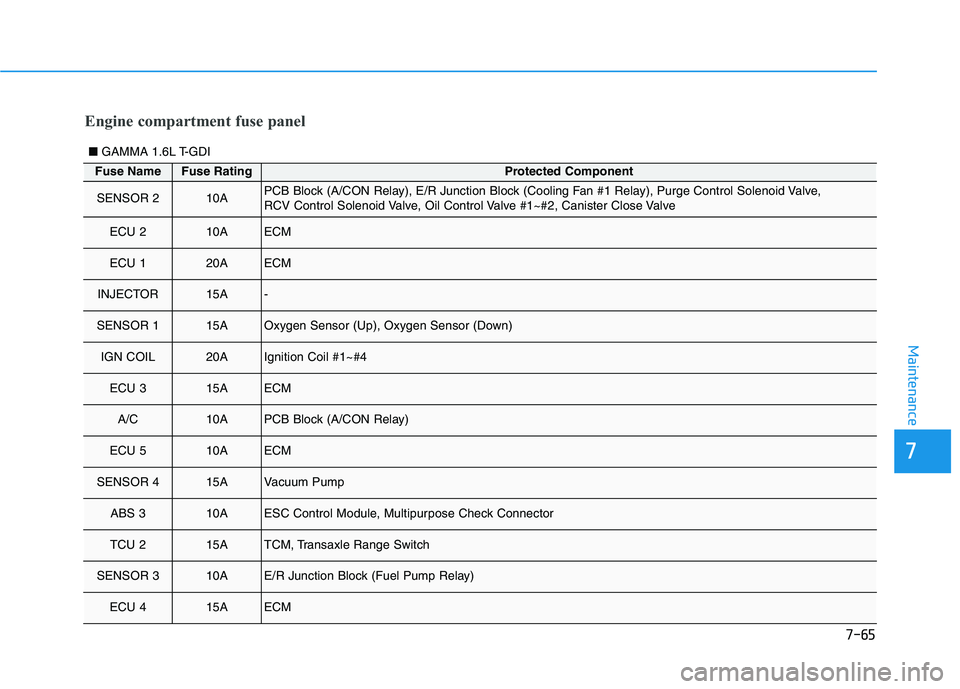

7-65
7
Maintenance
Fuse NameFuse RatingProtected Component
SENSOR 210APCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #1 Relay), Purge Control Solenoid Valve,
RCV Control Solenoid Valve, Oil Control Valve #1~#2, Canister Close Valve
ECU 210AECM
ECU 120AECM
INJECTOR15A-
SENSOR 115AOxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL20AIgnition Coil #1~#4
ECU 315AECM
A/C10APCB Block (A/CON Relay)
ECU 510AECM
SENSOR 415AVacuum Pump
ABS 310AESC Control Module, Multipurpose Check Connector
TCU 215ATCM, Transaxle Range Switch
SENSOR 310AE/R Junction Block (Fuel Pump Relay)
ECU 415AECM
■ GAMMA 1.6L T-GDI
Engine compartment fuse panel

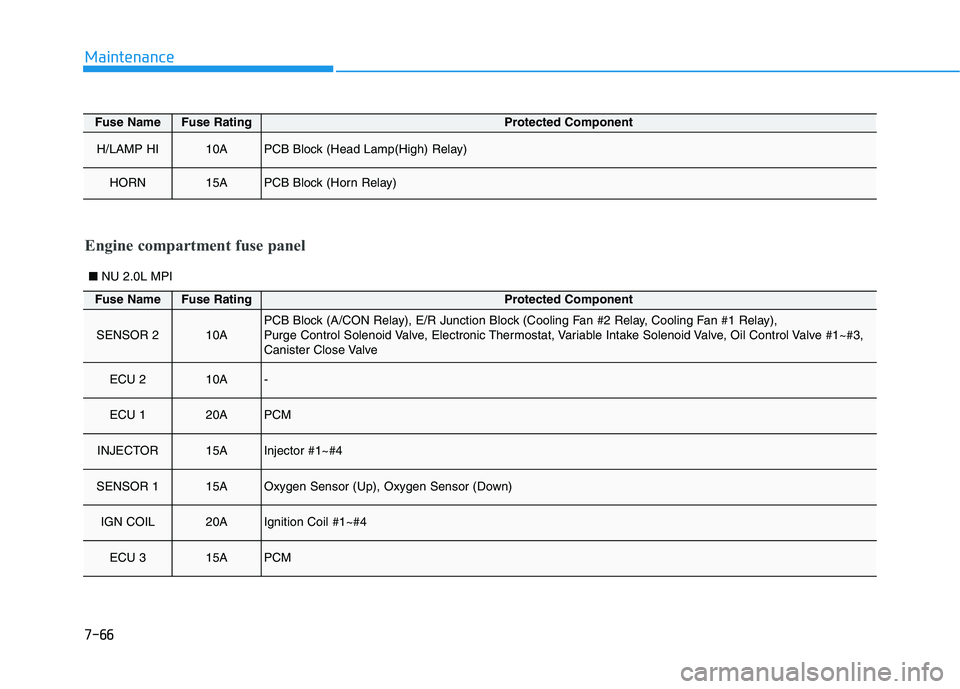

7-66
Maintenance
■NU 2.0L MPI
Engine compartment fuse panel
Fuse NameFuse RatingProtected Component
H/LAMP HI10APCB Block (Head Lamp(High) Relay)
HORN15APCB Block (Horn Relay)
Fuse NameFuse RatingProtected Component
SENSOR 210APCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay),
Purge Control Solenoid Valve, Electronic Thermostat, Variable Intake Solenoid Valve, Oil Control Valve #1~#3,
Canister Close Valve
ECU 210A-
ECU 120APCM
INJECTOR15AInjector #1~#4
SENSOR 115AOxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL20AIgnition Coil #1~#4
ECU 315APCM

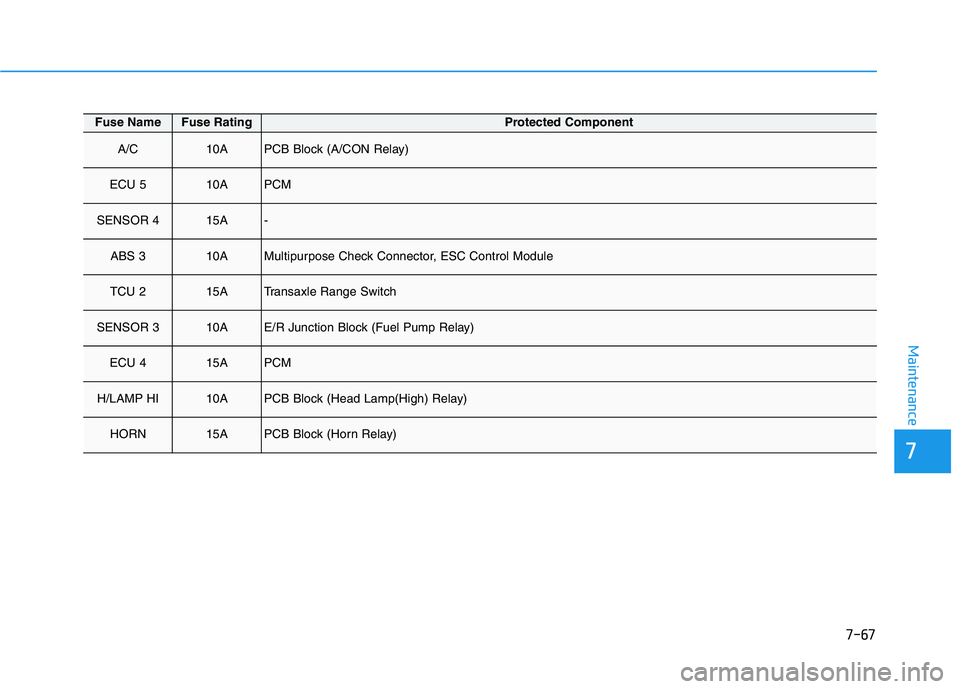

7-67
7
Maintenance
Fuse NameFuse RatingProtected Component
A/C10APCB Block (A/CON Relay)
ECU 510APCM
SENSOR 415A-
ABS 310AMultipurpose Check Connector, ESC Control Module
TCU 215ATransaxle Range Switch
SENSOR 310AE/R Junction Block (Fuel Pump Relay)
ECU 415APCM
H/LAMP HI10APCB Block (Head Lamp(High) Relay)
HORN15APCB Block (Horn Relay)

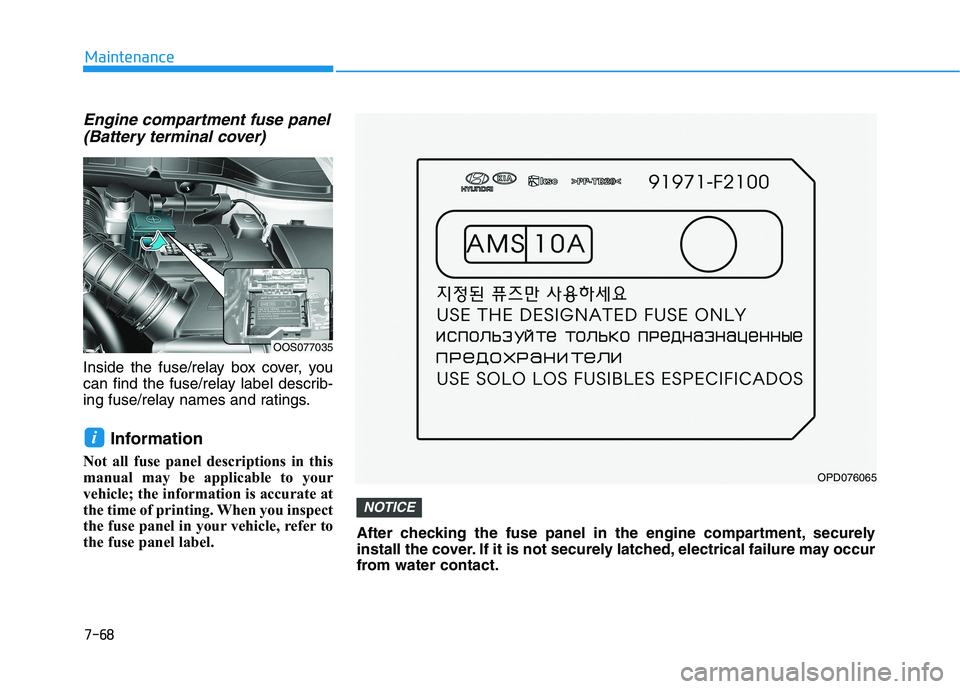

7-68
Maintenance
Engine compartment fuse panel
(Battery terminal cover)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OOS077035
OPD076065
After checking the fuse panel in the engine compartment, securely
install the cover. If it is not securely latched, electrical failure may occur
from water contact.
NOTICE
