Instrument Cluster4-8
Fuel gauge
„Normal mode
OOSN041034N
„N mode
OOSN041055N
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information

[ The fuel tank capacity is given in
chapter 2.

[ The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.

[ On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in
the tank.
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “E
(Empty) ” level.
NOTICE
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.

04
4-9
Outside temperature gauge
„Normal mode
OCN7N041129N
„N mode
OCN7N041124N
This gauge indicates the current outside
air temperatures by 1°F (1°C).
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
The temperature unit (from °C to °F or
from °F to °C) can be changed by: - User Settings mode in the Cluster : You can change the temperature unit
in the “Other Features - Temperature
unit” .

- Automatic climate control system :
While pressing the OFF button, press
the AUTO button for 3 seconds or
more.
The temperature unit of the instrument
cluster and climate control system will
change at once.
Odometer
„Normal mode
OCN7040015N
„N mode
OOSN041022N
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.

Instrument Cluster4-10
Distance to empty
„Normal mode
OOSN041056N
„N mode
OOSN041057N

[ The distance to empty is the
estimated distance the vehicle can be
driven with the remaining fuel.

[ If the estimated distance is below
1 mi. (1 km), the trip computer will
display “---” as distance to empty.
Information

[If the vehicle is not on level ground or
the battery power has been interrupted,
the distance to empty function may not
operate correctly.

[ The distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.

[ The trip computer may not register
additional fuel if less than 1.6 gallons (6
liters) of fuel are added to the vehicle.

[ The distance to empty may vary
significantly based on driving
conditions, driving habits, and
condition of the vehicle.
CUSTOM mode settings
„N mode
OCN7N041136N
The main settings of CUSTOM mode is
displayed at the bottom of the cluster.
The CUSTOM mode can be set on the
infotainment system.
Information
For more details on the CUSTOM mode,
refer to “Drive Mode Integrated Control
System” section in chapter 6.

04
4-11

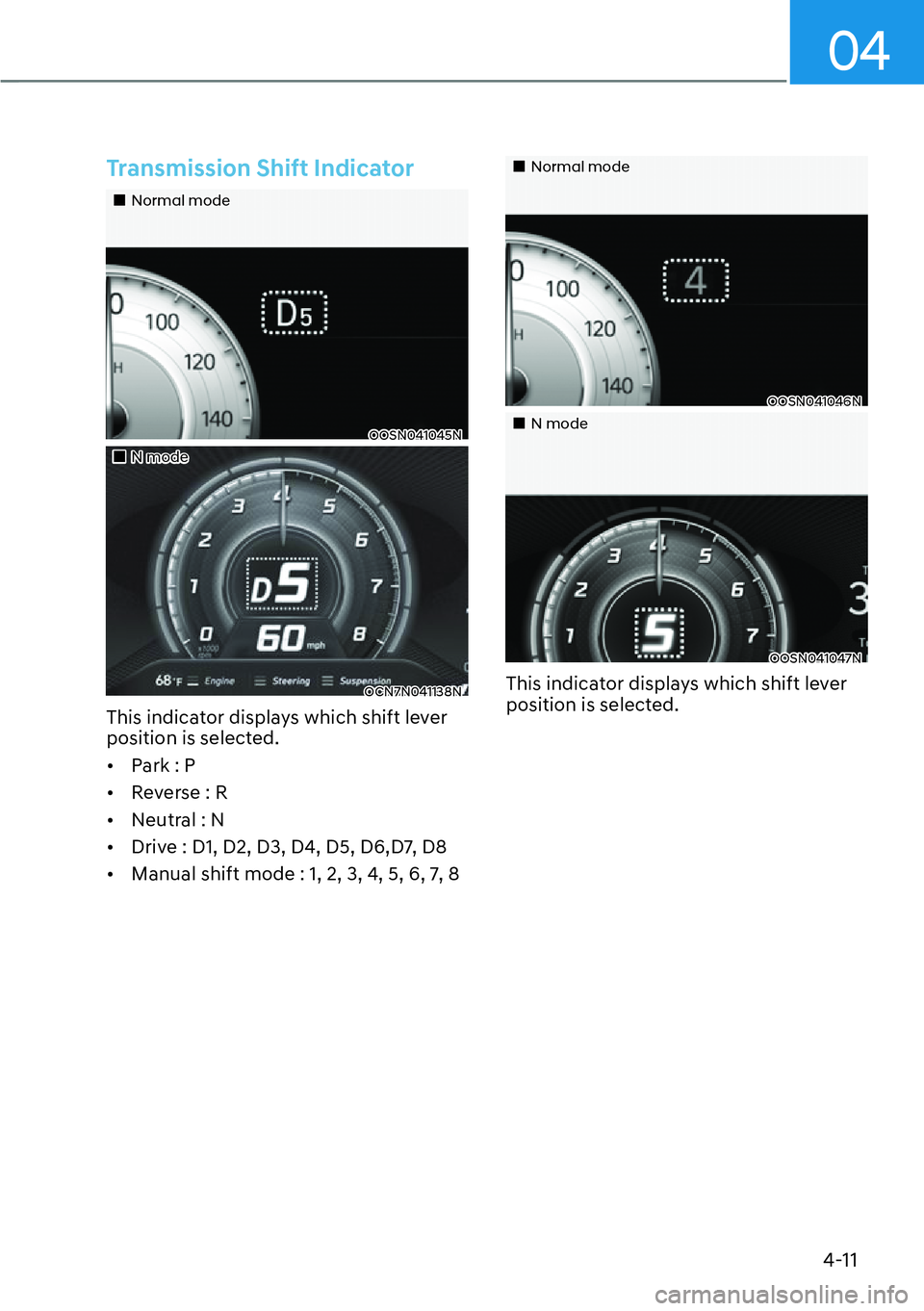

Transmission Shift Indicator
„Normal mode
OOSN041045N
„N mode
OCN7N041138N
This indicator displays which shift lever
position is selected.

[Park : P

[ Reverse : R

[ Neutral : N

[ Drive : D1, D2, D3, D4, D5, D6,D7, D8

[ Manual shift mode : 1, 2, 3, 4, 5, 6, 7, 8
„Normal mode
OOSN041046N
„N mode
OOSN041047N
This indicator displays which shift lever
position is selected.

Instrument Cluster4-12

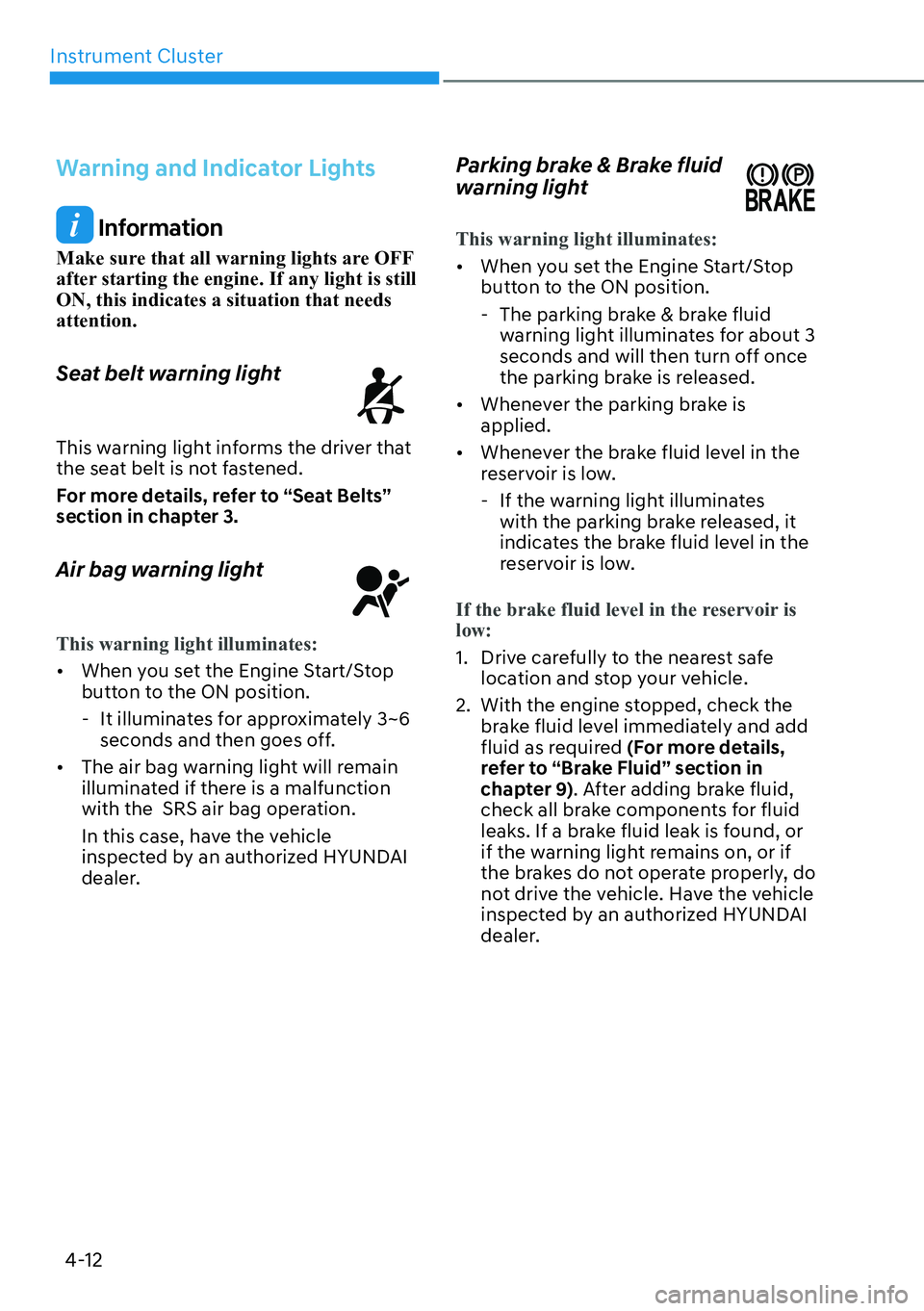

Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still
ON, this indicates a situation that needs
attention.
Seat belt warning light
This warning light informs the driver that
the seat belt is not fastened.
For more details, refer to “Seat Belts”
section in chapter 3.
Air bag warning light
This warning light illuminates:

[ When y
ou set the Engine Start/Stop
button to the ON position.
- It illuminates for approximately 3~6 seconds and then goes off.

[ The air bag warning light will remain
illuminated if there is a malfunction
with the SRS air bag operation.
In this case, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Parking brake & Brake fluid
warning light
This warning light illuminates:

[When y
ou set the Engine Start/Stop
button to the ON position.
- The parking brake & brake fluid warning light illuminates for about 3
seconds and will then turn off once
the parking brake is released.

[ Whenever the parking brake is
applied.

[ Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. With the engine stopped, check the brake fluid level immediately and add
fluid as required (For more details,
refer to “Brake Fluid” section in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or
if the warning light remains on, or if
the brakes do not operate properly, do
not drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer.

04
4-13

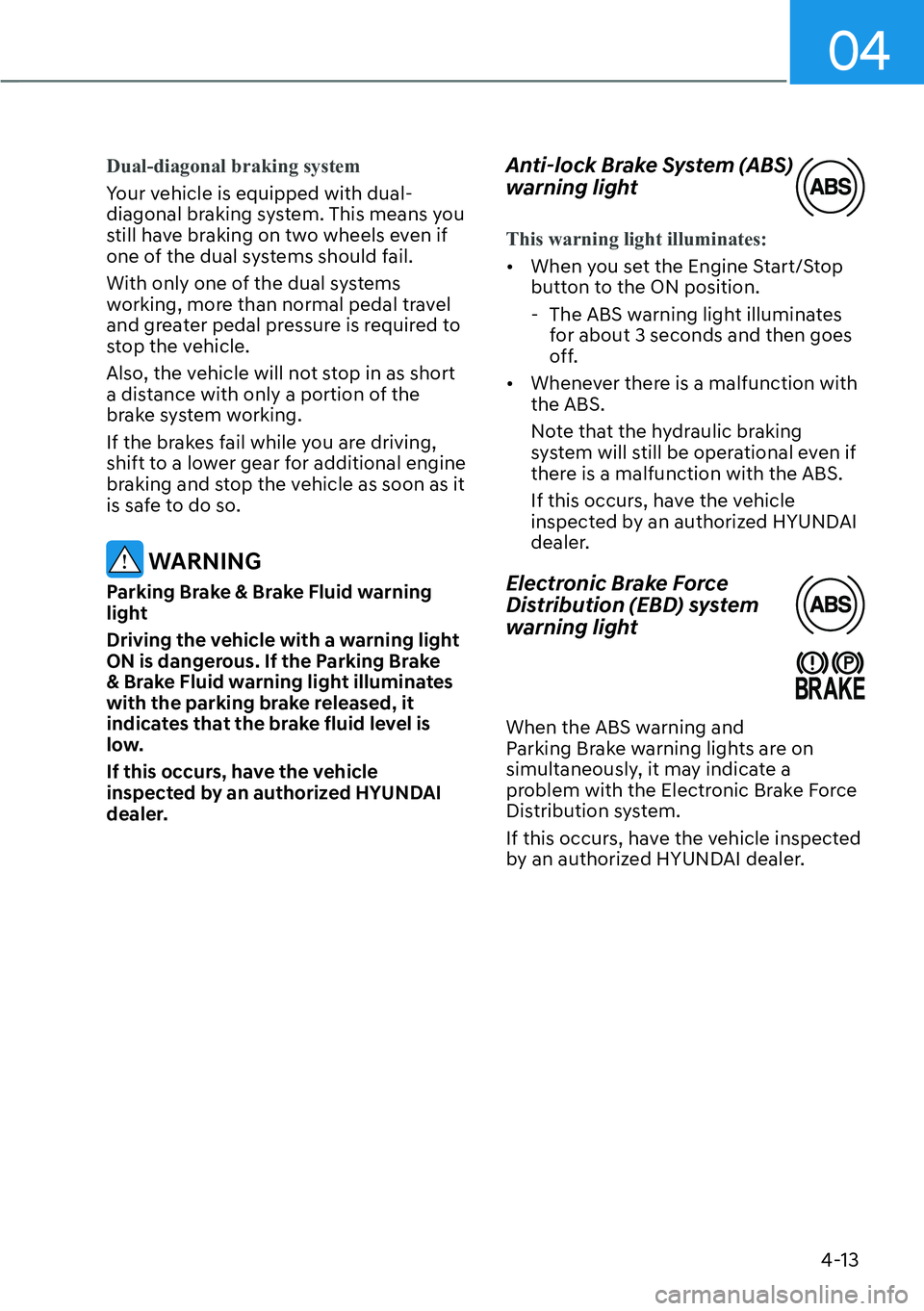

Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal br
aking system. This means you
still have braking on two wheels even if
one of the dual systems should fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure is required to
stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If the brakes fail while you are driving,
shift to a lower gear for additional engine
braking and stop the vehicle as soon as it
is safe to do so.
WARNING
Parking Brake & Brake Fluid warning
light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake
& Brake Fluid warning light illuminates
with the parking brake released, it
indicates that the brake fluid level is
low.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Anti-lock Brake System (ABS)
warning light
This warning light illuminates:

[ When y
ou set the Engine Start/Stop
button to the ON position.
- The ABS warning light illuminates for about 3 seconds and then goes
off.

[ Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking
system will still be operational even if
there is a malfunction with the ABS.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Electronic Brake Force
Distribution (EBD) system
warning light
When the ABS warning and
Parking Brake warning lights are on
simultaneously, it may indicate a
problem with the Electronic Brake Force
Distribution system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.

Instrument Cluster4-14

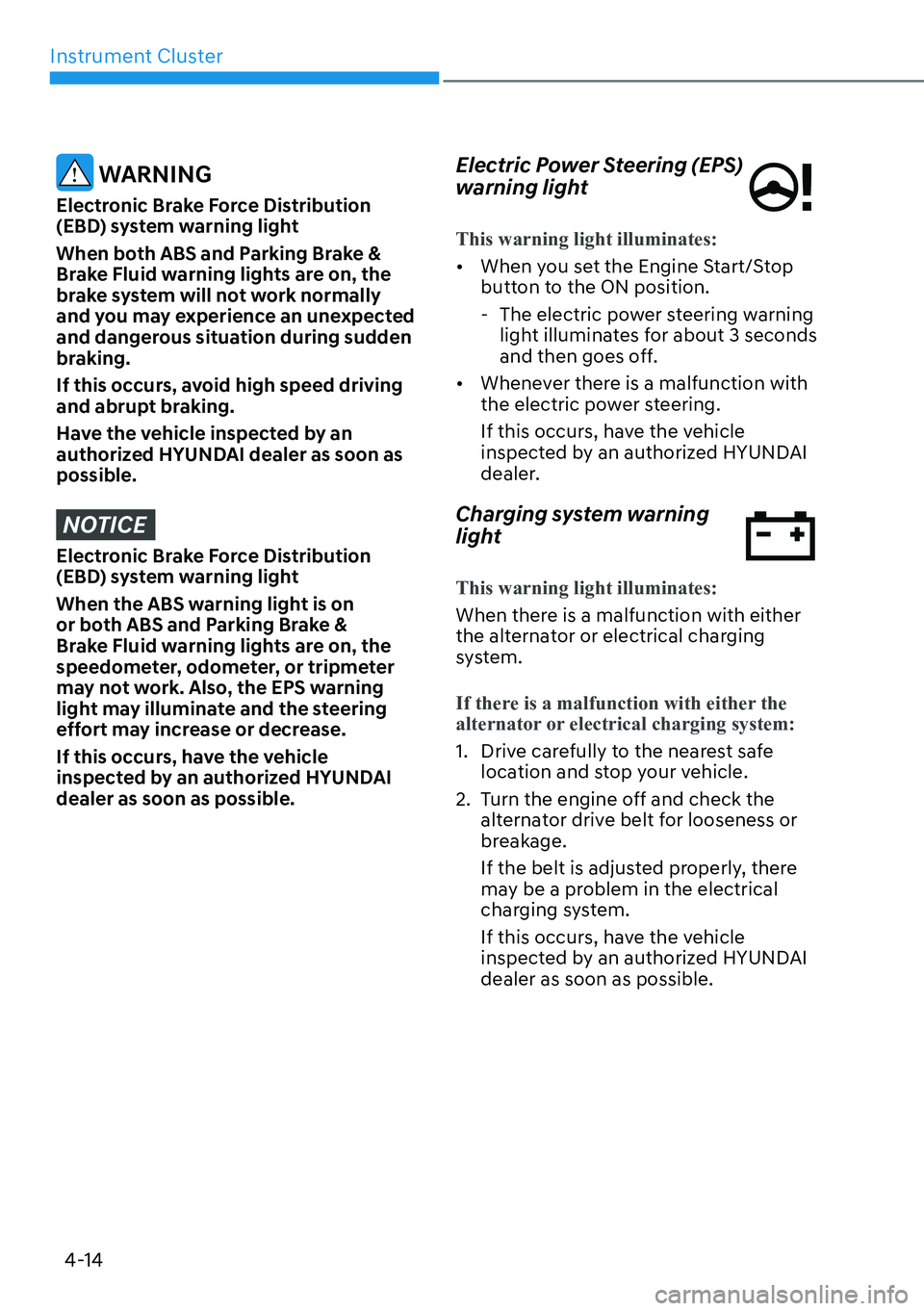

WARNING
Electronic Brake Force Distribution
(EBD) system warning light
When both ABS and Parking Brake &
Brake Fluid warning lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
If this occurs, avoid high speed driving
and abrupt braking.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
NOTICE
Electronic Brake Force Distribution
(EBD) system warning light
When the ABS warning light is on
or both ABS and Parking Brake &
Brake Fluid warning lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the EPS warning
light may illuminate and the steering
effort may increase or decrease.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[ When y
ou set the Engine Start/Stop
button to the ON position.
- The electric power steering warning light illuminates for about 3 seconds
and then goes off.

[ Whenever there is a malfunction with
the electric power steering.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Charging system warning
light
This warning light illuminates:
When there is a malfunction with either
the alt

ernator or electrical charging
system.
If there is a malfunction with either the
alternator
or electrical charging system:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the alternator drive belt for looseness or
breakage.
If the belt is adjusted properly, there
may be a problem in the electrical
charging system.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.

04
4-15

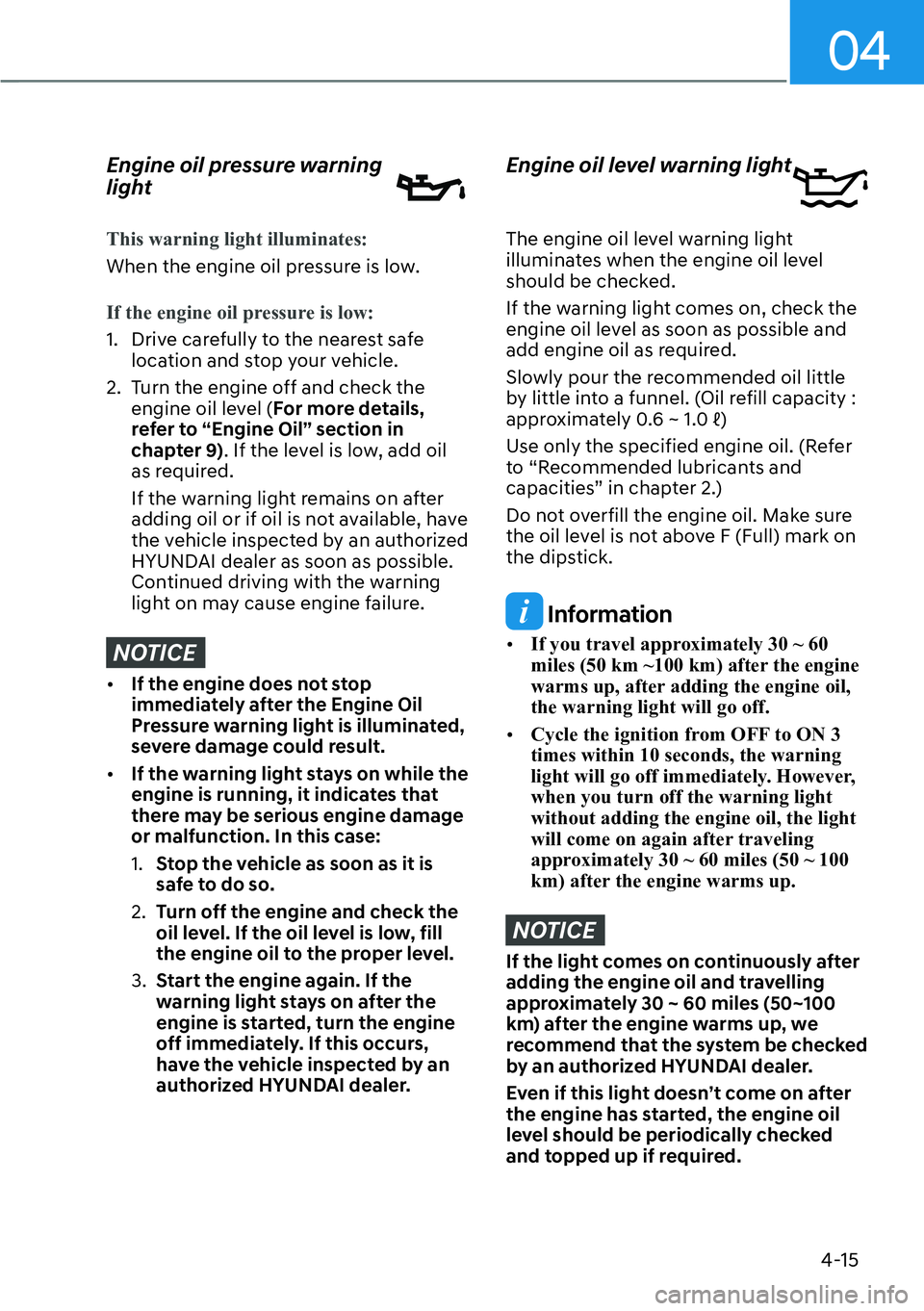

Engine oil pressure warning
light
This warning light illuminates:
When the engine oil pressure is low.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the engine oil level (For more details,
refer to “Engine Oil” section in
chapter 9). If the level is low, add oil
as required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
Continued driving with the warning
light on may cause engine failure.
NOTICE

[If the engine does not stop
immediately after the Engine Oil
Pressure warning light is illuminated,
severe damage could result.

[ If the warning light stays on while the
engine is running, it indicates that
there may be serious engine damage
or malfunction. In this case:
1. Stop the vehicle as soon as it is
safe to do so.
2. Turn off the engine and check the
oil level. If the oil level is low, fill
the engine oil to the proper level.
3. Start the engine again. If the
warning light stays on after the
engine is started, turn the engine
off immediately. If this occurs,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Engine oil level warning light
The engine oil level warning light
illuminates when the engine oil level
should be checked.
If the warning light comes on, check the
engine oil level as soon as possible and
add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel. (Oil refill capacity :
DSSUR[LPDWHO\a
b
Use only the specified engine oil. (Refer
to “Recommended lubricants and
capacities” in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information

[If you travel approximately 30 ~ 60
miles (50 km ~100 km) after the engine
warms up, after adding the engine oil,
the warning light will go off.

[ Cycle the ignition from OFF to ON 3
times within 10 seconds, the warning
light will go off immediately. However,
when you turn off the warning light
without adding the engine oil, the light
will come on again after traveling
approximately 30 ~ 60 miles (50 ~ 100
km) after the engine warms up.
NOTICE
If the light comes on continuously after
adding the engine oil and travelling
approximately 30 ~ 60 miles (50~100
km) after the engine warms up, we
recommend that the system be checked
by an authorized HYUNDAI dealer.
Even if this light doesn’t come on after
the engine has started, the engine oil
level should be periodically checked
and topped up if required.

Instrument Cluster4-16

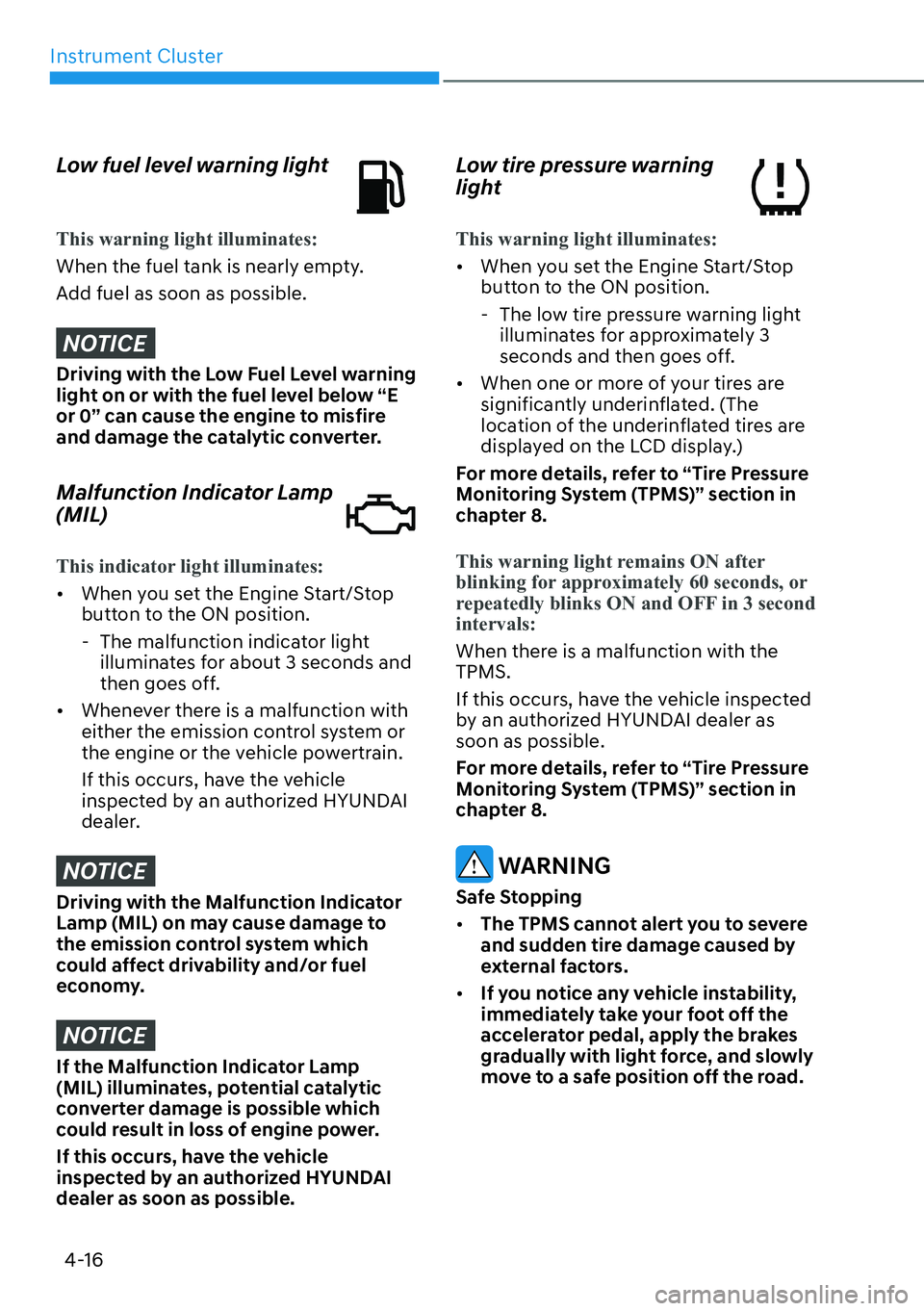

Low fuel level warning light
This warning light illuminates:
When the fuel tank is nearly empty.
A
dd fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level warning
light on or with the fuel level below “E
or 0” can cause the engine to misfire
and damage the catalytic converter.
Malfunction Indicator Lamp
(MIL)
This indicator light illuminates:

[ When y
ou set the Engine Start/Stop
button to the ON position.

- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.

[ Whenever there is a malfunction with
either the emission control system or
the engine or the vehicle powertrain.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
Driving with the Malfunction Indicator
Lamp (MIL) on may cause damage to
the emission control system which
could affect drivability and/or fuel
economy.
NOTICE
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
Low tire pressure warning
light
This warning light illuminates:

[When y
ou set the Engine Start/Stop
button to the ON position.
- The low tire pressure warning light illuminates for approximately 3
seconds and then goes off.

[ When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires are
displayed on the LCD display.)
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains ON after
blinking for
approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occur

s, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping

[ The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.

[ If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

04
4-17

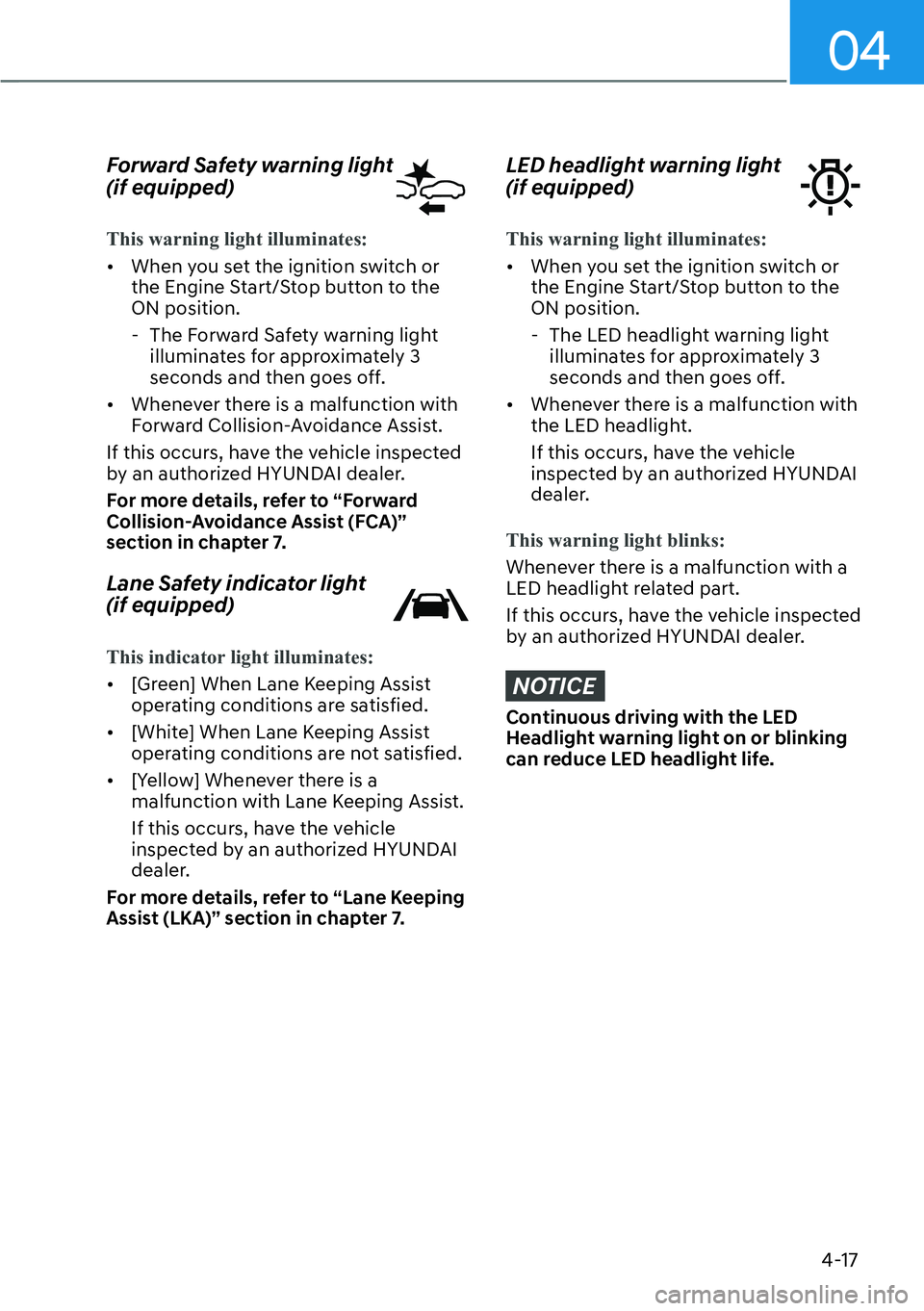

Forward Safety warning light
(if equipped)
This warning light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The Forward Safety warning light illuminates for approximately 3
seconds and then goes off.

[ Whenever there is a malfunction with
Forward Collision-Avoidance Assist.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)”
section in chapter 7.
Lane Safety indicator light
(if equipped)
This indicator light illuminates:

[ [Gr
een] When Lane Keeping Assist
operating conditions are satisfied.

[ [White] When Lane Keeping Assist
operating conditions are not satisfied.

[ [Yellow] Whenever there is a
malfunction with Lane Keeping Assist.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
For more details, refer to “Lane Keeping
Assist (LKA)” section in chapter 7.
LED headlight warning light
(if equipped)
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The LED headlight warning light illuminates for approximately 3
seconds and then goes off.

[ Whenever there is a malfunction with
the LED headlight.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
This warning light blinks:
Whenever there is a malfunction with a
LED headligh
t related part.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
NOTICE
Continuous driving with the LED
Headlight warning light on or blinking
can reduce LED headlight life.
