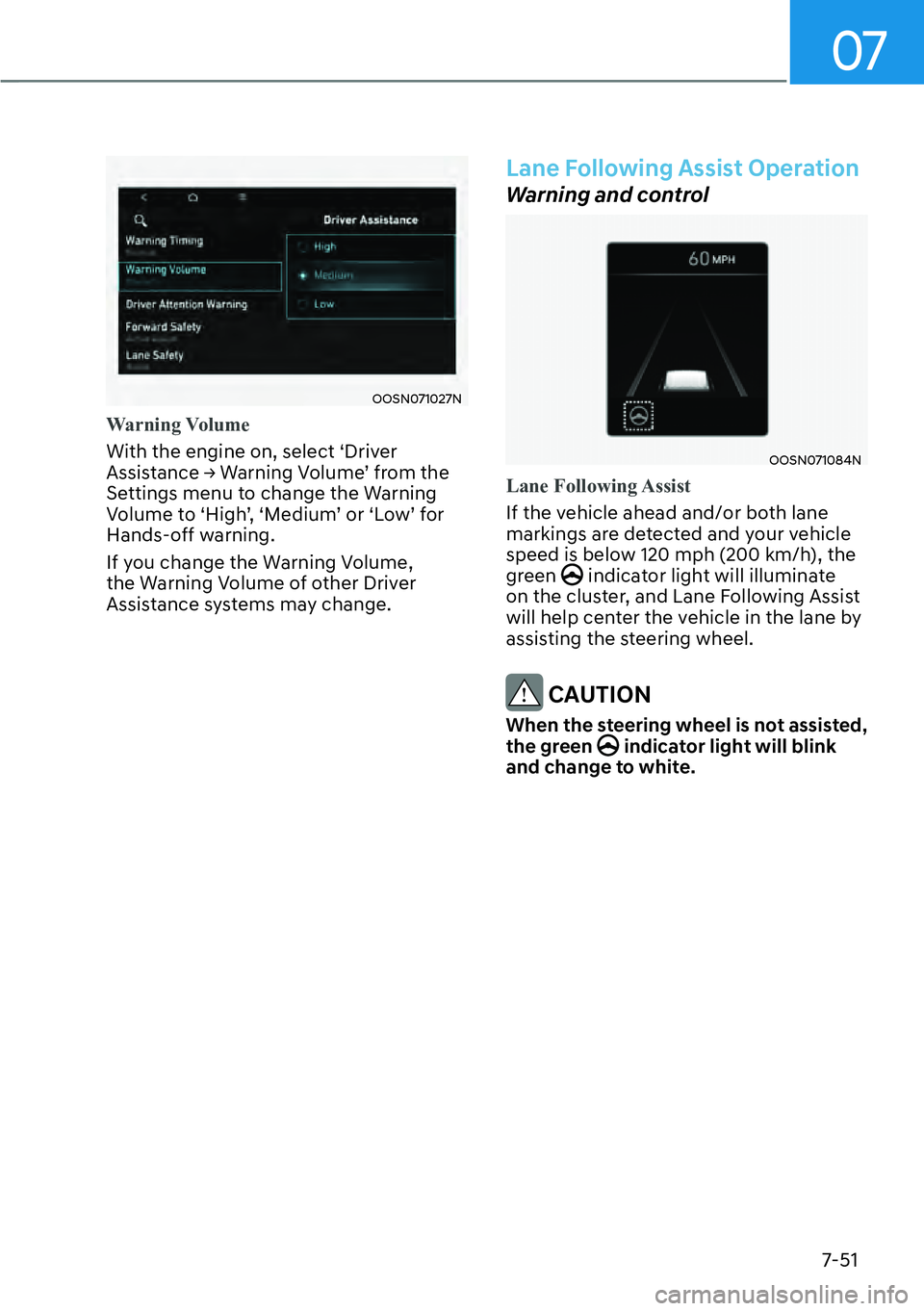

HYUNDAI KONA 2023 Owners Manual

07
7-51
OOSN071027N
Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

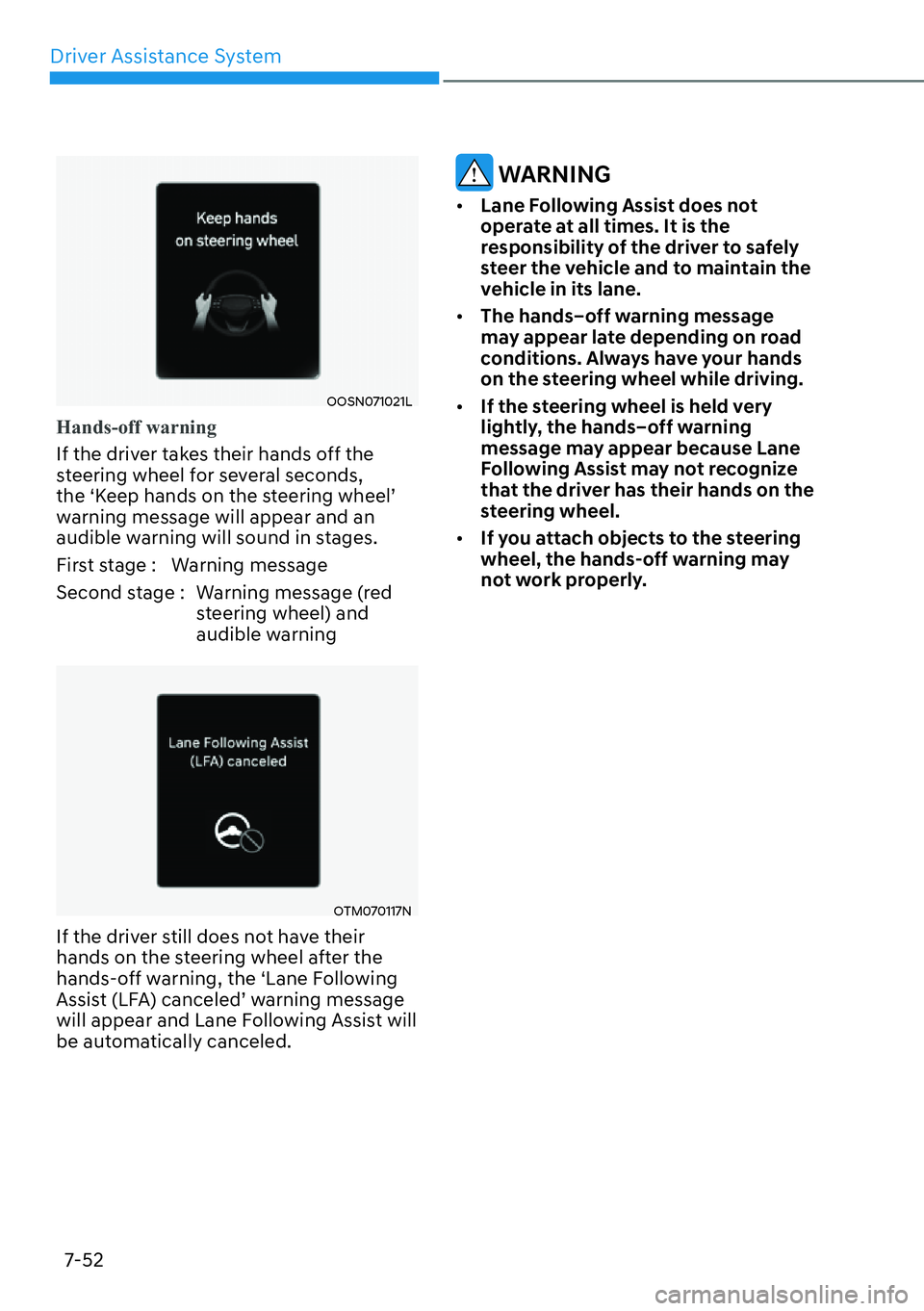

Driver Assistance System7-52
OOSN071021L
Hands-off warning
If the driver takes their hands off the
s
teering wheel for several seconds,
WKH
S.HHSKDQGVRQWKHVWHHULQJZKHHO
T
warning message will appear and an
audible warning will sound in stages.
First stage : Warning message
Second stage : Warning message (red steering wheel) and
audible warning
OTM070117N
If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the ‘Lane Following
$VVLVW/)$FDQFHOHG
TZDUQLQJPHVVDJH
will appear and Lane Following Assist will
be automatically canceled.
WARNING

[Lane Following Assist does not
operate at all times. It is the
responsibility of the driver to safely
steer the vehicle and to maintain the
vehicle in its lane.

[ The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[ If the steering wheel is held very
lightly, the hands–off warning
message may appear because Lane
Following Assist may not recognize
that the driver has their hands on the
steering wheel.

[ If you attach objects to the steering
wheel, the hands-off warning may
not work properly.

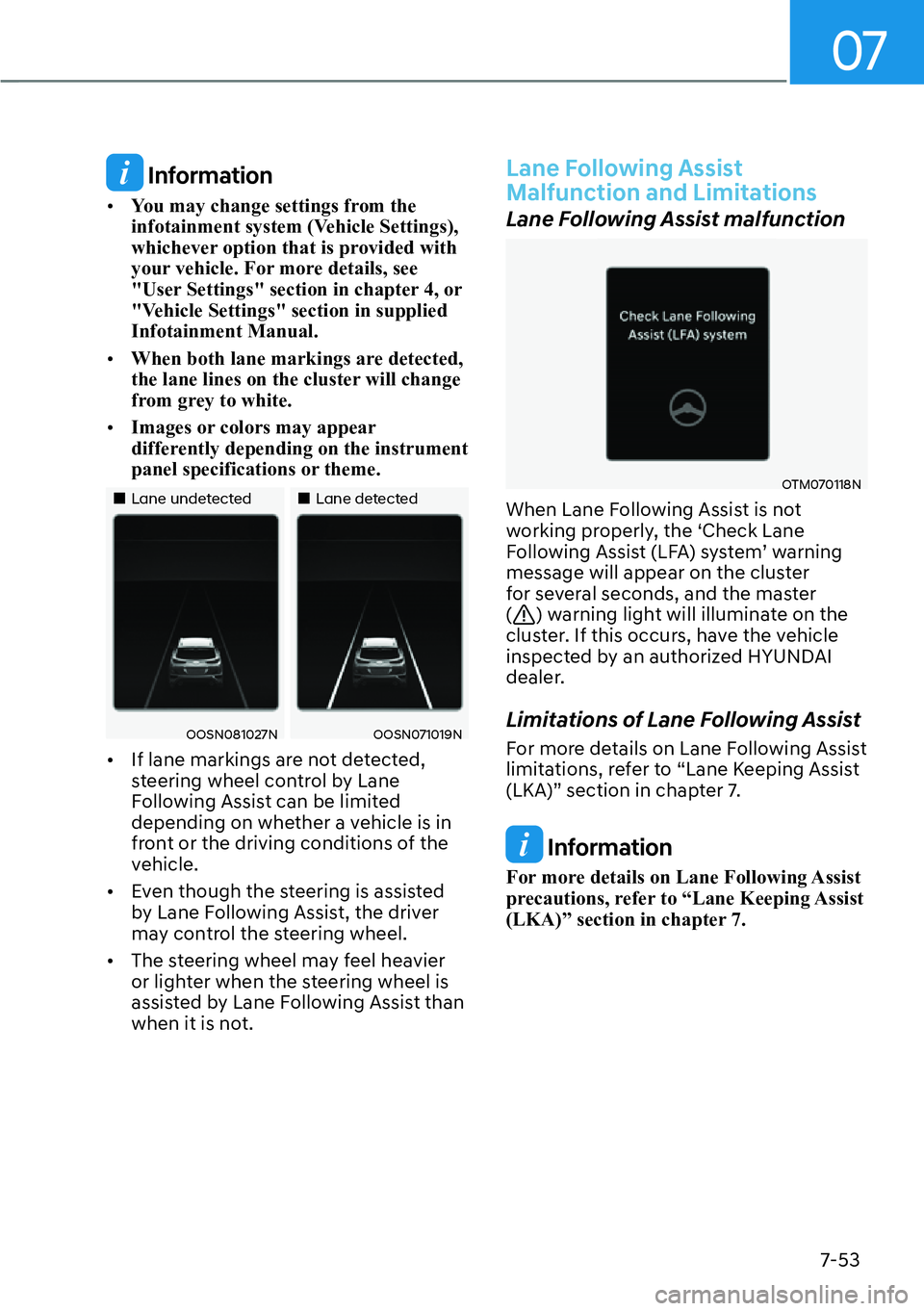

07
7-53
Information

[You may change settings from the
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"User Settings" section in chapter 4, or
"Vehicle Settings" section in supplied
Infotainment Manual.

[ When both lane markings are detected,
the lane lines on the cluster will change
from grey to white.

[ Images or colors may appear
differently depending on the instrument
panel specifications or theme.
„Lane undetected „Lane detected
OOSN081027NOOSN071019N

[If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is in
front or the driving conditions of the
vehicle.

[ Even though the steering is assisted
by Lane Following Assist, the driver
may control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
Lane Following Assist
Malfunction and Limitations
Lane Following Assist malfunction
OTM070118N
When Lane Following Assist is not
working properly, the ‘Check Lane
)ROORZLQJ$VVLVW/)$V\VWHP
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Limitations of Lane Following Assist
For more details on Lane Following Assist
limitations, refer to “Lane Keeping Assist
(LKA)” section in chapter 7.
Information
For more details on Lane Following Assist
precautions, refer to “Lane Keeping Assist
(LKA)” section in chapter 7.

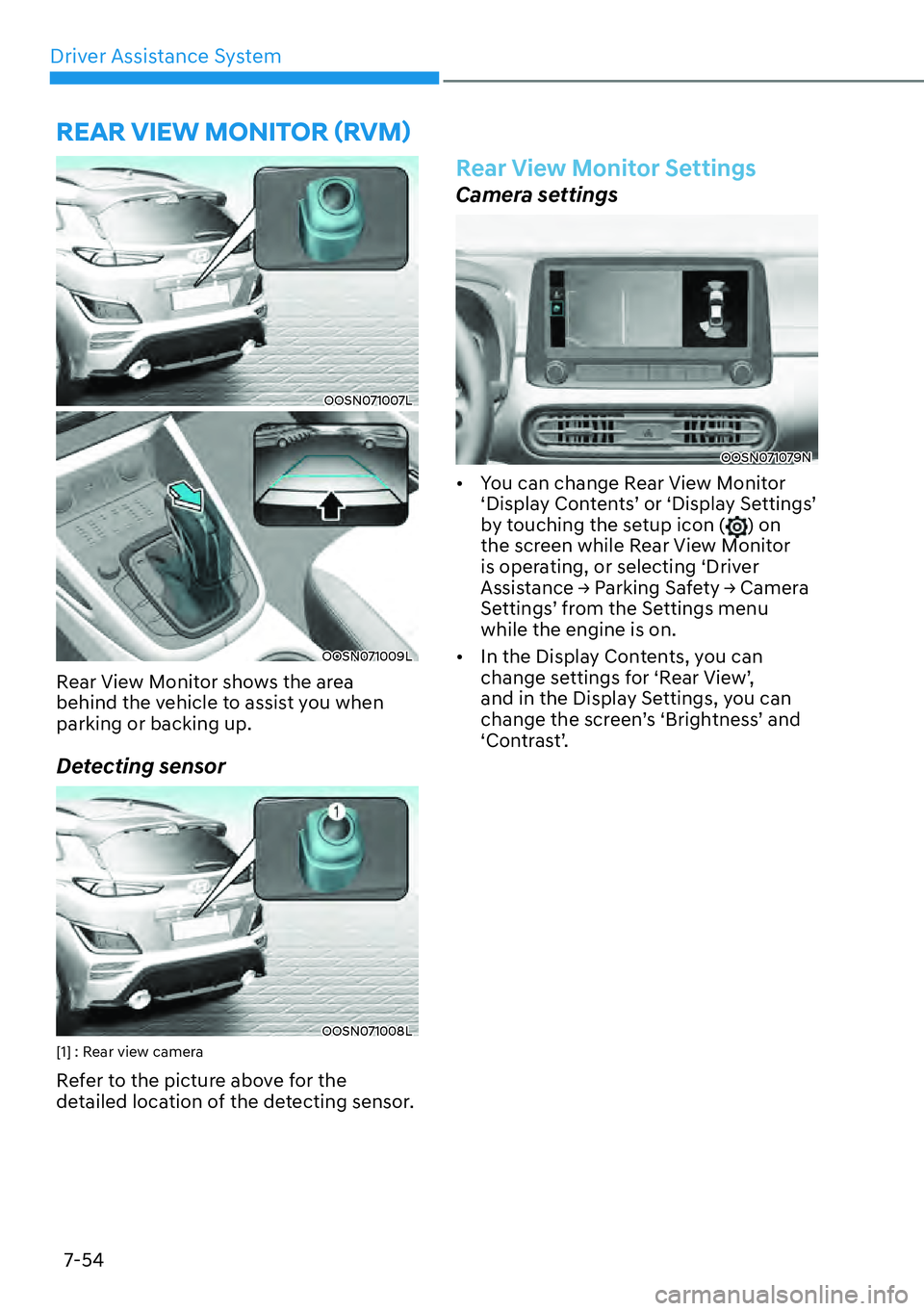

Driver Assistance System7-54
5($59,(:021,725

07
7-55

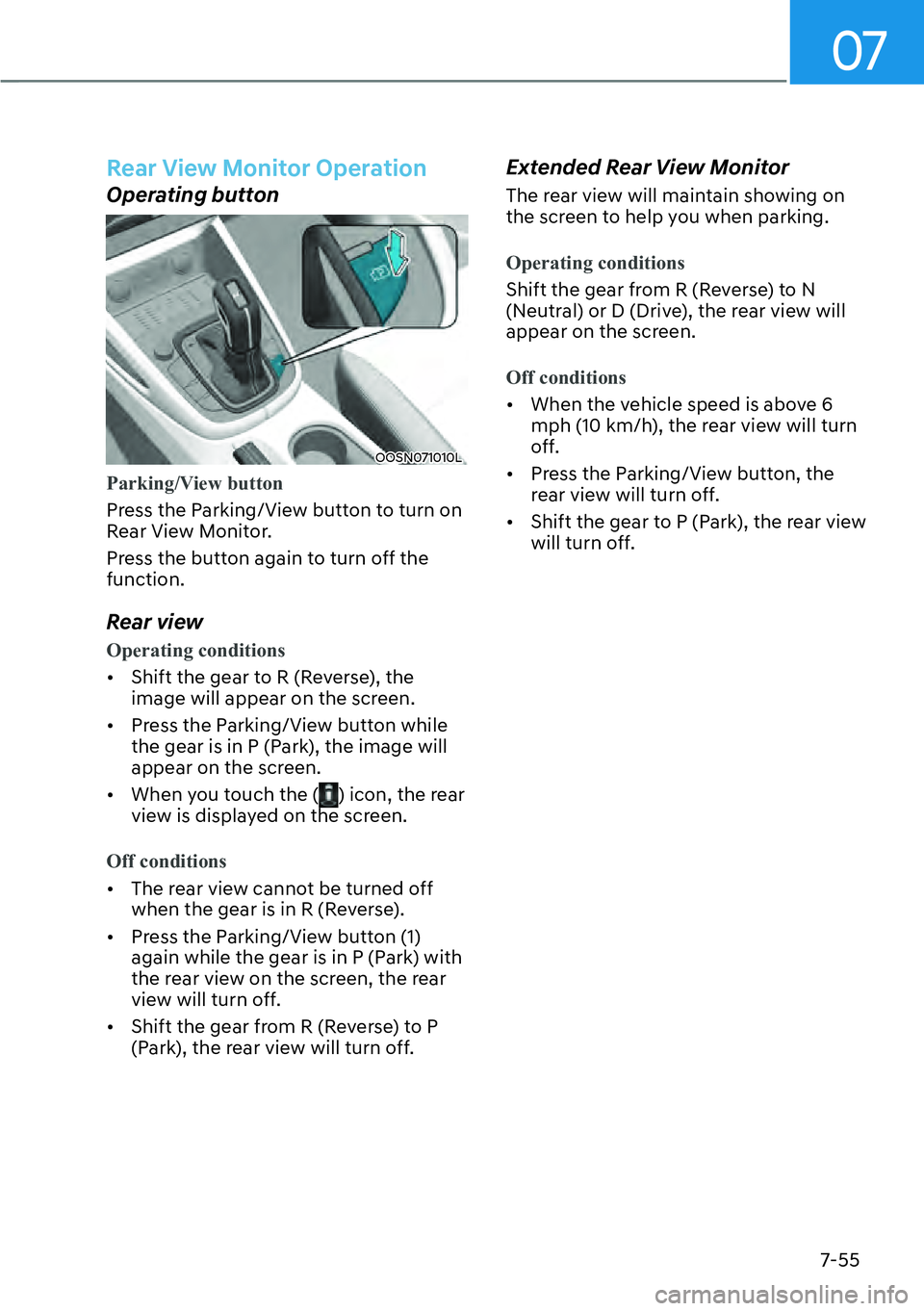

Rear View Monitor Operation
Operating button
OOSN071010L
Parking/View button
Press the Parking/View button to turn on
R
ear View Monitor.
Press the button again to turn off the
function.
Rear view
Operating conditions

[ Shift the gear t
o R (Reverse), the
image will appear on the screen.

[ Press the Parking/View button while
the gear is in P (Park), the image will
appear on the screen.

[ When you touch the (
) icon, the rear
view is displayed on the screen.
Off conditions

[ The r
ear view cannot be turned off
when the gear is in R (Reverse).

[ Press the Parking/View button (1)
again while the gear is in P (Park) with
the rear view on the screen, the rear
view will turn off.

[ Shift the gear from R (Reverse) to P
(Park), the rear view will turn off.
Extended Rear View Monitor
The rear view will maintain showing on
the screen to help you when parking.
Operating conditions
Shift the gear from R (Reverse) to N
(N

eutral) or D (Drive), the rear view will
appear on the screen.
Off conditions

[ When the v
ehicle speed is above 6
mph (10 km/h), the rear view will turn
off.

[ Press the Parking/View button, the
rear view will turn off.

[ Shift the gear to P (Park), the rear view
will turn off.

Driver Assistance System7-56

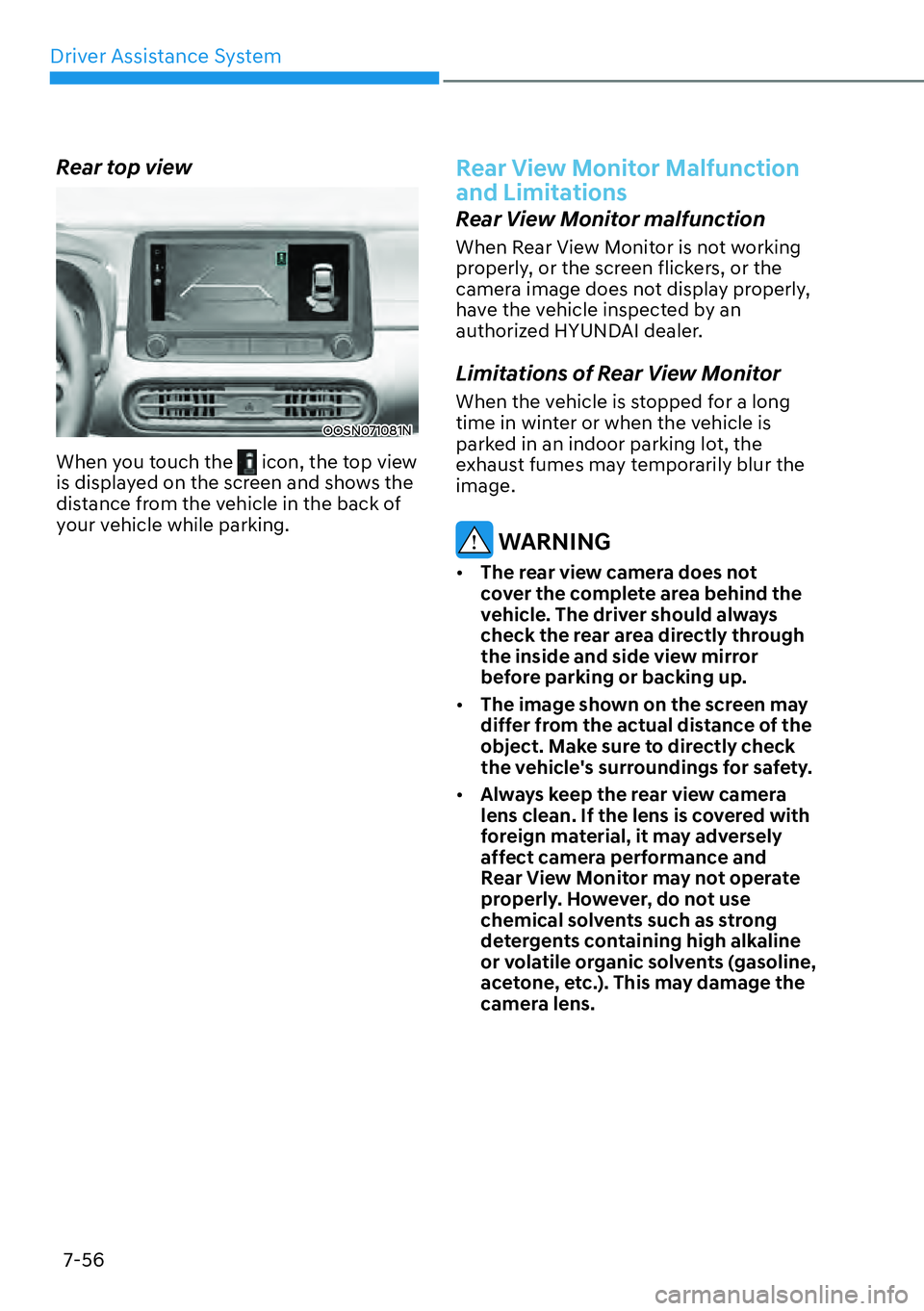

Rear top view
OOSN071081N
When you touch the icon, the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[ The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone, etc.). This may damage the
camera lens.

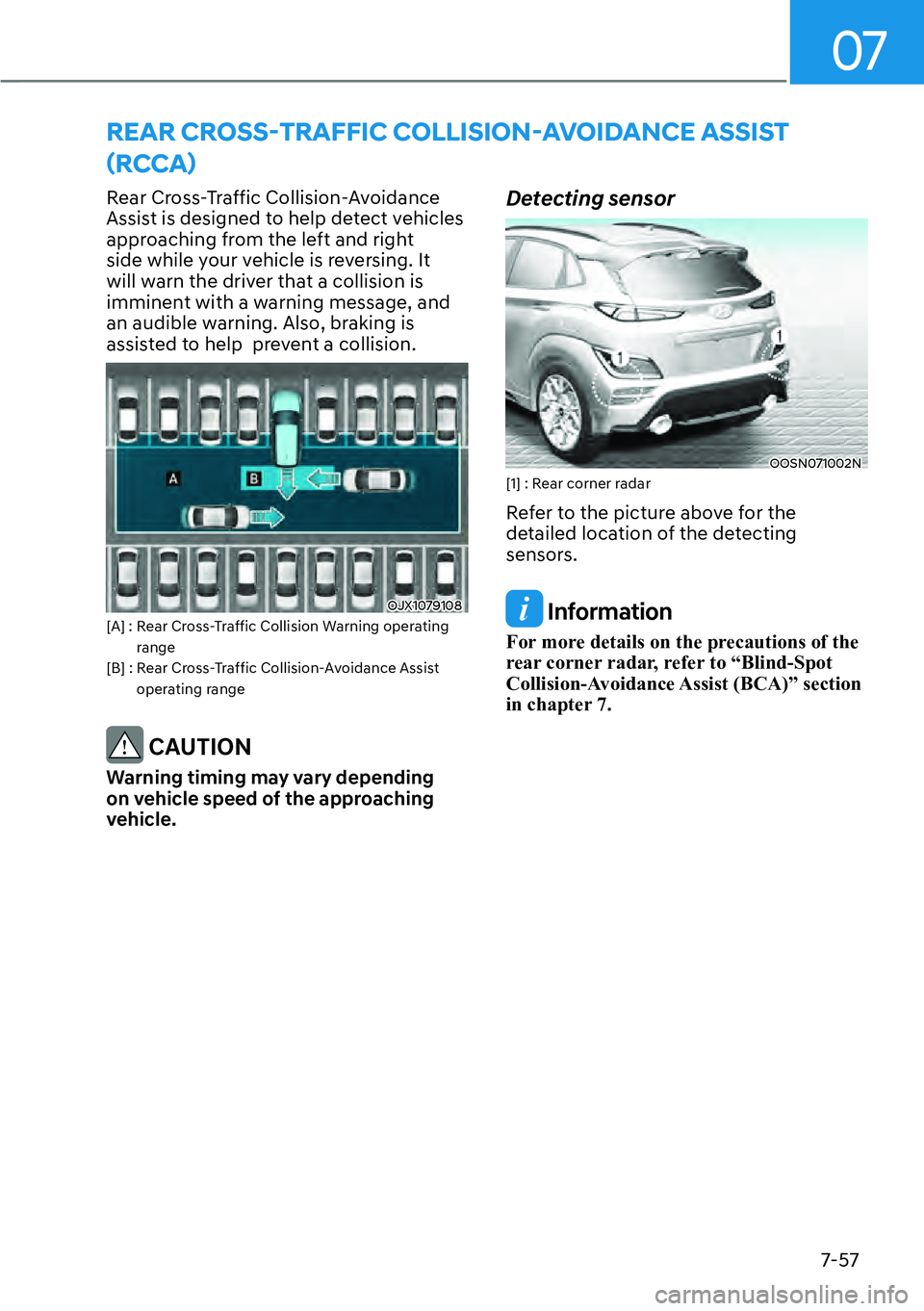

07
7-57
5($5&5266

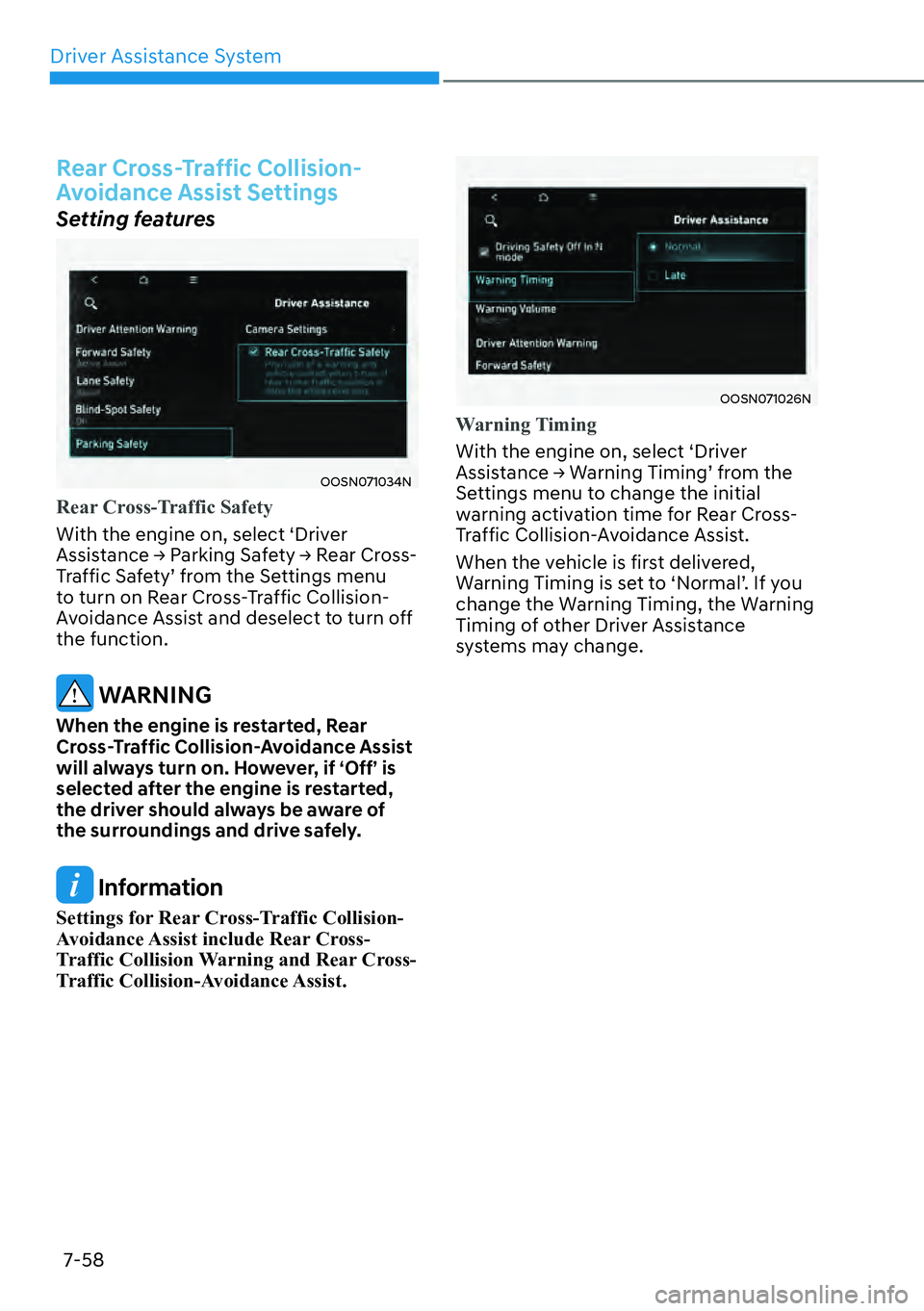

Driver Assistance System7-58
Rear Cross-Traffic Collision-
Avoidance Assist Settings
Setting features
OOSN071034N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$VVLV
WDQFH

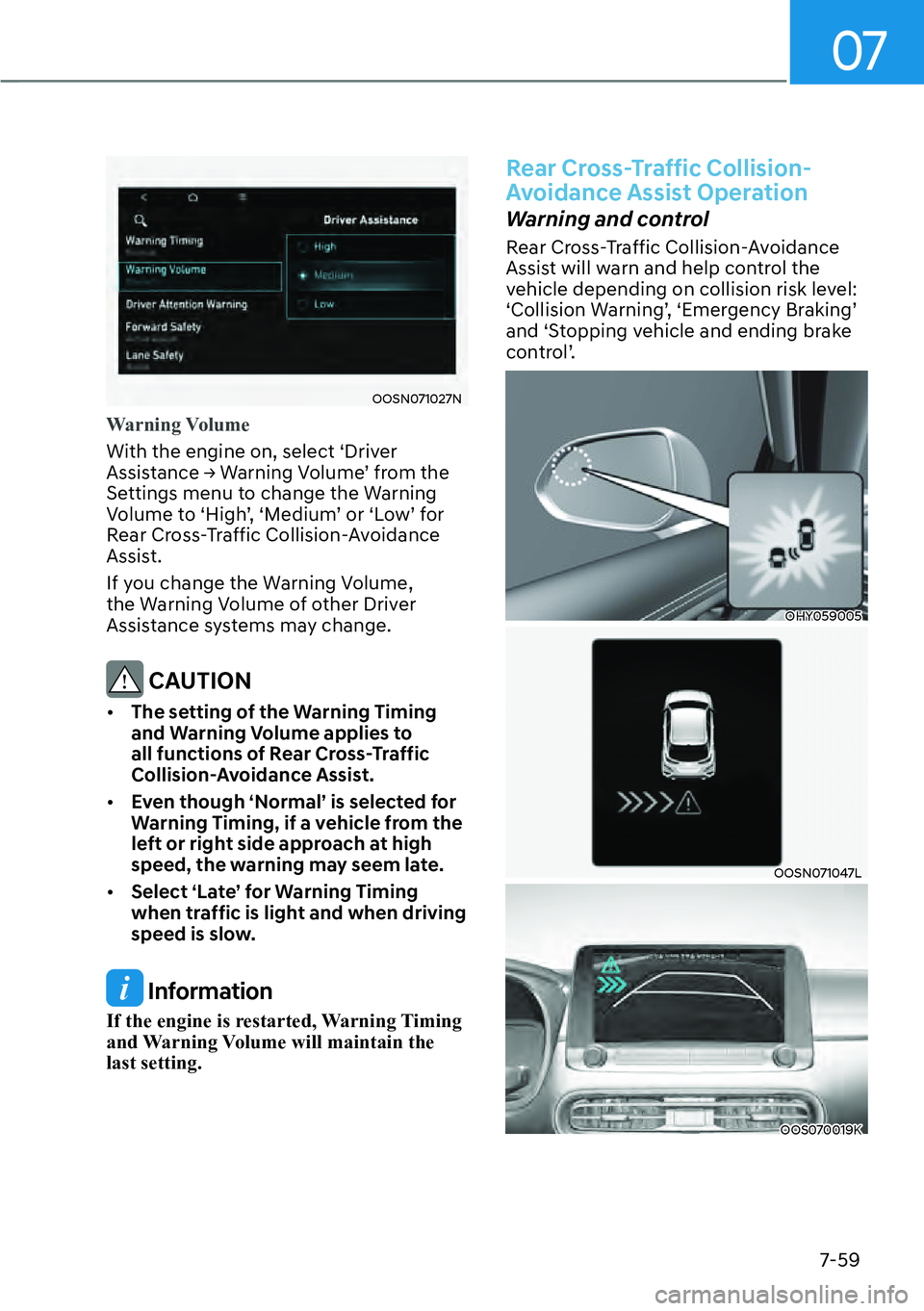

07
7-59
OOSN071027N
Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

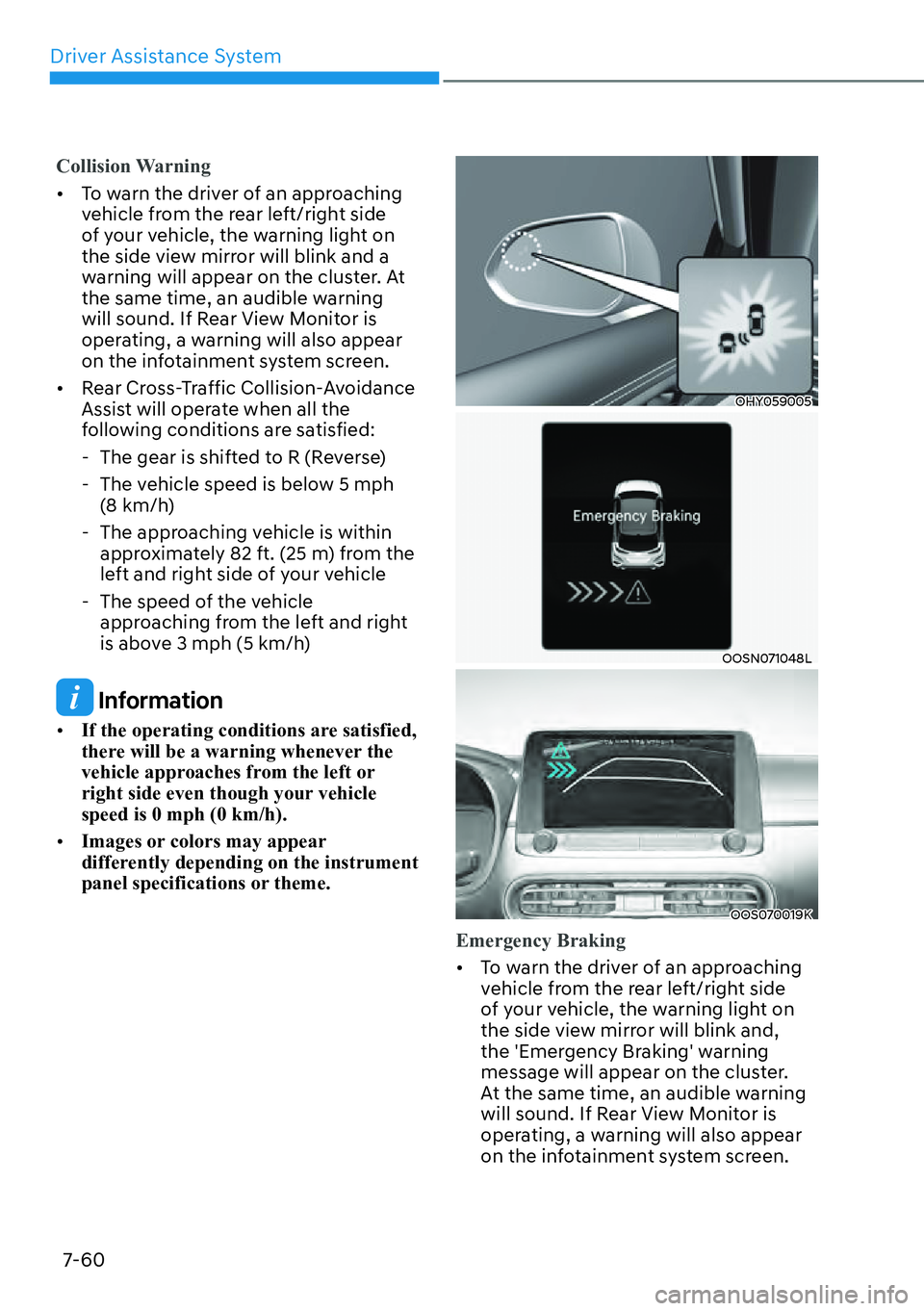

Driver Assistance System7-60
Collision Warning

[ T
o warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and a
warning will appear on the cluster. At
the same time, an audible warning
will sound. If Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.

[ Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)
Information

[ If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or
right side even though your vehicle
speed is 0 mph (0 km/h).

[ Images or colors may appear
differently depending on the instrument
panel specifications or theme.
OHY059005
OOSN071048L
OOS070019K
Emergency Braking

[T
o warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and,
the 'Emergency Braking' warning
message will appear on the cluster.
At the same time, an audible warning
will sound. If Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.
