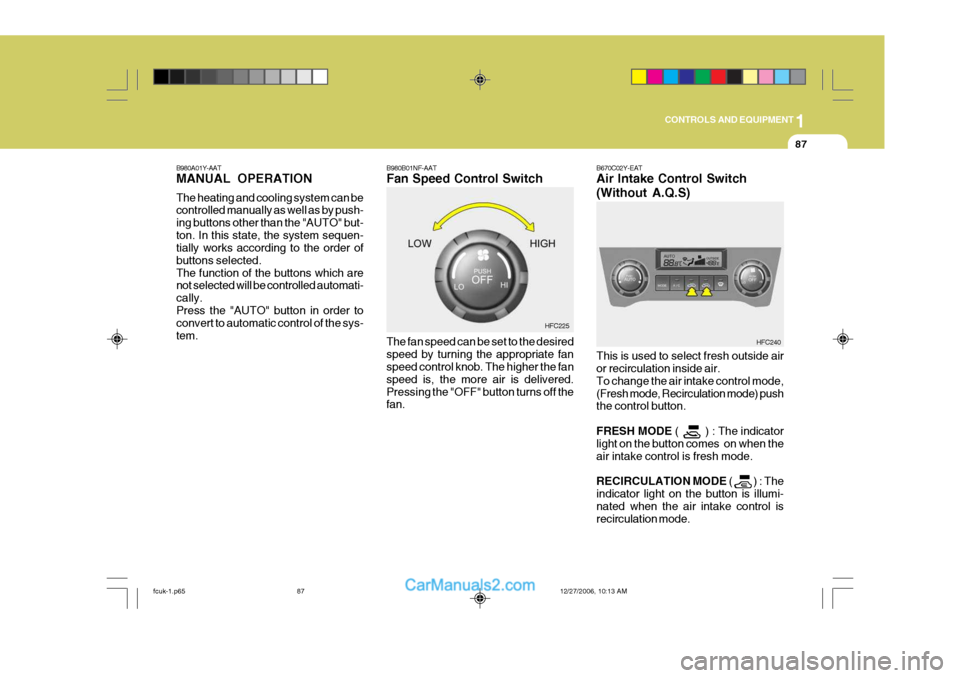

CONTROLS AND EQUIPMENT
87
B980B01NF-AAT Fan Speed Control Switch The fan speed can be set to the desired speed by turning the appropriate fan speed control knob. The higher the fan speed is, the more air is delivered.Pressing the "OFF" button turns off the fan. B670C02Y-EAT Air Intake Control Switch (Without A.Q.S) This is used to select fresh outside air or recirculation inside air. To change the air intake control mode,(Fresh mode, Recirculation mode) push the control button. FRESH MODE
( ) : The indicator
light on the button comes on when the air intake control is fresh mode. RECIRCULATION MODE ( ) : T h e
indicator light on the button is illumi- nated when the air intake control is recirculation mode. HFC240
HFC225
B980A01Y-AAT MANUAL OPERATION The heating and cooling system can be controlled manually as well as by push- ing buttons other than the "AUTO" but-ton. In this state, the system sequen- tially works according to the order of buttons selected.The function of the buttons which are not selected will be controlled automati- cally.Press the "AUTO" button in order to convert to automatic control of the sys- tem.
