Page 365 of 490

1CONTROLS AND EQUIPMENT
86
B970C01NF-EAT Automatic Operation The FATC (Full Automatic Tempera- ture Control) system automatically con- trols the heating and cooling by doing as follows:
1. Push the "AUTO" switch. The indi-
cator light will illuminate confirming that the Face, Floor and/or Bi-Level modes as well as the blower speed and air conditioner will be controlledautomatically. 2. Turn the "TEMP" knob to set the
desired temperature.The temperature will increase to the maximum 90°F(32°C) by turning the knob clockwise.The temperature will decrease to the minimum 62°F(17°C) by turning the knob counterclockwise.
NOTE:
o If the battery has been discharged or disconnected, the temperature mode will reset to Centigrade de- gree. This is a normal condition andyou can adjust the temperature mode from Centigrade to Fahren- heit as follows; Press the "OFF" and "AUTO" but-ton simultaneously for 3 seconds.The display shows that the unit of temperature is adjusted to Centi- grade or Fahrenheit.(°C
°F or °F
°C)
HFC227 HFC229
B970C01FC-D
Photo Sensor
o Never place anything covering the photo sensor which is located inthe car on the instrument panel toensure better control of the heat- ing and cooling system.
fcuk-1.p65 12/27/2006, 10:13 AM
86
Page 442 of 490

6 OWNER MAINTENANCE
14AIR CLEANER ELEMENT REPLACEMENT
G070A01E-EAT
HFC5003
Petrol engine
G070A02FC
Diesel engine
To replace the air cleaner element, remove the air intake ducting from theair flow sensor body and unfasten the spring clips holding the air flow sensor top to the body.
!
G050D02FC
6. Start the engine with the radiator cap still removed and continue to add coolant as the level decreases as air is expelled from the system.When the level remains constant, replace the radiator cap and replen- ish the coolant reservoir.
7. When the engine is hot, check to ensure that no coolant leaks arepresent. WARNING:
The cooling fan is controlled by
engine coolant temperature and maysometimes operate even when theengine is not running. Use extreme caution when working near the blades of the cooling fan so thatyou are not injured by a rotating fan blade. As the engine coolant tem- perature decreases, the fan will au-tomatically shut off. This is a nor- mal condition.
fcuk-6.p65 12/27/2006, 10:16 AM
14
Page 443 of 490

6
OWNER MAINTENANCE
15
!

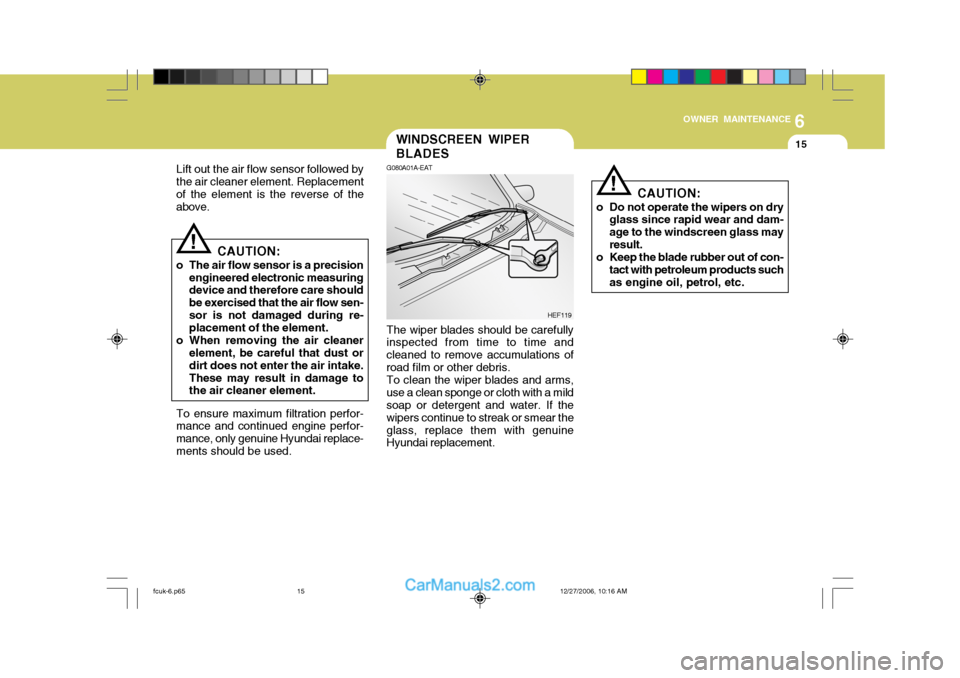

Lift out the air flow sensor followed by the air cleaner element. Replacementof the element is the reverse of the above.
CAUTION:
o The air flow sensor is a precision engineered electronic measuringdevice and therefore care should be exercised that the air flow sen-sor is not damaged during re- placement of the element.
o When removing the air cleaner element, be careful that dust or dirt does not enter the air intake.These may result in damage to the air cleaner element.
To ensure maximum filtration perfor-mance and continued engine perfor- mance, only genuine Hyundai replace-ments should be used.
WINDSCREEN WIPER BLADES
G080A01A-EAT The wiper blades should be carefully inspected from time to time and cleaned to remove accumulations ofroad film or other debris.To clean the wiper blades and arms,use a clean sponge or cloth with a mild soap or detergent and water. If the wipers continue to streak or smear theglass, replace them with genuine Hyundai replacement. HEF119
!
CAUTION:
o Do not operate the wipers on dry glass since rapid wear and dam- age to the windscreen glass mayresult.
o Keep the blade rubber out of con- tact with petroleum products suchas engine oil, petrol, etc.
fcuk-6.p65 12/27/2006, 10:16 AM
15
Page 466 of 490

6 OWNER MAINTENANCE
38FUSE PANEL DESCRIPTION
G200C03FC-EAT Engine Compartment (Petrol Engine)
G200C03FC
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
PROTECTED COMPONENTS Generator (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse Generator, Engine control relay, ECM Radiator fan relay Start relay, Ignition switch Blower relay Power window relay Condenser fan relay #1 ABS control module, ABS bleeding connector, ESP ABS control module, ABS bleeding connector, ESP Fuel pump relay Injector, lgnition coil MAP sensor, Oxygen sensor, CP sensor, Knock sensor, Throttle position sensor Audio, Room lamp, Overhead console lamp, lnstrument cluster DRL control module Horn relay A/C relay Front fog lamp relay ECM, TCM Tail lamp relay Left rear combi lamp, Left position lamp, Left License lamp Right rear combi lamp, Right position lamp, Right License lamp Left head lamp Right head lamp, (H/LP IND) Fuse
FUSE RATING
120A40A30A 20A 40A 40A 30A 20A 40A 40A 10A 15A 10A 10A 15A 10A 10A 15A 10A 20A 10A 10A 15A 15A
DESCRIPTION
ALT
B+
ECURAD IGN
BLR
P/WINCOND ABSABS
F/PUMP
INJ
SNSR
ROOM LP DRL
HORN
A/CON
FR FOG ECU
LP
TAIL LH
TAIL RH H/LP LH
H/LP RH
fcuk-6.p65 12/27/2006, 10:16 AM
38
Page 468 of 490

6 OWNER MAINTENANCE
40
ALTB+
ECU RAD IGN
BLR
P/WIN
COND
ABSABS
F/PUMP ECUECU
SNSR
ROOM LP DRL
HORN
A/CON
FR FOG
ECULP
TAIL LH
TAIL RH H/LP LH
H/LP RH
PTC HTR 1 GLOW
PTC HTR 2 FFHS
PTC HTR 3 PROTECTED COMPONENTS
Generator(A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse, DeicerGenerator, Engine control relay, ECMRadiator fan relayStart relay, Ignition switchBlower relay Power window relay Condenser fan relay #1ABS control module, ABS bleeding connector, ESPABS control module, ABS bleeding connector, ESPFuel pump relayECM No.5 (Batt+) ECM No.4 (Batt+), Stop lamp switch, PTC heater relay #1 Glow plug relay, Assistor heater relay 1/2, Stop lamp switch,TDC sensor, EGR act, Throttle plate act, VGT vacuumAudio, Room lamp, Overhead console lamp, lnstrument cluster, ETACM, Luggage lampDRL control moduleHorn relayA/C relay Front fog lamp relay ECM, TCMTail lamp relayLeft rear combi lamp, Left position lamp, Left License lampRight rear combi lamp, Right position lamp, Right License lampLeft head lamp Right head lamp, (H/LP IND) Fuse PTC heater relay #1GLOW relayPTC heater relay #2FFHS relayPTC heater relay #3
FUSE RATING
140A40A 30A 30A40A40A30A30A 40A 40A10A30A10A 15A 10A 15A 10A10A15A10A20A 10A 10A15A15A40A80A 40A 30A40A
FUSE
FUSIBLE DESCRIPTION
fcuk-6.p65
12/27/2006, 10:16 AM
40
Page 469 of 490

6
OWNER MAINTENANCE
41
G200D01FC-GAT
Inner Panel
G200D01FCDESCRIPTION
H/LP IND
HTD IND
A/CON
RR HTD STOP
D/LOCK
HAZARD AUDIO
C/LIGHT A/B
A/B IND
T/SIG
ECU
ETACS
RR WPR
START
FRT WPR S/HTD
P/OUTLET
IG2
O/S MRR
PROTECTED COMPONENTS Head lamp indicator Defogger relay, Left(Right) outside mirror motor,Rear window motorA/C SwitchDefogger relayStop lamp switch, Power window relay Door lock(unlock) relay, ETACM, Sunroof relay Burglar alarm relay, Hazard relayAudioCigarette lighterSRS control moduleSRS IND. Hazard switch, Seat belt timer, Instrument cluster, ABS control module, Pre-excitation resistor, Washer motorECM, Vehicle speed sensor, TCM, Ignition coilETACM, A/T Shift leverRear wiper motor, Rear wiper relayStart relay Wiper relay, Washer motor, Wiper & Defogger timer Left (Right) front seat warmer switchFront (Rear) power outletETACM, Power window relay, Defogger relay, Sunroof relayHead lamp relay, Blower relayOutside mirror switch, Rear fog lamp relay
FUSE RATING
10A 10A 10A 30A10A15A 10A 10A15A10A10A 10A 15A 10A10A 10A 20A15A25A 10A 10A
fcuk-6.p65 12/27/2006, 10:16 AM
41
