Hyundai Matrix 2007 Owner's Guide

1
FEATURES OF YOUR HYUNDAI
19
!
5. To secure the seat, hook the secur-
ing strap under the seat cushion to the headrest stay of front driver andpassenger seat.
6. Insert the removed headrests be-
tween the seatback and seat cush-ion, so that they will not be thrown forward in the case of a sudden stop or an accident.
7. To return the seatback and seat cushion to its normal position, re-verse the above procedure.
o When you return the seatback to its upright position, always be sure it islocked into position by pulling and pushing on the top of seatback.
4. Pull the seat cushion release lever
upward, then fold up the seat cush-ion.
CAUTION:
To prevent damage, ensure that therear drinkholder, located in the rear console, is closed before folding therear seatback and seat cushion.
! HFC2075
3. To fold down the seatback , push and
hold the seatback folding lever to- ward the headrest, then push down the seatback.
HFC2076
Seat cushion release lever Securing strap
WARNING:
o When you return the folded down seat back to its upright position, make sure the seat belts are inposition to be accessible and to function properly.
o The purpose of the fold down rear seat back and the fold forward rearseat cushion is to increase cargo space. Do not allow passengers tosit in the cargo area while the car is moving. This is not a proper seating position and no seat beltsare available for use when the seat back is folded down. Passengers who are not properly seated andwearing seat belts could sustain serious injuries or death in case of an accident or a sudden stop.
o Objects should not extend higher than the top of the front seatbacks.This could allow cargo to slideforward and cause injury or dam- age during sudden stops.

1FEATURES OF YOUR HYUNDAI
20
B100A02FC-GAT (If Installed) The seat warmer is provided to warm the front seats during cold weather. When the engine is running, push ei- ther of the switches to warm the driver'sseat or the passenger's seat. During mild weather or under condi- tions where the operation of the seatwarmer is not needed, keep the switches in the "OFF" position. B100A01FC
SEAT WARMER
!WARNING:
Be very careful not to injure by low temperature burn or an attack of fe- ver as following occupants; infants,children, old man, drunken man, people who is taken sleeping drug or cold remedy.
o When you return the folded down
seatback to its upright position,always be sure to install the head- rests in their proper positions. Headrests are important to thesafety of occupants in a rear colli- sion. If the headrests are not installed in their proper position,serious injury or death could re- sult if a rear end collision occurs. NOTE: The seat warmer will not operate if ambient temperature is warm enough.

1
FEATURES OF YOUR HYUNDAI
21
B140A02FC
B140A01B-GAT For the safety of all passengers, lug- gage or other cargo should not be piled higher than the top of the seatback. REAR SEAT WARNING
B150A02A-AAT SEAT BELT PRECAUTIONS All occupants of the vehicle should wear their seat belts at all times. In- deed, your province's laws may re- quire that some or all occupants of thevehicle use seat belts. The possibility of injury or the severity of injury in an accident will be de-creased if this elementary safety pre- caution is observed. In addition, follow the other instructions provided in thissection.
SEAT BELTS
B150C03A-AAT Larger Children Children who are too large for child restraint systems should always oc-cupy the rear seat and use the avail- able lap/shoulder belts. The lap por- tion should be fastened snug on thehips and as low as possible. Check belt fit periodically. A child's squirming could put the belt out of position. Chil-dren are afforded the most safety in the event of an accident when they are restrained by a proper restraint sys-tem in the rear seat. If a larger child (over age 13) must be seated in the front seat, the child should be securelyrestrained by the available lap/shoul- der belt and the seat should be placed in the rearmost position. Children un-der the age of 13 should be restrained securely in the rear seat. Never place a child under the age of 13 in the frontseat. NEVER place a rear facing child seat in the front seat of a vehicle.
B150B01Y-GAT Infant or Small Child Some countries require the use of child restraint systems for infants and small children. Whether this is requiredby law or not, it is strongly recom- mended that a child restraint seat or infant restraint system be used forinfants or small children weighing less than 18 kilograms (40 pounds). NOTE: Small children are best protected in an accident when properly restrainedby a child restraint system.

1FEATURES OF YOUR HYUNDAI
22

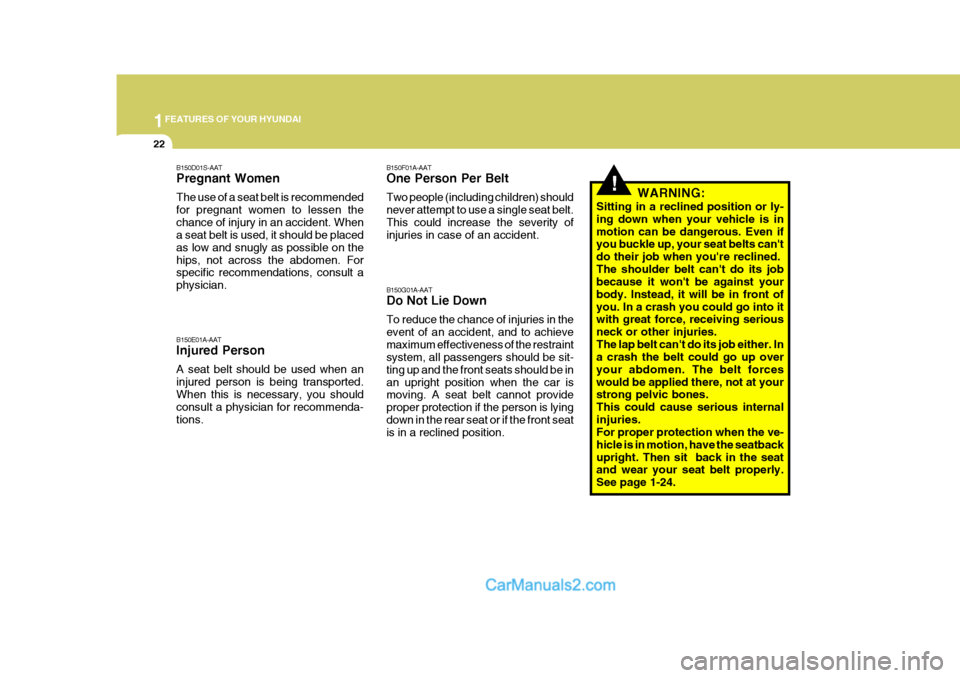

B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt.This could increase the severity of injuries in case of an accident. B150G01A-AAT Do Not Lie Down To reduce the chance of injuries in the event of an accident, and to achievemaximum effectiveness of the restraint system, all passengers should be sit- ting up and the front seats should be inan upright position when the car is moving. A seat belt cannot provide proper protection if the person is lyingdown in the rear seat or if the front seat is in a reclined position.
!WARNING:
Sitting in a reclined position or ly- ing down when your vehicle is inmotion can be dangerous. Even if you buckle up, your seat belts can't do their job when you're reclined.The shoulder belt can't do its job because it won't be against your body. Instead, it will be in front ofyou. In a crash you could go into it with great force, receiving serious neck or other injuries.The lap belt can't do its job either. In a crash the belt could go up over your abdomen. The belt forceswould be applied there, not at your strong pelvic bones. This could cause serious internalinjuries. For proper protection when the ve- hicle is in motion, have the seatbackupright. Then sit back in the seat and wear your seat belt properly. See page 1-24.
B150D01S-AAT Pregnant Women The use of a seat belt is recommended for pregnant women to lessen thechance of injury in an accident. When a seat belt is used, it should be placed as low and snugly as possible on thehips, not across the abdomen. For specific recommendations, consult a physician. B150E01A-AAT Injured Person A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommenda-tions.

1
FEATURES OF YOUR HYUNDAI
23

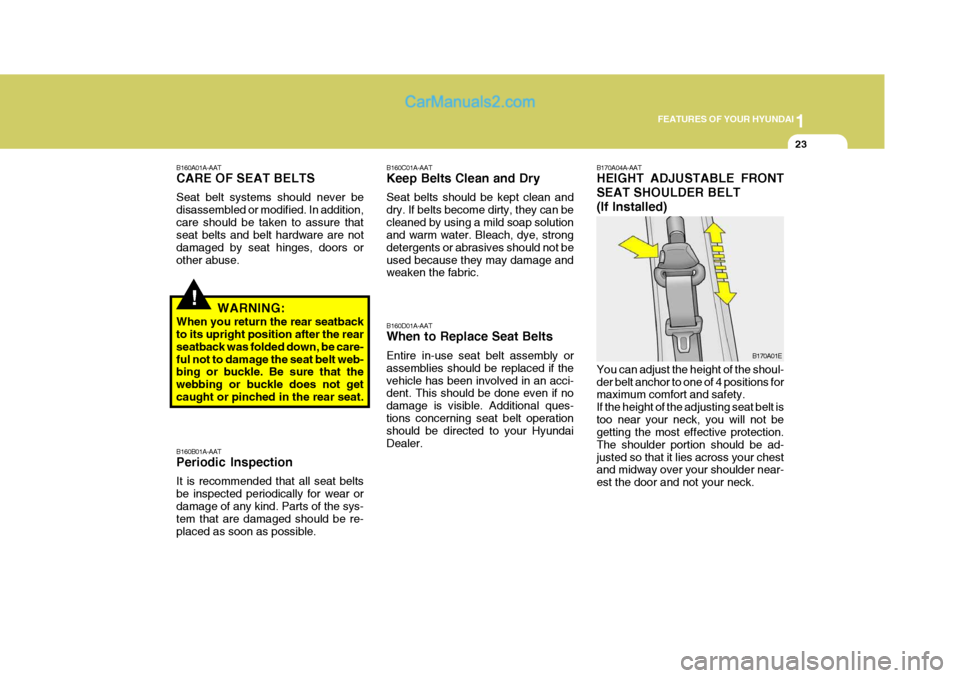

B160B01A-AAT Periodic Inspection It is recommended that all seat belts be inspected periodically for wear ordamage of any kind. Parts of the sys- tem that are damaged should be re- placed as soon as possible.
B160A01A-AAT CARE OF SEAT BELTS Seat belt systems should never be disassembled or modified. In addition,care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors orother abuse.
!WARNING:
When you return the rear seatback to its upright position after the rear seatback was folded down, be care- ful not to damage the seat belt web- bing or buckle. Be sure that the webbing or buckle does not getcaught or pinched in the rear seat. You can adjust the height of the shoul-der belt anchor to one of 4 positions for maximum comfort and safety. If the height of the adjusting seat belt istoo near your neck, you will not be getting the most effective protection. The shoulder portion should be ad-justed so that it lies across your chest and midway over your shoulder near- est the door and not your neck.B170A01E
B170A04A-AAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT(If Installed)
B160D01A-AAT When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if thevehicle has been involved in an acci- dent. This should be done even if no damage is visible. Additional ques-tions concerning seat belt operation should be directed to your Hyundai Dealer.
B160C01A-AAT Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can becleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not beused because they may damage and weaken the fabric.

1FEATURES OF YOUR HYUNDAI
24
B180A03Y-GAT SEAT BELTS Driver's and passenger's 3-PointSystem with Webbing ClampLocking Retractor (If installed)To Fasten Your Belt To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible"click" when the tab locks into the buckle. The seat belt automatically adjusts tothe proper length only after the lap belt is adjusted manually so that it fits snugly around your hips. If you leanforward in a slow, easy motion, the belt will extend and let you move around. B180A02A-GAT SEAT BELTS 3-Point System with Emergency Locking Retractor (If installed) To Fasten Your Belt
B180A01L
B180A01L If there is a sudden stop or impact, however, the belt will lock into position.It will also lock if you try to lean forward too quickly. Check to make sure that the belt is properly locked and that thebelt is not twisted.
!
To adjust the height of the seat belt anchor, lower or raise the height ad-juster into an appropriate position. To raise the height adjuster, pull it up. To lower it, push it down while pressingthe height adjuster button. Release the button to lock the anchor into position. Try sliding the heightadjuster to make sure that it has locked into position.
WARNING:
o The height adjuster must be in the locked position when thevehicle is moving.
o The misadjustment of height of
the shoulder belt could reducethe effectiveness of the seat belt in a crash.
To fasten your seat belt, pull it out of theretractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into thebuckle.

1
FEATURES OF YOUR HYUNDAI
25
The seat belt automatically adjusts to the proper length only after the lap beltis adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the beltwill extend and let you move around. If there is a sudden stop or impact, how- ever, the belt will lock into position. Itwill also lock if you try to lean forward too quickly. Check to make sure that the belt is properly locked and that thebelt is not twisted. B200A01S-GAT Adjusting Your Seat Belt
B200A01L
You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high on your body, you could slide under it incase of accident or a sudden stop. This could result of death, serious in- jury or property damage. Both armsshould not be under or over the belt. Rather, one should be over and the other under, as shown in the illustra-tion. Never wear the seat belt under the arm nearest to the door.B210A01A-AAT To Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle.When it is released, the belt should automatically draw back into the re- tractor.If this does not happen, check the belt to be sure it is not twisted, then try again. B210A01L

1FEATURES OF YOUR HYUNDAI
26
!
B220C01FC
B220C01A-AAT To Release the Seat Belt
When you want to release the seat belt, press the button in the locking buckle. WARNING:
The center lap belt latching mecha- nism is different from those for therear seat shoulder belts. When fas- tening the rear seat shoulder belts or the center lap belt, make surethey are inserted into the correct buckles to obtain maximum protec- tion from the seat belt system andassure proper operation.
B220B01A-AAT Adjusting Your Seat Belt With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly around your body. Fasten the belt and pull on the loose end totighten. The belt should be placed as low as possible on your hips, not on your waist. If the belt is too high, itcould increase the possibility of your being injured in an accident. Shorten
HTB226Too high
CorrectB220A01A-AAT SEAT BELTS 2-Point Static Type(Rear Seat Center) (If Installed)To Fasten Your Seat Belt To fasten a 2-point static type belt, insert the metal tab into the lockingbuckle. There will be an audible "click" when the tab locks into the buckle. Check to make sure the belt is properlylocked and that the belt is not twisted. HFC2085

1
FEATURES OF YOUR HYUNDAI
27
!
B220A01FC-GAT SEAT BELTS - Center Rear Seat 3-Point System With EmergencyLocking Retractor (If installed)
1. Before fastening the rear seat center
belt, confirm the metal tab (a) and buckle (b) are latched together.
2. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c)into the buckle (d). There will be an audible "click" when thetab locks in the buckle. The seat beltautomatically adjusts to the proper length only after the lap belt is adjusted manu- ally so that it fits snugly around yourhips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stopor impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.
WARNING:
o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in-crease the chance of injury in the event of collision.
o Never unlock the metal tab (a)
and the buckle (b) with the fol-lowing exceptions.(1)In case of folding rear
seatbacks down.
(2)If transporting an object on
the rear seat may cause dam- age to the rear seat center belt.
o Lock the metal tab (a) and the
buckle (b) immediately after fold-ing rear seatbacks up.
B220A01FC
B220A02Y-D

1FEATURES OF YOUR HYUNDAI
28CHILD RESTRAINT SYSTEM
B230A03A-GAT (If Installed) Children riding in the car should sit in the rear seat and must always beproperly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. Accordingto accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Largerchildren not in a child restraint should use one of the seat belts provided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Children could be injured or killed in a crash if their restraints are not properly secured. For small children and ba-bies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits yourcar and seat belts, and fits your child. Follow all the instructions provided by the manufacturer when installing thechild restraint system.
!WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger side airbag to deploy, it could severely in-jure or kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in therear seat of your vehicle.
o Since a safety belt or child re-
straint system can become veryhot if it is left in a closed vehicle, be sure to check the seat cover and buckles before placing achild there.
o When the child restraint system
is not in use, fasten it with asafety belt so that it will not be thrown forward in the case of a sudden stop or an accident.
!
B220C02FC
B220C01Y-GAY To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle.
WARNING:
The center belt latching mechanism is different from those for the rear seat shoulder belts. When fasten-ing the rear seat shoulder belts or the rear seat center belt, make sure they are inserted into the correctbuckles to obtain maximum protec- tion from the seat belt system and assure proper operation.
