ECO mode Hyundai Matrix 2007 Owner's Guide

1
CONTROLS AND EQUIPMENT
45
!
SB210L2-E
Parking Brake/Low Brake Fluid Level Warning Light WARNING:
In the event of problems being sus- pected with the braking system, the advice of the nearest Hyundai authorised repairer must be soughtbefore the vehicle is driven. Driving the vehicle with either an electrical or hydraulic braking system defectmay be dangerous, resulting in acci- dent or personal injury. Warning light operation The parking brake/low brake fluid level warning light will be illuminated when-ever the ignition switch is turned to the "ON" position irrespective of whether or not the parking brake is applied andmust be extinguished when the engine starts and the parking brake released. If the warning light fails to extinguish orilluminates at any other time, the ve- hicle must be brought to rest in a safe location and the level of brake fluid inthe reservoir checked. If the fluid level is incorrect, fluid con- forming to DOT 3 or DOT 4 specifica-tions should be added. If, after correct- ing the brake fluid level, the warning light continues to be illuminated, theadvice of the nearest Hyundai authorised repairer must be sought before the ve- hicle is driven again.The Hyundai Matrix is equipped with a diagonally split dual braking system which will ensure that in the event ofone of the brake circuits becoming defective, approximately fifty per cent of the normal braking performance willbe available.
SB210E1-E
Overdrive Off Indicator
Light (Not all models)
When the overdrive (4th gear) switch is turned off and the operation of overdrive(4th gear) is cancelled, the overdrive warning light (O/D OFF) will be illumi- nated. When the switch is at the onposition, the gearbox will operate in the normal fully automatic mode and the warning light will be extinguished. If failure of one of the circuits occurs,the required amount of pedal effort,pedal travel and stopping distance will be increased. Use of the gearbox is recommended to assist in bringing thevehicle to rest. The vehicle must not be driven once brake failure has occurred until the system has been repaired andis functioning normally. The braking system employs a vacuum servo in order that the pedal efforts arereduced. Power for the servo is derived from the engine and therefore, in the event of the engine stopping or thevehicle being towed, pedal efforts will be substantially increased.
fcuk-1.p65
12/27/2006, 10:12 AM
45

1
CONTROLS AND EQUIPMENT
47
Under normal circumstances, the light will illuminate when the ignition is turned"on" and will be extinguished when the engine is started. If the oil pressure warning light illumi-nates whilst the engine is running, stop the engine immediately and check the engine oil level. If the level is insuffi-cient, add the required amount of oil as indicated by the engine oil dipstick. If the light fails to extinguish when theengine is restarted, do not continue to operate the vehicle. If the oil pressure light illuminates dur-ing normal operation and the cause is not an insufficient oil level, or the light fails to illuminate when the ignition isturned "on", contact the nearest Hyundai authorised repairer before further oper- ating the vehicle. B260N02FC-EAT
Malfunction Indicator
Light
This light illuminates when there is amalfunction of an exhaust gas relatedcomponent, and the system is not func- tioning properly so that the exhaust gas regulation values are not satisfied. Thislight will illuminate when the ignition key is tuned to the "ON" position, and then it will go out after the engine start. If itilluminates whilst driving, or does not illuminate when the ignition key is turned to the "ON" position, take your car toyour nearest Hyundai authorised re- pairer and have the system checked.
!
B260P02Y-EAT ABS Service Reminder Indicator (SRI)(Not all models)
When the key is turned to the "ON" position, the Anti-Lock Brake System SRI will come on and then go off in a approximately seconds. If the ABS SRI remains on, comes on whilst driving, or does not come on when the key is turned to the "ON" position, this indi- cates that there may be a problem with the ABS. If this occurs, have your vehicle checked by your Hyundai authorised repairer as soon as possible. The nor- mal braking system will still be opera- tional, but without the assistance of the anti-lock brake system.
CAUTION:
If the both ABS SRI and Parking Brake/Brake fluid level warning lights re- main "ON" or come on whilst driving,there may be a problem with E.B.D.
(Electronic Brake Force Distribution). If this occurs, avoid sudden stopsand have your vehicle checked by your Hyundai authorised repairer as soon as possible.
fcuk-1.p65 12/27/2006, 10:12 AM
47

1CONTROLS AND EQUIPMENT
48
B270B02O-EAT PARKING START WARNING SOUND (Not all models) If the vehicle is driven at 6mph(10km/h) for more than 2~3 seconds, the warning chime will sound continuously when theparking brake engaged.
B900A01A-EAT ACOUSTIC WARNING SOUND (Not all models) The acoustic warning chime sounds when the tail lights are on and the door in driver side is open. This prevents thebattery from discharging when the car is left with the tail lights on. The chime sounds until the tail lights are turned off.
B260S01B-GAT
Diesel Pre-heat Indicator Light(Diesel Engine)
The indicator light illuminates amber when the ignition switch is placed at the "ON" position. The engine can be startedafter the pre-heat indicator light goes off. The illuminating time varies with the water temperature, air temperature andbattery condition. NOTE: If the engine were not started 10 seconds after the preheating is com- pleted, turn the ignition key oncemore to the "LOCK" position, and then to the "ON" position, in order to preheat again.
B265A01FC-EAT Fuel Filter Warning Light (Diesel Engine)
This light illuminates when the engine has started and goes off after a approxi-mately seconds. If it lights up whilst the engine is running, it indicates that water has accumulated inside the fuel filter. Ifthis happens, remove the water from the fuel filter. (Refer to "6-32 page")
fcuk-1.p65 12/27/2006, 10:12 AM
48

1CONTROLS AND EQUIPMENT
52
2,3 Trip odometer Records the distance of 2 trips in miles. TRIP A: First distance you have traveled from your originationpoint to a first destination.
TRIP B: Second distance from thefirst destination to the finaldestination.
To shift from TRIP A to TRIP B, pressthe reset switch. When pressed for 1second, it will reset to 0.TRIP COMPUTER
B400B01FC-EAT (Not all models) The trip computer is the microcom- puter-controlled driver information gauge that displays information related to driv-ing, such as distance to empty, aver- age speed and drive time on the LCD. DISTANCE TO EMPTY
AVERAGE SPEED DRIVE TIME
B310B02FC Reset switch
o The reset switch is used to zero the
multi-functional display mode.
o Pushing in the reset switch changes the display as follows;
Reset switch
fcuk-1.p65 12/27/2006, 10:12 AM
52

1
CONTROLS AND EQUIPMENT
53
1. Distance to empty
HFC2052
o This mode indicates the estimated distance to empty from the current fuel in the fuel tank and distance to empty symbol.
o When refueling with more than 6.3 quarts, the trip computer will recog-nize refueling.
o When the battery has been rein- stalled after being discharged or dis-connected, drive more than 20 miles for an accurate distance to empty.
B400B02FC
HFC2054
NOTE:
o If the distance to empty is indi-
cated "- -", have the trip computer system checked by your Hyundaiauthorised repairer.
o The distance to empty can differ
from the actual tripmeter accord-ing to driving conditions.
o The distance to empty can vary
according to the driving condi-tions, driving pattern or vehicle speed.
2. Average speed
o This mode indicates the average speed travelled since the last aver- age speed reset. o Pressing the reset switch for more
than 1 second, when the averagespeed is being displayed, clears the average speed to zero.
3. Drive time
o This mode indicates the drive time travelled since the last drive time reset.
o Pressing the reset switch for more than 1 second, when the drive time isbeing displayed, clears the drive timeto zero.
Distance to empty symbol
Distance to empty (mile)Average speed symbol Average speed (mph)
Drive time symbol
Drive time
fcuk-1.p65 12/27/2006, 10:12 AM
53

1CONTROLS AND EQUIPMENT
58
B360A01Y-GAT Rear Fog Light Switch To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi- tion and the key is in the "ON" position.
B360A01FC-D
NOTE: The engine must be running for the rear window defroster to operate.
!
B360B01FC-EAT Front Fog Light Switch (Not all models)
B360B01FC-D
To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch is in the first or second position.
CAUTION:
The inside of the rear windscreenshould never be cleaned with a hardor sharp implement since damage to the heating element may occur. The glass should only be cleaned with asoft cloth or chamois leather with the use only of a mild detergent or pro- prietary glass cleaner where neces-sary. Only horizontal movement of the cloth should be made when clean- ing the glass and care should beexercised to ensure that the heating elements are not damaged by rings or jewellery whilst the glass is beingcleaned. FOG LIGHT SWITCH
fcuk-1.p65
12/27/2006, 10:12 AM
58

1CONTROLS AND EQUIPMENT
74ROOF RACK
34 kg (75 lb)
EVENLY DISTRBUTED
ROOF RACK
o Loading cargo or luggage above
34 kg (75 lb) on the roof rack may damage your vehicle.When you carry large objects, never let them hang over the rear or the sides of your vehicle.
o To prevent damage or loss of cargo as you are driving, check fre-quently to make sure the luggagecarrier and cargo are still securely fastened.
o Always drive your vehicle at a moderate speed.
o To use the roof rails as a roof rack,
you must fit the roof rails with two or more crossrails or equivalent before carrying cargo or lugguage on the roof.
o When crossrail is adapted, you can load items on the roof rack.
o Loading cargo or luggage over specification on the roof rack may damage stability of your vehicle.
o In case the sunroof is equipped, do not position roof rack loadsthat could interfere with opening of the sunroof.
B650A01FC-EAT Nothing should be carried on top of the luggage cover. Loose materials couldresult in injury to vehicle occupants during sudden braking. B640A02FC
CARGO AREA COVERB630A03FC-EAT (Not all models) If your Hyundai has a roof rack, you can load things on top of your vehicle. Crossrails and fixing components to adapt the roof rack on your vehicle maybe obtained from an Hyundai authorised repairer.
CAUTION:
o The following specifications are recommended when loading cargo or luggage.
! HFC2106
fcuk-1.p65
12/27/2006, 10:12 AM
74

1CONTROLS AND EQUIPMENT
80HEATING CONTROLS
B690A02S-AAT
With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating in "Recir- culation" mode will increase fog- ging of the windscreen and sidewindows and the air within the passenger compartment will be- come stale. In addition, prolongeduse of the air conditioning with the "Recirculation" mode selected may result in the air within thepassenger compartment becom- ing excessively dry.
o When the ignition switch is turned
"ON" the air intake control willchange to (
) mode (regardless
of switch position). This is normal operation.
B690A02FC
For normal heating operation, set the air intake control to the "Fresh" position and the air flow control to "Floor". For faster heating, the air intake control should be in the "Recirculation" posi- tion. If the windows fog up, move the air flow control to the "Def" (defroster) position.(The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, rotate the tempera- ture control to "Warm".
B670C02FC-EAT Air Intake Control This is used to select fresh outside air or recirculation inside air. To change the air intake control mode, (Fresh mode, Recirculation mode) pushthe control button. FRESH MODE (
)
: The indicator
light on the button goes off when the air intake control is in fresh mode. RECIRCULATION MODE (
) : The
indicator light on the button is illuminat- ed when the air intake control is inrecirculation mode.
HFC2067
fcuk-1.p65 12/27/2006, 10:13 AM
80

1CONTROLS AND EQUIPMENT
86
B970C01NF-EAT Automatic Operation The FATC (Full Automatic Tempera- ture Control) system automatically con- trols the heating and cooling by doing as follows:
1. Push the "AUTO" switch. The indi-
cator light will illuminate confirming that the Face, Floor and/or Bi-Level modes as well as the blower speed and air conditioner will be controlledautomatically. 2. Turn the "TEMP" knob to set the
desired temperature.The temperature will increase to the maximum 90°F(32°C) by turning the knob clockwise.The temperature will decrease to the minimum 62°F(17°C) by turning the knob counterclockwise.
NOTE:
o If the battery has been discharged or disconnected, the temperature mode will reset to Centigrade de- gree. This is a normal condition andyou can adjust the temperature mode from Centigrade to Fahren- heit as follows; Press the "OFF" and "AUTO" but-ton simultaneously for 3 seconds.The display shows that the unit of temperature is adjusted to Centi- grade or Fahrenheit.(°C


°F or °F


°C)
HFC227 HFC229
B970C01FC-D
Photo Sensor
o Never place anything covering the photo sensor which is located inthe car on the instrument panel toensure better control of the heat- ing and cooling system.
fcuk-1.p65 12/27/2006, 10:13 AM
86

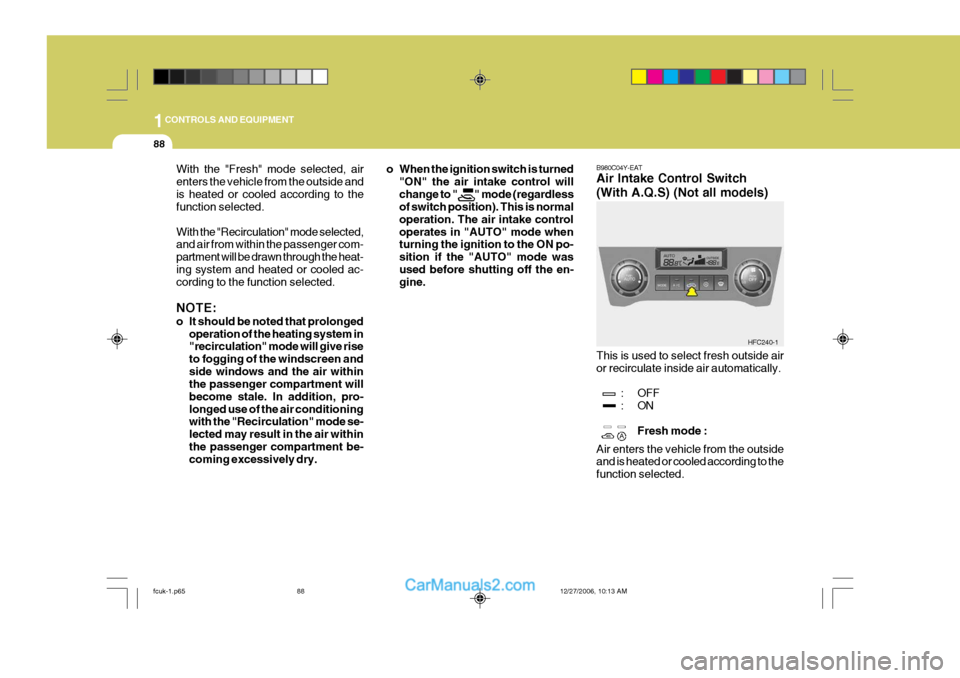

1CONTROLS AND EQUIPMENT
88
B980C04Y-EAT Air Intake Control Switch (With A.Q.S) (Not all models) This is used to select fresh outside air or recirculate inside air automatically.
: OFF
:ONFresh mode :
Air enters the vehicle from the outside and is heated or cooled according to the function selected.
HFC240-1
With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, and air from within the passenger com- partment will be drawn through the heat-ing system and heated or cooled ac- cording to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating system in "recirculation" mode will give rise to fogging of the windscreen andside windows and the air within the passenger compartment will become stale. In addition, pro-longed use of the air conditioning with the "Recirculation" mode se- lected may result in the air withinthe passenger compartment be- coming excessively dry. o When the ignition switch is turned
"ON" the air intake control will change to " " mode (regardless of switch position). This is normal operation. The air intake controloperates in "AUTO" mode when turning the ignition to the ON po- sition if the "AUTO" mode wasused before shutting off the en- gine.
fcuk-1.p65 12/27/2006, 10:13 AM
88
